Ladder Leveler

MODEL: DX-4000 \ DX-5000

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: DX-4000 \ DX-5000

Mechanical device with two transparent rods and a black base, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

• It works indoors and out, use it on uneven ground, roof tops, and building materials & ladders, ladder-accessories.
• For use only on firm surfaces.

Not intended for use on slippery surfaces.

Part List
No.	Name	Picture	QTY.
1	Support Rod Assembly		2
2	Foot Pad		2
3	Screw M6*55		8
4	Washer		8
5	Nut		8

Model	Max Load (lbs)	Adjusting Length (inch)
DX-4000	550	9.84
DX-5000	550	13.78

Product Assembly

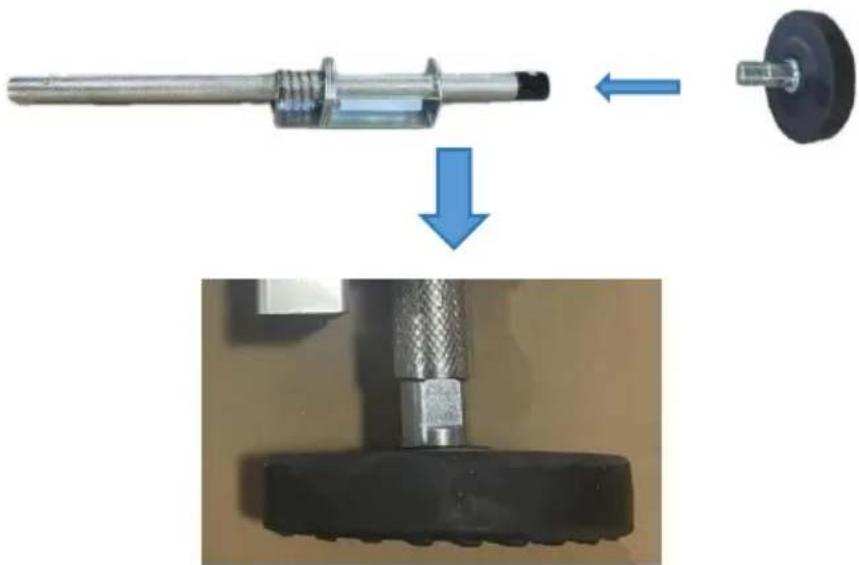

Step 1: Install foot pad.

Mechanical assembly diagram showing a shaft being inserted into a wheel, with a close-up view of the base component (no text or symbols)

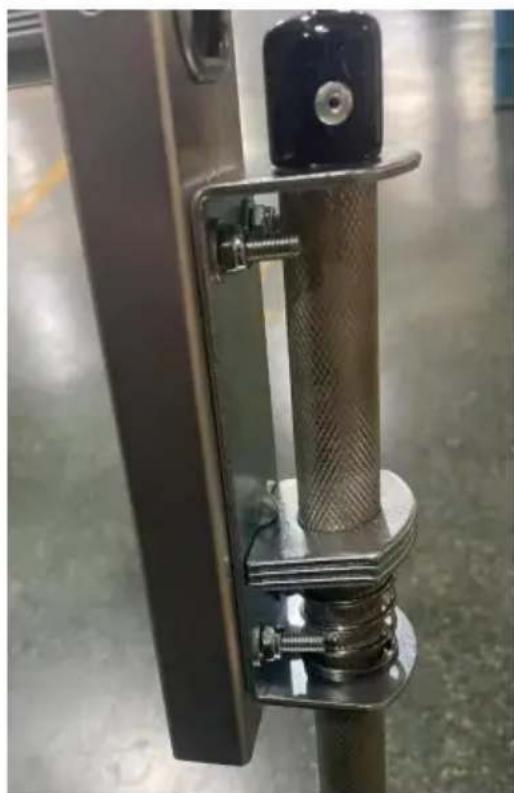

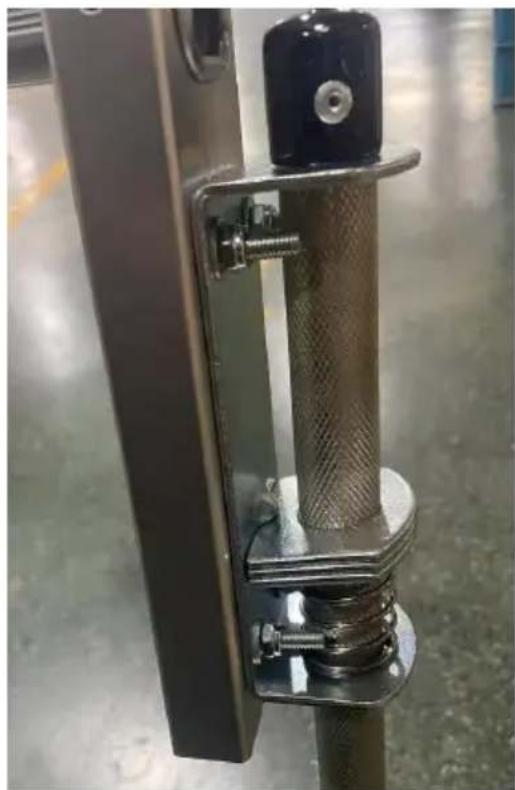

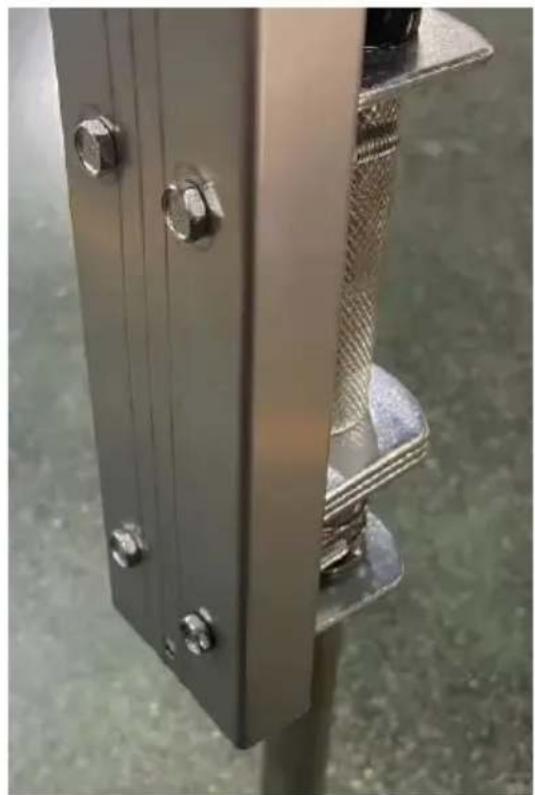

Step 2: Secure it to the ladder.

Close-up of a metallic structural component with bolts and a coiled spring (no text or symbols visible)

Close-up of a metallic mechanical assembly with threaded spring and mounting bracket (no visible text or symbols)

Adjusting Length

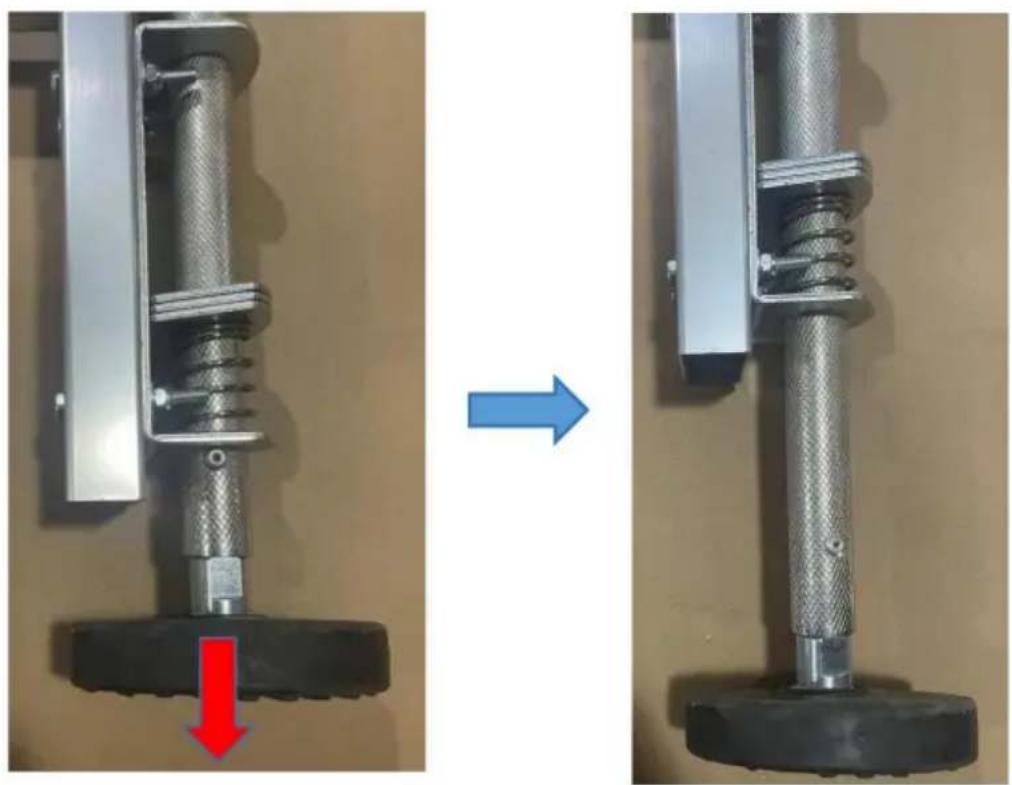

1. The legs can be pulled down.

Mechanical assembly diagram showing a spring-loaded component before and after disassembly, with red arrow indicating displacement (no text or symbols)

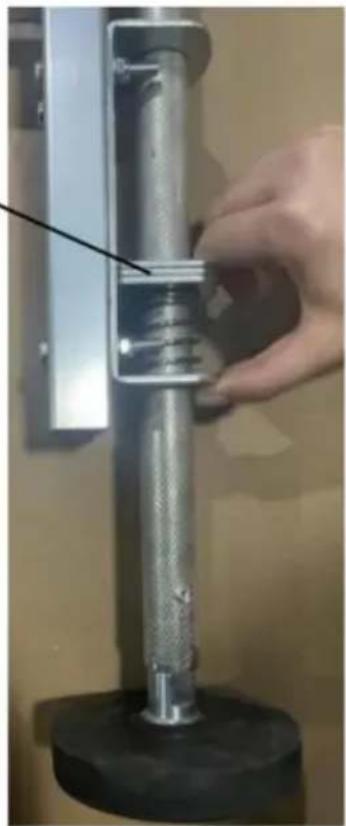

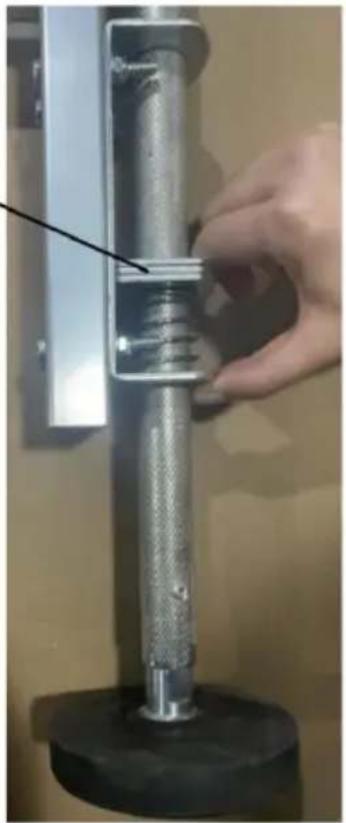

1. Adjust leg length by operating below.

Press flat here to adjust length.

Close-up of a hand adjusting a metallic cylindrical mechanical component with a black base (no visible text or symbols)
