USER MANUAL SXRJL-2301 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HINGE JIG

MODEL: SXRJL-2301

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HINGE JIG

MODEL: SXRJL-2301

Collection of mechanical tools and components including a yellow clamp, drill bit, and various parts (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING: Always follow basic safety precautions when using these devices.

These include:

1. This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children!
2. Read, understand and follow your power tool manufacturer's instructions for safety. Always wear safety glasses or eye shields before commencing power tool operation. Always keep hands, face, hair, loose clothing, and bod at a safe distance from spindles and cutting tools. Always keep a firm grip tool handles when in operation. Always disconnect from power source before adjusting power tools.
3. Do not operate the hinge tapper after fatigue or alcohol.
4. Please refer to the manual to install and use the jig.
5. Please always wear eye protection during use.
6. Keep hands and body clear of sharp edges and moving parts.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	SXRJL-2301
Applicable Hinge Type	Φ26/Φ35mm
Material	Engineering Plastics
Color	Yellow

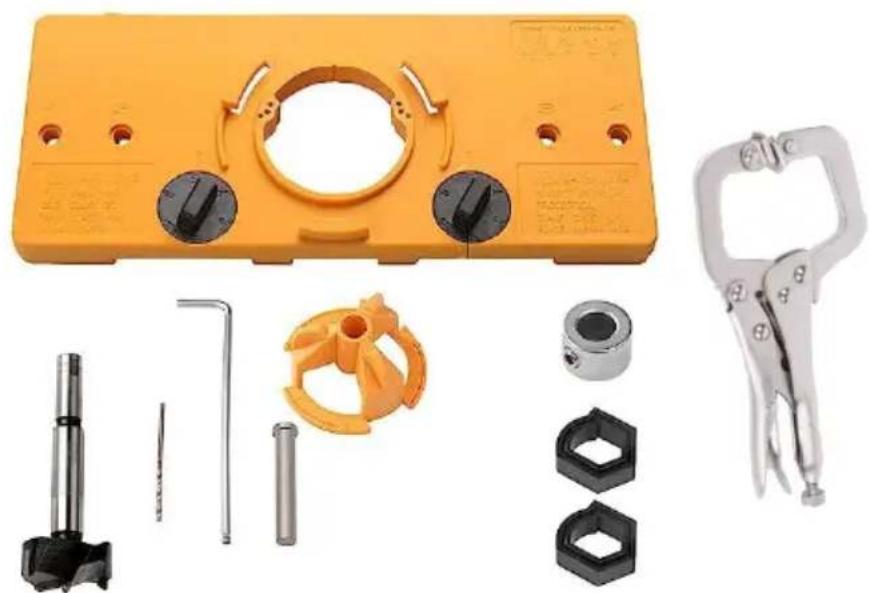

COMPONENTS

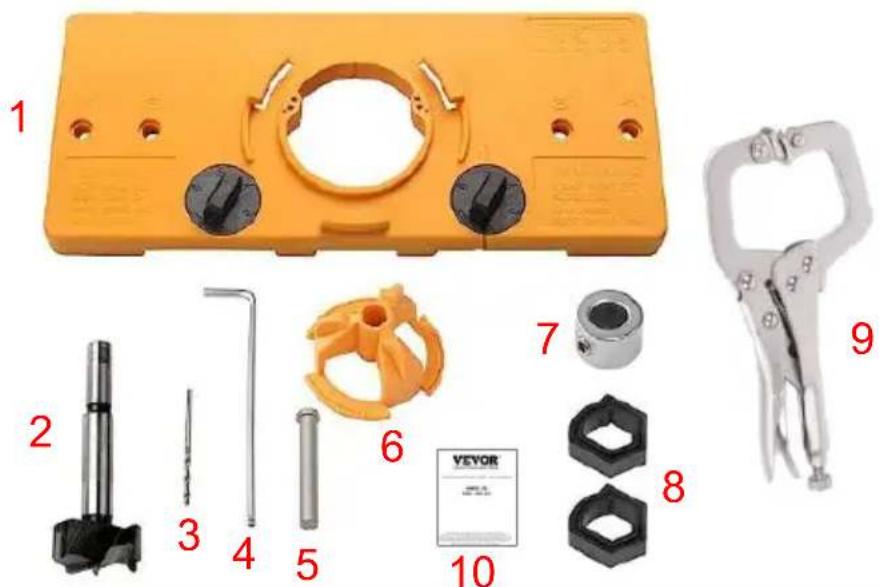

Labeled diagram of mechanical parts including a yellow component, tools, and a Veyor tool with numbered parts.

No.	Name	Qty
1	Main body	1
2	Cutter	1
3	2mm Drill bit	1
4	Wrench	1
5	Positioning rod	1
6	Bracket	1
7	Stop collar	1
8	26mm Accessories	2
9	C lock wrench	1
10	User Manual	1

OPERATION

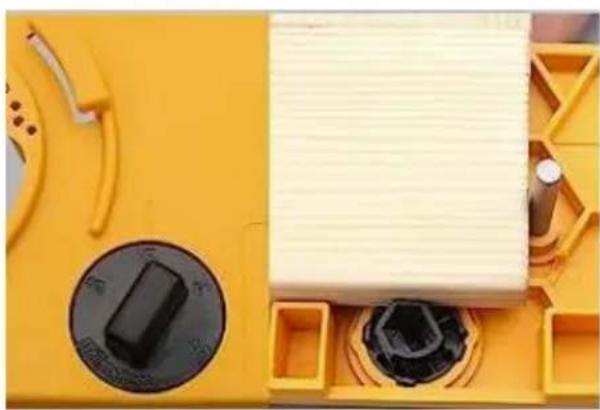

Yellow electronic device with a white foam roller, black buttons, and a circular dial (no visible text or symbols)

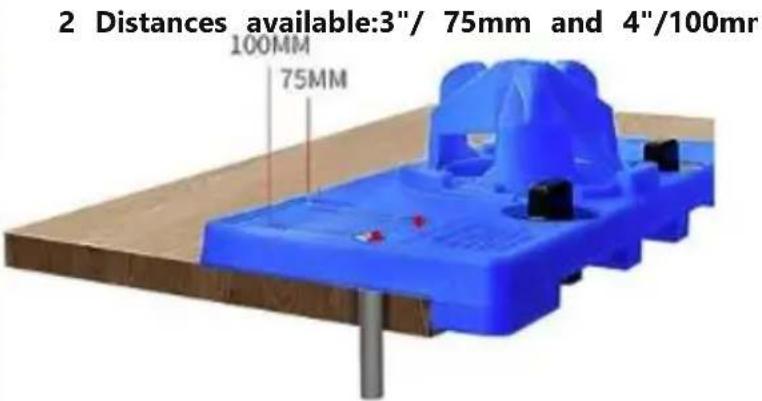

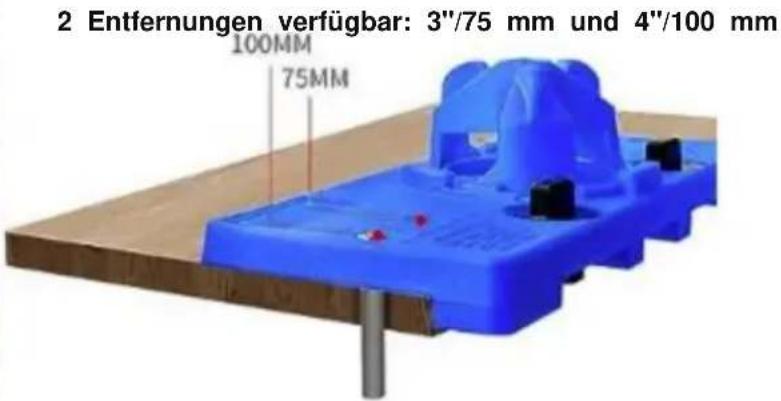

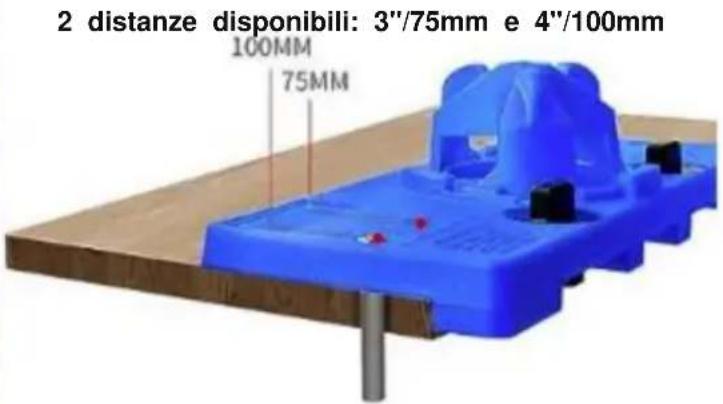

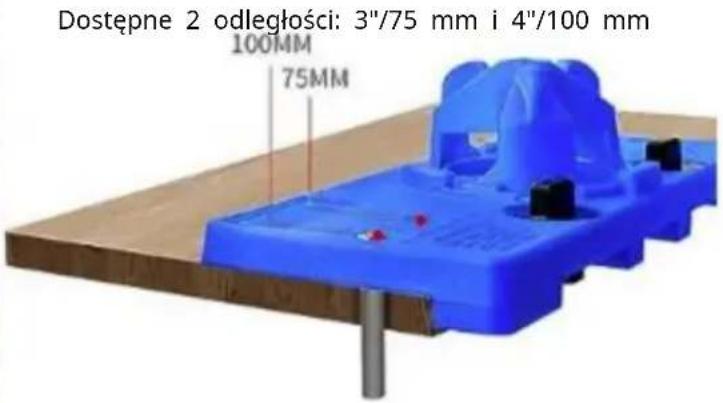

2 Distances available:3"/ 75mm and 4"/100mm 100MM 75MM

Adjustable dials adjust hinge offset: Come with adjustable dials design, limited to 3, 4, 5, and 6 millimeters to adjust the distance between the hole and the plate, making drilling holes of cabinet hinges easy and accurate.

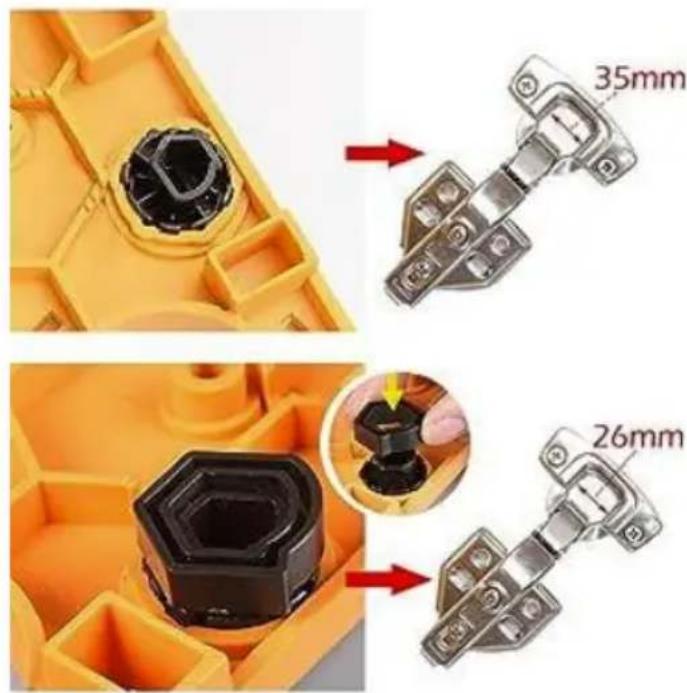

35mm 26mm

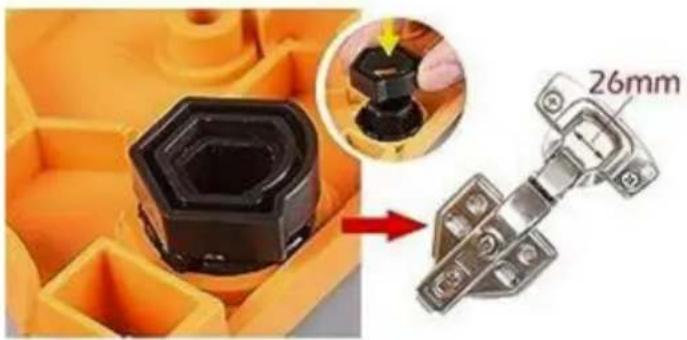

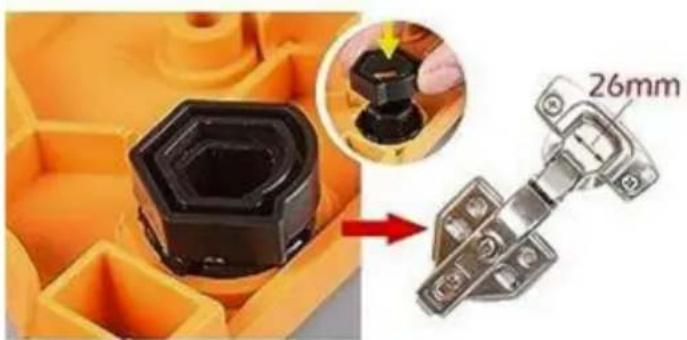

NOTE: The hinge jig can also work for 26mm hinges, but you need to install the 26mm accessories for it which are in the package.

Multipurpose cabinet jig: This hinge hole drill guide is suitable for 35mm hinges and is also available with 26mm hinges.

How to Use:

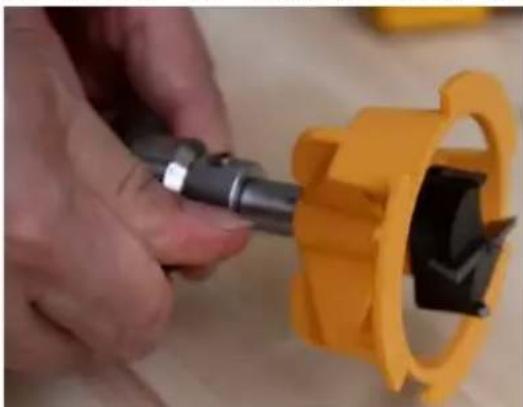

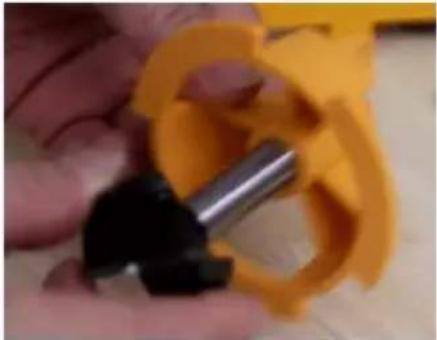

1. Insert the opening cutter into the bracket

Close-up of a hand holding an orange 3D-printed mechanical component with a black base (no visible text or symbols)

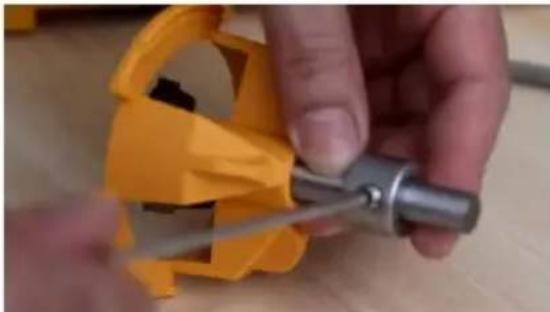

1. Insert the limit ring into the block and use a wrench to screw it.

Close-up of hands using a tool to adjust a yellow plastic component (no visible text or symbols)

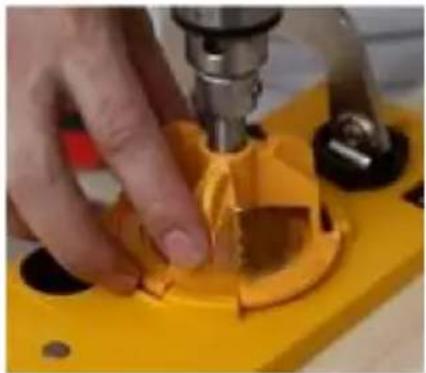

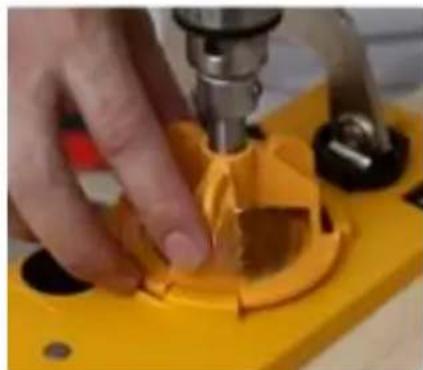

1. Install on the electric drill.

Close-up of a hand using a tool to adjust or install a yellow 3D mechanical component (no visible text or symbols)

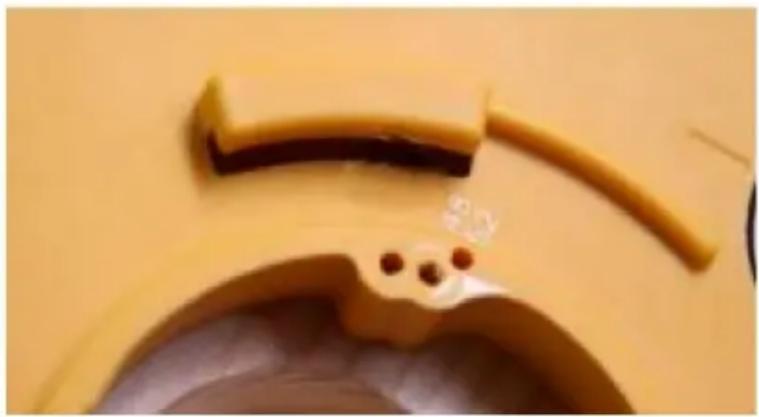

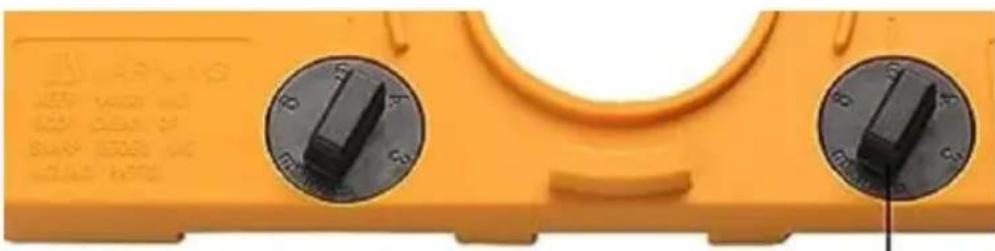

1. Adjustable dials limited to 3, 4, 5, and 6 millimeters ensure proper hing offset. (Recommended to choose the 5mm.)

Close-up of a yellow industrial control panel with two black rotary switches (no visible text or symbols)

Close-up of hands assembling a yellow plastic tray with black components (no visible text or symbols)

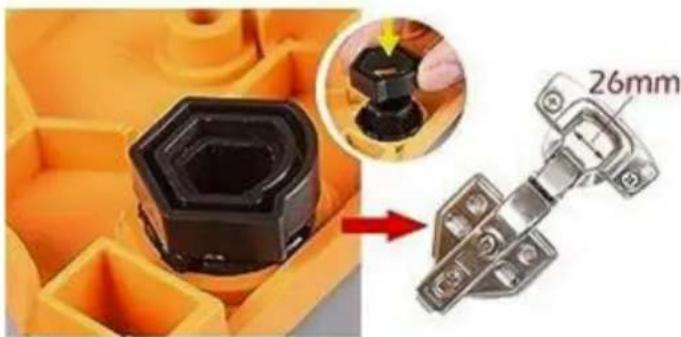

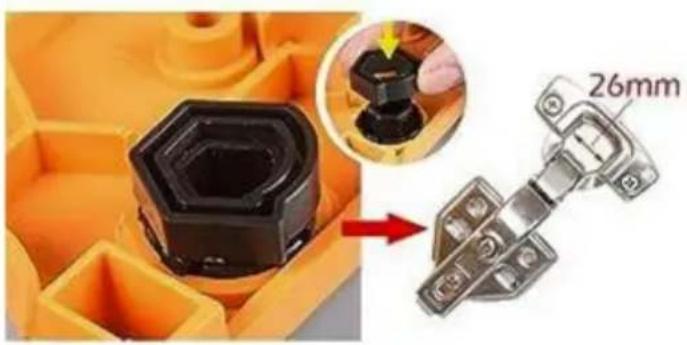

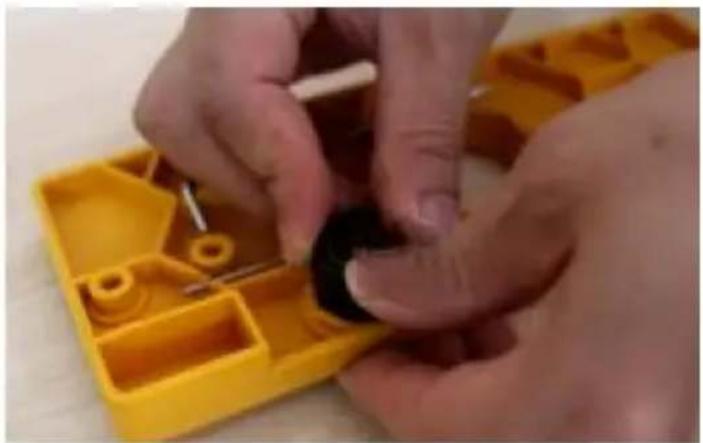

NOTE: For drilling 26mm hinge holes, install 26mm auxiliary accessories on the stop block on the back of the main body.

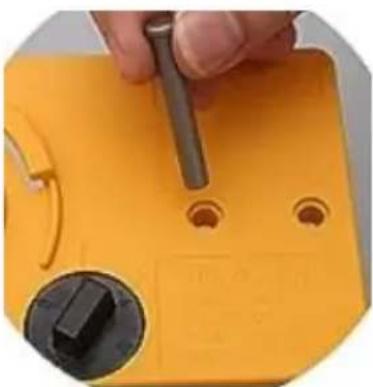

1. Place the positioning rod according to the edge distance needs .

Close-up of a hand using a tool to adjust or install a yellow plastic component with two circular holes (no text or symbols visible)

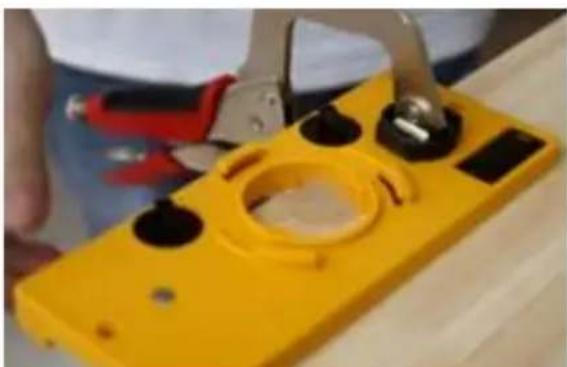

1. Use the clamp to fasten the jig and install the cutter.

Close-up of a yellow handheld device with black buttons and a red clamp, being handled by crimping tools (no visible text or symbols)

Close-up of a hand using a drilling press on a yellow mechanical component (no visible text or symbols)

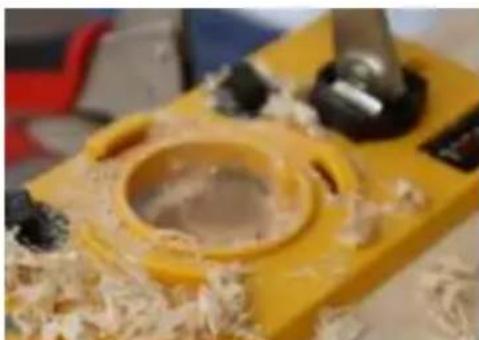

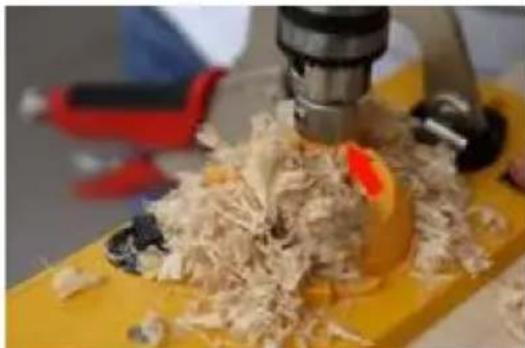

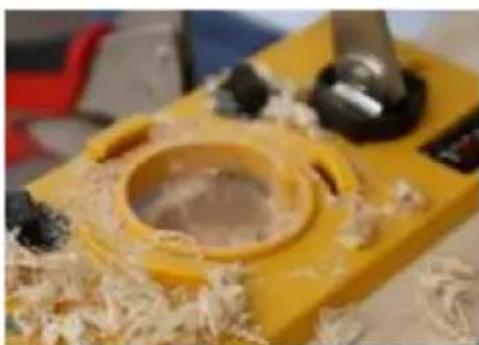

1. Drill the 35mm hole and take down the cutter.

Close-up of a yellow cutting machine with shredded material being processed, no visible text or symbols

Close-up of a yellow mechanical component with circular opening and small debris, no visible text or symbols

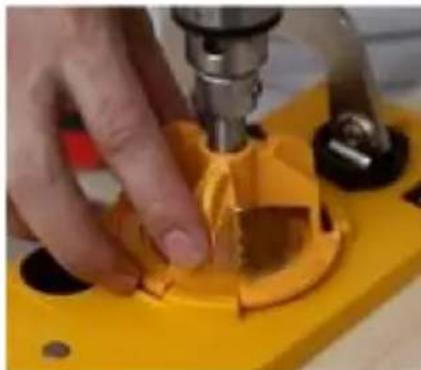

NOTE: When the checking ring reaches the end of the bracket, stop drilling.

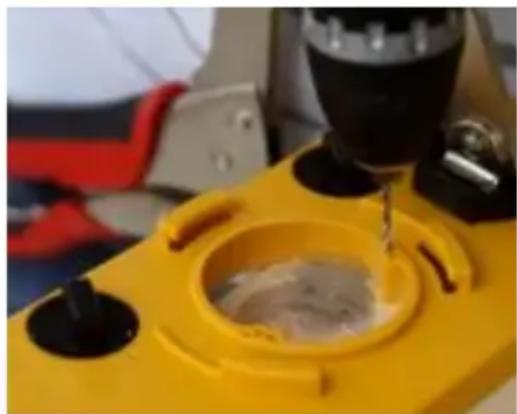

1. Use the small drill bit to drill side holes.

Close-up of a yellow industrial device with a black tool and mechanical components (no visible text or symbols)

Close-up of a yellow surface with a curved dark object and small dark spots, possibly food or material (no visible text or symbols)

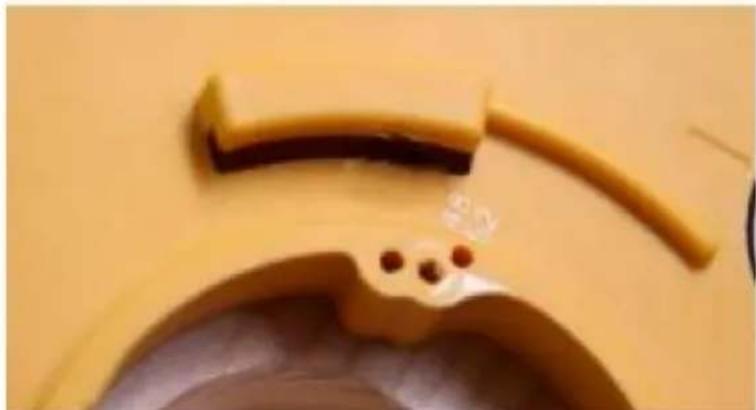

NOTE: The pivot holes are 46, 48 or 52mm distance to each other.

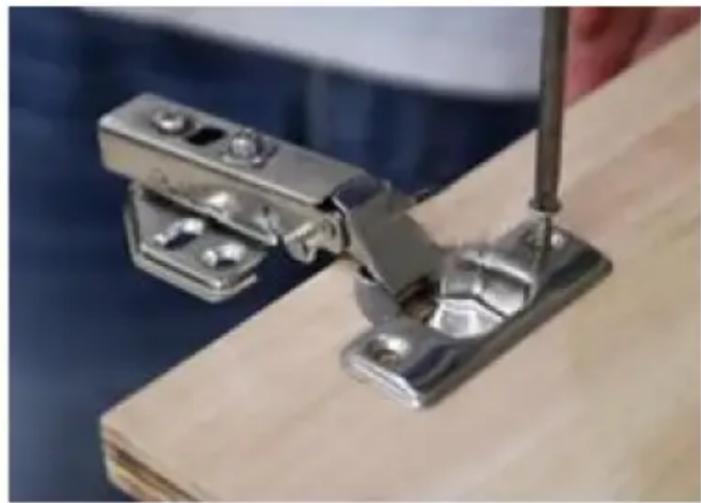

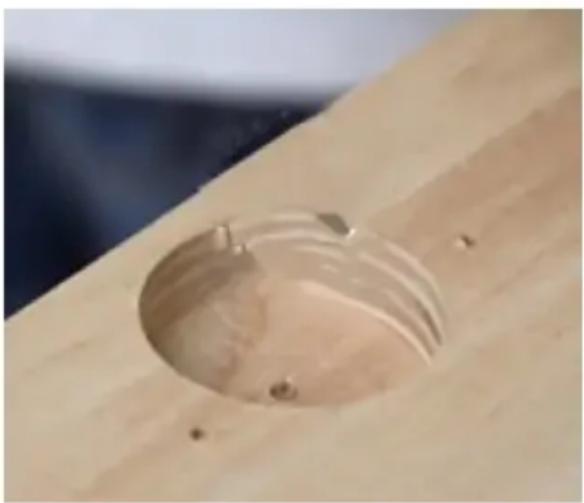

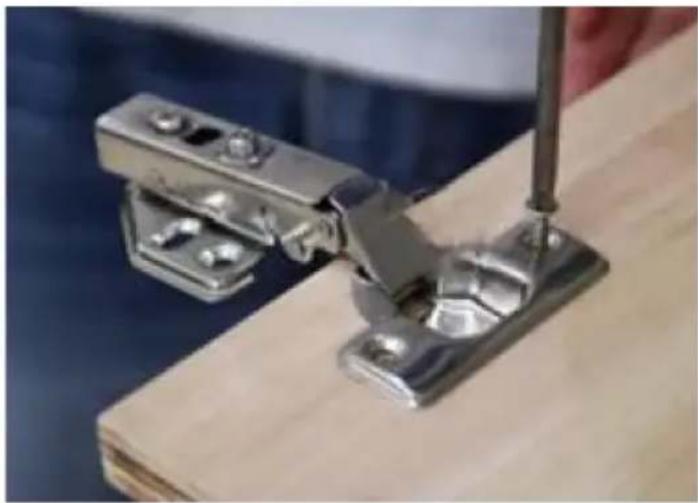

1. Clean the sawdust and install the hinge.

Close-up of a wooden surface with a circular recessed hole, showing natural texture and small holes (no text or symbols)

Close-up of a hand using a screwdriver to adjust a metal hinge component on a wooden surface (no text or symbols visible)

MAINTENANCE

1. After each use, please install it in time and keep it properly to a losing parts.
2. Clean the surface after each use.
