USER MANUAL SBC90 Vevor

SAND BLASTER CABINET MODEL: SBC90

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean that all categories of tools offered are covered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: SBC90

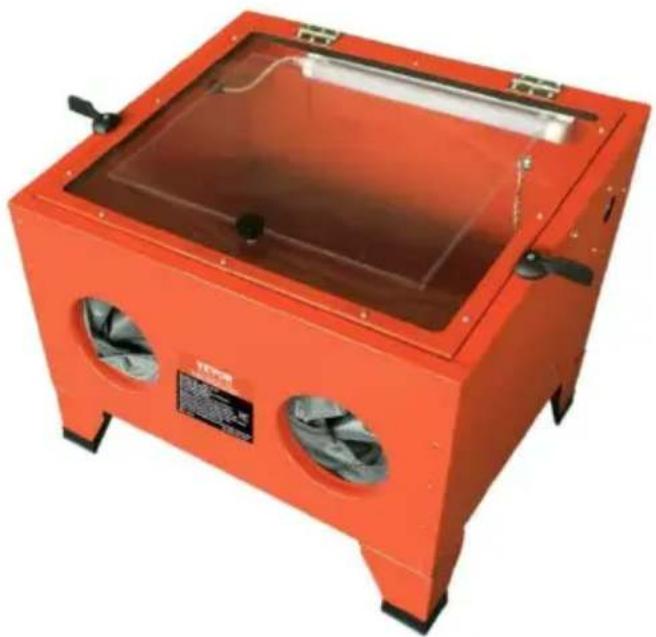

Orange industrial machine with dual vent vats and a transparent lid (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

1. Description

The SBC90 shot blasting cabinet is constructed of steel with a transparent access lid on top with internal illumination. The inside of the viewing window is replaceable.

Supplied with a shot blasting gun, the unit is suitable for glass beads, carbide, aluminum oxide, silica sand, and any other dry media. This is excellent for use in a wide variety of workshops.

  1. Main specifications
Max Air Pressure40-120psiWeight15.5KGS
Average Air Flow142 liter/minWork HeightMax 380 mm /M 300 mm
Nozzles4.5,5,6,7 mmAir Inlet Size 1/4 BSP"
Capacity0.09 m3 Viewing Area400*295 MM

3. Safety instructions

Vevor SBC90 - Safety instructions - 1

Warning - To reduce the risk of injury, the user must read the instruction manual carefully.

Notice: Any blast cabinet will produce a powerful flow of abrasive particles. To avoid personal injury or property damage, study this manual thoroughly before assembling, operating, or servicing this blast cabinet.

Please read the instructions before operating the blasting system!

Failure to follow these instructions could result in operator injury as well as damage to the blasting system.

3.1. ELECTRICAL SAFETY

REGARDING DIRECT MAINS POWER USE WITH THE TRANSFORMER PLUG.

WARNING! It is the user's responsibility to read, understand and comply with the following electrical instructions.

WARNING! It is the user's responsibility to read, understand and comply with the following electrical instructions.

You must ensure the risk of electric shock is minimized by the installation of appropriate safety devices. An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an RCD (Residual Current Device) is used with all electrical processes, particularly portable equipment which is plugged into an electrical supply not protected by an RCCB.

3.1.1 The Electricity at Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified electrician, using a Portable Appliance Tester (PAT) at least once a year.

3.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance and the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.

3.1.3. You must ensure that you:

√ Inspect the transformer plug, cable, and plug for wear and damage. Ensure items are safe before connecting to the mains power supply. If parts are worn or damaged, DO NOT use the transformer and immediately replace it or contact a qualified electrician.

√ Ensure cables are always protected against short circuit and overload. √ Important: Check that the voltage marked on the transformer plug is the same as the power supply to be used.

√ Uncoil the lead from the transformer before use.

✗ DO NOT attempt to pull the transformer plug from the mains by the lead.

✗ DO NOT use any other type of transformer with the cabinet.

✗ DO NOT try to open or disassemble the transformer plug or charger base.

✗ DO NOT use the transformer plug to power any other electrical item. ✗ DO NOT get the transformer wet, or use in wet, damp conditions.

Indoor use only.

WARNING! NEVER substitute the standard 2-pin plug, or any other type of plug, for the transformer plug.

3.2 GENERAL SAFETY

WARNING! Ensure Health & Safety, government and local authority regulations relating to the use of shot blasting are adhered to when using this equipment. Familiarize yourself with the applications, limitations and potential hazards peculiar to the cabinet.

WARNING! Disconnect the cabinet from the mains power and air supply before attempting to change accessories or carry out any servicing or maintenance.

√ Maintain the cabinet in good condition. Replace or repair damaged parts. Use genuine parts only. Unauthorized parts may be dangerous and will invalidate the warranty.

√ Locate cabinet in a suitable work area and keep area clean, tidy and free from unrelated materials. Ensure there is adequate lighting.

√ Use only dry abrasives such as proprietary brands of glass beads, silicon carbide, aluminum oxide and silica sand. Never use fluids or mix fluids with another media in the unit.

WARNING! Always wear approved eye or face and ear protection when operating the cabinet.

√ Keep the unit's top lid closed and secured when in use.

WARNING! Ensure correct air pressure is maintained and not exceeded (Max 80psi - 5.5bar).

√ Always keep the blast nozzle directed at the work piece. Never point the gun outside the unit and always use the cabinet with the top lid. √ Regularly check that the exhaust vent at the back of the cabinet is not blocked and that there is sufficient space between the cabinet and any wall.

√ Ensure the floor is clean and free from blasting media spillage. √ Wear non-slip shoes.

Remove ill-fitting clothing. Remove ties, watches, rings, and other jewelry and contain and/or tie back long hair.

Keep children and non-essential persons away from the work area. Do not use the cabinet for a task it is not designed to perform. Do not operate the cabinet if any parts are damaged or missing; this may cause failure and/or personal injury. Do not operate the cabinet with the top access lid (transparent "1") open. Do not stand on the cabinet. Do not get the cabinet wet or use in damp or wet locations where there is condensation. Do not operate the cabinet when you are tired or under the influence of alcohol, drugs or intoxicating medication. Do not leave the cabinet operating unattended. When not in use, disconnect from the electrical mains and the air supply.

NOTE! We strongly recommend that a suitable dust extraction system be used with this unit.

If dust extraction is not used, media may be forced out of the joints as pressure builds up.

4. Main construction

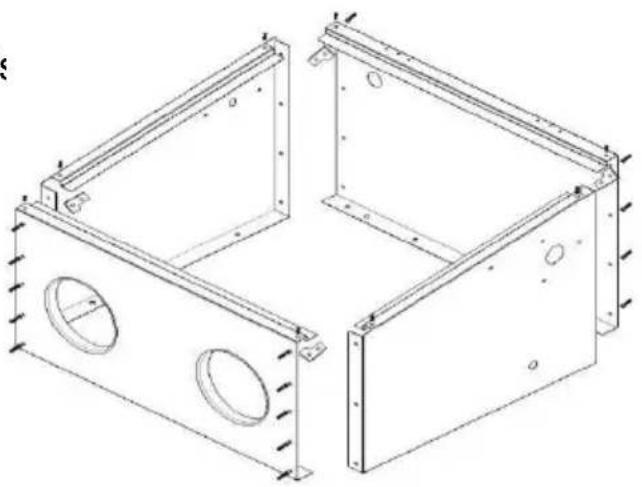

4.1 Connect four plates by bolts (M5x10) and nuts. Please note there are four fixing sheets for corner use. The front plate is always on the side plate.

Technical line drawing of a two-part mechanical housing or enclosure with mounting flanges and internal circular cutouts (no text or symbols)

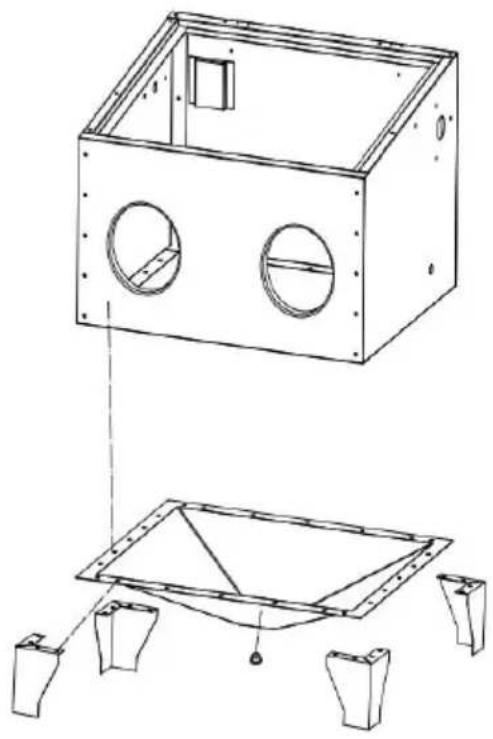

4.2 Use M6x12 bolts to connect cabinet, funnel and feet. Please note bolts must insert from cabinet and from bottom.

Note: If the temperature is low, the plastic leg protection will be very small. Soak them in warm water until they become soft.

Technical line drawing of a mechanical housing assembly with circular cutouts and mounting brackets (no text or symbols)

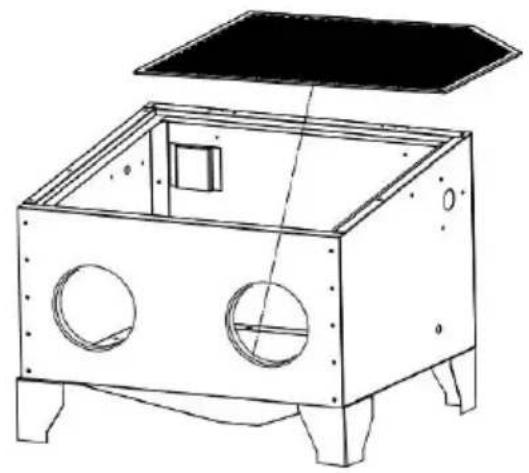

4.3 Put the net into the cabinet.

Technical line drawing of a rectangular industrial machine with circular cutouts and mounting feet (no text or symbols)

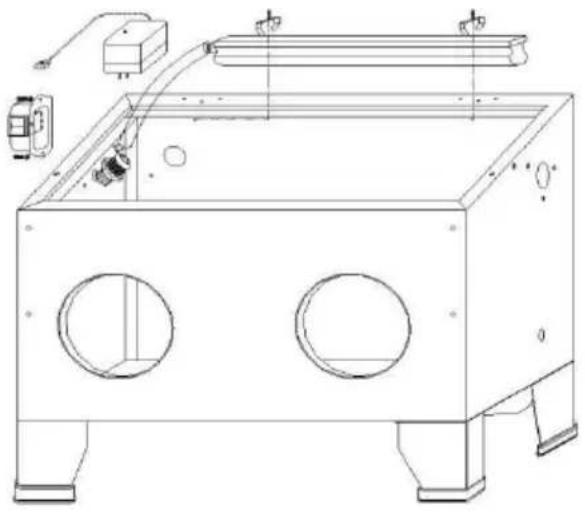

4.4 Assemble the LED lamp and switch box.

Technical line drawing of a mechanical enclosure with circular cutouts and mounting base (no text or symbols)

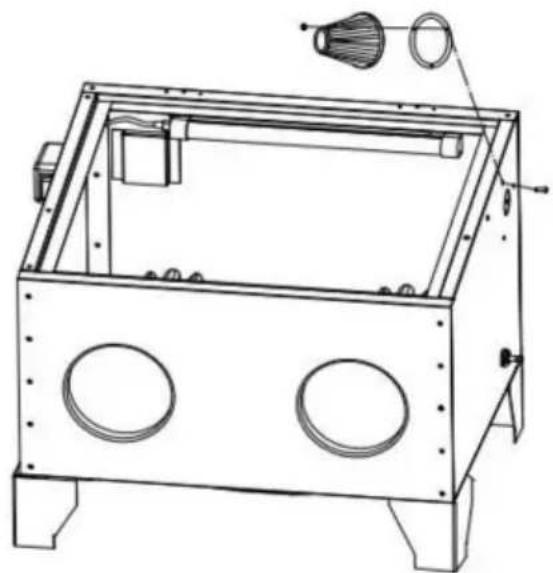

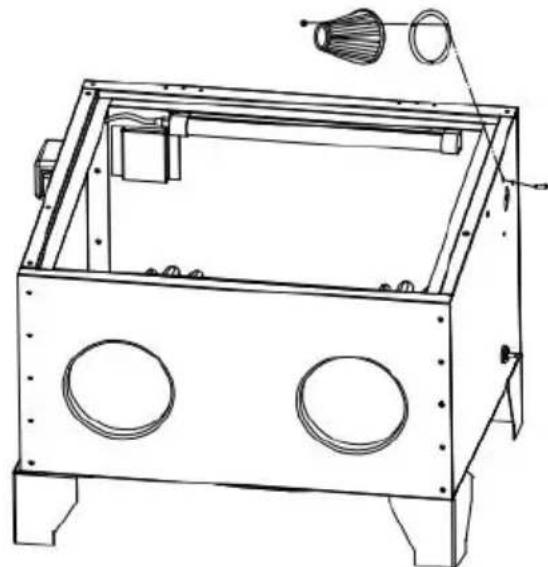

4.5 Assemble the filter.

Technical line drawing of a mechanical enclosure with two circular cutouts and a ventilation duct (no text or symbols)

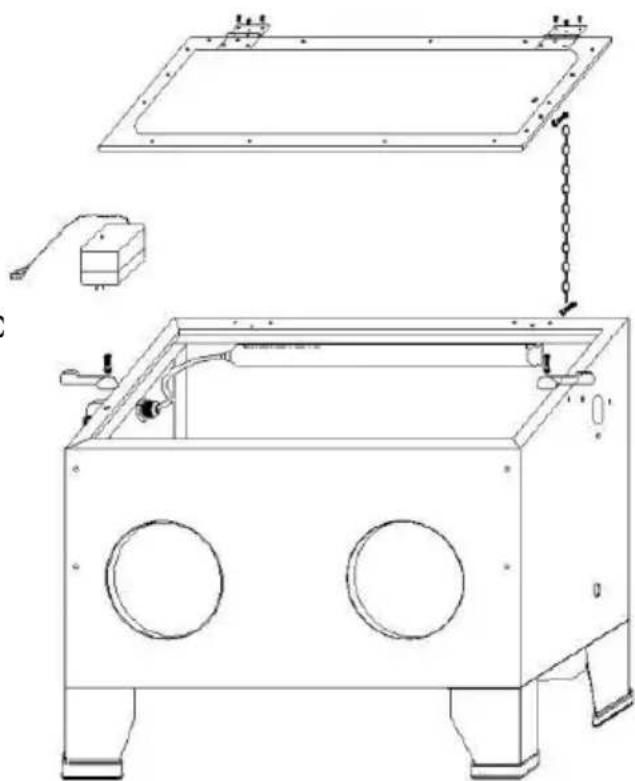

4.6 Connect the hinges in the door with ST4*8 screw to the cabinet.

Assemble chain with M6x12 screw and tighten it.

Assemble two bakelite lockers of the cabinet with M6x20 screw.

Assemble the door handle on plexiglass and tighten it. M8*12

Please peel away the outer layer of plexiglass on the surface to make the glass clear after full assembly.

Technical line drawing of a mechanical device with mounting base, frame plate, and internal circular components (no text or symbols)

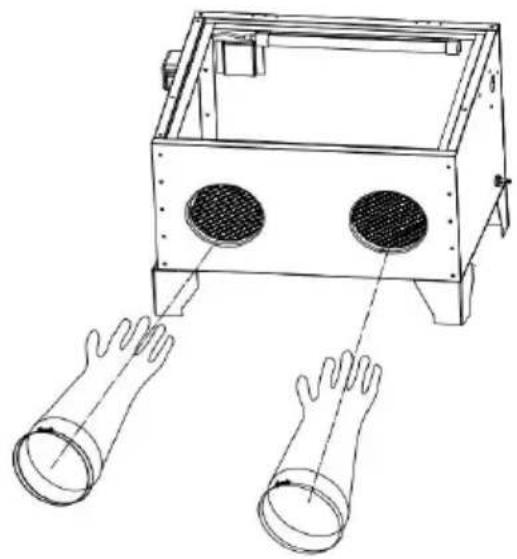

4.7 Assemble the gloves to the plate by clamps Φ120 - Φ150.

Technical line drawing of a mechanical device with two circular components and two handles, no text or symbols present.

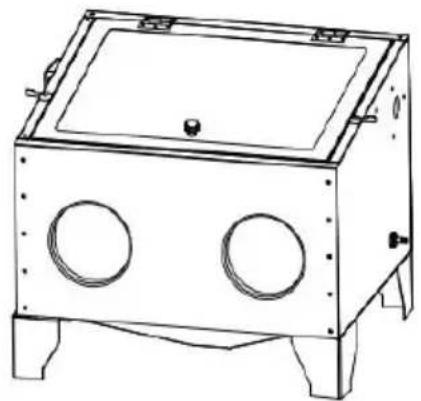

4.8 After finishing full assembly, check and tighten all screws. Fill full corner gap with silicone sealant to improve sealing.

Technical line drawing of a rectangular industrial or mechanical housing with two circular cutouts and mounting feet (no text or symbols)

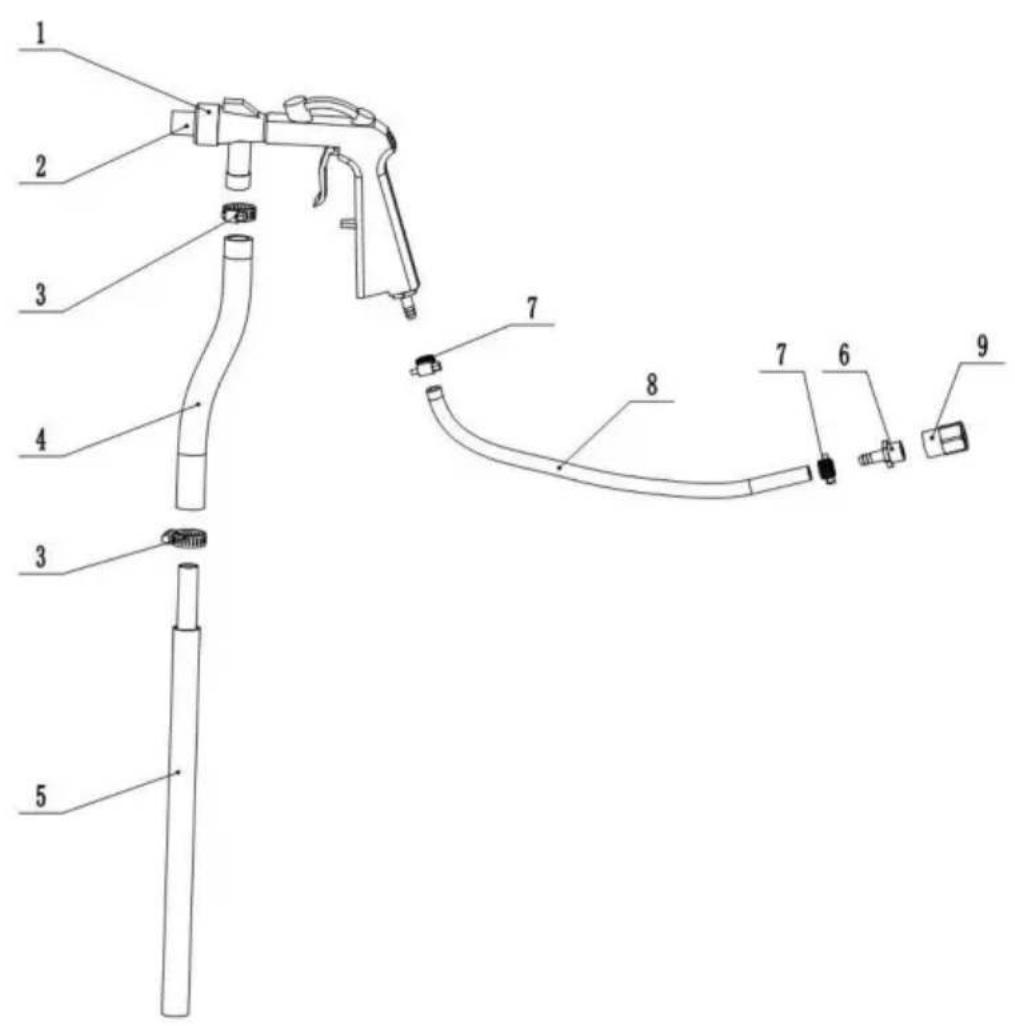

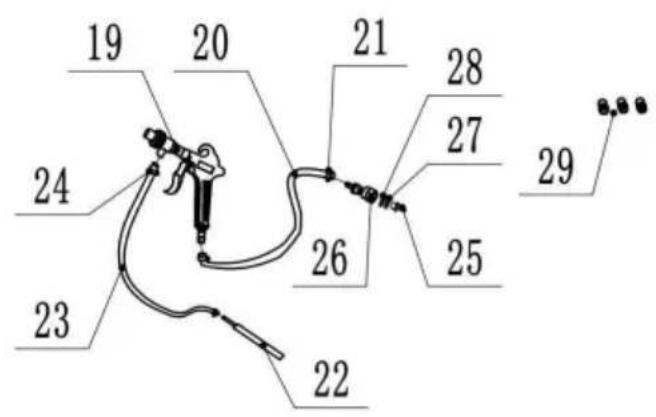

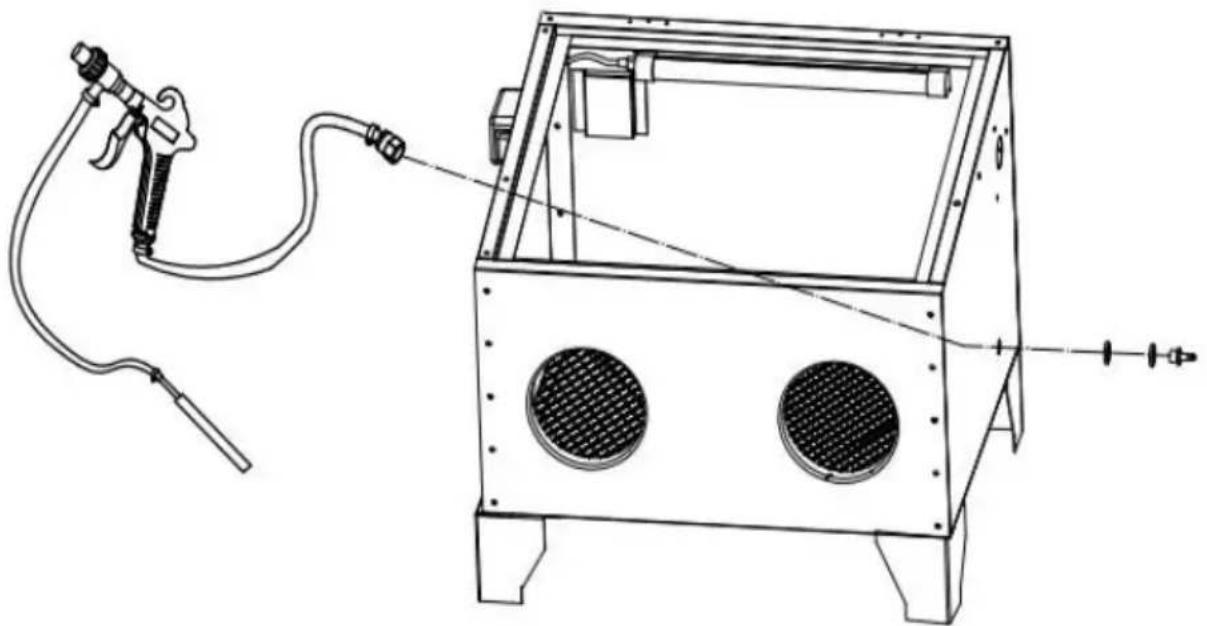

Assemble blasting gun

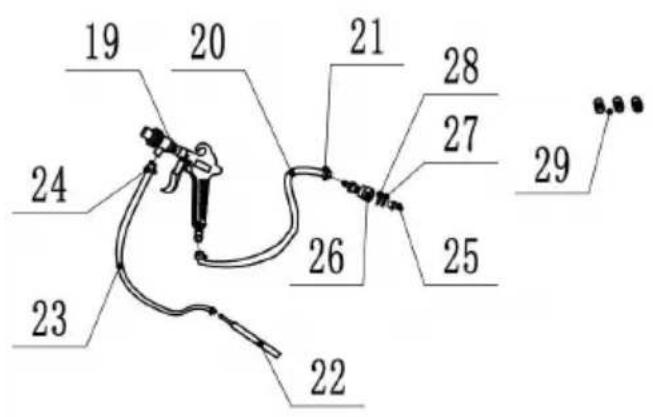

Technical diagram of a spray gun with numbered parts for identification

  1. Connect sand hose (No.4) with gun (No.2), clamp (No.3) it. Connect sand pipe (No.5) into sand hose and clamp it.
  2. Connect air hose (No.8) with gun and clamp (No.7) it. Then connect air connector (No.6), inner thread connector (No.9). Please twine 5 circles of Teflon tape clockwise on the air connector to avoid leakage.

Technical line drawing of a mechanical device with hoses and control panel (no text or symbols)

Install sandblasting gun, rubber and metal washer to the inner thread connect right cabinet plate.

Please note to wrap the Teflon tape for connector if necessary. To make sure no air leakage.

Important Note:

  1. Due to logistics reasons, few metal sheets may become slightly deformed, which could be corrected by simple tools. Normally easily done. But please consult customer service if the correction still not in place after you try. Customer service staff will provide proper solutions in time.
  2. The sealing foam can be punctured with a screwdriver before assembly to facilitate the installation of screws (the holes would be hidden by sealing foam).

Parts list

No.DescriptionQTY
1Hinge2
1-1Tapping screw ST4*86
2Transformer1
3Switch box1
3-1Cross screw&nut M5*102
4Clamp for LED lamp2
4-1Cross screw&nut for lamp clamp M4*62
5LED lamp1
6Glove (pair)1
7Glove clampΦ120-Φ1502
8Cabinet foot4
9Sand funnel1
9-1Cross screw&nut for funnel M6*1228
10Working net1
11Cabinet1
11-1Cross screw&nut for cabinet M5*1026
12Filter plate1
12-1Cross screw&nut for filter plate M4*203
13Filter1
14Chain1
14-1Cross screw&nut for chain M6*121
15Bakelite locker2
15-1Screw& jam nut for Bakelite locker M6*202
16Plexiglass metal frame1
17Plexiglass1
17-1Plexiglass film (sticked1,packed 3)4
18Door handle1
18-1Nut for door handle M8*121
19Blasting gun (with 1 nozzle& 1 air connecto1
20Air hose1
21Air hose clamp Φ8-Φ122
22Sand pipe1
23Sand hose1
24Sand hose clamp Φ16-Φ252
25Air connector 1/4 φ62
26Inner thread connector 1/41
27Rubber washer for Inner thread connecto2.51
28Steel washer for Inner thread connecto31
29ceramic nozzle(5mm, 6mm, 7mm)3
30Bottom cover1
31Teflon tape1

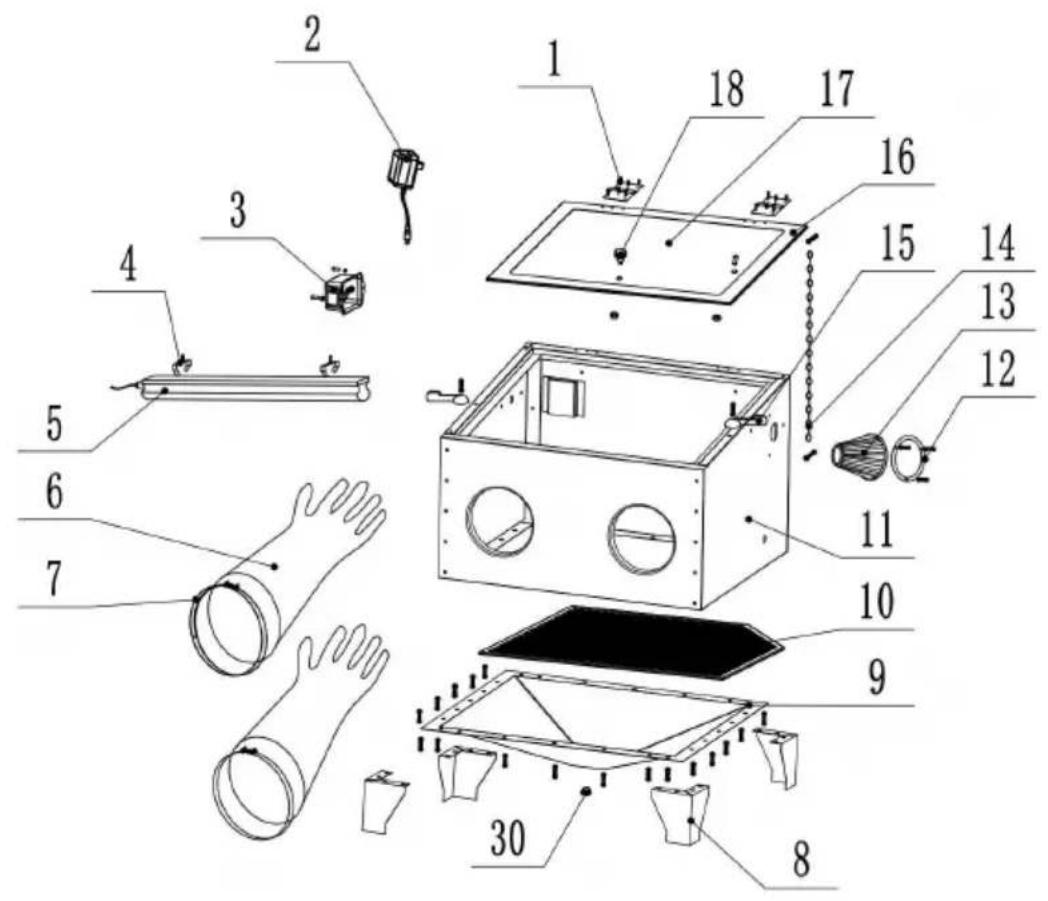

Exploded diagram of a device with numbered parts for identification and assembly reference.

19 20 21 28 24 27 25 26 23 22 29

5. FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the distance between the product and receiver.
  • Connect the product to an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for assistance.

6. CORRECT DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic

waste, but must be taken to a collection point for recycling electrical and electronic devices.

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

ECREP

E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am M

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

4.5 Assemble the filter

Technical line drawing of a mechanical enclosure with circular cutouts and mounting feet (no text or symbols)

19 20 21 28 24 27 25 26 23 29 22

5. FCC Information

C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTING THIS

E-CrossStu GmbH.

NEED HELP? CONTACT US!

4.5 Mounting the filter

Technical line drawing of a mechanical enclosure with circular cutouts and mounting feet (no text or symbols).

19, 20, 21, 28, 24, 27, 25, 26, 23, 29, 22

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

EG-REP

E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

Assemble the explosive gun

Technical diagram of a spray gun with numbered parts for identification

19 20 21 28 24 27 25 26 23 29 22

5. FCC Information

Imported into AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH. Mainzer Landstr.69, 60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

electronics www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

4.2 Use M6x12 bolts to connect

Mount explosive gun

Technical diagram of a spray gun with numbered parts for identification

19 20 21 28 24 27 25 26 23 29 22

House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

EC Representative

E-CrossStu GmbH.

NEED HELP? CONTACT US!

4.5 Assemble the filter

Technical line drawing of a mechanical enclosure with circular cutouts and mounting feet (no text or symbols).

19 20 21 28 24 27 25 26 23 29 22

5. FCC Information

Place, Rancho Cucamonga, California 91730

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

MODEL: SBC90

NEED HELP? CONTACT US!

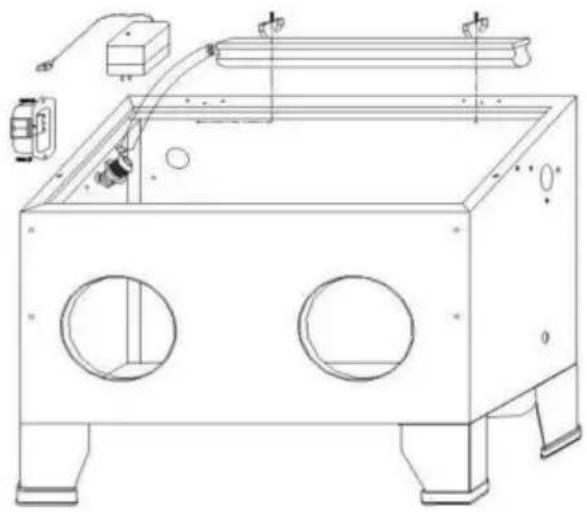

4.4 Mount the LED lamp and switch box.

Technical line drawing of a rectangular industrial machine with circular cutouts and mounting base (no text or symbols)

19 20 21 28 24 27 25 26 23 29 22

5. FCC Information

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

EG REP

E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

NEED HELP? CONTACT US!

4.5 Install the filter

Technical line drawing of a mechanical enclosure with circular cutouts and mounting feet (no text or symbols)

19 20 21 28 24 27 25 26 23 29 22

5. FCC information

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

ECREP

E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Vevor

Model : SBC90

Category : Sandblasting cabinet
