USER MANUAL S4040 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

CNC ENGRAVING MACHINE USER MANUAL

MODEL: S4040

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered I are kindly reminded to verify carefully when you are placing an order with us if actually saving half in comparison with the top major brands.

MODEL: S4040

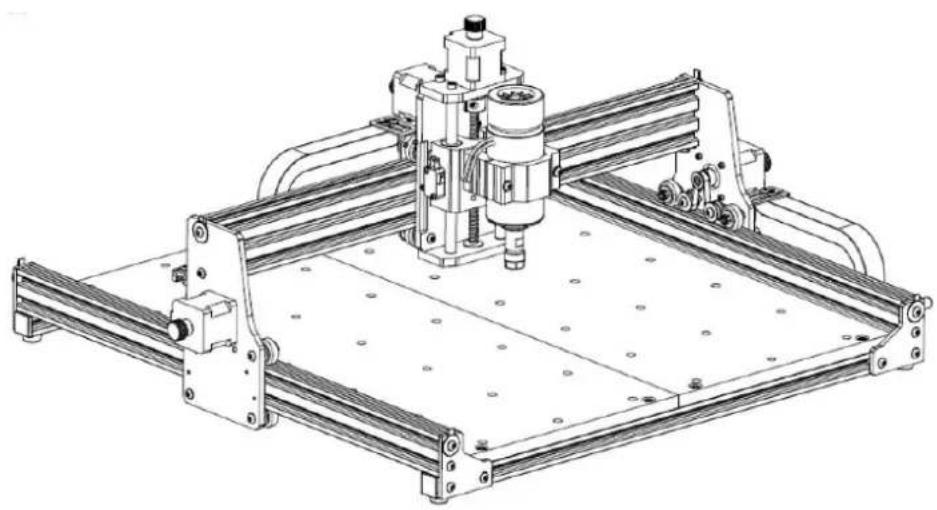

Technical line drawing of a mechanical assembly with rollers and frame (no text or symbols)

S4040

Scan for videos and guides

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions man carefully.
	Warning- Be sure to wear eye protectors when using this product.
	Indoor Use Only
	Do not touch any rotating parts when the machine is running
	Always wear protective glasses when use the machine
	Prohibited from use in flammable objects or gases
	Do not touch the socket with wet hand to reduce risk of electrocuti
	Please cut off the power immediately in case of emergency
	This product is subject to the provision of European Directive 2012/19 The symbol showing a wheelie bin crossed through indicates that the requires separate refuse collection in the European Union. This applies product and all accessories marked with this symbol. Products marked such may not be discarded with normal domestic waste, but must be a collection point for recycling electrical and electronic devices

Important Safety Instructions

Warning: To reduce the risk of burns, electrocutions, or injury to persons!

Warning

◆ Please wear protective glasses when using the machine. In case your ey hurt.
Before replacing the tool, please disconnect the power supply of the mode avoid accidents.
◆ Unplug the socket when not in use, before replacing parts and maintaining the machine.
◆ Unplug when assembling and disassembling the unit.
◆ Close supervision is necessary when any appliance is used near children.
◆ To avoid jamming, do not force the unit to operate with excessive press
Do not immerse wires or machines in water, as this can cause electric
This appliance is not intended for use by persons(including children) with reduced physical, sensory, or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
◆ Children should be supervised to ensure that they do not play with the appliance.
If the supply cord or plug is damaged, it must be replaced by the main service agent or similarly qualified persons in order to avoid a hazard. (I operate this appliance. Return it to the store of service or repair by a serviceman.

SAVE THESE INSTRUCTIONS

1. Parts List

S4040 Parts List
Part No	Part Name Explanation Quantity Picture Remark
01	Component for Y1-axis —— 1Set
02	Component for Y2-axis —— 1Set
03	Component for X-axis —— 1Set
04	Aluminum profile (X) 2020V*577mm 2Set
05	Aluminum profile (Y) 2020V*540mm 1
06	Workbench	— 2
07	Spindle clamp	Φ52, Aluminum	1Set
08	Spindle motor	300w, ER11-8mm	1Set
09	L-shaped connector	With set screw 2-M5*6	4Set
10	Inner hexagon screw	M5*35 2
11	Inner hexagon screw	M5*14 4
12	Inner hexagon screw	M5*12 12
13	Inner hexagon screw	M5*10 8
14	Inner hexagon screw	M5*6 1
15	Inner hexagon screw	M4*10 6
16	Inner hexagon screw	M4*8	4		Already assembled
17	Trapezoidal nut M5-20 16
18	Hexagon nut	M4	6
19	Washer	Φ5-Φ20 4
20	Coverplate	2020 3
21	Support	—	1
22	Wire cover plate	—	1
23	Pressing plate	100mm 4			Pressing plate assembly drawing
24	Screw	M8*55	4
25	Screw	M6*80	4
26	Washer	Φ6*2mm	4
27	Butterfly nut	M6	4
28	Control box	—	1
29	Power supply cord	—	1
30	Offline controller and data cable	Touch screen with SD card	1Set
31	Towing chain	15*10*660 2	—		Cable has been threaded into the tow chain
32	Spindle motor wire	2P,2100mm	1	—
33	X Stepper motor wire	4P-6P, 2100mm red	1	—
34	Y1 Stepper motor wire 4P-6P,2100mm yellow 1	—
35	Z Stepper motor wire	4P-6P,2100mm white	1	—
36	Y2 Stepper motor wire	4P-6P,1350mm blue	1	—
37	Y-Limit wire	2P-3P,1350mm	1	—
38	X/Z-Limit wire	2P-3P,2100mm	2	—
39	USB cable	—	1	—
40	Connection terminal	—	1
41	Milling cutter	3.175 1
42	Inner Hexagon Wrench 2/2.5/3/4mm 1Set
43	Nut Wrench	14/17mm	1Set
44	Probe	—	1
45	Soft brush	—	1
46	U Disk	—	1
47	Instruction manual	—	1	—

2. Machine Assembly

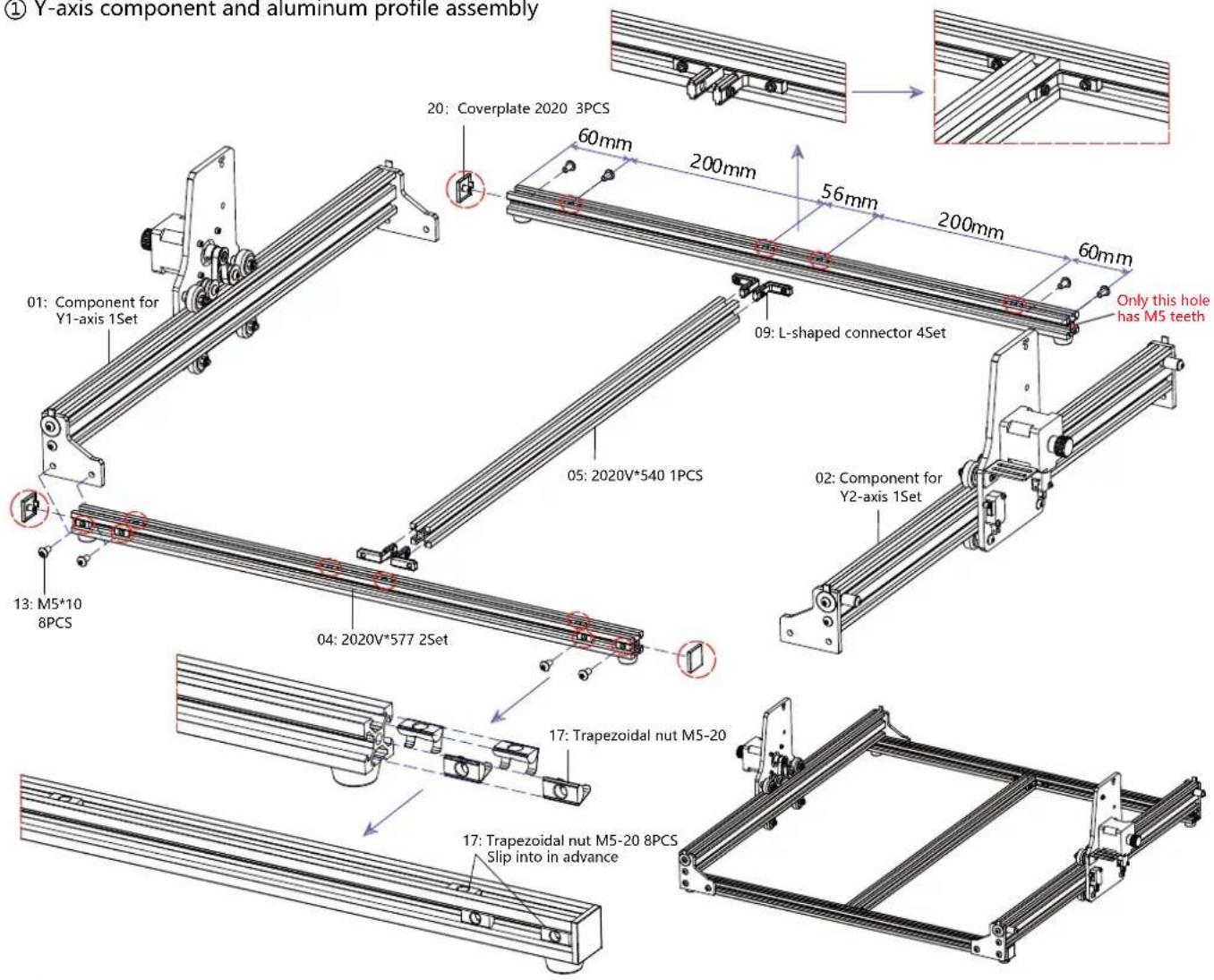

① Y-axis component and aluminum profile assembly

(① Y-axis component and aluminum profile assembly 20: Coverplate 2020 3PCS 60mm 200mm 56mm 200mm 60mm 01: Component for Y1-axis 1Set 09: L-shaped connector 4Set Only this hole has M5 teeth 05: 2020V*540 1PCS 02: Component for Y2-axis 1Set 13: M5*10 8PCS 04: 2020V*577 2Set 17: Trapezoidal nut M5-20 17: Trapezoidal nut M5-20 8PCS Slip into in advance

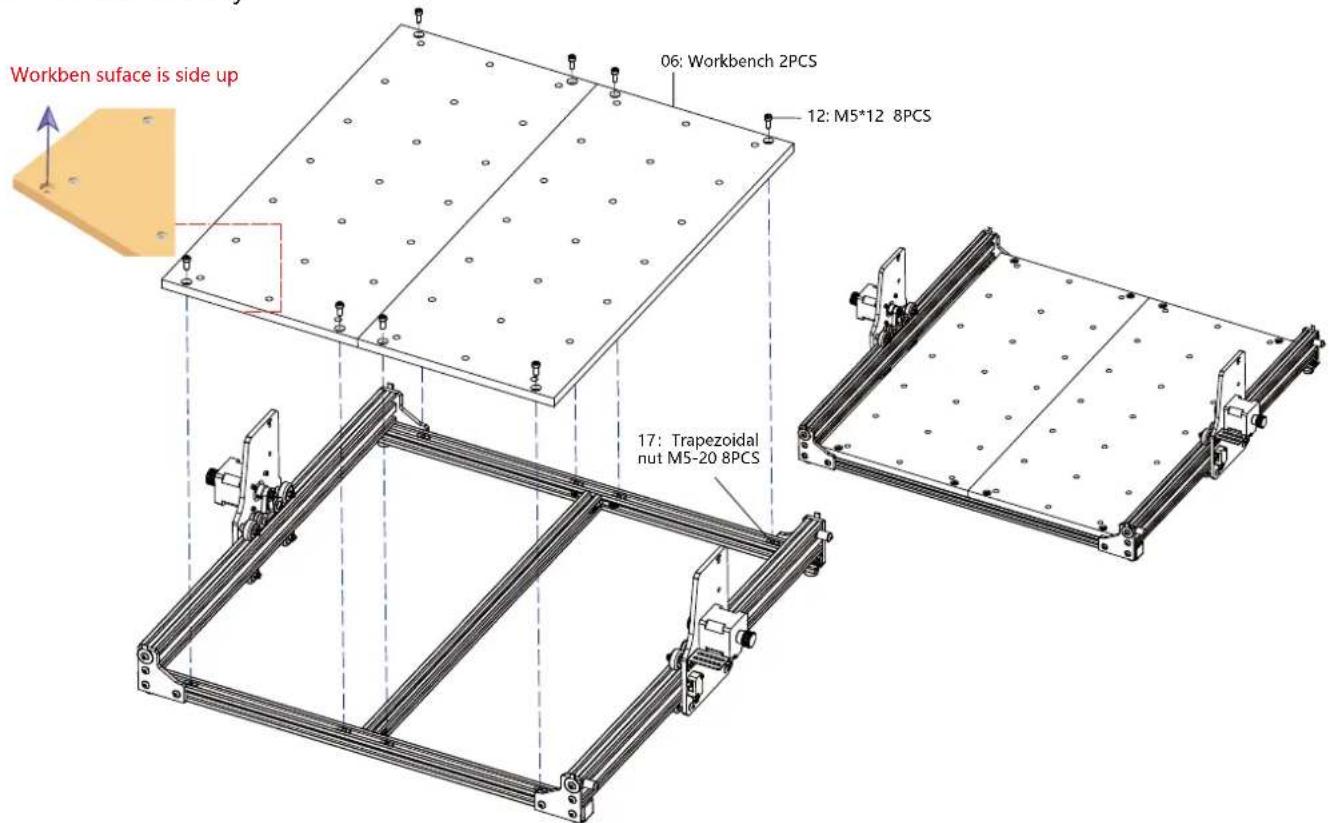

② Workbench assembly

Workben surface is side up 06: Workbench 2PCS 12: M5*12 8PCS 17: Trapezoidal nut M5-20 8PCS

③ X-axis component assembly

03: Component for X-axis 1Set 19: Φ5-Φ20 4PCS 11: M5°14 4PCS

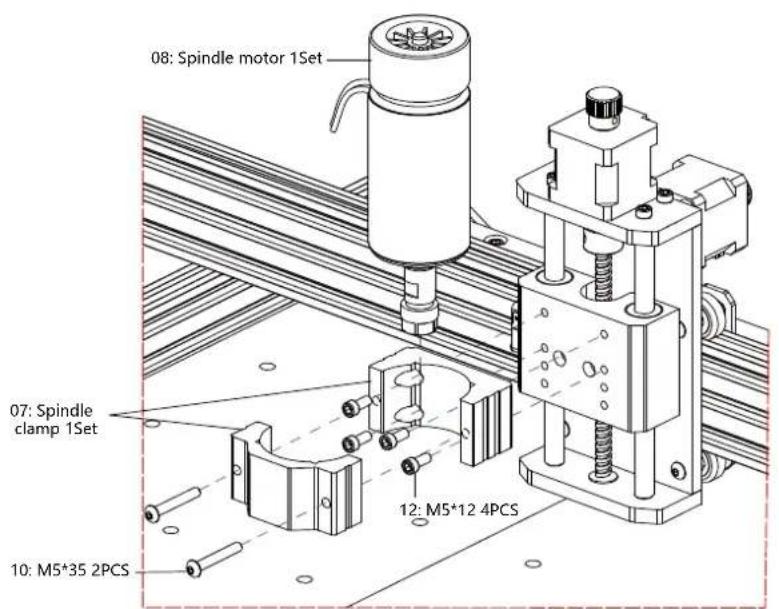

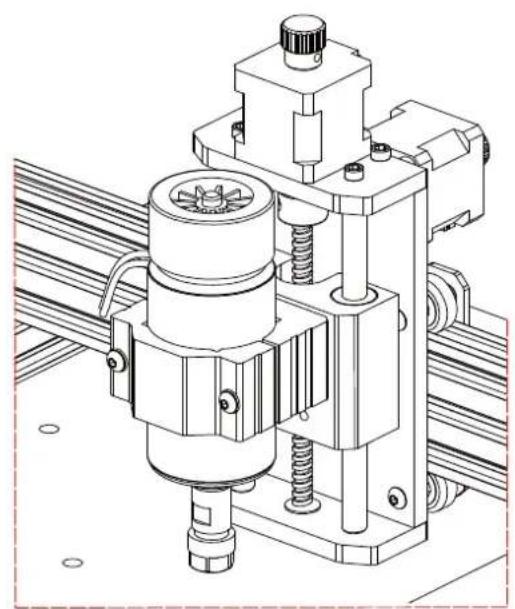

④ Spindle fixture and motor assembly

08: Spindle motor 1Set 07: Spindle clamp 1Set 12: M5*12 4PCS 10: M5*35 2PCS

Technical line drawing of a mechanical assembly with springs and shafts (no text or symbols)

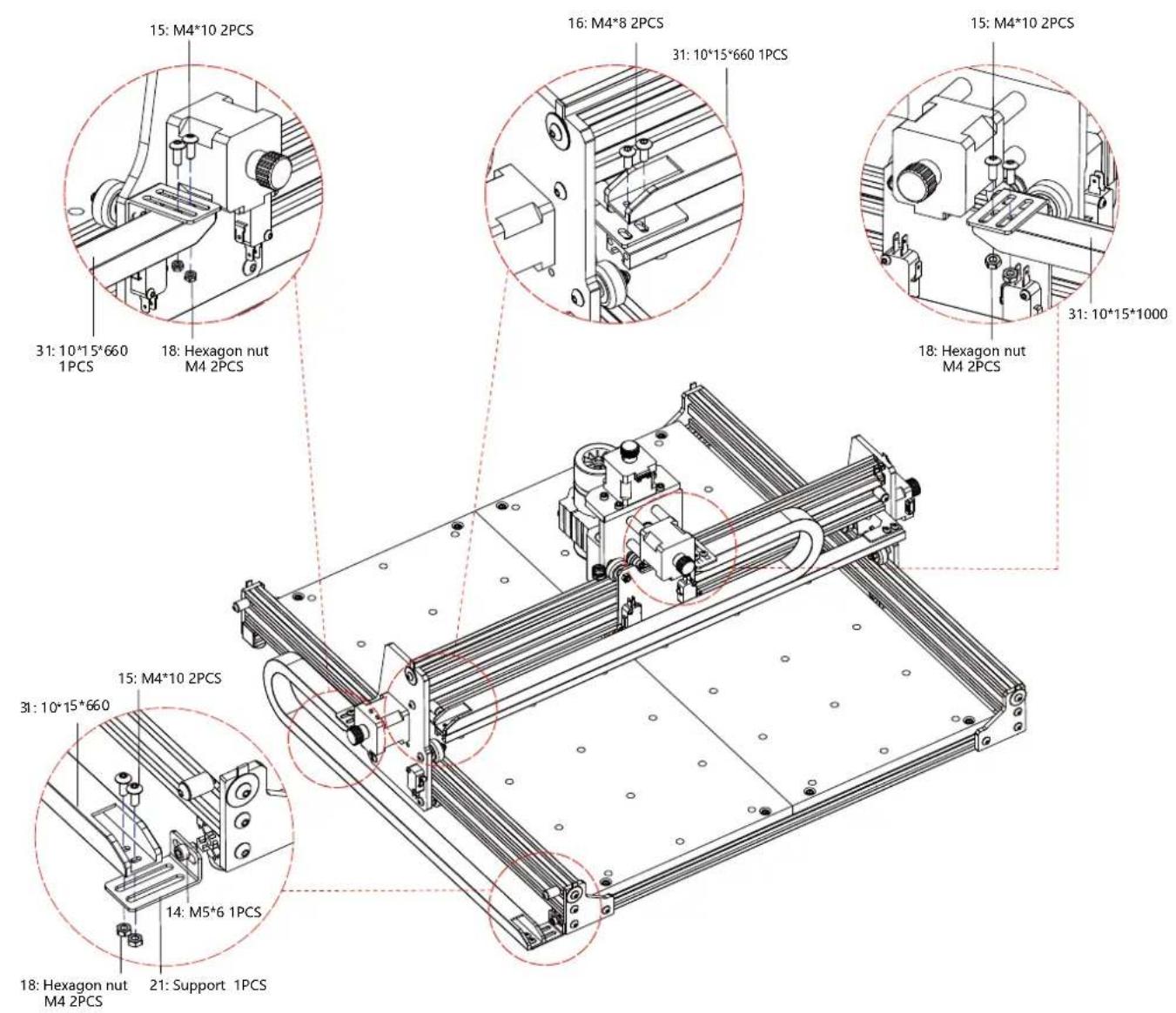

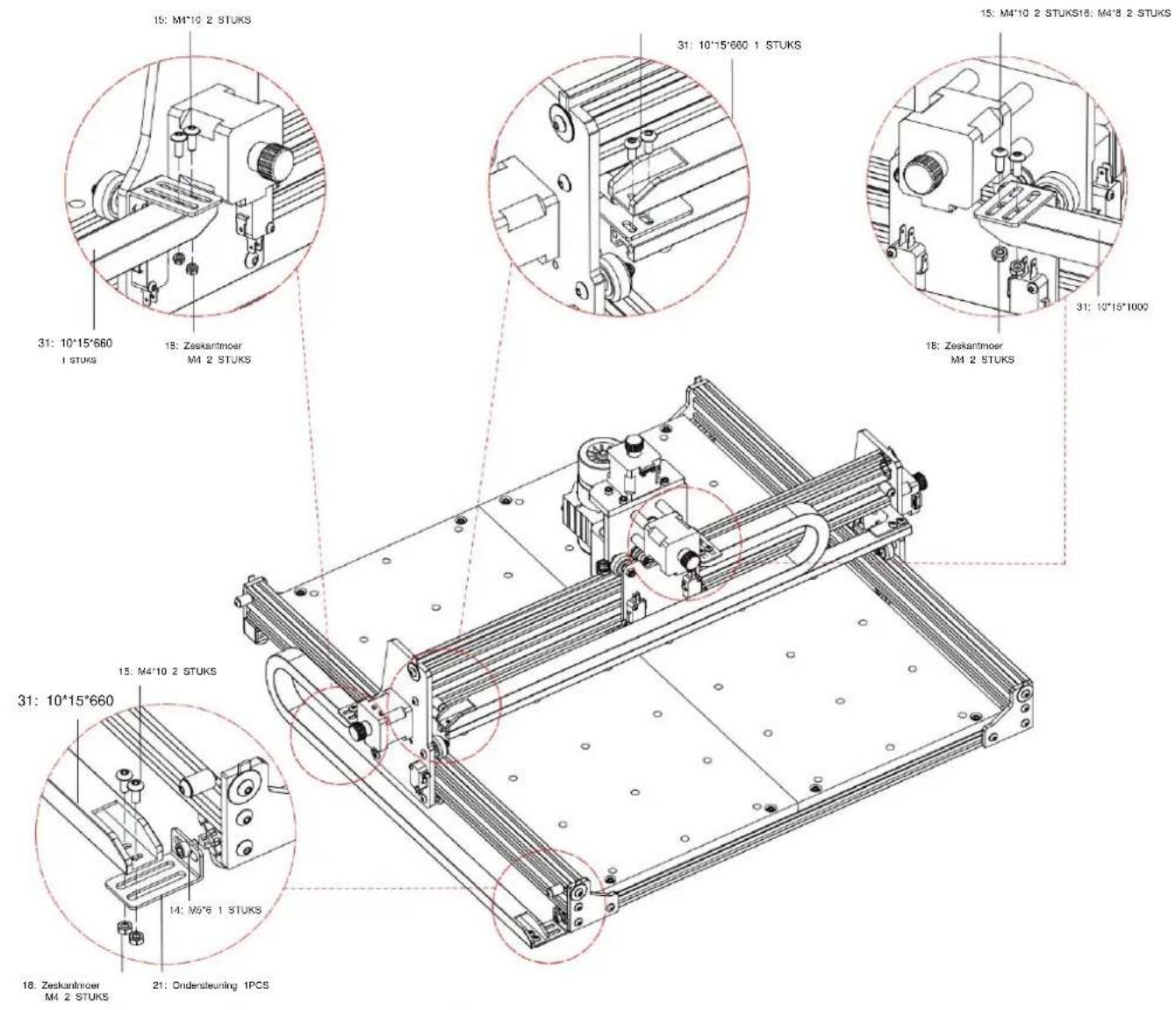

⑤ Towing chain assembly

15: M4*10 2PCS 31: 10*15*660 1PCS 18: Hexagon nut M4 2PCS 16: M4*8 2PCS 31: 10*15*660 1PCS 15: M4*10 2PCS 31: 10*15*1000 18: Hexagon nut M4 2PCS 15: M4*10 2PCS 31: 10*15*660 14: M5*6 1PCS 18: Hexagon nut M4 2PCS 21: Support 1PCS

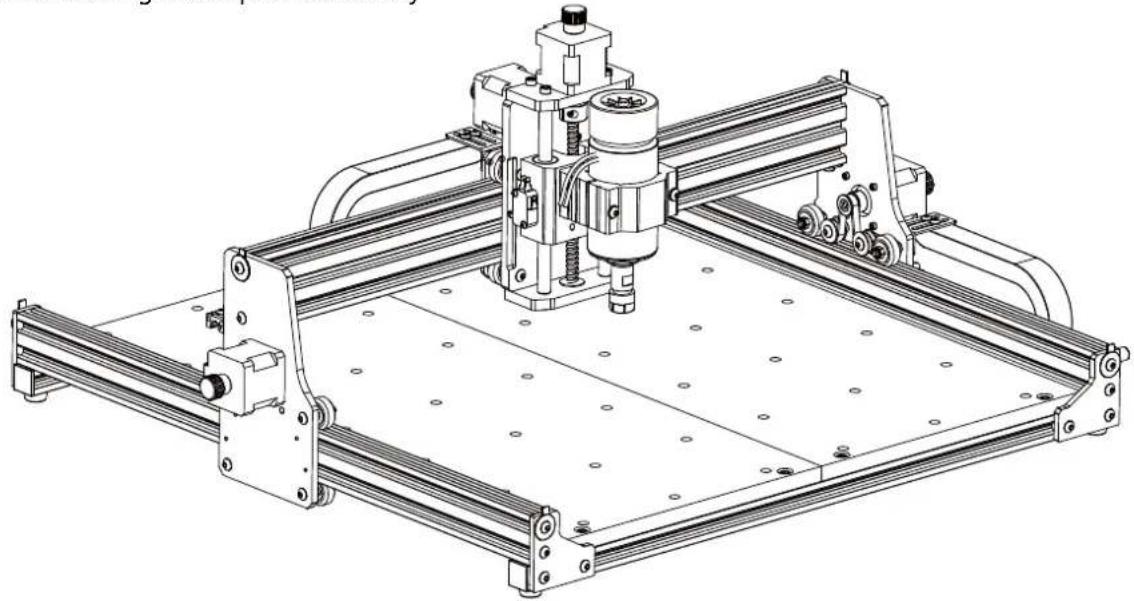

⑥ Machine drawing of completed assembly

Technical line drawing of a mechanical assembly with articulated arms and a central cylindrical component (no text or symbols)

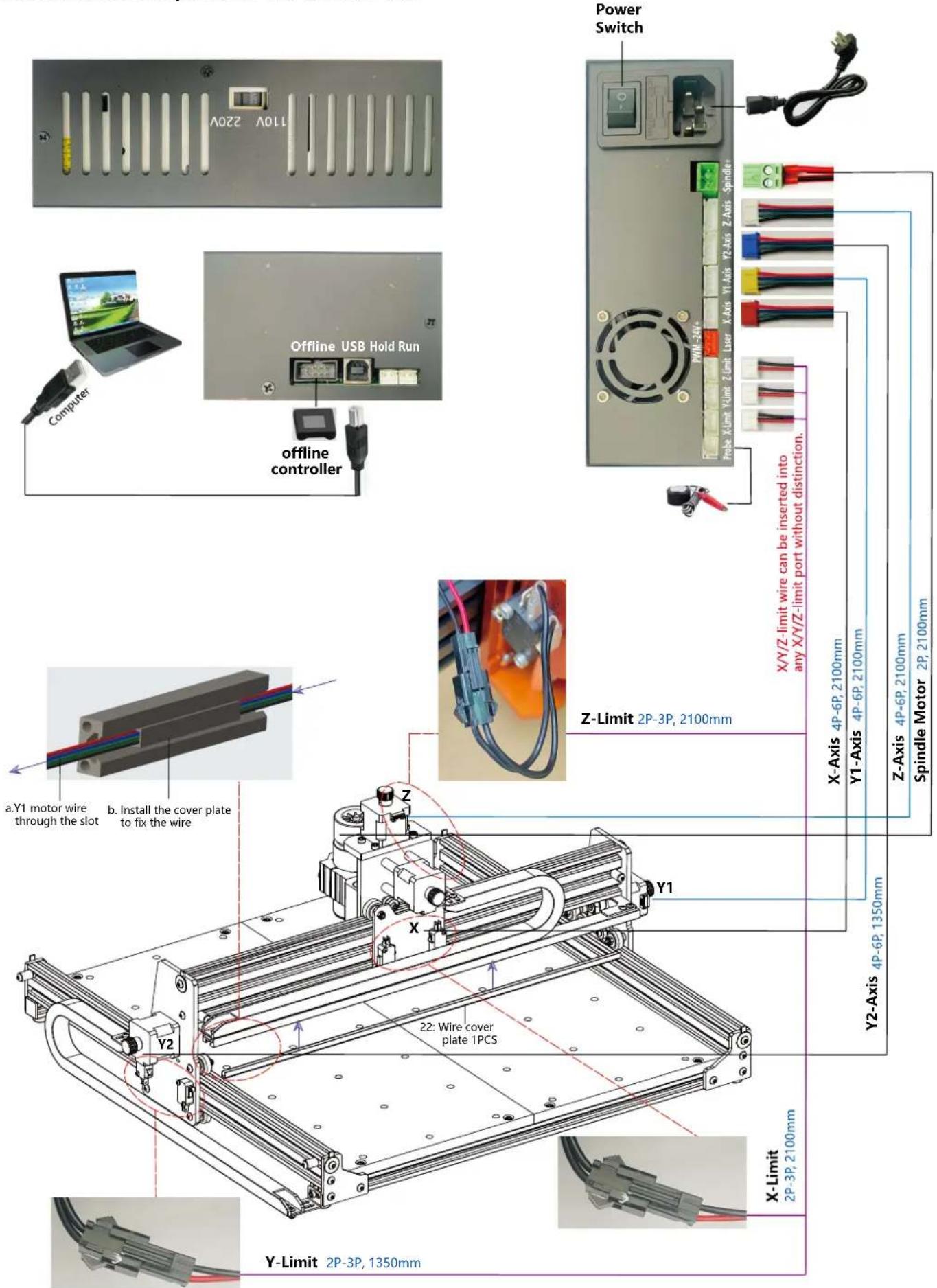

1. Instructions for ports on the control-box


110V 220V Computer Offline USB Hold Run offline controller Power Switch PWM 20V Probe X-Lim Y-Vin Z-Lim Laser X-Axis Y-Axis Y-Z-Axis Z-Axis Spindle X/Y/Z-limit wire can be inserted into any X/Y/Z-limit port without distinction. a.Y1 motor wire through the slot b. Install the cover plate to fix the wire Z-Limit 2P-3P, 2100mm Y1 X Y2 Y-Limit 2P-3P, 1350mm 22: Wire cover plate 1PCS X-Limit 2P-3P, 2100mm Y2 X-Axis 4P-6P, 2100mm Y1-Axis 4P-6P, 2100mm Z-Axis 4P-6P, 2100mm Spindle Motor 2P, 2100mm Y2-Axis 4P-6P, 1350mm

4. Candle Software

Candle is a GUI application for GRBL-based CNC-machines with G-Code visualizer. Candle is an open-source software suitable for CNC machine tool processing. It supports G code file processing and visual display.

Supported functions:

(1) Controlling GRBL-based CNC-machine via console commands, buttons on form, numpad.
(2) Monitoring CNC-machine state.
(3) Load, edit, save and send G-code files to CNC-machine.
(4) Visualizing G-code files.

4.1 States

Work coordinates:

Represents current X, Y & Z local coordinates of the CNC.

Machine coordinates:

Represents current X, Y & Z absolute machine coordinates.

One of following CNC status:

• Idle - waiting for a G-code command Running - running a G-code command
  Home - homing cycle is executing
• Check - G-code command check mode is turned on
  Hold - paused by a "!" command, need to be restarted by a "\~" command
• Alarm - CNC doesn't know where it is and blocks all G-code commands

State Work coordinates: 7.145 4.635 -0.050 Machine coordinates: 7.145 4.635 -0.050 Status: Run

4.2 Control

Home button

Starts the homing cycle procedure with "\$H" command

Z-probe

Starts the zero Z-axis search procedure using the command specified in the settings ("Z-probe commands" box). Example command:G91G21; G38.2Z-30F100; G0Z1; G38.2Z-1F10

Control

Zero X/Y

Zeroes the "X" and "Y" coordinates in the local coordinate system. Also retains an local system offset ("G92") for later use.

Restore X/Y/Z

Restores local system coordinates with "G92" command.

Safe Z

Moves tool by "Z"-axis to safe position. Position coordinate can be specified in the "Safe Z" setting. Position must be specified in machine coordinates.

Reset

Resets CNC with "CTRL+X" command

Unlock

Unlocks CNC with "\$X" command.

4.3 Software using steps

(1). Install the driver

For the first time use, please connect the device to the computer via USB cable, and click the CH341SER.exe file in the driver folder to install the driver. Under normal circumstances, the Win10 system will automatically identify and install the driver. For Win7 and Win8 systems, please install it manually.

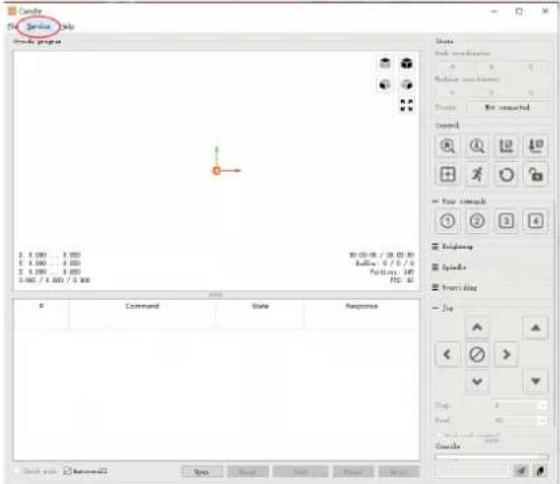

(2) Set the port and connection

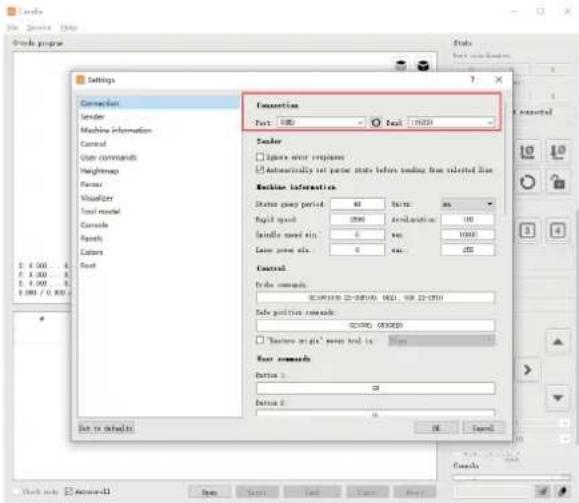

After installing the driver, open the device manager of the computer and click on the port option to see the content inside the red box on the screen shown in the figure below (the port information is in brackets).

Remember the port information queried above, switch to the Candle software interface and click the "Settings" option in the upper left corner. Selecting the setting will pop up the setting window. Under "Connection", select the port name you queried, select the baud rate 115200, and then click the "ok" to finish the setting.

Candle File Service Tools Candle Program Start Start End Finish Status Not connected Control Start Start End Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start Start End End

Connection Port: 1000 Load: 15000 Solder □ Square error responses □ Automatically set parameter state before ending from selected line Backline information Status temp period: 40 ms Rapid speed: 2500 rpm/s Settle speed min: 0 ms Lower speed min: 0 ms Control: Trade commands: DC39128 22-38700 1621.168 22-3710 Side position commands: DC390. 553020 □ "Bottom edge" power tool is: 30ms Outer commands: Parties 1: Parties 2: Set to default: OK Cancel Start Next Start Save Help

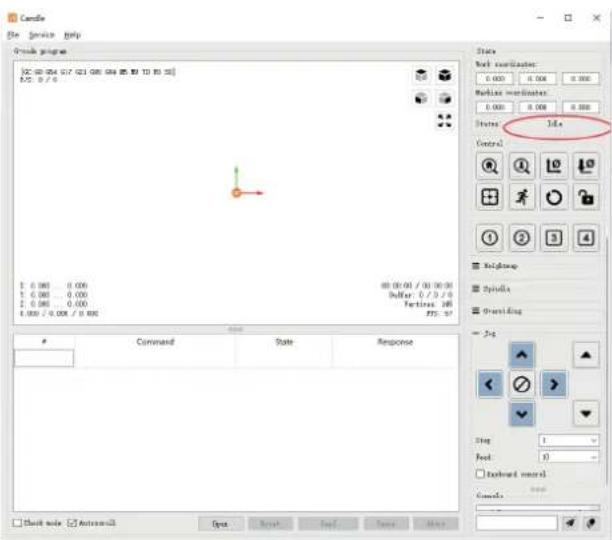

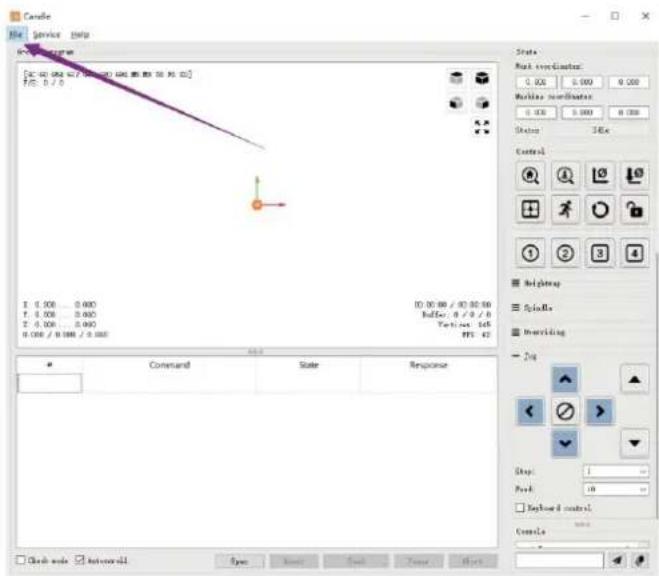

(3). Complete connection

After setting the port and baud rate, click Finish. The status bar at the top right of the Candle interface will show Idle, and at the same time, the console at the bottom right will display the information shown below, indicating that the connection has been successfully established.

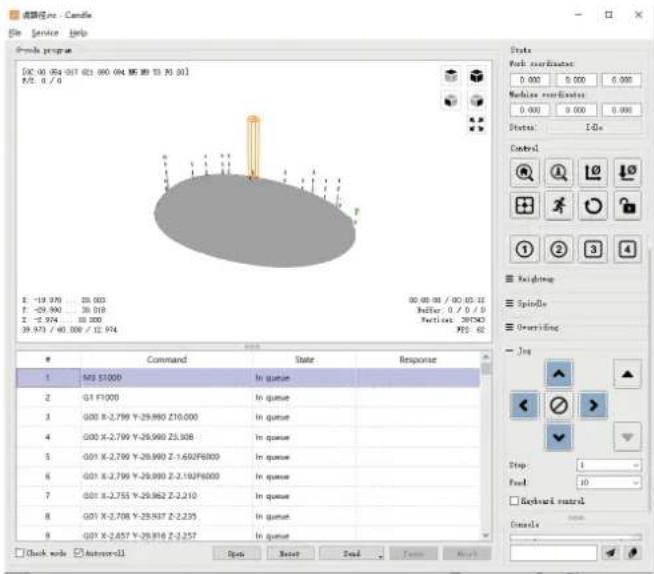

(4). Processing documents

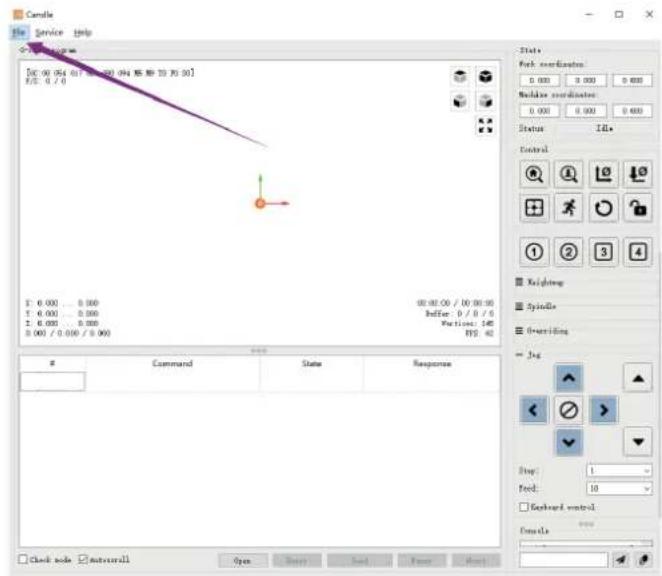

Click "File" option at the top of candle, then click "New" to create G-Code. On the command bar at the bottom of the interface, click "Open" to select a G code file that has been made to import the file. After importing, the middle of the interface will display a visual graph composed of tool paths (the position of the pen-shaped graph in the graph is the current tool position). In the visualization window, hold down the left mouse button to move to rotate the graph, and hold down the right button to move. Graphics, scrolling the middle wheel can zoom in and out of the graphics. At the same time, the content of the G-Code will be displayed in the lower command bar. During processing, the machine will run one by one according to the G-Code commands.

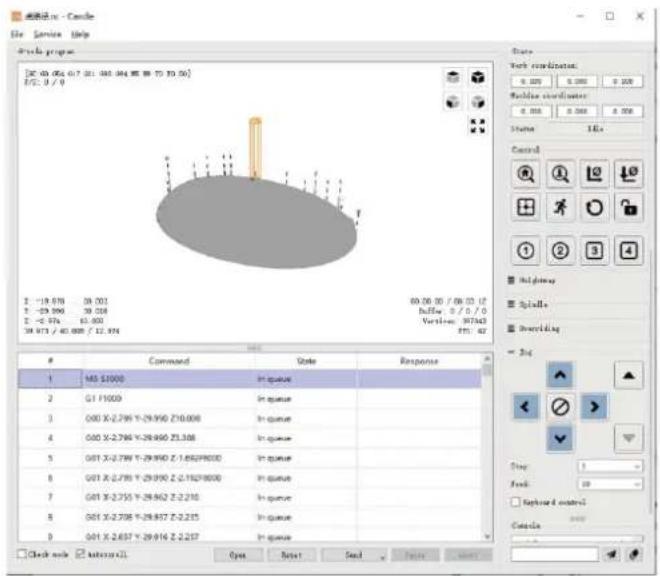

Candle File Service Help Create program DC: 0.000 / 0.07 / 0.14 / 0.08 / 0.09 / 0.10 / 0.11 / 0.12 X: 0 / 0 State Not applicable: 0.000 0.004 0.000 Vertical coordinates: 0.000 0.000 0.000 States: Ida Control Position Symbol Setting Jg Step: 1 Foot: 0 Trackward control Controls Command State Response Shift mode: Antennals Spot Reset End Now Add

Candle File Service Help [0:00 0:04 0:07 0:08 0:02 0:04 0:05 10:30 30] F: 0 / 0 State Fock coordinates: 0.000 0.000 0.000 Enable coordinates: 0.000 0.000 0.000 Status 1D. Control XHeight Spindle Grading Jag Stop: 1 Feed: 18 Keyboard control Details Command State Response Check mode Autoroll Open Save Send Power Apply

成绩过程 File Service Help Grain program [00:00:054 017:021.960.084 M5.80 TO 70.91] F/1: 0 / 0 1: -19.970 ... 28.900 F: -29.990 ... 36.018 F: -2.974 ... 38.000 (39.873 / 40.100 / 12.914) State Port coordinates: 0.000 0.000 0.000 Machine coordinates: 0.000 0.000 0.000 Status: I.Ds Control K1 K2 K3 K4 K5 K6 K7 K8 K9 K10 K11 K12 K13 K14 K15 K16 K17 K18 K19 K20 K21 K22 K23 K24 K25 K26 K27 K28 K29 K30 K31 K32 K33 K34 K35 K36 K37 K38 K39 K40 K41 K42 K43 K44 K45 K46 K47 K48 K49 K50 K51 K52 K53 K54 K55 K56 K57 K58 K59 K60 K61 K62 K63 K64 K65 K66 K67 K68 K69 K70 K71 K72 K73 K74 K75 K76 K77 K78 K79 K80 K81 In queue: GQI F1000 In queue: GQO K-2.799 Y-28.990 Z10.000 In queue: GQO K-2.799 Y-28.990 Z3.308 In queue: GQI K-2.799 Y-28.990 Z-1.692F6800 In queue: GQI K-2.799 Y-28.990 Z-2.193F6600 In queue: GQI K-2.755 Y-28.862 Z-2.210 In queue: GQI K-2.708 Y-28.937 Z-2.235 In queue: GQI K-2.657 Y-28.918 Z-2.357 In queue: Stop: 1 Load: 10 ✓ Backward control Close% Check node Autoroll Spot Reset End Tools Make

(5). Fixture, tool installation and Set the working coordinate origin

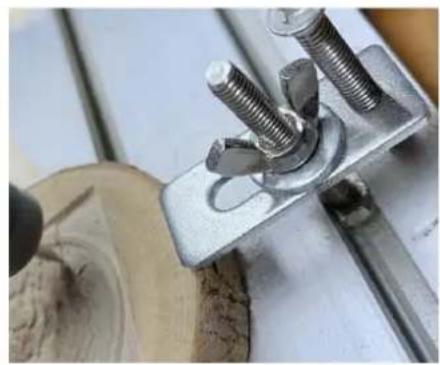

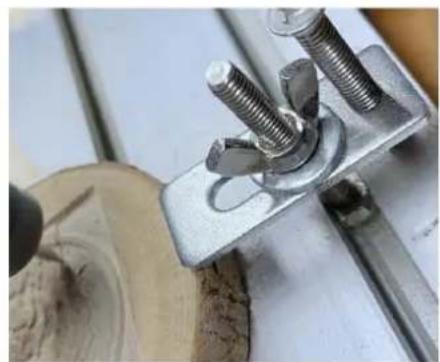

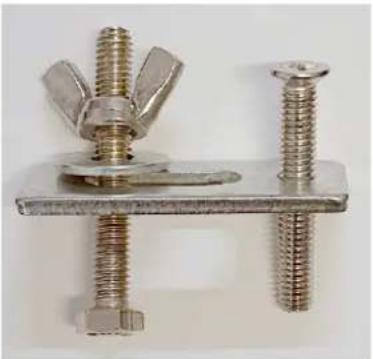

The fixture in the product kit is not assembled. There are four sets in total. The appearance and usage of the assembled fixture are shown in the right figures.

Before running the G code program, you need to find the position of the engraving figure relative to the overall engraving plate. There is a three-axis coordinate system in the visual graphics. The origin of the three-axis coordinate system is the tool setting point of the actual processing graphic.

You can move the tool to determine the position of the engraving graphic relative to the overall engraving plate based on the position of this origin. The engraving figure in the figure below is taken as an example.

Close-up of metallic screw fasteners mounted on a metal bracket (no text or symbols visible)

Close-up of a metal clamp securing bolts on a workbench, with a tool partially visible (no text or symbols)

After the selected tool position is started, the X/Y and Z axes are reset to zero (the 10 10 are zeroing X/Y and Z axes buttons). Before returning to zero, make sure that the tool approaches the distance of one sheet of paper for engraving, and then return the X/Y and Z axes to zero (please use a flat-bottom sharp knife when engraving, and use a cylindrical milling cutter when machining planes, slots, and holes) The effect is that the sculpted figure will be carved with the blade tip as the origin.

The ER11 collet on the spindle motor should be clamped into the fixed head first, and it must be clamped in place. When installing the cutter, please do not extend the collet too much, as shown in the first figure below.

Four-panel sequence showing a sewing machine tool interacting with fabric, before and after application of a dark brown seam on a wooden surface.

(6) Start carving

After finding the engraving position, click the send button below and the device will automatically start engraving. The status bar at the top right shows running. The visualization window shows that the tool is moving along the tool path. You can choose the pause and stop buttons below when engraving. (After pausing, click again to continue the previous carving. After termination, click Send to start processing from the beginning).

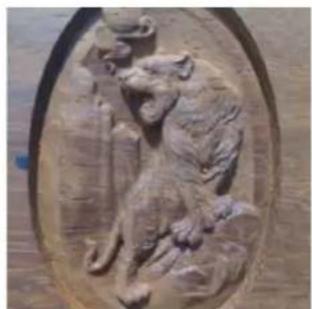

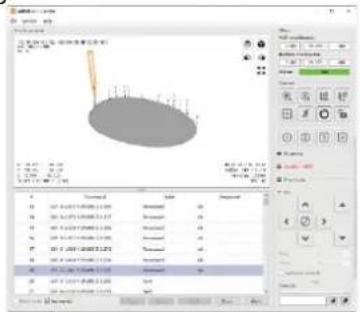

(7). Finished processing

After the processing is completed, the visualization window prompts that the engraving is completed and the time required for carving.

Screenshot of a 3D modeling software interface showing a 3D model with coordinate axes and parameter settings panel.

Close-up of a robotic arm cutting a wooden block with a visible surface (no text or symbols)

Close-up of a carved stone sculpture of a stylized animal, possibly a lion or tiger, embedded in an oval frame (no text or symbols visible)

5. Offline controller (Optional)

Note: The offline controller and the computer cannot be connected to the engraving machine at the same time. When using the offline controller, please make sure that the USB cable of the machine and the computer is disconnected. The off-line controller has an external 12V standby power supply interface. When users use other mainboards with no power supply and weak power supply capacity, they can connect an external power supply to supply power to the controller

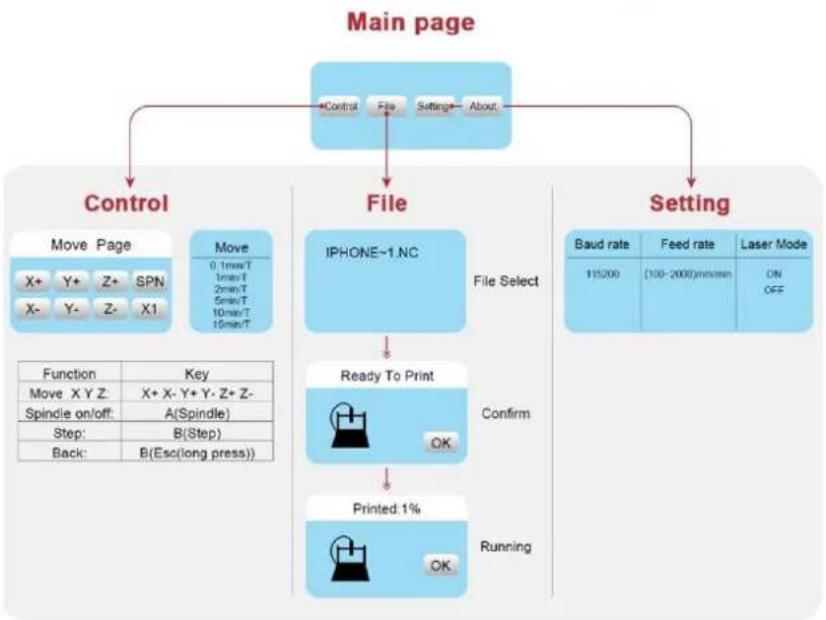

5.1 Main page:

Y-: right Y+: left Z+: Send \$X to the GRBL motherboard to unlock it.

OK/SPN: Confirm button.

5.2 Control page:

Manually move each axis to the desired position. X+: X axis move right direction, X- opposite. Y+: Y axis move forward direction, Y- opposite. Z+: Z axis move up direction, Z- opposite.

OK/SPN: Spindle test switch, press to open the spindle (corresponding to SPN gray on the screen), press again to close the spindle (the corresponding SPN on the screen returns to normal). Long press to enter changing spindle speed page. At this page, Y+/Y- is High/Low spindle speed, long press OK/SPN to exit the changing spindle speed page.

Exit/STP: Function 1: Tap on each axis button of XYZ to change the movement distance by 0.1, 1, 5, 10 cycles each time. Function 2: Press and hold for about 2 seconds to exit.

5.3 File page:

File list Select the file to be engraved. Support documents include: NC, NCC, TAP, TXT, Gcode, GCO, NL, CUT, CNC.

Y+: up, Y-: down

OK/SPN: Confirm the selection and enter the confirmation engraving page.

5.4 Confirm the engraving page:

Confirm that the engraving file is started without errors.

OK/SPN: Confirmation starts, ready to print becomes the progress display percentage, the file selection page is returned after the engraving is completed.

5.5 Settings page:

X+/ X-: Chang Baud rate; Y+/Y-: Change Feed rate by ±100/Click; Z+/Z-: Change Feed rate by ±10/Click; OK/SPN: Change Laser Mode ON/OFF

5.6 Wi-Fi Network and Web

The offline controller has WiFi wireless network function. By default, the WiFi hotspot of VIGO-STK**** is automatically established. You can connect to the hotspot through the WiFi of your computer or mobile phone with password 12345678, and then open

192.168.0.1 or vigostick.local in browser to manage (upload or delete) the files on the SD card of the offline controller, and you can also enter the SSID (Only support 2.4G signal) account and password to help the offline controller access your local WiFi network. After the controller is connected to the local 2.4G WiFi, the current IP address of the controller or the domain name vigostick.local can still be opened to enter the web management interface. You can open About page of the controller to check the IP address.

Network status: There is a dot in the upper left corner of the main page. The RED dot indicates that VIGO-STK**** hotspot is active, and the GREEN dot indicates that the controller has connected to Local WiFi.

The web management interface is as previous page. The web pages functions as follows:

Click the menu "Control", the MOVE Control interface appears, you can click the corresponding button to control the CNC machine movement.

Click the menu "File", shows the carving files currently stored in the SD card of the current offline controller. You can upload new files to the controller. After selecting the corresponding carving file to start the carving, the interface displays the file being carved and the carving progress. You can click the button to pause or stop the carving process.

Click the menu "Settings", enter the carving machine setting interface, where you can set some control parameters, or perform reset, unlock, restore settings, tools setting, turn on/off laser mode and other commands.

6. Restore factory settings

If the mechanical movement of the machine is smooth, but the engraving movement appears stuck, or the stepper motor does not move, please try to restore the factory settings of the main-board.

Method : Run Candle software and send command \$RST=* to the machine, then reboot the machine.

CNC Repair Guide

Problem Solution
Computer and offline controller cannot control the machine's normal movement or engrave abnormally	Check if the offline controller and the computer USB are both connected to the engraving machine. If so, unplug either the offline controller or the computer USB cable. Both cannot be connected to the engraving machine at the same time.
The machine is connected to the computer and powered on, but the engraving software shows a connection failure	Please make sure the computer has the correct driver installed; please check if the USB interface is properly connected; please make sure the COM port is selected correctly (do not select COM1); please make sure the baud rate is selected correctly (choose 115200).
The software displays an alarm error, the controller is locked, and clicking reset and unlock does not eliminate it	Check if the limit switches in the XYZ three-axis direction are pressed down or obstructed by foreign objects. Clean them if necessary. Alternatively, unplug the connection wires of the limit switches. If it returns to normal, the corresponding switch has short-circuited and failed. It can be replaced or temporarily abandoned.
The engraved content appears as a mirrored reflection of the original image, and the manual control movement direction is incorrect	Just set the Grbl parameters in the software to reverse the direction of the X or Y axis.
The engraved content appears rotated by 90 degrees	Check if the connection joints of the controller's XY axis have been swapped. Simply swap the connections back.
Problem	Solution
The engraved image is distorted and misaligned	Please check if there is any slippage between the lead screw motor axis and the coupling. Tighten the set screws on both ends of the coupling.
After modifying the engraving machine firmware parameters, various abnormal machine movements or abnormal engraving sizes occur	Please restore the firmware to factory settings. Run the Candle software, connect to the machine, and in the bottom right command box, enter and send the command $RST=*, then restart the machine.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical assembly with no visible text or symbols

S4040

Technical line drawing of a mechanical assembly with springs and components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Connection Port: COD Load: 11000 Seeded □ Input were responsive □ Environmentally on power state before loading flow selected line Connection Information Input: temp period: 42 Input speed: 3600 Output speed ratio: 8 Output rate ratio: 0 Control: Strike commands: Q1/04/2015 25-00/2016 1631 174 25-07/20 Data position commands: Q1/09 1631/2015 □ "Before input" was not too low to: 1631 Data commands: Value 1: Value 2: Set to Default OK Cancel

(3). Terminer la connexion

Close-up of metallic screw fasteners mounted on a metal bracket (no text or symbols visible)

Close-up of a metal clamp securing bolts with a wooden surface (no text or symbols visible)

Four-panel sequence showing a mechanical tool interacting with fabric, wire meshing, and soldering process (no text or symbols visible)

Screenshot of a 3D modeling software interface showing a 3D model with coordinate axes and parameter settings panel.

Close-up of a precision machining setup with a cutting machine and workpiece on a wooden base (no visible text or symbols)

Close-up of a carved stone sculpture of a stylized animal, possibly a lion or mythical creature, embedded in an oval frame (no text or symbols visible)

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical assembly with no visible text or symbols

S4040

Technical line drawing of a mechanical assembly with springs and components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Connections Port: OBD Load: 10000 Seeds □ Input user commands □ Automatically on power slots before loading flow selected line Database Information Shtray, temp period: 40 Speed speed: 3000 Speed speed ratio: 8 Speed user role: 0 Control: Strike commands: COM/PLM-22-SPX20 601 476 25-SPX20 Data position commands: QL199 02P2021 □ "bottom ports" best track to: 5000 User commands: Button : Button F: Set to Default OK Cancel Check up E:\Documents\Add Back Add Paste Tools

Candle File Service Help Candle [0.00] (0.00) (0.00) (0.00) (0.00) (0.00) F: 0.00 F: 0.00 F: 0.00 F: 0.00 F: 0.00 F: 0.00 F: 0.00 F: 0.00 F: 0.00 F: 0.00 F: 0.00 F: 0.00 F: 0.00 F: 1.00 F: 1.00 F: 1.00 F: 1.00 F: 1.00 F: 1.00 F: 1.00 F: 1.00 F: 1.00 F: 1.00 F: 1.00 F: 1.00 F: 1.00

C:\Program Files\Service\Help C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\ProgramFiles\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\ProgramFiles\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\C:\Program Files\ C:\rm10000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 Command State Response MS 1.0.0.00 In queue G1 F1.0.0.0 In queue G2 X-2.795 Y-29.996 Z7.6.9.9.9 In queue G3 X-2.796 Y-29.996 Z3.3.3.9 In queue G4 X-2.799 Y-29.996 Z-1.6.6.9.9.9 In queue G5 X-2.795 Y-29.996 Z-2.1.6.9.9.9 In queue G6 X-2.755 Y-29.962 Z-2.2.3.9 In queue G7 X-2.758 Y-29.847 Z-2.2.3.9 In queue G8 X-2.657 Y-29.916 Z-2.2.3.9 In queue Click mode Automatics Open Reset Send Cancel Help

Close-up of metallic screw fasteners mounted on a metal bracket (no text or symbols visible)

Close-up of a metal clamp securing bolts with a clay or stone sample (no text or symbols visible)

Four-panel sequence showing a mechanical tool interacting with fabric, wire meshing, and soldering process (no text or symbols visible)

Screenshot of a 3D modeling software interface showing a 3D model with coordinate axes and parameter settings panel.

Close-up of a precision machining setup with a tool and workpiece on a wooden base (no visible text or symbols)

Close-up of a carved stone sculpture depicting a stylized animal figure (no text or symbols visible)

5. Offline-Controller (optional)

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

MACCHINA PER INCISIONE CNC

MANUALE D'USO

MODELLO: S4040

Technical line drawing of a mechanical assembly with no visible text or symbols

S4040

Cerca video e guide

Technical line drawing of a mechanical assembly with springs and components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Connections Port: OBD Load: 10000 Seeds □ Input user commands □ Automatically on power slots before loading flow selected line Database Information Shtray, temp period: 40 Speed speed: 3000 Speed speed ratio: 8 Speed user role: 0 Control: Strike commands: COM/PLM-22-SPX20 601 476 25-SPX20 Data position commands: QL199 02P2021 □ "bottom ports" best track to: 5000 User commands: Button : Button F: Set to Default OK Cancel Check up E:\Documents\Add Back Load Save

CNC File Service Help CNC program [0:40.064 0:7 011-085.064 00:00:00 10:00] F/E: 0 / 0 State Work coordinates: 0.129 0.088 0.109 Workline coordinates: 0.006 0.006 0.006 Status ID: Control Halikey Spindle Shronding Jog

Command State Response

1 M3 S1000 In queue 2 G1 F1000 In queue 3 OOO X-2.795 Y-29.950 Z10.008 In queue 4 OOO X-2.795 Y-29.950 Z3.308 In queue 5 GOT1 X-2.795 Y-29.950 Z-1.652P6000 In queue 6 GOT1 X-2.795 Y-29.950 Z-2.152P8000 In queue 7 GOT1 X-2.755 Y-29.862 Z-2.215 In queue 8 GOT1 X-2.798 Y-29.847 Z-2.215 In queue 9 GOT1 X-2.637 Y-29.916 Z-2.217 In queue Clock node Autoroll Open Reset Send Paste Window Play 1 Feed: 20 Keyboard control Camera 447

Close-up of metallic screw fasteners mounted on a metal bracket (no text or symbols visible)

Close-up of a metal clamp securing bolts with a wooden surface (no text or symbols visible)

Four-panel sequence showing a mechanical tool interacting with fabric, wire meshing, and soldering process (no text or symbols visible)

Screenshot of a 3D modeling software interface showing a 3D model with coordinate axes and parameter settings panel.

Close-up of a precision machining setup with a cutting machine and workpiece on a wooden base (no visible text or symbols)

Close-up of a carved stone sculpture of a stylized animal, possibly a lion or mythical creature, embedded in an oval frame (no text or symbols visible)

5. Controller offline (facoltativo)

5.3 Pagina file:

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical assembly with no visible text or symbols

S4040

Technical line drawing of a mechanical assembly with springs and components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Connection Port: COD Load: 11000 Seeded □ Input were responsive □ Environmentally on power state before loading flow selected line Connection Information Input: temp period: 42 Input speed: 3600 Output speed ratio: 8 Output rate ratio: 0 Control: Strike commands: Q1/04/2015 25-00/2016 1631 174 25-07/20 Data position commands: Q1/09 1631/2015 □ "Before input" was not to be done User commands: Value 1: Value 2: Set to Default OK Cancel Find any C:\Documents\Start\Next\Next\Next

Close-up of metallic screw fasteners mounted on a metal bracket (no text or symbols visible)

Close-up of a metal clamp securing bolts with a clay or stone sample (no text or symbols visible)

Four-panel sequence showing a mechanical tool interacting with fabric, wire meshing, and soldering process (no text or symbols visible)

(6) Comience a tallar

Screenshot of a 3D modeling software interface showing a 3D model with coordinate axes and parameter settings panel.

Close-up of a precision machining setup with a cutting machine and workpiece on a wooden base (no visible text or symbols)

Close-up of a carved stone sculpture of a stylized animal, possibly a lion or mythical creature, embedded in an oval frame (no text or symbols visible)

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a mechanical assembly with no visible text or symbols

S4040

Technical line drawing of a mechanical assembly with springs and components (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Connections Port: OBD Load: 11000 Seeds □ Input user commands □ Automatically on power slots before loading flow selected line Database Information Shtray, temp period: 40 Speed speed: 3000 Speed speed ratio: 8 Speed user role: 0 Control: Strike commands: COM/PLM-22-SPX20 601 476 25-SPX20 Data position commands: QL199 02P2021 □ "bottom ports" best track to: 5000 User commands: Button : Button F: Set to Default OK Cancel Check up: E:\Documents\Add Back Load Save Tools

Candle File: service help Keyframe [0.000000 / 0.000000 (0.000000) (0.000000)] F5: 0.00 State Mask coordinates: 0.000 0.000 0.000 Masker coordinates: 0.00 0.00 0.00 Status: 34% Control Heightmap SpikeRs Ordering 2ug Step: 1 Push: 18 Keyboard control Cancel Command State Response Check mode Inversion Open Next Finish Next Next Next

CNC File Service Help CNC program [0:40.064 0:7 0:1.085.064 0:8 10:30] F/2: 3 / 0 State Work coordinates: 0.100 0.000 0.100 Workline coordinates: 0.000 0.000 0.000 Status ID: Control Hulgway Spindle Shranding Jog

Command State Response

1 M3 S1000 In queue 2 G1 F1000 In queue 3 OOO X-2.795 Y-29.950 Z10.000 In queue 4 OOO X-2.795 Y-29.950 Z3.308 In queue 5 GOT1 X-2.795 Y-29.950 Z-1.652P6000 In queue 6 GOT1 X-2.795 Y-29.950 Z-2.152P8000 In queue 7 GOT1 X-2.755 Y-29.862 Z-2.215 In queue 8 GOT1 X-2.798 Y-29.847 Z-2.215 In queue 9 GOT1 X-2.687 Y-29.916 Z-2.217 In queue Clock mode Autoroll Open Reset Send Paste Window Play 1 Feed: 20 Keyboard control Camera

Close-up of metallic screw fasteners mounted on a metal bracket (no text or symbols visible)

Close-up of a metal clamp securing bolts with a wooden surface (no text or symbols visible)

Four-panel sequence showing a mechanical tool interacting with fabric, wire meshing, and soldering process (no text or symbols visible)

Screenshot of a 3D modeling software interface showing a 3D model with coordinate axes and parameter settings panel.

Close-up of a precision machine tool applying material to a wooden block with a small orange surface (no visible text or symbols)

Close-up of a carved stone sculpture of a stylized animal, possibly a lion or mythical creature, embedded in an oval frame (no text or symbols visible)

1. Kontroler offline (opcjonalnie)

5.3 Strona pliku:

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

CNC GRAVEERMACHINE

GEBRUIKERSHANDLEIDING

MODEL: S4040

Technical line drawing of a mechanical assembly with no visible text or symbols

S4040

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical line drawing of a mechanical assembly with springs and components (no text or symbols)

ÿ Sleepkettingmontage

15: M4*10 2 STUKS 31: 10*15*660 1 STUKS 18: Zeiskantmoer M4 2 STUKS 31: 10*15*660 1 STUKS 31: 10*15*660 1 STUKS 15: M4*10 2 STUKS 31: 10*15*660 1 STUKS 14: M5*6 1 STUKS 18: Zeiskantmoer M4 2 STUKS 21: Ondersteuning 1PCS

Technical line drawing of a mechanical assembly with no visible text or symbols

Connections Port: ORD Load: 10000 Settings Input row commands Automatically on power state before reading free selected line Machine information Stop row period: 40 Speed: 500 Speed speed: 0 Speed speed ratio: 0.000 Speed row rate: 0.000 Control Order commands: Q1/2020 Q1-2020 400 476 QF38 Set position commands: Q1/2020 Q2/2020 "Button input" move task to: Order commands: Button : 50 Button : 50 Set to Default OK Cancel

(3). Voltool de verbinding Nadal u

File Service Help Create process File 01-05A 01-02A 09A 04A 06A 08A 10A 11A 0.5 / 0.9 1.0,000 ... 0,000 1.0,000 ... 0,000 2.0,000 ... 0,000 4,000 / 9,000 / 9,000 On 01:39 / 30:00:30 Button: 7 / 6 / 6 Button: 1/6 Button: 1/6 OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK OK Ok Command Data Response Stop: Finish: Text: Next: Next

[C: 0.000, 0.000, 0.000, 0.000, 0.000, 0.000, 0.000, 0.000, 0.000, 0.000, 0.000, 0.000, 0.000, 0.000] FIS: 0.75 State Mask coordinates: 0.000 0.000 0.000 Mask coordinates: 0.000 0.000 0.000 Status: 34% Control ID: 26.88 / 42.88.88 Buffer: 8 / 9 / 8 Y-axis: 145 PPS: 42 Command State Response Stop: Peak: 1 Keyboard control Cancel Clock mode button call Open Start Cancel Stop

CNC File Service Help CNC program [0:40.064 0:7 011-085.064 00 00 10 10.06] F/E: 0 / 0 State Work coordinates: 0.100 0.000 0.100 Workline coordinates: 0.000 0.000 0.000 Status ID: Control Halikey Spindle Shronding Jog

Command State Response

1 M3 S1000 In queue 2 G1 F1000 In queue 3 OOO X-2.795 Y-29.950 Z10.008 In queue 4 OOO X-2.795 Y-29.950 Z3.308 In queue 5 GOT1 X-2.795 Y-29.950 Z-1.652P6000 In queue 6 GOT1 X-2.795 Y-29.950 Z-2.152P8000 In queue 7 GOT1 X-2.755 Y-29.862 Z-2.215 In queue 8 GOT1 X-2.798 Y-29.847 Z-2.215 In queue 9 GOT1 X-2.687 Y-29.916 Z-2.217 In queue Clock node Autoroll Open Reset Send Paste Window Play: 1 Feed: 20 Keyboard control Camera

Close-up of metallic screw fasteners mounted on a metal bracket (no text or symbols visible)

Close-up of a metal clamp securing bolts with a wooden surface (no text or symbols visible)

Four-panel sequence showing a mechanical tool interacting with fabric, wire meshing, and soldering process (no text or symbols visible)

Screenshot of a 3D modeling software interface showing a 3D model with coordinate axes and parameter settings panel.

Close-up of a precision machining setup with a cutting machine and workpiece on a wooden base (no visible text or symbols)

Close-up of a carved stone sculpture of a stylized animal, possibly a lion or mythical creature, embedded in an oval frame (no text or symbols visible)

5. Offline controller (optioneel)

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

CNC-GRAVERMASKIN

ANVÄNDARMANUAL

MODELL: S4040

Technical line drawing of a mechanical assembly with no visible text or symbols

S4040

Technical line drawing of a mechanical assembly with springs and components (no text or symbols)

ÿ Dragkedja

15: M4*10 2ST 31: 10*15*660 1 st 18: Sexkantmutter M4 2st 31: 10*15*660 1 st 31: 10*15*660 1 st 18: Sexkantmutter M4 2st 31: 10*15*1000 18: Sexkantmutter M4 2st 31: 10*15*660 1 STK 14: M5*6 1 STK 18: Sexkantmutter M4 2st 21: Stöd 1st

Technical line drawing of a mechanical assembly with no visible text or symbols

Settings Connection Port: OBD Load: 10000 Scales □ Input wire commands □ Automatically on power slots before sending flow selected line Machine Information Shake power period: 40 Input speed: 1000 Output speed ratio: 0 Output wire ratio: 0 Control: Strike commands: 42.095.06 (2.095.06, 400) / 100.25 (2.095) Data protection commands: Q1/09 (Q1/09) □ "Button wire" wire tool in: User commands: Button 1: Button 2: Set to Default OK Cancel Check up E:\AutoShell Add Back Stop Tools Help

Close-up of metallic screw fasteners mounted on a metal bracket (no text or symbols visible)

Close-up of a metal clamp securing bolts with a clay or stone sample (no text or symbols visible)

Four-panel sequence showing a mechanical tool interacting with a textured fabric, before and after application of a tool (no text or symbols visible)

(6) Börja tälja

Screenshot of a 3D modeling software interface showing a 3D model with coordinate axes and parameter settings panel.

Close-up of a precision machine tool operating on a wooden surface with a small orange object embedded (no visible text or symbols)

Close-up of a carved stone sculpture of a stylized animal, possibly a lion or mythical creature, embedded in an oval frame (no text or symbols visible)

5. Offlinekontroll (valfritt)

5.3 Filsida: Fillista

Välj filen som ska graveras. Supportdokument inkluderar: NC, NCC, TAP, TXT, Gcode, GCO, NL, CUT, CNC.

Technical Support and E-Warranty Certificate

www.vevor.com/support
