USER MANUAL SD314 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
AUTOMOTIVE SMOKE MACHINE LEAK DETECTOR
MODEL: SD314/ SD317
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE

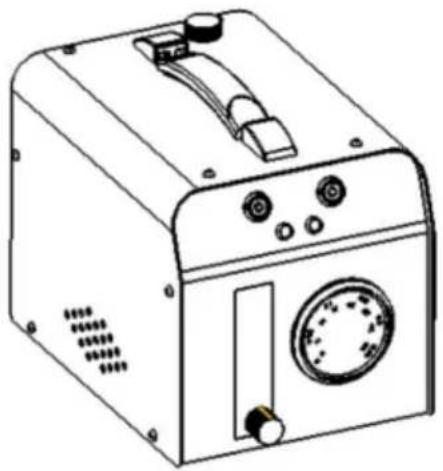

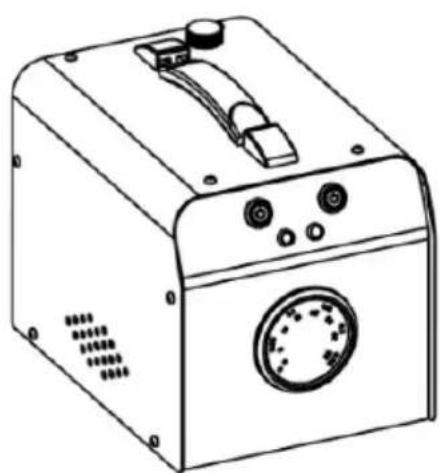

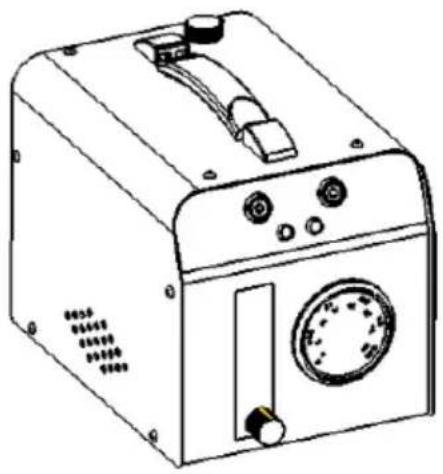

AUTOMOTIVE SMOKE MACHINE LEAK DETECTOR
MODEL: SD314/ SD317
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
| Symbol | Symbol Description |
![]() | Warning-To reduce the risk of injury, the user must read the instructions manual carefully. |
WARNING
- This product is not suitable for leak detection of smoke sensitive components, or requires relatively high pressure, such as air conditioning leakage, engine block crack detection, etc.
- This product is only suitable for 12V DC power sources or 12V automotive batteries, and the positive and negative terminals must not be reversed.
- Before inserting the universal intake adapter into the engine intake hose, please clean the inner wall of the intake hose to ensure there are no spikes or burr to avoid puncturing the universal intake adapter.
- If the smoke is becoming weakens during use, it indicates oil is insufficient, please refill it promptly.
- This product is equipped with an overheating protection device. When the product overheats, the overheat indicator light will turn on and the smoke output will stop. When the temperature drops to the normal range, the device will resume operation. This cycle takes about 5 minutes and there is no need to worry about it.
- Do not start the engine when using the machine. Conduct tests either with the engine off (cold engine test) or after the engine has been running and then turned off (hot engine test).
PRODUCT OVERVIEW
Smoke leak detector is specially designed for detecting leaks in automotive intake systems, fuel systems, cooling systems, and other pipelines. It is suitable for all types of passenger cars, motorcycles, snowmobiles, off-road vehicles, beach vehicles, light trucks, and speedboats. It is the perfect companion to automotive
diagnostic tools, and when used together, enabling precise localization of physical faults and rapid identification of latent engine malfunctions.
SPECIFICATION PARAMETERS
| Model | SD314 | SD317 |
| Power voltage | DC12V | |
| Smoke mode current | 5.6-6.8A | |
| Output pressure | 19-23psi | |
| Maximum flow rate | 8 L/min | |
| Operating ambient temperature | -20 ~ 75°C | |
| Flow gauge | ✕ | ✕ |
| Pressure gauge | ✕ | ✕ |
ACCESSORIES
Note: “●” is with, “○” is without.
| ITEM | Description | PICTURE | Q'TY | 314 | 317 |
| 1 | Black Plug Set | ![]() | 1 set | ● | ● |
| 2 | Universal Adapter | ![]() | 1PC | ● | ● |
| 3 | Power cord | ![]() | 1PC | ● | ● |
| 4 | Pipe adapter | ![]() | 1PC | ● | ● |
| 5 | Valve core | ![]() | 1PC | ● | ● |
| 6 | EVAP Adapter | ![]() | 1PC | ● | ● |
| 7 | Pipe | ![]() | 1PC | ● | ● |
| 8 | Cone adapter | ![]() | 1PC | ● | ● |
| 9 | Hook | ![]() | 1PC | ● | ● |
| 10 | Refueling bottle | ![]() | 1PC | ● | ● |
SCHEMATIC DIAGRAM OF THE WHOLE MACHINE STRUCTURE

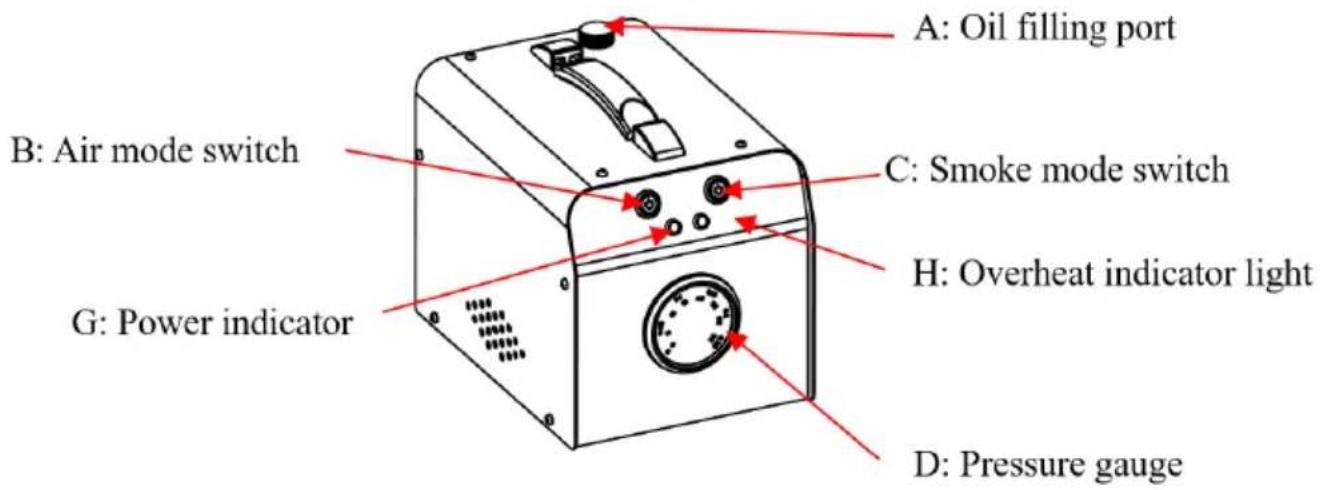

SD314:


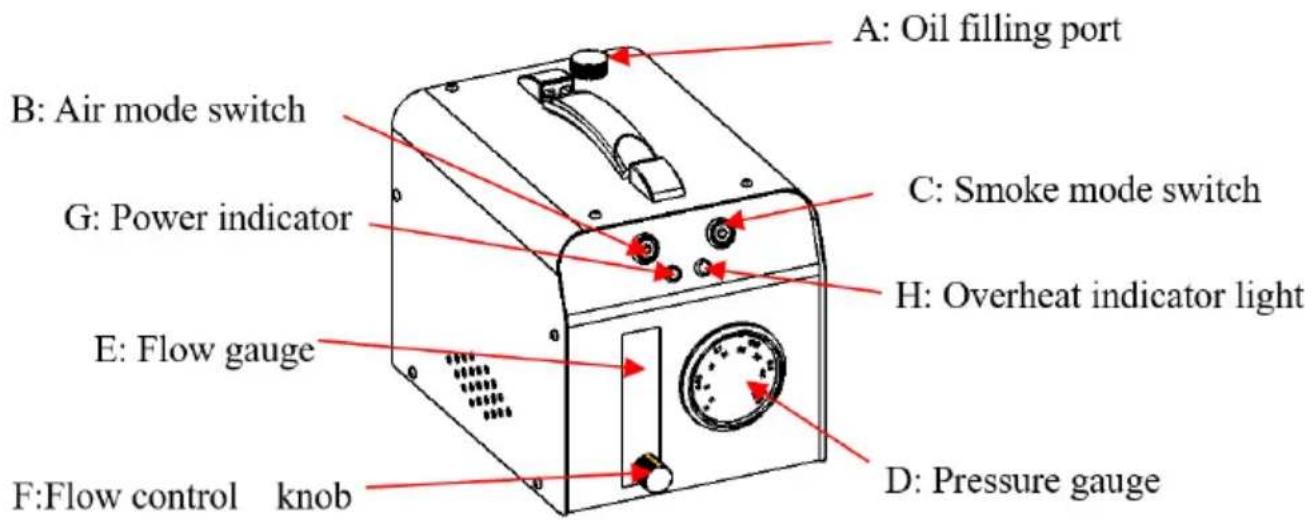

A: Oil filling port B: Air mode switch C: Smoke mode switch G: Power indicator H: Overheat indicator light E: Flow gauge F:Flow control knob D: Pressure gaugeSD314/ SD317 Back Side


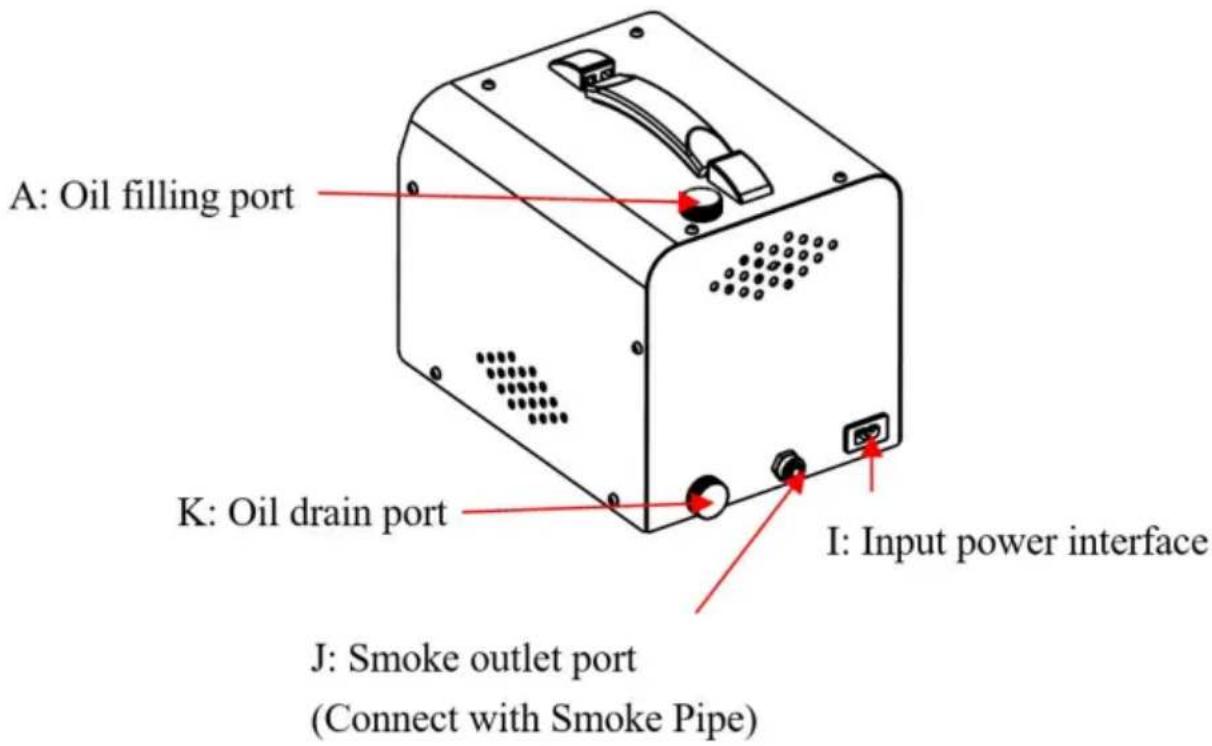

A: Oil filling port K: Oil drain port I: Input power interface J: Smoke outlet port (Connect with Smoke Pipe)A. The oil filling port: The first refill should not exceed a total of 30ML of smoke oil. Overfilling may result in insufficient internal heating, leading to no smoke or reduced smoke output. When the smoke oil is nearly depleted and no longer produces smoke, an additional 10-20ML can be refilled.
depending on the specific working environment), causing overheating inside the detector, the overheat protection indicator light will illuminate until the temperature returns to the normal range and the detector resumes operation.
D. Pressure gauge: The pressure gauge allows for quick observation and judgment of whether the tested parts of the vehicle are leaking by indicating the pressure gauge pointer.
E. Flow gauge (SD314 excluded): After the tested area is filled with smoke or air, if there is no leakage, you can observe through this window. The flow meter float remains at the bottom, and the pressure gauge pointer rises. If there is a leak in the system, the flow meter float rises, and the pressure gauge pointer drops.
F. Flow control knob (SD314 excluded): Adjusts the volume of smoke or air flow.
G. Power indicator light.
H. Overheat indicator light.
I. Input power interface: Insert the power cord here to provide operating power for the instrument.
J. Smoke outlet port: Smoke is introduced into the car's pipeline system through the smoke outlet and smoke pipe.


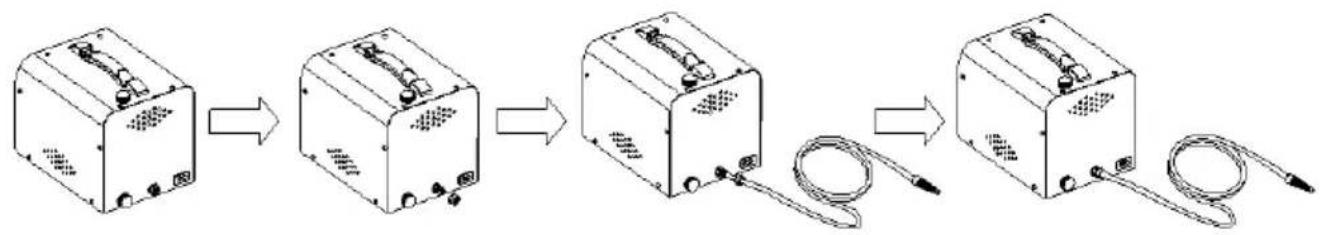

K. Oil drain port: After each use of the equipment, if the device is not used for about a week, empty the smoke oil to prevent particle deposition, which may affect the functionality of the equipment. After draining, maintain the internal seal of the device.
Operation method: Unscrew the oil drain cap (located on the back of the machine), tilt the machine 30^ to let the remaining e-liquid flow out, and then screw the cap back on.
-

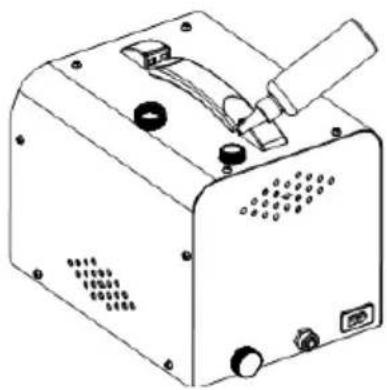

After assembling the leak detector accessories, inject approximately 30ML of smoke oil for the first use. One injection can work continuously for about 20-30 minutes. Excessive oil injection may result in insufficient internal heating and no or less smoke output.
-
Open the engine hood and remove the air filter. For some vehicle models, the airflow sensor may need to be removed.
-
Place the Universal Adapter or Cone Adapter into the engine intake hose port and seal the pipeline tightly by applying force until the intake hose is sealed (when using the airbag, the maximum diameter should not exceed 10CM to avoid damage).
-
Connect the power cord to the car battery. The red alligator clip connects to the positive pole of the battery, and the black alligator clip connects to the negative pole of the battery.
-
After connecting power, and the power indicator light will illuminate, indicating that the smoke leak detector is powered normally. Press the air mode switch (AIR MODE) to start working. Only after this mode is activated can the smoke mode (SMOKE MODE) be activated.
-
After starting work by pressing the air mode switch (AIR MODE), pay attention to the indications of the pressure gauge pointer. If the indication exceeds 15PSI and the flow gauge float remains stationary at the bottom, it indicates no leakage detected. If the pressure gauge pointer rises slowly and the flow gauge continuously detects air inflow (float rises), check whether the access pipeline is properly connected. After confirming that there are no connection issues, it can be determined that there is a leakage in the tested system, and then press the smoke mode (SMOKE MODE) switch.
-
Press the smoke mode (SMOKE MODE) switch to start the smoke. In this mode, depending on the vehicle model, it will take approximately 1-3 minutes for the interior to be filled with smoke. Start checking for leakage faults. During this process, if the smoke oil level of the detector is insufficient or the continuous working time is too long (about 5-9 minutes depending on the working environment), causing the instrument to overheat, the overheating protection
indicator light will laminate and pause the work until the temperature drops to the normal range, and then the instrument will resume working.
- During use, if you encounter recoil force, the pressure gauge will show a sudden abnormality, and the smoke will stop for 1-3 seconds. This is non-continuous and is normal. After the inspection is complete, unplug the power cord and store the accessories for next use. The main body of the Universal adapter, Cone adapter are made of rubber, please avoid contact with corrosive liquids such as gasoline.
-
Use of Universal Adapter: Place the universal adapter at the opening pipe which needs to be sealed, tighten the metal knob on the bellows clockwise. Then, press the airbag to be inflating it seals (the maximum diameter of the airbag should not exceed 10CM). Insert the smoke tube into the airbag hose, causing smoke to enter the detection pipeline, After the inspection is completed, loosen the metal knob by turning it to the left to quickly release the air and remove the airbag.
-
When using accessories for leak testing, such as adapter joints, EVAP adapter joints, or universal conical air inlet adapters, insert the smoke tube into the hose port causing smoke to enter the detection pipeline, then seal the corresponding pipe opening on the other end.
EVAP SYSTEM DETECTION METHOD
The EVAP service port is usually located in the engine compartment, but in some special vehicle models, the EVAP service port may be located elsewhere. The conventional method for EVAP detection is as follows: Open the plastic cover of the EVAP service port, then use a valve core wrench to remove the check valve in a clockwise direction, and install the EVAP service port adapter. Smoke is then introduced into the EVAP system through this port for leak detection.
JUDGMENT OF LEAKAGE CONDITIONS
If the leak detector model is equipped with a pressure gauge, you can first not turn on the smoke switch, block the smoke outlet of the relevant pipeline, and observe the pressure gauge reading. If the pressure gauge reading continues to rise and remains steady after stopping the AIR MODE, it indicates that there are no leaks in the tested area. If the pressure gauge reading decreases after stopping the AIR
MODE, it indicates that there is a leak in the tested area. If the pressure gauge reading is zero, it indicates that there is a leak, and the size of the leak point exceeds 0.3 millimeters.
ABOUT SMOKE OIL
This product can use smoke oil (baby massage oil, skincare glycerin or industrial glycerin, special oil for automotive smoke machines, mineral oil is not recommended). The selected smoke oil must be pure and free of water, and must be in a fluid state. Do not use thick smoke oil, which can easily damage the instrument. When adding smoke oil, please use the accompanying refueling bottle. If too much oil is added, please open the oil drain to discharge an appropriate amount of oil.
MAINTENANCE
After long-term use, smoke oil may oxidize and deteriorate, affecting the working condition and lifespan of the instrument, so please replace the smoke oil in time.
- Before adding new smoke oil, pour out all the used smoke oil.
- If the smoke contains water droplets during use, replace it with new smoke oil.
FCC INFORMATION
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.
WARNING: Changes or modifications to this product not expressly approved by the party. Responsible for compliance could void the user's authority to operate the product.
Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, these limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.
- Reorient or relocate the receiving antenna.
- Increase the distance between the product and receiver.
- Connect the product to an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for assistance.
CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked
with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD.
1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd.
Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147,
Centurion House, London Road,
Staines-upon-Thames, Surrey, TW18 4AX
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69,
60329 Frankfurt am Main.
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
BESOIN D'AIDE? CONTACTEZ-NOUS!
SCHEMATIC DIAGRAM OF THE WHOLE MACHINE STRUCTURE

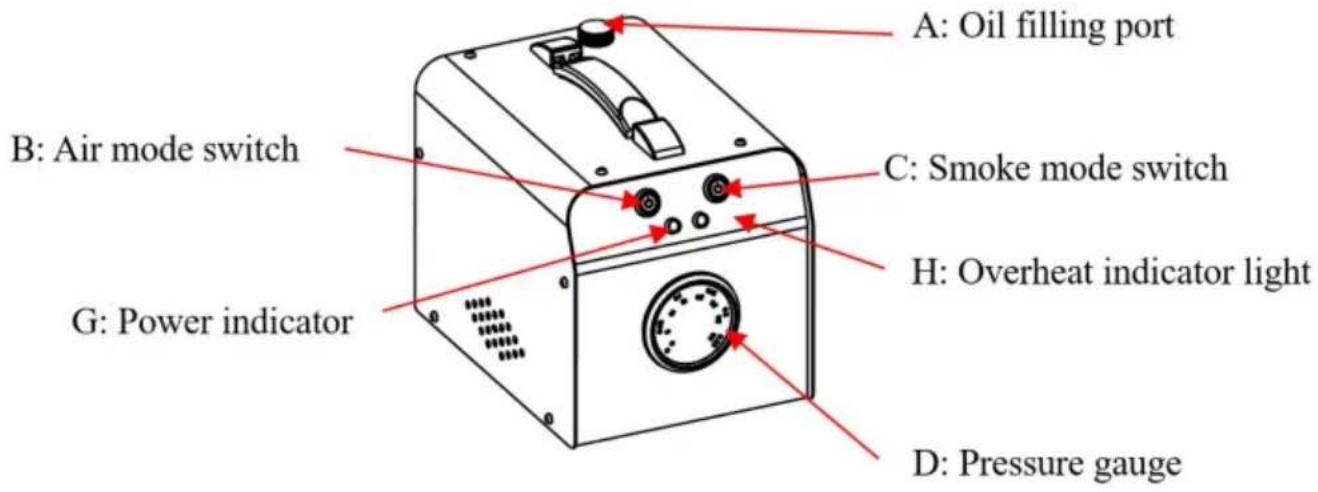

SD314 :


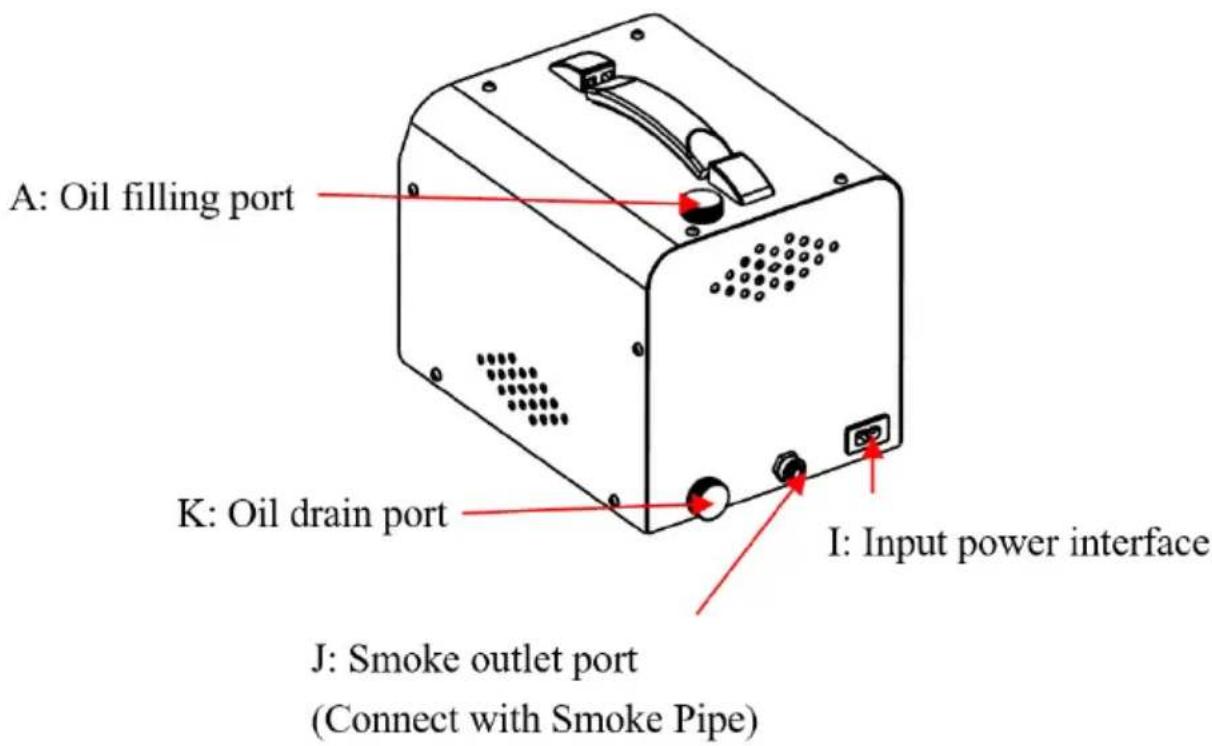

A: Oil filling port K: Oil drain port I: Input power interface J: Smoke outlet port (Connect with Smoke Pipe)natural_image
