USER MANUAL YS-01205 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

RADIATOR COOLANT PRESSURE TESTER

MODEL: YS-01205

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

RADIATOR COOLANT

PRESSURE TESTER

MODEL: YS-01205

Two black plastic tool cases with various pressure gauges and fittings, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel f contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCTION SCHEDULE

Number	Name Picture	Specification quantity
1	Pump			1
2	Conical adapter			1
3	123-125# cap tester			1
4	123-124# cap tester			1
5	Coolant hose		Length of the hose: 1500mm	1
6 6#	Test cap		Diameter: M50*3.5 English 10 buds	1
7 7#	Test cap		Diameter: M45*3.5 English 9 buds	1
8 8#	Test cap		Diameter: M57*3 English buds	9 1
9 9#	Test cap		Diameter: M62*3 English 9 buds	1
10 10#	Test cap		Diameter: M49*4.5 English 6 buds	1
11 11#	Test cap		Diameter: M46*3.5 English 9 buds	1
12 12#	Test cap		Diameter: M51*3 English 8 buds	1
13 13#	Test cap		Diameter: M61*4 English 6 buds	1
14 14#	Test cap		Diameter: M53*3 English 9 buds	1
15 15#	Test cap		Diameter: M48*2.5 English 9 buds	1
16 16#	Test cap		Diameter: M45*3 English 8 buds	1
17 17#	Test cap		Diameter: M50*3 English 8 buds	1
18 18#	Test cap		Diameter: M47*3 English 9 buds	1
19 19#	Test cap		Diameter: M34*3	1
20 20#	Test cap		Diameter: M44*3 English buds	8 1
21 21#	Test cap		Diameter: M52*3 English buds	9 1
22 22#	Test cap		Diameter: M44*3 English 8 buds	1
23	5# Test cap			1
24	4# Test cap			1
25	3# Test cap			1
26	Injector			1
27	Water tank cover reinforcer			1
28	Thermometer		Range: 0-200°C / 32 - 400°F	1

TECHNICAL PARAMETERS

Model YS-01205
Pressure Range (psi)	0-35
Quantity (PCS)	28
Product Size 420*335*155mm
Net Weight (kg)	4.53

ATTENTIONS

• coolant can spray out.
  ● Before dismantling the pump or the adapter, release the pressure.
• Check the cooling fluid after the pressure test or repair the correct level a frost protection.
  ● Take care when working on running engines, Loose or baggy clothing can caught in rotating engine parts.

Study, understand and follow all instructions provided this product. Read these instructions carefully before installing, operating, servicing or repairing this tool. Keep these instructions in a safe, accessible place.

INTENDED USE OF THE TOOL

This kit is designed to test for leakage in vehicle systems, including radiator caps, and for a quick change of coolant only. Use as intended only.

· Always read the instructions carefully before using the tool
- This tool kit is for cooling system maintenance only
- Ensure the working area has adequate lighting
- Keep children and unauthorized persons away from the working area
- Keep working area clean and tidy, dry and free from unrelated materials
· DO NOT allow untrained persons to use this tool kit
· Always wear eye protection that meets OSHA and ANSI Z87.1 standards
· Always wear gloves when working with the tool
· Always wear ear protection
- Disposal: Customers should follow local regulations to handle used/waste pay
- Do not remove the radiator cap or coolant bottle cap when the engine is Operating temperature. Let the engine cool first Failure to heed this warning cause damage and/or personal injury.

BEFORE USE

DO NOT DISCARD-GIVE TO THE USER

When unpacking, check the parts diagram and part number listing on page 2 sure all parts are included. If any parts are missing or damaged, please call distributor.

DIRECTION FOR USE

1. Cooling System Leakage Test

1.1 Removing the original radiator cap from the radiator or expansion tank.
1.2 Choose the appropriate adapter from the test set and connect it to the or expansion tank.
1.3 Now connect the hand pump(1) to the adapter.

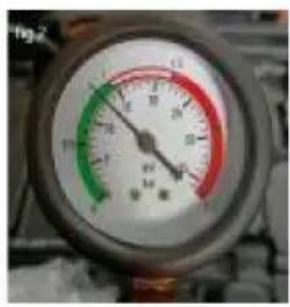

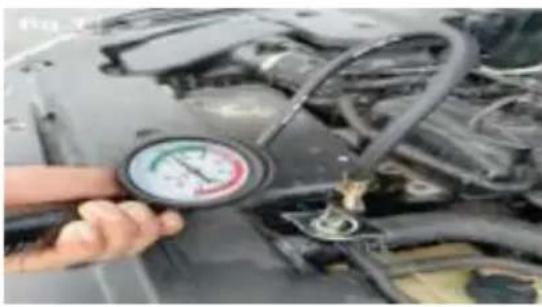

1.4 Press the test pump until pressure of 10 to 15psi is reached (see figure

CAUTION: Avoid a pressure of 35psi or more!

Check the pressure gauge. If the displayed value decreases, the leakage is in cooling system.

The cooling system has a leak, if there is pressure drop or water loss.

ed only. CAUTION king area

Close-up of a car engine dashboard with a hand holding a pressure gauge (no visible text or symbols)

Close-up of a pressure gauge with red and green color scales (no visible text or symbols)

Close-up of a mechanical component with a dial indicator and attached parts (no visible text or symbols)

2. Radiator Cap Leakage Test

2.1 Remove the original radiator cap.

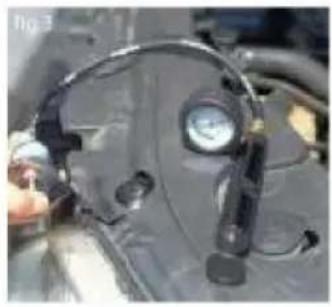

2.2 Choose the appropriate joint 2a or 2ba and connect it to the radiator ca
2.3 Press the test pump for few times and watch the pressure gauge. The falling if the cap is defective. (see fig.3)
2.4 Compare the measured pressure values with the standard pressure of the radiator cap.

• Attach the test adapter to the quick coupler of the hand pressure pump, t press the hand pressure pump a few times to push remnant water out of test adapter.
• Drop pneumatic oil into the air hole of the hand pump end to lubricate thr of the hand pump.

3.1 Open the hood and attach a vacuum pump with hooks on the hood.
3.2 Remove radiator or reservoir cap. Drain completely coolant at a suitable The procedure can be found in the vehicle-specific service literature.

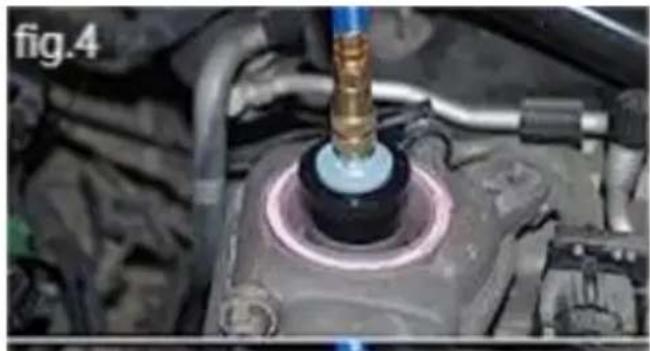

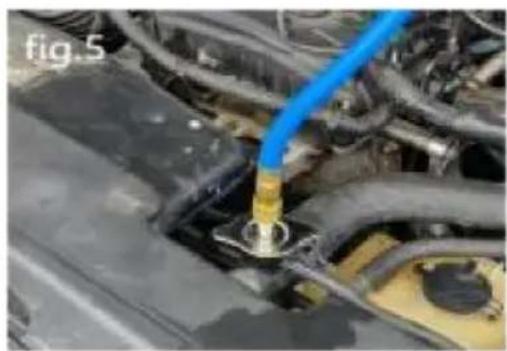

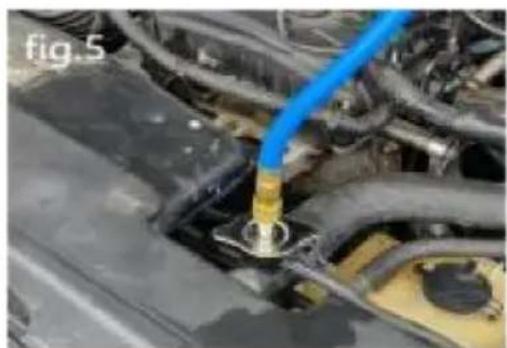

3.3 Connect a suitable vehicle specific adapter or the universal adapter to the radiator/reservoir. (see fig 4+5)

Close-up of a mechanical component with a metallic tool inserted into a blue cap, mounted on a vehicle engine (no visible text or symbols)

Close-up of a car engine bay with a blue cable inserted, showing internal components and wiring (no text or symbols visible)

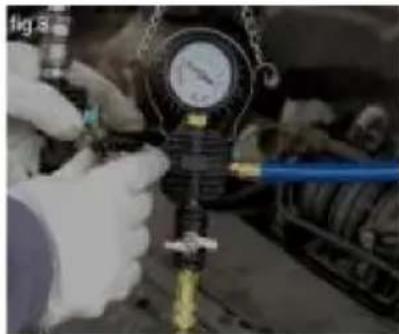

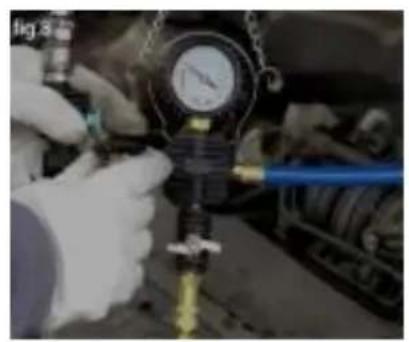

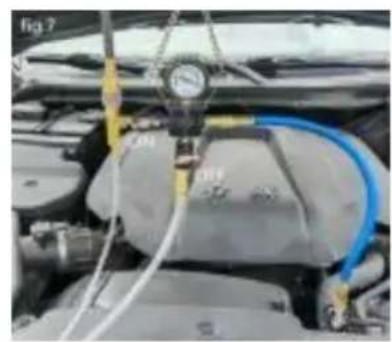

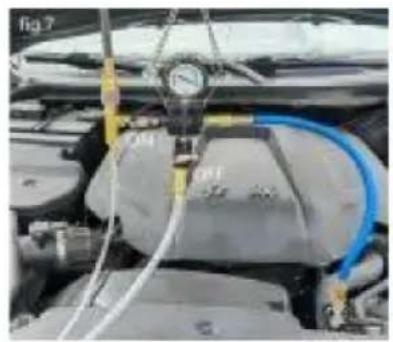

3.4 Be sure that the valve 3 to "ON" And valve 7 to "OFF" Position. (see 3.5 Connect the vacuum pump to compressed air and switch the "ON/OFF" to "ON." (see fig.7). Switch valve NO.3 to "OFF" If a pressure of 20-25inhg(60-50cmhg)is reached. (see fig.8)

fig.6 NO.3 ON NO.7 OFF

Close-up of a car engine bay with blue hoses and pressure gauge (no visible text or symbols)

Close-up of gloved hands operating a pressure gauge in a mechanical setting (no visible text or symbols)

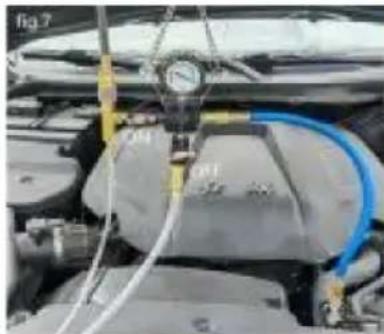

3.6 Connect the coolant hose to the vacuum pump and put the hose into a container filled with coolant.

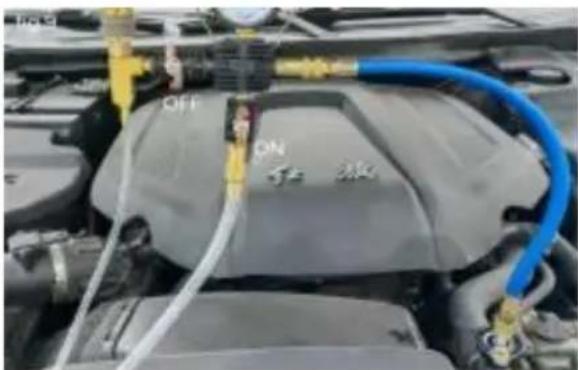

3.7 Make sure that valve NO.3 is in the "OFF" Position before the coolant i up.
3.8 Make sure that the hose is filled with coolant.
3.9 Switch valve NO.7 to "ON"; the coolant be sucked out of the container. (see fig. 9)
3.10 If the pressure indicator has dropped to "0", the cooler should be suffic filled; otherwise, the procedure can be repeated.

Close-up of a car engine bay with blue hoses and labeled components (no readable text or symbols)

IMPORTANT NOTE

These instructions do not replace the service literature. You may find addition information in the service literature. For all tests, vehicle-specific data should I present; without this data can, adequate results are not ensured.

APPLICATIONS

No.

0Thermometer			2A Connector R123/R125(Black)
Pressure Tester Pump with Gauge			2B Connector R123/R124(Blue)
25		Buick	(LeSabre:1990-)(Park Avenue: 1991-)
		Chrysler	(Sebring:1995-)
		Chevrolet	(Venture:1997-)
		Dodge	(Caravan:1989-)(Dakota:1989-)(Startus:1995-)
		Jeep
		Mercedes	(W123,W124,W126,W201)
		Oldsmobie	(Silhouette:1990-)
		Pontiac	(Bonneville: 1990-)(Grand Prix.-2003)
24		Acura	(Integra:1991-1993)(Legend:1989-1990)(NSX:1995-2004)(SLX:1997)(Vigor:1992-1994)
		BMW	(M6:2008)
		Chevrolet	(Nova:1985-1998)(Spectrum:1985-1988)(Sprint:1986-1988)
		Chrysler	(Laser:1991-1998)(Sebring:1996-1998)
		Dodge	(Avenger:1995-1999)(Colt 1984-1991)(Ram 50:1989-1992)(Stealth:1993-1996)
		Eagle	(Summit:1989)(Talon:1991-1998)
		Ford	(Aspire:1994-1997)(Escort:1991-2002)(Expedition:2009-2011)(Explorer:1995-2001)(Explorer Sport Trac:2001-2005)(F-150:2009-2011)(Festiva:1989-1993)(Mustang:1997-2004)(Probe:1989-1997).
			(Ranger:1995-2011)(Tempo:1992-1994)(Thunderbird:1992-1995)(Windstar:1996-1999)
		Geo	(Metro:1989-1993)(Prizm:1989-1991)(Spectrum:1989)(Storm:1990-1993)(Tracker:1989)
		GM	(Nova Spectrum, Sprint)
		Honda	(Accord:1990-1993)(Civic:1988-1991)(CRX:1989-1990)(Motorcycles:1991-2004)(Passport:1994-2002)(Prelude:1990-1998)
		Hyundai	(Acent 1995-2010)(Azea:2006-2010)(Elantra:1992-2011)(Entourage:2007-2008)(Excel:1986-1994)(Genesis:2009-2010)(Genesis Coupe:2010)(Santa Fe:2002-2010)(Scoupe:1994)(Sonatar 1989-2011)(Tiburon:1998-2008)(Tuscon:2005-2010)(Veracruz:2007-2010)(XG 350:2004)
		Infiniti	(FX 35:2003-2007)(G20:1991-2002)(G35:2004-2007)(130:1997-2000)(135:2002-2004)(J30:1996)(M30:1990-1992)(M35:2006-2009)(M45:2003-2010)(O45:1990-2006)(OX4:1998-2003)
		Isuzu	(Amiga:1989-2000)(Axom:2002-2004)(1-Mark:1985-1989)(Impulse:1985-1992)(Rodeo:1991-1998)(Stylus:1991-1992)(Trooper:1986-2002)(VehiCROSS:1999)
		Kia	(Amant:2006-2009)(Borrego:2009)(Fote:2011)(Optma:2002-2010)(Rio:2002-2011)(Rio5:2007-2011)(Rondo:2009-2010)(Sedona:2003-2011)(Sephia:1994-2001)(Sorento:2003-2011)(Soul:2010-2011)(Spectra:2000-2009)(Spectra5:2005-2009)(Sportage:1995-2011)
		Lexus	(ES300:1996-2003)(ES330:2005)(LS400:1992)(LX 450:1996-1999)(LX470:1998-2005)(SC400:1992)
		Lincoln	(Navigator:2009-2011)
		Mazda	(323:1986-1993)(626:1985-1999)(929:1990-1993)(B2200:1988-1993)(B2300:2005)(B2500:1998-2000)(B2600:1987-1993)(B3000:1996-2007)(B4000:1995-2006)(CX-9:2007-2010)(Mata;1991-2005)(Millenia:1995-2002)(MPV:1991-2006)(MX-5 Mata:2006-2012)(MX-6:1991-1997)(Protege:1993-2003)(Protege 5:2002-2003)(RX-7:1986-1995)(RX-8:2005-2009)
		Mercury	(Capri:1991-1994)(Cougar:1989-1992)(Cougar:1993-1997w/V6)(Mountaineer:1997-2000)(Topaz:1992-1994)(Tracer:1988-1999)(Villager:1994-2002)
		Mitsubishi	(3000GT:1992-1996)(Cordia:1986-1988)(Diamante:1992-1995)(Eclipse:1990-1999)(Galant 1989-1993)(Mighty Max:1987-1994)(Mirage:1985-1992)(Montero:1989-1998)(Outlander.2003-2011)(Outlander Sport:2011)(Precis:1988-1992)(Starion:1984-1986)(Trediar 1986-1988)
		Mercedes-Benz
		Nissan (200SX:1984-1988)(240SX:1990-1994)(300ZX:1984-1996)(Atima:1993-2006)Axxess:1990)(Cube:2009-2010)(D21:1986-1994)(Frontier:1998-2011)(Maxima:1987-2008)(Murano:2003-2007)(NX:1991-1993)(Pathfinder:1987-2004)(Pulsar NX:1987-1989)(Quest:1994-2009)(Rogue:2009-2010)(Sentra:1987-2011)(Stanza:1987-1992)(Versa:2007-2011)(Xterra:2000-2012)
		Plymouth (Colt:1984-1991)(Laser:1993-1994)(Baja:2004-2005)(Brat:1983-1987)(DL:1983-1989)(Forester:1999-2011)(GL:1983-1989)(GL-10:1985-1989)(Impreza:1993-2011)(Justy:1988-1993)(Legacy:1990-2011)(Loyale:1990-1992)(Outback:2000-2011)(RX:1986)(SVX:1994-1997)(XT:1985-1991)
		Suzuki (Equator:2009-2011)(Samural:1986)(Sidekick: 1989-1991)(Swift:1990-1994)(XL7:2004-2006)

Na.Image
Application

4	Toyota	(4Runner:1986-1995)(Avalon 1995-2004)(Camry:1983-1991).(Camry:1994-1994 cylinder)(Celica:1983-1989)(Corolla:1983-1992)(Cressda:1985-1992)(Land cruiser:1993-2007)(MR2:1989-1995)(Previa:1991-1997)(Sienna:1998-2006)(Solara 1999-2008)(Starlet:1983-1984)(Supra:1987-1990)(T100:1995-1998)(Tacoma:1996-2004)(Tercel: 1983-1990)
23	A' ura	(CL:1997-2002)(Integra:1994-2000)(Legend:1993-1995)(MDX:2001-2011)(RDX:2009-2012)(RL:1996-2010)(RSX:2002-2005)(TL:1996-2011)(TSX:2007-2012)
	Chevrolet	(Metro:1999-2000)(Prizm:1998-2002)(Tracker:1998-2004)
	Chrysler	(Sebring:2001)
	Dodge	(Cot1993-1994)(Stratus:2001-2004)
	Eage	(Summit:1992-1996)
	Geo	(Metro:1995-1997),(Prizm:1993-1997)(Tracker:1997)
	Honda	(Accord:1994-2011)(Civic:1992-2010)(Civic del Sol:1993-1997)(CR-V;1997-2010)(CR-Z:2011)(Element:2003-2010)(Fit:2008-2009)(Insight:2001-2011)
		(Odyssey:1998-2010)(Pilot2003-2011)(Prelude 1999-2001)(Ridgeline:2007-2011)(52000:2006-2009)
	Isuzu	(Oasis:1997)(Rodeo:1999-2000)(Rodeo Sport:2003)
	Lexus	(ES250:1990-1991)(ES350:2008-2012)(GS300:1993-2003)(GS350:2007-2009)(GS430:2004-2007)(GX470:2004-2005)(IS300:2003)(IS350:2009-2012)(LS430:2001-2003)(LX570:2011-2013)(RX300:1999-2006)(RX350:2008-2010)(RX400h:2006-2008)(SC300:1992-2010)
	Mazda	(Mazda 2:2011)(Mazda 5;2008-2010)(Protege:1995-2003)
	Mercedes	(ML-cass,W163,W164)).
	Mitsubishi	(Diamante:1996-2004)(Eclipse:2000-2010)(Endeavor.2006-2011)(Expo:1992-1995)(Expo LRV:1992-1994)(Gaant:1994-2011)(Mirage:1993-2002)(Montero Sport 1997-2003)
	Plymouth	(Colt:1992-1994)
	Pontiac	(Vibe:2003-2010)
	Scon	(FR-S:2013)(iQ:2012)(tC:2005-2010)(XA:2006)
	Subaru	(B9 Tribeca:2006-2007)(Tribeca:2008-2010),
	Suzuki	(Aerio:2003-2007)(Esteem:1995-2002)(Sidekick 1991-1998)(Swit1999-2001)(SX4:2007-2009)(Vtara:1999-2003)(X-90:1996-1998)(XL-7:2002-2003)
	Toyota	(4Runner:1969-2011)(Avalon:2005-2010)(Camry:1990-1991 V6 wauto.tans.) (Camry:1992-2011)(Celica:1990-1999)(Corolla:1993-2012)(Echo:2001-2005)(FJ Cruser:2007-2010)(Highlander2001-2011)(Land Cruiser: 2009)(Matrix 2003-2011)(Paseo:1992-1998)(Prius:2001-2009)(RAV4:1996-2003)(Sequoia:2001-2011)(Sienna:2007-2011)(Supra:1990-1998)(Tacoma:2005-2011)(Tercel: 1991-1998)(Tundra:2000-2011)(Venza:2009-2011)(Yaris:2008-2011)
	VW	(Touareg:2004)
6	Cadilac	(Catera:1997-2001)
	Chevrolet	(Aveo:2004-2011)(Aveo5:2006-2011)(Epica:2004)
	Daewoc	(Leganza:1999-2002)(Lanos:1999-2002)(Nubira:1999-2002)
	Ford	(Contour:1995-2000)(Festa:1995-)(Focus:1998-)(Fusion:2006-) (Achieva)(Skylark)(Grand Am:1992-2002)
	Jaguar	(All:1990-1994)(XJ8:1998-2001)(XJR:1998-2001)(XKB:1997-2006)(XKR:2000-2006)(X-Type:2002-2007)
	Jeep	(Lation Rover(Discovery:1989-2004)(Range Rover:1988-1994)
	Mercedes-Benz(ML-Class:1997-2011)
	Mercury	(Mistique:1995-2000)
	Pontac (Le Mans:1988-1993)(G3:2009)(Wave:2005)(Wave5:2005)
	Porsche (911:1999-)(Boxter:1997-)
	Saab (900:1994-1998) (9-3:1999-2003) (9-5:1999-2008)
	Saturn (L100:2001-2002)(L200:2001-2003)(L300:2001-2005)(L300-1:2004)(L300-2:2004) (L300-3:2004)(LS:2000)(LS1:2000)(LS2:2000)(LW1:2000)(LW2:2000) (LW200:2001-2003)(LW300:2001-2003)(Vue:2002)
	Suzuki (Forenza:2004-2008)(Reno:2005-2008)(Swift +:2004)(Verona:2004-2005)
7	Alfa Romeo(145-930:1994-2001)(146-930:1994-2001)(164-164:1987-1998)(166-936:1998) (33-907A:1990-1994)(33 sportwagon-907B:1990-1994)(GTV-916C:1994) (Spider-916S:1994-2005)
	Citroën (Jumper Box 230L:1994-2002)(Jumper Bus 230P:1994-2002)
	Fiat (Jumper Platform /Chassis 230:1994-2002) (Coupe FA/175:1993-2000)(Croma-154:1985-1996)(Ducato Box-230L:1994-2002) (Ducato Box-244.2002)(Ducato Bus-230:1994-2002)(Ducato Bus-244Z:2002) (Ducato Platform /Chassis 230:1994-2002)
	Lancia (Delta II-836:1993-1999)(Kappa-938A:1994-2001)(Kappa Coupe-838:1996-2001) (Kappa SW-838B:1996-2001)(Thema-834:1984-1994)(Thema SW-834:1987-1994)
	Mini Cooper (S:2002-)
	Peugeot (206:1999-)(307:2004-)(406:1999-)(407:2004-)(807:2004-Boxer Box-230L:1994-2002)(Boxer Bus-230P:1994-2002) (Boxer platform/Chassis-ZCT:1994-2002) (Al:1985-1987)(Avantime:2002-)(Espace:2002-)
	Renault (900:1978-1993) (9000:1986-1998) (Al:1987-1991)
	Sterling (Passenger vehicles w/threaded neck)

No.	Image	Application
8		VW	(Vento)(T4)(Passat:1990-1997)(Beetle)(Sharan)(Cabrio: 1995-2002)(Corrado: 1990-1994)(Eurovan:1993-2003)(Golf: 1990-1999)(1990-1998: with female thread on filler neck of expansion tank - except 1998 Passat & New Beetle)(Jetta:1990-1999)
9		Audi	(A3:2006-2012)(A3-8P1:2003)(A3 Convertible: 2008)(A3 Sportback-8PA: 2004)(A4:1996-20121(A4-8EC.B7:2004-2008)(A4 Avant-8ED.B7:2004-2008)(A4 Quattro:1996-2012)(A5: 2011-2012)(A5 Quattro: 2008-2012)(A6:1998-2012)(A6 Quattro:1998-2011)(A7 Quattro:2012)(A8 Quattro: 2004-2010)(Allroad Quattro: 2001-2005)(Q5:2009-2012)(Q7:2007-2012)(R8:2008-2012)(RS4:2007-2008)(RS6:2003)(S4:2000-2012)(S5:2008-2012)(S6:2002-2011)(S8:2007-2009)(TT: 2000-2009)(TT-8J3:2006)(TT-8N3:1998-2006)(TT Quattro:2000-2013)(TT Roadster-8J9: 2007)(TT Roadster 8N9:1999-2006)
		BMW	(345)
		Porsche	(Cavenne)
		SEAT	(Altea-5P1:2004)(Cordoba-6K2:1999-2002)(Cordoba-6L2:2002-2009)(Ibiza III-6K1:1999-2002)(Ibiza IV-6L1:2002-2009)(Leon-1M1:1999-2006)(Leon 1P1:2005)(Toledo-1L:1991-1999)(Toledo II-1M2:1999-2006)
		Skoda	(Fabia:2006)(Fabia-6Y2:1999-2008)(Fabia Combi:2007)(Fabia Combi-6Y5:2000-2007)(Fabia Praktik: 2001-2007)(Fabia Saloon-6Y3:1999-2007)(Laura-1Z3:2004)(Octavia 1U2:1996-2010)(Octavia Combi-1U5:1998-2010)(Octavia Combi-1Z5: 2004)(Roomster-5J: 2006)(Superb-3T4:2008)(Superb-3U4:2002-2008)(Superb Estate: 3T5: 2009)
		VW	(Beatle:1998-2012)(Caddv III Box-2KA, 2KH,2CA,2CH: 2004)(Caddy III Estate-2KB, 2KJ,2CB,2CJ: 2004)(CC:2009-2013)(Crafter 30-35 Bus 2E: 2006)(Crafter 30-50 Box 2E: 2006)(Crafter 30-50 Platform / Chassis 2F)(Eos: 2007-2012)(Eos-1F7,1F8:2006)(Fox-5Z1,5Z3:2003)(Golf: 1999-2012)(Golf Plus-5M1,521:2005)(Golf V-1K1:2003-2009)(Golf V Variant(1K5:2007)(GTI: 2006-2013)(Jetta:1997-2012)(Jetta I Saloon-1K2:2005-2010)(LT 28-35 II Bus-2DM:1996-2006)(LT 28-46 II Box-2DX0AE:1996-2006)(LT 28-46 II Platform / Chassis 2DX0FE:1996-2006)(Multivan Mk V-7HM,7HN,7EF,7EM,7EN:2003)(New Beetle-9C1,1C1:1998)(New Beetle Convertible-1Y7: 2002-2010)(Passat: 1998-2012)(Passat-3B3:2000-2005)(Passat-3C2:2005)(Passat Variant-3B6:2000-2005)(Passat Varian 3C5:2005)(Polo-9N: 2001)(Polo Saloon: 2002)(R32:2008)(Rabbit: 2006-2009)(Tiguan: 2009)(Touareg: 2004-2012)(Touran-1T1.1T2.1T3:2003)(Transporter / Caravelle MK V Bus-7HB.7HJ,7EB,7EJ.7EF:2003)(Transporter MK V Box- 7HA,7HH,7EA,7EH:20031)(Transporter MK V Platform / Chassis-7JD,7JE,7JL,7JY,7JZ: 2003)
10		BMW	(3-E30:1982-1992)(3-E36:1990-1998)(3-E46:1998-2005)(3-E90:2005)(3 Compact-E36:1994-2000)(3 Compact-E46:2001-2005)(3 Convertible-E30:1985-1993)(3 Convertible -E36:1993-1999)(3 Convertible-E46:2000)(3 Coupe-E36:1992-1999)(3 Coupe-E46:1999).(3 Touring -E30:1987-1994)(3 Touring-E36:1995-1999)(3 Touring-E46:1999-2005)(3 Touring-E91:2005)(5-E28:1980-1990)(5-E34:1987-1995)(5-E39:1995-2003)(5-E60:2003)(5 Touring-E34:1991-1997)(5 touring-E39:1997-2004)(7-E23:1977-1986)(7-E32:1986-1994)(7-E38:1994-2001)(7 E65, E66;2001)( 8-E31:1990-1999)(X3-E83:2004)(X3-E53:2000)(Z3-E36:1995-2003)(Z3 Coupe-E36:1997-2003)(Z4-E85:2003)(Z4 Copupe-E86:2006)(Z8-E53:2000-2003)(Brilliance 3 Series-E46:2003-2005)(Brilliance 3 Series-E90: 2004)
		Land Rover	(Freelander- LN: 1998)(Range Rover III- LM: 2002)
11		Audi	(1975-1993:w/male thread on expansion tank)
		VW	(1975-1993: w/male thrd on exp.tank)(Golf:1983-1992)(Cabriolet:1985-1993)(Dasher:1980-1981)(Fox: 1987-1993)(Golf:1985-1990)(Jetta:1980-1990)(Quantum:1980-1988)(Rabbit:1975)(Rabbit Convertible: 1980-1984)(Scirocco:1975-1988)
12		Caterham	(Super Seven: 1990-1999)(Cougar:1998-2001)(Mondeo: 1996-2007)(Mondeo Estate Wagon: 1996-2007)(Transit 260: 2000-2006)(Transit 280:2000-2006)(Transit 300:2000-2006)(Transit 330: 2000-2006)(Transit 350: 2000-2006)(Transit 425: 2003-2006)(Transit 430: 2001-2006)(Transit Tourneo: 2000-2006)(Courierll: 1990-1995)(Courier IV: 1995-2001)(Escort 55 IV:1986-1990)(Escort 55 VI:1994-2000)(Escort 75 VI:1994-2000)(Escort IV: 1986-1990)(Escort V: 1990-1996)、(Escort VI: 1995-2000)(Fiesta Classic: 1987-1989)(Fiestall: 1989-1989)(Fiesta III: 1989-1996)(Fiesta IV: 1995-1999)(Fiesta V:1999-2002)(Fiesta Van II: 1987-1989)(Fiesta Van III: 1989-1996)(Fiesta Van IV:1995-2002)(Fiesta Van V: 1999-2002)(Fiesta Van VI: 2002-2008)(Fiesta VI: 2002-2008)(Focus I:1998-2005)(Focus Wagon I:1998-2005)(Fusion: 2002-2005)(Granada Scoprio:1985-1994)(Ka I:1996-2005)(Mondeo I: 1993-1996)(Mondeoll: 1996-1998)(Mondeo Wagon I: 1993-1996)(Mondeo Wagon II: 1996-2000)(Orion II:1986-1990)(Orion III:1990-1993)(P100 Sierra:1989-1994)(Puma):1997-2002)(Scopio I:1984-1994)(Scoprio II: 1994-1998)(Sierra Cosworth II:1987-1993)(Sierra I:1984-1987)(Sierra II:1987-1993)(Sierra Saphire II:1987-1993)(Streetka I: 2003-2005)(Transit 100:1994-1999)(Transit 120:1994-1999)(Transit 150:1994-1999)(Transit 190:1994-1999)(Transit Connect: 2002-)
		Land Rover	(2:2002-2007)(121:1996-2002)
12		Opel	(Agila: 2000-2008)(Ascona B: 1978-1981)(Ascona C: 1981-1988)(Astra Cabrio F: 1993-2001)(Astra Cabrio G: 2001-2005)(Astra Classic F: 1998-2002)(Astra Coupe G: 1999-2005)(Astra F: 1991-1998)(Astra G: 1998-2005)(Astra H:2004-2005)(Astra Van F: 1991-1998)(Astra Van G: 1998-2004)(Calibra:1989-1998)(Combo Corsa B: 1992-2001)(Combo Corsa C: 2001-2004)(Corsa A:1982-1993)(Corsa B:1993-2000)(Corsa C: 2000-2006)(Corsa Van A:1982-1994)(Corsa Van B:1994-2001)(Corsa Van C:2000-2003)(Frontera A:1991-1998)(Kadett D:1979-1984)(Kadett E: 1984-1992)(Kadett Van E: 1984-1992)(Manta A:1974-1975)(Manta B: 1975-1988)(Meriva: 2003-2005)(Monza: 1981-1987)(Omega A: 1986-1994)(Omega B:1994-2003)(Senator A:1981-1987)(Senator B:1987-1993)(Tigra A:1994-2001)(Tigra B: 2004)(Vectra A:1988-1995)(Vectra B:1995-2003)(Zafira A:1999-2005)(Zafira Van:2002-2003)(900 II:1993-1998)
		Saab	(Favorit:1989-1995)(Favorit Forman:1993-1995)(Felicia-6U1:1994-2000)
		Skoda	(Astra Cabrio III:1991-2001)(Astra Cabrio IV: 2001-2007)(Astra Coupe IV: 1999-2005)(Astra I:1979-1984)(Astra II: 1984-1991)(Astra III: 1991-1998)(Astra IV: 1998-2005)(Astra Van III: 1991-1996)(Astra Van IV:1998-2005)(Astramax: 1985-1991)(Astravan I 1982-1984)(Astravan II 1984-1991)(Belmont: 1986-1991)(Calibra:1990-1998)(Carlton:1983-1994)(Cavalier II: 1981-1988)(Cavalier III:1988-1995)(Combo: 1993-2004)(Combo Crew Van:2001-2006)(Corsa I:1993-2000)(Corsa II: 2000-2006)(Corsa Van I:1993-2001)(Corsa Van II: 2001-2006)(Frontera A: 1991-1998)(Meriva:1982-1993)(Nova: 1982-1993)(Nova Van:1990-1993)(Omega:1994-2003)(Senator: 1987-1993)(Tigra:1994-2004)(Vectra I:1999-2005)(Zafira A:1999-2005)(Zafira B: 2005-2007)
13		Chrysler	(Crossfire: 2004-)
		Mercedes	(w/ thread filler neck on expansion tank, except M-Class)(300SE:1992-1993)(400SE:1992)(400SEL:1993)(500SEC:1993)(500SEL:1992-1993)(500SL:1900-1993)(600SEC: 1993)(600SEL:1992-1993)(600SL:1993)(C230:2002)(C240:2001-2005)(C280:1994-2007)(C300:2008-2009)(C32 AMG: 2002-2004)(C320: 2001:2005)(C350:2008)(C36 AMG:1995-1997)(C43 AMG: 1998-2000)'(CL500:1998-2006)(CL55 AMG:2001-2002)(CL600:1998-2006)(CL65 AMG: 2005-2006)(CLK 320:1998-2005)(CLK 430:1999-2003)(CLK500:2003-2005)(CLK55 AMG: 2001-2005)(E300:1996-1997)(E320:1996-2005)(E350:2006-2009)(E420:1997)(E430:1998-2002)(E500:2003-2006)(E55 AMG: 1999-2002)(E550:2009)(G500:2002-2005)(G55 AMG: 2003-2005)(GL450: 2007-2008)(ML350:2006-2008)(ML500:2006-2007)(ML550:2008-2009)(S320:1994-1999)(S350:1994-2006)(S420:1994-1999)(S500:1994-2006)(S55 AMG: 2001-2006)(S600:1994-2006)(S65 AMG: 2006)(SL320:1994-1997)(SL500:1994-1998)(SL600:1994-2002)(SLK280:2006-2008)(SLK32 AMG: 2002-2004)(SLK 320:2001-2004)(SLK 350:2006-2008)(SLK55 AMG:2008)
14		Ford	(Mondeo: 2000-2007)(Focus: 2000-2005)(C-MAX03)(Contour: 1995-2000)
		Mercury	(Cougar: 1999)(Mystique: 1995-1999)
15		Ford	(C-Max:(2007-2012)(C-Max II: 2010)(Fiesta V JH, JD: 2001)(Fiesta Van: 2009)
		International	(Fiesta VI: 2009)(Fiesta VI: 2008)(Focus C-Max: 2003-2007)(FocusII DA:2004)(Focus II Convertible: 2006)(Focus II Estate DAW: 2004)(Focus Saloon DA: 2005)(Focus II Station Wagon DAW: 2004)(Focus III: 2011)(Focus III Saloon: 2011)(Focus III Turnier: 2011)(Galaxy: 2006)(Grand C-Max: 2010)(Kuga: 2008)(Mondeo IV: 2007)(Mondeo IV Saloon: 2007)(Mondeo IV Turnier: 2007)(Ranger: 2011)(S-Max: 2006)(Transit Bus: 2606)(Transit Flatbed Chassis: 2006)(Transit Tourneo: 2006)
		Ford Asia & Oceania	(Fiesta: 2002-2013)(Focus: 2004-2011)(Focus Estate Wagon: 2011)(Mondeo: 2007)(Ranger: 2011)
		Ford Europe	(B-Max: 2012)(C-Max: 2007-2012)(Fiesta: 2001-2013)(Fiesta Van: 2008-2010)(Focus: 2004-2013)(Focus CC:2006-2011)(Focus C-Max: 2003-2007)(Focus Estate Wagon: 2004-2013)(Focus Van: 2005-2013)(Galaxy: 2006-2011)(Galaxy Van:2006-2010)(Grand C-Max: 2010-2012)(Kuga:2008-2012)(Mondeo: 2007-2012)(Mondeo Estate Wagon:2007-2011)(S-Max: 2006-2011)(Transit 250:2011)(Transit 260: 2006)(Transit 280: 2006)(Transit 300:2006)(Transit 330:2006-2013)(Transit 350(2006-2013)(Transit 370:2006)(Transit 410:2006)(Transit 430: 2006-2013)(Transit 460: 2006)(Transit Custom 250: 2012)(Transit Custom 270: 2012)(Transit Custom 290:2012).(Transit Custom 300:2012)(Transit Custom 310:2012)(Transit Custom 330: 2012)(Transit Tourneo: 2012)(Transit Tourneo Custom:2012)
		Ford USA	(Ranger:2011)
		Ford Australia	(Fiesta WS: 2008)(Fiesta Hatchback WT: 2010)(Fiesta Saloon WT: 2010)(Focus Hatchback LT: 2005)(Focus Hatchback LV: 2009-2011)(Focus Hatchback LT:2005)(Focus Saloon LS, LT: 2005)(Focus Saloon LV: 2009-2011)(Mondeo Hatchback MA, MB: 2007)
		Land Rover	(Freelander 2 FA: 2006)(Range Rover Evoque: 2011)(Freelander: 2006-2013)(LR2:2006)
		Mazda	(2:2007)(3:2003-2013)(5:2010)(2 DE:2007)(3 BK: 2003)(3 BL: 2009)(3 Saloon BK: 2000-2009)(3 Saloon BL: 2009)(5 CW:2010)(Axela:2003)(BT50:2011)
15		Volvo	(C30:2006-2012)(C70:2005-2011)(C70 II Convertible: 2006)(S40:2004-2010)(S40 II MS:2004)(S60:2010-2013)(S60 II : 2010)(S80:2006-2012)(S80 II AS: 2006)(V40:2012)(V40 Cross Country: 2012)(V40 Hatchback: 2012)(V50:2003-2012)(V50 NW:2004)(V60:2010-2013)(V70: 2007-2012)(V70 III Estate: 2007)(XC60:2008)(XC70:2007-2012)(XC70 Cross Country: 2007-2011)(XC70 II:2007)
16		Mercedes	(A140:1997-2004)(A150:2004-2012)(A160:1997-2012)(A170:1998-2012).(A180:2004-2012)(A190:1999-2004)(A200:2004-2012)(A21 AMG: 2002-2004)(A210:2002-2004((B150:2009-2011)(B160:2009-2011)(B170:2005-2011)(B180:2005-2011)(B200:2005-2011)(Vaneo:2001-2005)(Vaneo 1.6:2002)(Vaneo 1.7:2002)(Vaneo 1.9: 2002)(W168:1997-2004)
17		BMW	(X5:2000-2011)(X5 M: 2009-2012)(X5 xDrive 30i: 2008-2010)(X5 xDrive 48i)(X5 xDrive 50i: 2010-2012)(X6: 2008-2012)(ActiveHybrid X6: 2010)(X6 M: 2009)(X6 xDrive 35i: 2008-2013)(X6 xDrive 50i: 2008)(Z3:1996-2002)(Z4:2003-2008)(Z8:2000-2003)
18		Ford	(Galaxy Van:1995-2006)(Alhambra Van:1996-2010)
		SEAT	(Sharan Van:1996-2010)
		VW
19		Lexus	(GS460:2008-2011)(HS 250h:2010)(IS F: 2008-2013)(LS460:2007-2013)(LS 600h:2008-2012)
		Scion	(tC: 2011-2012)(xB:2008-2012)
		Toyota	(Celica:2000-2005)(MR2 Spyder: 2000-2005)(Prius: 2010-2011)(RAV4:2006-2012)
20		Saab	(EcoPower 9-3,9-5)
21		Buick	(LaCrosse: 2005)(Rainier: 2005-2007)
		Cadillac	(CTS: 2006)(Escalade: 2004-2007)(SRX: 2004-2007)(STS: 2005-2006)(BLS: 2007)
		Chevrolet	(Avalanche 1500:2002-2006)(Avalache: 2007)(Cavalier:1999-2005)(Classic: 2004)(Cobalt: 2007)(Colorado: 2004-2007)(Equinox: 2005-2007)(Express 1500:2004-2007)(Express 2500:2003-2007)(Express 3500:2003-2007)(HHR: 2007)(Malibu: 2001-2007)(Silverado 1500:1999-2007)(Silverado 1500 HD: 2002-2007)(Silverado 2500:1999-2004)(Silverado 2500 HD: 2001-2007)(Silverado 3500:2001-2007)(Silverado 3500 HD: 2007)(SSR: 2006)(Suburban 1500:2001-2007)(Suburban 2500:2001-2007)(Tahoe: 2000-2007)(Trailblazer: 2002-2007)(Viva:2003-2008).
		Fiat	(Croma:2005-2013)
		Ford	(Crown Victoria:1993-2011)(E-150:2003-2012)(E-150 Club Wagon: 2003-2005)(E-150 Econoline: 1992-2002)(E-150 Econoline Club Wagon: 1992-2012)(E-250 Econoline: 1992-2002/(E-250 Super Duty: 2004-2005)(E-350:2003)(E-350 Club Wagon: 2003-2005)(E-350 Econoline: 1992-2002)(E-350 Econoline Club Wagon: 1992-2002)(E-350 Super Duty: 2004-2012)(Edge: 2007-2012)(Excursion: 2000-2005)(Expedition:1997-2008)(Explorer:2002-2012)(F-150:1997-2012)(F-250 Super Duty: 1999-2012)(F-350 Super Duty: 2005-2012)(F-450 Super Duty: 2005-2012)(F-550 Super Duty: 2005-2012)(Five Hundred: 2005-2007)(Flex: 2009-2012)(Freestar:2004-2007)(Fusion: 2006-2012)(Mustang:1996-2012)(Ranger: 1998-2011)(Taurus: 1996-2012)(Thunderbird: 2002-2005)(Windstar: 1999-2003)
		GMC	(Canyon: 2004-2007)(Envoy: 2003-2007)(K2500 Suburban: 1999)(Savana 1500: 2003-2007)(Savana 2500:2003-2007)(Savana 3500:2004-2007)(Sierra 1500:1999-2007)(Sierra 1500 HD:2001-2007)(Sierra 2500:1999-2004)(Sierra 2500 HD:2001-2007)(Sierra 3500: 2001-2007)(Sierra 3500 HD:2007)(Sierra C3:2001)(Yukon: 2000-2006)(Yukon XL 1500:2000-2007)(Yukon XL 2500:2001-2007)
		Hummer	(H2:2004-2006)(H3:2006)
		suzu	(Ascender: 2003-2006)(i-280:2006)(i-290:2007)
		Lincoln	(Continental:1995-2002)(Mark VIII:1993-1998)(MKS: 2009-2012)(MKT:2010-2012)(MKX:2007-2012)(MKZ: 2007-2012)(Town Car:1993-2011)(Zephyr: 2006)
		Mazda	(Mazda 6:2006)
		Mercury	(Cougar: 1993-1997)(Grand Marquis: 1993-2011)(Milan: 2006-2011)(Monterey: 2004-2007)(Sable: 1996-2009)
		Oldsmobile	(Alero: 1999-2004)(Cutlass: 1999)(Intrigue: 2002)
		Opel	(Astra: 2004-2013)(Astra Cabrio: 2003-2006)(Astra Classic: 2006-2009)(Astra Coupe: 2003-2005)(Astra GTC: 2005-2011)(Astra H: 2004-2010)(Astra Van:2004-2010)(Corsa: 2006-2013)(Corsa D: 2007-2011)(Corsa Van: 2006-2010)(Meriva: 2006-2010)(Signum: 2003-2008)(Vectra: 2002-2008)(Zafira: 2005)(Zafira B:2005-2011)(Zafira Van: 2005)
		Pontiac	(G5: 2007)(G6:2006)(Grand Am:199-2005)(Grand Prix:2005-2006)(Pursuit: 2005-2006)(Solstice: 2006-2007)(Sunfire:2005)
		Saab	(9-3: 2003-2012)(9-3 Sport: 2002-2012)(9-3 X:2009-2012)(9-7 X: 2007)
		Saturn	(Aura: 2007)(lon 1:2003-2005)(lon 2: 2003-2007)(lon 3:2003-2007)(Outlook: 2007)(Sky:2007)(Vue: 2005-2007)
21		SuzukiVauxhall	(XL-7:2007)(Astra: 2002-2011)(Astra Cabrio: 2006-2011)(Astra Coupe: 2005-2008)(Astra GTC:2004-2011)(Combo:2005-2011)(Corsa:2006-2012)(Meriva: 2006-2010)(Signum:2003-2008)(Vectra: 2002-2008)(Zafira: 2005-2013)
22		BMW	(550i:2010-2012)(550i Gran Turismo: 2012)(550i GT: 2010-2012).(550i GT xDrive: 2011-2012)(550i xDrive Gran Turismo: 2012)(550i X:2011-2012)(550i XGT: 2010-2012)(650i: 2012)(650i Cabrio: 2012)(650i Convertible:2011-2012)(650i Coupe: 2011-2012)(650i: Gran Coupe: 2012)(650i xDrive Gran Coupe: 2012)(650iX Convertible:2012)(650i X Coupe: 2012)(750i:2009-2012)(750i Active Hybrid: 2011)(750i xDrive: 2010-2011)(750i X: 2010)(750Li: 2009-2012)(750 Li Active Hybrid: 2011)(750 LiX: 2010)(760i: 2010-2012)(760Li: 2010-2012)(Alpina B7: 2010-2012)(Alpina B7 xDrive: 2011-2012)(Alpina B7L: 2010-2012)(Alpina B7L xDrive:2011-2012)(Alpina B7LX: 2011-2012)(Alpina B7X: 2011-2012)(Hybrid 5: 2012)(M5:2012)(M6 Convertible:2012)(X5:2004-2012)(X5 50iX: 2011)(X5 M: 2009-2010)(X5 xDrive 48i: 2008-2010)(X5 xDrive 50i: 2010)(X6:2008-2012)(X6 50iX: 2008-2010)(X6 Active Hybrid: 2010)(x6 Hybrid: 2010-2011)(X6 M: 2009-2010)(X6 xDrive 50i:2008)
		Land RoverMini	(Range Rover:2003-2005)(cooper:2008-2012)(Cooper Clubman: 2008-2012)(Cooper Countryman: 2011-2012)(Cooper Convertible: 2009-2012)(Cooper S Clubman: 2008-2012)(Cooper S Convertible: 2009-2012)(Cooper SX: 2011-2012)(Cooper Works: 2007-2012)(Cooper Works Clubman: 2008-2012)(Cooper Works Convertible: 2009-2012)(Cooper S:2007-2012)(Mini Clubman: 2007-2013)(Mini Clubvan: 2010-2012)(Mini Cooper: 2006-2013)(Mini Countryman: 2010-2013)(Mini Coupe: 2011)(Mini One: 2009-2010)(Mini Roadster: 2012)

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two black plastic tool cases with various colored and styled components, no visible text or symbols

BESOIN D'AIDE? CONTACTEZ-NOUS!

Close-up of a car engine hood with a hand holding a pressure gauge (no visible text or symbols)

Close-up of a pressure gauge with red and green color scales (no visible text or symbols)

Close-up of a mechanical device with a pressure gauge and attached components (no visible text or symbols)

Close-up of a mechanical component with a brass oil cap inserted into a blue liquid, mounted on a vehicle (no visible text or symbols)

Close-up of a car engine bay with a blue cable inserted into the engine compartment (no visible text or symbols)

fig.6 NO.3 ON NO.7 OFF

Close-up of a car engine bay with visible hoses and pressure gauge (no text or symbols)

Close-up of hands operating a pressure regulator with a blue tool, no visible text or symbols

Close-up of a car engine bay with blue hoses and valve fittings (no visible text or symbols)

NOTE IMPORTANTE

(LeSabre:1990-)(Park Avenue: 1991-)

(Sebring:1995-)

(Entreprise:1997-)

(Caravane:1989-)(Dakota:1989-)(Startus:1995-)

(Nova Spectre, Sprint)

Honda

(Spectra5:2005-2009) (Sportage:1995-2011)

Lexus

(ES300:1996-2003)(ES330:2005)(LS400:1992)(LX 450:1996-1999)

(LX470:1998-2005)(SC400:1992)

Lincoln

(B2200:1988-1993)(B2300:2005)(B2500:1998-2000)(B2600:1987-1993)

(B3000:1996-2007)(B4000:1995-2006)(CX-9:2007-2010)(Mata;1991-2005)

(Millénia : 1995-2002)(MPV :1991-2006)(MX-5 Mata :2006-2012)

Two black plastic tool cases with various colored and styled connectors, no visible text or symbols

Close-up of a car engine hood with a hand holding a pressure gauge (no visible text or symbols)

Close-up of a pressure gauge with red and green color scales (no visible text or symbols)

Close-up of a mechanical component with a pressure gauge and attached clamps (no visible text or symbols)

Close-up of a mechanical component with a brass oil cap inserted into a blue liquid, mounted on a vehicle (no visible text or symbols)

Close-up of a car engine bay with a blue cable inserted into the engine compartment (no visible text or symbols)

Machine Translated by Google

fig.6 NO.3 ON NO.7 OFF

Close-up of a car engine bay with visible hoses and pressure gauge (no text or symbols)

Close-up of hands operating a pressure regulator with a blue tool, no visible text or symbols

Close-up of a car engine bay with blue hoses and valve fittings (no visible text or symbols)

WICHTIGER HINWEIS

(LeSabre:1990-)(Park Avenue: 1991-)

(Nova Spectrum, Sprint)

(Accord:1990-1993)(Civic:1988-1991)(CRX:1989-1990)(Motorräder:1991-2004)

(Spectra5:2005-2009)(Sportage:1995-2011)

Lexus

(ES300:1996-2003)(ES330:2005)(LS400:1992)(LX 450:1996-1999)

(LX470:1998-2005)(SC400:1992)

Lincoln

(Navigator: 2009-2011)

Mazda

(323:1986-1993)(626:1985-1999)(929:1990-1993)(B2000:1986-1987)

(B2200:1988-1993)(B2300:2005)(B2500:1998-2000)(B2600:1987-1993)

(B3000:1996-2007)(B4000:1995-2006)(CX-9:2007-2010)(Mata;1991-2005)

(Galant 1989–1993)(Mighty Max: 1987–1994)(Mirage: 1985–1992)

(Montero:1989-1998)(Outlander.2003-2011)(Outlander Sport:2011)

(Precis:1988-1992)(Starion:1984-1986)(Trediar1986-1988)

Mercedes-Benz

Nissan (200SX:1984-1988)(240SX:1990-1994)(300ZX:1984-1996)(Atima:1993-2006)

Axxess:1990)(Cube;2009-2010)(D21:1986-1994)(Frontier;1998-2011)

(Maxima:1987-2008)(Murano:2003-2007)(NX:1991-1993)(Pathfinder:1987-2004)

(Pulsar NX:1987-1989)(Quest:1994-2009)(Rogue:2009-2010)(Sentra:1987-2011)

(Raum:1987-1992)(Versa:2007-2011)(Xterra:2000-2012)

Plymouth (Colt: 1984–1991)(Laser: 1993–1994)

Súbaru

(Baja:2004-2005)(Brat:1983-1987)(DL:1983-1989)(Forester:1999-2011)

(GL:1983-1989)(GL-10:1985-1989)(Impreza:1993-2011)(Justy:1988-1993)

(Vermächtnis:1990-2011)(Loyale:1990-1992)(Outback:2000-2011)(RX:1986)

(SVX:1994-1997)(XT:1985-1991)

Suzuki

(Äquator: 2009–2011)(Samural: 1986)(Sidekick: 1989–1991)(Swift: 1990–1994)

(XL7:2004-2006)

Im.Bild
Anwendung

4	Toyota	(4Runner: 1986-1995) (Avalon 1995-2004) (Camry: 1983-1991). (Camry: 1994-19994 Zylinder) (Celica: 1983-1989) (Corolla: 1983-1992) (Cressda: 1985-1992)(Land Cruiser: 1993-2007)(MR2: 1989-1995)(Previa: 1991-1997) (Sienna:1998-2006)(Solara 1999-2008)(Starlet:1983-1984)(Supra:1987-1990) (T100:1995-1998)(Tacoma:1996-2004)(Tercel: 1983-1990)
23	Und Hurra	(CL:1997-2002)(Integra:1994-2000)(Legende:1993-1995)(MDX:2001-2011) (RDX:2009-2012)(RL:1996-2010)(RSX:2002-2005)(TL:1996-2011)(TSX:2007-2012)
	Chevrolet	(Metro:1999-2000)(Prizm:1998-2002)(Tracker:1998-2004)
	Chrysler	(Sebring:2001)
	Ausweichen	(Cot1993-1994)(Stratus:2001-2004)
	Auge	(Gipfel: 1992-1996)
	Geo	(Metro:1995-1997),(Prizm:1993-1997)(Tracker:1997)
	Honda	(Accord:1994-2011)(Civic:1992-2010)(Civic del Sol:1993-1997)(CR-V;1997-2010) (CR-Z:2011)(Element:2003-2010)(Fit:2008-2009)(Insight:2001-2011) (Odyssee:1998-2010)(Pilot2003-2011)(Präludium 1999-2001)(Ridgeline:2007-2011) (52000:2006-2009)
	Isuzu	(Oasis:1997)(Rodeo:1999-2000)(Rodeo Sport: 2003)
	Lexus	(ES250:1990-1991)(ES350:2008-2012)(GS300:1993-2003)(GS350:2007-2009) (GS430:2004-2007)(GX470:2004-2005)(IS300:2003)(IS350:2009-2012) (LS430:2001-2003)(LX570:2011-2013)(RX300:1999-2006)(RX350:2008-2010) (RX400h:2006-2008)(SC300:1992-2010)
	Mazda (Mazda 2:2011)(Mazda 5:2008-2010)(Protege:1995-2003)
	Mercedes (ML-Modell, W163, W164).
	Mitsubishi (Diamante:1996-2004)(Eclipse:2000-2010)(Endeavor.2006-2011)(Expo:1992-1995) (Expo LRV:1992-1994)(Laufend:1994-2011)(Mirage:1993-2002) (Montero Sport 1997-2003)
	Plymouth	(Colt: 1992-1994)
	Pontiac	(Stimmung: 2003-2010)
	Scon	(FR-S:2013)(iQ:2012)(tC:2005-2010)(XA:2006)
	Subaru	(B9 Tribeca:2006-2007)(Tribeca:2008-2010), (Aero:2003-2007)(Esteem:1995-2002)(Sidekick 1991-1998)(Swit1999-2001) (SX4:2007-2009)(Vtara:1999-2003)(X-90:1996-1998)(XL-7:2002-2003)
	Suzuki	(4Runner:1969-2011)(Avalon:2005-2010)(Camry:1990-1991 V6 wauto.tans.) (Camry:1992-2011)(Celica:1990-1999)(Corolla:1993-2012)(Echo:2001-2005) (FJ Cruiser: 2007-2010)(Highlander 2001-2011)(Land Cruiser: 2009)(Matrix 2003-2011) (Paseo:1992-1998)(Vorheriges:2001-2009)(RAV4:1996-2003)(Sequoia:2001-2011) (Sienna:2007-2011)(Supra:1990-1998)(Tacoma:2005-2011)(Tercel:1991-1998) (Tundra:2000-2011)(Venza:2009-2011)(Yaris:2008-2011)
	Toyota	(Touareg:2004)
	VW
6	Cadillac (Kategorie: 1997-2001)
	Chevrolet (Aveo:2004-2011)(Aveo5:2006-2011)(Epica:2004)
	Daewoc (Leganza:1999-2002)(Lanos:1999-2002)(Nubira:1999-2002)
	Ford	(Contour:1995-2000)(Party:1995)-(Focus:1998)-(Fusion:2006-)
	GM (Achieva)(Skylark)(Grand Am:1992-2002)
	Jaguar (Alle:1990-1994)(XJ8:1998-2001)(XJR:1998-2001)(XKB:1997-2006)(XKR:2000-2006) (X-Typ: 2002-2007)
	Jeep Land Rover (Discovery: 1989-2004) (Range Rover: 1988-1994)
	Mercedes-Benz (ML-Klasse: 1997-2011)
	Merkur (Mistic: 1995-2000)
	Pontac (Le Mans:1988-1993)(G3:2009)(Welle:2005)(Welle5:2005)
	Porsche (911:1999-)(Boxter:1997-)
	Saab (900:1994-1998)(9-3:1999-2003)(9-5:1999-2008)
	Saturn (L100:2001-2002)(L200:2001-2003)(L300:2001-2005)(L300-1:2004)(L300-2:2004) (L300-3:2004)(LS:2000)(LS1:2000)(LS2:2000)(LW1:2000)(LW2:2000) (LW200:2001-2003)(LW300:2001-2003)(Ansicht:2002)
	Suzuki (Forenza: 2004-2008)(Reno: 2005-2008)(Swift +: 2004)(Verona: 2004-2005)
7	Alfa Romeo(145-930:1994-2001)(146-930:1994-2001)(164-164:1987-1998)
	(33-907A:1990-1994)(33 Sportwagon-907B:1990-1994)(GTV-916C:1994) (Spider-916S:1994-2005)
	Zitrone	(Jumper Kasten 230L:1994-2002)(Jumper Bus 230P:1994-2002)
	Fiat	(Jumper-Plattform/Chassis 230:1994-2002) (Coupé FA/175:1993-2000)(Croma-154:1985-1996)(Ducato Box-230L:1994-2002) (Ducato Box-244.2002)(Ducato Bus-230:1994-2002)(Ducato Bus-244Z:2002) (Ducato Pritsche/Fahrgestell 230:1994-2002)
	Lanze	(Delta II-836:1993-1999)(Kappa-938A:1994-2001)(Kappa Coupé-838:1996-2001) (Kappa SW-838B:1996-2001)(Thema-834:1984-1994)(Thema SW-834:1987-1994)
	Mini Cooper (S:2002-)
	Peugeot (206:1999-)(307:2004-)(406:1999-)(407:2004-)(807:2004-) (Boxer Kasten-230L:1994-2002)(Boxer Bus-230P:1994-2002) (Boxer-Plattform/Chassis-ZCT:1994-2002)
	Renault (Al:1985-1987)(Avantime:2002-)(Raum:2002-)
	Sterling (900:1978-1993)(9000:1986-1998) (Alt:1987-1991)
	Jeep (PKW mit Gewindeanschluss)

No.	Image	Application
8		VW	(Vento)(T4)(Passat:1990-1997)(Beetle)(Sharan)(Cabrio: 1995-2002)(Corrado: 1990-1994)(Eurovan:1993-2003)(Golf: 1990-1999)(1990-1998: with female thread on filler neck of expansion tank - except 1998 Passat & New Beetle)(Jetta:1990-1999)
9		Audi	(A3:2006-2012)(A3-8P1:2003)(A3 Convertible: 2008)(A3 Sportback-8PA: 2004)(A4:1996-2012)(A4-8EC.B7:2004-2008)(A4 Avant-8ED.B7:2004-2008)(A4 Quattro:1996-2012)(A5: 2011-2012)(A5 Quattro: 2008-2012)(A6:1998-2012)(A6 Quattro:1998-2011)(A7 Quattro:2012)(A8 Quattro: 2004-2010)(Allroad Quattro: 2001-2005)(Q5:2009-2012)(Q7:2007-2012)(R8:2008-2012)(RS4:2007-2008)(RS6:2003)(S4:2000-2012)(S5:2008-2012)(S6:2002-2011)(S8:2007-2009)(TT: 2000-2009)(TT-8J3:2006)(TT-8N3:1998-2006)(TT Quattro:2000-2013)(TT Roadster-8J9: 2007)(TT Roadster 8N9:1999-2006)
		BMW	(345)
		Porsche	(Cavenne)
		SEAT	(Altea-5P1:2004)(Cordoba-6K2:1999-2002)(Cordoba-6L2:2002-2009)(Ibiza III-6K1:1999-2002)(Ibiza IV-6L1:2002-2009)(Leon-1M1:1999-2006)(Leon 1P1:2005)(Toledo-1L:1991-1999)(Toledo II-1M2:1999-2006)
		Skoda	(Fabia:2006)(Fabia-6Y2:1999-2008)(Fabia Combi:2007)(Fabia Combi-6Y5:2000-2007)(Fabia Praktik: 2001-2007)(Fabia Saloon-6Y3:1999-2007)(Laura-1Z3:2004)(Octavia 1U2:1996-2010)(Octavia Combi-1U5:1998-2010)(Octavia Combi-1Z5: 2004)(Roomster-5J: 2006)(Superb-3T4:2008)(Superb-3U4:2002-2008)(Superb Estate: 3T5: 2009)
		VW	(Beatle:1998-2012)(Caddv III Box-2KA, 2KH,2CA,2CH: 2004)(Caddy III Estate-2KB, 2KJ,2CB,2CJ: 2004)(CC:2009-2013)(Crafter 30-35 Bus 2E: 2006)(Crafter 30-50 Box 2E: 2006)(Crafter 30-50 Platform / Chassis 2F)(Eos: 2007-2012)(Eos-1F7,1F8:2006)(Fox-5Z1,5Z3:2003)(Golf: 1999-2012)(Golf Plus-5M1,5Z1:2005)(Golf V-1K1:2003-2009)(Golf V Variant(1K5:2007)(GTI: 2006-2013)(Jetta:1997-2012)(Jetta I Saloon-1K2:2005-2010)(LT 28-35 II Bus-2DM:1996-2006)(LT 28-46 II Box-2DXOAE:1996-2006)(LT 28-46 II Platform / Chassis 2DXOFE:1996-2006)(Multivan Mk V-7HM,7HN,7EF,7EM,7EN:2003)(New Beetle-9C1,1C1:1998)(New Beetle Convertible-1Y7: 2002-2010)(Passat: 1998-2012)(Passat-3B3:2000-2005)(Passat-3C2:2005)(Passat Variant-3B6:2000-2005)(Passat Varian 3C5:2005)(Polo-9N: 2001)(Polo Saloon: 2002)(R32:2008)(Rabbit: 2006-2009)(Tiguan: 2009)(Touareg: 2004-2012)(Touran-1T1.1T2,1T3:2003)(Transporter / Caravelle MK V Bus-7HB.7HJ,7EB,7EJ.7EF:2003)(Transporter MK V Box- 7HA,7HH,7EA,7EH:20031)(Transporter MK V Platform / Chassis-7JD,7JE,7JL,7JY,7JZ: 2003)
10		BMW	(3-E30:1982-1992)(3-E36:1990-1998)(3-E46:1998-2005)(3-E90:2005)(3 Compact-E36:1994-2000)(3 Compact-E46:2001-2005)(3 Convertible-E30:1985-1993)(3 Convertible -E36:1993-1999)(3 Convertible-E46:2000)(3 Coupe-E36:1992-1999)(3 Coupe-E46:1999).(3 Touring -E30:1987-1994)(3 Touring-E36:1995-1999)(3 Touring-E46:1999-2005)(3 Touring-E91:2005)(5-E28:1980-1990)(5-E34:1987-1995)(5-E39:1995-2003)(5-E60:2003)(5 Touring-E34:1991-1997)(5 touring-E39:1997-2004)(7-E23:1977-1986)(7-E32:1986-1994)(7-E38:1994-2001)(7 E65, E66:2001)( 8-E31:1990-1999)(X3-E83:2004)(X3-E53:2000)(Z3-E36:1995-2003)(Z3 Coupe-E36:1997-2003)(Z4-E85:2003)(Z4 Copupe-E86:2006)(Z8-E53:2000-2003)(Brilliance 3 Series-E46:2003-2005)(Brilliance 3 Series-E90: 2004)
		Land Rover	(Freelander- LN: 1998)(Range Rover III- LM: 2002)
11		Audi	(1975-1993:w/male thread on expansion tank)
		VW	(1975-1993: w/male thrd on exp.tank)(Golf:1983-1992)(Cabriolet:1985-1993)(Dasher:1980-1981)(Fox: 1987-1993)(Golf:1985-1990)(Jetta:1980-1990)(Quantum: 1980-1988)(Rabbit:1975)(Rabbit Convertible: 1980-1984)(Scirocco:1975-1988)
12		Caterham	(Super Seven: 1990-1999)(Cougar:1998-2001)(Mondeo: 1996-2007)(Mondeo Estate Wagon: 1996-2007)(Transit 260: 2000-2006)(Transit 280:2000-2006)(Transit 300:2000-2006)(Transit 330: 2000-2006)(Transit 350: 2000-2006)(Transit 425: 2003-2006)(Transit 430: 2001-2006)(Transit Tourneo: 2000-2006)(Courier II: 1990-1995)(Escort 55 IV: 1986-1990)(Escort 55 VI:1994-2000)(Escort 75 VI:1994-2000)(Escort IV: 1986-1990)(Escort V: 1990-1996)、(Escort VI: 1995-2000)(Fiesta Classic: 1987-1989)(Fiestall: 1989-1989)(Fiesta III: 1989-1996)(Fiesta IV: 1995-1999)(Fiesta V:1999-2002)(Fiesta Van II:1987-1989)(Fiesta Van III: 1989-1996)(Fiesta Van IV:1995-2002)(Fiesta Van V: 1999-2002)(Fiesta Van VI: 2002-2008)(Fiesta VI: 2002-2008)(Focus I:1998-2005)(Focus Wagon I:1998-2005)(Fusion: 2002-2005)(Granada Scoprio:1985-1994)(Ka I:1996-2005)(Mondeo I: 1993-1996)(MondeoII: 1996-1998)(Mondeo Wagon I:1993-1996)(Mondeo Wagon II: 1996-2000)(Orion II:1986-1990)(Orion III:1990-1993)(P100 Sierra:1989-1994)(Puma):1997-2002)(Scopio I: 1984-1994)(Scoprio II: 1994-1998)(Sierra Cosworth II:1987-1993)(Sierra I:1984-1987)(Sierra II:1987-1993)(Sierra Saphire II:1987-1993)(Streetka I: 2003-2005)(Transit 100:1994-1999)(Transit 120:1994-1999)(Transit 150:1994-1999)(Transit 190:1994-1999)(Transit Connect: 2002-)
		Land Rover	(2:2002-2007)(121:1996-2002)
12		Opel	(Agila: 2000-2008)(Ascona B: 1978-1981)(Ascona C: 1981-1988)(Astra Cabrio F: 1993-2001)(Astra Cabrio G: 2001-2005)(Astra Classic F: 1998-2002)(Astra Coupe G: 1999-2005)(Astra F: 1991-1998)(Astra G: 1998-2005)(Astra H:2004-2005)(Astra Van F: 1991-1998)(Astra Van G: 1998-2004)(Calibra:1989-1998)(Combo Corsa B: 1992-2001)(Combo Corsa C: 2001-2004)(Corsa A:1982-1993)(Corsa B:1993-2000)(Corsa C: 2000-2006)(Corsa Van A:1982-1994)(Corsa Van B:1994-2001)(Corsa Van C:2000-2003)(Frontera A:1991-1998)(Kadett D:1979-1984)(Kadett E: 1984-1992)(Kadett Van E: 1984-1992)(Manta A:1974-1975)(Manta B: 1975-1988)(Meriva: 2003-2005)(Monza: 1981-1987)(Omega A: 1986-1994)(Omega B:1994-2003)(Senator A:1981-1987)(Senator B:1987-1993)(Tigra A:1994-2001)(Tigra B: 2004)(Vectra A:1988-1995)(Vectra B:1995-2003)(Zafira A:1999-2005)(Zafira Van:2002-2003)(900 II:1993-1998)
		SaabSkodaSsangyongVauxhall	(Favorit:1989-1995)(Favorit Forman:1993-1995)(Felicia-6U1:1994-2000)(Astra Cabrio III:1991-2001)(Astra Cabrio IV: 2001-2007)(Astra Coupe IV: 1999-2005)(Astra I:1979-1984)(Astra II: 1984-1991)(Astra III: 1991-1998)(Astra IV: 1998-2005)(Astra Van III: 1991-1996)(Astra Van IV:1998-2005)(Astramax: 1985-1991)(Astravan I 1982-1984)(Astravan II 1984-1991)(Belmont: 1986-1991)(Calibra:1990-1998)(Carlton:1983-1994)(Cavalier II: 1981-1988)(Cavalier III:1988-1995)(Combo: 1993-2004)(Combo Crew Van:2001-2006)(Corsa I:1993-2000)(Corsa II: 2000-2006)(Corsa Van I:1993-2001)(Corsa Van II: 2001-2006)(Frontera A: 1991-1998)(Meriva:1982-1993)(Nova: 1982-1993)(Nova Van:1990-1993)(Omega:1994-2003)(Senator: 1987-1993)(Tigra:1994-2004)(Vectra I:1999-2005)(Zafira A:1999-2005)(Zafira B: 2005-2007)
13		ChryslerMercedes	(Crossfire: 2004-)(w/ thread filler neck on expansion tank, except M-Class)(300SE:1992-1993)(400SE:1992)(400SEL:1993)(500SEC:1993)(500SEL:1992-1993)(500SL:1900-1993)(600SEC: 1993)(600SEL:1992-1993)(600SL:1993)(C230:2002)(C240:2001-2005)(C280:1994-2007)(C300:2008-2009)(C32 AMG: 2002-2004)(C320: 2001:2005)(C350:2008)(C36 AMG:1995-1997)(C43 AMG: 1998-2000)'(CL500:1998-2006)(CL55 AMG:2001-2002)(CL600:1998-2006)(CL65 AMG: 2005-2006)(CLK 320:1998-2005)(CLK 430:1999-2003)(CLK500:2003-2005)(CLK55 AMG: 2001-2005)(E300:1996-1997)(E320:1996-2005)(E350:2006-2009)(E420:1997)(E430:1998-2002)(E500:2003-2006)(E55 AMG: 1999-2002)(E550:2009)(G500:2002-2005)(G55 AMG: 2003-2005)(GL450: 2007-2008)(ML350:2006-2008)(ML500:2006-2007)(ML550:2008-2009)(S320:1994-1999)(S350:1994-2006)(S420:1994-1999)(S500:1994-2006)(S55 AMG: 2001-2006)(S600:1994-2006)(S65 AMG: 2006)(SL320:1994-1997)(SL500:1994-1998)(SL600:1994-2002)(SLK280:2006-2008)(SLK32 AMG: 2002-2004)(SLK 320:2001-2004)(SLK 350:2006-2008)(SLK55 AMG:2008)
14		FordMercury	(Mondeo: 2000-2007)(Focus: 2000-2005)(C-MAX03)(Contour: 1995-2000)(Cougar: 1999)(Mystique: 1995-1999)
15	[HKZZ]	FordInternational	(C-Max:(2007-2012)(C-Max II: 2010)(Fiesta V JH, JD: 2001)(Fiesta Van: 2009)(Fiesta VI: 2009)(Fiesta VI: 2008)(Focus C-Max: 2003-2007)(FocusII DA:2004)(Focus II Convertible: 2006)(Focus II Estate DAW: 2004)(Focus Saloon DA: 2005)(Focus II Station Wagon DAW: 2004)(Focus III: 2011)(Focus III Saloon: 2011)(Focus III Turnier: 2011)(Galaxy: 2006)(Grand C-Max: 2010)(Kuga: 2008)(Mondeo IV: 2007)(Mondeo IV Saloon: 2007)(Mondeo IV Turnier: 2007)(Ranger: 2011)(S-Max: 2006)(Transit Bus: 2606)(Transit Flatbed Chassis: 2006)(Transit Tourneo: 2006)
		Ford Asia& Oceania	(Fiesta: 2002-2013)(Focus: 2004-2011)(Focus Estate Wagon: 2011)(Mondeo: 2007)(Ranger: 2011)
		Ford Europe	(B-Max: 2012)(C-Max: 2007-2012)(Fiesta: 2001-2013)(Fiesta Van: 2008-2010)(Focus: 2004-2013)(Focus CC:2006-2011)(Focus C-Max: 2003-2007)(Focus Estate Wagon: 2004-2013)(Focus Van: 2005-2013)(Galaxy: 2006-2011)(Galaxy Van:2006-2010)(Grand C-Max: 2010-2012)(Kuga:2008-2012). (Mondeo: 2007-2012)(Mondeo Estate Wagon:2007-2011)(S-Max: 2006-2011)(Transit 250:2011)(Transit 260: 2006)(Transit 280: 2006)(Transit 300:2006)(Transit 330:2006-2013)(Transit 350(2006-2013)(Transit 370:2006)(Transit 410:2006)(Transit 430: 2006-2013)(Transit 460: 2006)(Transit Custom 250: 2012)(Transit Custom 270: 2012)(Transit Custom 290:2012). (Transit Custom 300:2012)(Transit Custom 310:2012)(Transit Custom 330: 2012)(Transit Tourneo: 2012)(Transit Tourneo Custom:2012)
		Ford USA	(Ranger:2011)
		Ford Australia	(Fiesta WS: 2008)(Fiesta Hatchback WT: 2010)(Fiesta Saloon WT: 2010)(Focus Hatchback LT: 2005)(Focus Hatchback LV: 2009-2011)(Focus Hatchback LT:2005)(Focus Saloon LS, LT: 2005)(Focus Saloon LV: 2009-2011)(Mondeo Hatchback MA, MB: 2007)
		Land Rover	(Freelander 2 FA: 2006)(Range Rover Evoque: 2011)(Freelander: 2006-2013)(LR2:2006)
		Mazda	(2:2007)(3:2003-2013)(5:2010)(2 DE:2007)(3 BK: 2003)(3 BL: 2009)(3 Saloon BK: 2000-2009)(3 Saloon BL: 2009)(5 CW:2010)(Axela:2003)(BT50:2011)
15		Volvo	(C30:2006-2012)(C70:2005-2011)(C70 II Convertible: 2006)(S40:2004-2010)(S40 II MS:2004)(S60:2010-2013)(S60 II : 2010)(S80:2006-2012)(S80 II AS: 2006)(V40:2012)(V40 Cross Country: 2012)(V40 Hatchback: 2012)(V50:2003-2012)(V50 NW:2004)(V60:2010-2013)(V70: 2007-2012)(V70 III Estate: 2007)(XC60:2008)(XC70:2007-2012)(XC70 Cross Country: 2007-2011)(XC70 II:2007)
16		Mercedes	(A140:1997-2004)(A150:2004-2012)(A160:1997-2012)(A170:1998-2012).(A180:2004-2012)(A190:1999-2004)(A200:2004-2012)(A21 AMG: 2002-2004)(A210:2002-2004((B150:2009-2011)(B160:2009-2011)(B170:2005-2011)(B180:2005-2011)(B200:2005-2011)(Vaneo:2001-2005)(Vaneo 1.6:2002)(Vaneo 1.7:2002)(Vaneo 1.9: 2002)(W168:1997-2004)
17		BMW	(X5:2000-2011)(X5 M: 2009-2012)(X5 xDrive 30i: 2008-2010)(X5 xDrive 48i)(X5 xDrive 50i: 2010-2012)(X6: 2008-2012)(ActiveHybrid X6: 2010)(X6 M: 2009)(X6 xDrive 35i: 2008-2013)(X6 xDrive 50i: 2008)(Z3:1996-2002)(Z4:2003-2008)(Z8:2000-2003)
18	[XXS2]	Ford	(Galaxy Van:1995-2006)
		SEAT	(Alhambra Van:1996-2010)
		VW	(Sharan Van:1996-2010)
19		Lexus	(GS460:2008-2011)(HS 250h:2010)(IS F: 2008-2013)(LS460:2007-2013)(LS 600h:2008-2012)
		Scion	(tc: 2011-2012)(xB:2008-2012)
		Toyota	(Celica:2000-2005)(MR2 Spyder: 2000-2005)(Prius: 2010-2011)(RAV4:2006-2012)
20		Saab	(EcoPower 9-3,9-5)
21		Buick	(LaCrosse: 2005)(Rainier: 2005-2007)
		Cadillac	(CTS: 2006)(Escalade: 2004-2007)(SRX: 2004-2007)(STS: 2005-2006)(BLS: 2007)
		Chevrolet	(Avalanche 1500:2002-2006)(Avalache: 2007)(Cavalier:1999-2005)(Classic: 2004)(Cobalt: 2007)(Colorado: 2004-2007)(Equinox: 2005-2007)(Express 1500:2004-2007)(Express 2500:2003-2007)(Express 3500:2003-2007)(HHR: 2007)(Malibu: 2001-2007)(Silverado 1500:1999-2007)(Silverado 1500 HD: 2002-2007)(Silverado 2500:1999-2004)(Silverado 2500 HD: 2001-2007)(Silverado 3500:2001-2007)(Silverado 3500 HD: 2007)(SSR: 2006)(Suburban 1500:2001-2007)(Suburban 2500;2001-2007)(Tahoe: 2000-2007)(Trailblazer: 2002-2007)(Viva:2003-2008).
		Fiat	(Croma:2005-2013)
		Ford	(Crown Victoria:1993-2011)(E-150:2003-2012)(E-150 Club Wagon: 2003-2005)(E-150 Econoline: 1992-2002)(E-150 Econoline Club Wagon: 1992-2012)(E-250 Econoline: 1992-2002/(E-250 Super Duty: 2004-2005)(E-350:2003)(E-350 Club Wagon: 2003-2005)(E-350 Econoline: 1992-2002)(E-350 Econoline Club Wagon: 1992-2002)(E-350 Super Duty: 2004-2012)(Edge: 2007-2012)(Excursion: 2000-2005)(Expedition:1997-2008)(Explorer:2002-2012)(F-150:1997-2012)(F-250 Super Duty: 1999-2012)(F-350 Super Duty: 2005-2012)(F-450 Super Duty: 2005-2012)(F-550 Super Duty: 2005-2012)(Five Hundred: 2005-2007)(Flex: 2009-2012)(Freestar:2004-2007)(Fusion: 2006-2012)(Mustang:1996-2012)(Ranger: 1998-2011)(Taurus: 1996-2012)(Thunderbird: 2002-2005)(Windstar: 1999-2003)
		GMC	(Canyon: 2004-2007)(Envoy: 2003-2007)(K2500 Suburban: 1999)(Savana 1500: 2003-2007)(Savana 2500:2003-2007)(Savana 3500:2004-2007)(Sierra 1500:1999-2007)(Sierra 1500 HD:2001-2007)(Sierra 2500:1999-2004)(Sierra 2500 HD:2001-2007)(Sierra 3500: 2001-2007)(Sierra 3500 HD:2007)(Sierra C3:2001)(Yukon: 2000-2006)(Yukon XL 1500:2000-2007)(Yukon XL 2500:2001-2007)
		Hummer	(H2:2004-2006)(H3:2006)
		suzu	(Ascender: 2003-2006)(i-280:2006)(i-290:2007)
		Lincoln	(Continental:1995-2002)(Mark VIII:1993-1998)(MKS: 2009-2012)(MKT:2010-2012)(MKX:2007-2012)(MKZ: 2007-2012)(Town Car:1993-2011)(Zephyr: 2006)
		Mazda	(Mazda 6:2006)
		Mercury	(Cougar: 1993-1997)(Grand Marquis: 1993-2011)(Milan: 2006-2011)(Monterey: 2004-2007)(Sable: 1996-2009)
		Oldsmobile	(Alero: 1999-2004)(Cutlass: 1999)(Intrigue: 2002)
		Opel	(Astra: 2004-2013)(Astra Cabrio: 2003-2006)(Astra Classic: 2006-2009)(Astra Coupe: 2003-2005)(Astra GTC: 2005-2011)(Astra H: 2004-2010)(Astra Van:2004-2010)(Corsa: 2006-2013)(Corsa D: 2007-2011)(Corsa Van: 2006-2010)(Meriva: 2006-2010)(Signum: 2003-2008)(Vectra: 2002-2008)(Zafira: 2005)(Zafira B:2005-2011)(Zafira Van: 2005)
		Pontiac	(G5: 2007)(G6:2006)(Grand Am:199-2005)(Grand Prix:2005-2006)(Pursuit: 2005-2006)(Solstice: 2006-2007)(Sunfire:2005)
		Saab	(9-3: 2003-2012)(9-3 Sport: 2002-2012)(9-3 X:2009-2012)(9-7 X: 2007)
		Saturn	(Aura: 2007)(lon 1:2003-2005)(lon 2: 2003-2007)(lon 3:2003-2007)(Outlook: 2007)(Sky:2007)(Vue: 2005-2007)
21		SuzukiVauxhall	(XL-7:2007)(Astra: 2002-2011)(Astra Cabrio: 2006-2011)(Astra Coupe: 2005-2008)(Astra GTC:2004-2011)(Combo:2005-2011)(Corsa:2006-2012)(Meriva: 2006-2010)(Signum:2003-2008)(Vectra: 2002-2008)(Zafira: 2005-2013)
22		BMW	(550i:2010-2012)(550i Gran Turismo: 2012)(550i GT: 2010-2012).(550i GT xDrive: 2011-2012)(550i xDrive Gran Turismo: 2012)(550i X:2011-2012)(550i XGT: 2010-2012)(650i: 2012)(650i Cabrio: 2012)(650i Convertible:2011-2012)(650i Coupe: 2011-2012)(650i: Gran Coupe: 2012)(650i xDrive Gran Coupe: 2012)(650iX Convertible:2012)(650i X Coupe: 2012)(750i:2009-2012)(750i Active Hybrid: 2011)(750i xDrive: 2010-2011)(750i X: 2010)(750Li: 2009-2012)(750 Li Active Hybrid: 2011)(750 LiX: 2010)(760i: 2010-2012)(760Li: 2010-2012)(Alpina B7: 2010-2012)(Alpina B7 xDrive: 2011-2012)(Alpina B7L: 2010-2012)(Alpina B7L xDrive:2011-2012)(Alpina B7LX: 2011-2012)(Alpina B7X: 2011-2012)(Hybrid 5: 2012)(M5:2012)(M6 Convertible:2012)(X5:2004-2012)(X5 50iX: 2011)(X5 M: 2009-2010)(X5 xDrive 48i: 2008-2010)(X5 xDrive 50i: 2010)(X6:2008-2012)(X6 50iX: 2008-2010)(X6 Active Hybrid: 2010)(x6 Hybrid: 2010-2011)(X6 M: 2009-2010)(X6 xDrive 50i:2008)
		Land RoverMini	(Range Rover:2003-2005)(cooper:2008-2012)(Cooper Clubman: 2008-2012)(Cooper Countryman: 2011-2012)(Cooper Convertible: 2009-2012)(Cooper S Clubman: 2008-2012)(Cooper S Convertible: 2009-2012)(Cooper SX: 2011-2012)(Cooper Works: 2007-2012)(Cooper Works Clubman: 2008-2012)(Cooper Works Convertible: 2009-2012)(Cooper S:2007-2012)(Mini Clubman: 2007-2013)(Mini Clubvan: 2010-2012)(Mini Cooper: 2006-2013)(Mini Countryman: 2010-2013)(Mini Coupe: 2011)(Mini One: 2009-2010)(Mini Roadster: 2012)

Two black plastic tool cases with various colored and styled components, no visible text or symbols

Close-up of a car engine hood with a hand holding a pressure gauge (no visible text or symbols)

Close-up of a pressure gauge with red and green color scales (no visible text or symbols)

Close-up of a mechanical device with a pressure gauge and attached components (no visible text or symbols)

Close-up of a mechanical component with a brass oil cap inserted into a blue liquid, mounted on a vehicle (no visible text or symbols)

Close-up of a car engine bay with a blue cable inserted into the engine compartment (no visible text or symbols)

fig.6 NO.3 ON NO.7 OFF

Close-up of a car engine bay with pressure gauges and blue hoses (no visible text or symbols)

Close-up of hands operating a pressure regulator with a blue tool, no visible text or symbols

Close-up of a car engine bay with blue hoses and valve fittings (no visible text or symbols)

NOTA IMPORTANTE

Two black plastic tool cases with various colored and styled components, no visible text or symbols

Close-up of a car engine hood with a hand holding a pressure gauge (no visible text or symbols)

Close-up of a pressure gauge with red and green color scales (no visible text or symbols)

Close-up of a mechanical device with a pressure gauge and attached components (no visible text or symbols)

Close-up of a mechanical component with a brass oil cap inserted into a blue liquid, mounted on a vehicle (no visible text or symbols)

Close-up of a car engine bay with a blue cable inserted into the engine compartment (no visible text or symbols)

fig.6 NO.3 ON NO.7 OFF

Close-up of a car engine bay with visible hoses and pressure gauge (no text or symbols)

Close-up of hands operating a pressure regulator with a blue tool, no visible text or symbols

Close-up of a car engine bay with blue hoses and valve fittings (no visible text or symbols)

NOTA IMPORTANTE

Two black plastic tool cases with various colored and styled connectors, no visible text or symbols

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Close-up of a hand holding a pressure gauge on an engine compartment (no visible text or symbols)

Close-up of a pressure gauge with red and green color scales (no visible text or symbols)

Close-up of a mechanical device with a pressure gauge and attached components (no visible text or symbols)

Close-up of a mechanical component with a brass oil cap inserted into a blue liquid, mounted on a vehicle (no visible text or symbols)

Close-up of a car engine bay with a blue cable inserted, showing internal components and wiring (no text or symbols visible)

fig.6 NO.3 ON NO.7 OFF

Close-up of a car engine bay with visible hoses and pressure gauge (no text or symbols)

Close-up of hands operating a pressure regulator with a blue tool, no visible text or symbols

Close-up of a car engine bay with blue hoses and valve fittings (no visible text or symbols)

WAŻNA UWAGA

Two black plastic tool cases with various colored and styled connectors, no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

Close-up of a car engine hood with a hand holding a pressure gauge (no visible text or symbols)

Close-up of a pressure gauge with red and green color scales (no visible text or symbols)

Close-up of a mechanical component with a pressure gauge and attached clamped parts (no visible text or symbols)

2. Lekkagetest van de radiatordop

Close-up of a mechanical component with a brass oil cap inserted into a blue liquid, mounted on a vehicle chassis (no visible text or symbols)

Close-up of a car engine bay with a blue and yellow pipe inserted, showing internal components (no text or symbols visible)

fig.6 NO.3 ON NO.7 OFF

Close-up of a car engine bay with visible hoses and pressure gauge (no text or symbols)

Close-up of hands operating a pressure regulator with a blue tool, no visible text or symbols

Close-up of a car engine bay with blue hoses and valve fittings (no visible text or symbols)

BELANGRIJKE OPMERKING

Two black plastic tool cases with various colored and styled connectors, no visible text or symbols

BEHÖVER HJÄLP? KONTAKTA OSS!

Close-up of a car engine hood with a hand holding a pressure gauge (no visible text or symbols)

Close-up of a pressure gauge with red and green color scales (no visible text or symbols)

Close-up of a mechanical component with a pressure gauge and attached clamped parts (no visible text or symbols)

Close-up of a mechanical component with a brass oil cap inserted into a blue liquid, mounted on a vehicle (no visible text or symbols)

Close-up of a car engine bay with a blue cable inserted into the engine compartment (no visible text or symbols)

fig.6 NO.3 ON NO.7 OFF

Close-up of a car engine bay with visible hoses and pressure gauge (no text or symbols)

Close-up of hands operating a pressure regulator with a blue tool, no visible text or symbols

Close-up of a car engine bay with blue hoses and valve fittings (no visible text or symbols)

VIKTIG ANMÄRKNING
