Product Type	Solar panel mounting bracket
Model	SF-SS-SKU7
Brand	Vevor
Main Material	Carbon steel
Product Dimensions	6000 x 1000 x 800 mm
Maximum Load Capacity	150 kg (330 lbs)
Number of Panels Supported	Multiple (adjusted according to size)
Adjustable Tilt	Yes, adjustable according to longitude and latitude
Tools Required for Assembly	6 mm Allen key, power tool, socket wrench, chain, tape measure, adjustable wrench, highlighter pen
Package Contents	Mounting bracket only (solar panels not included)
Ground Fixing	On concrete pillars or wooden beams with expansion bolts
Maintenance	Clean regularly with a dry cloth; check bolt tightness
Safety	Wear gloves and safety glasses during assembly; do not exceed maximum load
Warranty	Refer to the electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - SF-SS-SKU7 Vevor

Which solar panels are compatible with this bracket?

This bracket is designed for multi-panel solar panels. The bracket dimensions are 6000x1000x800 mm. Please select panels suitable for these dimensions.

What is the maximum load capacity?

The maximum load capacity is 150 kg (330 lbs) for a correct and complete assembly.

What tools are required for assembly?

The required tools (not included) are: 6 mm Allen key, power tool, socket wrench, chain, tape measure, adjustable wrench and highlighter pen.

Is the bracket adjustable in tilt?

Yes, before installation, you need to know the longitude and latitude of your site to adjust the angle and installation direction.

How to fix the bracket to the ground?

You need to pour concrete pillars or use wooden beams, then fix the bracket with expansion bolts or self-tapping screws.

Is the bracket delivered with solar panels?

No, this product includes only the bracket. Solar panels must be purchased separately.

Can I use this bracket for a single panel?

Yes, it is suitable for one or more panels, as long as the total load does not exceed 150 kg.

What is the warranty for this product?

Vevor offers an electronic warranty. For more information, visit www.vevor.com/support.

How to maintain the bracket?

Clean regularly with a dry cloth and check the tightness of all bolts. Avoid sudden dynamic loads.

Are there any safety precautions to take?

Wear safety glasses and gloves during assembly. Do not assemble if you are tired or under the influence of substances. Keep children away.

USER MANUAL SF-SS-SKU7 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Multi-Panels Mount

MODEL:SF-SS-SKU6; SF-SS-SKU7

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: SF-SS-SKU6; SF-SS-SKU7

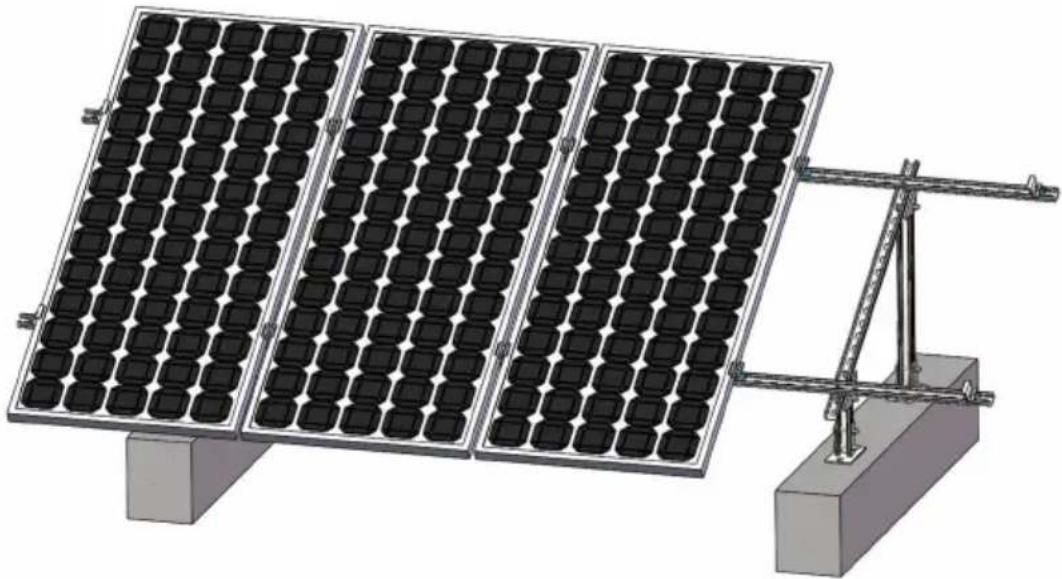

Illustration of a solar panel array mounted on a support structure, with no visible text or symbols.

Note: This product only includes solar panel support, solar panels need to be purchased by yourself.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soft updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will help you achieve the best possible results.

Operation safety

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this product fully aware of all warnings and precautions.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Safety goggles and work gloves should be worn during assembly.
3. Do not assemble when tired or when under the influence of alcohol, drug medication.
4. Weight capacity and other product capabilities apply to a properly and completely assembled product only.
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. This product is not a toy. Do not allow children to play with or approach
8. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

Disclaimer & conditions of Use

Users of this Product must use this product at their own risk, and in no event the Seller, distributor or manufacturer be liable for indirect, incidental, derivative loss or damage or injury arising directly or indirectly from the use of this Product. For optimal safety and performance, all products must be properly installed and properly used. We do not accept responsibility for any improper use, alteration and installation.

Tools Needed (not included)

6mm hex key	Power tool	Socket wrench	String
Tape measure	Adjustable wrench	Marker pen

Product introduction

Model	SF-SS-SKU6	SF-SS-SKU7
Main Material	Carbon steel	Carbon steel
Product Size	3000x 1000x 800 mm	6000x 1000x 800 mm
Maximum Bearing Capacity	330 lbs(150kg)	330 lbs(150kg)

NOTE: Please select the appropriate solar panel according to the product size.

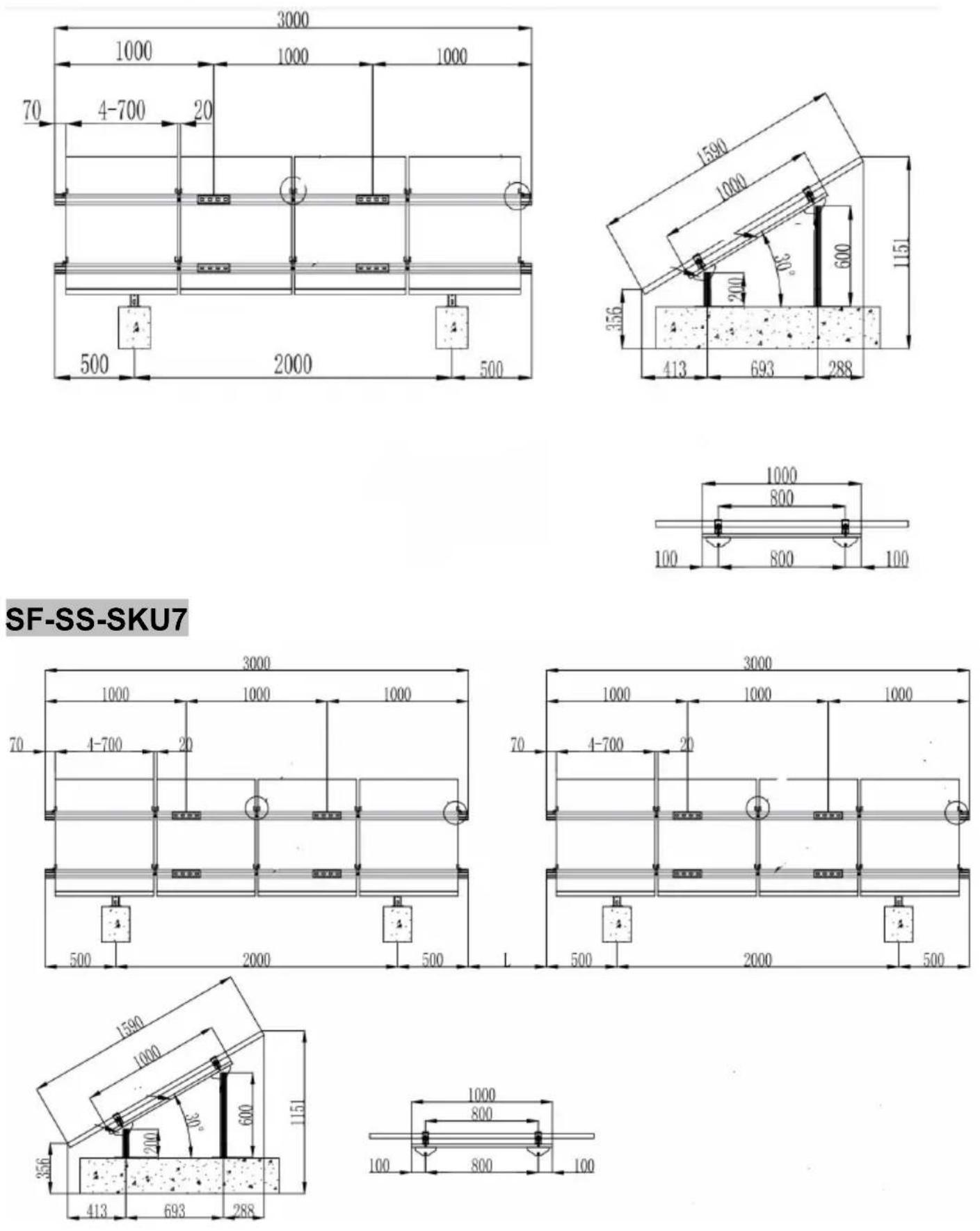

The following is the product size and assembly effect pictur (for reference only)

SF-SS-SKU6

Part List

A (Solar support track)	B (Side press block assembly)	C (Middle pressure block assembly)	D (Skew beam)	E (Track connector)
F (M10*70 bolt set)	G (Triangle connector)	H (Base)	I (Rear pillar)	J (Front pillar)
K (M10*25 bolt set)	L (M10*20 bolt set)

Note: Parts are constantly updated, please refer to the actual.

Assembly

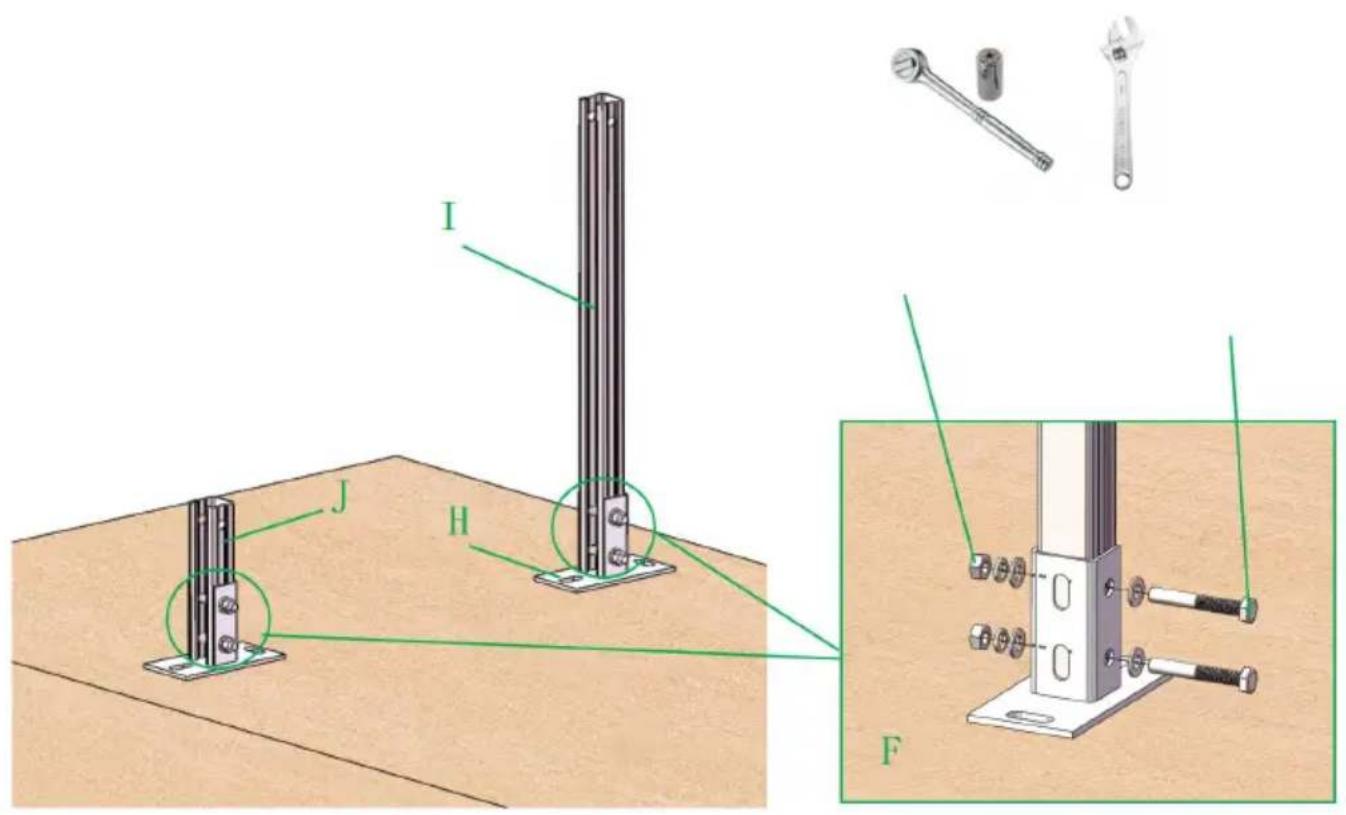

STEP 1 Install front column

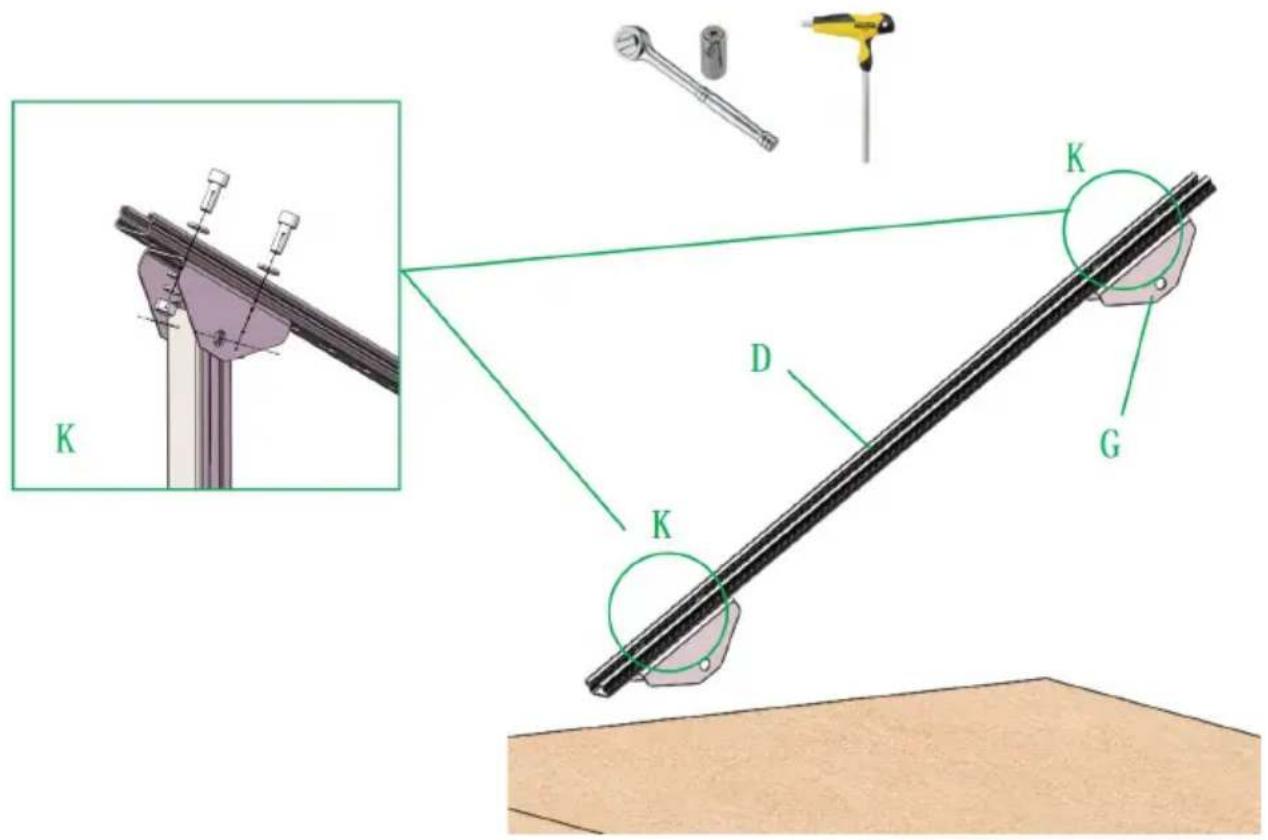

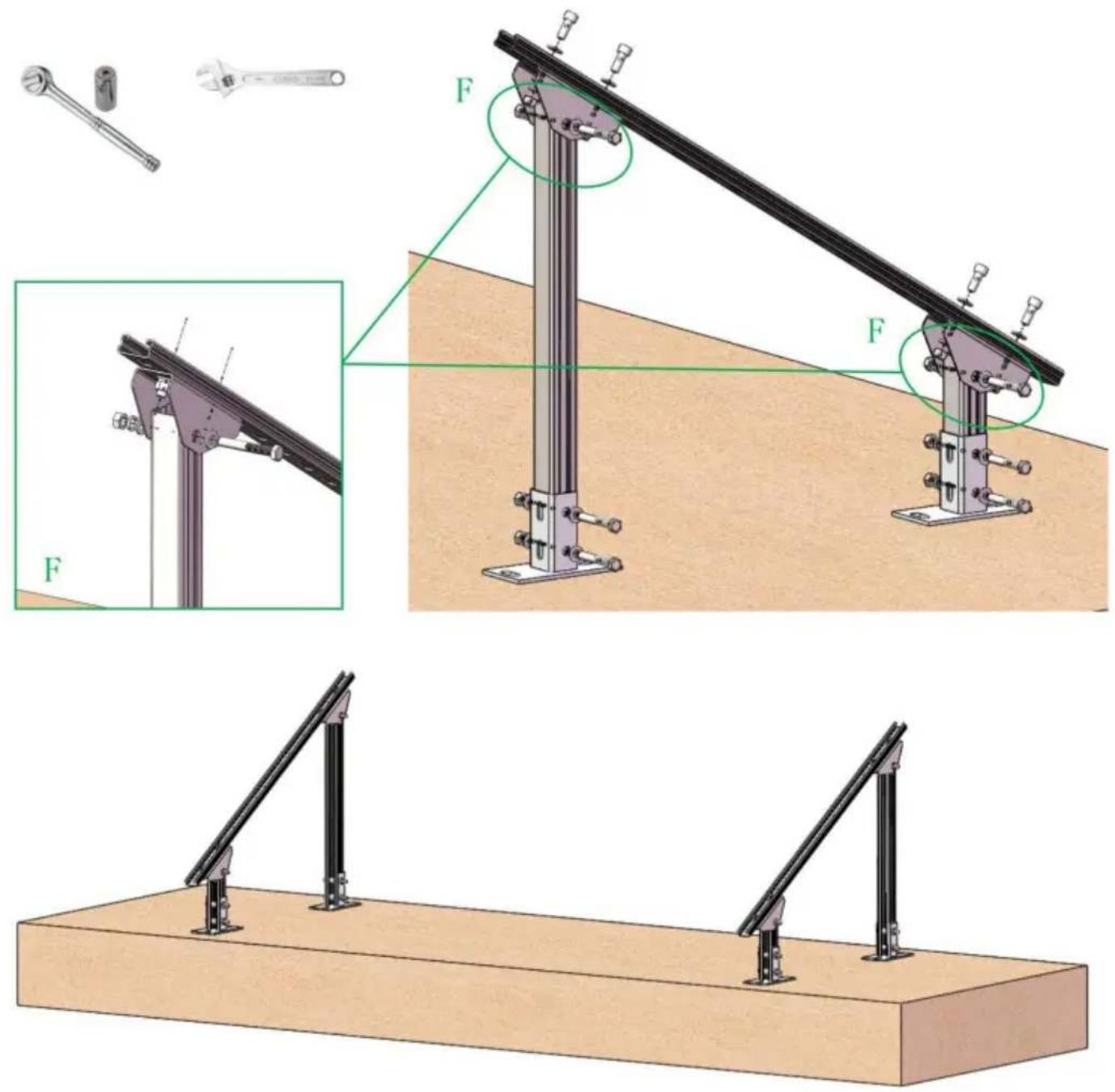

STEP 2 Inclined beam preinstalled

STEP 3 Side frame assembly

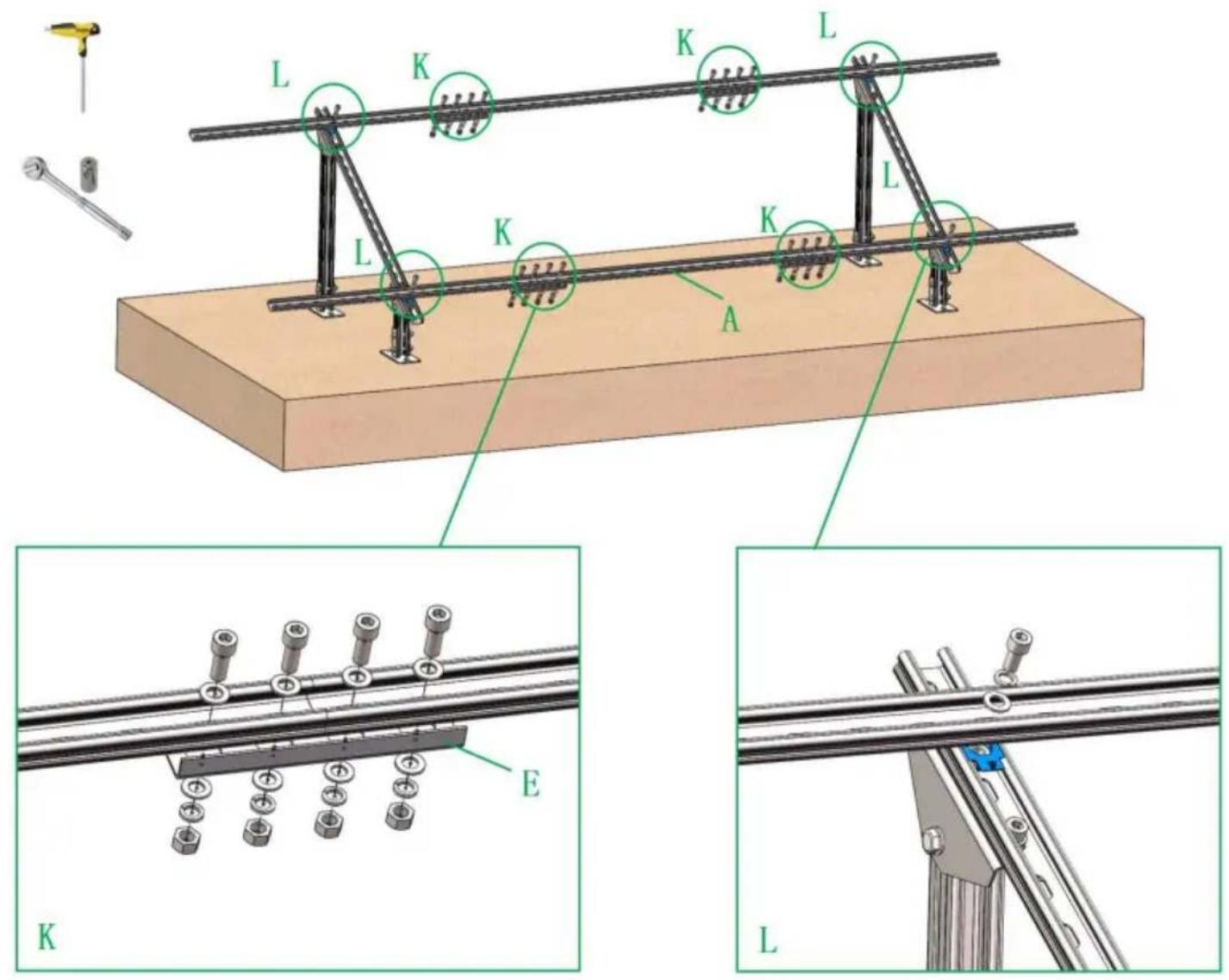

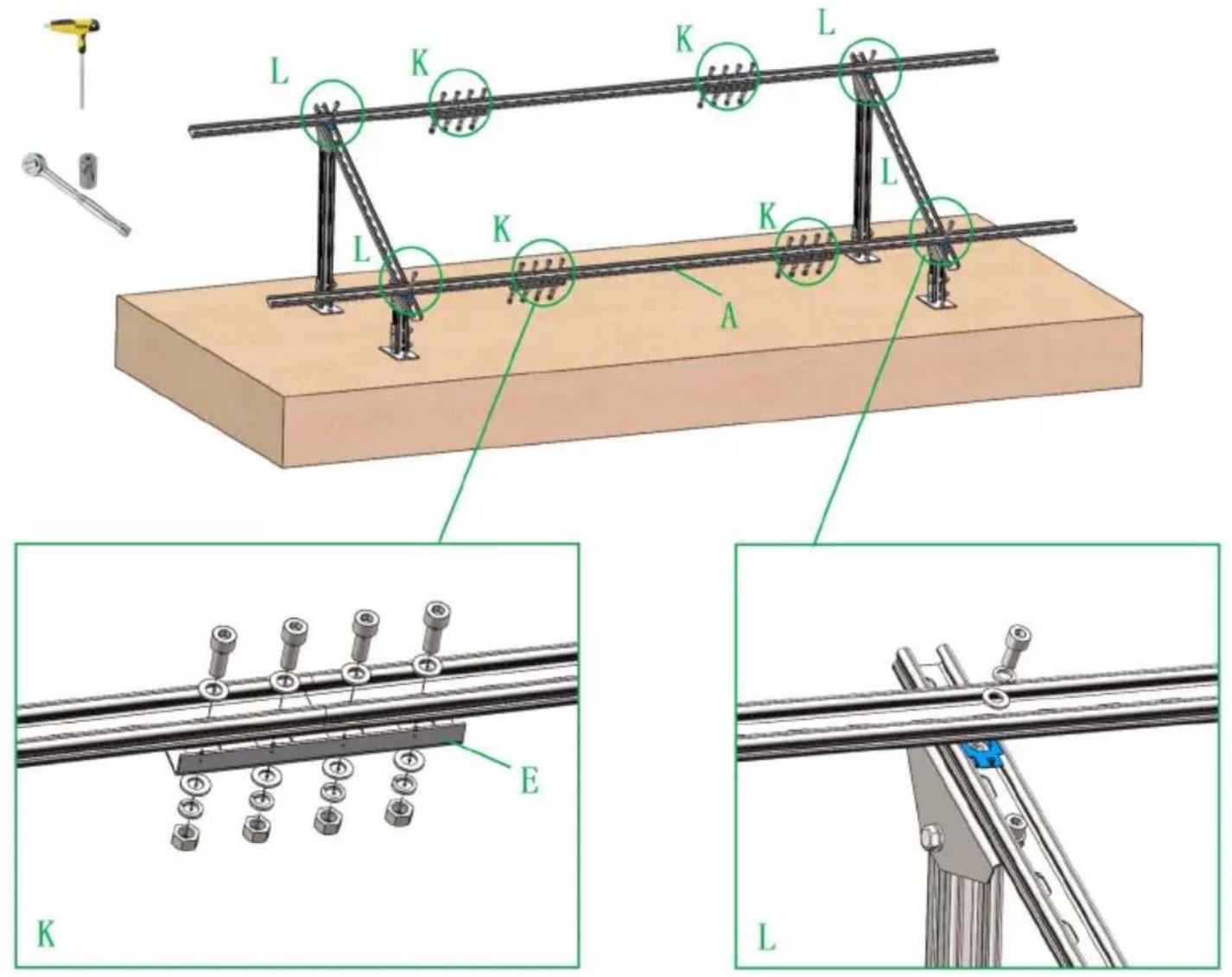

STEP 4 Track installation

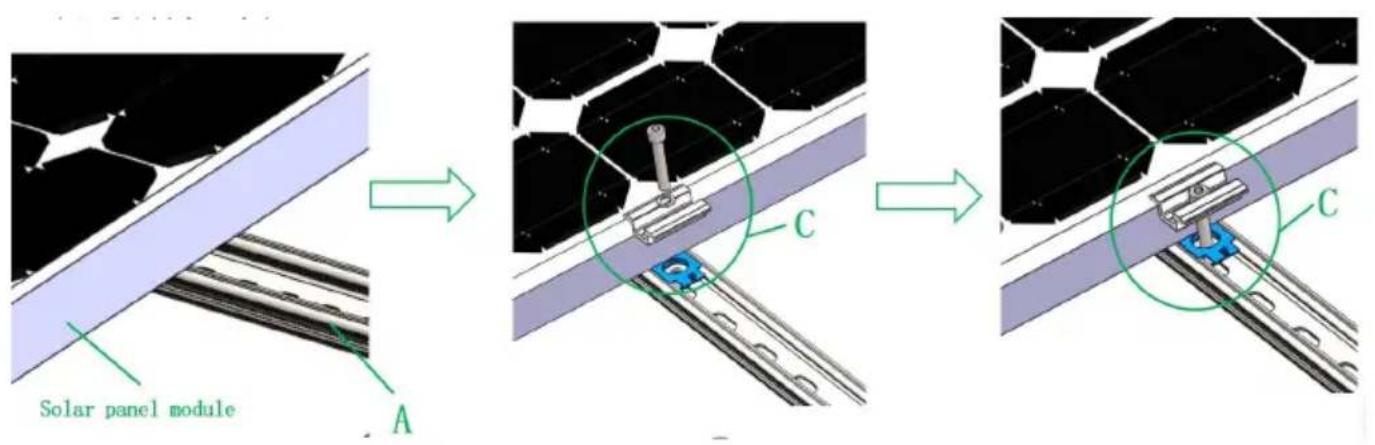

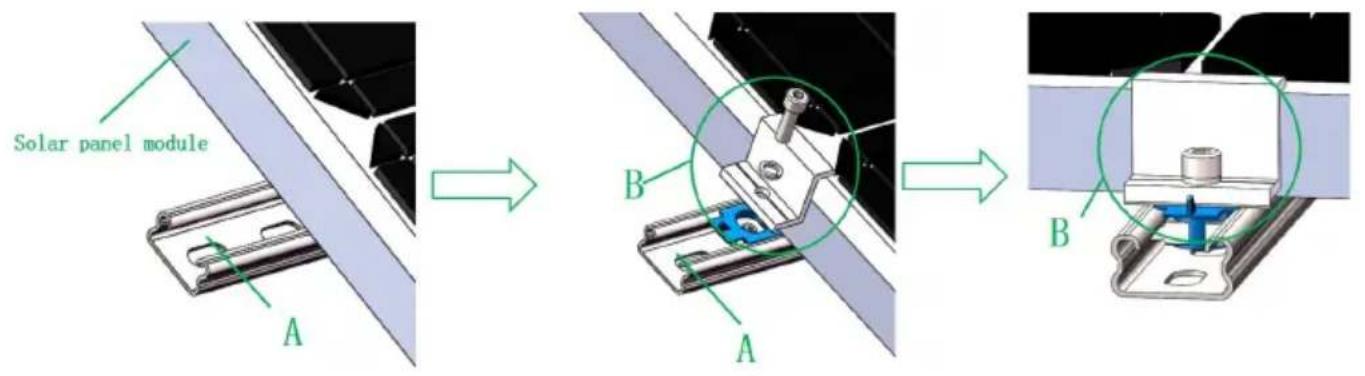

STEP5 Side and middle presses are installed

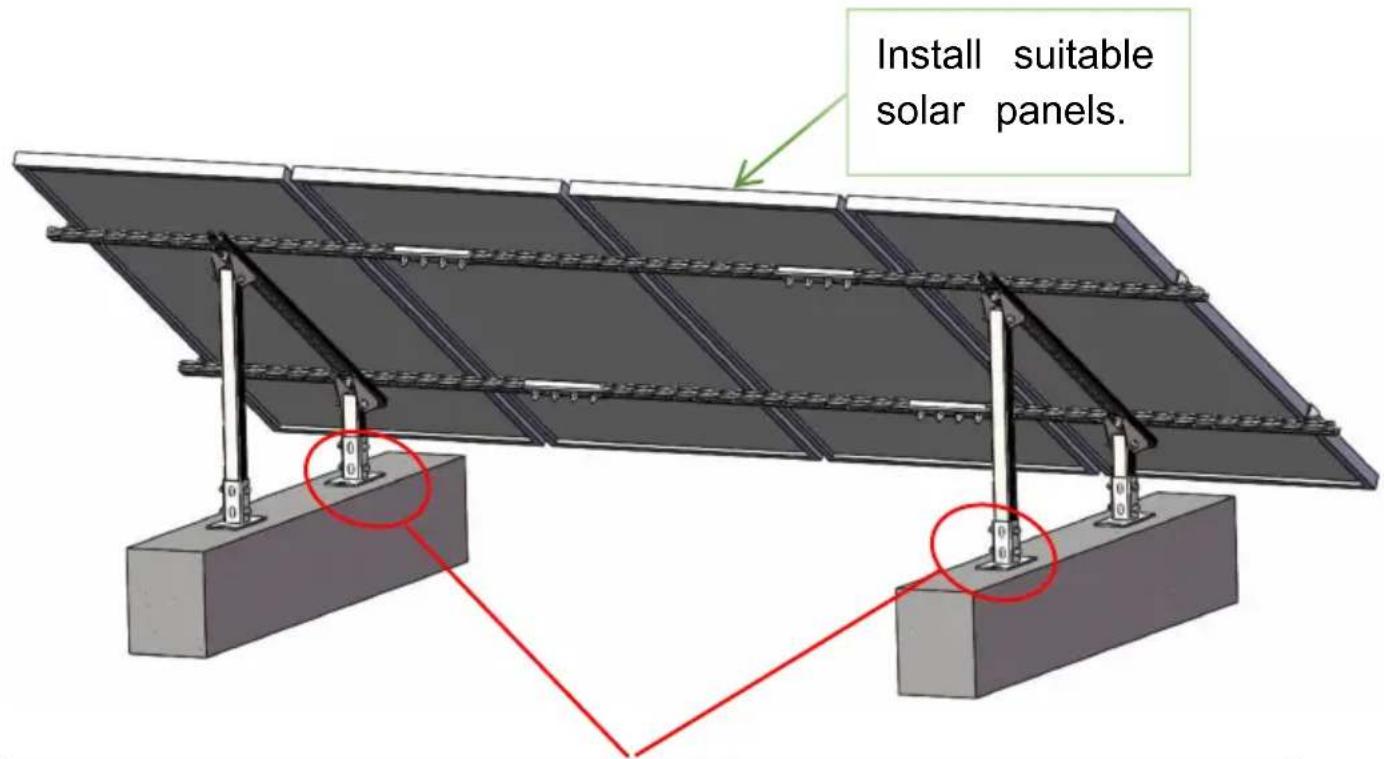

STEP 6

Installation complete

The pipeline is measured and drawn, concrete piers (wood be are placed at the planned location and secured to the concr (wood beams) using pre-installed frame expansion bolts (self-t nails). The effect after installation is shown in the figure abo

Note: Before installation, understand the longitude, latitude and region of the installation location, and adjust the required Angle and installa direction
