USER MANUAL QB-4in-8 Vevor

Affordable. Reliable. Home Improvement.

FULL ENCIRCLEMENT POST BASE

MODEL:QB-6in-4/QB-4in-4/QB-4in-8

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL:QB-6in-4/QB-4in-4/QB-4in-8

Black metal rectangular frame with mounting flange and four circular holes, no text or symbols visible

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Safety Instructions

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

ALL AROUND USE

The product has a partition at the bottom, which is completely separated from the ground. Long-term use does not cause wood to rot from raft. It can be used for decking handrails, pergolas, signs, mailboxes, & ga- fences,deck brackets. It would help your fences look sturdy and durable while avoiding breakages.

Suitable for fixing on wooden and concrete floors.

1. Do not allow children to climb on the unit. 2. Keep children and away during assembly.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assem
3. Do not try to assemble the product when feeling tired or when un influence of alcohol, drugs or medication.
4. Load bearing capacity and other product parameters are applied to properly and completely assembled product only.
5. Separate and count all parts and hardware.
6. Prepare the following tool: Philips Head Screwdriver.
7. If using power tools, please be careful to slow down and stop with needed.
8. Two people are required for assembly.
9. Follow the intended uses only.

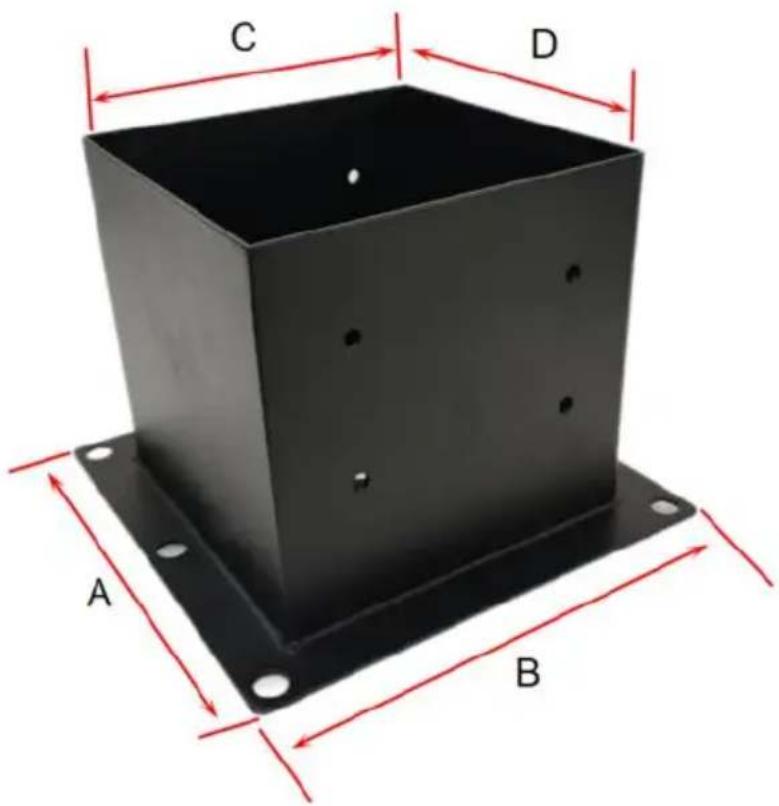

PARAMETER LIST

Product Model	QB-6in-4	QB-4in-4	QB-4in-8
Number of kit	4pcs	4pcs	8pcs
Base size (A*B)	7.05×7.44inch(179×189mm)	5.5×5.5inch(140×140mm)
Internal cavity size of square tube (C*D)	5.6×5.6inch(142×142mm)	3.6×3.6inch(92×92mm)

C D A B

PARTS LIST

Product Model	QB-6in-4	QB-4in-4	QB-4in-8
E:Post Base	4pcs	4pcs	8pcs
F:Self-tapping Screw	24pcs	24pcs	48pcs
G:Serrated Expansion Sleeve	24pcs	24pcs	48pcs
H:washer	24pcs	24pcs	48pcs
I:Wood screws	32pcs	32pcs	64pcs
J:wrench	1pc	1pc	1pc

Our products are constantly updated, the pictures may be different from shape of the actual items, please refer to the actual items.

Count the parts when receiving samples.

Wrench J is used to turn the screws

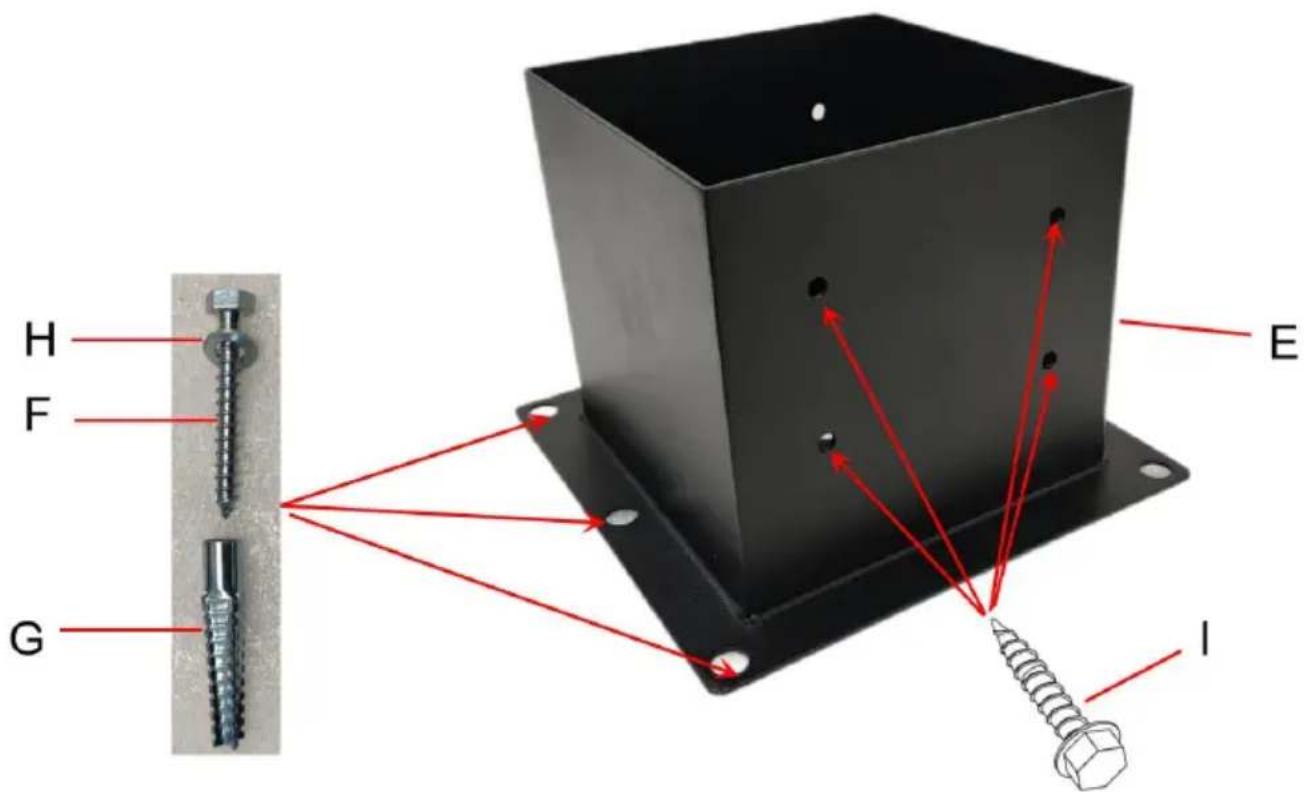

INSTALLATION GUIDE

1. Mark 6 points on the ground through 6 holes at the bottom surface base; Drilling in the marking position using a 29 / 64" Drill Bit; The dept the hole was 65 ~mm .
2. Install the 6 Serrated Expansion Sleeve G into the finished holes.
3. Put the washer H into the screw and secure the base in the expa screw with 6 screws F.
4. Install the wood to the base and hold the wood to the side with 8 I; We suggest that the cross section of the wooden square should be 0.1 inch smaller than Internal cavity size of square tube.

H F G E I

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
