Product Type	Mounting Bracket for Studs
Brand	Vevor
Model	QB-6in-4
Number of Kits	4 pieces
Base Dimensions (A × B)	179 × 189 mm (7.05 × 7.44 inches)
Inner Cavity Size (C × D)	142 × 142 mm (5.6 × 5.6 inches)
Main Material	Galvanized Steel
Intended Use	Fixation on wooden and concrete floors, for ramps, pergolas, fences, mailboxes
Kit Contents	4 bases, 24 self-tapping screws F, 24 serrated expansion sleeves G, 24 washers H, 32 wood screws I, 1 wrench J
Maintenance and Cleaning	Periodically check the tightness of screws; clean with a damp cloth
Safety	Do not let children climb; wear safety glasses and gloves during assembly; do not use under the influence of substances
Spare Parts and Repairability	Screws and sleeves are available separately; contact Vevor support
General Information	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - QB-6in-4 Vevor

What are the dimensions of compatible wooden posts?

For the QB-6in-4 model, the inner cavity measures 142 × 142 mm (5.6 × 5.6 inches). It is recommended that the cross section of the post be about 0.1 inch smaller than the cavity.

How to install the base on a concrete floor?

Mark 6 points through the holes of the base, drill with a 29/64 inch (11.5 mm) drill bit to a depth of 65 mm, insert the serrated expansion sleeves, place the washers and screw with the self-tapping screws.

How many screws are provided to fix the base?

The kit includes 24 self-tapping screws (F) to fix the base and 32 wood screws (I) to fix the post.

What tools are needed for assembly?

A crosshead screwdriver is recommended. If you use power tools, set them to low speed. A wrench (J) is provided to turn the screws.

What is the maximum weight supported by the base?

The load capacity is not specified in the manual. It depends on the floor and the post used. Make sure the assembly is complete and correct.

Can this product be installed outdoors?

Yes, the product has a bottom partition that insulates from the ground, preventing wood rot due to rain. Suitable for fences, pergolas, deck railings.

How many people are needed for assembly?

Two people are recommended for easy and safe assembly.

Is there a warranty on this product?

The product comes with an electronic warranty certificate. Visit www.vevor.com/support for more information.

Can I use this bracket to fix a mailbox?

Yes, the product is suitable for mailboxes, signs and other light structures. Make sure the weight does not exceed the unspecified capacity.

Are parts sold separately?

Yes, screws, sleeves and washers can be purchased separately. Contact Vevor customer service to order spare parts.

USER MANUAL QB-6in-4 Vevor

Affordable. Reliable. Home Improvement.

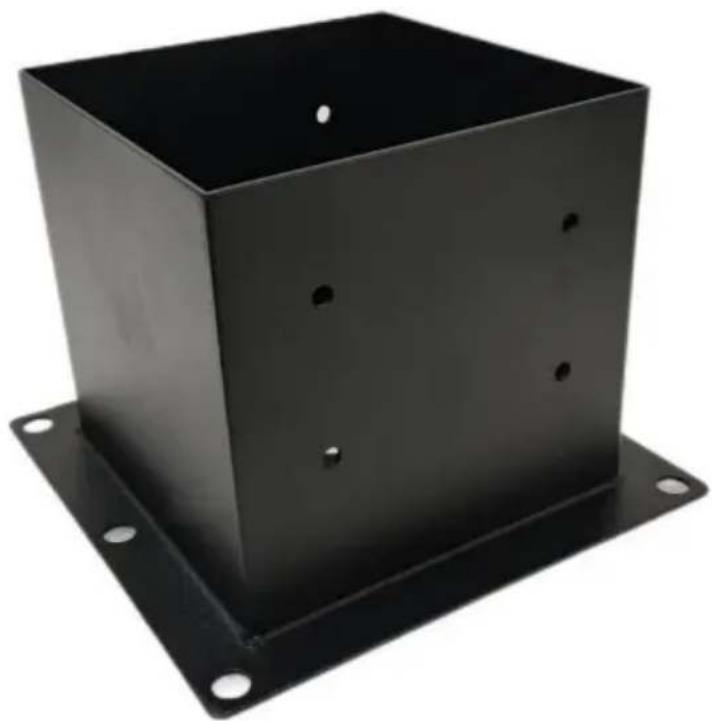

FULL ENCIRCLEMENT POST BASE

MODEL: QB-6in-4/QB-4in-4/QB-4in-8

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL:QB-6in-4/QB-4in-4/QB-4in-8

Black metal rectangular frame with mounting flange and four circular holes, no text or symbols visible

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Safety Instructions

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

ALL AROUND USE

The product has a partition at the bottom, which is completely separated from the ground. Long-term use does not cause wood to rot from ra it can be used for decking handrails, pergolas, signs, mailboxes, & ga fences,deck brackets.It would help your fences look sturdy and durable while avoiding breakages.

Suitable for fixing on wooden and concrete floors.

1. Do not allow children to climb on the unit. 2. Keep children and away during assembly.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.

2. Please wear safety goggles and work gloves properly during assem

3. Do not try to assemble the product when feeling tired or when ur influence of alcohol, drugs or medication.

4. Load bearing capacity and other product parameters are applied to properly and completely assembled product only.

5. Separate and count all parts and hardware.

6. Prepare the following tool: Philips Head Screwdriver.

7. If using power tools, please be careful to slow down and stop when needed.

8. Two people are required for assembly.

9. Follow the intended uses only.

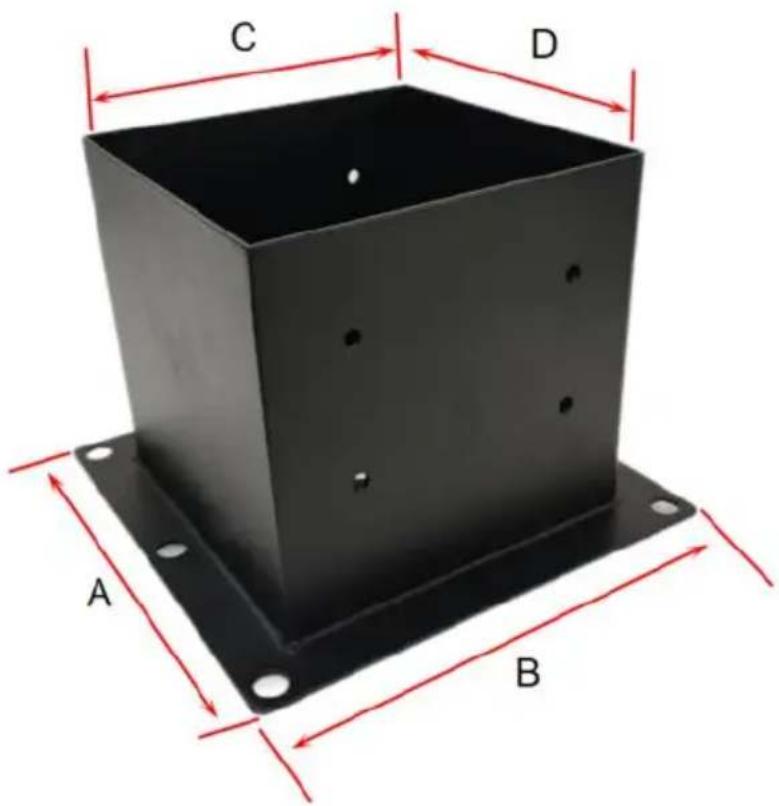

PARAMETER LIST

Product Model	QB-6in-4	QB-4in-4	QB-4in-8
Number of kit	4pcs	4pcs	8pcs
Base size (A*B)	7.05×7.44inch(179×189mm)	5.5×5.5inch(140×140mm)
Internal cavity size of square tube (C*D)	5.6×5.6inch(142×142mm)	3.6×3.6inch(92×92mm)

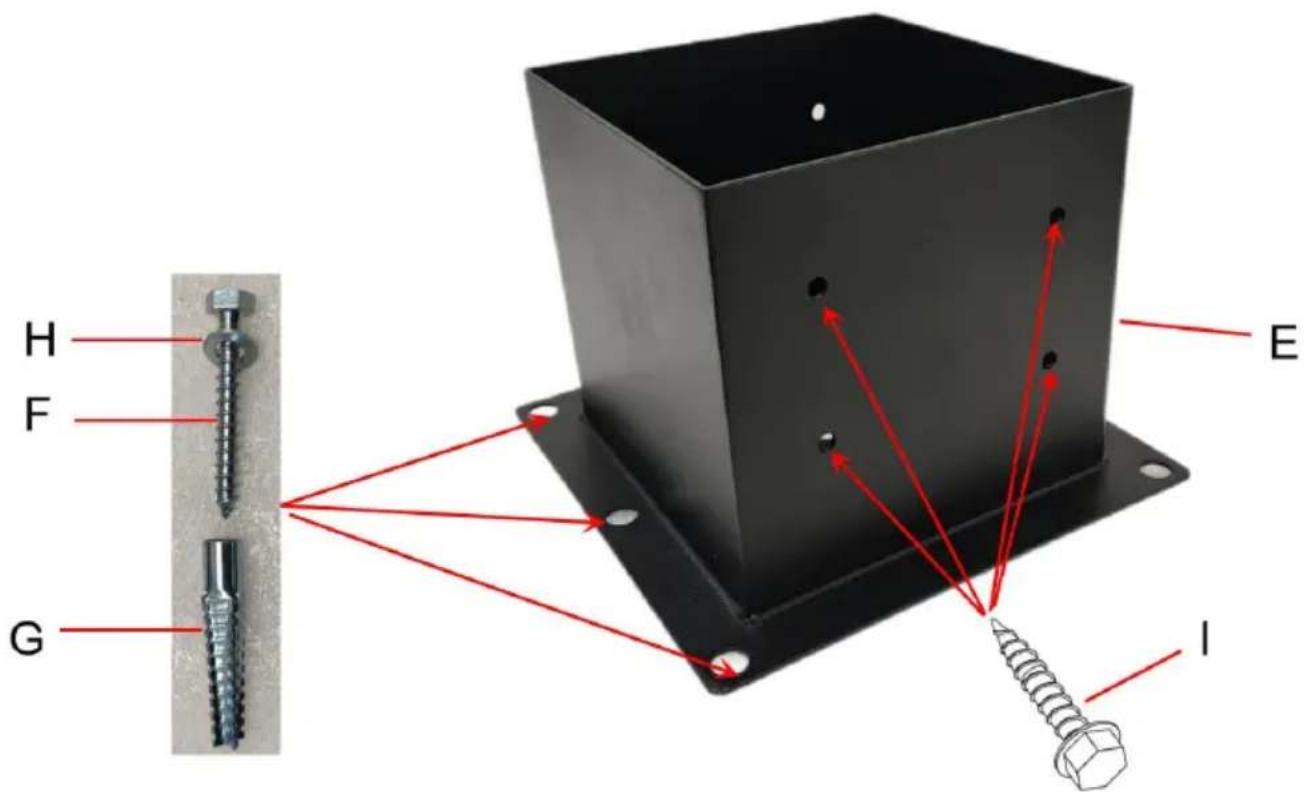

PARTS LIST

Product Model	QB-6in-4	QB-4in-4	QB-4in-8
E:Post Base	4pcs	4pcs	8pcs
F:Self-tapping Screw	24pcs	24pcs	48pcs
G:Serrated Expansion Sleeve	24pcs	24pcs	48pcs
H:washer	24pcs	24pcs	48pcs
I:Wood screws	32pcs	32pcs	64pcs
J:wrench	1pc	1pc	1pc

Our products are constantly updated, the pictures may be different from shape of the actual items, please refer to the actual items.

Count the parts when receiving samples.

Wrench J is used to turn the screws

INSTALLATION GUIDE

1. Mark 6 points on the ground through 6 holes at the bottom surface base; Drilling in the marking position using a 29 / 64" Drill Bit; The dept the hole was 65 ~mm .
2. Install the 6 Serrated Expansion Sleeve G into the finished holes.
3. Put the washer H into the screw and secure the base in the expa screw with 6 screws F.
4. Install the wood to the base and hold the wood to the side with 8 I; We suggest that the cross section of the wooden square should be 0.1 inch smaller than Internal cavity size of square tube.
