USER MANUAL PZ-1550 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BATTERY PRESSING TOOL

MODEL: PZ-1550

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BATTERY

RESSING TOOL

Model: PZ-1550

Exterior view of a black and orange manual crimp tool (no visible text or symbols)

Due to continuing improvements, actual product may differ slightly from the product described herein.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAVE THIS MANUAL

Keep this manual for the safety warnings and precautions, assembly, operating inspection, maintenance and cleaning procedures. Write the month and year of purchase. Keep this manual and the receipt in a safe and dry place for future reference.

IMPORTANT SAFETY INFORMATION

In this manual, on the labeling, and all other information provided with a product:

Warning icon	Meaning
	Please read the manual and security icon carefully using the product
	Caution
	Caution: Please operate carefully to protect any parts of the body such as your fingers
	If misusing or jaws are worn, the fracture smash out and cause dangerous
	Important information

GENERAL SAFETY RULES

TO WORK IN SAFE CONDITIONS WITH THIS TOOLING, IT IS IMPERATIVE READ CAREFULLY THE DIRECTIONS FOR USE AND TO FOLLOW THE INSTRUCTIONS IT CONTAINS. IF YOU DO NOT RESPECT THE INFORMATION WRITTEN IN THAT INSTRUCTION MANUAL THE WARRANTY WILL BE CANCELLED.

1. Work area safety

a. Keep work area clean and clear. Cluttered or dark areas invite accidents.
b. This tool is not insulated; please do not use it on live conductor.
c. Please do not use or store the tool under high temperature, or one surro filling with corrosive fluid. Pay attention to the sealing kits becoming aging.
d. Keep children and bystander away while operating the Battery powered too. Distractions will cause you to lose control.
e. Do not use or charging the tool around flammable, explosive environment

2. Electrical safety

a. Make sure the plug matches with the plug seat. Never try any changes of plug.
b. Do not put tool, battery and charger under a rainy or humid surroundings easy to trigger an electric shock accident if any water goes into the electric of the tool.
c. Do not use electric wire to carry, pull, or to draw out the plug and do the “-”and “+”, the damaged or twined wire may cause an electric shock acc d. If the charger was strongly crashed, or dropping down or any other dama happening, please do not try to repair it by yourself, send it back to the au service center as soon as possible. The damaged charger may cause an ele shock accident.

e. The best temperature for charging is between 10^ C- 40^ C. Make sure the air hole of the battery and charger are uncovered during charging.

f. Please cut off the power of the charger each time to reduce the hazard child or the person who not expert on the tool.

g. Do not wait until the battery runs over for recharging, the recharging will the battery does not working anymore. Please keep the battery out of the to avoid the power discharge.

h. Please do not burn the battery or make it being short-circuited, it may cause explosion.

i. Do not use the waste battery otherwise it will cause the electric shock.

j. Do not disassemble the battery and charger. If any problems please contact manufacture or agent.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operate the tool. Do not use the tool while you are tired or still under the influence alcohol or medication. A moment of inattention may result in series personal
b. Use safety equipment. Always use safety equipment such as mask, helmet safety cap, insulating shoes and etc to reduce the risk of personal injury.
c. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clc and gloves away from moving parts. Loose clothes jewelry or long hair can caught in moving parts.
d. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the tool operation. damaged, have the tool repaired before use. Many accidents are caused by maintained power tools.
e. Please use the tool properly, the tool with correct power will do the job and safer at the rate for which it was designed.
f. Do not put your fingers into the head of the tool during operating. Your tool could be pinched very severely.

4. Service

Have your Battery Powered Pressing Tool serviced by a qualified service technician using only identical replacement parts. This will ensure that the saf the Battery Powered Pressing Tool Kit is maintained.

SPECIFIC SAFETY RULES

1) Maintain labels and nameplates on the tool which carry important safety information. If unreadable or missing, contact the agent to replace.
2) This product is not a toy, keep it out of reach of children.
3) Do not put your fingers into the head of the tool during operating. Your could be pinched very severely.
4) Make sure the head was locked firmly during operation.
5) Do not knock any parts of the tool, otherwise it will cause injury.
6) Do not operate at will, it will damage the MCU and electric system
7) The design of the limit screw on the head is for preventing the head from dropping or popping.

8) Make sure the head was locked firmly during operation.
9) Do not use this tool for continuous use. After 30 to 40 cycles, allow the cool for 15 minutes.
10) Do not secure this tool in a vise. This tool is designed for hand-held o
11) The built-in safety valve goes through strict pressure test before marketing, please do not adjust the pressure by unprofessional person. If the pressure is not enough please return the tools back to the service center. The tool can be reused after checking and testing by trained person.
12) The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by operator.

UNDERSTAND YOUR TOOL

PZ-1550 is a tool for pressing Stainless steel pipe, Copper pipe, XPAP, PEX with fittings. It is powered by Li-ion, actuated by motor and controlled by MC With a high pressure hydraulic system, it is a perfect tool to be used in plug and heating installations.

1. Specification

Rated pressure:	32kN
Stroke	40mm
Pressing range:	Thin-wall stainless steel pipe, copper pip12-54mmPex pipe.XPAP:12-108mm
Oil capacity:	115ml
Hydraulic oil:	Shell Tellus S2V HV15
Ambient temperature	-10~40°C
Voltage of battery:	DC 18V,4.0Ah
Charging voltage:	AC 100V~240V ;50~60Hz
Charging time:	Approx.60mins
Accessories:
Battery:	2 pcs
Charger:	1 pcs
Sealing ring of cylinder:	D35*3.5/D18*1.5/D8*0.8/D8.6/1.5/35*29*1.3
Fixture	V15/V22/V28
Shoulder straps	1pcs

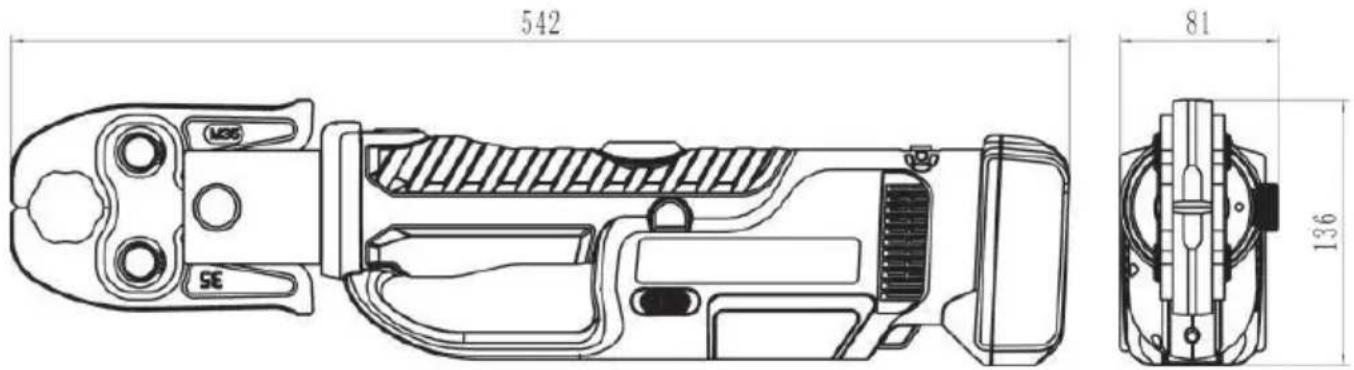

542 81 136

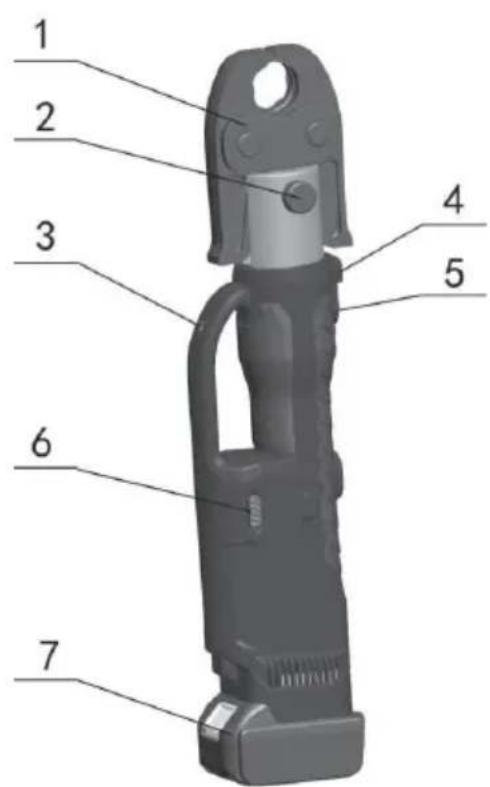

2. Description of components:

Parts No.	Description	Function
1	Jaw	For pressing,interchangeable jaw
2	Fixed pin	For fixing jaw
3	LED	For lighting
4	LED indicator	For indicating the operating condition and battery discharging situation.
5	Trigger	For starting operation
6	Retract button	For manual retracting the piston in case of an incorrect operation.
7	Battery	For supplying power,rechargeable Li-ion(18V)

Labeled diagram of a mechanical device with numbered parts for identification

Function description

MCU – automatically detect the pressure during operation and provide Security protect, shut off the motor and reset automatically after operation.

Auto reset- Release the pressure automatically, retract the piston to the starting position when reached the max output.

One key control- press the trigger to start working, loosing the trigger means stop forcing pressure, piston stop moving.

The unit is equipped with a double piston pump which is characterized by a rapid approach of the die towards the connector and a slow crimping motion.

Suspend—finish working or withdraw the hand from the trigger or any accident happened, the device inside of the tool can stop power supply.

One significant sound will be heard and a red display flashes if any error occurs or lower power being.( Ref. table 1)

Per time pressing on the trigger, the LED will lighting for 20 s.

The overall structure is compact with human body human engineering design. Antiskid rubber in the handheld part and the optimization designed emphasis make the operation more easy

High-performances Li-ion battery in strong power supply, No discharge memory effect, Ultra lower power consumption standby design keep the tool 6 months storage, meanwhile over discharge device prolong the life span of the battery.

Micro computer control system with the feature of self-pressure detecting, double protection during operation, counting and realize the exchange between computer with data by the converter.

TABLE 1 Signal& Implication

Series No		Status	Instruction	What it means
1		Flash twice	Switch on( plug in)	Self-checking, tool in normal
2		Light normally on	Startup status	In working order
3		Continuously flashing	Cannot force& relief pressure	1Pull out plug and plug in to restart tool 2Need maintain
4		Flash 3 times X3	Reminder of maintenance after 30000 times pressing	Contact manufacturer or dealer to correct& maintain
5		Light normally on	Compulsory maintenance and unlock	Same as series 4
6		30s delay	lighting	In working order

Carefully check shell of the charger and battery and the tool. Also the of the tool.

Connection of the battery etc. to assure safety.

1. Charging

Push battery into charger and connect the plug with the plug seat. Make sun room temperature is between 10^ - 40^ . The charging time is around 40mins.

Please see the illustration below.

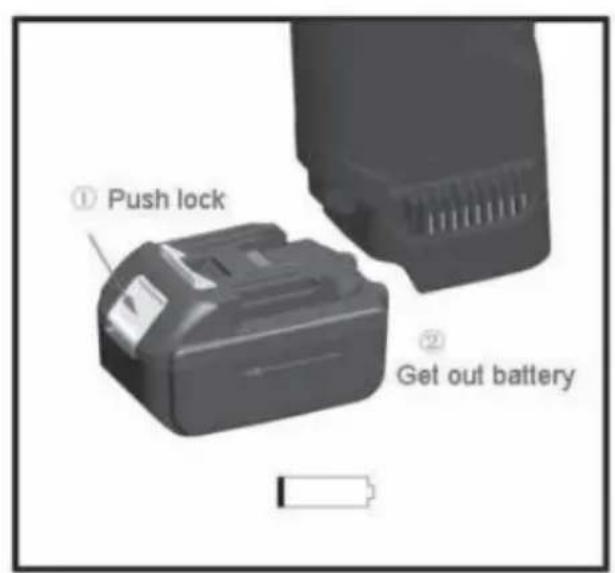

① Push lock ② Get out battery

1.

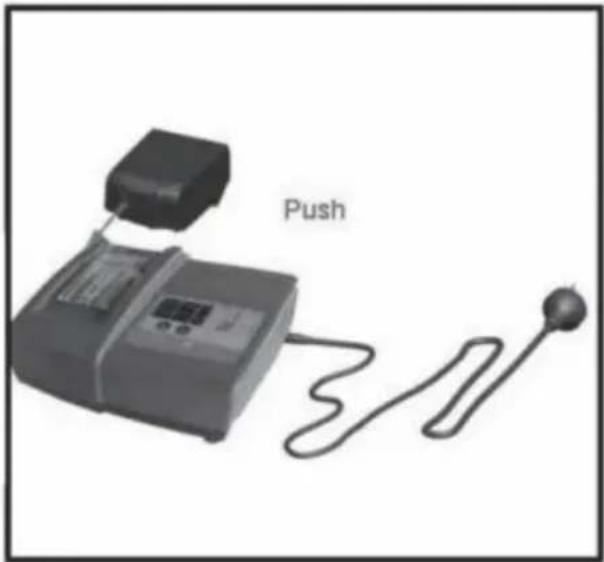

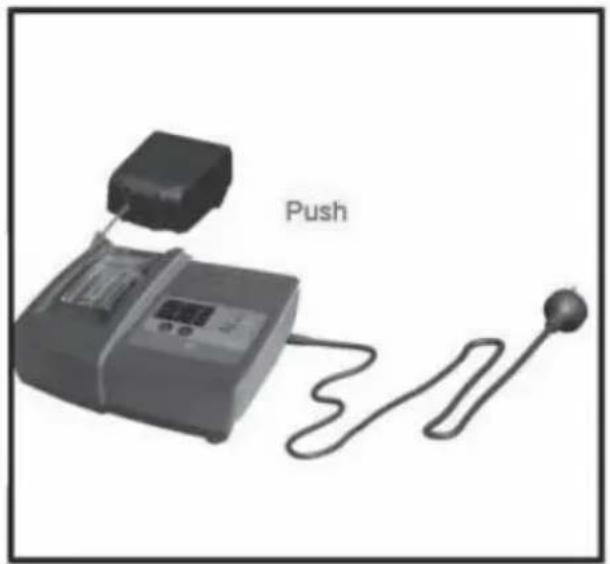

Push

2.

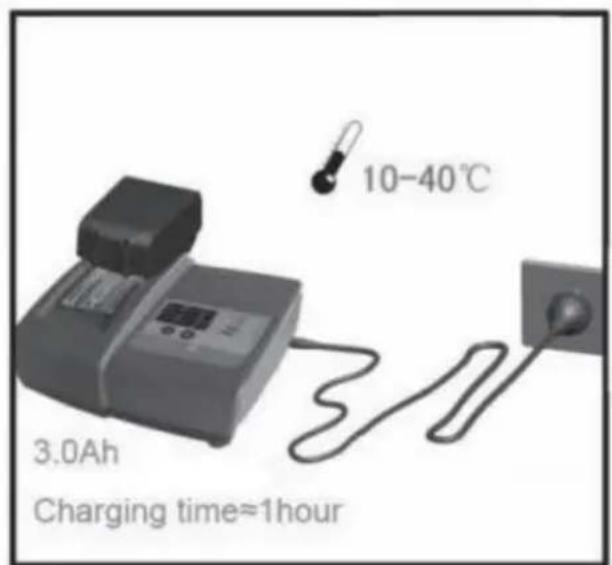

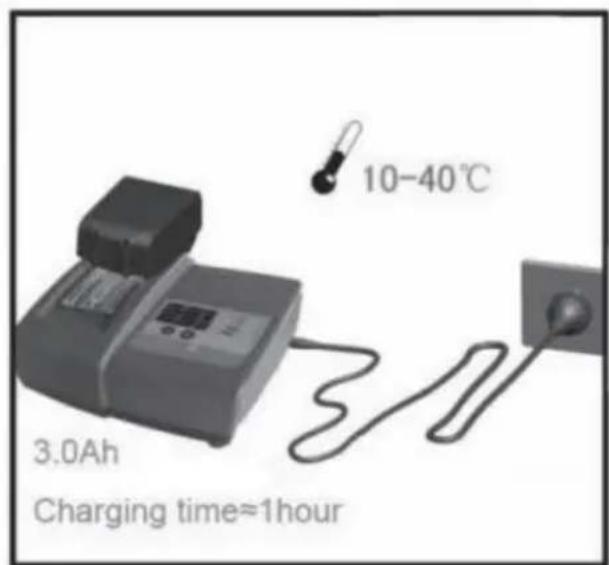

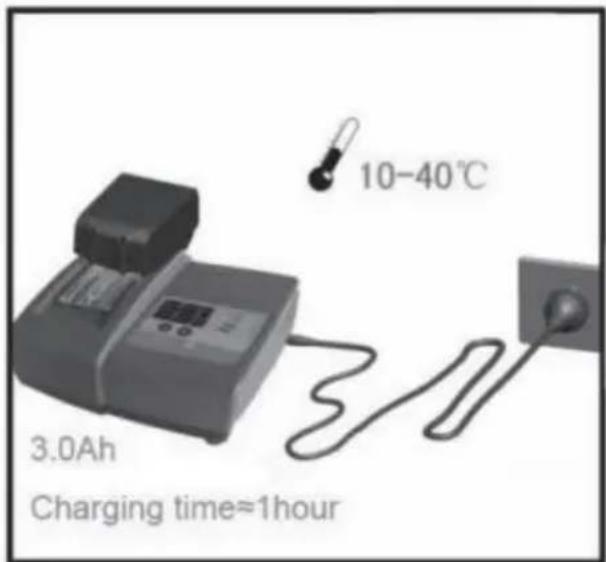

10-40°C 3.0Ah Charging time=1hour

3.

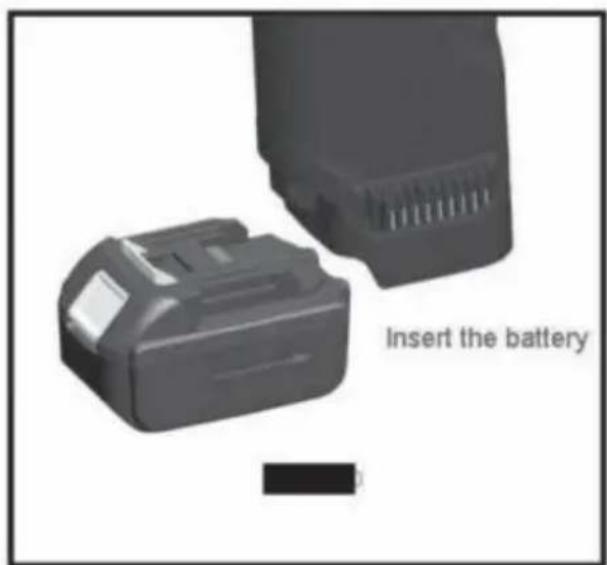

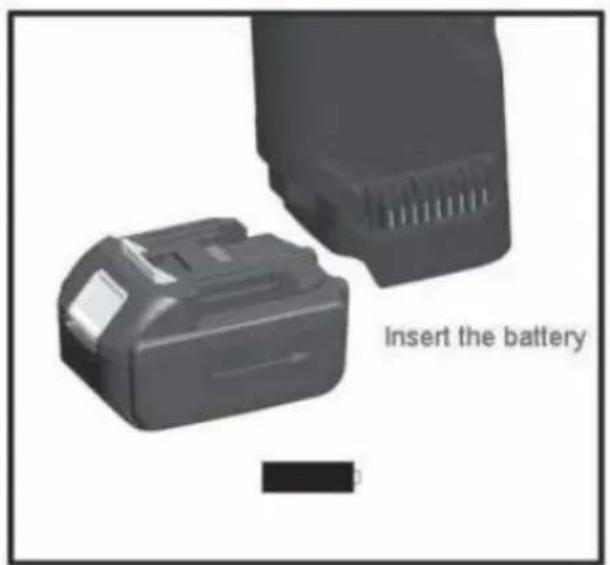

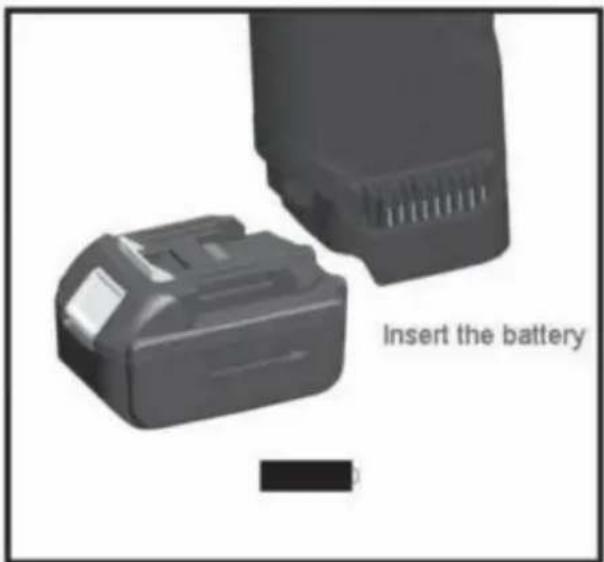

Insert the battery

4.

The detail of the charging information, please refer the manual (MANUAL FOI CHARGER)

The battery can be used for hundreds of times, when the life span reduced obviously, change to a new battery please.

Please charging the battery in time to avoid it to be used up absolutely, other will become useless forever. If the battery not be used for a long time, it will discharge automatically, so take out the battery from the tool and make sure charge it one time per/each quarter.

1. Usage of the tool

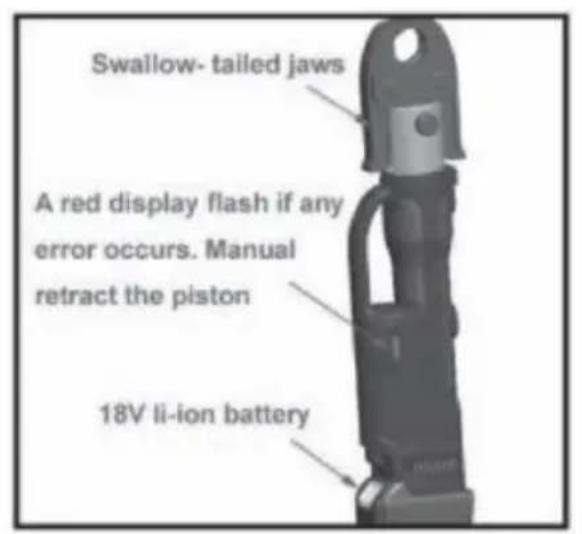

Swallow- tailed jaws A red display flash if any error occurs. Manual retract the piston 18V li-ion battery

1.

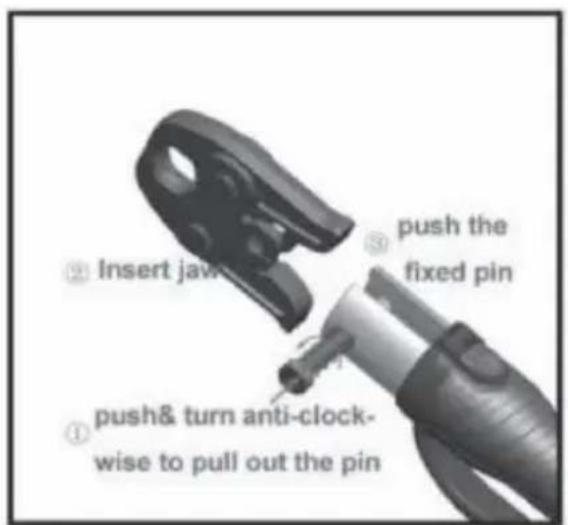

① Insert jaw ② push & turn anti-clock- wise to pull out the pin ③ push the fixed pin

2.

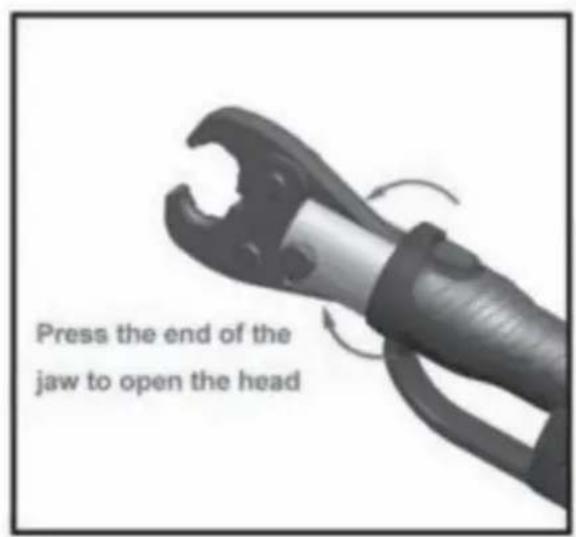

Press the end of the jaw to open the head

3.

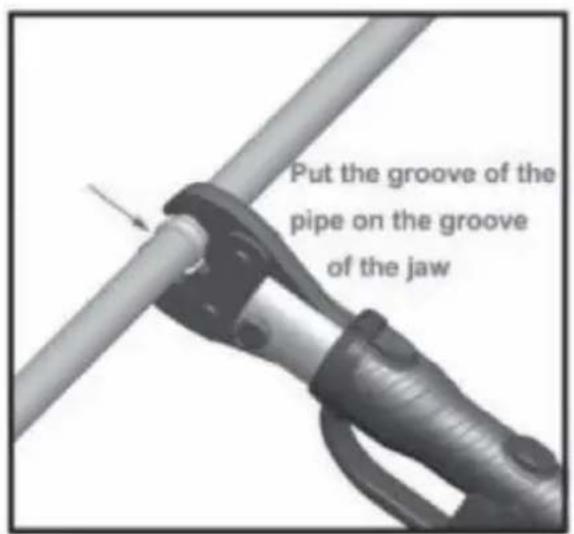

Put the groove of the pipe on the groove of the jaw

4.

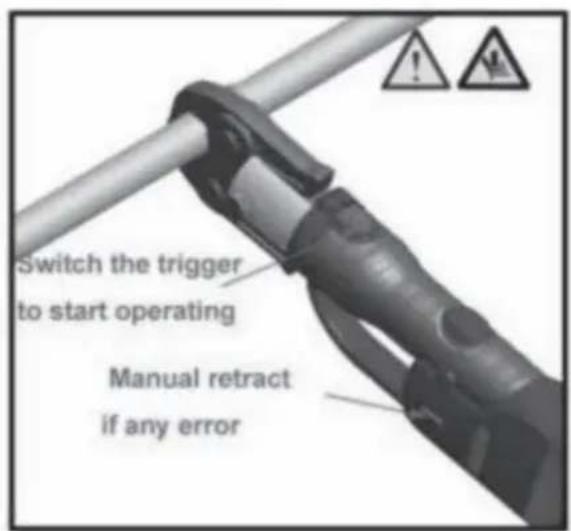

Switch the trigger to start operating Manual retract if any error

5.

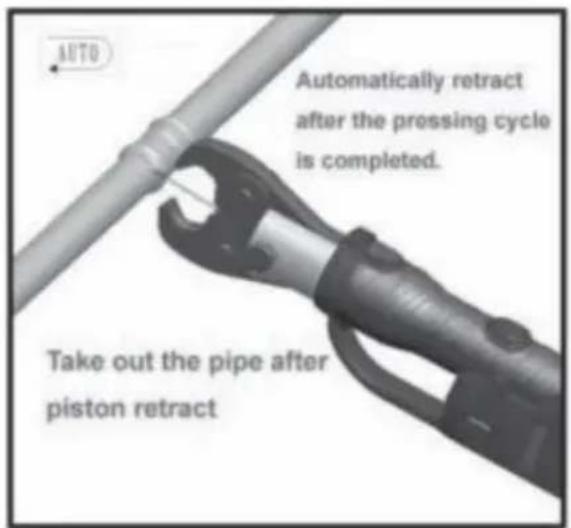

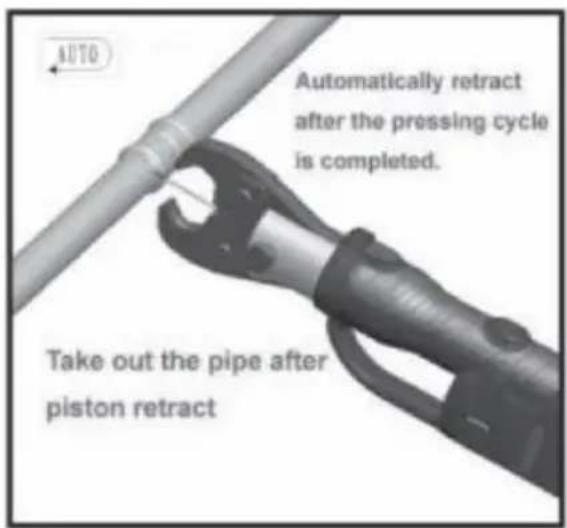

AUTO Automatically retract after the pressing cycle is completed. Take out the pipe after piston retract

6.

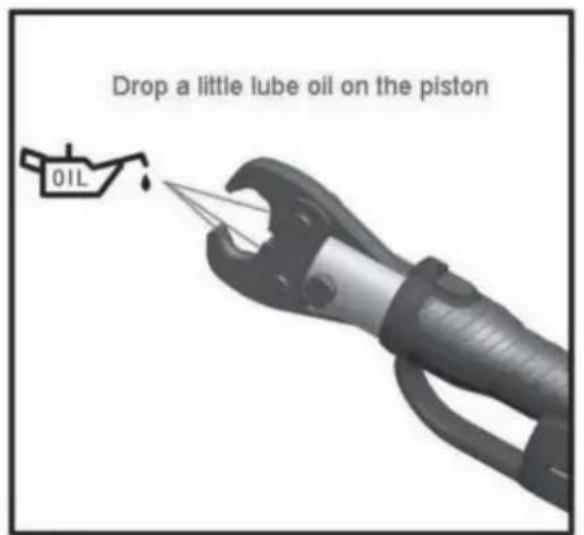

Drop a little lube oil on the piston OIL

7.

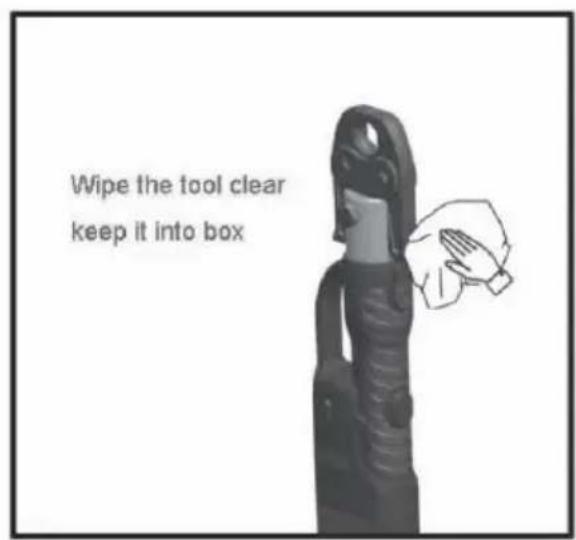

Wipe the tool clear keep it into box

8.

2. Special suggestion:

The tool is controlled by one key, Press the trigger to start working; Piston back automatically after finish pressing. Losing the trigger means stop forcing pressure. Press retract button, piston fully comes back.

Warning:

1) This tool is a high-pressure, high-strength, heavy-duty appliance. Please follow the instructions and precautions strictly to operate carefully!
2) Before operating, you must check the tool for any damage, aging, missing parts, stuck components, and any other unfavorable factors that threaten safety. If you find any problems, please stop using it immediately until the problem is solved.
3) After pressing the jaw arm and holding the pipe, please keep your hands fingers away from the jaw, press the start button and hold it until the pin reaches the set value and reset automatically. Release the start button halfway to pause, press the release button to return the piston.
4) Do not let the tool or jaws hang directly on the pipe fittings, to avoid unnecessary injury or even fatal accidents caused by the tools falling accidentally.
5) Before start the tool, the ram pin must be fully inserted into the ram, other it will easily cause damage to the ram and even personal injury.
6) Remove the grease from the non-lubricated parts of the tool, especially th

hand-held parts, to avoid the tool slipping during use.

7) Do not disassemble and assemble tools at will, otherwise tool damage or personal injury may occur.
8) Do not put your fingers and any part of the human body into the moving of the jaws during use, and avoid pointing the tool head at yourself or
9) The pressure of the tool should be checked and calibrated regularly. The pressure check and calibration need to be carried out under the special pressure detection device. Do not adjust it without permission, otherwise that tool may be damaged or even personal injury may occur.
10) After 30 minutes of continuous use, the tool should be cool down before. Otherwise the temperature will over high and resulting in early seal failure oil leakage.

3. Pressing jaws

PRESSING JAWS:

TH Type
	Pressing jaw (√)Universal Jaw+ Interchangeable die (√)	TH 16TH 20TH 26TH-32	800010800020800030800040
U Type
	Pressing jaw (√)Universal Jaw+ Interchangeable die (√)	U 16U 20U 25U 32	800050800060800070800080
H Type
	Pressing jaw (√)Universal Jaw+ Interchangeable die (√)	H 16H 20H 25H 32	800090800100800110800120
B Type
	Pressing jaw (√)Universal Jaw+ Interchangeable die (√)	B 16B 20B 26B 32	800130800140800150800160
M Type
	Pressing jaw (√)Universal Jaw+ Interchangeable die (√)	M 12M 15M 18M 22M 28M 35M 42M 54	800170800180800190800200800210800220800230800240
V Type
	Pressing jaw (√)Universal Jaw+ Interchangeable die (√)	V 15	800250
		V 18	800260
		V 22	800270
		V 28	800280
		V 35	800290
		V 42	800300
		V 54	800310
VP Type
	Pressing jaw (√)Universal Jaw+ Interchangeable die (√)	VP 16	800320
		VP 20	800330
		VP 25	800340
		VP 32	800350
G Type
	Pressing jaw (√)Universal Jaw+ Interchangeable die (√)	G 16	800360
		G 20	800370
		G 26	800380
		G 32	800390
RF Type
	Pressing jaw (√)Universal Jaw+ Interchangeable die (√)	RF 12	800400
		RF 16	800410
		RF 20	800420
		RF 25	800430
SV Type
	Pressing jaw (√)Universal Jaw+ Interchangeable die (√)	SV 15	800440
		SV 20	800450
		SV25	800460
		SV32
		SV40	800470
		SV50	800480

4. Standard Jaws Types:

3D rendered elephant-shaped object with no visible text or symbols

Hexagon Type

3D rendered mechanical part with circular and rectangular features (no text or symbols)

Plum Type

3D rendered mechanical component with no visible text or symbols

Ring Type

3D rendered mechanical component with a cylindrical part attached, no visible text or symbols

Economic Type

Note: When you purchase this tool you can choose any type of the jaws. P supply us the relative fitting standard and sizes. Different material and design fittings pressing effect are different.

Universal Jaw is split. The jaw is with interchangeable die. It can be exchan according to the size you want.

Please refer the illustration For Economie Type below:

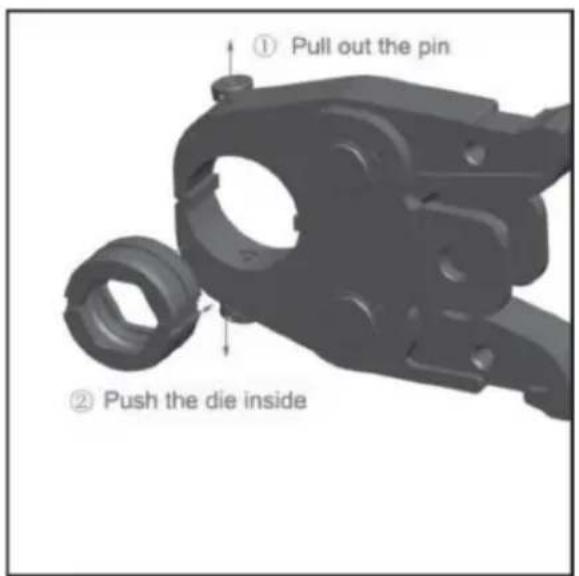

① Pull out the pin ② Push the die inside

Please refer the illustration For Ring Type below:

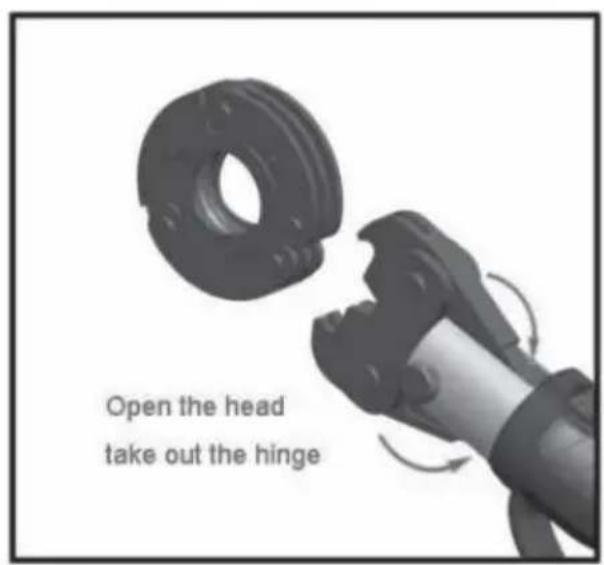

Open the head take out the hinge

1.

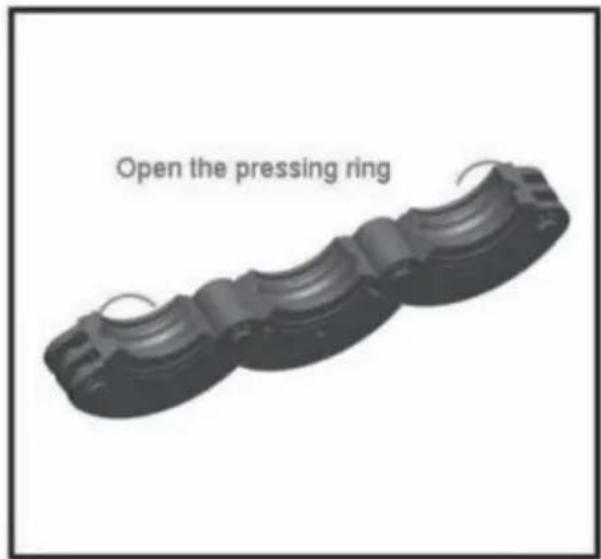

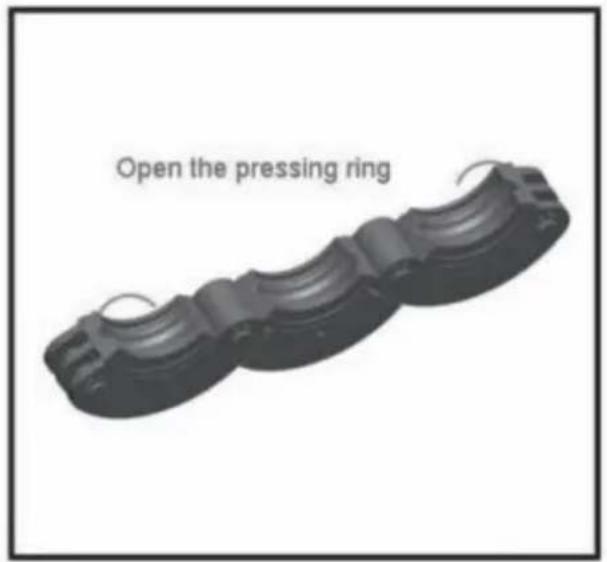

Open the pressing ring

2.

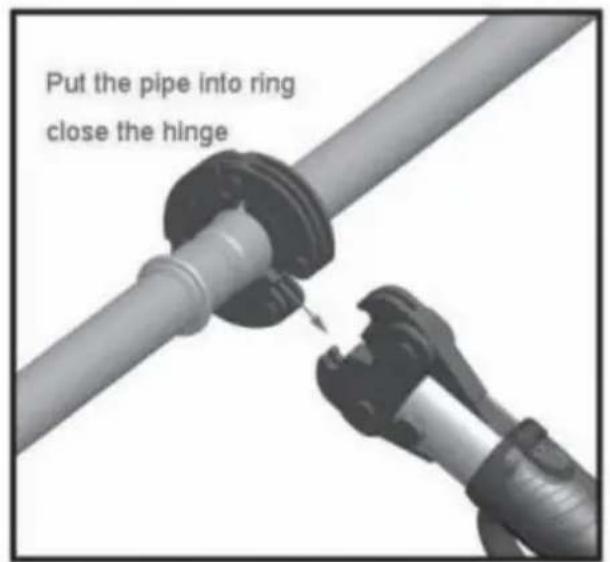

Put the pipe into ring close the hinge

3.

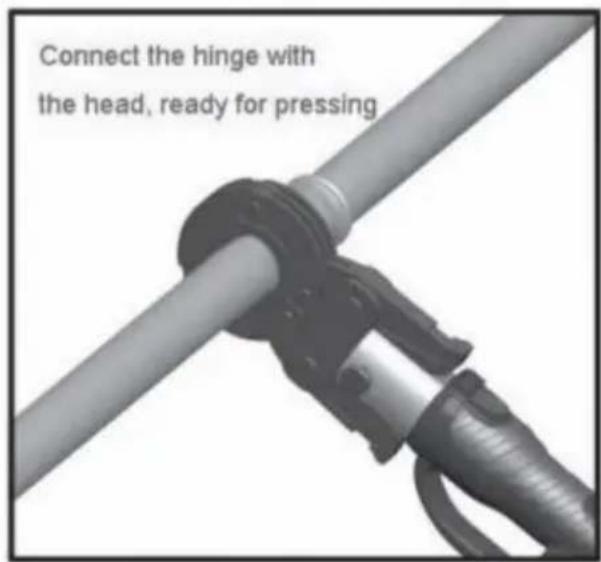

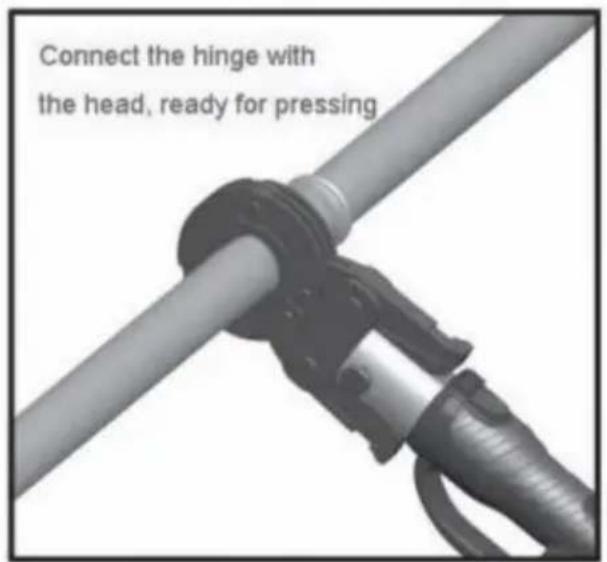

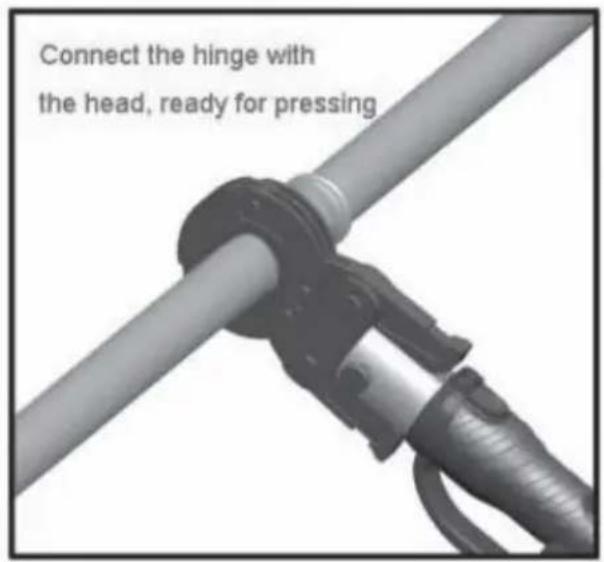

Connect the hinge with the head, ready for pressing

4.

MAINTENANCE AND SERVICING

Don't disassemble the tool at will, All the damage caused by disassembl without authorization is not within the scope of warranty. Manufacturer w provide a pay-needed maintenance service (Only charge spare parts cost)

1. Keep the tool and spare parts dry. All kinds of liquid corrosion may happen the shell.metal surface and electrical circuit. If the tool is wet, PLS get out 1 battery. Reload the battery after the tool is dry.
2. Don't put the tool in overheated and overcooled place. Low and high temperature will make the plastic parts out of shape, shorten the life of elec

components and damage battery.

1. Don't clean the tool with strong chemical cleaning agent.
2. In order to prolong the life of the tool please change the oil per year. M the oil filtered by 120 mesh net or over 30um strainer. Meantime avoid the into the oil cup.
3. If the tool unused for long time, please make sure the piston stay on its position, clear up the tool and paint the rustproof oil both to the tool piston accessories. Take out the battery and put them into box and store the tool handle box.
4. After a long time using, the sealing kits will be damaged, if there is leak please contact with the manufacturer or the distributor to change the sealing by expert serviceman.

TROUBLESHOOTING

FAULT	ANALYSIS	SOLUTION
A. Tool is inoperative	1. Dirty,contaminants.etc in ram area of tool.2. The battery run of 3. Tool components worn or damaged.	1. Clean hydraulic system2. Charging the battery3. Return tool to manufacture or distributor
B. No power during operation or not up to the rated power power	1. No oil2. Dirty,contaminants inside of oil sac.3. Inner leakage	1. Fill oil2. Return tool to manufacture or distributor3. Return tool to manufacture or distributor
C. Crimp not tight	1. Not up to rated power2. Error select on the pressing jaws	1. Refer the B2. Return tool to manufacture or distributor
D. Create many scrap	1.Error select crimping die on the	1. Change reasonable crimping die
E. Leakage on the pressing head of plunger	1. Worn on the sealing kits	1. Return tool to manufacture or distributor
F. Running of the mot but no power output	1. No oil in the oil2. Air into the hydraulic system3. Cold oil	1. Fill or change the oil2. Return tool to manufacture or distributor3. Use the tool under -10°C-40°C

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt a

Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a TGV excavator tool with orange and black casing (no visible text or symbols)

Labeled diagram of a handheld device with seven numbered parts for identification

MCU – automatically detect the pressure during operation and provide Security protect, shut off the motor and reset automatically after operation.

Auto reset- Release the pressure automatically, retract the piston to the starting position when reached the max output.

One key control- press the trigger to start working, loosing the trigger means stop forcing pressure, piston stop moving.

The unit is equipped with a double piston pump which is characterized by a rapid approach of the die towards the connector and a slow crimping motion.

Suspend—finish working or withdraw the hand from the trigger or any accident happened, the device inside of the tool can stop power supply.

One significant sound will be heard and a red display flashes if any error occurs or lower power being.( Ref. table 1)

Per time pressing on the trigger, the LED will lighting for 20 s.

The overall structure is compact with human body human engineering design. Antiskid rubber in the handheld part and the optimization designed emphasis make the operation more easy

High-performances Li-ion battery in strong power supply, No discharge memory effect, Ultra lower power consumption standby design keep the tool 6 months storage, meanwhile over discharge device prolong the life span of the battery.

Micro computer control system with the feature of self-pressure detecting, double protection during operation, counting and realize the exchange between computer with data by the converter.

TABLE 1 Signal& Implication

Series No		Status	Instruction	What it means
1		Flash twice	Switch on( plug in)	Self-checking, tool in normal
2		Light normally on	Startup status	In working order
3		Continuously flashing	Cannot force& relief pressure	1Pull out plug and plug in to restart tool 2Need maintain
4		Flash 3 times X3	Reminder of maintenance after 30000 times pressing	Contact manufacturer or dealer to correct& maintain
5		Light normally on	Compulsory maintenance and unlock	Same as series 4
6		30s delay	lighting	In working order

MODE D'EMPLOI

① Push lock ② Get out battery

1.

Push

2.

10-40°C 3.0Ah Charging time≈1hour

3.

Insert the battery

4.

② Insert jaw ③ push the fixed pin ① push& turn anti-clock- wise to pull out the pin

2.

Press the end of the jaw to open the head

3.

Put the groove of the pipe on the groove of the jaw

4.

Switch the trigger to start operating Manual retract if any error

5.

AUTO Automatically retract after the pressing cycle is completed. Take out the pipe after piston retract

6.

Drop a little lube oil on the piston OIL

7.

Wipe the tool clear keep it into box

8.

3D rendered elephant-shaped object with no visible text or symbols

Hexagon Type

3D rendered mechanical part with no visible text or symbols

Plum Type

3D rendered mechanical part with no visible text or symbols

Ring Type

3D rendered mechanical component with a looped end and a small cylindrical part (no text or symbols)

Economic Type

Open the head take out the hinge

1.

Open the pressing ring

2.

Put the pipe into ring close the hinge

3.

Connect the hinge with the head, ready for pressing

4.

ENTRETIEN ET RÉPARATION

C/O YH Consulting Limited Bureau 147,

Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT

DE LA CE

E-CrossStu GmbH

Exterior view of a TGV excavator tool with orange and black casing (no visible text or symbols)

Labeled diagram of a handheld device with seven numbered parts for identification

MCU – automatically detect the pressure during operation and provide Security protect, shut off the motor and reset automatically after operation.

Auto reset- Release the pressure automatically, retract the piston to the starting position when reached the max output.

One key control- press the trigger to start working, loosing the trigger means stop forcing pressure, piston stop moving.

The unit is equipped with a double piston pump which is characterized by a rapid approach of the die towards the connector and a slow crimping motion.

Suspend—finish working or withdraw the hand from the trigger or any accident happened, the device inside of the tool can stop power supply.

One significant sound will be heard and a red display flashes if any error occurs or lower power being.( Ref. table 1)

Per time pressing on the trigger, the LED will lighting for 20 s.

The overall structure is compact with human body human engineering design. Antiskid rubber in the handheld part and the optimization designed emphasis make the operation more easy

High-performances Li-ion battery in strong power supply, No discharge memory effect, Ultra lower power consumption standby design keep the tool 6 months storage, meanwhile over discharge device prolong the life span of the battery.

Micro computer control system with the feature of self-pressure detecting, double protection during operation, counting and realize the exchange between computer with data by the converter.

TABLE 1 Signal& Implication

Series No		Status	Instruction	What it means
1		Flash twice	Switch on( plug in)	Self-checking, tool in normal
2		Light normally on	Startup status	In working order
3		Continuously flashing	Cannot force& relief pressure	1Pull out plug and plug in to restart tool 2Need maintain
4		Flash 3 times X3	Reminder of maintenance after 30000 times pressing	Contact manufacturer or dealer to correct& maintain
5		Light normally on	Compulsory maintenance and unlock	Same as series 4
6		30s delay	lighting	In working order

BEDIENUNGSANLEITUNG

① Push lock ② Get out battery

1.

Push

2.

10-40°C 3.0Ah Charging time≈1hour

3.

Insert the battery

4.

② Insert jaw ③ push the fixed pin ① push& turn anti-clock- wise to pull out the pin

2.

Press the end of the jaw to open the head

3.

Put the groove of the pipe on the groove of the jaw

4.

Switch the trigger to start operating Manual retract if any error

5.

AUTO Automatically retract after the pressing cycle is completed. Take out the pipe after piston retract

6.

Drop a little lube oil on the piston OIL

7.

Wipe the tool clear keep it into box

8.

3D rendered elephant-shaped object with no visible text or symbols

Hexagon Type

3D rendered mechanical part with no visible text or symbols

Plum Type

3D rendered mechanical part with no visible text or symbols

Ring Type

3D rendered mechanical component with a looped end and a small cylindrical part (no text or symbols)

Economic Type

Open the head take out the hinge

1.

Open the pressing ring

2.

Put the pipe into ring close the hinge

3.

Connect the hinge with the head, ready for pressing

4.

WARTUNG UND SERVICE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a TGV excavator tool with orange and black casing (no visible text or symbols)

Labeled diagram of a handheld device with seven numbered parts for identification

MCU – automatically detect the pressure during operation and provide Security protect, shut off the motor and reset automatically after operation.

Auto reset- Release the pressure automatically, retract the piston to the starting position when reached the max output.

One key control- press the trigger to start working, loosing the trigger means stop forcing pressure, piston stop moving.

The unit is equipped with a double piston pump which is characterized by a rapid approach of the die towards the connector and a slow crimping motion.

Suspend—finish working or withdraw the hand from the trigger or any accident happened, the device inside of the tool can stop power supply.

One significant sound will be heard and a red display flashes if any error occurs or lower power being.( Ref. table 1)

Per time pressing on the trigger, the LED will lighting for 20 s.

The overall structure is compact with human body human engineering design. Antiskid rubber in the handheld part and the optimization designed emphasis make the operation more easy

High-performances Li-ion battery in strong power supply, No discharge memory effect, Ultra lower power consumption standby design keep the tool 6 months storage, meanwhile over discharge device prolong the life span of the battery.

Micro computer control system with the feature of self-pressure detecting, double protection during operation, counting and realize the exchange between computer with data by the converter.

TABLE 1 Signal& Implication

Series No		Status	Instruction	What it means
1		Flash twice	Switch on( plug in)	Self-checking, tool in normal
2		Light normally on	Startup status	In working order
3		Continuously flashing	Cannot force& relief pressure	1Pull out plug and plug in to restart tool 2Need maintain
4		Flash 3 times X3	Reminder of maintenance after 30000 times pressing	Contact manufacturer or dealer to correct& maintain
5		Light normally on	Compulsory maintenance and unlock	Same as series 4
6		30s delay	lighting	In working order

ISTRUZIONI PER L'USO

① Push lock ② Get out battery

1.

Push

2.

10-40°C 3.0Ah Charging time≈1hour

3.

Insert the battery

4.

② Insert jaw ③ push the fixed pin ① push& turn anti-clock- wise to pull out the pin

2.

Press the end of the jaw to open the head

3.

Put the groove of the pipe on the groove of the jaw

4.

Switch the trigger to start operating Manual retract if any error

5.

AUTO Automatically retract after the pressing cycle is completed. Take out the pipe after piston retract

6.

Drop a little lube oil on the piston OIL

7.

Wipe the tool clear keep it into box

8.

Open the head take out the hinge

1.

Open the pressing ring

2.

Put the pipe into ring close the hinge

3.

Connect the hinge with the head, ready for pressing

4.

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Importato negli

USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

CONSULENZA YH LIMITATA.

C/O YH Consulting Limited Ufficio 147,

Casa del centurione, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a TGV excavator tool with orange and black casing (no visible text or symbols)

Labeled diagram of a handheld device with seven numbered parts for identification

MCU – automatically detect the pressure during operation and provide Security protect, shut off the motor and reset automatically after operation.

Auto reset- Release the pressure automatically, retract the piston to the starting position when reached the max output.

One key control- press the trigger to start working, loosing the trigger means stop forcing pressure, piston stop moving.

The unit is equipped with a double piston pump which is characterized by a rapid approach of the die towards the connector and a slow crimping motion.

Suspend—finish working or withdraw the hand from the trigger or any accident happened, the device inside of the tool can stop power supply.

One significant sound will be heard and a red display flashes if any error occurs or lower power being.( Ref. table 1)

Per time pressing on the trigger, the LED will lighting for 20 s.

The overall structure is compact with human body human engineering design. Antiskid rubber in the handheld part and the optimization designed emphasis make the operation more easy

High-performances Li-ion battery in strong power supply, No discharge memory effect, Ultra lower power consumption standby design keep the tool 6 months storage, meanwhile over discharge device prolong the life span of the battery.

Micro computer control system with the feature of self-pressure detecting, double protection during operation, counting and realize the exchange between computer with data by the converter.

TABLE 1 Signal& Implication

Series No		Status	Instruction	What it means
1		Flash twice	Switch on( plug in)	Self-checking, tool in normal
2		Light normally on	Startup status	In working order
3		Continuously flashing	Cannot force& relief pressure	1Pull out plug and plug in to restart tool 2Need maintain
4		Flash 3 times X3	Reminder of maintenance after 30000 times pressing	Contact manufacturer or dealer to correct& maintain
5		Light normally on	Compulsory maintenance and unlock	Same as series 4
6		30s delay	lighting	In working order

① Push lock ② Get out battery

1.

Push

2.

10-40°C 3.0Ah Charging time≈1hour

3.

Insert the battery

4.

② Insert jaw ③ push the fixed pin ① push& turn anti-clock-wise to pull out the pin

2.

Press the end of the jaw to open the head

3.

Put the groove of the pipe on the groove of the jaw

4.

Switch the trigger to start operating Manual retract if any error

5.

AUTO Automatically retract after the pressing cycle is completed. Take out the pipe after piston retract

6.

Drop a little lube oil on the piston OIL

7.

Wipe the tool clear keep it into box

8.

3D rendered elephant-shaped object with no visible text or symbols

Hexagon Type

3D rendered mechanical part with no visible text or symbols

Plum Type

3D rendered mechanical part with no visible text or symbols

Ring Type

3D rendered mechanical component with a looped end and textured body (no text or symbols)

Open the head take out the hinge

1.

Open the pressing ring

2.

Put the pipe into ring close the hinge

3.

Connect the hinge with the head, ready for pressing

4.

Casa Centurión, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Exterior view of a TGV excavator tool with orange and black casing (no visible text or symbols)

Labeled diagram of a handheld device with seven numbered parts for identification

Opis funkcji

MCU – automatically detect the pressure during operation and provide Security protect, shut off the motor and reset automatically after operation.

Auto reset- Release the pressure automatically, retract the piston to the starting position when reached the max output.

One key control- press the trigger to start working, loosing the trigger means stop forcing pressure, piston stop moving.

The unit is equipped with a double piston pump which is characterized by a rapid approach of the die towards the connector and a slow crimping motion.

Suspend—finish working or withdraw the hand from the trigger or any accident happened, the device inside of the tool can stop power supply.

One significant sound will be heard and a red display flashes if any error occurs or lower power being.( Ref. table 1)

Per time pressing on the trigger, the LED will lighting for 20 s.

The overall structure is compact with human body human engineering design. Antiskid rubber in the handheld part and the optimization designed emphasis make the operation more easy

High-performances Li-ion battery in strong power supply, No discharge memory effect, Ultra lower power consumption standby design keep the tool 6 months storage, meanwhile over discharge device prolong the life span of the battery.

Micro computer control system with the feature of self-pressure detecting, double protection during operation, counting and realize the exchange between computer with data by the converter.

TABLE 1 Signal& Implication

Series No		Status	Instruction	What it means
1		Flash twice	Switch on( plug in)	Self-checking, tool in normal
2		Light normally on	Startup status	In working order
3		Continuously flashing	Cannot force& relief pressure	1Pull out plug and plug in to restart tool 2Need maintain
4		Flash 3 times X3	Reminder of maintenance after 30000 times pressing	Contact manufacturer or dealer to correct& maintain
5		Light normally on	Compulsory maintenance and unlock	Same as series 4
6		30s delay	lighting	In working order

INSTRUKCJA OBSŁUGI

① Push lock ② Get out battery

1.

Push

2.

10-40°C 3.0Ah Charging time≈1hour

3.

Insert the battery

4.

② Insert jaw ③ push the fixed pin ① push& turn anti-clock-wise to pull out the pin

2.

Press the end of the jaw to open the head

3.

Put the groove of the pipe on the groove of the jaw

4.

Switch the trigger to start operating Manual retract if any error

5.

AUTO Automatically retract after the pressing cycle is completed. Take out the pipe after piston retract

6.

Drop a little lube oil on the piston OIL

7.

Wipe the tool clear keep it into box

8.

3D rendered elephant-shaped object with no visible text or symbols

Hexagon Type

3D rendered mechanical part with no visible text or symbols

Plum Type

3D rendered mechanical part with no visible text or symbols

Ring Type

3D rendered mechanical component with a looped end and a small cylindrical part (no text or symbols)

Economic Type

Open the head take out the hinge

1.

Open the pressing ring

2.

Put the pipe into ring close the hinge

3.

Connect the hinge with the head, ready for pressing

4.

KONSERWACJA I SERWIS

C/O YH Consulting Limited Biuro 147,

Dom Centuriona, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

Przedstaw ciel UE

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a TGV excavator tool with orange and black casing (no visible text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Labeled diagram of a handheld device with seven numbered parts for identification

Functiebeschrijving

MCU – automatically detect the pressure during operation and provide Security protect, shut off the motor and reset automatically after operation.

Auto reset- Release the pressure automatically, retract the piston to the starting position when reached the max output.

One key control- press the trigger to start working, loosing the trigger means stop forcing pressure, piston stop moving.

The unit is equipped with a double piston pump which is characterized by a rapid approach of the die towards the connector and a slow crimping motion.

Suspend—finish working or withdraw the hand from the trigger or any accident happened, the device inside of the tool can stop power supply.

One significant sound will be heard and a red display flashes if any error occurs or lower power being.( Ref. table 1)

Per time pressing on the trigger, the LED will lighting for 20 s.

The overall structure is compact with human body human engineering design. Antiskid rubber in the handheld part and the optimization designed emphasis make the operation more easy

High-performances Li-ion battery in strong power supply, No discharge memory effect, Ultra lower power consumption standby design keep the tool 6 months storage, meanwhile over discharge device prolong the life span of the battery.

Micro computer control system with the feature of self-pressure detecting, double protection during operation, counting and realize the exchange between computer with data by the converter.

TABLE 1 Signal& Implication

Series No		Status	Instruction	What it means
1		Flash twice	Switch on( plug in)	Self-checking, tool in normal
2		Light normally on	Startup status	In working order
3		Continuously flashing	Cannot force& relief pressure	1Pull out plug and plug in to restart tool 2Need maintain
4		Flash 3 times X3	Reminder of maintenance after 30000 times pressing	Contact manufacturer or dealer to correct& maintain
5		Light normally on	Compulsory maintenance and unlock	Same as series 4
6		30s delay	lighting	In working order

GEBRUIKSAANWIJZING

① Push lock ② Get out battery

1.

Push

2.

10-40°C 3.0Ah Charging time≈1hour

3.

Insert the battery

4.

② Insert jaw ③ push the fixed pin ① push& turn anti-clock- wise to pull out the pin

2.

Press the end of the jaw to open the head

3.

Put the groove of the pipe on the groove of the jaw

4.

Switch the trigger to start operating Manual retract if any error

5.

AUTO Automatically retract after the pressing cycle is completed. Take out the pipe after piston retract

6.

Drop a little lube oil on the piston OIL

7.

Wipe the tool clear keep it into box

8.

2. Speciale suggestie:

3D rendered elephant-shaped object with no visible text or symbols

Hexagon Type

3D rendered mechanical part with no visible text or symbols

Plum Type

3D rendered mechanical part with no visible text or symbols

Ring Type

3D rendered mechanical component with a looped end and a small cylindrical part (no text or symbols)

Economic Type

Open the head take out the hinge

1.

Open the pressing ring

2.

Put the pipe into ring close the hinge

3.

Connect the hinge with the head, ready for pressing

4.

ONDERHOUD EN SERVICE

C/O YH Consulting Limited Kantoor 147,

Centurionhuis, Londenweg,

Staines-upon-Thames, Surrey, TW18 4AX

EC-REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a TGV excavator tool with orange and black casing (no visible text or symbols)

Labeled diagram of a handheld device with seven numbered parts for identification

MCU – automatically detect the pressure during operation and provide Security protect, shut off the motor and reset automatically after operation.

Auto reset- Release the pressure automatically, retract the piston to the starting position when reached the max output.

One key control- press the trigger to start working, loosing the trigger means stop forcing pressure, piston stop moving.

The unit is equipped with a double piston pump which is characterized by a rapid approach of the die towards the connector and a slow crimping motion.

Suspend—finish working or withdraw the hand from the trigger or any accident happened, the device inside of the tool can stop power supply.

One significant sound will be heard and a red display flashes if any error occurs or lower power being.( Ref. table 1)

Per time pressing on the trigger, the LED will lighting for 20 s.

The overall structure is compact with human body human engineering design. Antiskid rubber in the handheld part and the optimization designed emphasis make the operation more easy

High-performances Li-ion battery in strong power supply, No discharge memory effect, Ultra lower power consumption standby design keep the tool 6 months storage, meanwhile over discharge device prolong the life span of the battery.

Micro computer control system with the feature of self-pressure detecting, double protection during operation, counting and realize the exchange between computer with data by the converter.

TABLE 1 Signal& Implication

Series No		Status	Instruction	What it means
1		Flash twice	Switch on( plug in)	Self-checking, tool in normal
2		Light normally on	Startup status	In working order
3		Continuously flashing	Cannot force& relief pressure	1Pull out plug and plug in to restart tool 2Need maintain
4		Flash 3 times X3	Reminder of maintenance after 30000 times pressing	Contact manufacturer or dealer to correct& maintain
5		Light normally on	Compulsory maintenance and unlock	Same as series 4
6		30s delay	lighting	In working order

DRIFTSINSTRUKTION

① Push lock ② Get out battery

1.

Push

2.

10-40°C 3.0Ah Charging time≈1hour

3.

Insert the battery

4.

Mer information om laddningsinformationen, se manualen (MANUAL FOR LADDARE)

② Insert jaw ③ push the fixed pin ① push& turn anti-clock- wise to pull out the pin

2.

Press the end of the jaw to open the head

3.

Put the groove of the pipe on the groove of the jaw

4.

Switch the trigger to start operating Manual retract if any error

5.

AUTO Automatically retract after the pressing cycle is completed. Take out the pipe after piston retract

6.

Drop a little lube oil on the piston OIL

7.

Wipe the tool clear keep it into box

8.

3D rendered elephant-shaped object with no visible text or symbols

Hexagon Type

3D rendered mechanical part with no visible text or symbols

Plum Type

3D rendered mechanical part with no visible text or symbols

Ring Type

3D rendered mechanical component with a looped end and a separate cylindrical part (no text or symbols)

Economic Type

Open the head take out the hinge

1.

Open the pressing ring

2.

Put the pipe into ring close the hinge

3.

Connect the hinge with the head, ready for pressing

4.

UNDERHÅLL OCH SERVICE

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
