QY5 - Tractor accessory Vevor - Free user manual and instructions

Product Type	Hitch Hook for Tractor Bucket
Brand	Vevor
Model	QY5
Mounting Plate Dimensions	8 x 5 inches (20.3 x 12.7 cm)
Hook Size	5/16 inch (7.9 mm)
Ring Size	1/2 inch (12.7 mm)
Number of Sets	2
Working Load Capacity	4700 lb (2132 kg)
Break Load Capacity	12000 lb (5443 kg)
Color	Green
Material	Heavy-duty Steel
Main Functions	Grabbing, lifting, towing using accessories (chains, straps)
Safety	Do not exceed working load; check before each use; wear gloves; do not use damaged hooks
Installation	Requires drilling; secure with bolts, washers and nuts provided
Maintenance and Cleaning	Clean mounting surface; regularly inspect for wear and damage
Spare Parts	Bolts, nuts, lock washers and flat washers (4 sets) included
Repairability	Standard fasteners replaceable; contact support for other repairs
Technical Support	www.vevor.com/support

Frequently Asked Questions - QY5 Vevor

What is the maximum weight the QY5 hook can support?

The working load capacity is 4700 lb (approx. 2132 kg) and the break load is 12000 lb (approx. 5443 kg). Never exceed the working limit.

How do I install the grab hook on the tractor bucket?

Turn off the tractor and engage the parking brake. Clean the mounting surface, then drill holes aligned with the bucket holes. Insert the bolts, place the washers and tighten the nuts. Check that the hooks are securely in place.

What accessories are included with the QY5 model?

The kit contains 4 bolts, 4 nuts, 4 lock washers and 4 flat washers.

Is the QY5 hook compatible with all tractor buckets?

It is designed to mount on most standard buckets, but the mounting plate measures 8 x 5 inches. Check dimensions and drilling feasibility before purchase.

What safety precautions should I take when using it?

Wear protective gloves. Inspect the hook before each use for any wear or damage. Never use a damaged hook and do not exceed the maximum load.

Can I use this hook for towing?

Yes, the product can be used as a tow hook for loads within specified limits, in combination with suitable chains or straps.

How do I maintain the grab hook?

Regularly clean the mounting surface and hooks. Visually inspect for cracks, deformation or corrosion. Periodically tighten the fasteners.

Where can I find warranty or technical support?

Go to www.vevor.com/support for technical assistance and electronic warranty certificate.

What is the difference between models QY4 and QY5?

The QY4 has a mounting plate of 22 x 6 inches and a 2-inch receiver, while the QY5 measures 8 x 5 inches, without a receiver, and comes in 2 sets instead of one for the QY4.

What tools are needed for installation?

You will need an electric drill to drill holes in the bucket if necessary, as well as a wrench to tighten the nuts.

USER MANUAL QY5 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

TRACTOR BUCKET GRAB HOOK USER MANUAL

MODEL: QY4 & QY5

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

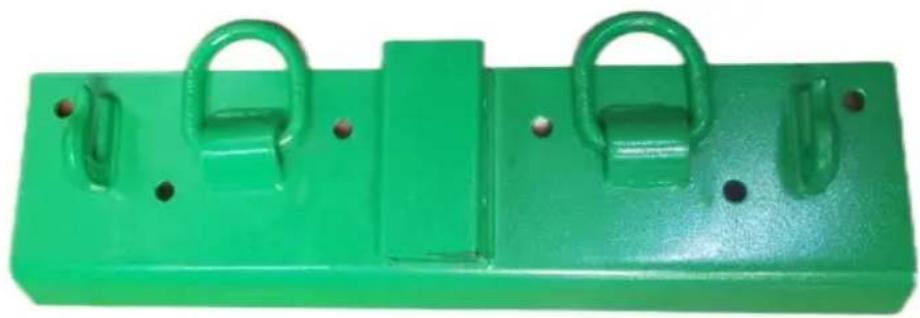

QY4

QY5

Note: The actual product you receive determines its look.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Important safety instructions

Warning - To reduce the risk of injury, the user n the instructions manual carefully.

Warning- Be sure to wear gloves when using this

WARNING!

1. Never exceed working load limit.
2. It must be checked before each use. Wear, damage or installation.
3. Avoid impacting the hooks.
4. Damaged hooks shall not be used. Death or injury can occur from improper use or care.

2. Product Introduction

The grab hooks are good attachments for agricultural vehicles. Mounted on a Tractor Bucket, used with chains, straps, ropes, a Ratchet Binders etc. It can also be used as Tow Hooks, is a tractor bucket attachments for easy dragging or lifting.

3. Accessories Introduction

QY4
Items	Name	Number
1	Bolt	6
2	Nut	6
3	Spring Washer	6
4	Flat Washer	6

QY5
Items	Name	Number
1	Bolt	4
2	Nut	4
3	Spring Washer	4
4	Flat Washer	4

4. Installation Introduction

1. Turn off the tractor and pull the handbrake to prevent the vehicle from moving.
2. Clean the installation position and ensure that the surface is flat and clean.
3. You need an electric drill. Line up the tractor hole, mark where need to drill it and drill. 4. Insert the bolts. Install the washers and tighten the nuts.
4. Check that the hooks are firmly in place.

5. Parameters

Items	Model	QY4	QY5
1	Mounting Plate Size	22*6 inch	8*5 inch
2	Hook Size	5/16inch	5/16inch
3	Rings	1/2inch	1/2inch
4	Receiver	2inch	/
5	Number Of Sets	1	2
6	Working Load Limit(lbs)	4700	4700
7	breaking load(lbs)	12000	12000
8	Colour	Green	Green
