Product Type	Tractor Bucket Grapple Hook
Brand	Vevor
Model	QY4
Mounting Plate Dimensions	22 x 6 inches (55.9 x 15.2 cm)
Hook Size	5/16 inch (7.9 mm)
Rings	1/2 inch (12.7 mm)
Receiver	2 inches (5.1 cm)
Maximum Working Load	4,700 lb (2,132 kg)
Breaking Load	12,000 lb (5,443 kg)
Color	Green
Number of Sets	1
Package Contents	Grapple Hook, bolts (6), nuts (6), lock washers (6), flat washers (6)
Material	Steel
Use	Lifting and towing with tractor bucket, use with chains, straps, ropes, ratchet straps
Safety	Wear gloves, inspect before each use, do not bang hooks, do not exceed load limit
Maintenance	Check for wear and damage before each use, do not use if damaged
Repairability	Spare parts available: bolts, nuts, washers
General Information	Made by Shanghaimuxinmuyeyouxiangongsi, imported by Sanven Technology Ltd. (USA) and SIHAO PTY LTD. (Australia). Technical support: www.vevor.com/support

Frequently Asked Questions - QY4 Vevor

How to install the grapple hook on my tractor bucket?

To install the hook, follow these steps: 1) Turn off the tractor and engage the parking brake. 2) Clean the bucket surface. 3) Align the mounting holes, mark drilling points and drill. 4) Insert bolts, add washers and tighten nuts. 5) Verify the hook is securely attached. Refer to the installation manual for details.

What is the maximum load the QY4 hook can support?

The working load limit is 4,700 lb (2,132 kg). Never exceed this limit to avoid risk of injury or damage. The breaking load is 12,000 lb (5,443 kg).

Can I use this hook for towing?

Yes, the grapple hook can be used as a towing hook. It is designed for lifting and towing, in combination with chains, straps or ratchet straps. Always respect the load limit.

What accessories are included in the package?

The package contains the grapple hook, along with 6 bolts, 6 nuts, 6 lock washers and 6 flat washers for mounting.

How to maintain the grapple hook?

Before each use, inspect the condition of the hook: look for wear, cracks or deformations. Do not use if damaged. Clean it regularly and lubricate moving parts if necessary. Store it in a dry place.

What safety precautions should I take?

Always wear protective gloves during use. Do not bang hooks against hard surfaces. Inspect the hook before each use. Never exceed the working load limit. Ensure the hook is properly installed.

Is the hook compatible with all tractor buckets?

This hook is designed to fit most standard tractor buckets. However, check the mounting plate dimensions (22 x 6 inches) and hole spacing. If your bucket has no pre-drilled holes, you will need to drill them yourself.

What is the difference between models QY4 and QY5?

The QY4 model is a single set with a 22 x 6 inch mounting plate and a 2 inch receiver. The QY5 includes two sets, a smaller plate (8 x 5 inches) and no receiver. Both have the same load capacity.

Where can I find technical support?

Technical support is available at www.vevor.com/support. There you will find the electronic warranty and assistance for your questions.

Is the product under warranty?

Yes, Vevor offers a warranty. The electronic warranty certificate is available at www.vevor.com/support. Keep your proof of purchase for any claims.

USER MANUAL QY4 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

TRACTOR BUCKET GRAB HOOK USER MANUAL

MODEL:QY4&QY5

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TRACTOR BUCKET

GRAB HOOK

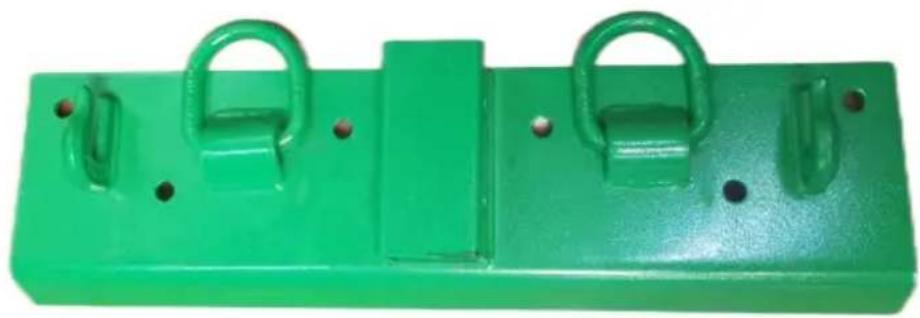

Green plastic mechanical component with multiple looped clips and mounting holes (no text or symbols visible)

QY4

Green plastic mechanical component with a loop handle and two holes (no text or symbols visible)

Green plastic electrical switch with handle and mounting bracket (no text or symbols)

QY5

Note: The actual product you receive determines its look.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Important safety instructions

	Warning - To reduce the risk of injury, the user n the instructions manual carefully.
	Warning- Be sure to wear gloves when using this

WARNING!

1. Never exceed working load limit.
2. It must be checked before each use. Wear, damage or installation.
3. Avoid impacting the hooks.
4. Damaged hooks shall not be used. Death or injury can occur from improper use or care.

2. Product Introduce

The grab hooks are good attachments for agricultural vehicles. Mounted on a Tractor Bucket, used with chains, straps, ropes, a Ratchet Binders etc. It can also be used as Tow Hooks, is a tractor bucket attachments for easy dragging or lifting.

3.Accessories introduction

QY4
Items	Name	Number
1	Bolt	6
2	Nut	6
3	Spring Washer	6
4	Flat Washer	6

QY5
Items	Name	Number
1	Bolt	4
2	Nut	4
3	Spring Washer	4
4	Flat Washer	4

4. Installation introduction

1. Turn off the tractor and pull the handbrake to prevent the veh from moving.
2. Clean the installation position and ensure that the surface is fl and clean.
3. You need an electric drill. Line up the tractor hole, mark where need to drill it and drill.
4. Insert the bolts install the washers and tighten the nuts.
5. Check that the hooks are firmly in place.

5.Parameter

Items	Model	QY4	QY5
1	Mounting Plate Size	22*6 inch	8*5 inch
2	Hook Size	5/16inch	5/16inch
3	Rings	1/2inch	1/2inch
4	Receiver	2inch	/
5	Number Of Sets	1	2
6	Working Load Limit(lbs)	4700	4700
7	breaking load(lbs)	12000	12000
8	Colour	Green	Green

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

UK

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Green plastic mechanical component with multiple looped clips and mounting holes (no text or symbols visible)

QY4

Green plastic object with a loop handle and two black dots, no text or symbols visible.

Green plastic wall-mounted device with a loop handle and two small components (no text or symbols visible)

QY5

C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

TRAKTOR-EIMER-GREIFERHAKEN

BENUTZERHANDBUCH

MODELL: QY4 und QY5

Green plastic mechanical component with two looped clips and mounting holes (no text or symbols visible)

Fragebogen 4

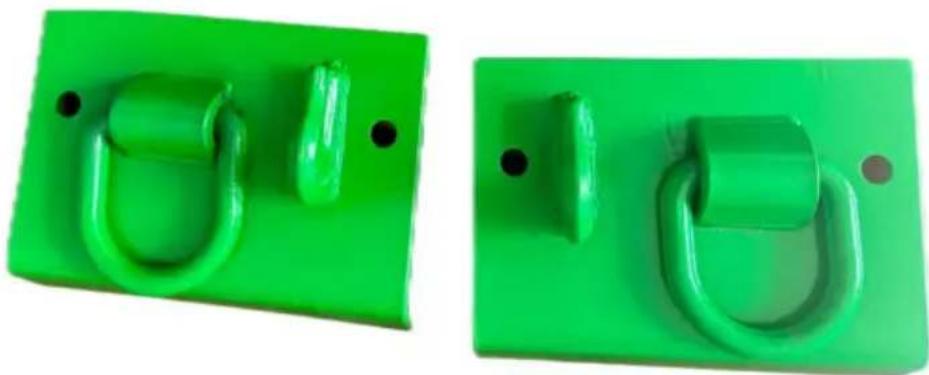

Two green plastic wall-mounted lockers with handles and black dots, shown from different angles (no text or symbols visible)

QY5

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

GANCIO DI PRESA PER BENNA DEL TRATTORE MANUALE D'USO

MODELLO: QY4 e QY5

Green plastic mechanical component with two looped clips and mounting holes (no text or symbols visible)

Trimestre 4

Two green plastic wall-mounted lockers with handles and black dots, shown from different angles (no text or symbols visible)

QY5

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Green plastic mechanical component with multiple looped clips and mounting holes (no text or symbols visible)

Año trimestral 4

Green plastic object with a loop handle and two black dots, no text or symbols visible.

Green plastic electrical switch with a loop handle and terminal block (no text or symbols visible)

QY5

C/O YH Consulting Limited Oficina 147, Centurion House,

Carretera de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Green plastic mechanical component with multiple looped clips and mounting holes (no text or symbols visible)

4 kwartał

Green plastic object with a loop handle and two black dots, no text or symbols visible.

Green plastic electrical switch with a loop handle and terminal block (no text or symbols visible)

QY5

C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

TRACTORBAK GRIJPHAAK

GEBRUIKERSHANDLEIDING

MODEL:QY4&QY5

Green plastic mechanical component with multiple looped clips and mounting holes (no text or symbols visible)

QY4

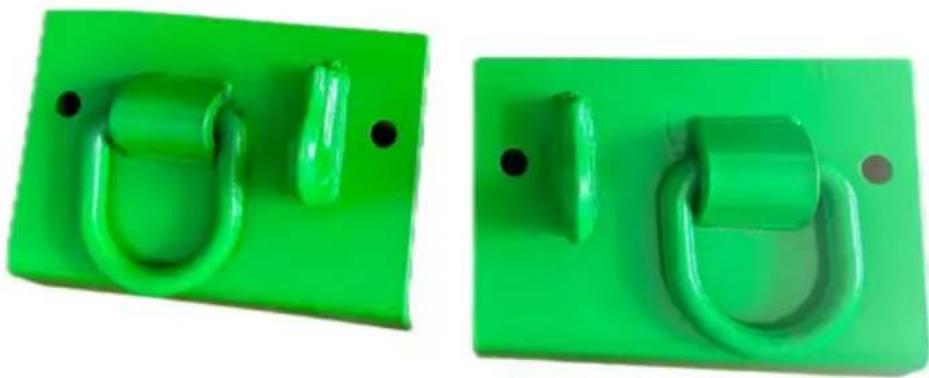

Two green plastic blocks with curved and looped features, no text or symbols visible
