QY6 - Tractor accessory Vevor - Free user manual and instructions

Brand	Vevor
Model	QY6
Product type	Tractor bucket grab hook
Number of sets	6
Hook size	3/8 inches
Working load limit	6600 lb (2994 kg)
Breaking load	15000 lb (6804 kg)
Intended use	Trucks, trailers, ATVs, UTVs
Material	Steel
Main function	Create anchor or lifting points on tractor buckets
Installation	Welding by a qualified welder, clean surface
Maintenance	Periodic visual inspection of welds, avoid shocks
Safety	Do not exceed load, wear gloves, do not use for high-altitude hoisting
Manufacturer	Shanghai Muxin Muye Co., Ltd., Shanghai, China
EU importer	E-CrossStu GmbH, Frankfurt
UK importer	YH CONSULTING LIMITED

Frequently Asked Questions - QY6 Vevor

What is the maximum load capacity of the QY6 hook?

The working load limit is 6600 lb (2994 kg) and the breaking load is 15000 lb (6804 kg). Never exceed the working load limit.

How to install the hook on a tractor bucket?

Installation is done by welding. The tractor must be turned off with the parking brake engaged. The surface to be welded must be clean, free of rust, grease, or paint. Position the hook so that the load is applied in its plane. Use appropriate welding techniques by a qualified welder.

Can I use this hook for lifting suspended loads?

No, this hook is designed for anchorages or lifting points, but not for high-altitude hoisting. It is forbidden to use it for suspended loads at height.

What safety precautions should be taken?

Wear gloves, regularly inspect the welds, do not exceed the working load, avoid shocks on the hooks, and do not use damaged hooks. Welding must be carried out by a professional.

What material is the QY6 hook made of?

The hook is made of steel. The manual does not specify the grade, but it is suitable for welding onto other steels.

How to maintain the hook?

Perform periodic visual inspection of the welds and the hook. Clean surfaces to prevent rust. Do not cool the welds quickly after welding.

Which vehicles can use this hook?

It is designed to be welded onto tractor buckets, but also usable on trucks, trailers, ATVs, UTVs, and other equipment.

Is the hook delivered with a warranty?

The manual mentions technical support and an electronic warranty certificate on the website www.vevor.com/support. Contact Vevor support for details.

Can I weld the hook myself?

No, welding must be performed by a qualified welder. An appropriate welding procedure must be developed to avoid cracks or inclusions.

Where can I find the complete manual?

The complete manual is available for free download in PDF format at notice-facile.com. You can also request a translation by email.

USER MANUAL QY6 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

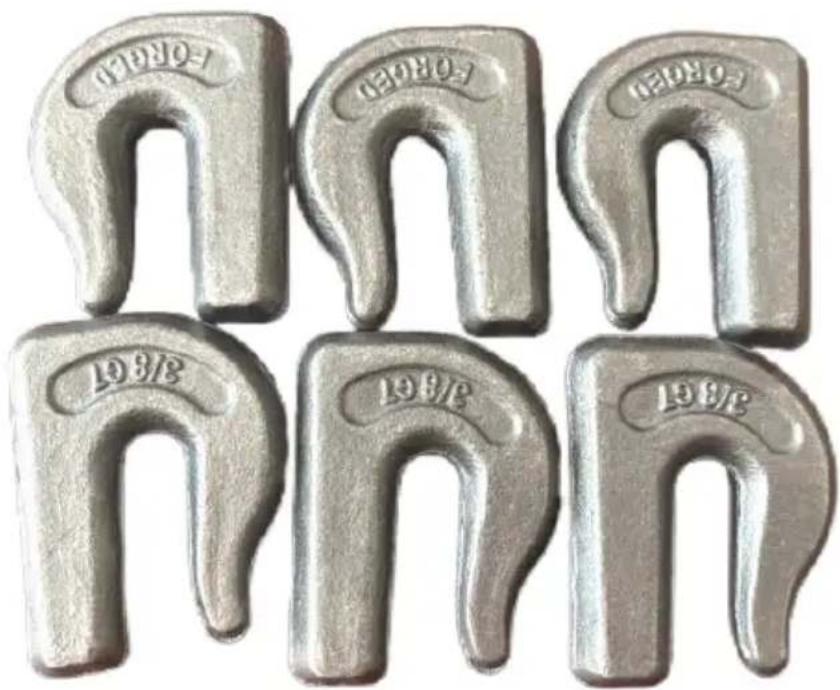

TRACTOR BUCKET GRAB HOOK USER MANUAL

MODEL:QY6

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

QY6

Note: The actual product you receive determines its look.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Important safety instructions

	Warning - To reduce the risk of injury, the user n the instructions manual carefully.
	Warning- Be sure to wear gloves when using this

WARNING!

1. Never exceed working load limit and shall not be used for high-altitude hoisting.
2. A visual periodic inspection of the weld should be performed.
3. Avoid impacting the hooks.
4. Damaged hooks shall not be used. Death or injury can occur from improper use or care.
5. For welding hook to other grades of steel, a qualified weld procedure must be developed. No Cracks, pitting, inclusions are allowed.
6. Welding is to be performed by a qualified welder using. Do rapidly cool the weld.

2. Product Introduce

For Use On: Trucks, Trailers, Off Road Vehicles, UTV & More.1 are perfect for welding to trailers or equipment to create anchor lifting points.

3. Installation introduction

1. Turn off the tractor and pull the handbrake to prevent the vehicle from moving.
2. Before welding, the surface to be welded on, including the ho and support structure, must be clean and free from rust, grease paint.
3. Position the hook to ensure that the load is applied in the pl the hook. Ensure that the hook does not interfere with the open of other mechanisms.
4. Locate the welding position. Ensure that the bottom of the ho perpendicular to the surface.
5. Use appropriate welding techniques and filling materials for welding operations.
6. After welding, the assembly should be proof-tested before putting into service.

4.Parameter

Items	Model	QY6
1	Hook Size	3/8inch
2	Number Of Sets	6
3	Working Load Limit(lbs)	6600
4	breaking load(lbs)	15000

Attention:

This fracture force does not include the force of welding, in addition to our company's independent welding, which does not make an guarantee.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4
