USER MANUAL QY3 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
TRACTOR BUCKET GRAB HOOK USER MANUAL
MODEL:QY1 & QY2 & QY3
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
TRACTOR BUCKET
GRAB HOOK


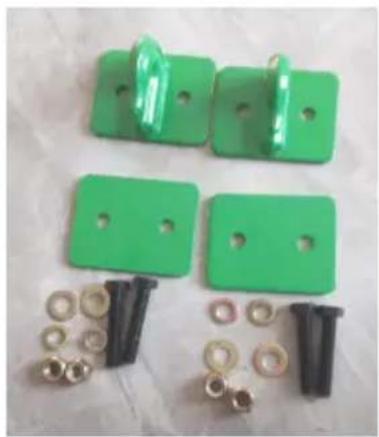

Green plastic mechanical components including bolts, nuts, and bolts on a white surface (no text or symbols visible)


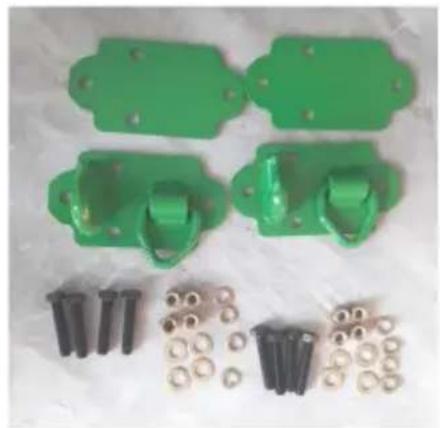

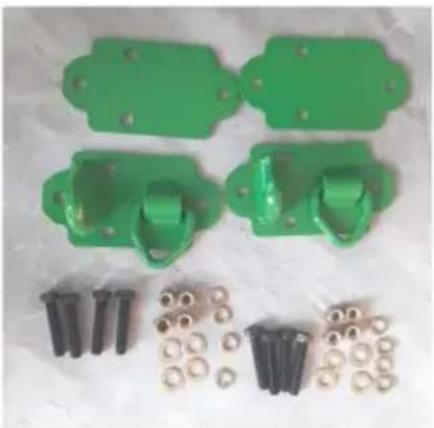

Green plastic mechanical bracket components with various mounting holes and bolts, arranged on a white surface (no text or symbols visible)


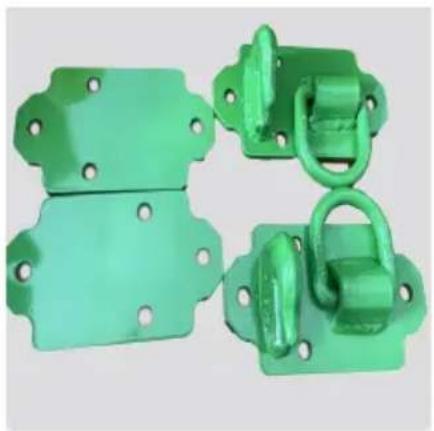

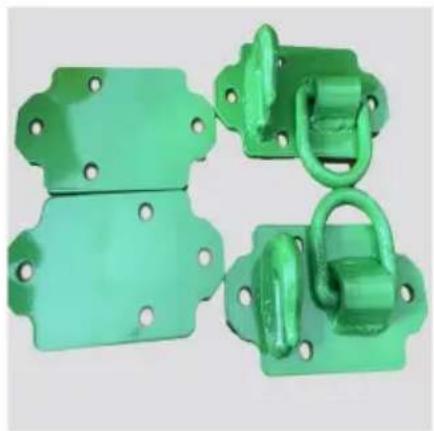

Four green plastic mechanical clips with mounting holes and interlocking rings (no text or symbols visible)QY1 QY2 QY3
Note: The actual product you receive determines its look.
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
Important safety instructions
 | Warning - To reduce the risk of injury, the user n the instructions manual carefully. |
 | Warning- Be sure to wear gloves when using this |
WARNING!
- Never exceed working load limit.
- It must be checked before each use. Wear, damage or installation.
- Avoid impacting the hooks.
- Damaged hooks shall not be used. Death or injury can occur from improper use or care.
2. Product Introduce
The grab hooks are good attachments for agricultural vehicles. Mounted on Tractor Bucket, used with chains, straps, ropes, and Ratchet Binders etc. It can also be used as Tow Hooks, is a tractor bucket attachments for easy dragging or lifting.
3.Accessories introduction
| QY1 | ||
| Items | Name | Number |
| 1 | Bolt | 4 |
| 2 | Nut | 4 |
| 3 | Spring Washer | 4 |
| 4 | Flat Washer | 4 |
| QY2 | ||
| Items | Name | Number |
| 1 | Bolt | 8 |
| 2 | Nut | 8 |
| 3 | Spring Washer | 8 |
| 4 | Flat Washer | 8 |
| QY3 | ||
| Items | Name | Number |
| 1 | Bolt | 8 |
| 2 | Nut | 8 |
| 3 | Spring Washer | 8 |
| 4 | Flat Washer | 8 |
4. Installation introduction
- Turn off the tractor and pull the handbrake to prevent the vel from moving.
- Clean the installation position and ensure that the surface is f and clean.
- You need an electric drill. Line up the tractor hole, mark where need to drill it and drill.
- Insert the bolts install the bottom steel plate, washers and tighten the nuts.
- Check that the hooks are firmly in place.
5.Parameter
| Items | Model | QY1 | QY2 | QY3 |
| 1 | Mounting Plate Size | 4.25*3.25 inch | 7.1*4.7inch | 8*4.25inch |
| 2 | Hook Size | 3/8inch | 3/8inch | 3/8inch |
| 3 | Rings | / | 1/2inch | 1/2inch |
| 4 | Number Of Sets | 2 | 2 | 2 |
| 5 | Working Load Limit(lbs) | 6600 | 6600 | 6600 |
| 6 | breaking load(lbs) | 15000 | 12000 | 12000 |
| 7 | Colour | Green | Green | Green |
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Ma
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 2
