Product Type	Tractor Bucket Grab Hook
Brand	Vevor
Model	QY1
Mounting Plate Dimensions	4.25 x 3.25 inches (10.8 x 8.3 cm)
Hook Size	3/8 inch (9.5 mm)
Number of Hooks	2
Working Load Limit	6600 lb (2994 kg)
Breaking Load	15000 lb (6804 kg)
Color	Green
Material	Steel
Fasteners Included	4 bolts, 4 nuts, 4 spring washers, 4 flat washers
Installation	Drilling required, bolt-on attachment
Usage	Towing, lifting, securing loads with chains, straps, etc.
Safety	Wear gloves, check before each use, do not exceed load limit
Maintenance	Check for wear and damage before use
Warranty	Electronic warranty certificate at www.vevor.com/support
Manufacturer	Shanghai Muxin Muye Youxiangongsi, Shanghai, China

Frequently Asked Questions - QY1 Vevor

How to install the QY1 grab hook on my tractor?

Turn off the tractor engine and engage the parking brake. Clean the mounting surface. Use an electric drill to drill holes aligned with those on the bucket. Insert the provided bolts, place the lower steel plate, washers, and tighten the nuts. Check that the hooks are securely fastened.

What is the maximum load this hook can support?

The working load limit is 6600 lb (2994 kg) and the breaking load is 15000 lb (6804 kg) for the QY1 model. Never exceed the working load limit.

Can I use this hook for towing?

Yes, the grab hook can be used as a towing hook. It is designed to facilitate moving or lifting loads with chains, straps, or ratchet straps.

What tools do I need for installation?

You will need an electric drill to drill the mounting holes, as well as a wrench to tighten the provided bolts and nuts.

What safety precautions should be followed?

Wear gloves during use. Before each use, check for wear or damage. Never exceed the working load limit. Avoid hitting the hooks and do not use damaged hooks.

Does the product come with fasteners?

Yes, the QY1 kit includes 4 bolts, 4 nuts, 4 spring washers, and 4 flat washers for installation.

What to do if the hook is damaged?

Damaged hooks must not be used, as this can result in injury or death. Immediately replace any cracked, deformed, or worn hook.

How to clean and maintain the hook?

Before each use, inspect the hook for any signs of wear, corrosion, or damage. Clean it with a dry cloth and store it in a dry place. No special maintenance is required.

Where can I find the warranty certificate?

The electronic warranty certificate is available at www.vevor.com/support. You can also get technical support there.

Is this hook compatible with all tractor buckets?

The hook is designed to be mounted on most tractor buckets. Check that your bucket dimensions match the mounting plate size of 4.25 x 3.25 inches (10.8 x 8.3 cm) before installation.

USER MANUAL QY1 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TRACTOR BUCKET GRAB HOOK USER MANUAL

MODEL:QY1 & QY2 & QY3

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TRACTOR BUCKET

GRAB HOOK

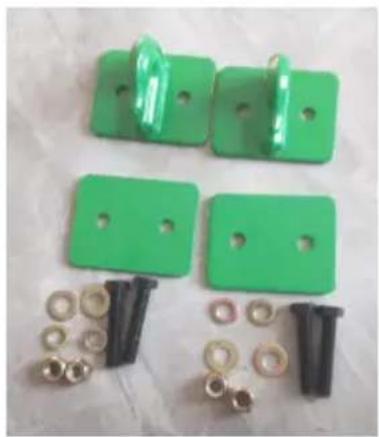

Green plastic mechanical components including bolts, nuts, and bolts on a white surface (no text or symbols visible)

Four green plastic mechanical components with various mounting holes and metal fittings, arranged on a white surface (no text or symbols visible)

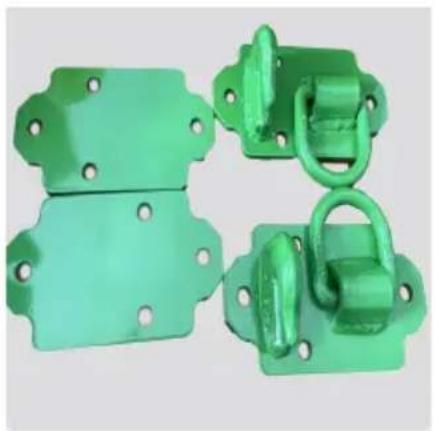

Four green metal bracket components with mounting holes and chain links (no text or symbols visible)

QY1 QY2 QY3

Note: The actual product you receive determines its look.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Important safety instructions

	Warning - To reduce the risk of injury, the user n the instructions manual carefully.
	Warning- Be sure to wear gloves when using this

WARNING!

1. Never exceed working load limit.
2. It must be checked before each use. Wear, damage or installation.
3. Avoid impacting the hooks.
4. Damaged hooks shall not be used. Death or injury can occur from improper use or care.

2. Product Introduce

The grab hooks are good attachments for agricultural vehicles. Mounted on Tractor Bucket, used with chains, straps, ropes, and Ratchet Binders etc. It can also be used as Tow Hooks, is a tractor bucket attachments for easy dragging or lifting.

3.Accessories introduction

QY1
Items	Name	Number
1	Bolt	4
2	Nut	4
3	Spring Washer	4
4	Flat Washer	4
QY2
Items	Name	Number
1	Bolt	8
2	Nut	8
3	Spring Washer	8
4	Flat Washer	8

QY3
Items	Name	Number
1	Bolt	8
2	Nut	8
3	Spring Washer	8
4	Flat Washer	8

4. Installation introduction

1. Turn off the tractor and pull the handbrake to prevent the vel from moving.
2. Clean the installation position and ensure that the surface is f and clean.
3. You need an electric drill. Line up the tractor hole, mark where need to drill it and drill.
4. Insert the bolts install the bottom steel plate, washers and tighten the nuts.
5. Check that the hooks are firmly in place.

5.Parameter

Items	Model	QY1	QY2	QY3
1	Mounting Plate Size	4.25*3.25 inch	7.1*4.7inch	8*4.25inch
2	Hook Size	3/8inch	3/8inch	3/8inch
3	Rings	/	1/2inch	1/2inch
4	Number Of Sets	2	2	2
5	Working Load Limit(lbs)	6600	6600	6600
6	breaking load(lbs)	15000	12000	12000
7	Colour	Green	Green	Green

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 2

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Green plastic mechanical components including clips, bolts, and washers arranged on a white surface (no text or symbols visible)

QY1 QY2

Green mechanical bracket components with bolts and screws arranged on a white surface (no text or symbols visible)

Four green metal bracket components with mounting holes and chain links (no text or symbols visible)

QY3

C/O YH Consulting Limited Bureau 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

TRAKTOR-EIMER-GREIFERHAKEN

BENUTZERHANDBUCH

MODELL: QY1 & QY2 & QY3

Green plastic mechanical components including clips, bolts, and washers arranged on a white surface (no text or symbols visible)

Green mechanical bracket components including bolts, screws, and bolts arranged on a white surface (no text or symbols visible)

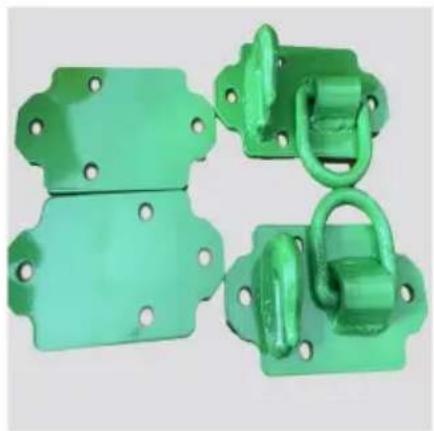

Four green metal bracket components with mounting holes and hooks, arranged side by side (no text or symbols visible)

QY3

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

GANCIO DI PRESA PER BENNA DEL TRATTORE MANUALE D'USO

MODELLO: QY1 e QY2 e QY3

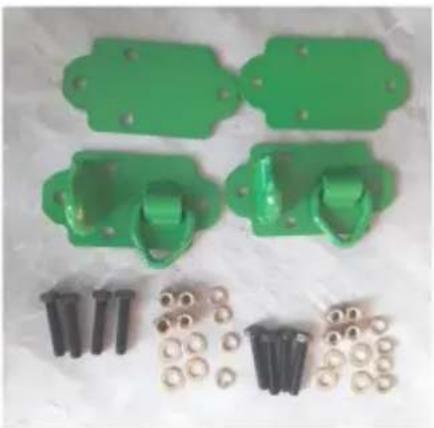

Green plastic mechanical components including clips, bolts, and washers arranged on a white surface (no text or symbols visible)

Trimestre 1 Trimestre 2

Green mechanical bracket components including bolts, screws, and bolts arranged on a white surface (no text or symbols visible)

Four green metal bracket components with mounting holes and hooks, arranged side by side (no text or symbols visible)

QY3

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Green plastic mechanical components including clips, bolts, and washers arranged on a white surface (no text or symbols visible)

Año trimestral 1

Green mechanical bracket components with bolts and screws arranged on a white surface (no text or symbols visible)

Four green metal bracket components with mounting holes and lock mechanisms (no text or symbols visible)

QY3Año trimestral 2

C/O YH Consulting Limited Oficina 147, Centurion House,

Carretera de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Green plastic mechanical components including clips, bolts, and washers arranged on a white surface (no text or symbols visible)

Green mechanical bracket components including screws, clips, and bolts arranged on a white surface (no text or symbols visible)

Four green metal bracket components with mounting holes and lock mechanisms (no text or symbols visible)

QY3

C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

TRACTORBAK GRIJPHAAK

GEBRUIKERSHANDLEIDING

MODEL:QY1 & QY2 & QY3

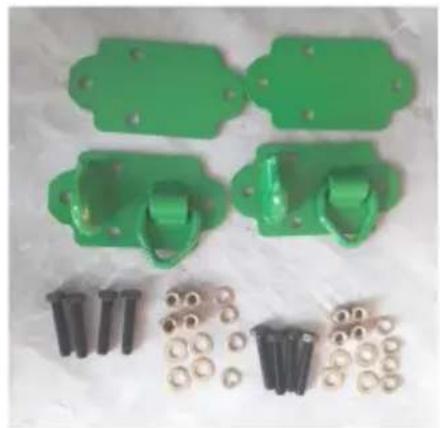

Green plastic mechanical components including clips, bolts, and washers arranged on a white surface (no text or symbols visible)
