USER MANUAL OT029 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
 | Warning-To reduce the risk of injury, user must read instructi manual carefully. |
 | This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired oper |
 | This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection in European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices |
PRODUCT OVERVIEW
- Install a second battery on the car, and the original car generator used to charge the added battery. When the car is turned off, the will be automatically isolated from the added battery to ensure that starting battery is not discharged. Intelligent battery detection reduces unnecessary switching operations, avoids various faults caused by improper operation, and does not need to switch signal in es from ignition switches.
- In the actual application of intelligent battery isolation, the pul-in and disconnection are completely intelligently controlled, and it embodies intelligence and avoids unnecessary battery connection and mutual charging and discharging when the conventional battery isolation is turned on without starting the original car's ignition.
- it can reach more than 80A. If the main and auxiliary batteries are connected at the same time, the charging capacity is even more than 100A. This is fatal to the generator, battery and wiring harness, and service life of the auxiliary battery and the main battery Significantly
shortened, the smart isolation avoids this kind of event well.
●The isolation will pull in after the main battery voltage reaches 13V minutes or 13.8V One minute after the original vehicle voltage rises the charging capacity drops., Stagger the highest peak of charging.
- It has a good protective effect on generators, batteries and wiring harnesses. Some brands of battery isolation will be disconnected under high current load for a short time, or cannot be connected to the exhausted large-capacity battery pack due to the rapid drop in voltage
- 12/24V battery isolation is not simply based on battery voltage and fixed Delay, but will judge the trend (voltage rise or fall), only where reverse trend exceeds a certain time, the reverse operation will be performed. The delay time is determined by the voltage change trend
- In the case of high current discharge, the same applies to the Batt Isolation. Will make intelligent judgments, and will not disconnect the auxiliary battery due to excessive load momentary current, such as electric winches, super speakers, inverters, etc.
- No voltage loss (no voltage drop): Low working current, 30mA when pulled in. Electricity is extremely precious in RVs and other equipment order to maximize energy saving, we choose High-tech products, the advantage lies in power saving, only needed when operating. The time current does not consume energy at all when the relay is held.
- The battery connector is an automatic parallel connection controlled by microprocessor.
- Bottle group relay (no need to open the switch and other human a When the voltage of a battery in one group reaches a predetermine value (the battery is charging),The isolation pulls in, the two sets batteries are connected in parallel, when the voltage When the value lower than the floating charge value (the battery is discharging),the battery pack is disconnected open. Here,the conventional isolation is used to give the auxiliary battery intelligently.
- Disadvantages caused by charging. Conventional isolation, if you want to charge the main battery, you must turn on the switch. At the original car's electrical appliances will work, and the generator will
start to generate heat. When the generator does not rotate to dissi heat, it wastes energy and takes a long time. Work will damage the original car generator.
●Battery isolation is the best substitute for diode separator, its main fe is that there is no voltage loss, generator or battery charging The electrical voltage does not need to be increased.
● Priority start battery:
In a typical setup, the generator is directly connected to the starter battery, and the auxiliary battery pack and other batteries are connected to the starter battery through the battery isolation connector. When the isolation earns that the starter battery has read a predetermined voltage, they can be connected in parallel at the same time to connect other batteries Group charging.
●Two-way voltage sensing and dual power supply:
The isolation senses two sets of batteries at the same time. For example, when the charger is charging the auxiliary battery set, the battery isolation will also work to charge the main battery. Both sets batteries can supply power to the isolation;
when the auxiliary battery is charged with solar energy, the isola will be closed after the voltage of the auxiliary battery reaches 13V minutes, and the main battery will be charged at the same time to achieve bidirectional function.
- Parallel connection: it can be connected by a switch in the manual. This function is used in emergency situations such as the starting I is discharged or damaged, operation method. Press the red switch (the isolation for more than 3 seconds, and you can let go when y the sound and the light is on. At this time, the main and auxiliary are connected. After a delay of 60 seconds, it will automatically sw the automatic mode. Operation. it can also be connected to a spare auxiliary starter extension cord, and extended it to a suitable position install a jog switch(only a normally open jog switch) to achieve rem control (remote auxiliary switch is not provided, with interfaces and connectors.Optional With switch).
PRODUCT PARAMETERS
| Smart battery isolator | 12V/24V series products |
| Input voltage | 9-36VDC |
| Continuous current (A) | Standard current value of isolator |
| Peak current (A) | Double value of the marked current of the isolator (30 seconds) |
| Switch on voltage (V) (delay 20S) | 3.0/6V |
| Switch on voltage (V) (delay for 5 minutes) | 11.8/23.60V |
| Switch on voltage (V) (20 minutes delay) | 13.30/26.60V |
| Disconnect time (V) (1 minute delay) | ≤11.8/≤23.60V |
| Disconnect time (V) (2 minutes delay) | >11.80/>23.60V |
| Long press the power switch for 3 seconds to close | Disconnect after 1 minute |
| stand-by current | <30mA |
| Protection level | IP54 |

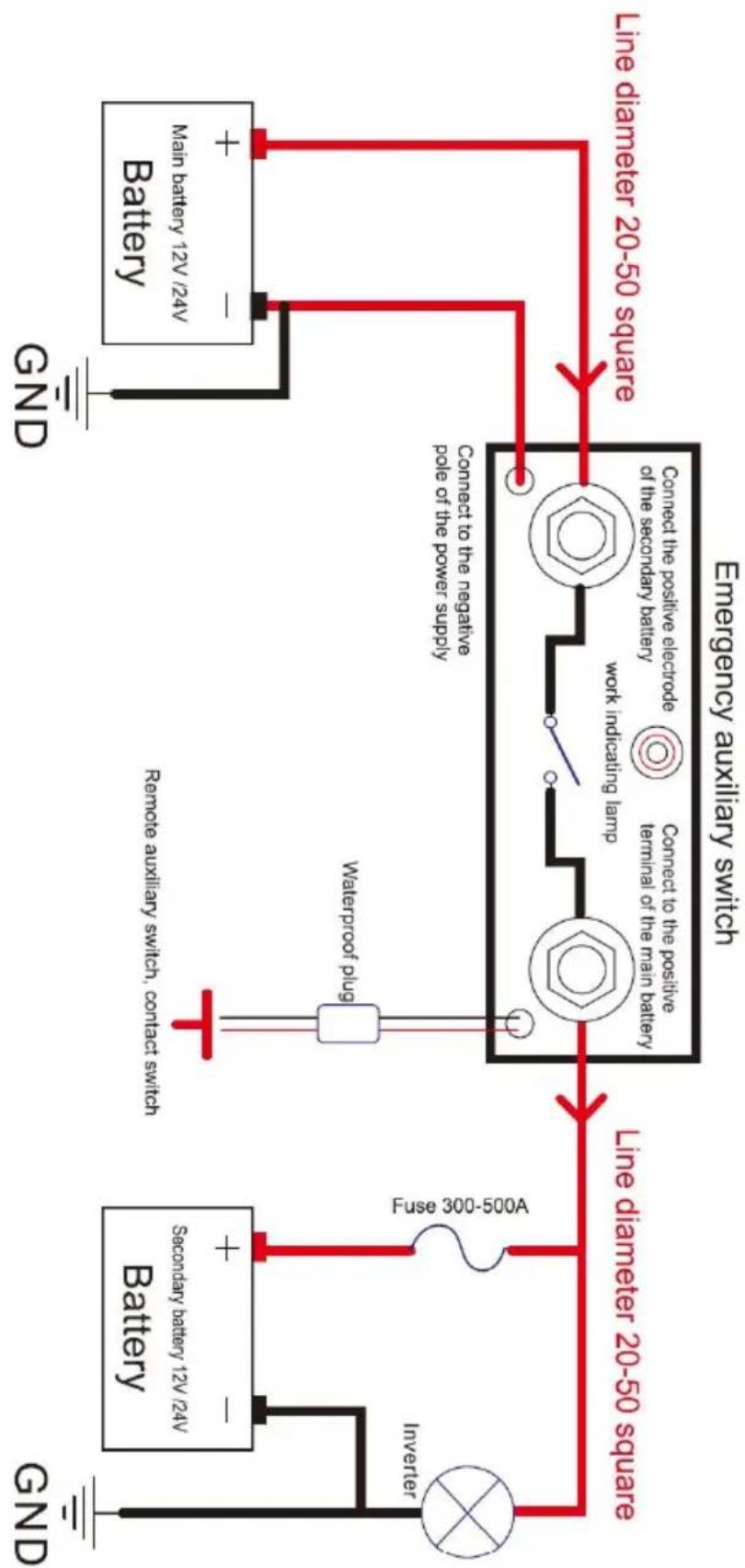

INSTALLATION INSTRUCTIONS
- The isolation can be used in a 12V or 24V system with a common negative electrode for dual batteries. Automatic adaptation Automatica detect and adapt to the 12/24V battery voltage system. Both conventional two working voltage vehicles can be installed directly at mutually installed. No need to adjust and replace. The applicability is more powerful.
- Install the isolation near the battery of smaller capacity (usually the starter battery), and fix the dry and dry position away from the heat source.
- Preparation of the power line: According to the installation length, used red power line of 20 square meters or more, cut cables of appropriate length, and connect the cables to the terminals, and also connect the black power line to the terminal, and use the black power line to The negative electrode of the auxiliary battery is connected to the common ground (frame).
- The isolation is equipped with a grounding wire. Connect the ground terminal of the isolation to the common ground(frame).
- In the automatic mode, when the two battery voltages are lower than the isolation cannot work. When the voltage of one battery is 0v, the isolation cannot pull in, which effectively protects the charger and the it can be connected to auxiliary functions.
- When the power is turned on for the first time, the indicator light 1 for 6 seconds to enter normal operation. When the isolation is closed indicator light is always on; when the isolation is isolated, it flashes every five seconds; when it is ready to close, it lights up twice even seconds and dims twice every five seconds when preparing to disconnect.
PRECAUTIONS FOR USE
- Before installation or use, it is imperative that users thoroughly read comprehend all warning and safety messages provided with the proc
- For optimal safety, it is advisable to install a fuse between the Star Battery and the VSR.
●The VSR incorporates a built-in delay, allowing 3-5 seconds for the connection or disconnection process.
●The VSR is equipped with an integrated red indicator that illuminates when the VSR is engaged, indicating both batteries are connected. - If the VSR fails to disconnect when turning off the vehicle's engine, manual mode to turn it off.
- Individuals under the influence of alcohol or drugs, lacking experience. Lacking professional knowledge is prohibited from using this unit.
●Avoid using or storing this VSR near heat sources, open flames, or exposure to flammable chemicals, vapors, or corrosive gases. - Avoid disassembling the charger, as this may not only cause potential harm to you and the unit but also void the warranty.
- Disconnect the charger before engaging in maintenance or cleaning.
●Wear proper eye protection before initiating the charging process. - Keep fresh water and soap on hand in case battery acid contacts eyes in such an event. Cleanse immediately with soap and water for minimum of 15 minutes and seek medical attention.
●Avoid smoking or having an open spark or fire near this unit. - Regularly inspect the VSR for any damage. If damaged, avoid using until repairs have been conducted.
● The working current of the smart isolation is 80-400A (please check actual amperage marked on the isolation), and the maximum current 160A-800A (double the value of the marked amperage) for 30 seco. The charging current of all cars can be satisfied.
ACCESSORIES LIST
- Dual Battery Isolation *1
- User Manual *1
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Unit 5 Albert Edward House, The
Pavilions Preston, United Kingdom
