USER MANUAL AMX12-STA40B Vevor

Affordable. Reliable. Home Improvement.

POWERSPORTS BATTERIES

MODEL:AMX12-ST020B / AMX12-STA40B / AMX12-ST070B / AMX12-ST080B / AMX12-ST060B

MODEL:AMX12-ST020B / AMX12-STA40B / AMX12-ST070B

/ AMX12-ST080B / AMX12-ST060B

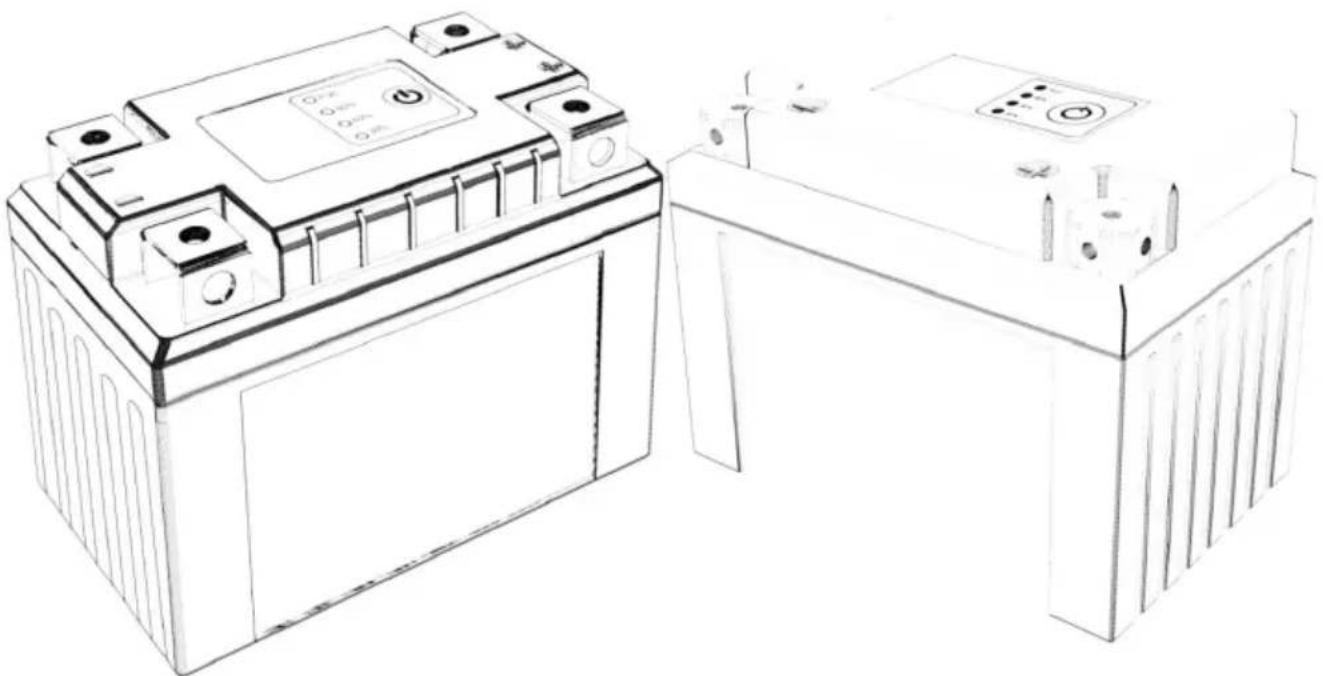

Line drawing of two battery units, one with control panel and battery casing, the other with control panel and battery casing (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructi manual carefully.
	This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired oper
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

USER'S GUIDE

CAUTIONS!

Do not use or leave the battery at very high temperatures (for example, in strong sunlight or in a vehicle in extremely hot weather). Otherwise, it can overheat or fire, its performance will degenerate and its service life will be shortened.
◆ Do not use it in a location where static electricity is rich, otherwise, the safety may be damaged, causing a harmful situation.
◆ In case the electrolyte gets into the eyes due to the leakage of the battery, do eyes! Rinse the eyes with clean running water, and seek medical attention immediately. Otherwise, it may injure the eyes or cause a loss of sight.
If the battery gives off an odor, generates heat, becomes discolored or deformed, any way appears abnormal during use, recharging or storage, immediately remove it from the device or cell charger and place it in a contained vessel such as a metal

◆ In case the battery terminals are contaminated, clean the terminals with a dry clc before use. Otherwise, power failure or charge failure may occur due to the poor con between the cell and the electronic circuitry of the instrument.
◆ Be aware that discarded batteries may cause fire, 100% discharged the battery at the battery terminals to insulate them before disposal.

WARNINGS!

The battery will fire, explode or leak if not strictly observing this item described below

◆ Do not immerse the battery in water or seawater, and keep the battery in a co- environment during stands by period.
◆ Do not mix using the battery with a one-off cell (such as a dry cell) or a different-performance battery together.
◆ Keep all batteries out of the reach of little children. Consult a doctor immediately if a cell is swallowed.
◆ Do not use or leave the battery near a heat source such as a fire or heater were-charging, use the battery charger specifically for that purpose.
◆ Do not reverse the positive (+) and negative (-) terminals.
◆ Do not reverse the positive (+) and negative (-) terminals.
◆ Do not dispose of the battery in fire or heat.
◆ Do not short-circuit the battery by directly connecting the positive (+) and negative (-terminals with metal objects such as a wire.
◆ Do not transport or store the battery together with metal objects such as necklac hairpins, etc.
◆ Do not strike or throw the battery against a hard surface.
◆ Do not directly solder the battery.
◆ Do not pierce the battery with a nail or other sharp object.

1). PRODUCT OVERVIEW

Advantages of lithium iron phosphate batteries over lead-acid batteries:

◆ High C-rate: Lithium battery adopts stacked lithium iron phosphate cell, features stable voltage, low internal resistance, good high and low temperature performance, can achieve high C-rate and high current discharge, can easily state vehicle equipment under -20 °C to 60 °C conditions.
◆ Light weight: The discharge rate of lithium iron phosphate battery is 10 times that lead-acid batteries, and the volume and weight are only 1/3 of lead-acid batteries
◆ Long life: The service life of lithium iron phosphate batteries is 2-3 times that of lead-acid batteries, The number of deep cycle discharges exceeds 1500
◆ Intelligent BMS: The built-in Intelligent Management System (BMS) protects the bat from overcharge, over discharge, overload, overheating and short circuit. And with custom power on/off, low power sleep, shake-to- restart(only gently shake the vehicle battery), one-key restart battery and other functions. (Patent protected).
◆ Safety: lithium iron phosphate battery has good chemical stability, low self-discharge, no memory effect, and higher safety performance when it is charged.
◆ Environmental protection: lithium iron phosphate battery is non-toxic (SGS certified), does not contain lead, mercury and other toxic substances, no pollution, in line with European RoHS regulations.
◆ Versatility: This product has been designed and added with universal gaskets that you to easily install on a variety of vehicles and replace more lead-acid battery.
◆ Application: This product is compatible with motorcycles, all-terrain vehicles, snowmobiles, scooters, four-wheeled vehicles, off-road vehicles, UTVs, go-karts, water scooters, lawn mowers, generators and other models.

Battery Parameters	Model		AMX12-ST020B	AMX12-STA40B	AMX12-ST070B
	Nominal Voltage		12V
	Nominal Capacity		2Ah	4Ah	7Ah
	Watt Hours		24Wh	48Wh	84Wh
	Terminal Qty		4	4	4
	IR(2)		≤15mΩ	≤10mΩ	≤8mΩ
	RC (min)		4.8	9.6	16.8
	Casing Material		ABS+PC VO
	Cycle Life		≥1500 times,Discharge Capacity>80%(1C)
	Cranking Ampere @ R ^T 3s		150A	240A	420A
	ColdCrankigAmperee-18°C 30s		70A	120A	210A
	Max.Constant Discharge Current		16A 8C	32A 8C	56A 8C
	Max.Charge Current		10A 5C 7s	20A 5C 7s	35A 5C 7s
	Recommended Charging Voltage		14.6V
	Recommended Discharging Voltage		10.0V
	Range of Operating Temperature	Charge	10°C~45°C
		Discharge	-20°C~60 °C
Size Battery	Standard Size (mm)		113×70×85	150×87×93	134×75×133
	Extended Size(mm)		113×70×105	150×87×105	133×75×162
	Extended Size (mm)		113×70×125	150×87×120
	Extended Size(mm)			150×87×130
Alternative lead acid battery mode			YTX4L-BS、YTZ5S-BS、YTX5L-BS、YTZ6-BS	YTX12-BS、YTZ14S-BS、YTX7A-BS、YTX9-BS、YTZ10S-BS、YTZ12S-BS、YZ12A-B2	YT14AH-BS、12N7-3B、12N7-4A、12N7-4B、6MF7-BS、6MF9-BS
Battery Parameters			Model		AMX12-ST080B	AMX12-ST060B
			Nominal Voltage		12V
			Nominal Capacity		8Ah	6Ah
			Watt Hours		96Wh	72Wh
			Terminal Qty		4	4
			IR(2)		≤8mΩ	≤8mΩ
			RC (min)		19.2	14.64
			Casing Material		ABS+PC VO
			Cycle Life		≥1500 times,Discharge Capacity>80%(1C)
			Cranking Ampere @ R73s		480A	360A
			ColdCrankigAmperee-18°C 30s		240A	180A
			Max.Constant Discharge Current		64A 8C	48A 8C
			Max.Charge Current		40A 5C 7s	30A 5C 7s
			Recommended Charging Voltage		14.6V
			Recommended Discharging Voltage		10.0V
			Range of Operating Temperature	Charge	10°C~45°C
				Discharge	-20°C~60 °C
Size Battery			Standard Size (mm)		150×87×130	150×87×93
			Extended Size(mm)		150×87×145	150×87×105
			Extended Size (mm)		150×87×155	150×87×120
			Extended Size(mm)		150×87×168	150×87×130
Alternative lead acid battery mode			YTX12-BS、YTX14-BS、YTX20-BS	YTX12-BS、YTZ14S-BS、YTX7A-BS、YTX9-BS、YTZ10S-BS、YTZ12S-BS、YZ12A-B2

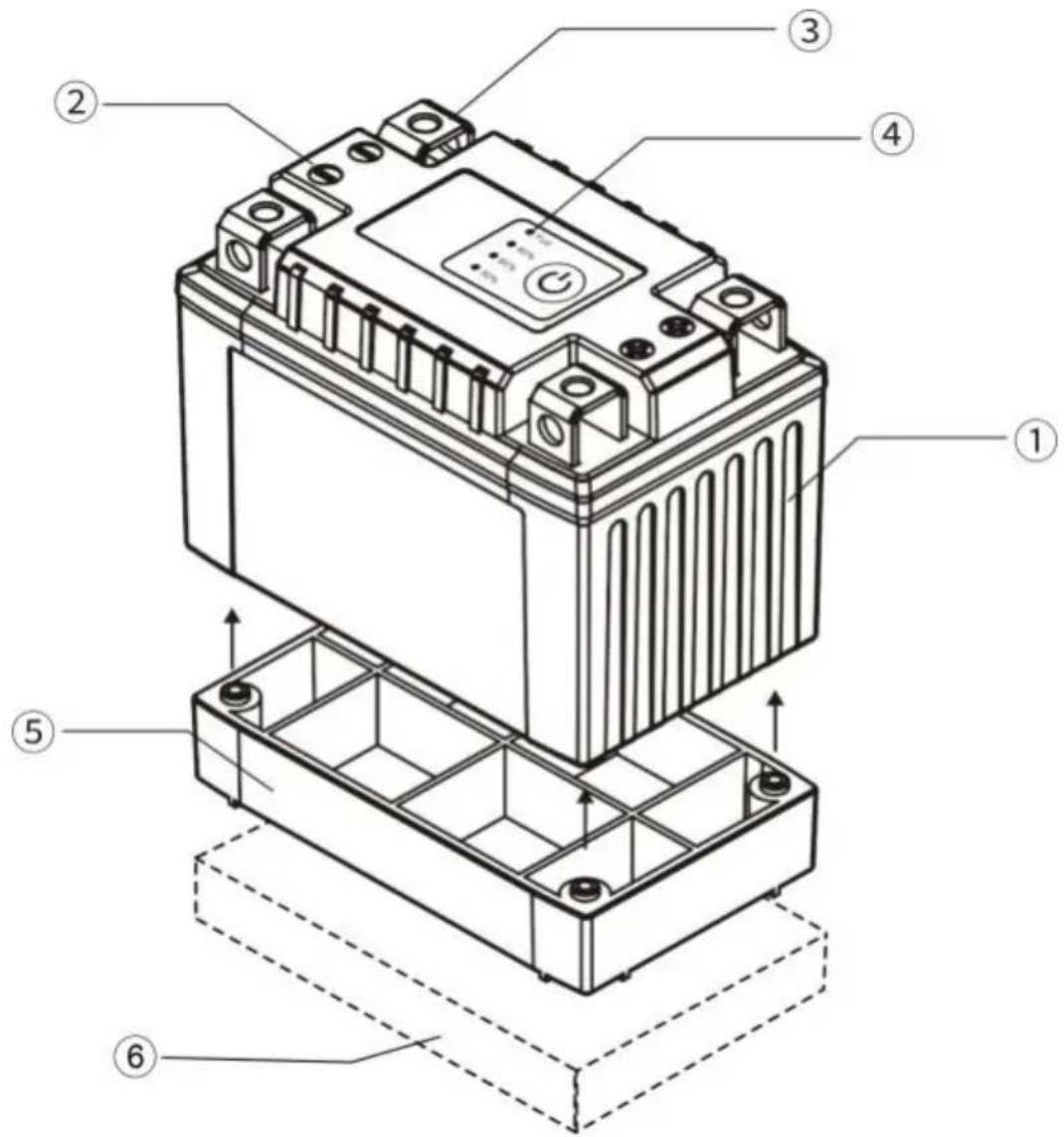

Technical diagram of an electrical component with numbered parts for identification and assembly reference.

1PC+ABS plastic material(Fire protection level V0)	2+Positive terminal identification-Negative terminal identification
3Positive and negative terminals	4Power Display
5Universal Spacer	6EVA Spacer(Some models do not come with)

INSTRUCTIONS FOR USE

1). Before installation, check whether the battery is damaged and leaking, and clean the surface of the battery with a dry cloth, if the battery shell is found to be cracked and leaking, the battery should be replaced immediately to avoid acid corrosion. Check whether the position of the battery is smooth and neat, and avoid foreign objects such as solder joints from damaging the battery.

2). First remove the battery packaging box, do not install it with the box, and it is still forbidden to wrap the appearance of the battery with tape, plastic film, etc.; The battery should be installed upright, not upside down, the distance between adjacent batteries greater than 2 mm, and at the same time it should be shockproof, pressure-proof, fire installed, and should not shake and impact, rub against each other, and cannot enter 3). In order to ensure safe use, the upper part of the battery box where the battery installed and the related components outside the battery box must ensure that there are ventilation holes of not less than 8 mm from the inside to the outside, and must not be blocked, so as to prevent the gas accidentally generated when the battery is charged being discharged in time into the battery box and related component space, especially space similar to the avoidance of sealing under the footrest.
4). Choose qualified connecting wires, determine the maximum bearing current of the w according to the whole vehicle supporting parameters, and the wires are free from cc and oxidation, rust, bifurcation and connection.
5). Devices that are prone to electrical sparks must be isolated from the battery.
6). Batteries are usually pre-charged at the factory, and usually users can load and use directly, but in order to ensure the life of the battery, it is recommended to fully change before use..
7). Use chargers that meet the requirements, overcharge and over discharge are strictly prohibited; It is strongly recommended to use intelligent lithium iron phosphate charger, the output voltage of the selected charger should be 14.4V ± 0.2V , if the battery is no

for a long time, the battery needs to be stored after full charge, and it is strictly for store it for a long time in a low power state.

8). If the battery is continuously charged for more than 10 hours, the charger still does turn green or the battery heats up significantly, and the charging should be stopped immediately and handed over to the local after-sales service point for processing. If y ride in the high temperature season, it is recommended to park for about half an ho wait for the battery to cool down to normal temperature before charging.

9). The battery should not be close to the fire source and heat source, and the battery should be avoided from violent vibration, collision and short circuit of positive and negative power. It is strictly forbidden to charge the battery directly under sun exposure in the hot sea and it is forbidden to charge directly after riding in summer when the battery temperature is relatively high.

10). The battery capacity is based on the ambient temperature of 25^ , and the battery capacity decreases by about 1% for every 1^ drop in temperature, and the influence factors of ambient temperature should be considered in use. The battery should be avoided in a low temperature environment below -10^ .

11). After a period of charge and discharge cycle of the battery, the battery capacity gradually decreases, resulting in a decrease in the mileage of the electric vehicle, which is a normal phenomenon.

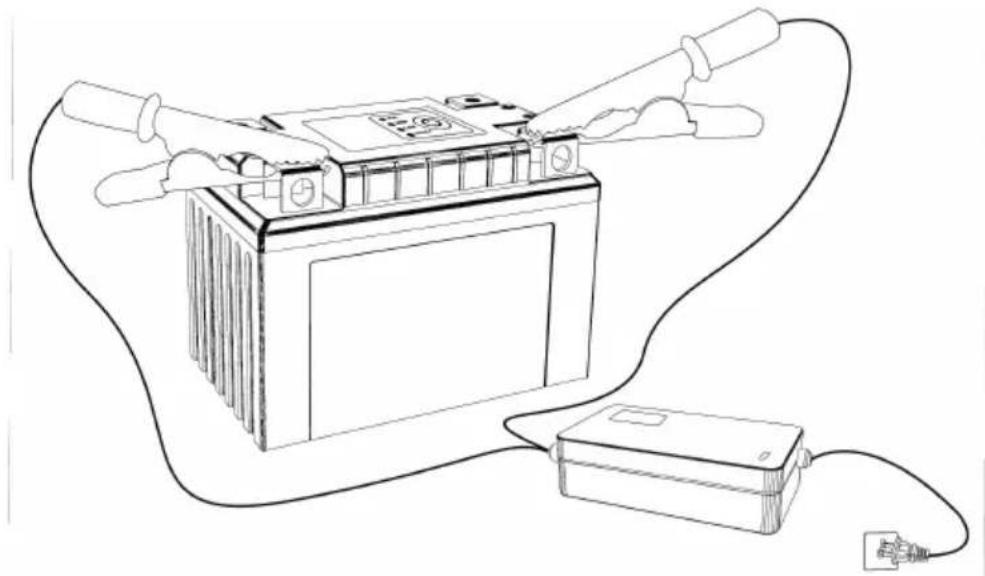

Line drawing of a battery connected to a power cord and plug, showing wiring connections (no text or symbols)

Technical line drawing of a battery pack assembly with mounting holes and internal compartments (no text or symbols)

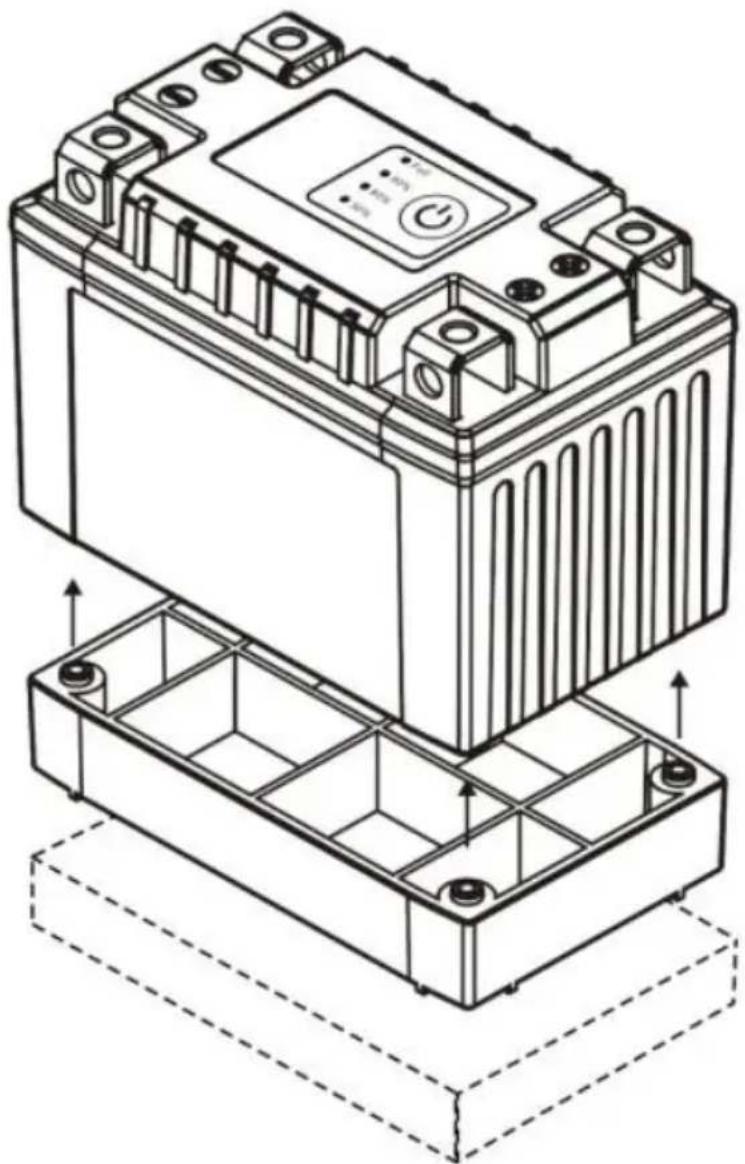

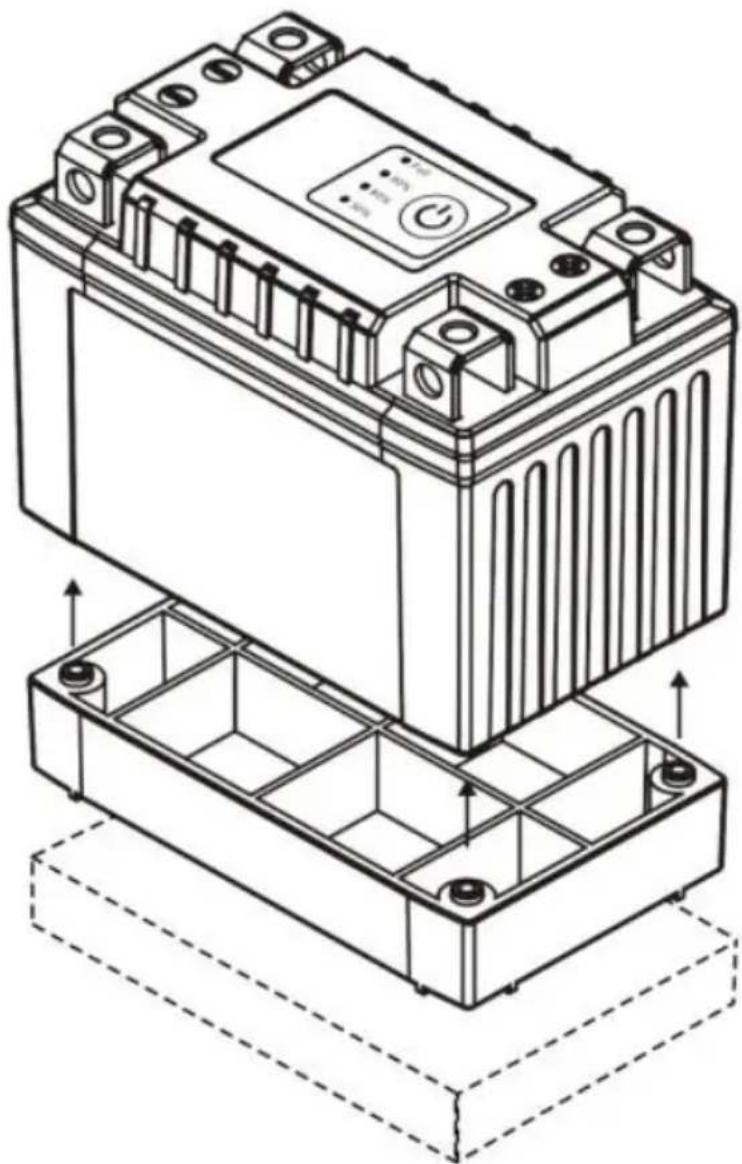

Note: The appearance of the product is for reference only, please refer to the receipt physical battery shall prevail There are 4 card slots at the bottom of the battery the spacer is aligned with the four card slots and stuck, no meed screws.

Spacer: The configured spacer can perfectly match the size of the battery compartment. When your battery height is insufficient or unable to fit, you can choose to add the or remove the spacers. Add the spacers can compatible with more battery models, more options.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
