USER MANUAL GZB88092 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

MOBILE BASE

MODEL: GZB88092

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: GZB88092

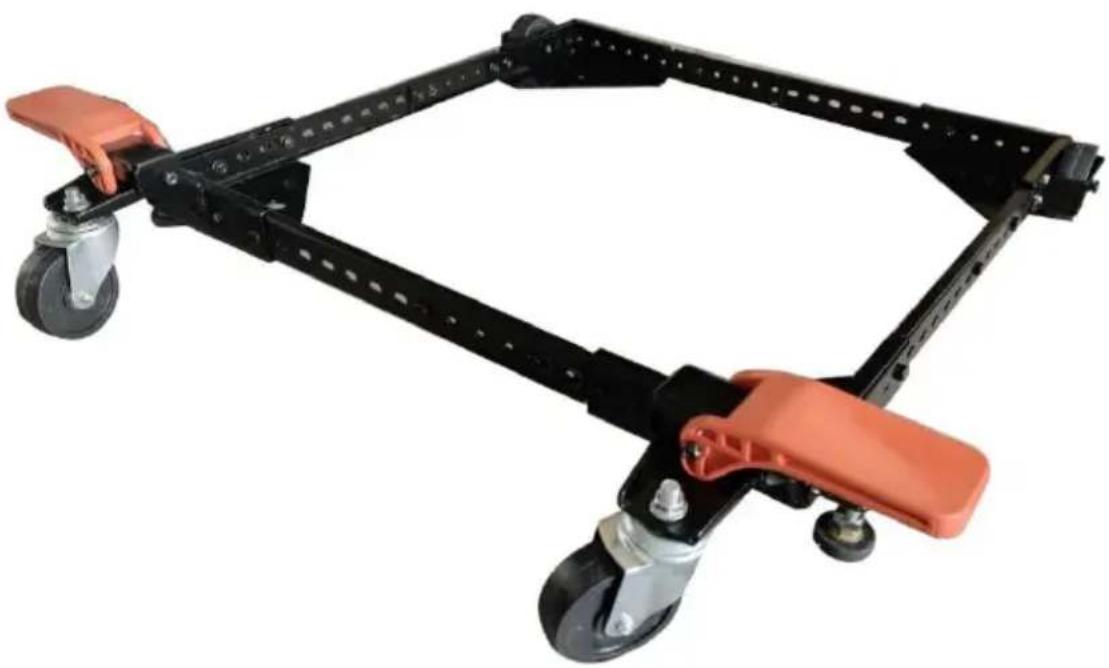

Black and red mechanical frame with wheels, no visible text or symbols

Photo for reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING: Read and understand this manual before assembling, installing, operating, or servicing this product.

Failure to follow these warnings and instructions can caus

death, personal injury, or damage to valuable property.

1. Please do not put it near flammable materials.
2. It is forbidden to carry people under any condition.
3. This product cannot be used to go up or down stairs.
4. Overload is strictly prohibited.
5. Don't move too fast when passing pothole areas.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	GZB88092
Material	Q235
Base size adjustment range	12x12 inches up to 36x36 inches
maximum load	500 lbs

ASSEMBLY AND USE

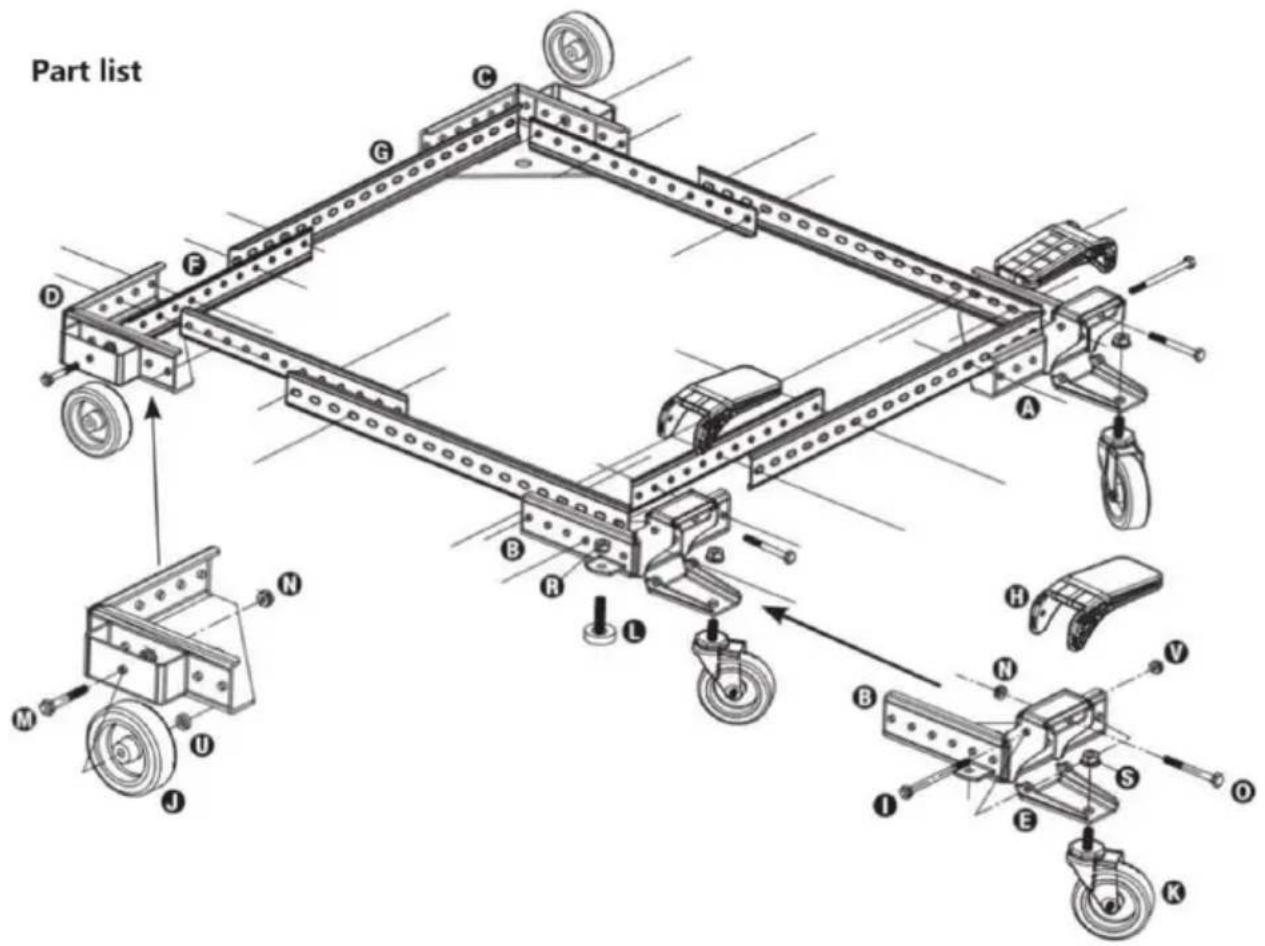

Part list D F G C A B R L H N V M U J I S O E K

Parts List
S/N	Description	Qty	S/N	Description	Qty
A	Corner (Front- Rig-ht)	1	L	Rubber Foot	2
B	Corner (Front-Left)	1	M	1/4 × 47 Bolts, Axle	2
C	Corner (Back-Right)	1	N	1/4 Nuts, Self-Locking	4
D	Corner (Back-Left)	1	O	1 / 4 × 62 Bolts	2
E	Swivel Plate	2	P	1 / 4 Bolts	25
F	Short Side Rail	4	Q	M6 Nuts	25
G	Long Side Rail	4	R	M 10 Nuts	2
H	Foot Lever	2	S	M 10 Nuts, Flanged/Serrated	2
I	Pivot Rod Bolt	2	U	Nylon Wheel Bushing	2
J	Wheel, 3 "	2	V	M6 Nuts Self Locking (Black	2
K	Swivel Caster	2

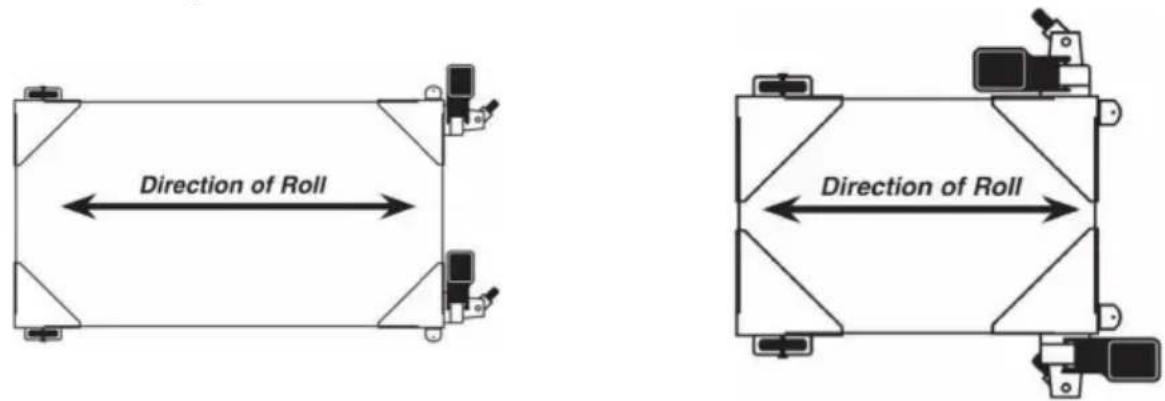

Assembly Examples

Be sure to follow safety and Assembly Instructions. Keep in mind the operation of your machine and the effect it has on overall stability.

Direction of Roll Direction of Roll

A long, narrow base, such as or jointer, would benefit from this arrangement. Most machines may be arranged to the convenience of the user.

A short, narrow base, such as found on a drill press or bands may benefit from this arrangement. Due to swivel rotation the base may sit out of level. Rotate the swivel wheel away from the base correct.

Attaching Wheels and Casters

1. Review the diagrams for wheel, caster, and leveler placement.
2. Attach swivel plate ⑤ to the (Front-Right) caster bracket corner ④ using pivot rod bolt and M6 self-locking (black) nut ①. For proper orientation, refer to Figure 1.
3. Attach actuator cam lever Ⓗ to caster bracket using an M6-62 pi ⑩ and M6self-locking zinc (silver) nut Ⓗ.

Note: The Actuator Cam Levers can be oriented in either direction.

1. Attach swivel caster Ⓚ to swivel plate Ⓔ using M10 nut Ⓗ.

2. Insert threaded rubber foot Ⓛ into the threaded hole in leveling foc
   bracket. SpinM10 jamb nut ® onto the top of the threaded rubber fo

3. Repeat steps 1 through 5 on the (Front-Left) caster bracket corner

4. Slip wheel Ⓙ into position on left and right corners (© &D ), refer to Figure 1.

5. Insert M6-47 bolt Ⓜ through hole in the outer edge of wheel ho

through wheel Ⓙ, through nylon bushing Ⓗ, and secure to corner us

M6 self-locking zinc nut Ⓝ. Use care not to over-tighten. Over-tighteni

will prevent the wheel from turning.

Tip: insert extra bolt into the axle hole from the inside of the cc Insert the bolt into the wheel housing just far enough to act as a "I for the nylon washer. Now carefully align the wheel, and install the a per above.

1. Lift your machine or item to be mobilized into place.

CAUTION: Check stability in both the up and down positions before Failure to follow safety and assembly instructions may result in person injury or damage to product.

MAINTENANCE

1. Avoid prolonged exposure to the sun to avoid aging.
2. Inspect accessories for wear, cracks, and other damage before use and replace defective accessories immediately.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4
