Product Type	Power Supply for CO2 Laser
Brand	Vevor
Model	MYJG80W
Input Voltage	AC 100-240 V, 50/60 Hz
Maximum Output Current	25 mA
Efficiency	91%
Response Speed	≤ 1 ms
Overcurrent Protection	130% of maximum current
Open Circuit Protection	Yes (short duration)
Cooling	Built-in Fan
Operating Temperature	-30 °C to +65 °C
Relative Humidity	20 to 85% RH (non-condensing)
Insulation Resistance	≥ 50 MΩ (DC 500 V)
MTBF	≥ 30,000 hours
Control Signal	TTL (high/low) or PWM, 0-5 V analog
Feedback Interface	Yes, for closed-loop control
Maintenance and Cleaning	Disconnect before cleaning; use a dry cloth; do not expose to water
Safety	Grounding mandatory; avoid electric shocks; do not open the casing when powered
Spare Parts and Repairability	Contact Vevor technical support for parts and repairs
General Information	High-performance power supply for CO2 laser tubes; lightweight and compact

Frequently Asked Questions - MYJG80W Vevor

What type of laser tube can this power supply support?

This power supply is designed for CO2 laser tubes of corresponding power. It supports tubes from different manufacturers.

How to connect the laser tube to the power supply?

Connect the high voltage (HV+) to the tube anode and the current circuit to the cathode. Use an ammeter in series if necessary. Respect polarity.

What control signals are accepted?

The power supply accepts TTL (high/low level), PWM (20-50 kHz, duty cycle 0-100%) or analog 0-5 V signals.

How to adjust the laser power?

Power can be adjusted via an analog 0-5 V signal or PWM modulation. The output current is controlled by the wattmeter.

What is the protection in case of open circuit?

The power supply can operate in open circuit for a short period if grounding is correct, thus avoiding damage to the power supply in case of tube rupture.

What are the recommended operating conditions?

Temperature: -10 to 40 °C (according to the manual), humidity ≤ 85% RH. Avoid condensation.

How to ensure electrical safety?

Use a three-wire grounded plug. The casing must be strictly grounded. Do not touch the high-voltage outputs, even after shutdown (discharge possible for up to several seconds).

What do the LEDs on the power supply mean?

The LASER LED lights up when the laser fires. The P LED indicates a protection is activated. The L LED lights up when the test switch is in the TTL signal position.

Can the power supply be used with water cooling?

Yes, the laser tube must be water-cooled during operation. The power supply has a protection switch for water flow.

Where to find technical support and warranty?

Visit the website www.vevor.com/support for technical support and the electronic warranty certificate. You can also contact customer service via the contact information provided in the manual.

User questions about MYJG80W Vevor

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Power Supply in PDF format for free! Find your manual MYJG80W - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MYJG80W by Vevor.

USER MANUAL MYJG80W Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

LASER POWER SUPPLY USER MANUAL

MODEL: MYJG40W, MYJG60W, MYJG80W, MYJG100W, MYJG150W

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

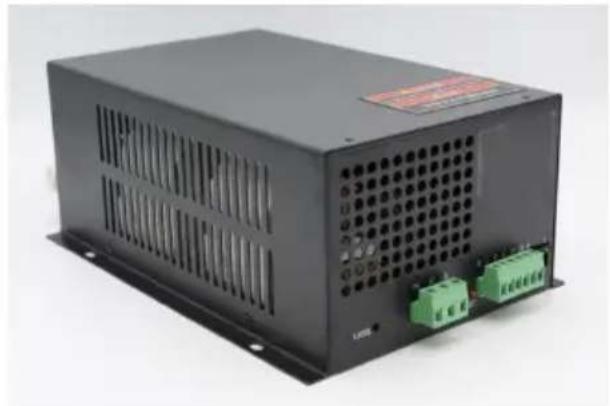

LASER POWER SUPPLY

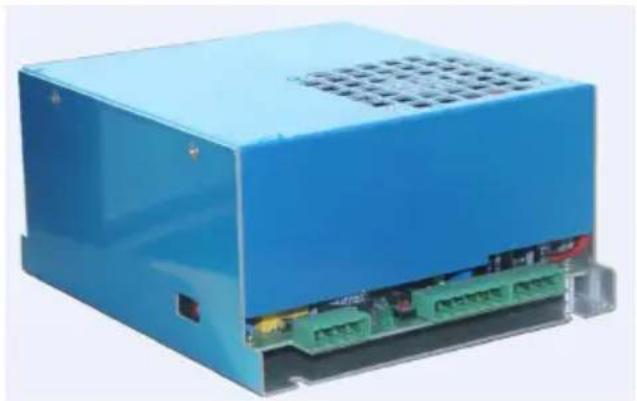

Blue industrial electronic device with green circuit board and ventilation grille (no visible text or symbols)

MYJG40W

Exterior view of a black industrial power supply unit with ventilation slots and two green terminal connectors (no visible text or symbols)

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Key features:

The product is a successful high-efficiency, high-frequency, high-speed CO2 laser supported power supply, small size, light weight, easy to operate with good matching performance for lasers. It can be directly connected with the laser, saving the bulky and severe heating of resistance. The power supply can make the CO2 laser lighting easy, taking advantage of the full performance of CO2 laser, improving conversion efficiency, and extending the life of the laser.

Key Technical Parameters:

Input voltage: AC 100-240V
Response speed: ≤ 1mS.
TTL level switch control: effective level can be high or low select
Protection switch: can be used for the detection of water, protection of lasers, or protection when opening the housing, etc.
Laser power regulation: (1) The output current of the laser power is regulated by the power meter. (2) Controlled by PWM (TTL level).
Feedback Interface: The power supply itself can have a feedback interface and can be used for closed-loop control to verify the actual working current of the laser.
Environment of use: Temperature (-10 to 40 degrees C), humidity: 85%.

Instructions For Use:

Connection of the Laser Tube: The high-voltage (HV-plus) of the power supply must be connected to the anode (full reflector) of the laser tube. The current circuit of the laser power supply is connected to the cathode (laser output) of the CO2 laser tube via a current meter directly)

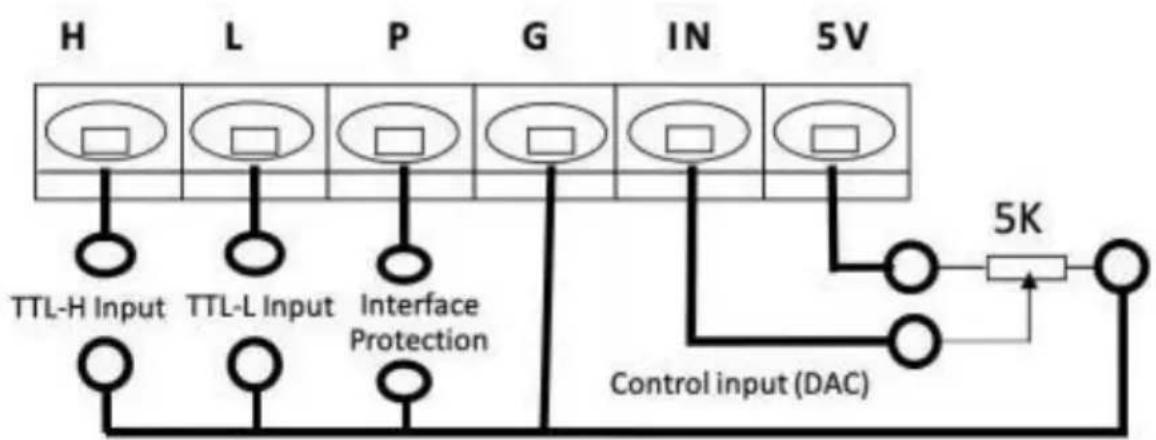

Connection of the Control Signal: In Figure 1 (or Figure 2), the signal line is reliably connected to the control end of the laser power supply.
Control Signal Input: As shown in Figure 3, the DAC signal or T signal output from the external computer are connected to the laser power supply as required, and to control laser tube output power.
Voltage Selection: The laser power supply requires inputs of AC 100-240V, 50/60Hz.
Additional Features: The laser power supply has a set of protective switches for protection for water flow, when the housing is opened.

Important Notes:

The laser tube must be cooled with water when working!
High-voltage output must not be open! (The high-voltage output positive and negative ends must be properly connected to the laser positive and negative ends).
The internal power supply has been designed to discharge any residual charge at shutdown, but can generally take up to two seconds. But for safety reasons you should still be careful of electric shocks! Insulation safety requirements of the suspended 40KV high voltage must be guaranteed at both ends of the high-voltage output).
The laser power supply must use a three-hole socket with a ground end. The case must be strictly grounded to avoid electric shock.

The current circuit

HV+(High Voltage)

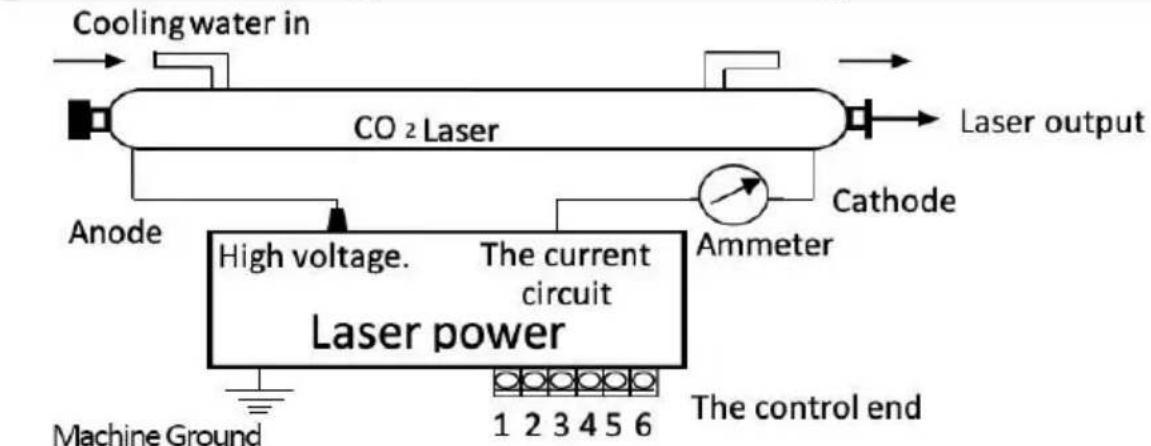

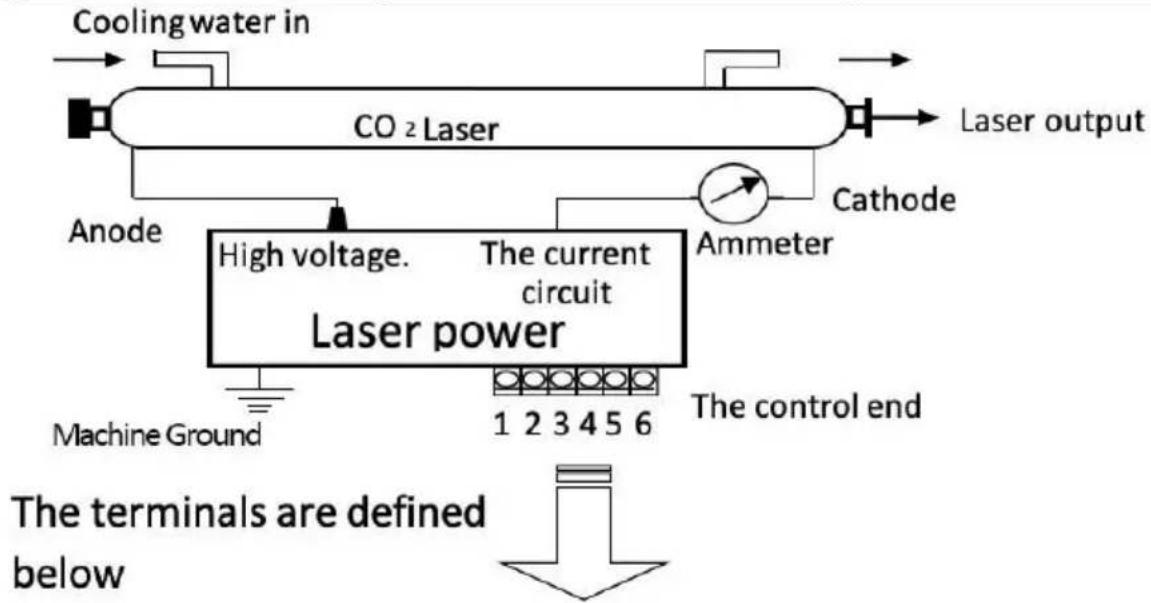

Wiring Diagrams for Laser Power Supplies and Lasers:

Control terminal meaning and function:

TTL-H Input	TTL-L Input	Control Input (DAC)	Laser output
Open	Low (<0.3V)	0-5V	Pmin - Pmax
Open	High (>3V)	0-5V	0
Low (<0.3V)	Open	0-5V	0
High (>3V)	Open	0-5V	Pmin - Pmax
Protection Interface		0-5V	0

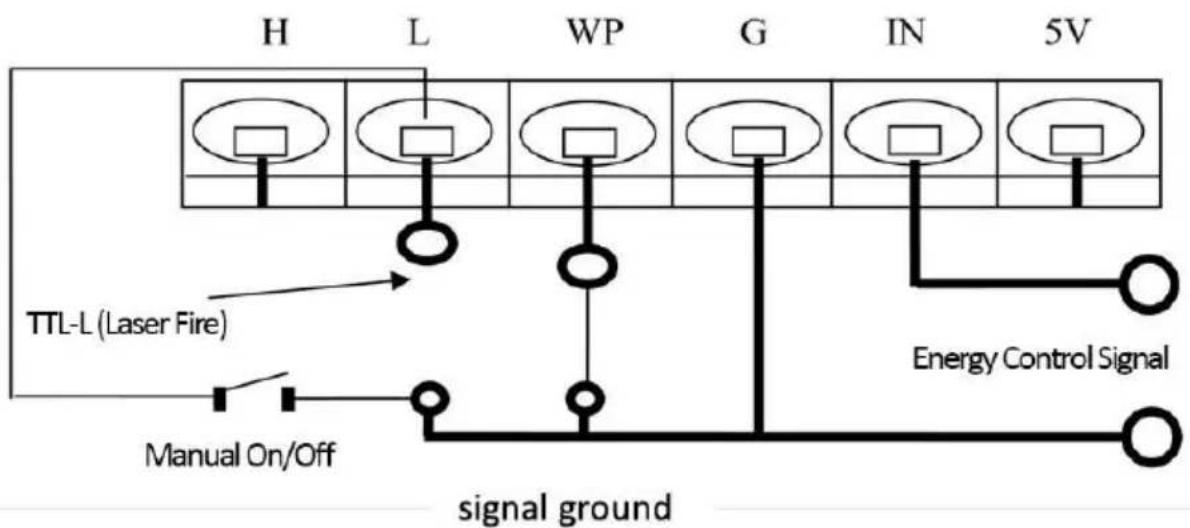

Low-level TTL Signal Connection Diagram graph TD A["Cooling water in"] --> B["CO2 Laser"] B --> C["Laser output"] D["Machine Ground"] --> E["High voltage."] E --> F["Laser power"] G["Anode"] --> H["Ammeter"] I["Cathode"] --> H J["The current circuit"] --> H K["The control end"] --> H

The terminals are defined below

Note: There are two ways to control energy signals:

PWM Pulse Generator: (frequency laser) intensity from 20kHz to 50kHz, 5V air-to-air ratio.
0-5V Analog

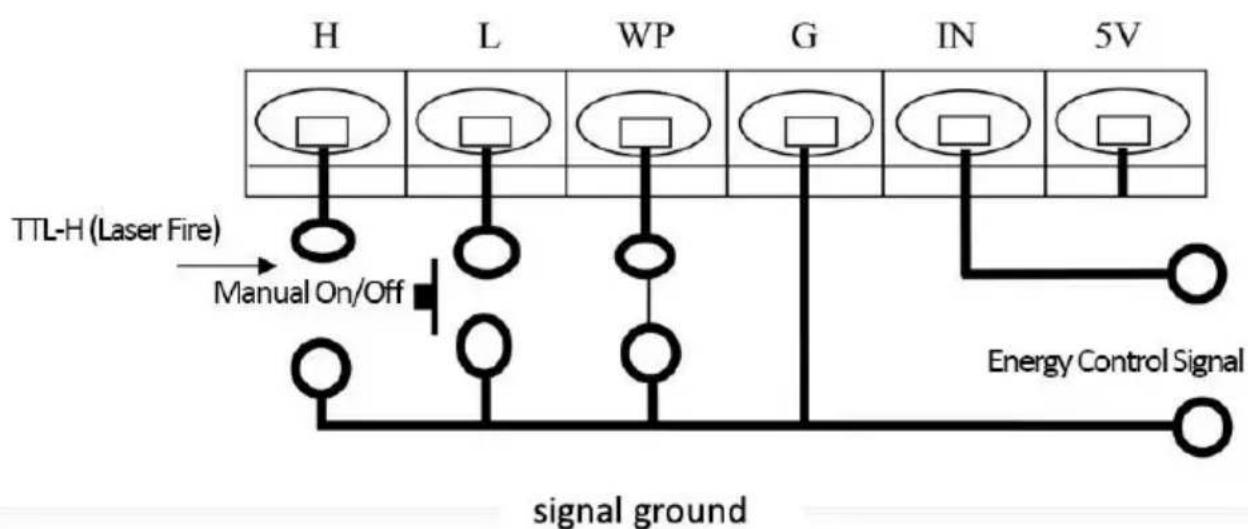

High-level TTL Signal Connection Diagram: graph TD A["Cooling water in"] --> B["CO2 Laser"] B --> C["Laser output"] B --> D["Ammeter"] D --> E["Anode"] E --> F["High voltage."] F --> G["Laser power"] G --> H["Machine Ground"] G --> I["1 2 3 4 5 6"] G --> J["The control end"] style A fill:#f9f,stroke:#333 style B fill:#ccf,stroke:#333 style…

Note: There are two ways to control energy signals:

PWM pulse generator: (frequency laser) intensity from 20kHz to 50kHz, 5V air-to-air ratio.
0-5V Analog

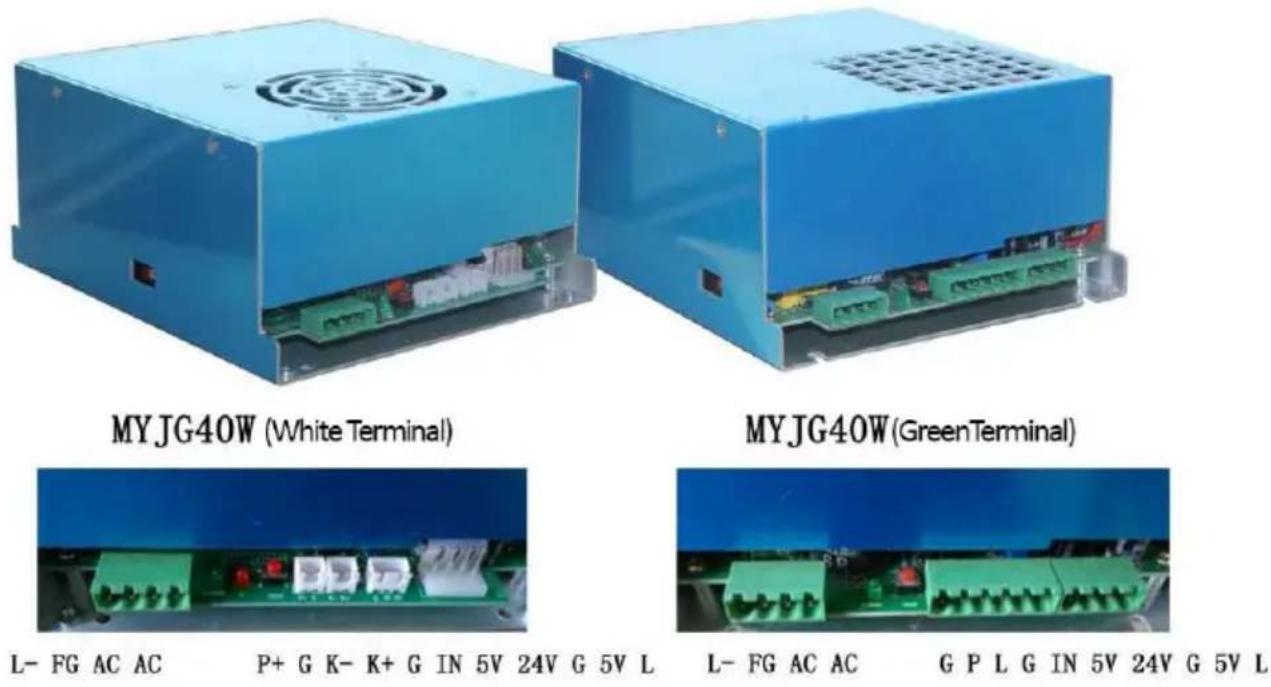

MINGYU LASER POWER SUPPLY MODELS Vevor MYJG80W - Important Notes: - 8

L-: Laser Tube (-) FG: Ground AC: 110V/220V

P+/P: Water Protection G: Ground

IN: Power Input 5V: Output

K-: Ground K+: Low Level

24V: Output L: Active Low

Model Parts list picture
MYJG40W	connection terminal*3
MYJG60W/80W/100W/150W	connection terminal2high-voltage power lines1

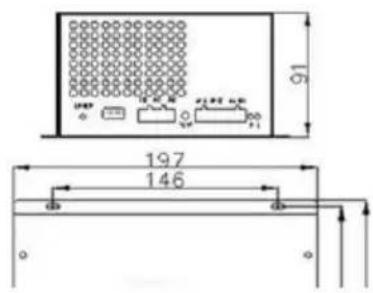

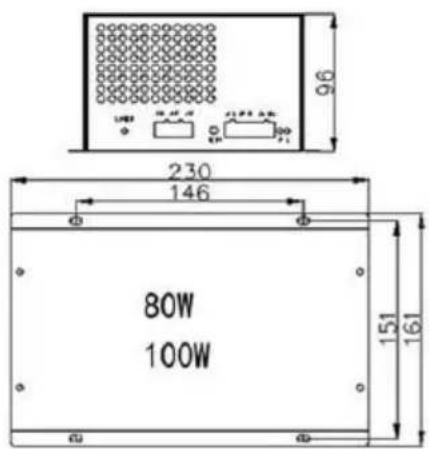

New stable laser power supply picture and mounting (size in mm) Exterior view of a black industrial power supply unit with control buttons and ventilation slots (no visible text or symbols)

MYJG50W

Exterior view of a black industrial power supply unit with ventilation slots and two green terminal blocks (no visible text or symbols)

MYJG60W

171 146

91 197 146

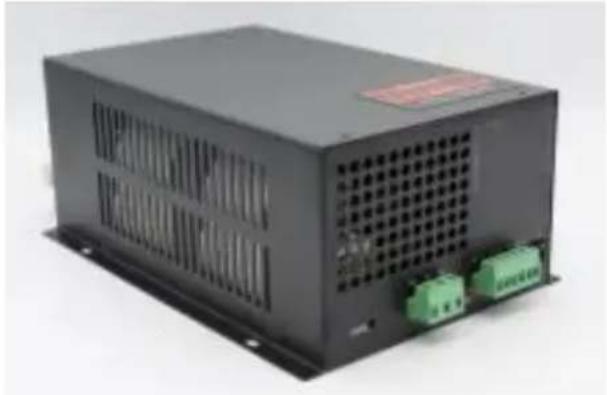

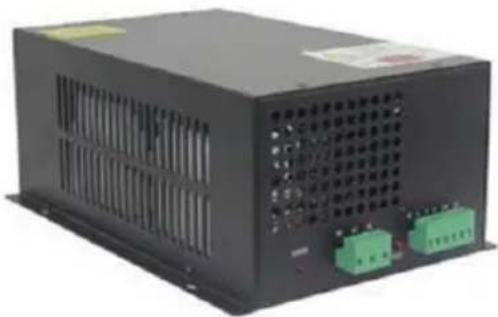

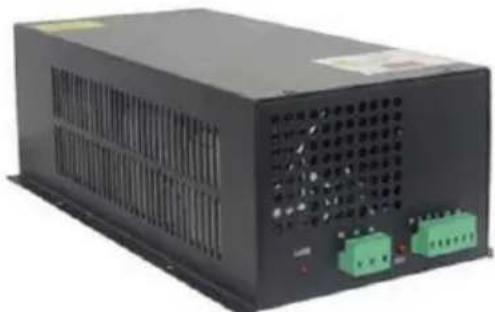

Black industrial power supply unit with Chinese labels and terminal connectors

MYJG80W

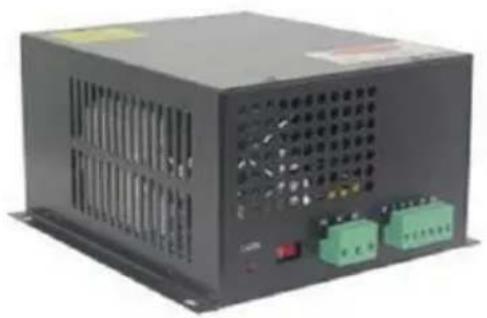

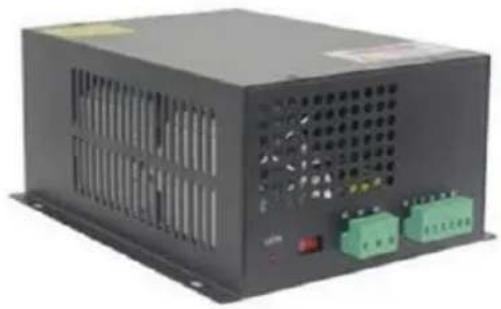

Black industrial power supply unit with Chinese labels and green terminal connectors

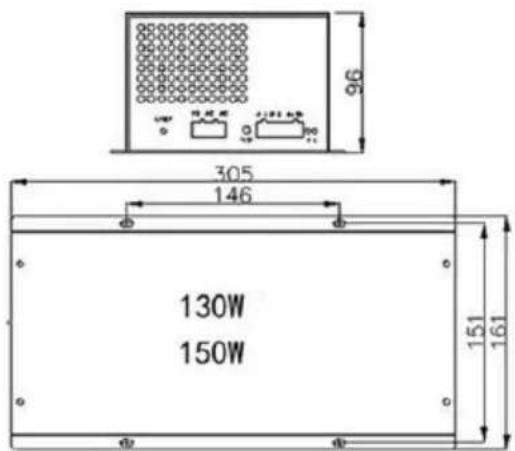

MYJG130W MYJG150W (Customizable voltage stabilization function)

MYJG100W (Customizable voltage stabilization function) 96 230 146 80W 100W 151 161

305 146 130W 150W 96 151 161

Laser Power Supply Main Features:

New stable laser power supply, the biggest features: the use of mod design automatic detection of laser power signal, automatic detection of water protection!

The mounting holes are all consistent and suitable for plant line installation. The use of zero-current half-bridge soft switch circuit, so that the power supply has high efficiency, fast response speed, and is easy to integrate. Supports laser tubes from various manufacturers.

Port control is simple, can use either high or low level signals. TTL can control the laser start, stop,

At the same time, there is an abnormal protection switch, to detect the outside water, ventilation and so on are functioning.

Laser power regulation can be controlled between 0 and 5V analog signals or PWM signals. The size of the laser power.

The power supply has an open-circuit protection function: the power supply can work on the open

circuit for a short time when the protection is well grounded state, which avoids damage to the laser power supply due to the bursting of the tube.

Factory aging test: Each power supply is tested under a full load at temperature of 60 degrees, 12 hours aging test, 7 seconds, and is powered on and off 500 times.

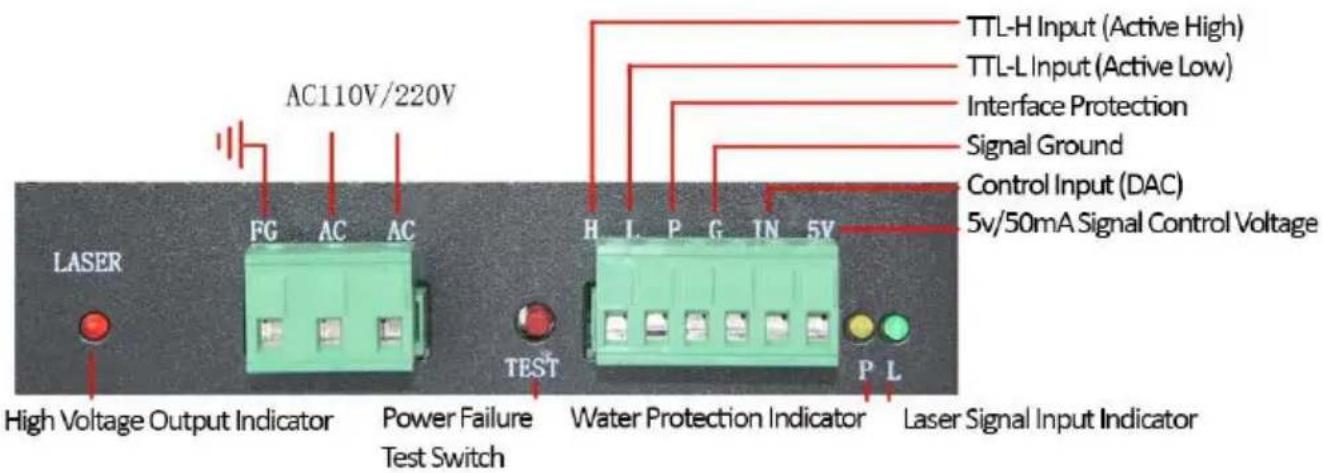

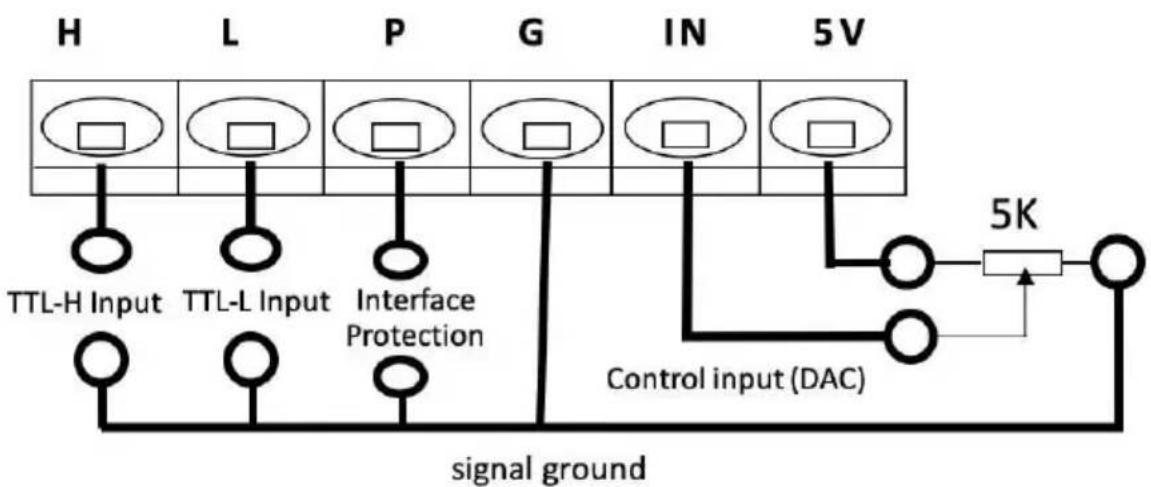

Terminal definitions, LEDs and power detection instructions:

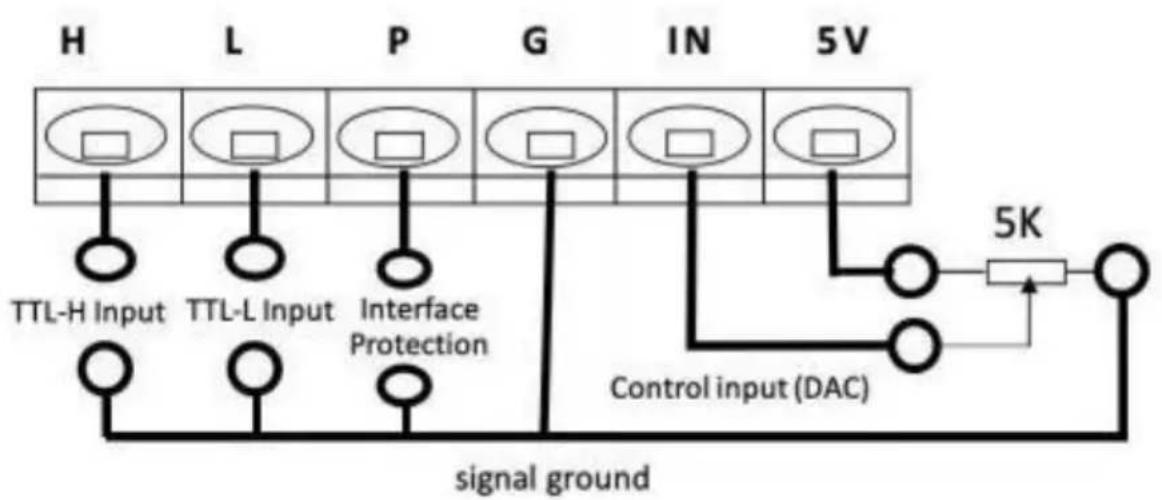

AC110V/220V TTL-H Input (Active High) TTL-L Input (Active Low) Interface Protection Signal Ground Control Input (DAC) 5v/50mA Signal Control Voltage Laser FG AC AC H L P G IN 5V TEST High Voltage Output Indicator Power Failure Water Protection Indicator Laser Signal Input Indicator Test Switch

Power supply status Lights:

(LASER) Lights when Laser is Firing: If light is on and Laser Tube is not firing, then laser tube is broken. If laser tube is firing, then laser power is normal.

(P) Lights when Protection circuit is functioning (L) Lights when Test Switch is Pressed or TTL Signal is present

Technical parameters:

Model	MYJG40W	MYJG60W	MYJG80W	MYJG100W	MYJG150W
Input	AC100-240V 50/60Hz
Maximum current output	20mA	23mA	25mA	28mA	36mA
Efficiency.	91%
Overflow protection	130% of maximum current
Open road protection	Yes (short time)
Structure.	Fan Cooled
Operating temperature	-30°C+65°C
Relative humidity.	20 to 85% RH (no dew)
Insulation resistance	≥50MΩ (DC500V)
Vibration resistance	Amplitude 0.5mm frequency 10 to 55Hz 3D direction for 2
No downtime MTBF	≥30,000hours
Turn off the power test for 7 seconds	500 times

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Certificate www.vevor.com/support

LASER POWER SUPPLY

ELECTRIC

USER

MANUAL

MODEL: MYJG 40W, MYJG 60W, MYJG

80W, MYJG 100W, MYJG 150W,

Black industrial power supply unit with ventilation grille and two green terminal blocks (no visible text or symbols)

MYJG 40W MYJG 60W/80W /100W/150W

www.vevor.com/support

The current circuit

HV+(High Voltage)

signal ground

P+/P: Water Protection G: Ground

K-: Ground

K+: Low Level

IN: Power Input 5V: Output

24V: Output

L: Active Low

Modèle	Parties liste	image
MYJG40W	connexion terminal
MYJG60W/80W/100W/150W	connexion terminal haute tension pouv lignes*1

Black industrial power supply unit with ventilation grille and two green connectors (no visible text or symbols)

MYJG 40W MYJG 60W/80W /100W/150W

The current circuit

HV+(High Voltage)

P+/P: Water Protection G: Ground

K-: Ground

K+: Low Level

IN: Power Input

5V: Output

24V: Output

L: Active Low

MYJG50W

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors (no visible text or symbols)

MYJG60W

Diagram of a device rear panel with labeled ports and dimensions (no readable text or symbols)

1.71 1.46

Vevor MYJG80W - MANUAL - 10

19.7 146 * *

Black industrial power supply unit with ventilation slots and two green connectors (no visible text or labels)

MYJG80W MYJG100W (Customizable voltage stabilization function)

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors (no visible text or symbols)

MYJG130W MYJG150W (Customizable voltage stabilization function)

Diagram of a server rack with two internal components and a grid-patterned panel (no text or symbols)

230 146 80W 100W 151 161

Pure electrical circuit lines without any symbols

305 146 130W 150W 151 161

London Road, Staines-upon-Thames, Surrey, TW

18 4 AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a black industrial power supply unit with ventilation grille and two green terminal blocks (no visible text or symbols)

MYJG 40W Power 60W/80W /100W/150W

www.vevor.com/support

The current circuit

HV+(High Voltage)

P+/P: Water Protection G: Ground

K-: Ground

K+: Low Level

IN: Power Input

5V: Output

24V: Output

L: Active Low

MYJG50W

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors (no visible text or symbols)

MYJG60W

Diagram of a device panel with grid pattern and labeled ports (no readable text or symbols)

1.71 1.46

Vevor MYJG80W - MANUAL - 23

19.7 146. * *

Black industrial power supply unit with ventilation slots and two green connectors (no visible text or labels)

MYJG80W MYJG100W (Customizable voltage stabilization function)

Black industrial power supply unit with ventilation grilles and green terminal connectors (no visible text or symbols)

MYJG130W MYJG150W (Customizable voltage stabilization function)

S60 128 0 0.5748 0.5748 0.5748 0.5748 0.5748 0.5748 0.5748 0.5748 0.5748 0.5748 0.5748 0.5748 0.5748 0.5748 0.5748 S60

230 146 80W 100W 151 161

Diagram of a grid-patterned panel with two rectangular blocks and a side dimension label (no text or symbols)

305 146 130W 150W 151 161

Imported in AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD

New South Wales 2122 Australia

[Non-Text]

- 1 -

[Non-Text]

The current circuit

HV+(High Voltage)

P+/P: Water Protection, G: Ground

K-: Ground

K+: Low Level

IN: Power Input, 5V: Output

24V: Output

L: Active Low

MYJG50W

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors (no visible text or labels).

MYJG60W

Diagram of a device rear panel with labeled ports and dimensions (no readable text or symbols).

1.71 1.46

Vevor MYJG80W - MANUAL - 35

19.7 146 * *

Black industrial power supply unit with ventilation slots and two green connectors (no visible text or labels).

MYJG80W MYJG100W (Customizable voltage stabilization function)

Black industrial power supply unit with ventilation grilles and green terminal connectors (no visible text or symbols).

MYJG130W MYJG150W (Customizable voltage stabilization function)

Diagram of a server rack with two internal components and a grid-patterned panel (no text or symbols).

230 146 80W 100W 151 161

Pure electrical circuit lines without any symbols.

305 146 130W 150W 151 161

Black industrial power supply unit with ventilation grille and two green terminal blocks (no visible text or symbols)

MYJG 40 W MYJG 60W/80W /100W/150W

The current circuit

HV+(High Voltage)

P+/P: Water Protection G: Ground

K-: Ground

K+: Low Level

IN: Power Input

5V: Output

24V: Output

L: Active Low

MYJG50W

Exterior view of a black industrial power supply unit with ventilation slots and two green connectors (no visible text or labels)

MYJG60W

Vevor MYJG80W - MANUAL - 46

171 146

Vevor MYJG80W - MANUAL - 48

19.7 14.6

Exterior view of a black industrial power supply unit with ventilation slots and two green terminal blocks (no visible text or symbols)

MYJG80W MYJG100W (Customizable voltage stabilization function)

Black industrial power supply unit with ventilation grilles and green connectors (no visible text or symbols)

MYJG130W MYJG150W (Customizable voltage stabilization function)

Diagram of a grid-patterned panel with labeled dimensions (no text or symbols)

230 146 80W 100W 151 161

Pure electrical circuit lines without any symbols

305 146 130W 150W 151 161

Black rectangular electronic power supply unit with ventilation grille and two green terminal blocks (no visible text or symbols)

MIJNJG 40 W MIJNJG 60W/80W /100W/150W

NEED HELP? CONTACT US!

The current circuit

HV+(High Voltage)

P+/P: Water Protection G: Ground

K-: Ground

K+: Low Level

IN: Power Input

5V: Output

24V: Output

L: Active Low

MYJG50W

Exterior view of a black industrial power supply unit with ventilation slots and two green connectors (no visible text or labels).

MYJG60W

Vevor MYJG80W - NEED HELP? CONTACT US! - 3

171 146

Vevor MYJG80W - NEED HELP? CONTACT US! - 5

19.7 14.6

Exterior view of a black industrial power supply unit with ventilation slots and two green terminal blocks (no visible text or symbols).

MYJG80W MYJG100W (Customizable voltage stabilization function)

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors (no visible text or symbols).

MYJG130W MYJG150W (Customizable voltage stabilization function)

Diagram of a grid-patterned panel with labeled dimensions (no text or symbols).

230 146 80W 100W 151 161

Pure electrical circuit lines without any symbols.

305 146 130W 150W 151 161

certificate ate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

LASER POWER SUPPLY USER MANUAL

MODEL: MYJG 40W, MYJG 60W, MYJG 80W, MYJG 100W, MYJG 150W,

Black rectangular electronic device with ventilation grille and two green terminal blocks (no visible text or symbols).

MYJG 40W, MYJG 60W/80W/100W/150W

The current circuit

HV+(High Voltage)

P+/P: Water Protection, G: Ground

K-: Ground

K+: Low Level

IN: Power Input

5V: Output

24V: Output

L: Active Low

MYJG50W

Exterior view of a black industrial power supply unit with ventilation slots and two green connectors.

MYJG60W

Front view of a device with a grid pattern and labeled ports.

171 146

Vevor MYJG80W - LASER POWER SUPPLY USER MANUAL - 5

19.7 14.6

Exterior view of a black industrial power supply unit with ventilation slots and two green terminal blocks.

MYJG80W, MYJG100W (Customizable voltage stabilization function)

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors.

MYJG130W, MYJG150W (Customizable voltage stabilization function)

Diagram of a device layout with grid pattern and labeled components.

230 146 80W 100W 151 161

Diagram of a rectangular electronic device with grid pattern and two rectangular components.

305 146 130W 150W 151 161

Place, Rancho Cucamonga, CA 91730

REP

E- CrossStu GmbH

Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

Table of contents Click a title to access it

LASER POWER SUPPLY USER MANUAL
VEVOR®
NEED HELP? CONTACT US
KEY FEATURES
KEY TECHNICAL PARAMETERS
INSTRUCTIONS FOR USE
IMPORTANT NOTES
LASER POWER SUPPLY MAIN FEATURES
TERMINAL DEFINITIONS, LEDS AND POWER DETECTION INSTRUCTIONS
POWER SUPPLY STATUS LIGHTS
TOUGH TOOLS, HALF PRICE
LASER POWER SUPPLY
ELECTRIC
USER
MANUAL

Manual assistant

Waiting for your message

Product information

Brand : Vevor

Model : MYJG80W

Category : Power Supply
