Product Type	CO2 Laser Power Supply
Brand	Vevor
Model	MYJG60W
Input Voltage	AC 100-240 V, 50/60 Hz
Maximum Output Current	23 mA
Efficiency	91 %
Response Speed	≤ 1 ms
Control Signal	TTL level (high/low) or analog 0-5 V / PWM
Overcurrent Protection	Yes (130 % of maximum current)
Open Circuit Protection	Yes (short duration, broken tube)
Cooling	Fan cooling
Operating Temperature	-30 °C to +65 °C
Relative Humidity	20 % to 85 % RH (non-condensing)
Insulation Resistance	≥ 50 MΩ (DC 500 V)
MTBF (Mean Time Between Failures)	≥ 30,000 hours
Main Functions	Soft switching, high frequency, high efficiency, feedback interface, automatic power detection, water protection
Safety	Mandatory grounding, high voltage output must not be open, water cooling of laser tube
Maintenance and Cleaning	Keep the device clean and well ventilated. Regularly check connections and cooling.

Frequently Asked Questions - MYJG60W Vevor

How to connect the MYJG60W power supply to the CO2 laser tube?

Connect the high voltage output (HV+) to the anode of the laser tube (reflector) and the current circuit to the cathode (laser output). Use an ammeter in series if necessary.

What types of control signals are supported?

The power supply accepts TTL signals (high or low level) and analog 0-5 V or PWM signals. Selection is made via the control connector.

How to use the protection function?

The power supply has a protection switch that can be connected to a water flow detector or enclosure switch. In case of anomaly, the laser output is cut off.

What to do if the laser does not turn on?

Check if the LASER indicator is lit. If yes, the tube may be defective. Otherwise, check connections, input voltage, and control signals.

Can I use the power supply without a laser tube connected?

Yes, but only for a short time and with proper grounding. The power supply supports temporary open circuit, but prolonged use may damage it.

What is the required input voltage?

The power supply operates on mains voltage of 100 to 240 V AC, 50/60 Hz. Ensure the socket has a ground terminal.

How to adjust the laser power?

Power is controlled either by an analog 0-5 V signal (via the wattmeter) or by TTL pulse width modulation (PWM). Connect the appropriate signal to the IN port.

What are the status indicators and their meaning?

The LASER indicator lights up when the laser fires. The P indicator lights up when protection is active. The L indicator lights up when a TTL signal is present and the test switch is in position.

Do I need to ground the device?

Yes, the power supply housing must be strictly grounded to avoid electric shock. Use a three-wire plug with grounding.

What are the important safety precautions?

Never leave the high voltage output open circuit. Ensure water cooling of the laser tube. Discharge internal capacitors after power-off (wait a few seconds). Avoid excessive humidity.

USER MANUAL MYJG60W Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

LASER POWER SUPPLY USER MANUAL

MODEL: MYJG40W, MYJG60W, MYJG80W, MYJG100W, MYJG150W

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

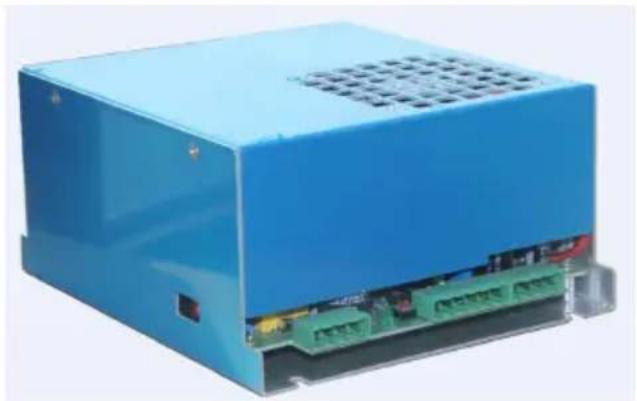

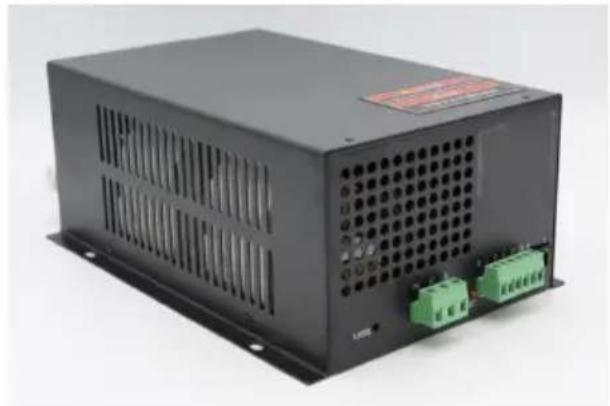

LASER POWER SUPPLY

MYJG40W

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

Key features:

The product is a successful high-efficiency, high-frequency, high-speed CO2 laser supported power supply, small size, light weight, easy to operate with good matching performance for lasers. It can be directly connected with the laser, saving the bulky and severe heating of resistance. The power supply can make the CO2 laser lighting easy, taking advantage of the full performance of CO2 laser, improving conversion efficiency, and extending the life of the laser.

Key Technical Parameters:

1. Input voltage: AC 100-240V
2. Response speed: ≤ 1mS.
3. TTL level switch control: effective level can be high and low select
4. Protection switch: can be used for the detection of water, protection lasers, or protection when opening the housing, etc.
5. Laser power regulation: (1) The output current of the laser power is regulated by the power meter. (2) controlled by PWM (TTL level).
6. Feedback Interface: The power supply itself can have a feedback interface and can be used for closed-loop control to verify the actual working current of the laser.
7. Environment of use: Temperature (-10 to 40 degrees C), humidity: 85%.

Instructions For Use:

1. Connection of the Laser Tube: The high-voltage (HV-plus) of the power supply must be connected to the anode (full reflector) of the laser tube. The current circuit of the laser power supply is connected to the cathode (laser output) of the CO2 laser tube via a current me directly)
2. Connection of the Control Signal: In Figure 1 (or Figure 2), the signal line is reliably connected to the control end of the laser power supply.
3. Control Signal Input: As shown in Figure 3, the DAC signal or T signal output from the external computer are connected to the laser power supply as required, and to control laser tube output power.
4. Voltage Selection: The laser power supply requires inputs of AC 100-240V, 50/60Hz.
5. Additional Features: The laser power supply has a set of protective switches for protection for water flow, when the housing is opened.

Important Notes:

1. The laser tube must be cooled with water when working!
2. High-voltage output must not be open! (The high-voltage output positive and negative ends must be properly connected to the laser positive and negative ends).
3. The internal power supply has been designed to discharge any residual charge at shutdown, but can generally take up to two seconds. But for safety reasons you should still be careful of electric shocks! Insulation safety requirements of the suspended 40KV high voltage must be guaranteed at both ends of the high-voltage output).
4. The laser power supply must use a three-hole socket with a ground end. The case must be strictly grounded to avoid electric shock.

The current circuit

HV+(High Voltage)

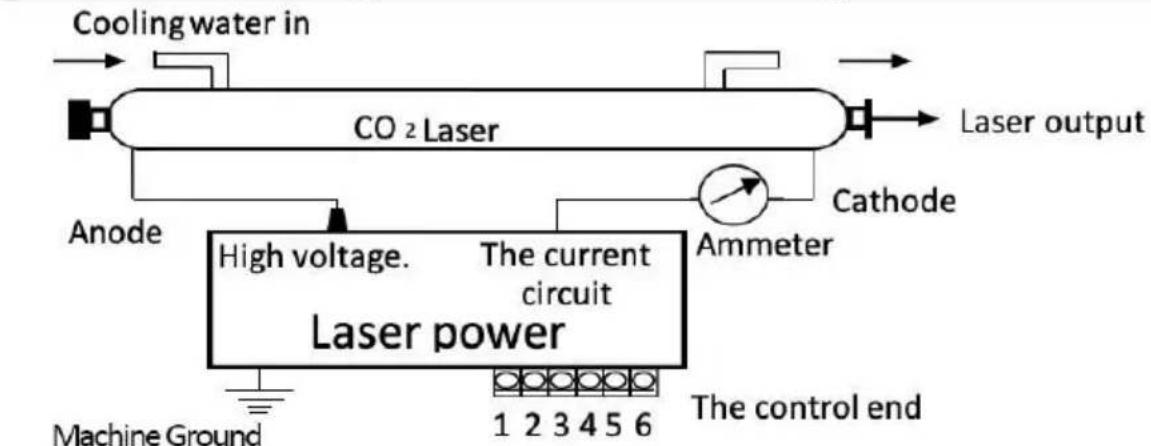

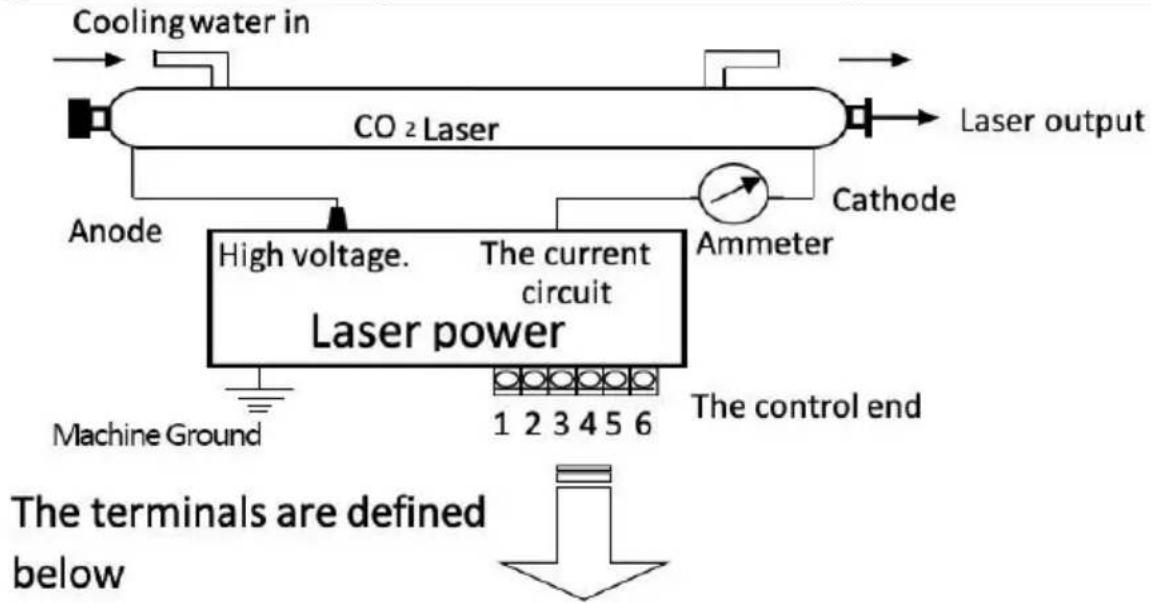

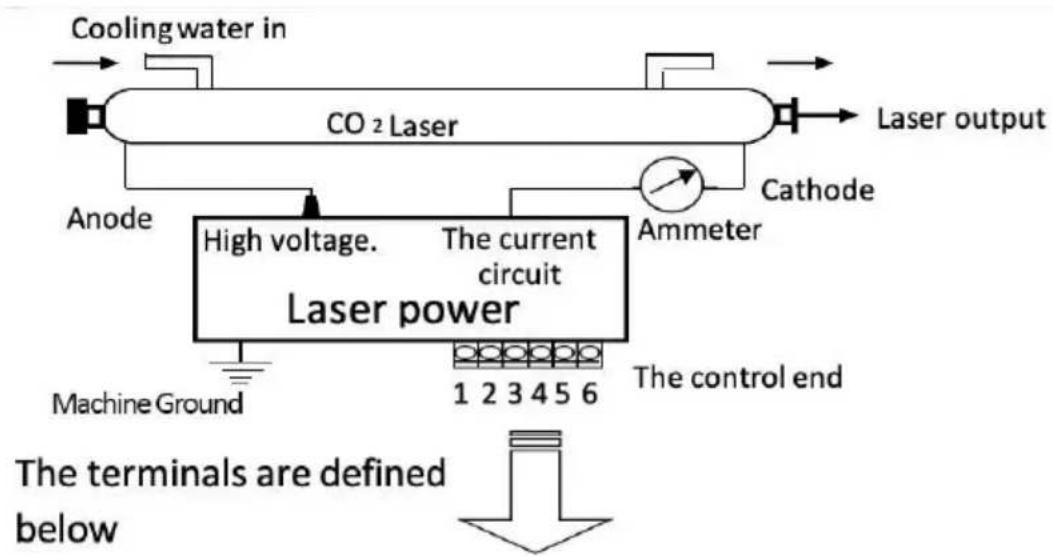

Wiring Diagrams for Laser Power Supplies and Lasers:

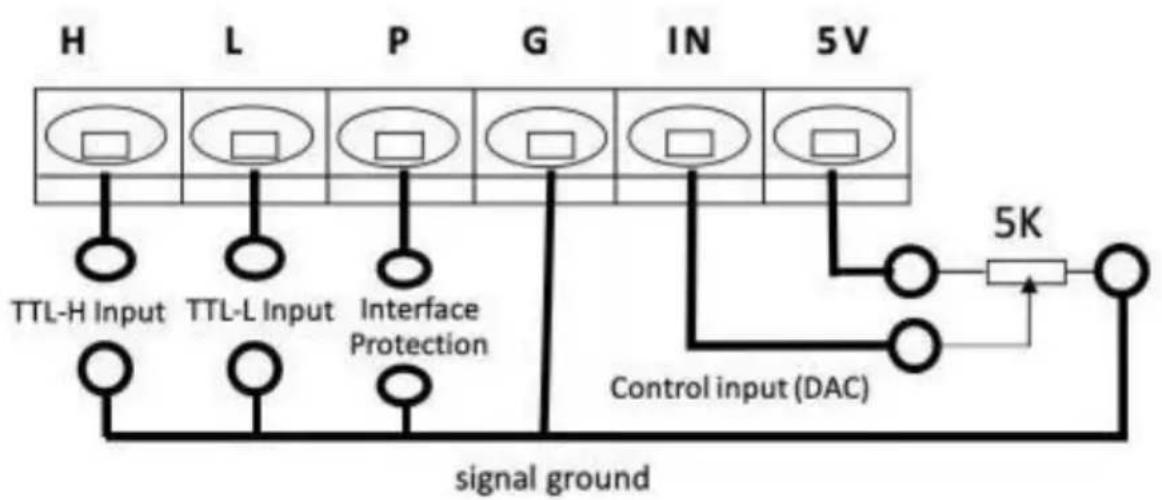

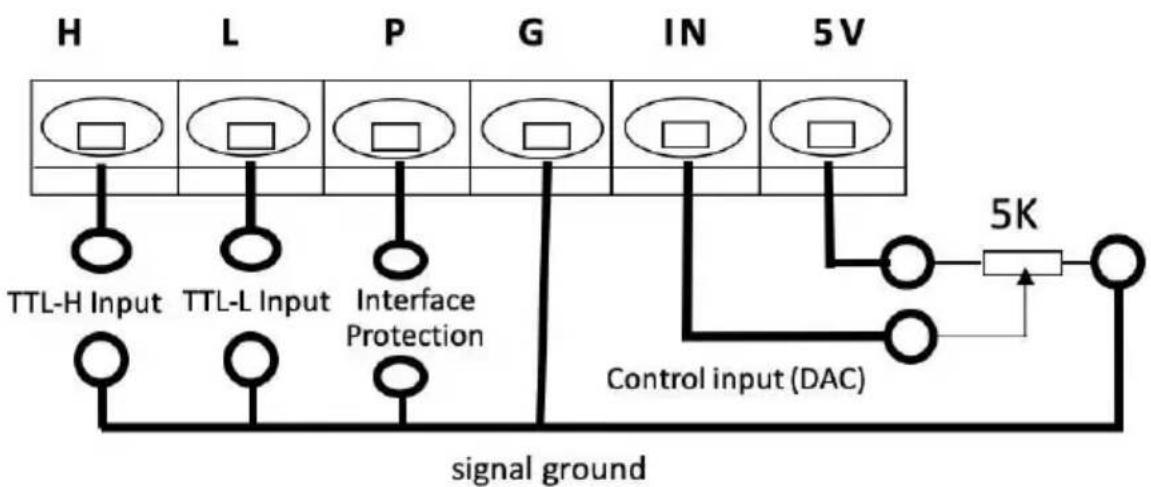

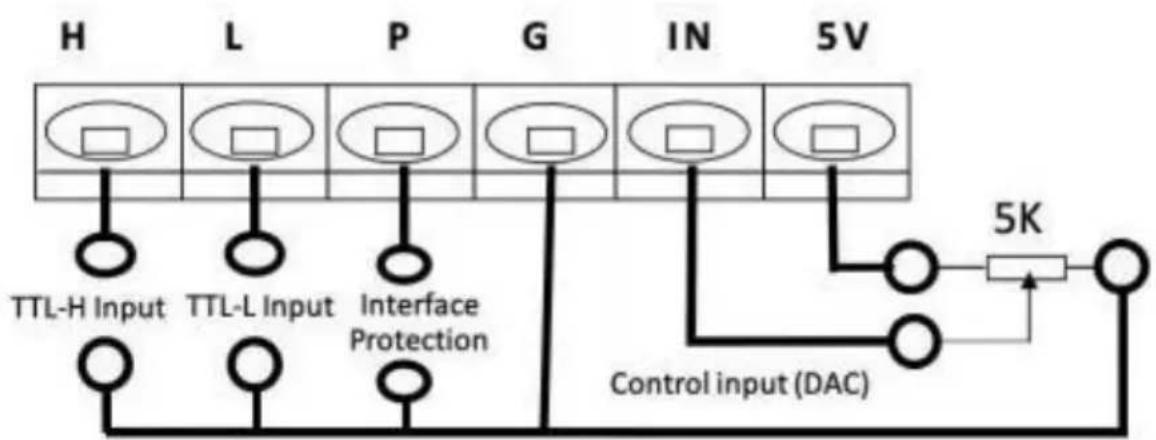

Control terminal meaning and function:

TTL-H Input	TTL-L Input	Control Input (DAC)	Laser output
Open	Low (<0.3V)	0-5V	Pmin - Pmax
	High (>3V)	0-5V	0
Low (<0.3V)	Open	0-5V	0
High (>3V)		0-5V	Pmin - Pmax
Protection Interface		0-5V	0

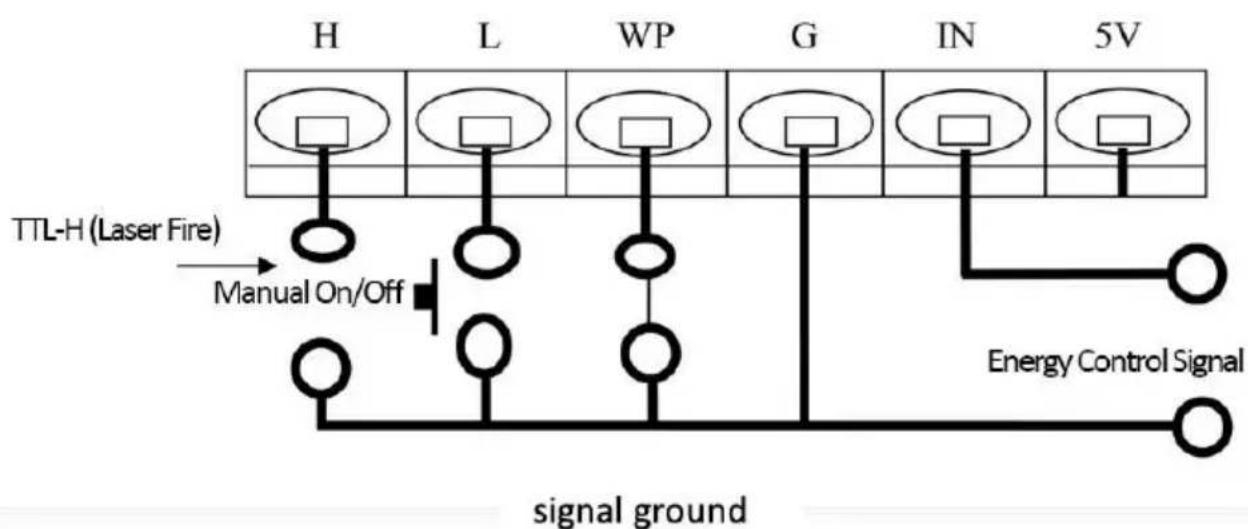

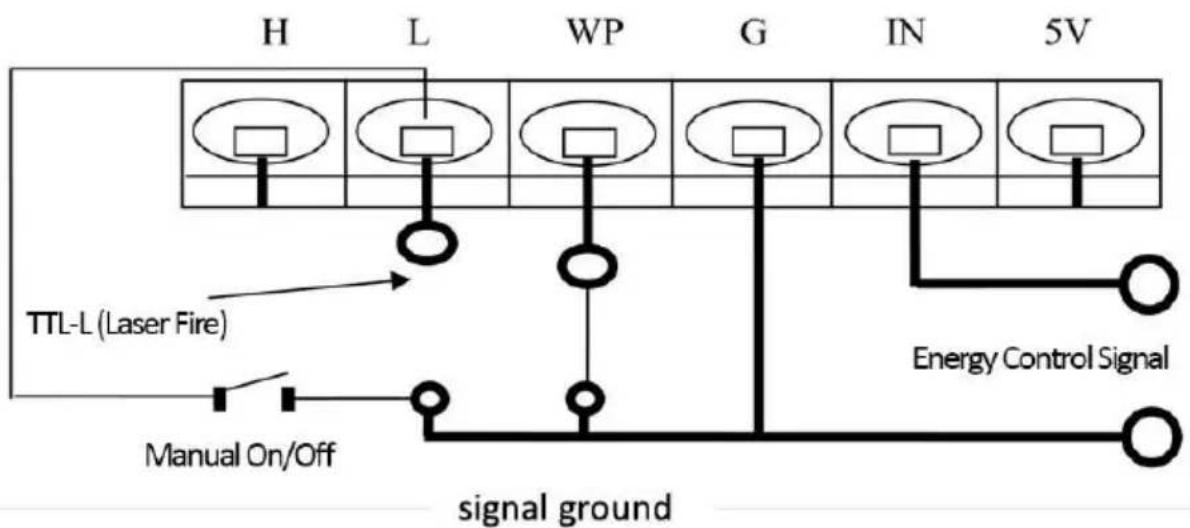

Low-level TTL Signal Connection Diagram

Note: There are two ways to control energy signals:

1. PWM Pulse Generator: (frequency laser) intensity from 20kHz to 50kHz, 5V air-to-air ratio.
2. 0-5V Analog

High-level TTL Signal Connection Diagram:

Note: There are two ways to control energy signals:

1. PWM pulse generator: (frequency laser) intensity from 20kHz to 50kHz, 5V air-to-air ratio.
2. 0-5V Analog

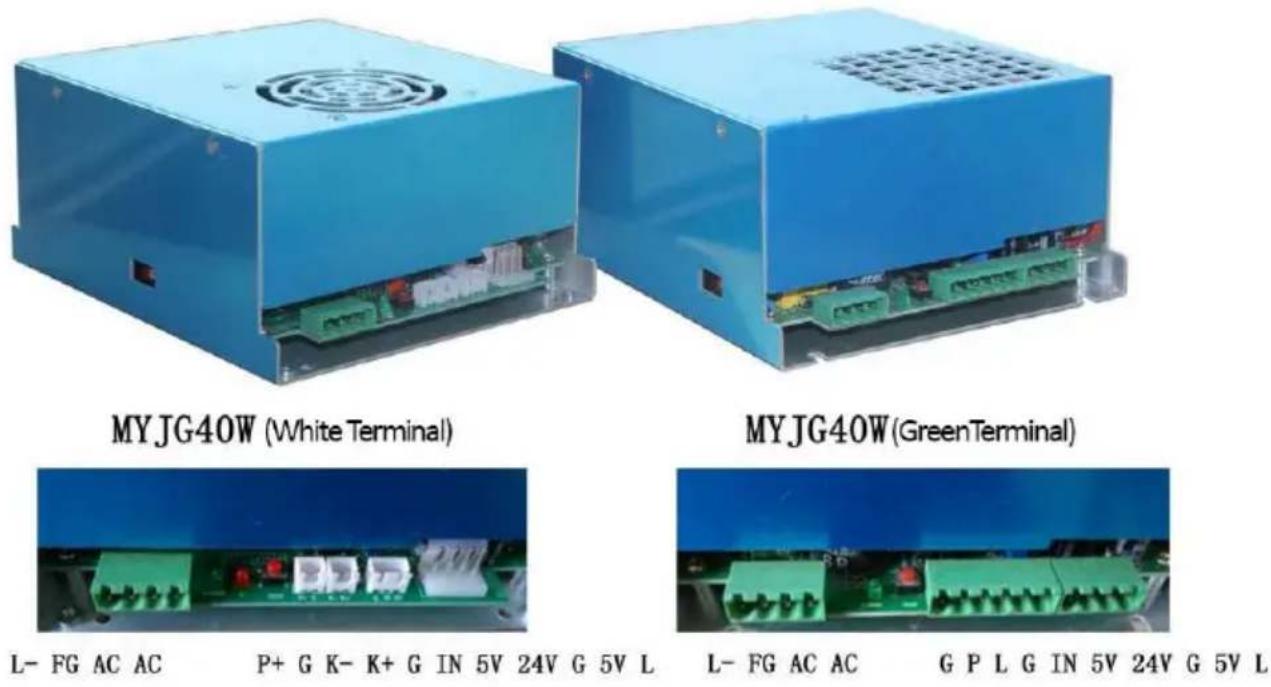

MINGYU LASER POWER SUPPLY MODELS

L-: Laser Tube (-) FG: Ground AC: 110V/220V

P+/P: Water Protection G: Ground

IN: Power Input 5V: Output

K-: Ground K+: Low Level

24V: Output L: Active Low

Model Parts list picture
MYJG40W	connection terminal*3
MYJG60W/80W/100W/150W	connection terminal*2 high-voltage power lines*1

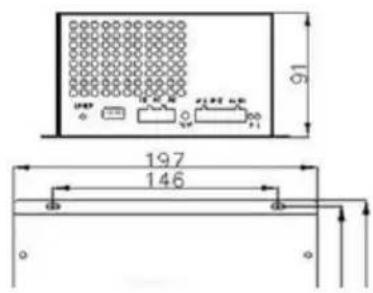

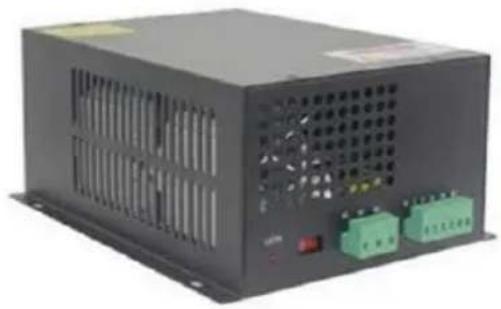

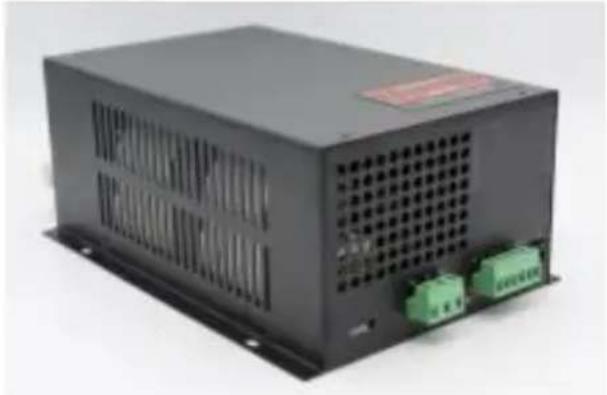

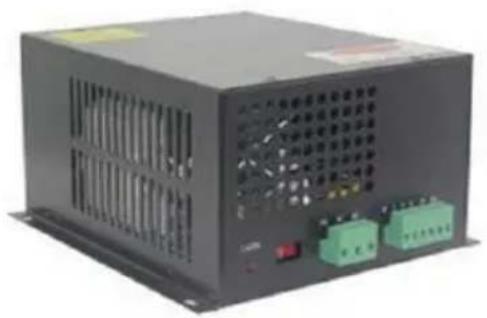

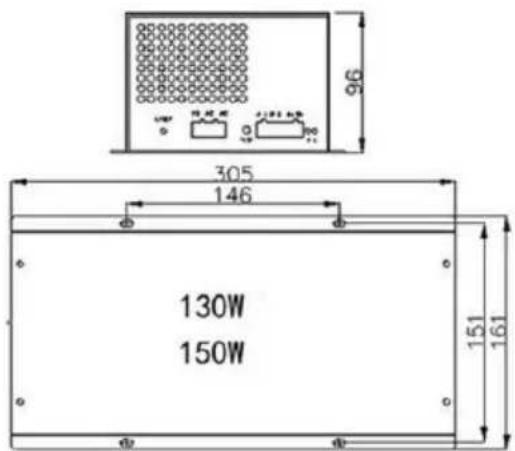

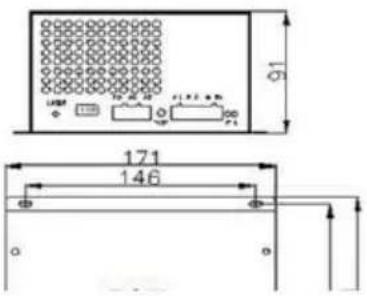

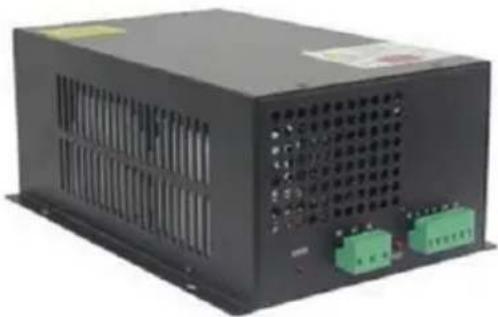

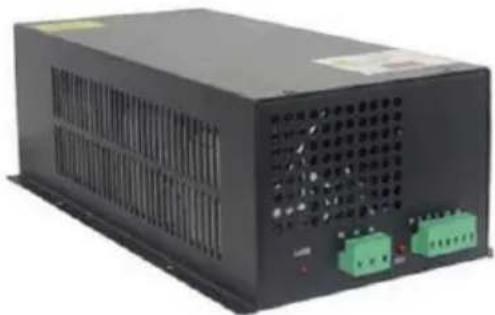

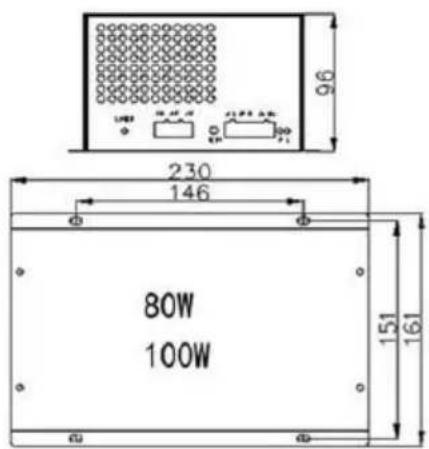

New stable laser power supply picture and mounting (size in mm)

MYJG50W

MYJG60W

MYJG80W

MYJG130W MYJG150W (Customizable voltage stabilization function)

MYJG100W (Customizable voltage stabilization function)

Laser Power Supply Main Features:

New stable laser power supply, the biggest features: the use of mod design automatic detection of laser power signal, automatic detection of water protection!

The mounting holes are all consistent and suitable for plant line installation. The use of zero-current half-bridge soft switch circuit makes the power supply highly efficient, with fast response speed, and easy integration. Supports laser tubes from various manufacturers.

Port control is simple, and can use either high or low level signals. TTL can control the laser start and stop.

At the same time, there is an abnormal protection switch to detect whether the outside water, ventilation, etc. are functioning.

Laser power regulation can be controlled between 0 and 5V analog signals or PWM signals, which determine the size of the laser power.

The power supply has an open-circuit protection function: the power supply can work on an open

circuit for a short time when the protection is well grounded, which avoids damage to the laser power supply due to the bursting of the tube.

Factory aging test: Each power supply is tested under full load at a temperature of 60 degrees, with a 12-hour aging test, and is powered on and off 500 times.

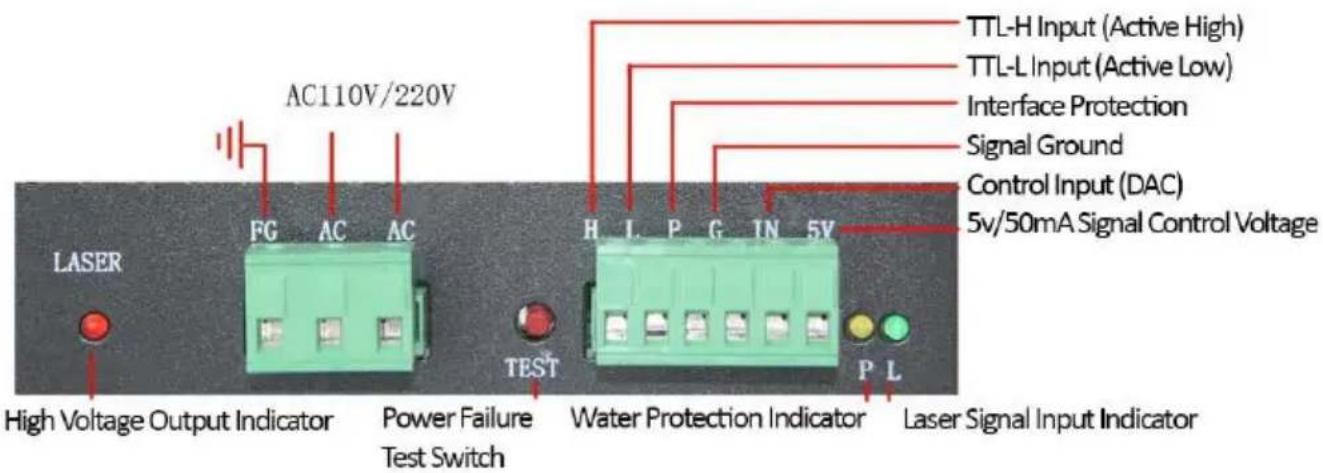

Terminal definitions, LEDs, and power detection instructions:

Power supply status lights:

(LASER) Lights when laser is firing: If the light is on and the laser tube is not firing, then the laser tube is broken. If the laser tube is firing, then the laser power is normal.

(P) Lights when the protection circuit is functioning. (L) Lights when the test switch is pressed or a TTL signal is present.

Technical parameters:

Model	MYJG40W	MYJG60W	MYJG80W	MYJG100W	MYJG150W
Input	AC100-240V 50/60Hz
Maximum current output	20mA	23mA	25mA	28mA	36mA
Efficiency.	91%
Overflow protection	130% of maximum current
Open road protection	Yes (short time)
Structure.	Fan Cooled
Operating temperature	-30°C+65°C
Relative humidity.	20 to 85% RH (no dew)
Insulation resistance	≥50MΩ (DC500V)
Vibration resistance	Amplitude 0.5mm frequency 10 to 55Hz 3D direction for 2
No downtime MTBF	≥30,000hours
Turn off the power test for 7 seconds	500 times
