MYJG40W - Power Supply Vevor - Free user manual and instructions

Product type	Power supply for CO2 laser tube
Brand	Vevor
Model	MYJG40W
Input voltage	AC 100-240 V, 50/60 Hz
Max output current	20 mA
Efficiency	91%
Overcurrent protection	130% of max current
Open circuit protection	Yes (short duration)
Cooling	Built-in fan
Operating temperature	-30 °C to +65 °C
Relative humidity	20 to 85% RH (non-condensing)
Insulation resistance	≥ 50 MΩ (DC 500 V)
Vibration resistance	Amplitude 0.5 mm, frequency 10-55 Hz, 3 directions, 2 hours
MTBF	≥ 30,000 hours
Aging test	12 hours full load at 60 °C, 500 on/off cycles of 7 seconds
Power control	Analog signal 0-5 V or PWM (20-50 kHz)
TTL control	High or low level selectable
Feedback interface	Closed loop to verify actual current
Safety functions	Protection switch for water flow, enclosure opening, etc.
Maintenance	Ensure proper grounding, avoid high voltage output under no load
Country of manufacture	China (Shanghai)

Frequently Asked Questions - MYJG40W Vevor

What type of laser tube can I use with the MYJG40W power supply?

This power supply is designed for CO2 laser tubes. It supports tubes from various manufacturers and powers up to 40W.

What is the required input voltage?

The power supply operates on an input voltage of AC 100-240 V, 50/60 Hz. Ensure you use a grounded outlet.

How do I connect the laser tube to the power supply?

Connect the high voltage terminal (HV+) to the anode of the laser tube and the low voltage terminal (current) to the cathode. An ammeter can be inserted in series to monitor the current.

How do I control the laser power?

Power can be controlled by an analog signal 0-5 V or a PWM signal (20-50 kHz, 0-100% duty cycle). High or low TTL signals can be used to turn the laser on/off.

What are the important safety precautions?

Never leave the high voltage output under no load. Ensure water cooling of the laser tube. Always ground the enclosure to avoid electric shocks. Wait a few seconds after power off for residual charges to dissipate.

Does the power supply have overcurrent protection?

Yes, overcurrent protection triggers at 130% of max current. The power supply can also withstand a short circuit for a short duration.

What is the allowable operating temperature?

The device can operate in a temperature range of -30 °C to +65 °C and relative humidity of 20 to 85% without condensation.

How do I use the protection switch?

The protection switch can be connected to a water flow sensor or a door switch. In case of anomaly, it cuts off power to protect the laser.

What does the 'P' indicator on the power supply mean?

The P indicator lights up when the protection circuit is active. If the laser does not turn on, check the laser tube and connections.

Where can I find technical support and warranty?

Technical support and the electronic warranty certificate are available at www.vevor.com/support. Keep your proof of purchase.

USER MANUAL MYJG40W Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

LASER POWER SUPPLY USER MANUAL

MODEL:MYJG40W, MYJG60W, MYJG80W, MYJG100W, MYJG150W,

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

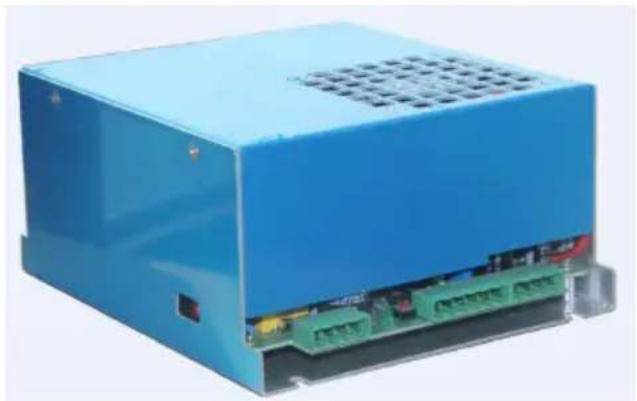

LASER POWER SUPPLY

Blue industrial electronic device with green circuit board and ventilation grille (no visible text or symbols)

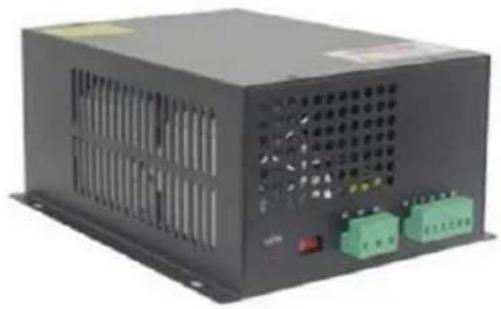

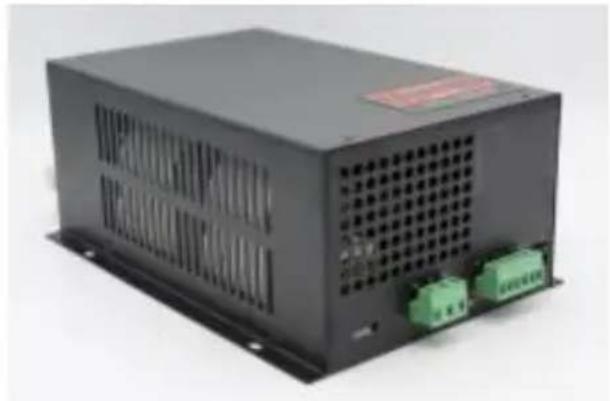

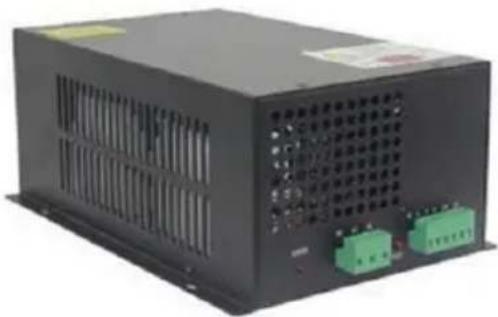

MYJG40W

Black industrial power supply unit with ventilation slots and two green connectors (no visible text or symbols)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Key features:

The product is a successful high-efficiency, high-frequency, high-speed CO2 laser supported powersupply, small size, light weight, easy to op with good matching performance for lasers. It can be directly connected with the laser, saving the bulky, and severe heating of resistance. The power supply can make the CO2 laser lighting easy, taking advantage the full performance of CO2 laser, improving conversion efficiency, and extending the life of the laser.

Key Technical Parameters:

1. Input voltage: AC 100-240V
2. Response speed: ≤ 1mS.
3. TTL level switch control: effective level can be high and low select
4. Protection switch: can be used for the detection of water, protection lasers, or protection when opening the housing, etc.
5. Laser power regulation: (1) The output current of the laser power is regulated by the power meter. (2) controlled by PWM (TTL level).
6. Feedback Interface: The power supply itself can have a feedback interface and can be used for closed-loop control to verify the actual working current of the laser.
7. Environment of use: Temperature (-10 to 40 degrees C), humidity: 85%.

Instructions For Use:

1. Connection of the Laser Tube: The high-voltage (HV-plus) of the power supply must be connected to the anode (full reflector) of the laser tube. The current circuit of the laser power supply is connected to the cathode (laser output) of the CO2 laser tube via a current me directly)
2. Connection of the Control Signal: In Figure 1 (or Figure 2), the signal line is reliably connected to the control end of the laser power supply.
3. Control Signal Input: As shown in Figure 3, the DAC signal or T signal output from the external computer are connected to the laser power supply as required, and to control laser tube output power.
4. Voltage Selection: The laser power supply requires inputs of AC 100-240V, 50/60Hz.
5. Additional Features: The laser power supply has a set of protective switches for protection for water flow, when the housing is opened.

Important Notes:

1. The laser tube must be cooled with water when working!
2. High-voltage output must not be open! (The high-voltage output positive and negative ends must be properly connected to the laser positive and negative ends).

3. The internal power supply has been designed to discharge any residual charge at shutdown, but can generally take up to two seconds. But for safety reasons you should still be careful of electric shocks! Insulation safety requirements of the suspended 40KV high voltage must be guaranteed at both ends of the high-voltage output).

4. The laser power supply must use a three-hole socket with a grou end. The case must be strictly grounded to avoid electric shock.

The current circuit

HV+(High Voltage)

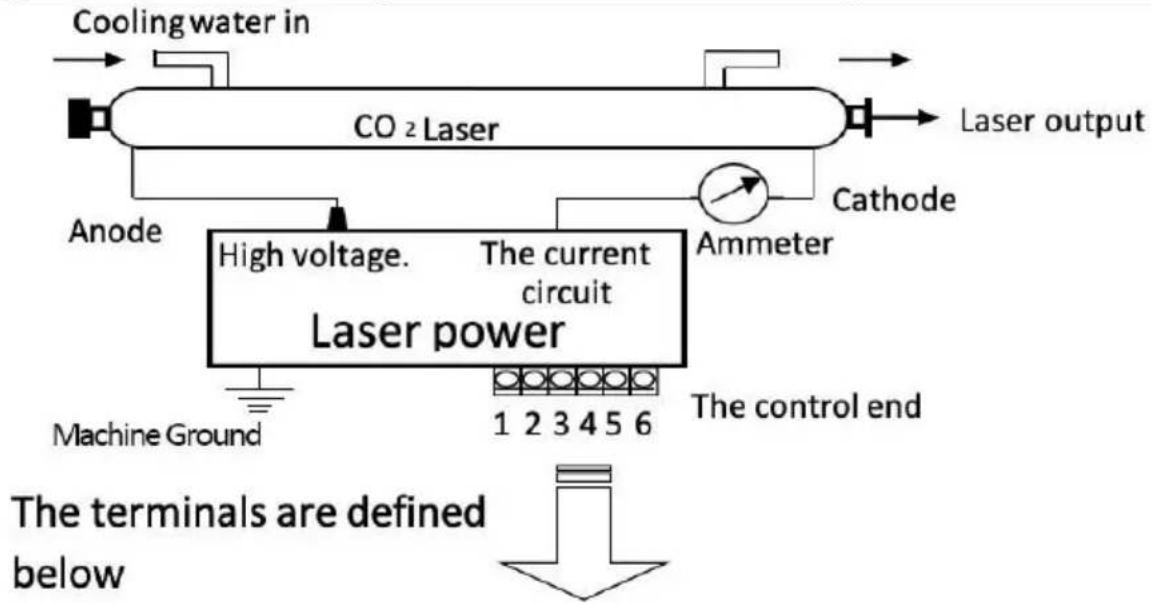

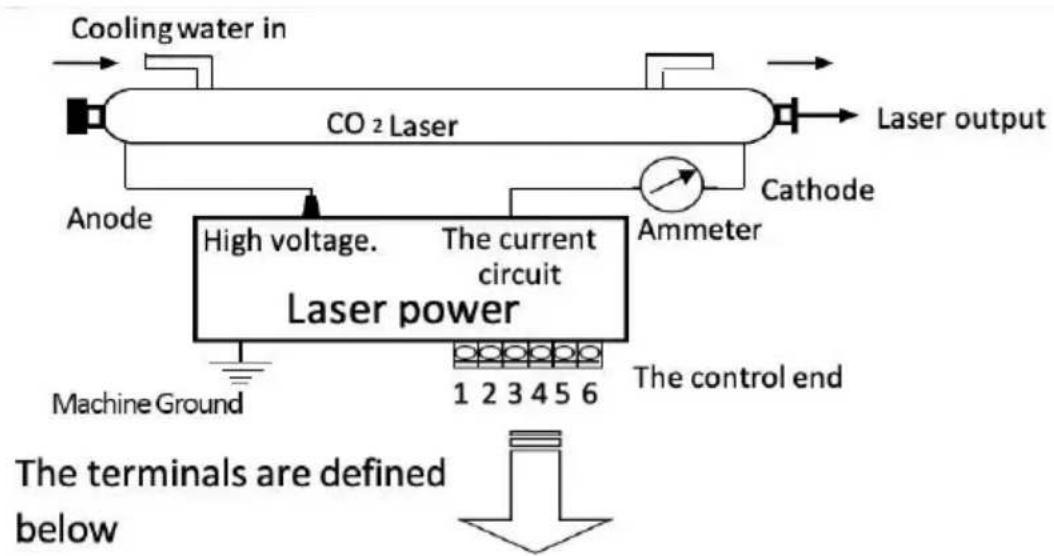

Wiring Diagrams for Laser Power Supplies and Lasers:


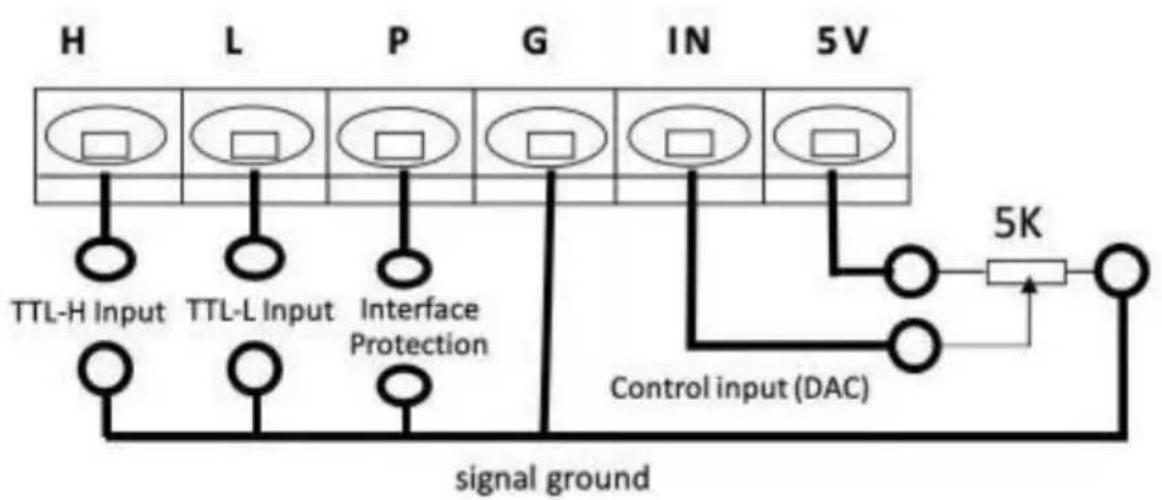

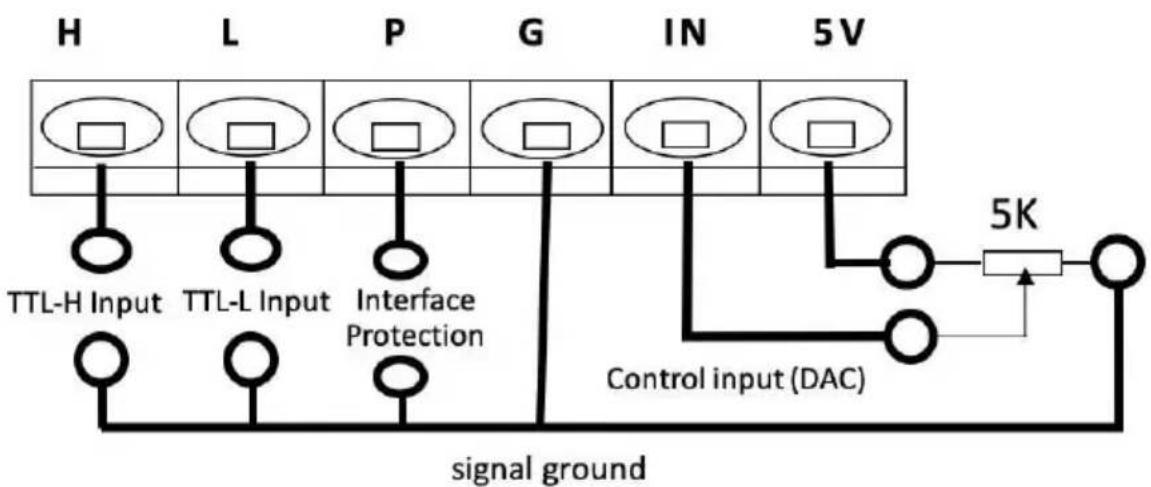

Control terminal meaning and function:

TTL-H Input	TTL-L Input	Control Input (DAC)	Laser output
Open	Low (<0.3V)	0-5V	Pmin - Pmax
	High (>3V)	0-5V	0
Low (<0.3V)	Open	0-5V	0
High (>3V)		0-5V	Pmin - Pmax
Protection Interface		0-5V	0

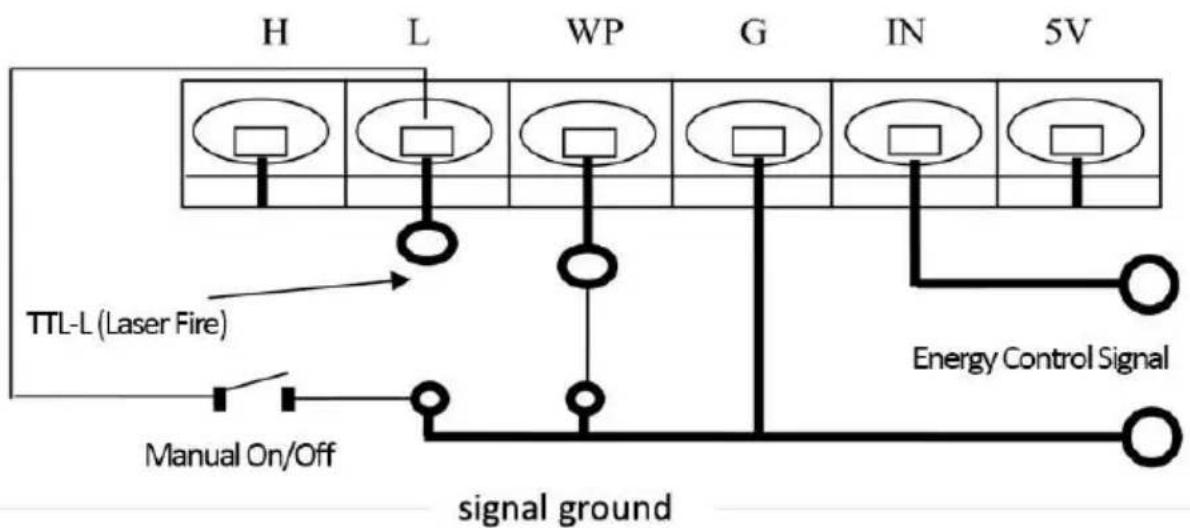

Low-level TTL Signal Connection Diagram

Note: There are two ways to control energy signals:

1. PWM Pulse Generator: (frequency laser) intensity from 20kHz to 50kHz, 5V air-to-air ratio.
2. 0-5V Analog

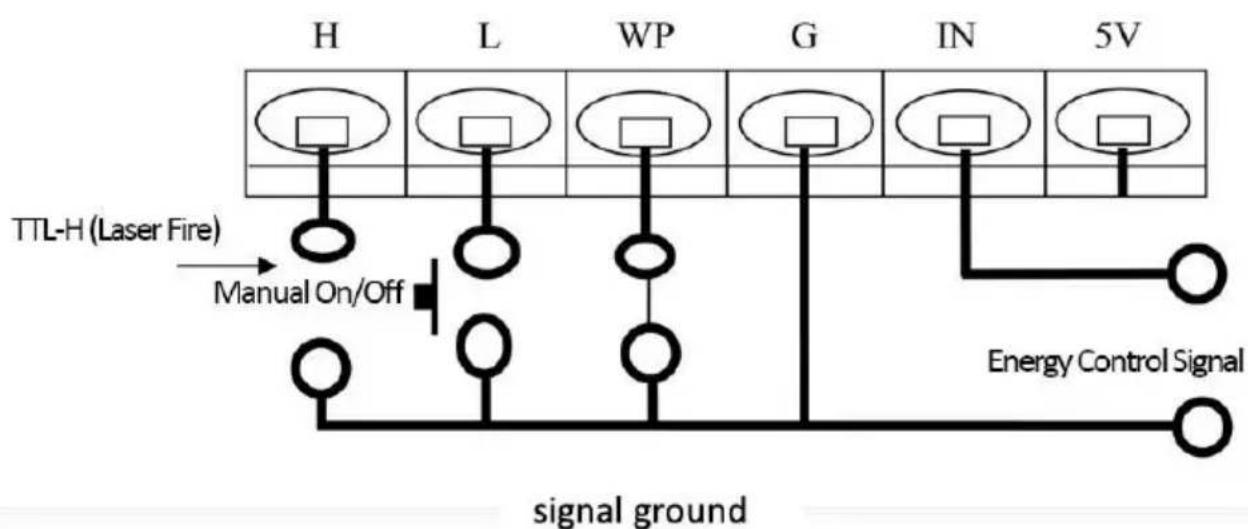

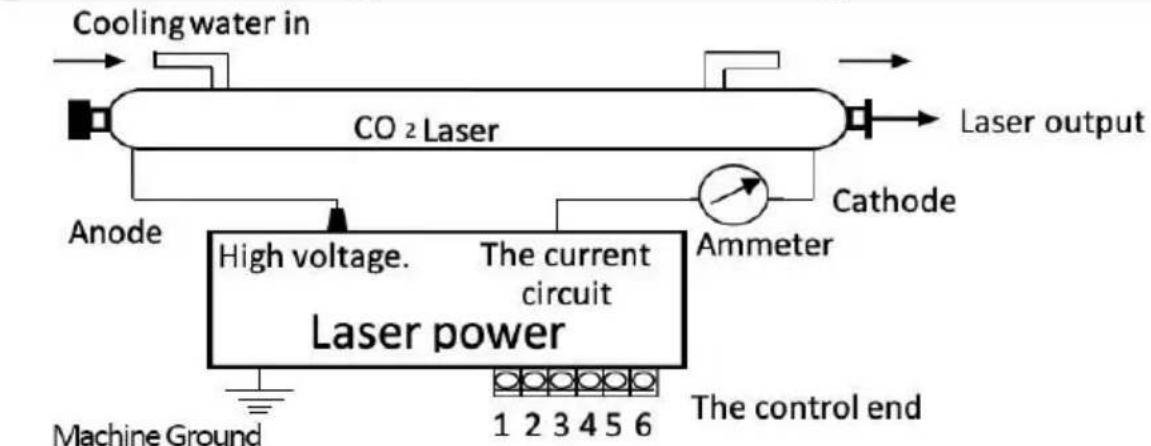

High-level TTL Signal Connection Diagram:

Note: There are two ways to control energy signals:

1. PWM pulse generator: (frequency laser) intensity from 20kHz to 505V air-to-air ratio.
2. 0-5V Analog

MINGYU LASER POWER SUPPLY MODELS

L-: Laser Tube (-) FG: Ground AC: 110V/220V

P+/P: Water Protection G: Ground

K-: Ground K+: Low Level

IN: Power Input 5V: Output

24V: Output L: Active Low

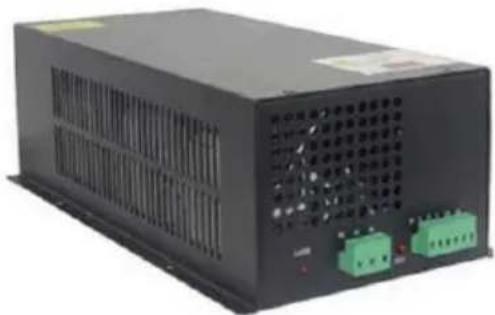

Model Parts list picture
MYJG40W	connection terminal*3
MYJG60W/80W/100W/150W	connection terminal*2high-voltage power lines*1

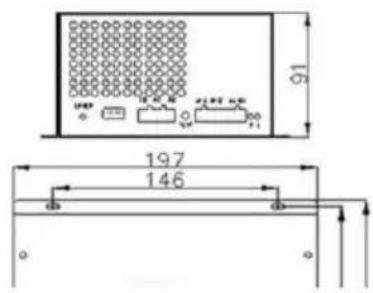

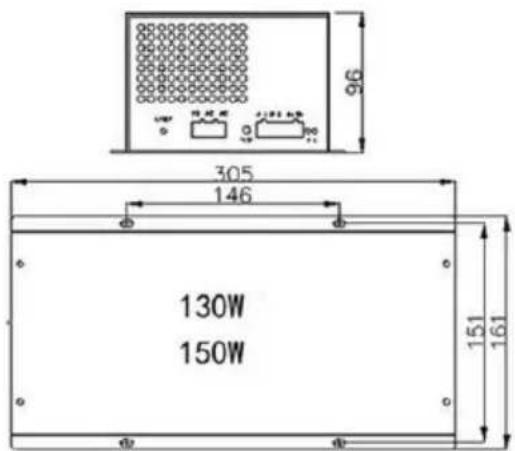

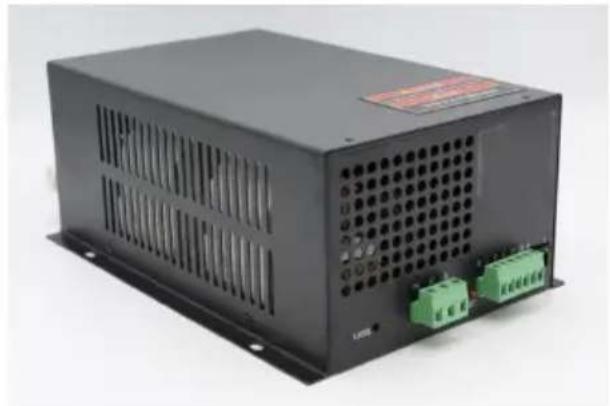

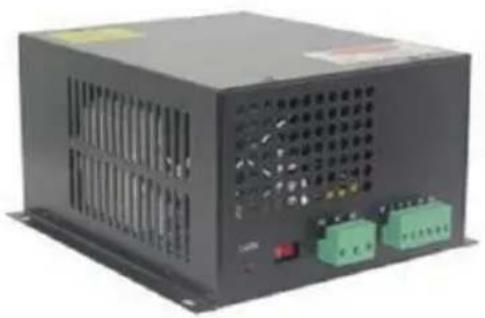

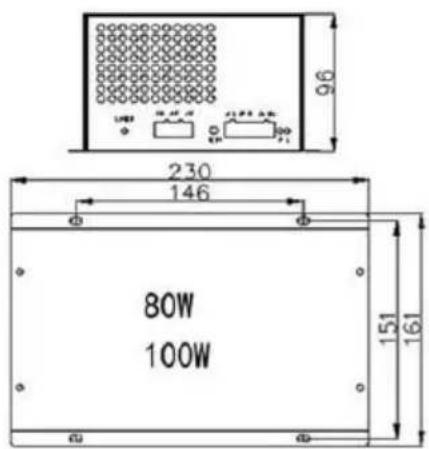

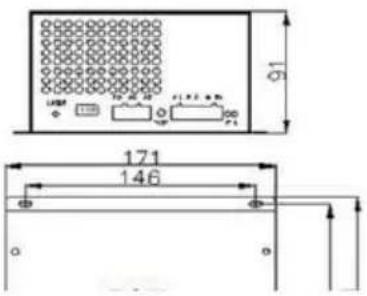

New stable laser power supply picture and mounting (size in m)

Exterior view of a black industrial control unit with multiple ports and indicator lights (no visible text or symbols)

MYJG50W

Exterior view of a black industrial power supply unit with ventilation slots and two green terminal blocks (no visible text or symbols)

MYJG60W

MYJG80W

Exterior view of a black industrial power supply unit with green connectors and ventilation slots (no visible text or labels)

MYJG130W
MYJG150W
(Customizable voltage stabilization function)

MYJG100W
(Customizable voltage stabilization function)

Laser Power Supply Main Features:

New stable laser power supply, the biggest features: the use of mod design automatic detection of laser power signal, automatic detection of water protection!

The mounting holes are all consistent and suitable for plant line insta. The use of zero-current half-bridge soft switch circuit, so that the power supply has high efficiency, fast response speed, and is easy to integrate Supports Laser tubes from various manufacturers.

Port control is simple, can use either high or low level signals. TTL can control the laser start, stop,

At the same time, there is an abnormal protection switch, to detect the outside water, ventilation and so on are functioning.

Laser power regulation can be controlled between 0 and 5V analog s or PWM signals The size of the laser power.

The power supply has an open-circuit protection function: the power s can work on the open

circuit for a short time when the protection is well grounded state, w avoids damage to the laser power supply due to the bursting of the tube.

Factory aging test: Each power supply is tested under a full load at temperature of 60 degrees, 12 hours aging test, 7 seconds, and is p on and off 500 times.

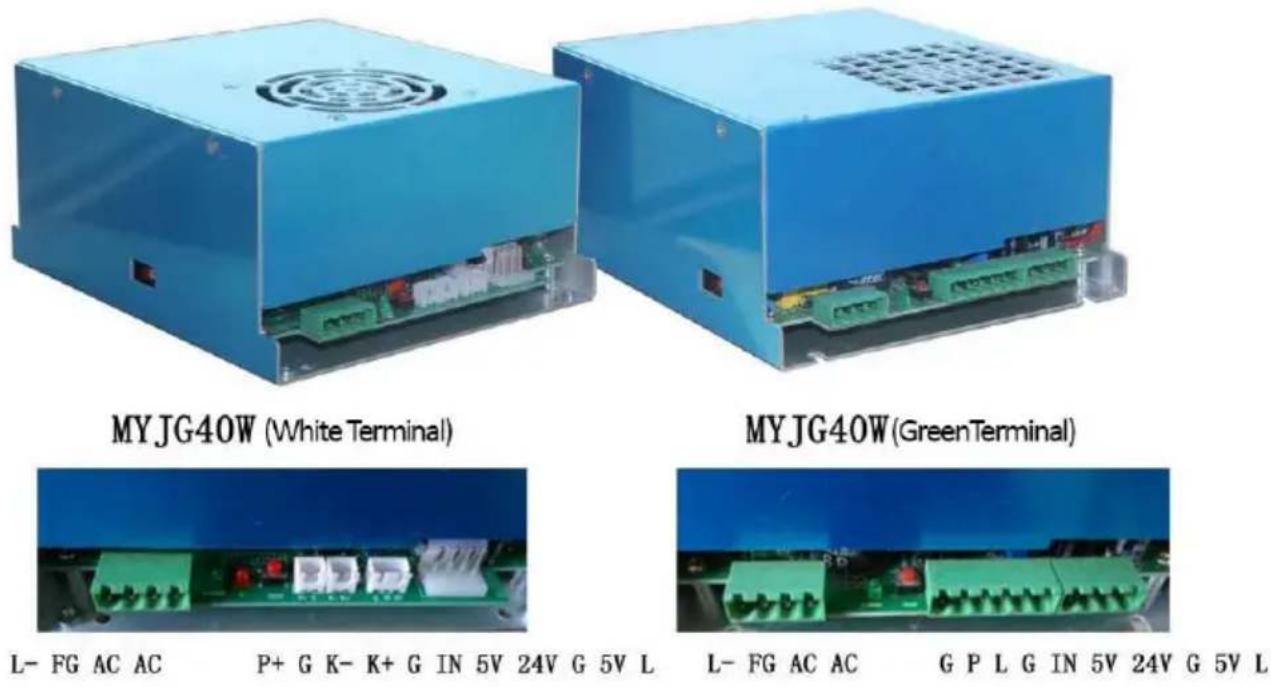

Terminal definitions, LEDs and power detection instructions:

Power supply status Lights:

(LASER) Lights when Laser is Firing: If light is on and Laser Tube is fire, then laser tube is broken. If laser tube is firing, then laser power is normal.

(P) Lights when Protection circuit is functioning
(L) Lights when Test Switch is Pressed or TTL Signal is present

Technical parameters:

Model	MYJG40W	MYJG60W	MYJG80W	MYJG100W	MYJG150W
Input	AC100-240V 50/60Hz
Maximum current output	20mA	23mA	25mA	28mA	36mA
Efficiency.	91%
Overflow protection	130% of maximum current
Open road protection	Yes (short time)
Structure.	Fan Cooled
Operating temperature	-30°C+65°C
Relative humidity.	20 to 85% RH (no dew)
Insulation resistance	≥50MΩ (DC500V)
Vibration resistance	Amplitude 0.5mm frequency 10 to 55Hz 3D direction for 2
No downtime MTBF	≥30,000hours
Turn off the power test for 7 seconds	500 times

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Certificat www.vevor.com/support

LASER ALIMENTATION

ÉLECTRIQUE

UTILISATEUR

MANUEL

MODÈLE : MYJG 40W, MYJG 60W, MYJG

80W, MYJG 100W, MYJG 150W,

Blue industrial electronic device with visible circuit board and ventilation grille (no text or symbols)

Black industrial power supply unit with ventilation grille and two green terminal blocks (no visible text or symbols)

MYJG 40 W MYJG 60W/80W /100W/150W

www.vevor.com/support

The current circuit

HV+(High Voltage)

signal ground

P+/P: Water Protection G: Ground

K-: Ground

K+: Low Level

IN: Power Input 5V: Output

24V: Output

L: Active Low

Modèle	Parties liste	image
MYJG40W	connexion terminal
MYJG60W/80W/100W/150W	connexion terminal haute tension pouv lignes*1

Exterior view of a black industrial power supply unit with ventilation slots and terminal blocks (no visible text or symbols)

MYJG50W

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors (no visible text or labels)

MYJG60W

Diagram of a device panel with grid pattern and labeled ports (no readable text or symbols)

Black industrial power supply unit with ventilation slots and two green connectors (no visible text or labels)

MYJG80W
MYJG100W
(Customizable voltage stabilization function)

Black industrial power supply unit with ventilation grilles and green terminal connectors (no visible text or symbols)

MYJG130W
MYJG150W
(Customizable voltage stabilization function)

Diagram of a server rack with grid pattern and two labeled components (no text or symbols)

Pure electrical circuit lines without any symbols

Blue industrial electronic device with visible circuit board and ventilation grille (no text or symbols)

Black industrial power supply unit with ventilation grille and two green connectors (no visible text or symbols)

MYJG 40 W MYJG 60W/80W /100W/150W

The current circuit

HV+(High Voltage)

P+/P: Water Protection G: Ground

K-: Ground

K+: Low Level

IN: Power Input

5V: Output

24V: Output

L: Active Low

Exterior view of a black industrial power supply unit with ventilation slots and terminal blocks (no visible text or symbols)

MYJG50W

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors (no visible text or labels)

MYJG60W

Diagram of a device panel with grid pattern and labeled ports (no readable text or symbols)

Black industrial power supply unit with ventilation slots and two green connectors (no visible text or labels)

MYJG80W
MYJG100W
(Customizable voltage stabilization function)

Black industrial power supply unit with ventilation grilles and green terminal connectors (no visible text or symbols)

MYJG130W
MYJG150W
(Customizable voltage stabilization function)

Diagram of a server rack with grid pattern and two labeled components (no text or symbols)

Pure electrical circuit lines without any symbols

London Road, Staines - upon - Thames, Surrey, TW

18 4 AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Blue industrial electronic device with visible circuit board and ventilation grille (no text or symbols)

Exterior view of a black industrial power supply unit with ventilation grille and two green terminal blocks (no visible text or symbols)

MYJG 40 W Potenza 60W/80W /100W/150W

www.vevor.com/support

The current circuit

HV+(High Voltage)

Exterior view of a black industrial power supply unit with ventilation slots and terminal blocks (no visible text or symbols)

MYJG50W

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors (no visible text or labels)

MYJG60W

Diagram of a device rear panel with labeled ports and dimensions (no readable text or symbols)

Black industrial power supply unit with ventilation slots and two green connectors (no visible text or labels)

MYJG80W
MYJG100W
(Customizable voltage stabilization function)

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors (no visible text or symbols)

MYJG130W
MYJG150W
(Customizable voltage stabilization function)

Diagram of a server rack with two internal components and a grid-patterned panel (no text or symbols)

Pure electrical circuit lines without any symbols

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STRADA ESTWOOD

Nuovo Galles del Sud 2122 Australia

Blue industrial electronic device with visible circuit board and ventilation grille (no text or symbols)

Black industrial power supply unit with ventilation grille and two green terminal blocks (no visible text or symbols)

MYJG 40W MYJG 60W/80W /100W/150W

www.vevor.com/support

[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]
[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

- 1 -

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

- 1 -

The current circuit

HV+(High Voltage)
    note right of Control: Control input (DAC)
    note left of Signal: signal ground

P+/P: Water Protection G: Ground

K-: Ground

K+: Low Level

IN: Power Input 5V: Output

24V: Output

L: Active Low

Exterior view of a black industrial power supply unit with ventilation slots and terminal blocks (no visible text or symbols)

MYJG50W

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors (no visible text or labels)

MYJG60W

Diagram of a device panel with grid pattern and labeled ports (no readable text or symbols)

Black industrial power supply unit with ventilation slots and two green connectors (no visible text or labels)

MYJG80W
MYJG100W
(Customizable voltage stabilization function)

Black industrial power supply unit with ventilation grilles and green terminal connectors (no visible text or symbols)

MYJG130W
MYJG150W
(Customizable voltage stabilization function)

Diagram of a server rack with grid pattern and two labeled components (no text or symbols)

Pure electrical circuit lines without any symbols

Blue industrial electronic device with visible circuit board and ventilation grille (no text or symbols)

Black industrial power supply unit with ventilation grille and two green terminal blocks (no visible text or symbols)

MYJG 40 W MYJG 60W/80W /100W/150W

The current circuit

HV+(High Voltage)
    note right of Control: Control input (DAC)
    note left of Signal: signal ground

P+/P: Water Protection G: Ground

K-: Ground

K+: Low Level

IN: Power Input

5V: Output

24V: Output

L: Active Low

Exterior view of a black industrial power supply unit with ventilation slots and control buttons (no visible text or symbols)

MYJG50W

Exterior view of a black industrial power supply unit with ventilation slots and two green connectors (no visible text or symbols)

MYJG60W

Exterior view of a black power supply unit with ventilation slots and two green terminal blocks (no visible text or symbols)

MYJG80W
MYJG100W
(Customizable voltage stabilization function)

Black industrial power supply unit with ventilation grilles and two green connectors (no visible text or labels)

MYJG130W
MYJG150W
(Customizable voltage stabilization function)

Diagram of a grid-patterned panel with labeled dimensions (no text or symbols)

Pure electrical circuit lines without any symbols

Blue industrial electronic device with visible circuit board and ventilation grille (no text or symbols)

Black rectangular electronic power supply unit with ventilation grille and two green terminal blocks (no visible text or symbols)

MIJNJG 40 W MIJNJG 60W/80W /100W/150W

BEHOEFTE HULP? CONTACT ONS!

The current circuit

HV+(High Voltage)
    note right of Control: Control input (DAC)
    note left of Signal: signal ground

P+/P: Water Protection G: Ground

K-: Ground

K+: Low Level

IN: Power Input

5V: Output

24V: Output

L: Active Low

Exterior view of a black industrial power supply unit with ventilation slots and control buttons (no visible text or symbols)

MYJG50W

Exterior view of a black industrial power supply unit with ventilation slots and two green connectors (no visible text or symbols)

MYJG60W

Exterior view of a black power supply unit with ventilation slots and two green terminal blocks (no visible text or symbols)

MYJG80W
MYJG100W
(Customizable voltage stabilization function)

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors (no visible text or symbols)

MYJG130W
MYJG150W
(Customizable voltage stabilization function)

Diagram of a grid-patterned panel with labeled dimensions (no text or symbols)

Pure electrical circuit lines without any symbols

certificaat ate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

LASER STRÖMFÖRSÖRJNING ANVÄNDARE MANUELL

MODELL : MYJG 40W, MYJG 60W, MYJG 80W, MYJG 100W, MYJG 150W,

Blue industrial electronic device with visible circuit board and ventilation grille (no text or symbols)

Exterior view of a black industrial power supply unit with ventilation grille and two green terminal blocks (no visible text or symbols)

MYJG 40 W MYJG 60W/80W /100W/150W

The current circuit

HV+(High Voltage)

P+/P: Water Protection G: Ground

K-: Ground

K+: Low Level

IN: Power Input

5V: Output

24V: Output

L: Active Low

Exterior view of a black industrial power supply unit with ventilation slots and control buttons (no visible text or symbols)

MYJG50W

Exterior view of a black industrial power supply unit with ventilation slots and two green connectors (no visible text or labels)

MYJG60W

Front view of a device with a grid pattern and labeled ports (no readable text or symbols)

Exterior view of a black power supply unit with ventilation slots and two green terminal blocks (no visible text or symbols)

MYJG80W
MYJG100W
(Customizable voltage stabilization function)

Exterior view of a black industrial power supply unit with ventilation grilles and two green connectors (no visible text or symbols)

MYJG130W
MYJG150W
(Customizable voltage stabilization function)

Diagram of a device layout with grid pattern and labeled components (no readable text or symbols)

Centurion House, London Road, Staines - upon -

Thames, Surrey, TW 18 4 AX
