USER MANUAL JX40B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

RATCHET POWER

PULLER

MODEL: JX40B

Mechanical tool with orange handle and red base, attached to a wire with hooks (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING

1. Do not use the ratchet power puller when the vehicle is in gear "P" (parking brake) position. This may damage the vehicle's transmission

2. Before use, the cable should be straightened and not twisted to a breaking the rope.

3. Keep hands, clothing, hair, and jewelry clear of the cable/gear when using the ratchet power puller.

4. Do not wrap the cable around the load, and do not hook the load onto the cable. This could damage the load and twist or fray the ca

5. Do not use the ratchet power puller if the cable is frayed, twisted damaged.

6. Do not allow anyone to stand near the cable/in the cable pulling line/behind the hand puller while it is on.

7. Never pass over the hand puller or steel cable during use.

8. Against the parameter table, do not overload fracture tension!

9. Never use other levers or tubes to put force on the tightener har

10. Subjecting the wire tightener to sudden shock-loading energy is prohibited.

11. It is prohibited to let the wire rope over/close to or around the sharp corner, which will cause the wire rope to be cut off.

12. The product is solely for pulling purposes on loads or pulling two cables together within the product's technical specs.

13. The product is not intended for hauling floating vessels, nor not professional and/or industrial applications.

14. Do not use the ratchet power puller for hoisting or lifting operation this type of application, the hoist must comply with particular safety requirements.

15. The ratchet power puller in this operation manual is not intended transporting people.

MODEL AND PARAMETERS

Model	JX40B
Max. Capacity	4T
Rope Type	Wire Rope
Rope Diameter/Length	Φ6mm/3m
Description	3 Hooks&Double Gear
Double Rope Span	70-1.67m
Single Rope Span	70-2.8m
Breaking Tension	5.5T

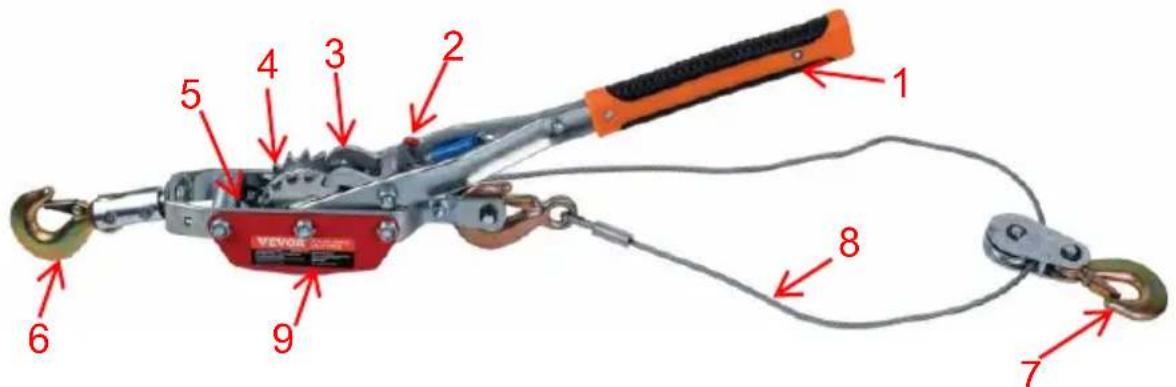

STRUCTURE DIAGRAM

1 2 3 4 5 6 7 8 9 Vevor Harrow

1. Handle 2. Pawl Spring Switch 3. Drive Pawl 4. Ratchet 5. Stop Pawl Trigger 6. Anchor Hook 7. Load Hook 8. Wire Rope 9. Guard

COMPONENTS

No.	Picture	Name	Qty
1		Ratchet Power Puller	1
2		User Manual	1

OPERATION

CHECK THE HAND PULLER CAREFULLY BEFORE USING IT !

Suggestion: The best way to get acquainted with how the hand operates is to carry out a few test runs before you actually use i

Note: It may be difficult to pull out the rope if it is fully packed reserve an appropriate length outside!

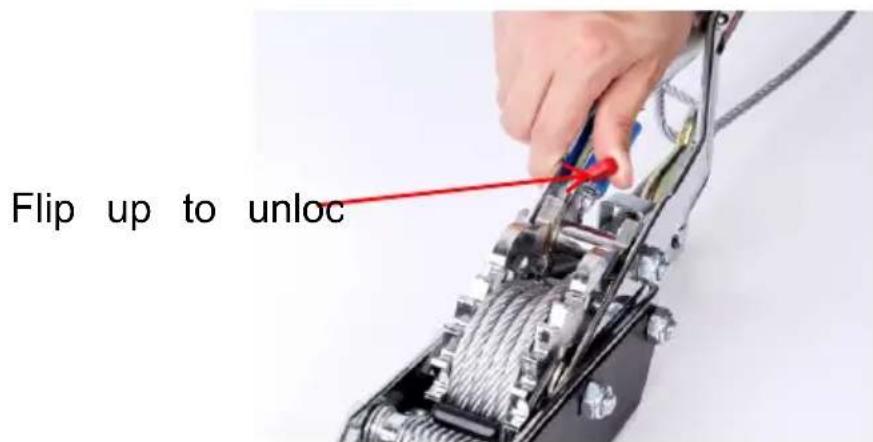

Step 1: Switch the pawl spring to the upper unlock position in order to release the pawl.

Flip up to unloc

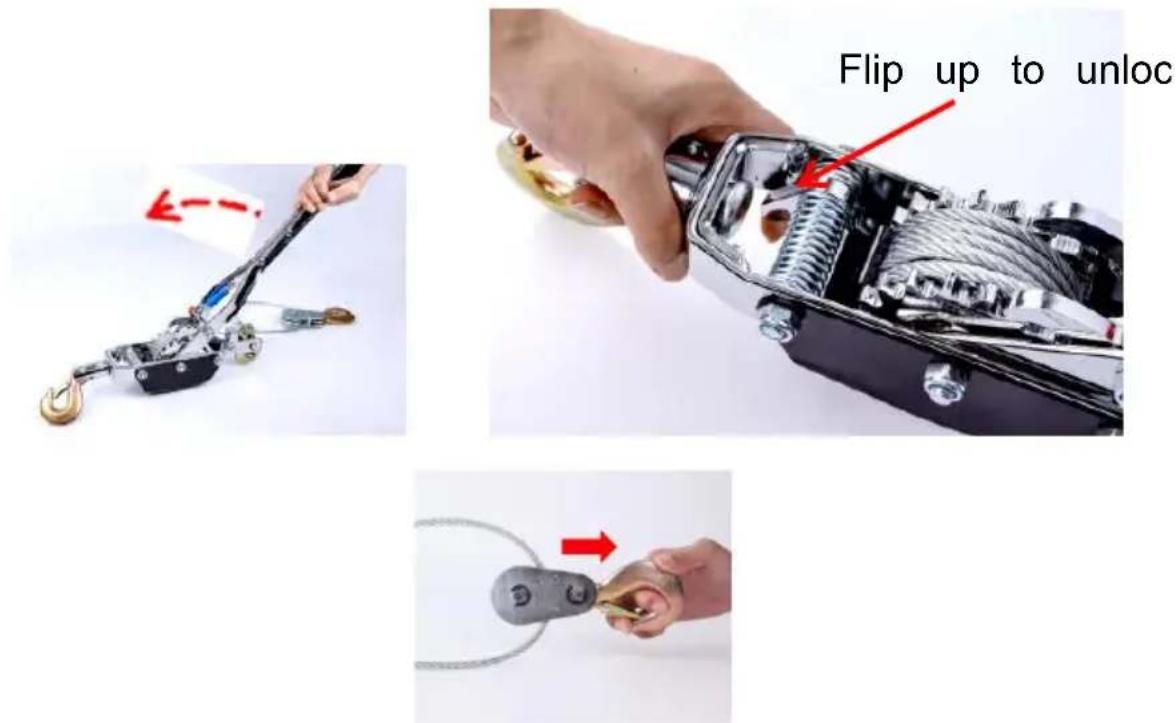

Step 2: Flip the handle to the opposite side, hold the trigger simultaneously, the wire rope can be pulled out.

Flip up to unloc

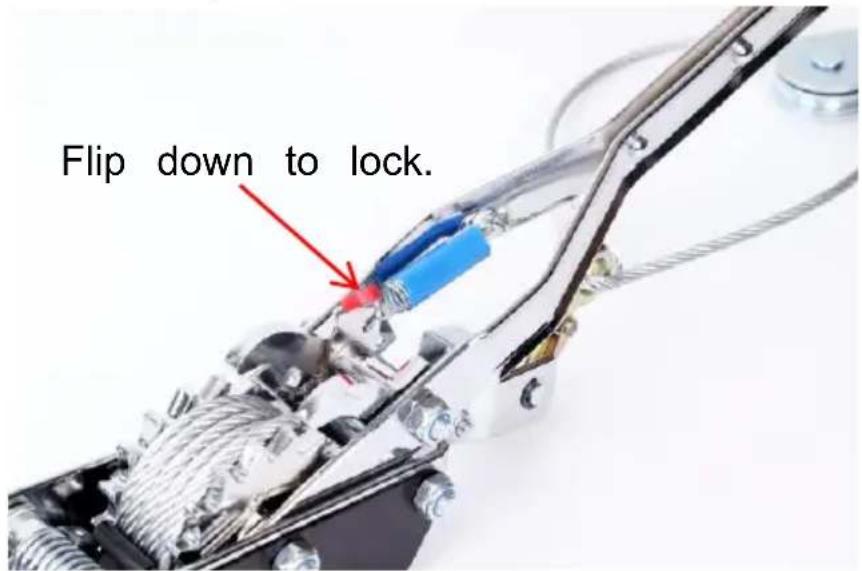

Step 3: Reset the handle, switch the pawl spring back to original position to lock the pawl.

Flip down to lock.

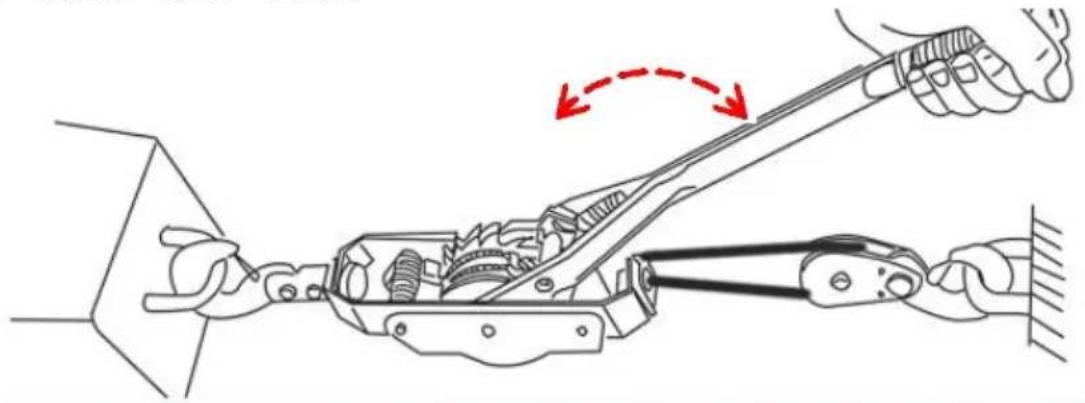

Step 4: The wire rope will be retracted when you push and pull handle back and forth.

Illustration of a manual tool gripping a mechanical component, with red arrows indicating motion direction (no text or symbols)

Note: In case of stacking the wire rope on one side, you may use finger to guide the rope while retracting.

MAINTENANCE

1. Lubricate the wire rope regularly and check for wear and broken 2. Be sure to wipe the product with a dry cloth after use in harsh environments, such as bad weather or by the sea.
