USER MANUAL KZ-S22 Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

ULTRASONIC CLEANERS

USER MANUAL

MODEL NO.: KZ-S013, KZ-S2, KZ-S3,KZ-S6,KZ-S10,KZ-S15,KZ-S22,KZ-S30, JPS-08,JPS-10,JPS-20,JPS-30,JPS-40,JPS-60,JPS-80,JPS-100

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us. Y are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Ultrasonic Cleaners

MODEL NO.: KZ-S013, KZ-S2, KZ-S3,KZ-S6,KZ-S10,KZ-S15,KZ-S22,KZ-S30, JPS-08,JPS-10,JPS-20,JPS-30,JPS-40,JPS-60,JPS-80,JPS-100

ultrasone cleaning machine

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury. SAVE THIS MANUAL

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

Read all instructions carefully.

Keep it away from children!

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisory. To avoid electrical shock:

1) DO NOT run the cleaner continuously for more than one hour at as doing so can damage the internal components.
2) DO NOT operate the unit without fluid in the tank. Always ensure fluid is no higher than the max mark, always ensure there is a mini depth of 7 ~cm .
3) DO NOT drop any item into the tank as this may cause damage transducer. Always place the items gently into the tank and use the bar whenever possible.
4) The more items that you place in your cleaning bath the less efficient will clean. It is not advised to overlap items. Always allow plenty of clear space between the items.
5) Do keep the lid on during use. This will prevent splashes and re-evaporation of the fluid.
6) Never immerse the machine or power cord in water or other liquids
7) DO NOT touch the power plug with wet hands, especially when it or removing the plug.
8) DO NOT touch the unit if the machine has fallen into water durir

operation.Remove the power plug from the socket first.

9) DO NOT disassemble the machine, except by professionals.

10) UNPLUG the power source while filling or emptying the tank.

11) DO NOT spray water or liquid over the device and the control p

12) DO NOT operate the cleaner without proper grounding.

13) DO NOT place the device on a soft surface, where the vents are blocked.

14) Upon completion of the cleaning cycle, turn the heater knob off isolate the machine from the power source.

15) Take care when adding or removing items from the cleaning tank fluid is likely to be hot and displaced fluid can damage the internal components. Any displaced fluid must be dried up immediately.

16) In the event of a malfunction/emergency, disconnect the power supply by

removing the power plug from the electrical outlet.

17) When heating is required, the water level should not be less than full

18) If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

19) The connector must be removed before the appliance is cleaned at that the appliance inlet must be dried before the appliance is used a

20) This device complies with Part 15 of the FCC Rules. Operation subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.

2. When the machine is used several times continuously, in order to the damage and failure of the parts caused by overheating, the ma will enter into a system of self-protection, it can be resumed after

minutes.

1. Do not get water directly from the tap- Flooding of the device an switches will lead to malfunction.
2. Do not add anti-toxic, sterilizing or acidic solvents into the cleaning water.

- May cause deterioration of resin and damage of stainless steel.

1. Do not clean pearls and other low surface hardness articles Morse hardness of less than 8).

- Can cause damage discoloration or loss of luster.

1. Do not wash rings, necklaces with gems and diamonds for long of time.

2. May cause gems / diamonds to fall off

3. DO NOT use the same socket as TV, radio and computer.
4. Can affect the picture clarity or cause noise.
5. Prevent the device from falling and a violent shaking- This can ca breakage deformation, and malfunction.

TECHNICAL SPECIFICATIONS

Model	KZ-S30/JPS-100	KZ-S22/JPS-80	KZ-S15/JPS-60	KZ-S10/JPS-40
Product Dimensions (L*W*H)(mm)		530*330*2753	0*330*325 5 3	55*325*275 330*270
Packing Size (L*W*H) (mm)	635*405*380	425*380*32635	405*330 5 40	0*300*325
Net Weight (kg)	12 11.2/	10.35 7.6/8.4	6
Gross Weight (kg)	13.55	12.5	8.6/9.2	6.7
Capacity (L)	30	22	15 10
Ultrasonic Frequency(KHz)	40
Ultrasonic power (W)	600	480	360	240
Heating power	600	600	450/400	300/400
(W)
Set time (min)	0-30
Set temperature(°C)	0-80

Model	KZ-S6/JPS-30	KZ-S3/JPS-20	KZ-S2/JPS-10	KZ-S013/JPS-08
Product Dimensions (L*W*H)(mm)	325*175*275	265*165*225	175*165*210	175*165*195
Packing Size (L*W*H) (mm)	395*225*325	310*210*280	22322302024260	0
Net Weight (kg)	4.6	3.15/2.95 2.	25	1.9
Gross Weight (kg)	5.15 2.13	53/3.4 2.5 5
Capacity (L)	6/6.5 3	2	1.3
Ultrasonic Frequency(KHz)	40
Ultrasonic power (W)	180	120	60	60
Heating power (W)	300	150	150	100
Set time (m)n	0-30
Set temperature (°C)	0-80

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

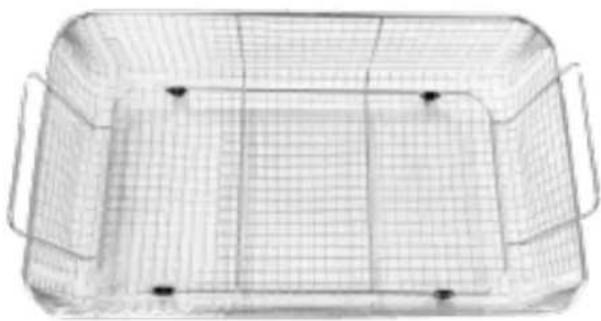

Line drawing of a rectangular container with grid pattern and handles (no text or symbols)

cleaning basket (Except KZ-S013/JPS-08)

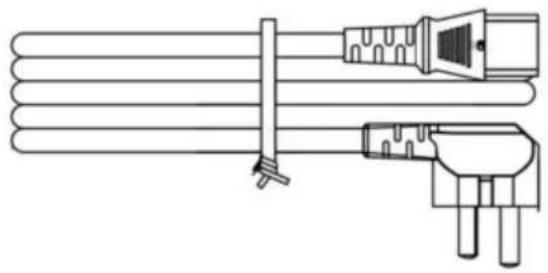

Technical line drawing of a multi-wire electrical plug with two terminal connectors (no text or symbols)

Power cord
(The plug is for reference only, subject to the material object.)

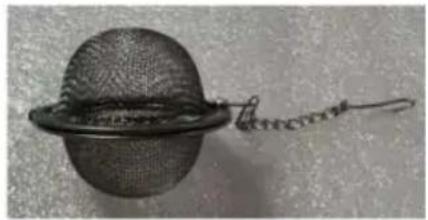

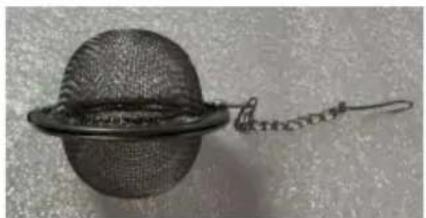

Close-up of a mesh spherical object with a metal ring attached, resembling a coiled wire or tool (no visible text or symbols)

Small cleaning basket

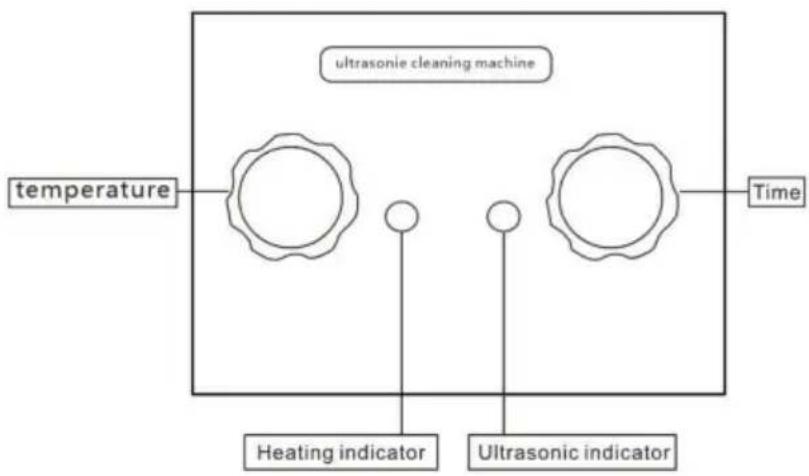

PRODUCT FUNCTIONS

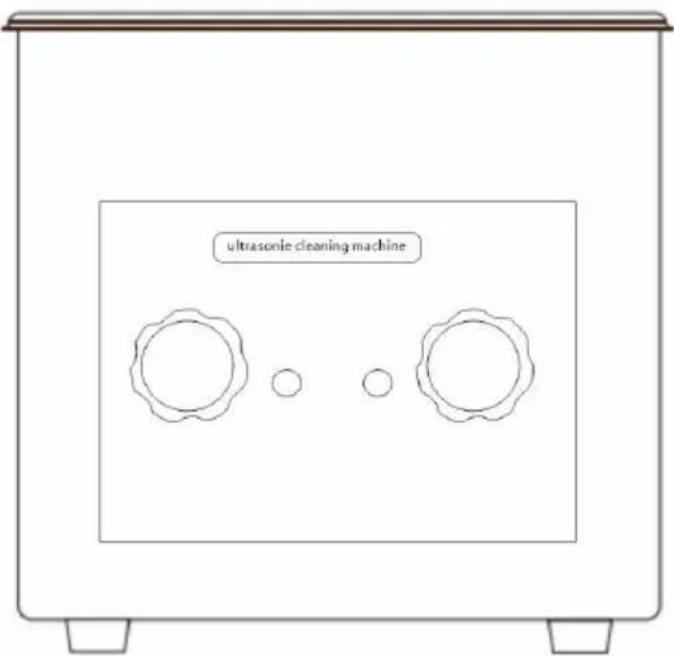

Digital Ultrasonic Cleaner

Features:

• Ultrasonic frequency of 40 kHz
• Digital display of temperature and time. Adjustable temperature from 0-80°C.
  ● Cleaning time with individually adjustable from 0-30min.
  ● All devices have an useful basket for cleaning parts.
• 6 liter and above size with 1/2" drainage.
  ● Material tank and casing: Stainless steel.

ITEMS TYPE

Items can be cleaned
Type	Specific Items
Glasses	Spectacles (without UV film) tortoise shell frame
Office supplies Ruler, scissors, pen seal etc
Daily supplies Toothbrush. razor blade comb etc
Jewelry Rings, necklaces, earrings, etc
Tableware Metal tableware.ceramic tableware dentures. etc

Items not suitable for ultrasonic cleaning
	Specific ItemsType
Wooden articles	Turtle shell frame, pearl, birthstone opal, emerald coral, ivory, emerald, stone, Lacquer ware.
Gems with softer surfaces
Coating and finishing inferior products
Bonded gemstones
Items with scratches and cracks

It may not be possible to completely remove the remaining dental stone, dental wax, wax yellow black spots and smoking dental etc.

Possible inability to clean fixed sedatives in dentures.

Discoloration and rust of metals and precious metals cannot be removed.

To clean bonding jewels, diamond necklaces and rings may ca them fall off.

OPERATIONS

1. Open the lid, add the clean water, put what you need to the tank, ensure the clean water is no higher than the" M mark. Do not operate the unit without water in the tank.
2. Plug the adapter into the socket of the machine.
3. Plug the adapter power into the power socket.
4. Short press the "Time" button to switch to the desired tin then short press the ON / OFF" button to start the work.
5. If you want to pause the cleaning, you can short press the OFF button to pause, the countdown on the display is paid. Short press the power button again to continue working.
6. If you want to reselect the time, long press the "ON / C to return to the standby state, and press the "Time" to the time.
7. When the cleaning work is finished, please unplug the power, open the lid, take cleaned items from the tank, tr out dirty water clean and wipe the tank.

Note : Pour water from the side

DAILY MAINTENANCE

1. Pour water into the tank with the measuring cup, half of ta standard line. After washing with a soft sponge, rinse with cleaning water.
2. Be careful not to seep water into the power connection at the bottom of the cleaning tank.

Diagram showing water droplets and a vehicle with a red cross symbol, likely indicating water pollution or hazard.

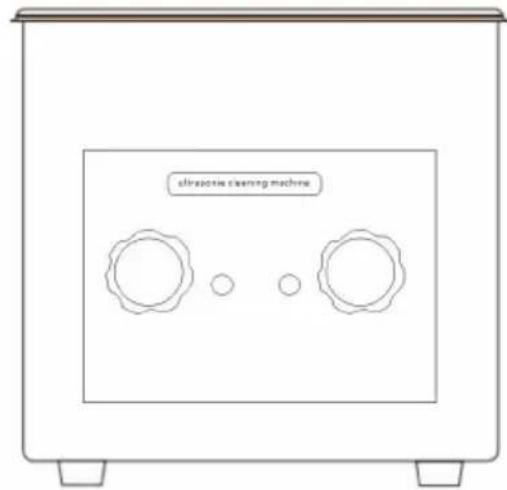

Line drawing of a rectangular appliance with two circular cutouts and a label reading 'Software & Heating Machine' (no other text or symbols)

1. After cleaning, please rinse items with clean water once ag. Don't seep water into the power connection when cleaning.

2. When the stains are difficult to remove, please wet a clear with water, then wipe them. Be careful not to seep water into switch and power connection.

3. After wiping, dry the device with a dry cloth.

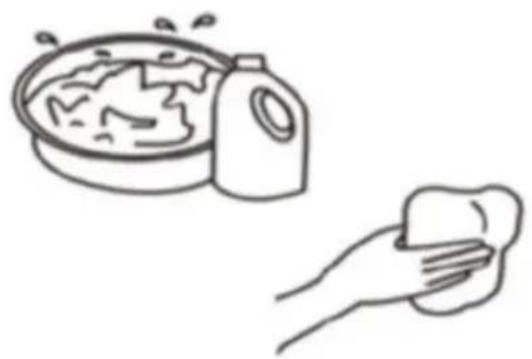

Simple line drawing of a washing machine with a hand holding a cloth (no text or symbols)

ultrasonic cleaning machine

Disposal information:This product is subject to the provision of European Directi 2012/19/EC. The symbol showing a wheelie bin crossed thr indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may no discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi,baoshanqu, shanghai 200000

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122

Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

UK

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am

YH CONSULTING LIMITED.

C/OYHConsulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Made In China

NO.	Name	Name	Le non	None
1	top cap	Oberkappe	capuchon supérieur	cappuccio superiore
2	ptee Tape	PTFE-Band	ruban PTFE	nastro PTFE
3	drain hose	Entwässerungsschlauch	Tuyau de vidange	tubo di scarico
4	Vater pipe joint	Vasserrohrverbindung	Joint de tuyau d'eau	giunzione del tubo dell'acqua
5	Stainless steel	Edelstahl	Acier inoxydable	acciaio inox
6	Vashing nesh basket	Waschgitterkorb	Panier à mailles de lavage	cesto a rete per lavaggio
7	foot pad	Fußpolster	Tapis de pied	cuscinetto per i piedi
8	Cylinder block	Zylinderblock	Bloc de cylindre	blocco cilindrico
9	Fover substrate	Leistungssubstrat	Substrat de puissance	sostrato di potenza
10	contro board	Steuerplatine	Carte de connande	scheda di controllo
11	casing	Cehäuse	Boltier	custodia
12	handle	Griff	Poignée	maniglia
13	svitch	Schalter	Interrupteur	interruttore
14	Safety seat	Sicherheitssitz	Siège de sécurité	seduta di sicurrezza
15	fuse	Sicherung	Fusible	fusibile
16	Fover cord	Netzkabel	Câble d'alimentation	cavo di alimentazione
17	base	Basis	Base	base
18	foot pad	Fußpolster	Tapis de pied	cuscinetto per i piedi
19	Screv	Schraube	Vis	vite

Exploded diagram of a microwave oven with numbered parts for identification

VEVOR®

TOUGH TOOLS, HALF PRICE

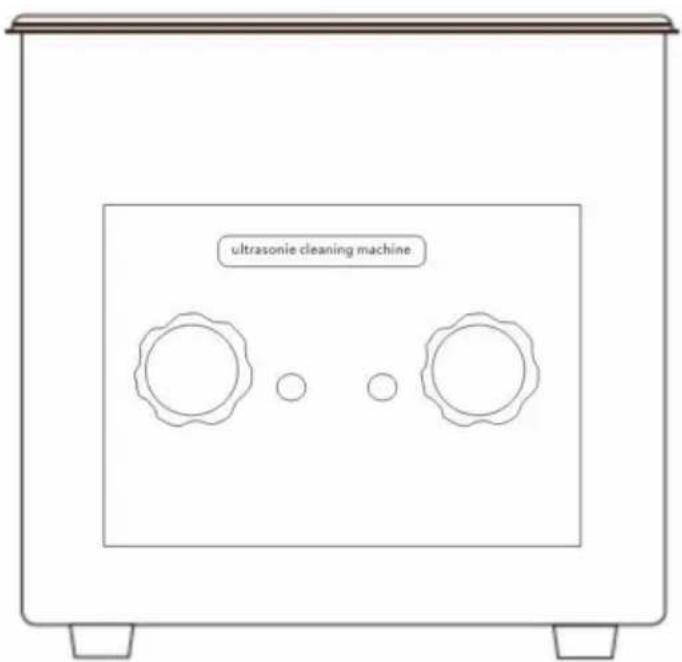

Nettoyeurs àultrasons

N° DE MODÈLE : KZ-S013, KZ-S2, KZ-S3, KZ-S6, KZ-S10, KZ-S15, KZ-S22, KZ-S30, JPS-08,JPS-10,JPS-20,JPS-30,JPS-40,JPS-60,JPS-80,JPS-100

ultrasonic cleaning machine

BESOIN D'AIDE ? CONTACTEZ-NOUS !

Top-down wireframe view of a rectangular container filled with mesh grids (no text or symbols)

Technical line drawing of a coiled electrical plug with two connectors (no text or symbols)

panier d e n ettoyage ( sauf K Z-S013/JPS-08) (the plug is for reference only, subject to the material object.)

Close-up of a mesh metal sieve with a handle, no visible text or symbols

FONCTIONS DU PRODUIT

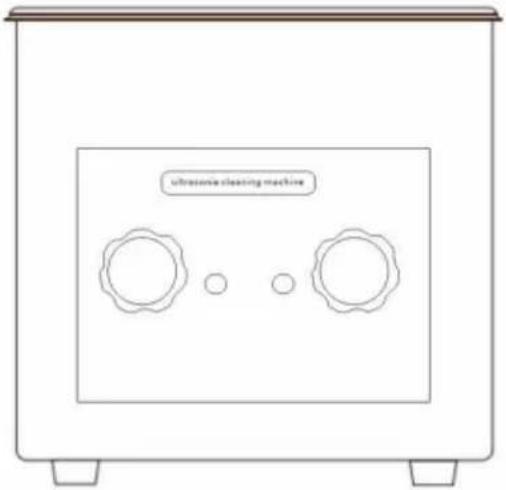

Digital Ultrasonic Cleaner

Diagram showing water droplets falling into a container with a red 'X' symbol indicating a warning or rejection.

chines offering washers

Simple line drawing of a washing machine with a hand cleaning it (no text or symbols)

ultrasonic cleaning machine

Informations sur

ultrasonic cleaning machine

Top-down wireframe view of a rectangular metal grater or container with grid pattern (no text or symbols)

Technical line drawing of a coiled electrical plug with two connectors (no text or symbols)

Power cord
(The plug is for reference only, subject to the material object.)

Close-up of a mesh spherical object with a looped handle, possibly a filter or sink (no text or symbols visible)

Diagram showing water droplets falling into a container with a red 'X' symbol indicating a warning or rejection.

chines offering washers

Simple line drawing of a washing machine with a hand cleaning it (no text or symbols)

ultrasonic cleaning machine

Entsorgungshinweis:

N. MODELLO: KZ-S013, KZ-S2, KZ-S3, KZ-S6, KZ-S10, KZ-S15, KZ-S22, KZ-S30, JPS-08, JPS-10, JPS-20, JPS-30, JPS-40, JPS-60, JPS-80, JPS-100

ultrasonic cleaning machine

Top-down wireframe view of a rectangular metal grater or container with grid pattern (no text or symbols)

Close-up of a mesh metal sieve with a handle, no visible text or symbols

Technical line drawing of a coiled electrical plug with two connectors (no text or symbols)

Power cord

(The plug is for reference only, subject to the material object.)

Diagram showing water droplets falling into a container with a red 'X' symbol indicating a warning or rejection.

chines offering washers

Simple line drawing of a washing machine with a hand cleaning it (no text or symbols)

ultrasonic cleaning machine

©

VEVOR®

TOUGH TOOLS, HALF PRICE

ultrasonic cleaning machine

Top-down wireframe view of a rectangular container filled with mesh grids (no text or symbols)

Technical line drawing of a coiled electrical plug with two connectors (no text or symbols)

Power cord
The plug is for reference only,
subject to the material object.)

Close-up of a mesh spherical object with a looped handle, possibly a filter or sink (no text or symbols visible)

Diagram showing water droplets falling into a container with a red 'X' symbol indicating a warning or rejection.

cleaning water

Simple line drawing of a washing machine with a hand cleaning it (no text or symbols)

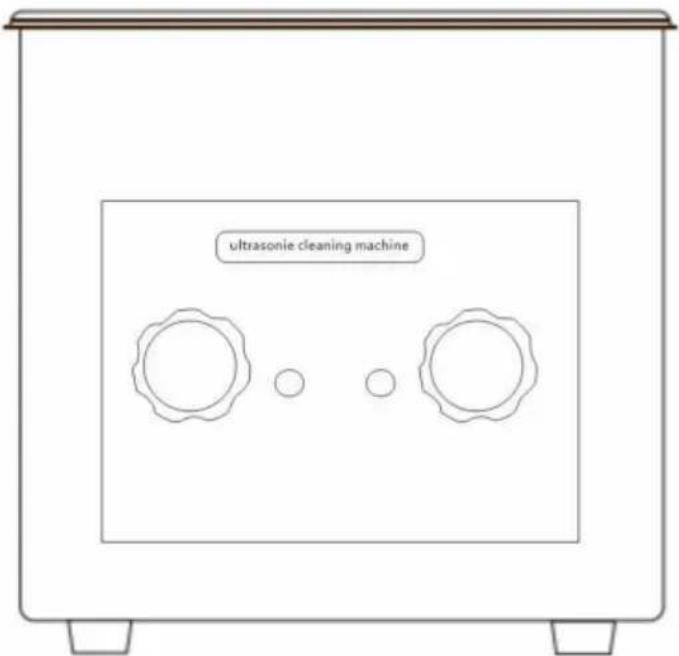

ultrasonic cleaning machine

ultrasonic cleaning machine

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Top-down wireframe view of a rectangular metal grater or container with grid pattern (no text or symbols)

Technical line drawing of a coiled electrical plug with two connectors (no text or symbols)

Power cord
(The plug is for reference only, subject to the material object.)

Close-up of a mesh spherical object with a looped handle, possibly a filter or sink (no text or symbols visible)

Diagram showing water droplets falling into a container with a red 'X' symbol indicating a warning or rejection.

chines offering washers

Simple line drawing of a washing machine with a hand holding a cloth (no text or symbols)

ultrasonic cleaning machine

ultrasonic cleaning machine

HULP NODIG? NEEM CONTACT MET ONS OP!

Top-down wireframe view of a rectangular container filled with mesh grids (no text or symbols)

Technical line drawing of a coiled electrical plug with two terminal connectors (no text or symbols)

Power cord
(The plug is for reference only, subject to the material object.)

Close-up of a mesh metal sieve with a handle, no visible text or symbols

Kleine schoonmaakmand

PRODUCTFUNCTIES

Digital Ultrasonic Cleaner

Kenmerken:

ÿ Ultrasone frequentie van 40 kHz ÿ Digitale

Diagram showing water droplets falling into a container with a red 'X' symbol indicating a warning or rejection.

chines offering washers

Simple line drawing of a washing machine and a hand cleaning a surface (no text or symbols)

ultrasonic cleaning machine

RECYCLINGINFORMATIE

ultrasonic cleaning machine

BEHÖVER DU HJÄLP? KONTAKTA OSS!

Top-down wireframe view of a rectangular metal grater or container with grid pattern (no text or symbols)

Technical line drawing of a coiled electrical plug with two connectors (no text or symbols)

Power cord
(The plug is for reference only, subject to the material object.)

Close-up of a mesh metal sieve with a handle, no visible text or symbols

Liten städkorg

PRODUKTFUNKTIONER

Digital Ultrasonic Cleaner

Funktioner:

ÿ Ultraljudsfrekvens på 40 kHz y Digital

Diagram showing water droplets falling into a container with a red 'X' symbol indicating a warning or rejection.

cleaning water

Simple line drawing of a washing machine with a hand cleaning it (no text or symbols)

ultrasonic cleaning machine

Avfallshantering: Denna

Support and E-Warranty Certificate

www.vevor.com/support
