Product Type	Ultrasonic Cleaner
Brand	Vevor
Model	KZ-F15
Product Dimensions (L x W x H)	355 x 325 x 275 mm
Package Dimensions (L x W x H)	425 x 380 x 325 mm
Net Weight	8.6 kg
Gross Weight	9.5 kg
Tank Capacity	15 Liters
Ultrasonic Frequency	40 kHz
Ultrasonic Power	360 W
Heating Power	600 W
Time Setting Range	0 to 30 minutes
Temperature Setting Range	0 to 80 °C
Tank and Housing Material	Stainless Steel
Display	Digital (Temperature and Time)
Cleaning Basket	Included
Drainage System	Yes, 1/2" Connection
Power Supply	220-240 V ~ 50/60 Hz
Package Contents	Cleaner, Basket, Lid, Manual
Warranty	Certificate at www.vevor.com/support

Frequently Asked Questions - KZ-F15 Vevor

How do I start a cleaning cycle?

Fill the tank with clean water to the MAX mark, place items in the basket, close the lid, plug in the device, press the Time button to set the duration (0-30 min), then press ON/OFF to start.

Can I heat the cleaning solution?

Yes, the temperature is adjustable from 0 to 80 °C. Use the temperature adjustment knob to select the desired value. Heating activates automatically during the cycle.

What items should I not clean with this device?

Avoid cleaning items made of wood, pearls, opals, coral, ivory, soft gemstones (Mohs hardness < 8), items with cracks, glued jewelry, or set diamonds, as they may be damaged or come loose.

Does the device stop automatically if the temperature is too high?

Yes, in case of prolonged continuous use, the cleaner has overheat protection. It stops automatically and can be restarted after about 5 minutes of cooling.

Can I use solvents or acids in the tank?

No, do not add toxic solvents, sterilizers, or acids. Use only water or cleaning solutions specifically designed for ultrasonic cleaners. Harsh chemicals may damage the resin and stainless steel.

What should I do if the device does not turn on?

Check that the power cord is properly plugged in and the outlet works. Ensure the tank has enough water (minimum 7 cm depth). If the problem persists, contact technical support at www.vevor.com/support.

How do I clean the tank after use?

Empty the dirty water, clean the tank with a soft sponge and rinse with clean water. Dry with a soft cloth. Be careful not to allow water into the electrical connections at the bottom of the tank.

Can I operate the device without water?

No, never operate the cleaner without liquid in the tank. This would damage the transducers. Always ensure the water level is between the minimum (7 cm) and the MAX mark.

What is the maximum recommended continuous operation time?

It is not recommended to operate the cleaner continuously for more than one hour. If you need to clean multiple loads, let the device cool for about 5 minutes between cycles.

How do I interrupt or pause a cycle?

To pause, briefly press the ON/OFF button. The countdown stops. To resume, press again. To cancel the cycle, hold the ON/OFF button to return to standby.

USER MANUAL KZ-F15 Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

ULTRASONIC CLEANERS USER MANUAL

MODEL NO.: KZ-F2,KZ-F3,KZ-F6,KZ-F10,KZ-F15,KZ-F30

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and doses not necessarily mean to cover all categories of tools offered by us. Y are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

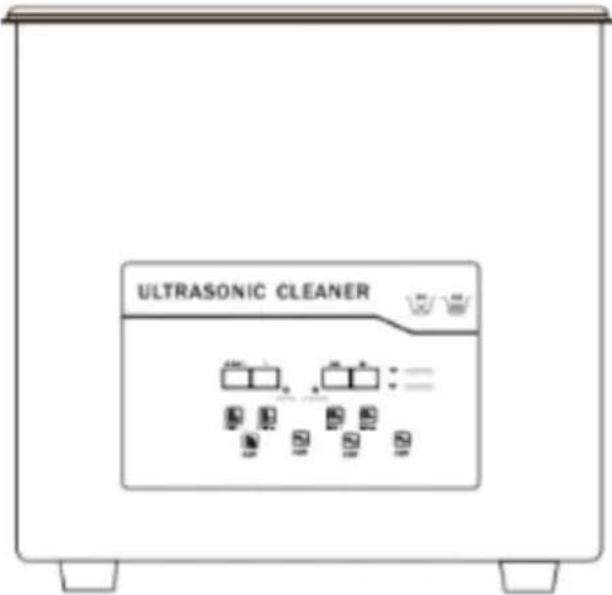

Ultrasonic Cleaners

MODEL NO.: KZ-F2, KZ-F3, KZ-F6, KZ-F10, KZ-F15, KZ-F30

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury. SAVE THIS MANUAL

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

Read all instructions carefully.

Keep it away from children!

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisory. To avoid electrical shock:

1) DO NOT run the cleaner continuously for more than one hour at as doing so can damage the internal components.
2) DO NOT operate the unit without fluid in the tank. Always ensure fluid is no higher than the max mark, always ensure there is a mini depth of 7cm.
3) DO NOT drop any item into the tank as this may cause damage transducer. Always place the items gently into the tank and use the bar whenever possible.
4) The more items that you place in your cleaning bath the less efficient will clean. It is not advised to overlap items. Always allow plenty of clear space between the items.
5) Do keep the lid on during use. This will prevent splashes and re-evaporation of the fluid.
6) Never immerse the machine or power cord in water or other liquids
7) DO NOT touch the power plug with wet hands, especially when it or removing the plug.
8) DO NOT touch the unit if the machine has fallen into water durir

operation.Remove the power plug from the socket first.

9) DO NOT disassemble the machine, except by professionals.

10) UNPLUG the power source while filling or emptying the tank.

11) DO NOT spray water or liquid over the device and the control p

12) DO NOT operate the cleaner without proper grounding.

13) DO NOT place the device on a soft surface, where the vents are blocked.

14) Upon completion of the cleaning cycle, turn the heater knob off isolate the machine from the power source.

15) Take care when adding or removing items from the cleaning tank fluid is likely to be hot and displaced fluid can damage the internal components. Any displaced fluid must be dried up immediately.

16) In the event of a malfunction/emergency, disconnect the power supply by

removing the power plug from the electrical outlet.

17) When heating is required, the water level should not be less than full

18) If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

19) The connector must be removed before the appliance is cleaned at that the appliance inlet must be dried before the appliance is used a

20) This device complies with Part 15 of the FCC Rules. Operation subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.

2. When the machine is used several times continuously, in order to the damage and failure of the parts caused by overheating, the ma will enter into a system of self-protection, it can be resumed after

minutes.

1. Do not get water directly from the tap- Flooding of the device an switches will lead to malfunction.
2. Do not add anti-toxic, sterilizing or acidic solvents into the cleaning water.

- May cause deterioration of resin and damage of stainless steel.

1. Do not clean pearls and other low surface hardness articles Morse hardness of less than 8).
2. Can cause damage discoloration or loss of luster.
3. Do not wash rings, necklaces with gems and diamonds for long of time.
4. May cause gems / diamonds to fall off
5. DO NOT use the same socket as TV, radio and computer.
6. Can affect the picture clarity or cause noise.
7. Prevent the device from falling and a violent shaking- This can ca breakage deformation, and malfunction.

TECHNICAL SPECIFICATIONS

Model	KZ-F10	KZ-F6	KZ-F3	KZ-F2
Product Dimensions (L*W*H) (mm)	330*270*275	325*175*275	265*165*225	175*165*190
Packing Size (L*W*H) (mm)	400*300*325	395*225*325	310*210*280	223*207*260
Net Weight (kg)	6.8	5.2	3.4	2.3
Gross Weight (kg)	7.5	5.8	3.8	2.6
Capacity (L)	10	6	3	2
Ultrasonic Frequency (KHz)	40
Ultrasonic power (W)	240	180	120	60
Heating power (W)	600	500	300	150

Set time (min)	0-30
Set temperature °C()	0-80

Model	KZ-F30 KZ-F15
Product Dimensions (L*W*H) (mm)	530*330*325	355*325*275
Packing Size (L*W*H) (mm)	635*405*380	425*380*325
Net Weight (kg)	8.13 6
Gross Weight (kg)	9.14.55 5
Capacity (L)	30 15
Ultrasonic Frequency (KHz)	40
Ultrasonic power (W)	600	360
Heating power (W)	1250	600
Set time (min)	0-30
Set temperature °C()	0-80

*Products such as specifications, appearance, and design are subject to modification without prior notice.

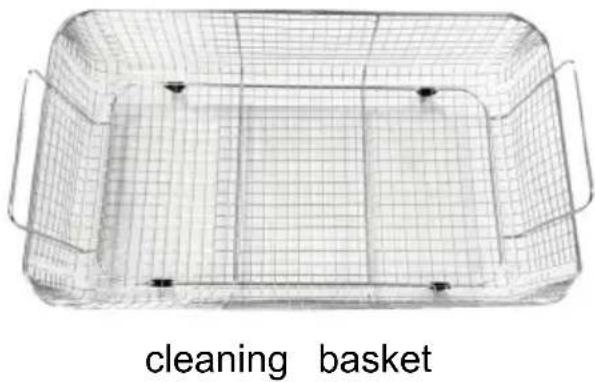

PACKAGE CONTENTS

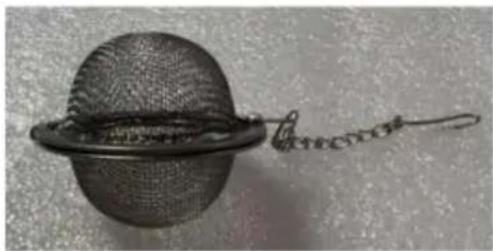

Close-up of a metallic mesh spherical object with a looped ring attached, resembling a mechanical or decorative component (no visible text or symbols)

Pure electrical circuit lines without any symbols

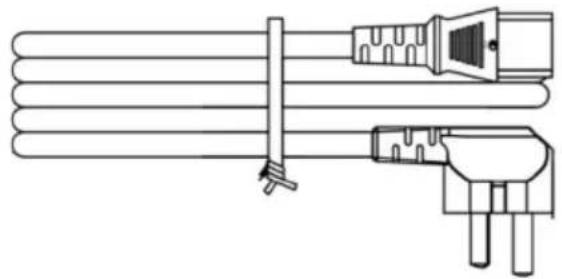

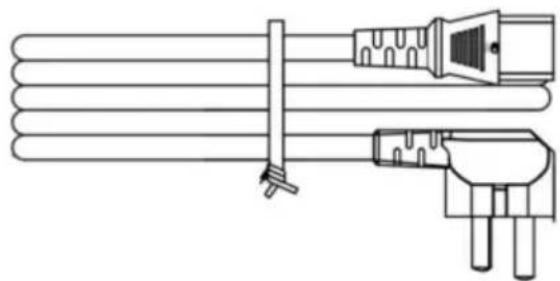

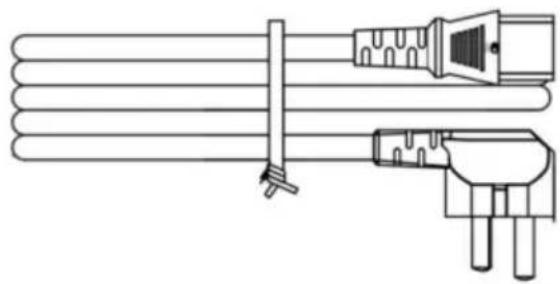

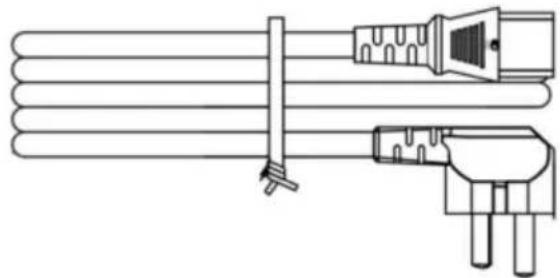

Power cord

(The plug is for reference only, subject to the material object.)

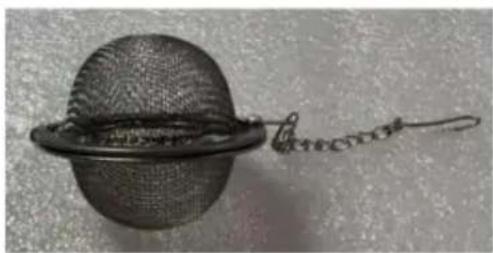

Small cleaning basket

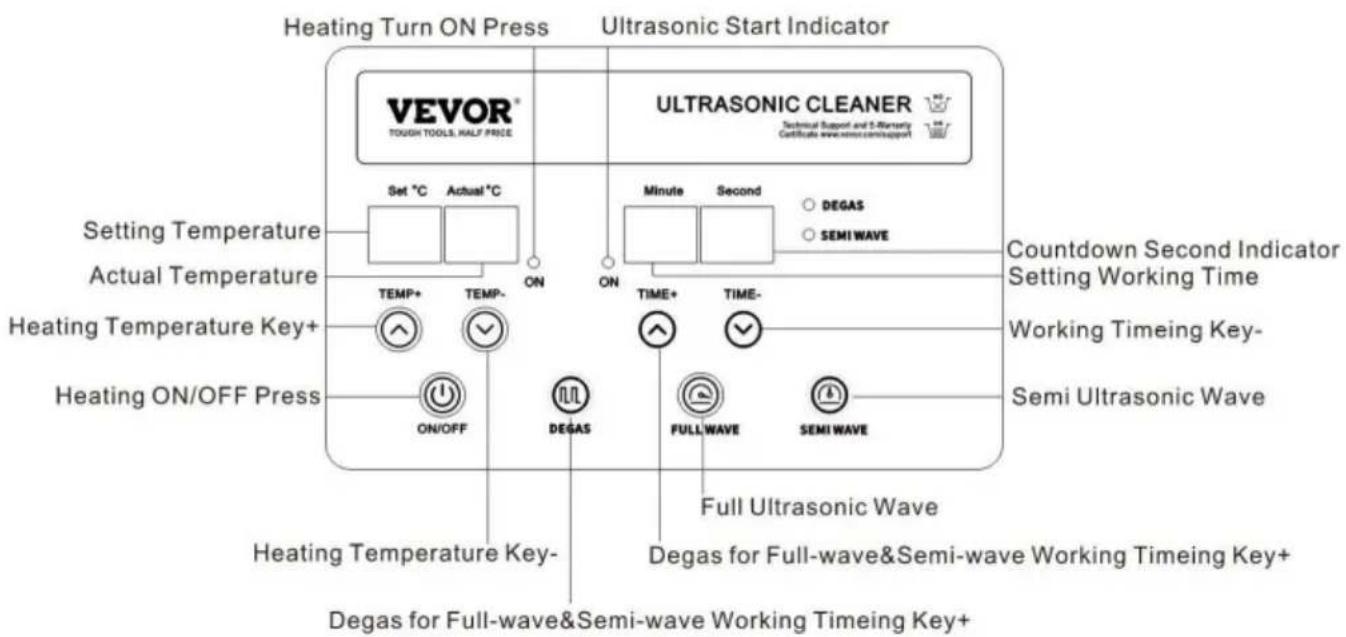

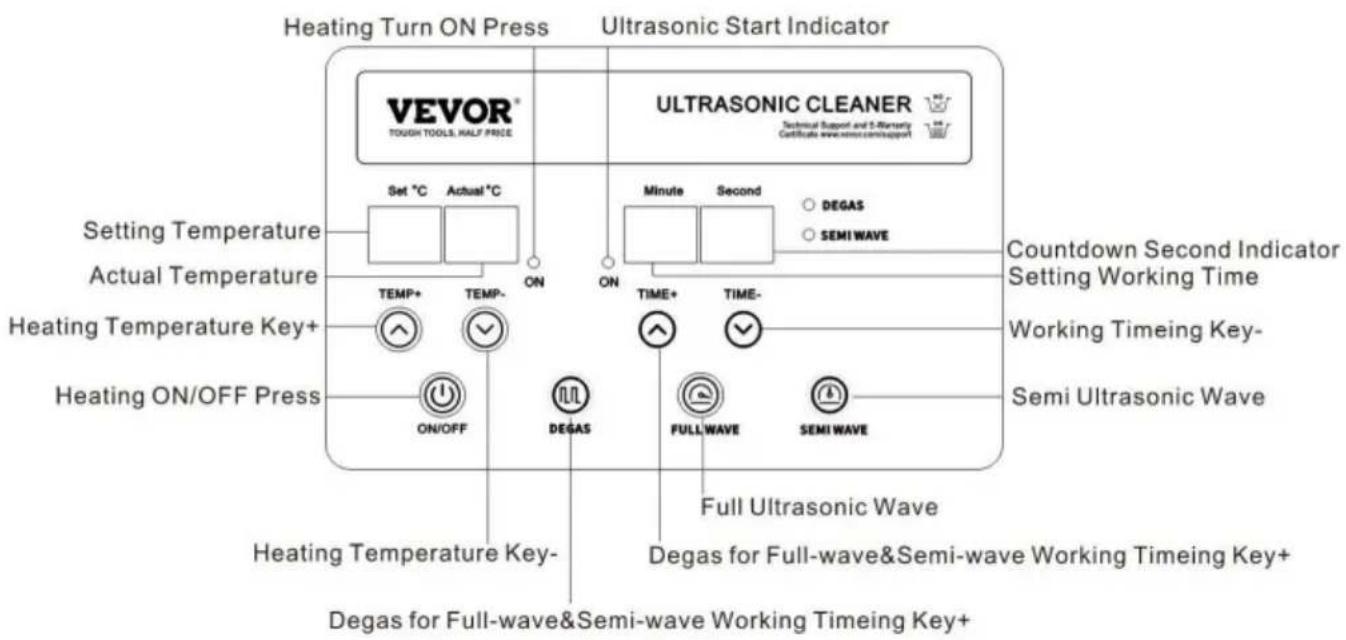

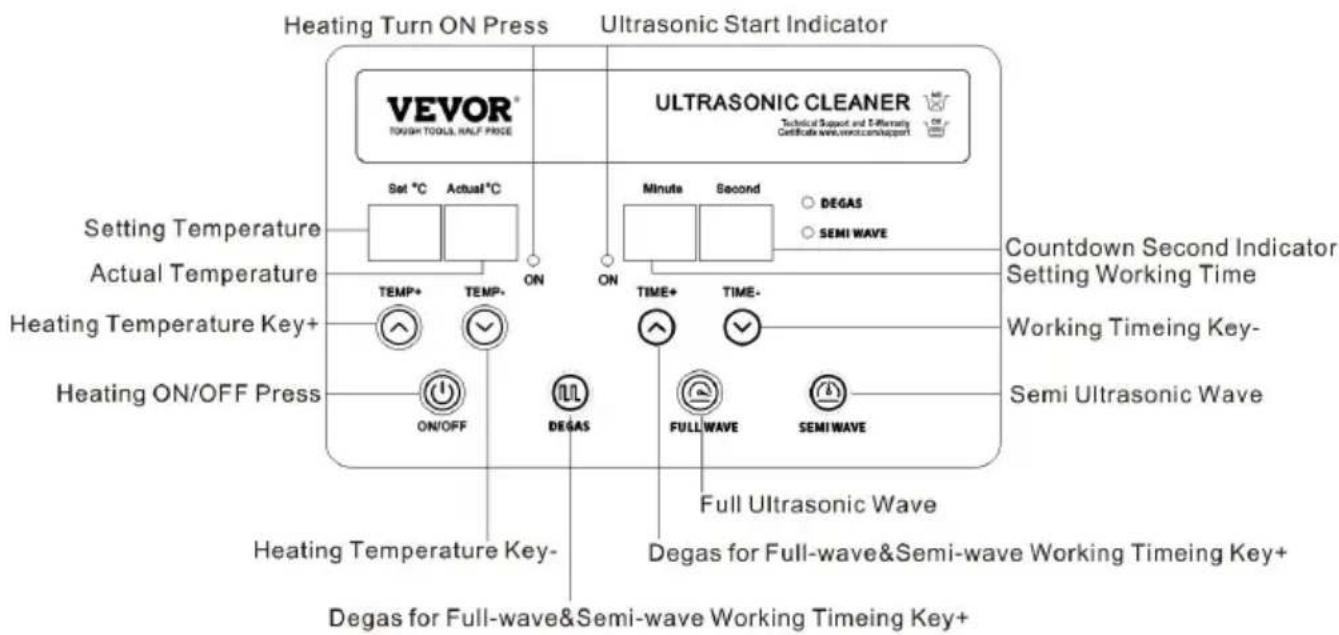

PRODUCT FUNCTIONS

Features:

• Ultrasonic frequency of 40 kHz
  ● Digital display of temperature and time.Adjustable temperature

from 0-80°C.

• Cleaning time with individually adjustable from 0-30min.
  ● All devices have an useful basket for cleaning parts.
• 6 liter and above size with 1/2" drainage.

● Material tank and casing: Stainless steel.

ITEMS TYPE

Items can be cleaned
Type	Specific Items
Glasses	Spectacles (without UV film) tortoise shell frame
Office supplies	Ruler, scissors, pen seal etc
Daily supplies	Toothbrush. razor blade comb etc
Jewelry	Rings, necklaces, earrings, etc
Tableware	Metal tableware.ceramic tableware dentures. etc

Items not suitable for ultrasonic cleaning
Type	Specific Items
Wooden articles	Turtle shell frame, pearl, birthstone opal, em coral, ivory, emerald, stone, Lacquer ware.
Gems with softer surfaces
Coating and finishing inferior products
Bonded gemstones
Items with scratches and cracks

It may not be possible to completely remove the remaining dental stone, dental wax, wax yellow black spots and smoking dental etc.

Possible inability to clean fixed sedatives in dentures.

Discoloration and rust of metals and precious metals cannot be removed.

To clean bonding jewels, diamond necklaces and rings may ca them fall off.

OPERATIONS

1. Open the lid, add the clean water, put what you need to the tank, ensure the clean water is no higher than the" Mark. Do not operate the unit without water in the tank.
2. Plug the adapter into the socket of the machine.
3. Plug the adapter power into the power socket.
4. Short press the "Time" button to switch to the desired tin then short press the ON / OFF" button to start the work.
5. If you want to pause the cleaning, you can short press the OFF button to pause, the countdown on the display is paid. Short press the power button again to continue working.
6. If you want to reselect the time, long press the "ON / C to return to the standby state, and press the "Time" to the time.
7. When the cleaning work is finished, please unplug the power, open the lid, take cleaned items from the tank, through out dirty water clean and wipe the tank.

Note : Pour water from the side

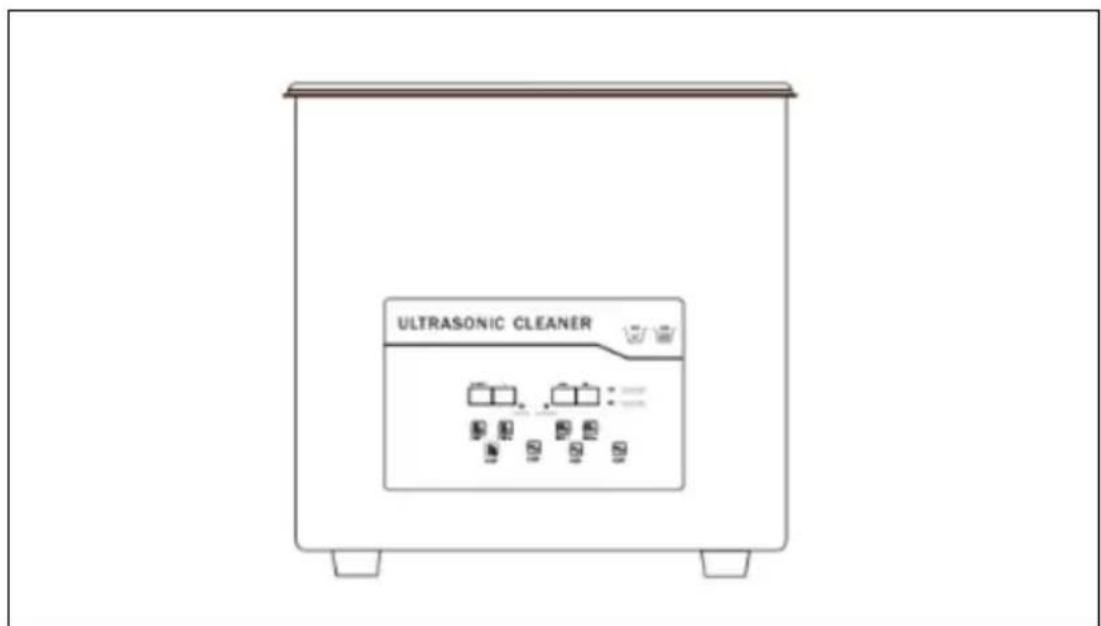

DAILY MAINTENANCE

1. Pour water into the tank with the measuring cup, half of ta standard line. After washing with a soft sponge, rinse with cleaning water.

2. Be careful not to seep water into the power connection at the bottom of the cleaning tank.

Simple line drawing of a container with water droplets and a red X mark, no text or symbols present.

1. After cleaning, please rinse items with clean water once ag. Don't seep water into the power connection when cleaning.

2. When the stains are difficult to remove, please wet a clear with water, then wipe them. Be careful not to seep water into switch and power connection.

3. After wiping, dry the device with a dry cloth.

Simple line drawing of a bowl with a lid and a hand holding a sponge (no text or symbols)

COMPLETION

RECYCLING INFORMATION

Disposal information:This product is subject to the provision of European Directi 2012/19/EC. The symbol showing a wheelie bin crossed thr indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may no discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi,baoshanqu, shanghai 200000

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122

Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

UK

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am I

YH CONSULTING LIMITED.

C/OYHConsulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Made In China

NO.	Name	Name	Le non	None
1	top cap	Oberkappe	capuchon supérieur	cappuccio superiore
2	ptee Tape	PTFE-Band	ruban PTFE	nastro PTFE
3	drain hose	Entwässerungsschlauch	Tuyau de vidange	tubo di scarico
4	Vater pipe joint	Vasserrohrverbindung	Joint de tuyau d'eau	giunzione del tubo dell'acqua
5	Stainless steel	Edelstahl	Acier inoxydable	acciaio inox
6	Vashing nesh basket	Waschgitterkorb	Panier à mailles de lavage	cesto a rete per lavaggio
7	foot pad	Fußpolster	Tapis de pied	cuscinetto per i piedi
8	Cylinder block	Zylinderblock	Bloc de cylindre	blocco cilindrico
9	Fover substrate	Leistungssubstrat	Substrat de puissance	sostrato di potenza
10	contro board	Steuerplatine	Carte de connande	scheda di controllo
11	casing	Cehäuse	Boltier	custodia
12	handle	Griff	Poignée	maniglia
13	svitch	Schalter	Interrupteur	interruttore
14	Safety seat	Sicherheitssitz	Siège de sécurité	seduta di sicurrezza
15	fuse	Sicherung	Fusible	fusibile
16	Fover cord	Netzkabel	Câble d'alimentation	cavo di alimentazione
17	base	Basis	Base	base
18	foot pad	Fußpolster	Tapis de pied	cuscinetto per i piedi
19	Screv	Schraube	Vis	vite

VEVOR®

TOUGH TOOLS, HALF PRICE

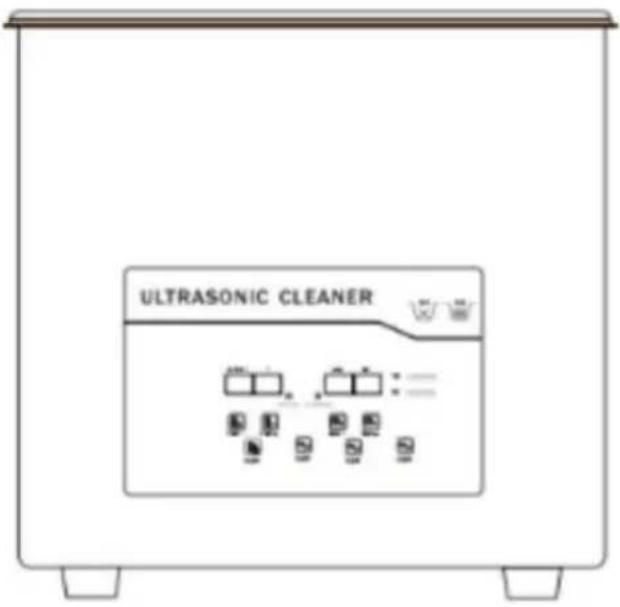

Nettoyeurs àultrasons

N° DE MODÈLE : KZ-F2, KZ-F3, KZ-F6, KZ-F10, KZ-F15F30Z-

BESOIN D'AIDE ? CONTACTEZ-NOUS !

Top-down wireframe view of a rectangular metal basket with grid pattern (no text or symbols)

panier denettoyage

Technical line drawing of two electrical connectors with no text or symbols

Power cord
(The plug is for reference only, subject to the material object.)

Close-up of a mesh spherical object with a ring attached, resembling a filter or sink (no visible text or symbols)

Small cleaning basket

FONCTIONS DU PRODUIT

Simple line drawing of a bowl with a lid and a hand holding a sponge (no text or symbols)

ACHÈVEMENT

Informations sur

MODELL-NR.: KZ-F2, KZ-F3, KZ-F6, KZ-F10, KZ-F15, KZ

Top-down wireframe view of a rectangular container filled with mesh grids (no text or symbols)

Reinigungskorb

Diagram of two electrical plug connectors with coiled wires and a connector (no text or symbols)

Power cord

(The plug is for reference only, subject to the material object.)

Close-up of a mesh spherical object with a coiled handle, possibly a filter or sink (no visible text or symbols)

Small cleaning basket

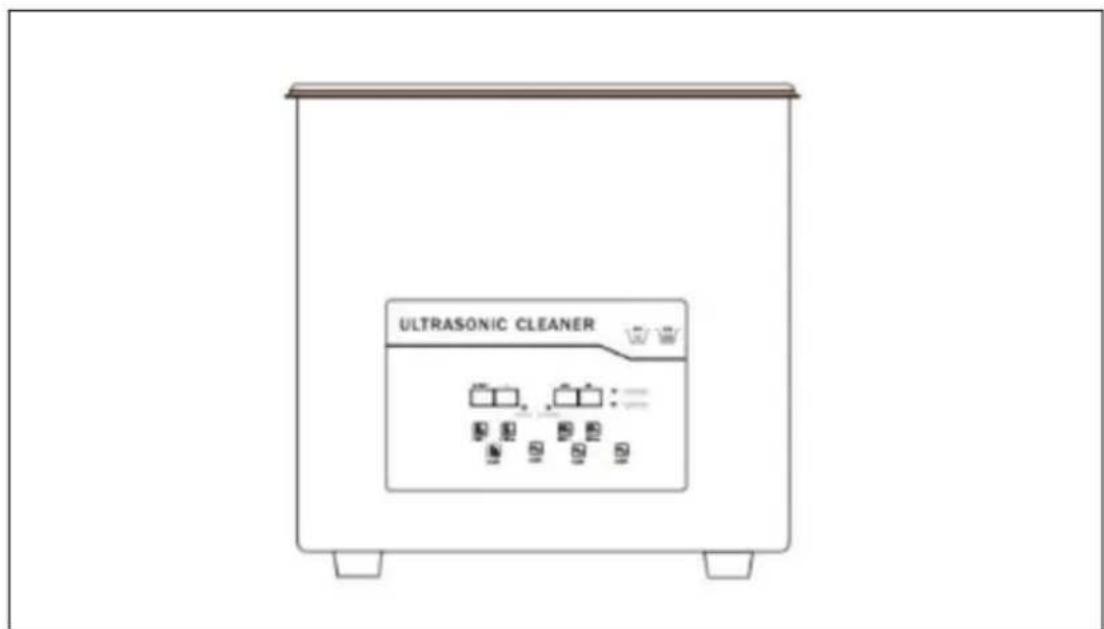

PRODUKTFUNKTIONEN

Simple line drawing of a container with water droplets and a red X mark, no text or symbols present.

Simple line drawing of a bowl with soap and a hand holding a sponge (no text or symbols)

FERTIGSTELLUNG

Entsorgungshinweis:

MODELLO N.: KZ-F2, KZ-F3, KZ-F6, KZ-F10, KZ-F15, F30-

Top-down wireframe view of a rectangular metal basket with grid pattern (no text or symbols)

Technical line drawing of two electrical connectors with no text or symbols

Power cord
(The plug is for reference only, subject to the material object.)

Close-up of a mesh spherical object with a ring attached, resembling a filter or sink (no visible text or symbols)

Small cleaning basket

Simple line drawing of a washing machine and a hand washing it (no text or symbols)

COMPLETAMENTO

Informazioni sullo

N.° DE MODELO: KZ-F2, KZ-F3, KZ-F6, KZ-F10, KZ-F15F3OZ-

Top-down wireframe view of a rectangular container filled with mesh grids (no text or symbols)

cesta delimpieza

Diagram of two electrical plug connectors with coiled wires and a connector (no text or symbols)

Power cord
(The plug is for reference only, subject to the material object.)

Close-up of a mesh spherical object with a ring attached, resembling a filter or sink (no visible text or symbols)

Small cleaning basket

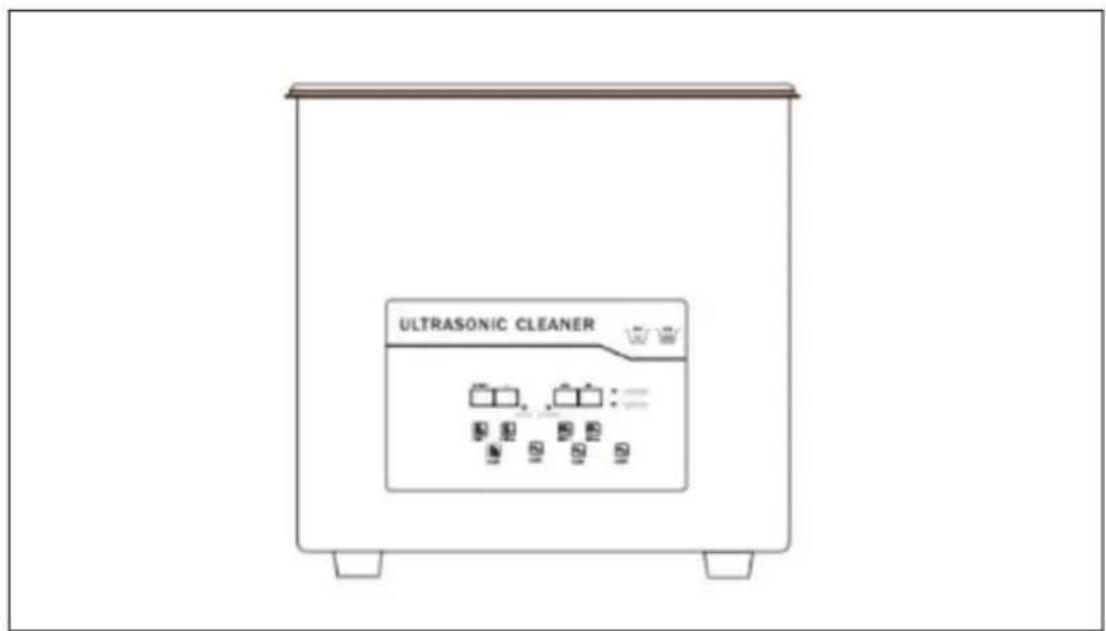

FUNCIONES DEL PRODUCTO

Simple line drawing of a bowl with a lid and a hand holding a sponge (no text or symbols)

TERMINACIÓN

NR MODELU: KZ-F2, KZ-F3, KZ-F6, KZ-F10, KZ-F15, FBQ-

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Top-down wireframe view of a rectangular container filled with mesh grids (no text or symbols)

kosz dosprzątania

Line drawing of two electrical plug connectors with coiled wires (no text or symbols)

Power cord
(The plug is for reference only, subject to the material object.)

Close-up of a mesh spherical object with a coiled handle, possibly a filter or sink (no visible text or symbols)

Small cleaning basket

FUNKCJE PRODUKTU

Cechy:

Simple line drawing of a bowl with a lid and a hand holding a sponge (no text or symbols)

UKOŃCZENIE

MODELNR.: KZ-F2, KZ-F3, KZ-F6, KZ-F10, KZ-F15, KZ

HULP NODIG? NEEM CONTACT MET ONS OP!

Top-down wireframe view of a rectangular container filled with mesh grids (no text or symbols)

schoonmaakmand

Pure electrical circuit lines without any symbols

Power cord
(The plug is for reference only, subject to the material object.)

Close-up of a mesh spherical object with a coiled handle, possibly a filter or sink (no visible text or symbols)

Small cleaning basket

PRODUCTFUNCTIES

Kenmerken:

ÿ Ultrasone frequentie van 40 kHz ÿ Digitale

Simple line drawing of a bowl with a lid and a hand holding a sponge (no text or symbols)

VOLTOOING

RECYCLINGINFORMATIE

MODELLNR: KZ-F2, KZ-F3, KZ-F6, KZ-F10, KZ-F15, R30

BEHÖVER DU HJÄLP? KONTAKTA OSS!

Top-down wireframe view of a rectangular container filled with mesh grids (no text or symbols)

rengöringskorg

Pure electrical circuit lines without any symbols

Power cord
(The plug is for reference only, subject to the material object.)

Close-up of a mesh spherical object with a coiled handle, possibly a filter or sink (no visible text or symbols)

Small cleaning basket

PRODUKTFUNKTIONER

Funktioner:

ÿ Ultraljudsfrekvens på 40 kHz ÿ Digital

Simple line drawing of a container with water droplets and a red X mark, no text or symbols present.

Simple line drawing of a bowl with soap and a hand holding a sponge (no text or symbols)

KOMPLETTERING

Avfallshantering: Denna

Support and E-Warranty Certificate

www.vevor.com/support
