Product Type	Ultrasonic Cleaner
Brand	Vevor
Model	TH-30ATP
Tank Capacity	6 liters
Ultrasonic Power	120 W
Heating Power	150 W
Ultrasonic Frequency	40 kHz
Temperature Range	0 to 80 °C
Timer	0 to 30 minutes
Display	Digital (temperature and time)
Tank Material	Stainless Steel
Housing Material	Stainless Steel
Dimensions (L × W × H)	380 × 180 × 295 mm
Net Weight	Approximately 3.7 kg
Power Supply	AC 120V, 60Hz / AC 220-240V, 50/60Hz
Included Accessories	Cleaning basket, power cord
Noise Level	Silent (ultrasound)
Recommended Use	Jewelry, glasses, mechanical parts, dental instruments
Maintenance	Clean the tank after use with a soft sponge
Safety	Auto shut-off, overheat protection
Warranty	Check with manufacturer

Frequently Asked Questions - TH-30ATP Vevor

What is the noise level of the TH-30ATP cleaner?

Ultrasonic operation is silent, but you may hear a slight humming during the cycle.

Can I use the device without liquid in the tank?

No, never operate the device without liquid as this can damage the transducers.

What is the maximum duration of a cleaning cycle?

The timer can be set up to 30 minutes maximum.

Can I clean jewelry with gemstones?

Not recommended for soft stones (opal, emerald, coral) as ultrasound can damage or loosen them.

How to avoid splashes during cleaning?

Keep the lid closed during operation to avoid splashes and reduce evaporation.

Can you heat water above 80 °C?

No, the temperature is adjustable from 0 to 80 °C. Beyond that, the device does not actively cool.

What to do if the water exceeds the MAX mark?

Never exceed the MAX mark to avoid overflow and internal damage.

What type of liquid to use?

Use clean water or a mild ultrasonic detergent. Avoid solvents that are acidic or flammable.

Can the device be left on continuously?

Do not run for more than one hour without a break. The self-protection system may shut off the device in case of overheating.

How to clean the tank after use?

Empty the water, clean with a soft sponge and dry thoroughly to prevent rust.

USER MANUAL TH-30ATP Vevor

ULTRASONIC CLEANERS

MODEL: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

VEVOR Support Center

TH-30ATP, TH-40ATP,

TH-60ATP, TH-100ATP

MODEL: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious injury. SAVE THIS MANUAL

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions carefully.

Keep it away from children!

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

1) DO NOT run the cleaner continuously for more than one hour at a time, as doing so can damage the internal components.

2) DO NOT operate the unit without fluid in the tank. Always ensure fluid is no higher than the max mark, and always ensure there is a minimum depth of 7cm.

3) DO NOT drop any item into the tank as this may cause damage to the transducer. Always place the items gently into the tank and use the basket whenever possible.

4) The more items that you place in your cleaning bath, the less effective it will clean. It is not advised to overlap items. Always allow plenty of clearance space between the items.

5) Keep the lid on during use. This will prevent splashes and reduce evaporation of the fluid.

6) Never immerse the machine or power cord in water or other liquid.

7) DO NOT touch the power plug with wet hands, especially when inserting or removing the plug.

8) DO NOT touch the unit if the machine has fallen into water during

operation. Remove the power plug from the socket first.

9) DO NOT disassemble the machine, except by professionals. 10) UNPLUG the power source while filling or emptying the tank. 11) DO NOT spray water or liquid over the device and the control panel. 12) DO NOT operate the cleaner without proper grounding. 13) DO NOT place the device on a soft surface, where the vents can be blocked. 14) Upon completion of the cleaning cycle, turn the heater knob off and isolate the machine from the power source. 15) Take care when adding or removing items from the cleaning tank. The fluid is likely to be hot and displaced fluid can damage the internal components. Any displaced fluid must be dried up immediately. 16) In the event of a malfunction/emergency, disconnect the power supply by

removing the power plug from the electrical outlet.

17) When heating is required, the water level should not be less than full. 18) If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent. 19) The connector must be removed before the appliance is cleaned, and the appliance inlet must be dried before the appliance is used again. 20) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. When the machine is used several times continuously, in order to prevent damage and failure of the parts caused by overheating, the machine

will enter into a system of self-protection, it can be resumed after minutes.

1. Do not get water directly from the tap - Flooding of the device and switches will lead to malfunction.
2. Do not add anti-toxic, sterilizing or acidic solvents into the cleaning water.
3. May cause deterioration of resin and damage of stainless steel.
4. Do not clean pearls and other low surface hardness articles (Morse hardness of less than 8).
5. Can cause damage, discoloration, or loss of luster.
6. Do not wash rings, necklaces with gems and diamonds for long periods of time.
7. May cause gems / diamonds to fall off.
8. DO NOT use the same socket as TV, radio and computer.
9. Can affect the picture clarity or cause noise.
10. Prevent the device from falling and a violent shaking- This can cause breakage deformation, and malfunction.

TECHNICAL SPECIFICATIONS

Model	TH-30ATP	TH-40ATP	TH-60ATP	TH-100ATP
Rating(s):	AC120V, 60Hz/AC220-240V, 50/60Hz
Ultrasonic power (W)	120	180	240	480
Heating power (W)	150	300	400	600
Capacity(L)	6	10	15	30
Product Dimensions (LxWxH)(mm)	380*180*295	330*268*295	400*325*295	570*335*340
Net Weight(kg)	About 3.7	About 4.9	About 6.84	About 11.8

*Products such as specifications, appearance, and design are subject to modification without prior notice.

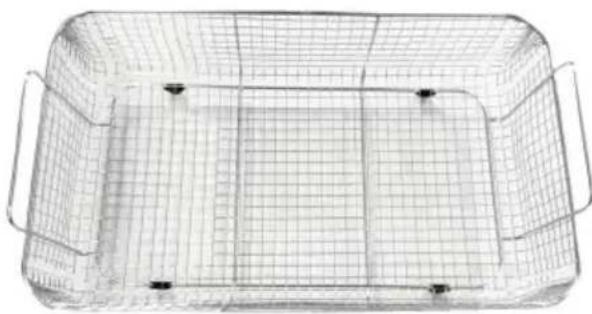

PACKAGE CONTENTS

cleaning basket

Power cord (The plug is for reference only, subject to the material object.)

Small cleaning basket

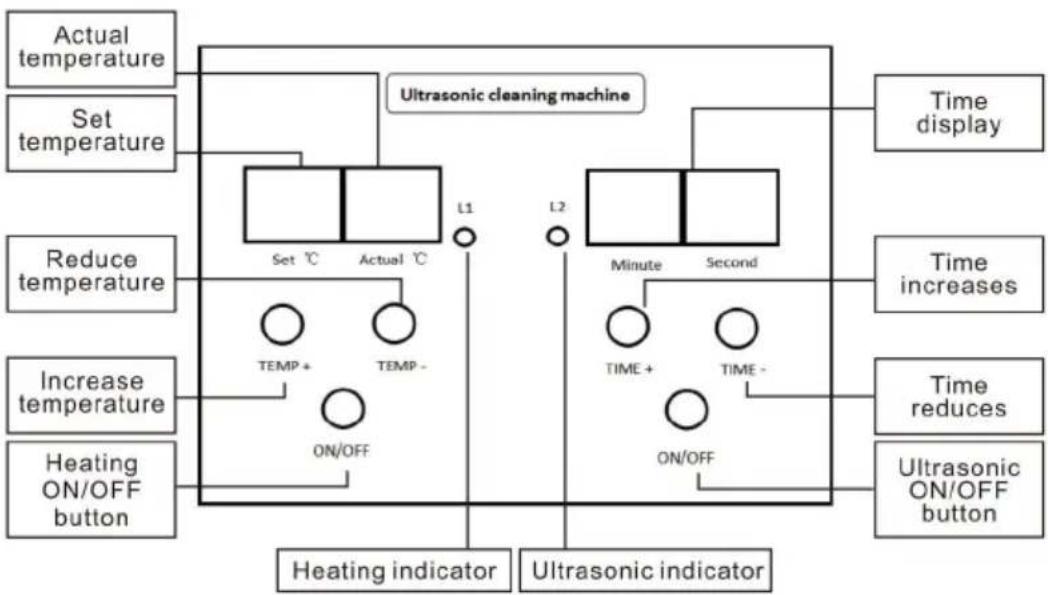

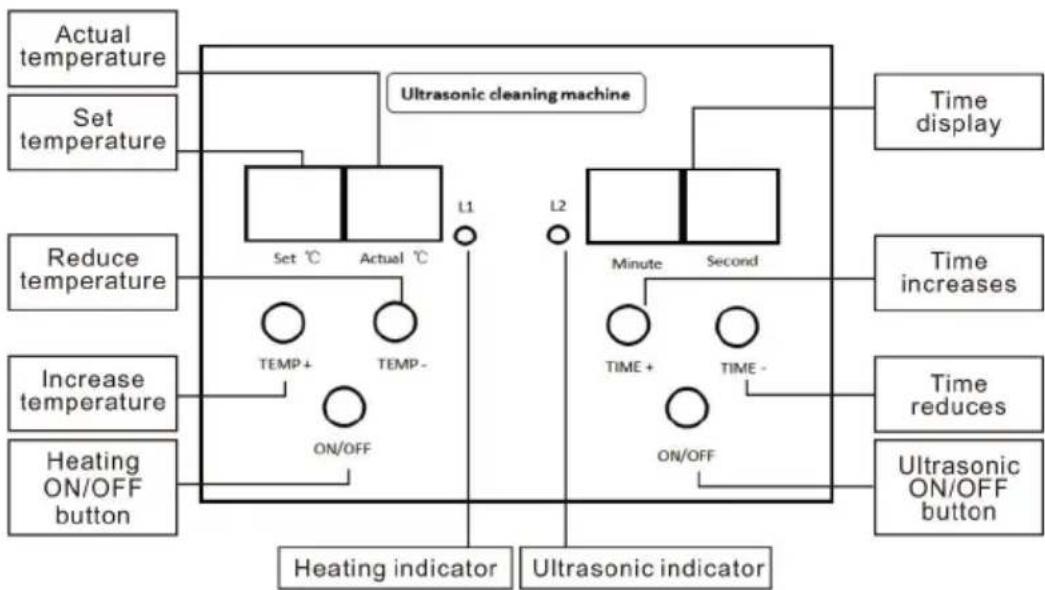

PRODUCT FUNCTIONS

Features:

• Ultrasonic frequency of 40 kHz
• Digital display of temperature and time. Adjustable temperature from 0 - 80°C

Note: When the water temperature exceeds the set temperature, the equipment cannot be cooled down.

• Cleaning time with individually adjustable from 0-30min.
• All devices have a useful basket for cleaning parts.
• 10 liter and above size with 1/2" drainage.
• Material tank and casing: Stainless steel.

ITEMS TYPE

Items can be cleaned
Type	Specific Items
Glasses	Spectacles (without UV film) tortoise shell frame
Office supplies	Ruler, scissors, pen seal etc
Daily supplies	Toothbrush. razor blade comb etc
Jewelry	Rings, necklaces, earrings, etc
Tableware	Metal tableware.ceramic tableware dentures. etc

Items not suitable for ultrasonic cleaning
Type	Specific Items
Wooden articles	Turtle shell frame , pearl , birthstone opal , em coral , ivory ,emerald, stone , Lacquer ware
Gems with softer surfaces
Coating and finishing inferior products
Bonded gemstones
Items with scratches and cracks

It may not be possible to completely remove the remaining dental stone, dental wax, wax yellow black spots and smoking dental etc.

Possible inability to clean fixed sedatives in dentures.

Discoloration and rust of metals and precious metals cannot be removed. (It is necessary to remove rust before ultrasonic cleaning

to remove stains more effectively.)

To clean bonding jewels, diamond necklaces and rings may cause them to fall off.

OPERATIONS

1. Open the lid, add clean water, put what you need into the tank, ensure the clean water is no higher than the "M" mark. Do not operate the unit without water in the tank.
2. Plug the adapter into the socket of the machine.
3. Plug the adapter power into the power socket.
4. Short press the "Time" button to switch to the desired time, then short press the ON/OFF button to start the work.
5. If you want to pause the cleaning, you can short press the OFF button to pause, the countdown on the display is paused. Short press the power button again to continue working.
6. If you want to reselect the time, long press the "ON / C" button to return to the standby state, and then press the "Time" button to set the time.
7. When the cleaning work is finished, please unplug the power, open the lid, take the cleaned items out of the tank, throw away the dirty water, clean and wipe the tank.

Note: Pour water from the side.

DAILY MAINTENANCE

1. Pour water into the tank with the measuring cup, up to half of the standard line. After washing with a soft sponge, rinse with clean water.
2. Be careful not to let water seep into the power connection at the bottom of the cleaning tank.

1. After cleaning, please rinse items with clean water once again. Do not let water seep into the power connection when cleaning.
2. When stains are difficult to remove, please wet a cloth with water, then wipe them. Be careful not to let water seep into the switch and power connection.
3. After wiping, dry the device with a dry cloth.
