Brand	Vevor
Model	SJ-H6
Product type	Ultrasonic cleaner
Main material	SUS 304, ABS
Product dimensions (L×W×H)	123 × 111 × 103 mm
Package dimensions (L×W×H)	175 × 135 × 134 mm
Net weight	0.45 kg
Gross weight	0.67 kg
Tank capacity	230 ml
Power supply	Via AC adapter
Cleaning time	5 minutes per cycle (adjustable)
UV sterilization function	Yes (UV germicidal lamp)
Automatic shut-off	Yes (when cover is opened for UV)
Overheat protection	Yes (auto shut-off after 5 minutes continuous use)
Recommended use	Jewelry, watches, glasses, small parts
Care	Clean the tank with a soft sponge; do not immerse the device
Warranty	Technical support via www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
EU importer	E-CrossStu GmbH, Frankfurt am Main, Germany
UK importer	YH CONSULTING LIMITED
Standards	Complies with FCC Part 15

Frequently Asked Questions - SJ-H6 Vevor

What types of items can I clean with the Vevor SJ-H6?

You can clean jewelry (rings, necklaces, earrings), watches, glasses, coins, electric toothbrush heads, razor blades and other small metal or hard plastic parts. Avoid wooden items, pearls, opals, emeralds and soft-surface precious stones.

How long does a cleaning cycle last?

By default, the cleaning cycle is 5 minutes. You can adjust the time by pressing the 'Time' button before starting. The maximum time is not specified, but the manual advises not to run the appliance continuously for more than one hour.

How to use the UV sterilization function?

Press and hold the 'Switch' button to activate the UV germicidal lamp. The indicator turns blue. UV sterilization stops automatically if the cover is opened. Press and hold again to turn off the lamp.

What water level should I observe in the tank?

The water level must not exceed the 'MAX' mark and should always be at least 7 cm deep. If using heating, the water level must not be below 2/3 of the tank.

Can I use solvents or acidic products in the cleaning water?

No, do not add antitoxic, sterilizing or acidic solvents. They can deteriorate the resin and damage the stainless steel tank. Use only clean water or a suitable mild detergent.

How to maintain the cleaner after use?

Unplug the device, open the cover, remove the cleaned items and pour out the dirty water from the side. Clean the tank with a soft sponge and rinse with clean water. Wipe the exterior with a dry cloth. Be careful not to let water enter the electrical connections.

What to do if the cleaner stops during use?

The device has overheat protection. If used several times in a row, it may shut off automatically. Wait about 5 minutes before restarting. Also ensure the water level is sufficient and the device is not on a soft surface blocking the vents.

Can I clean pearls or diamonds?

No, pearls and gemstones with low hardness (below 8 on Mohs scale) can be damaged, discolored or lose their luster. Diamonds mounted on glued rings or necklaces may come loose. Avoid ultrasonic cleaning.

Is the device suitable for dentures?

It may not be possible to completely remove tartar, dental wax or yellow stains. Fixed prostheses containing sedatives may not be cleaned properly. Use with caution.

Where can I find technical support and warranty?

Technical support and electronic warranty certificate are available on the website www.vevor.com/support. You can ask questions or request a warranty replacement.

USER MANUAL SJ-H6 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ULTRASONIC CLEANERS USER MANUAL

MODEL NO.: SJ-H6

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Ultrasonic Cleaners

MODEL NO.: SJ-H6

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious injury. SAVE THIS MANUAL

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

Read all instructions carefully.

Keep it away from children!

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. To avoid electrical shock:

1) DO NOT run the cleaner continuously for more than one hour at a time as doing so can damage the internal components. 2) DO NOT operate the unit without fluid in the tank. Always ensure fluid is no higher than the max mark, always ensure there is a minimum depth of 7 cm. 3) DO NOT drop any item into the tank as this may cause damage to the transducer. Always place the items gently into the tank and use the basket whenever possible. 4) The more items that you place in your cleaning bath the less efficient it will clean. It is not advised to overlap items. Always allow plenty of clear space between the items. 5) Do keep the lid on during use. This will prevent splashes and reduce evaporation of the fluid. 6) Never immerse the machine or power cord in water or other liquid. 7) DO NOT touch the power plug with wet hands, especially when inserting or removing the plug. 8) DO NOT touch the unit if the machine has fallen into water during

operation. Remove the power plug from the socket first.

9) DO NOT disassemble the machine, except by professionals.

10) UNPLUG the power source while filling or emptying the tank.

11) DO NOT spray water or liquid over the device and the control panel.

12) DO NOT operate the cleaner without proper grounding.

13) DO NOT place the device on a soft surface, where the vents are blocked.

14) Upon completion of the cleaning cycle, turn the heater knob off to isolate the machine from the power source.

15) Take care when adding or removing items from the cleaning tank; fluid is likely to be hot and displaced fluid can damage the internal components. Any displaced fluid must be dried up immediately.

16) In the event of a malfunction/emergency, disconnect the power supply by

removing the power plug from the electrical outlet.

17) When heating is required, the water level should not be less than full.

18) If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

19) The connector must be removed before the appliance is cleaned, and the appliance inlet must be dried before the appliance is used again.

20) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. When the machine is used several times continuously, in order to

prevent damage and failure of the parts caused by overheating, the machine will enter into a system of self-protection, and it can be resumed after a few minutes.

1. Do not get water directly from the tap - flooding of the device and switches will lead to malfunction.
2. Do not add anti-toxic, sterilizing, or acidic solvents into the cleaning water.

- May cause deterioration of resin and damage to stainless steel.

1. Do not clean pearls and other articles with low surface hardness (Morse hardness less than 8).
2. Can cause damage, discoloration, or loss of luster.
3. Do not wash rings, necklaces with gems and diamonds for a long time.

- May cause gems/diamonds to fall off.

1. DO NOT use the same socket as TV, radio, and computer.
2. Can affect picture clarity or cause noise.
3. Prevent the device from falling and violent shaking - this can cause breakage, deformation, and malfunction.

TECHNICAL SPECIFICATIONS

Model	SJ-H6
Main Material	SUS 304、ABS
Product Dimensions(L*W*H)	123*111*103 mm
Packing Size(L*W*H)	175*135*134 mm
Net Weight (kg)	0.45
Gross Weight (kg)	0.67
Capacity (ml)	230

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

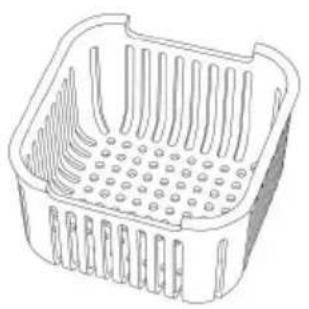

Small cleaning basket

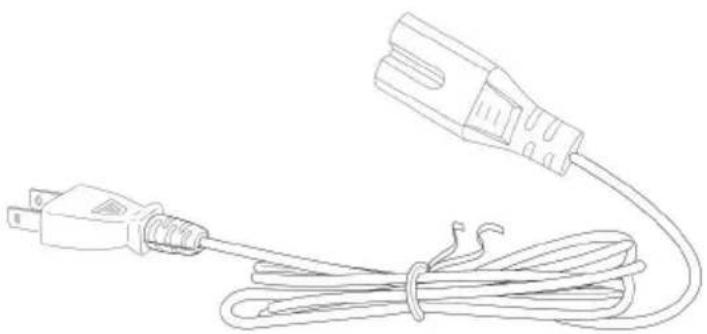

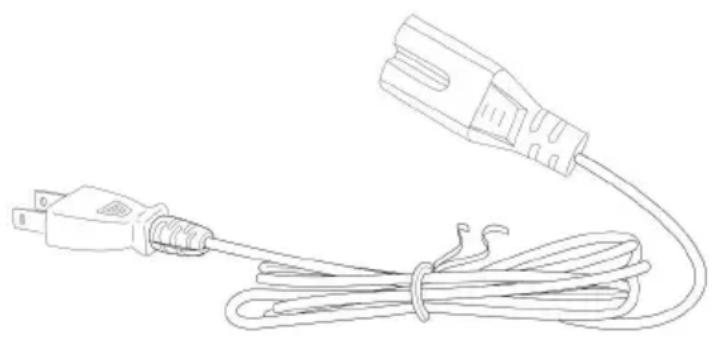

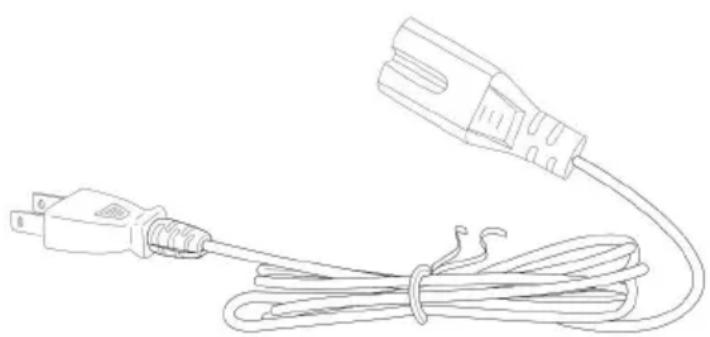

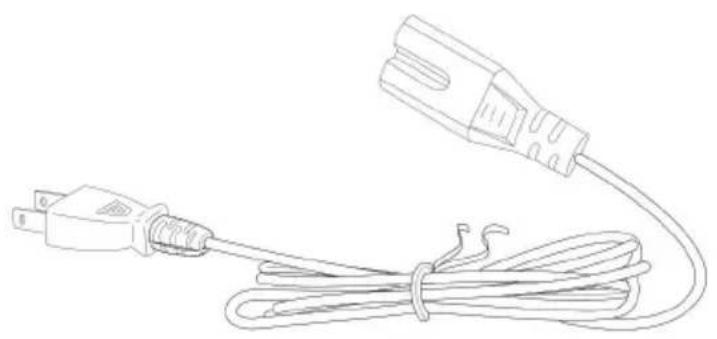

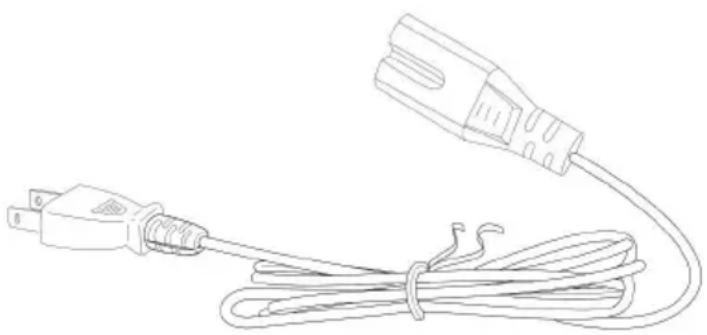

Power cord (The plug is for reference only, subject to the actual object.)

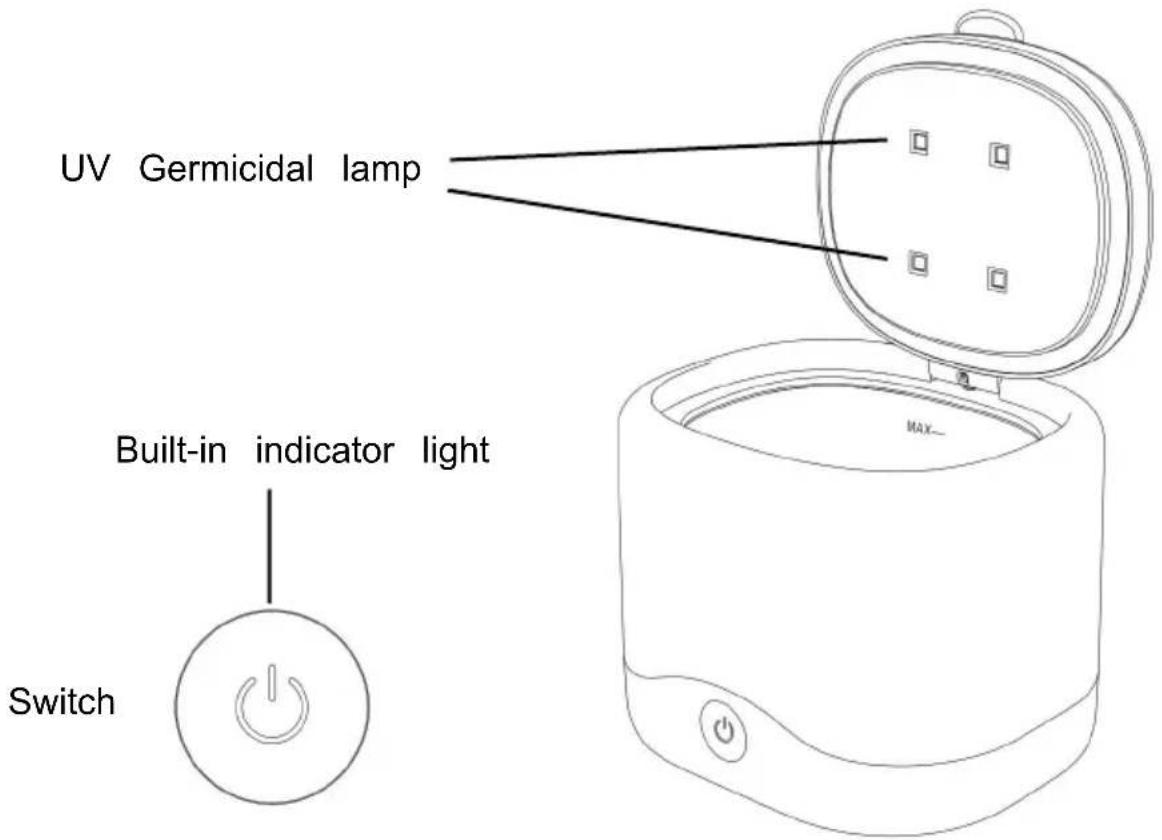

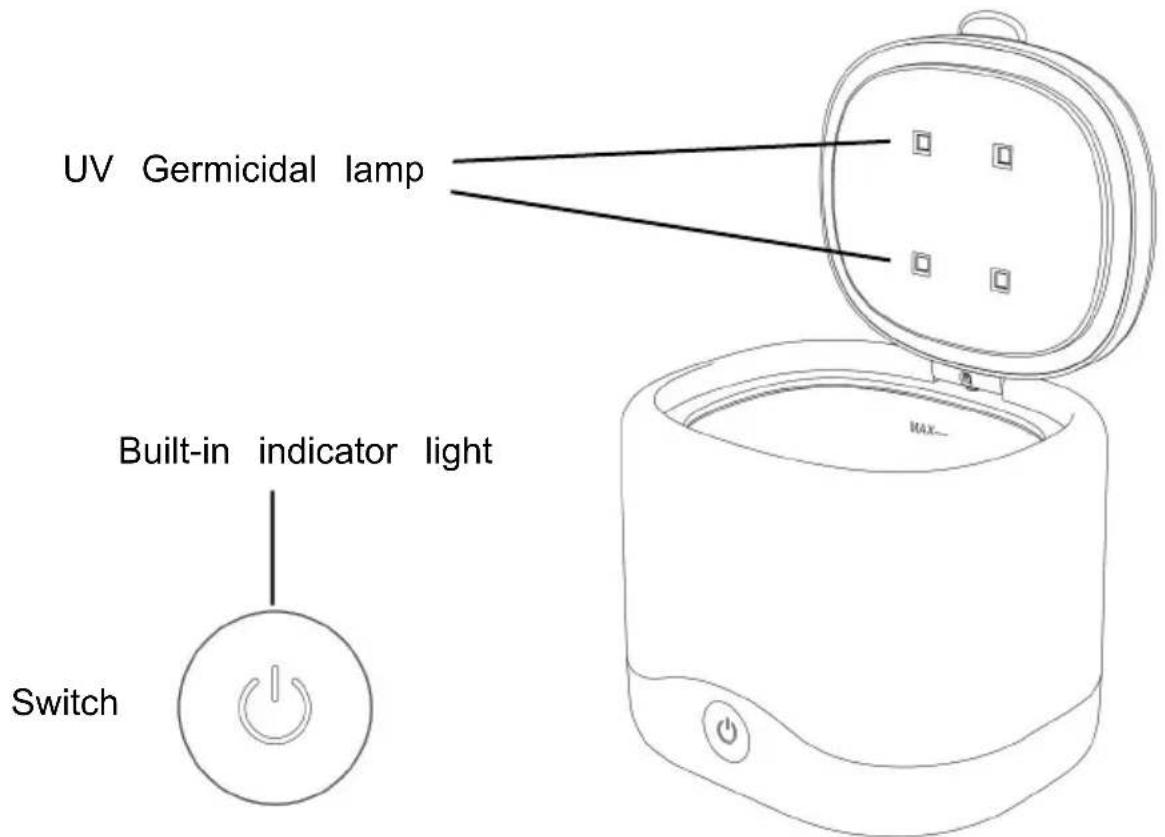

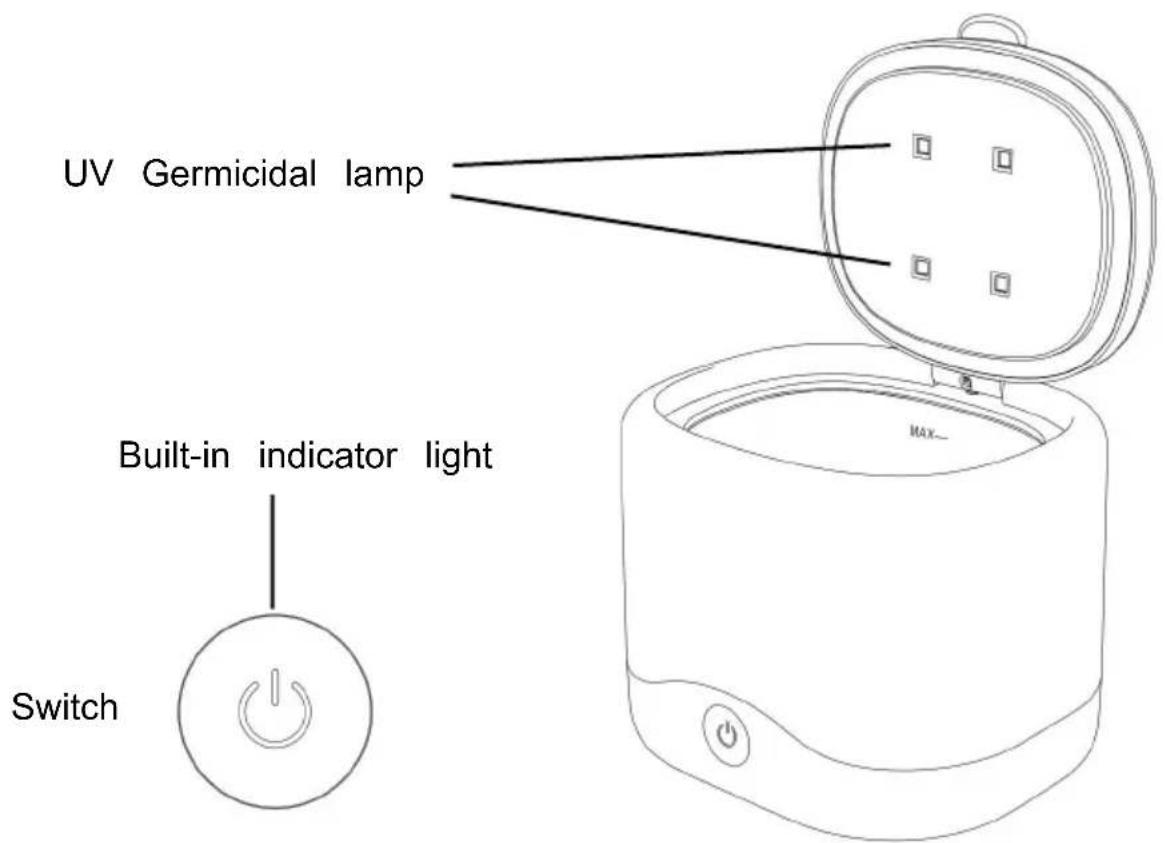

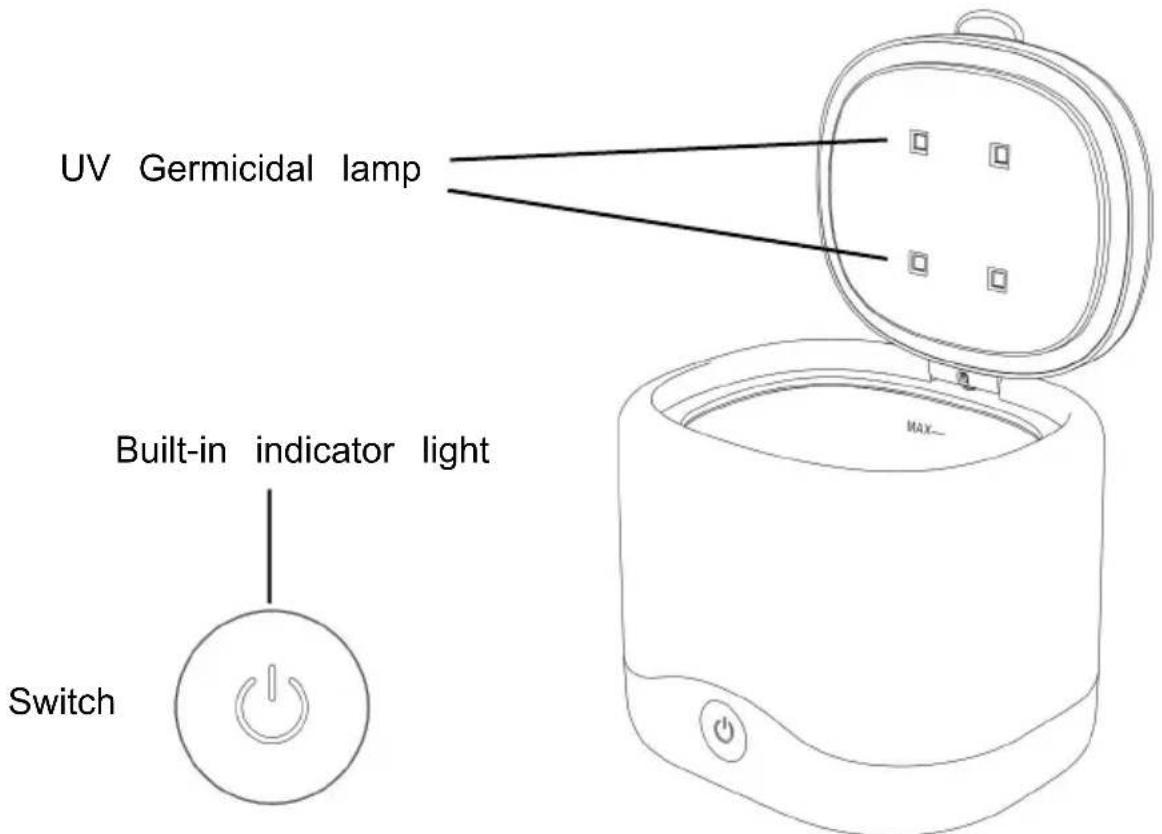

PRODUCT FUNCTIONS

Kindly reminder: When operating the machine, please ensure that your fingers are in full contact with the touch buttons.

The Functions:

When you connect the power plug, the machine is in standby state. Press the "Switch" key to turn on ultrasonic cleaning, then press again to turn it off (ultrasonic working time is 5 minutes, and it will resume standby after 5 minutes of cleaning). Long press the "Switch" key to turn on the UV germicidal lamp, the indicator light turns blue, then long press again to turn it off. During sterilization, the UV germicidal lamp automatically turns off when the cover is opened. When the cover is closed, it can continue to work. When power is cut off, it has a memory function.

ITEMS TYPE

Items can be cleaned
Type	Specific Items
Medical beauty care products	Rings,necklaces, earrings, etc
Jewelry	Ruler, scissors, pen seal etct
Daily Supplies	Electric toothbrush head, razor blade, comb, etc
Clothing items	Watch, brooch, belt buckle, etc

Items not suitable for ultrasonic cleaning
Type	Specific Items
Wooden articles	Turtle shell frame, pearl, birthstone opal, emerald ivory, emerald, stone, Lacquer ware.
Gems with softer surfaces
Coating and finishing inferior products
Bonded gemstones
Items with scratches and cracks

It may not be possible to completely remove the remaining dent stone, dental wax, wax yellow black spots, and smoking dental etc.

Possible inability to clean fixed sedatives in dentures.

Discoloration and rust of metals and precious metals cannot be removed.

To clean bonding jewels, diamond necklaces, and rings may cause them to fall off.

OPERATIONS

1. Open the lid, add clean water, put what you need into the tank, ensure the clean water is no higher than the "M" mark. Do not operate the unit without water in the tank.
2. Plug the adapter into the socket of the machine.
3. Plug the adapter power into the power socket.
4. Short press the "Time" button to switch to the desired time, then short press the "ON/OFF" button to start the work.
5. If you want to pause the cleaning, you can short press the OFF button to pause, the countdown on the display is paused. Short press the power button again to continue working.
6. If you want to reselect the time, long press the "ON / C" button to return to the standby state, and then press the "Time" button to set the time.
7. When the cleaning work is finished, please unplug the power, open the lid, take the cleaned items out of the tank, pour out the dirty water, clean and wipe the tank.

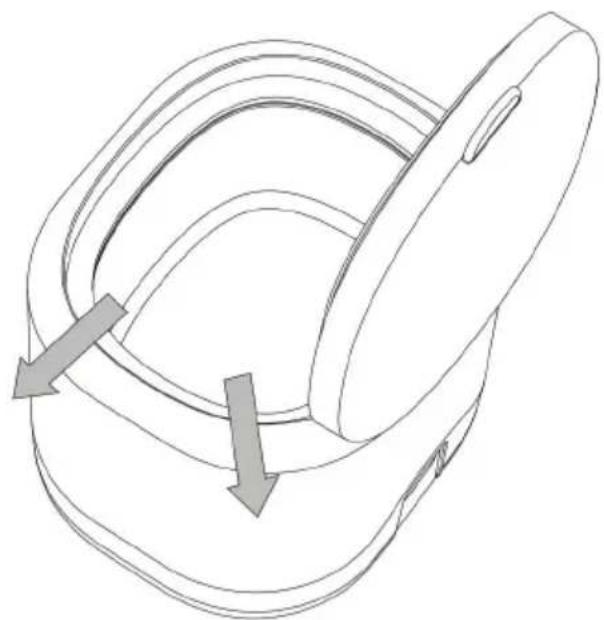

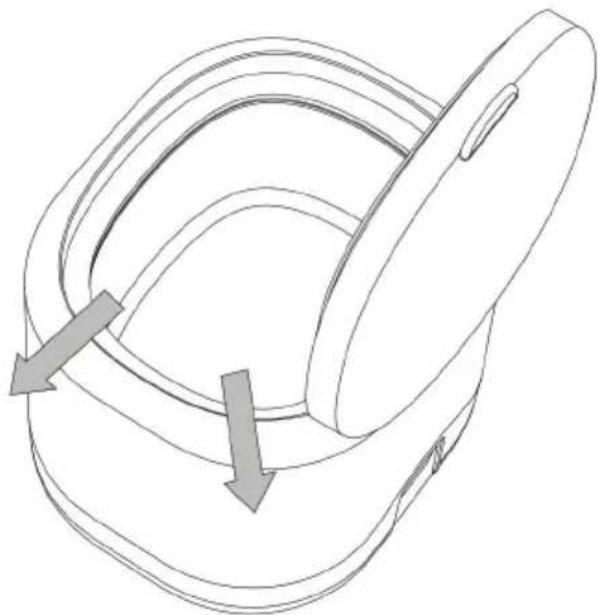

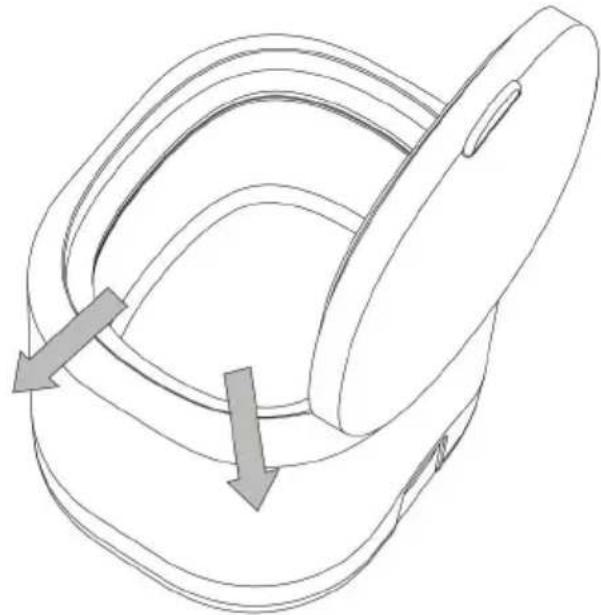

Note: Pour water from the side.

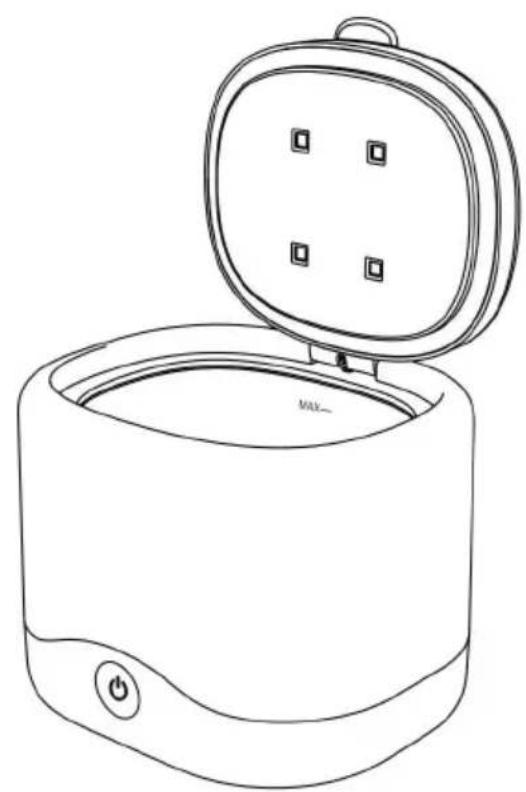

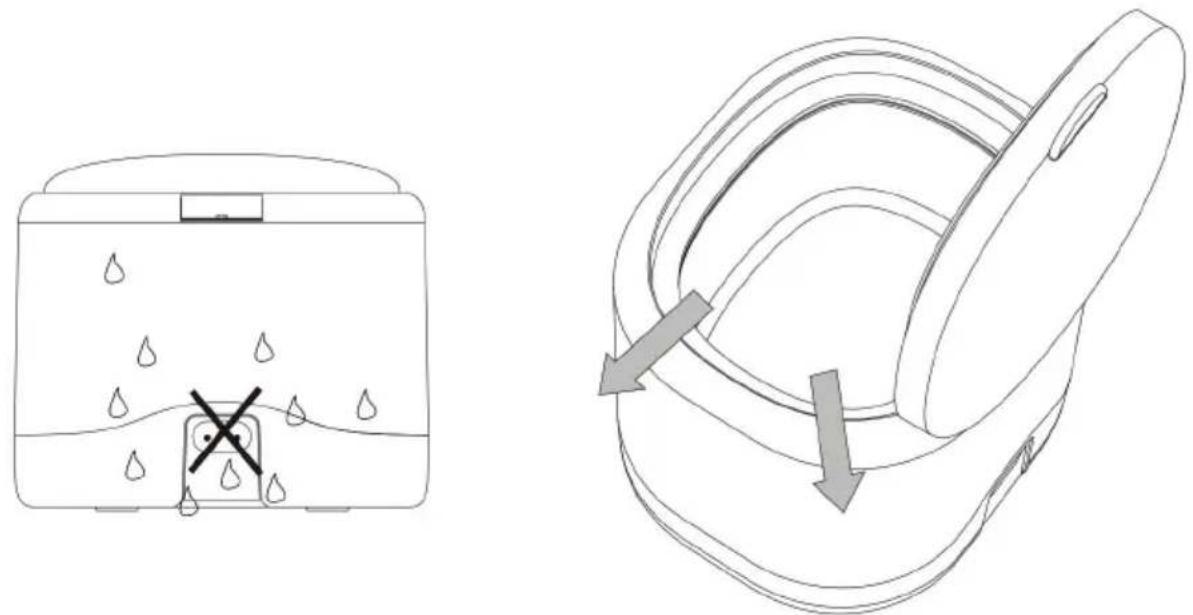

DAILY MAINTENANCE

1. Pour water into the tank with the measuring cup, up to half of the standard line. After washing with a soft sponge, rinse with clean water.
2. Be careful not to let water seep into the power connection at the bottom of the cleaning tank.

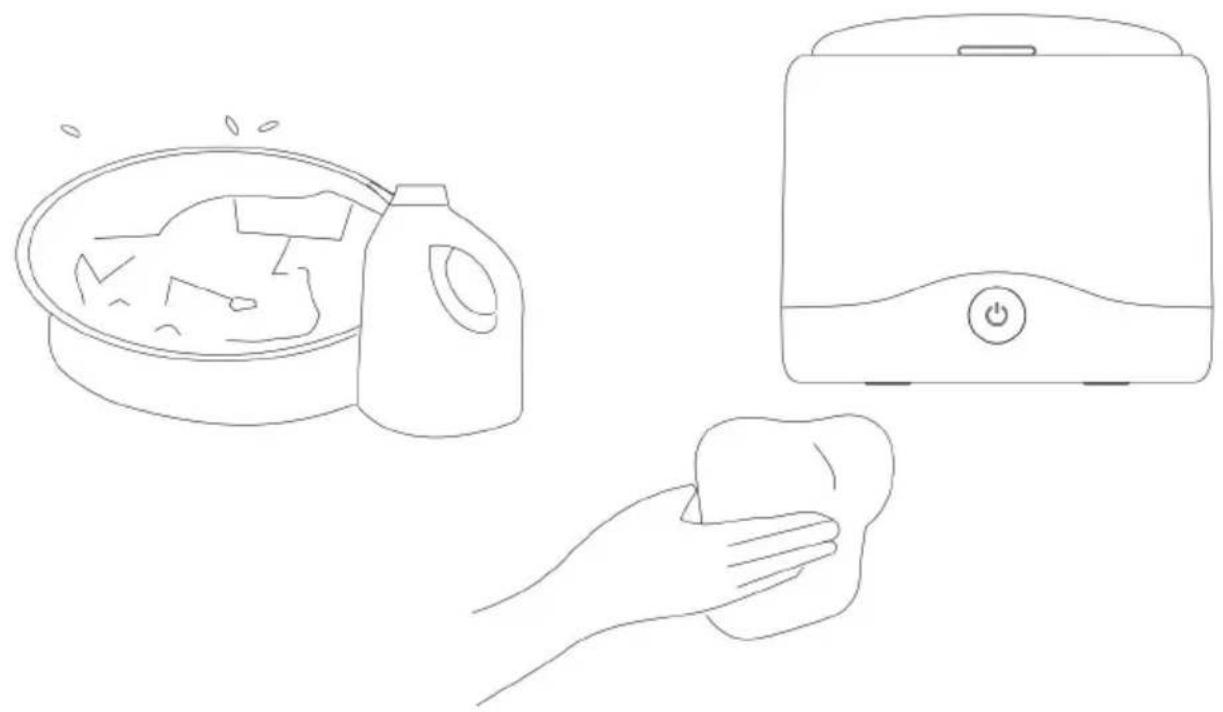

1. After cleaning, please rinse items with clean water once again. Do not let water seep into the power connection when cleaning.
2. When stains are difficult to remove, please wet a clean cloth with water, then wipe them. Be careful not to let water seep into the switch and power connection.
3. After wiping, dry the device with a dry cloth.

COMPLETION

Disposal information:

This product is subject to the provisions of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed out indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may no longer be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
