TH-40ATP - Ultrasonic cleaner Vevor - Free user manual and instructions

Brand	Vevor
Model	TH-40ATP
Product Type	Ultrasonic Cleaner
Tank Capacity	10 liters
Ultrasonic Power	180 W
Heating Power	300 W
Ultrasonic Frequency	40 kHz
Adjustable Temperature Range	0 to 80 °C
Cleaning Time Range	0 to 30 minutes
Display	Digital (temperature and time)
Tank and Housing Material	Stainless Steel
Product Dimensions (L x W x H)	330 x 268 x 295 mm
Net Weight	Approximately 4.9 kg
Power Supply	AC 120V, 60Hz / AC 220-240V, 50/60Hz
Included Accessories	Cleaning basket, lid
Drain System	1/2" drain for models ≥10L
Recommended Use	Eyeglasses, jewelry, office supplies, metal/ceramic dishes, dentures
Not Suitable Items	Soft gemstones, wood, glued items, pearls
Safety Precautions	Do not operate without liquid; do not immerse; unplug before filling/draining; water level between 7 cm and MAX
Cooldown Time Between Cycles	5 minutes minimum after continuous use
Cleaning and Maintenance	Wipe with a soft cloth; do not let water enter electrical connections
Compliance	FCC Part 15, European Directive 2012/19/EC (WEEE)

Frequently Asked Questions - TH-40ATP Vevor

What types of items can I clean with the Vevor TH-40ATP?

You can clean eyeglasses (without UV film), jewelry (rings, necklaces, earrings), office supplies (ruler, scissors, pens), dishware (metal or ceramic), dentures, and other small hard items.

What items should not be cleaned with ultrasound?

Avoid cleaning soft gemstones (opal, emerald, coral, ivory), wood items, pearls, glued or mounted stone items, and surfaces with hardness below 8 on the Mohs scale. Cleaning may damage these items.

What liquid should I use in the tank?

Use clear water or an ultrasonic cleaning solution. Do not use solvents, sterilizers, or acids as they may damage the stainless steel. Ensure the water level is between 7 cm and the MAX mark.

How long can I run the cleaner continuously?

Do not exceed one hour of continuous operation. After prolonged use, allow the unit to cool for at least 5 minutes before restarting.

How do I set the temperature and time?

Use the "Time" button to set the time from 0 to 30 minutes, and the "Temperature" button to set the temperature from 0 to 80 °C. Briefly press "ON/OFF" to start. The machine only heats if the set temperature is higher than room temperature.

Can I clean jewelry with diamonds or gemstones?

It is not recommended to clean jewelry with mounted stones (diamonds, emeralds) as ultrasound may loosen them. For rings, necklaces without stones, cleaning is possible but do not exceed 30 minutes.

How do I drain the tank?

For the TH-40ATP (10L) model, use the 1/2-inch drain located at the back. Place a container under the drain, open the valve, and let the water flow out. For smaller models without a drain, pour water out from the side of the tank.

Does the unit make noise or interfere with TV/radio?

The cleaner may generate interference. Do not plug it into the same outlet as your TV, radio, or computer. If interference occurs, move the unit away or plug it into a separate circuit.

What if the unit does not turn on?

Check that the power plug is properly inserted and the outlet works. Ensure the water level is sufficient (between 7 cm and MAX). If the problem persists, contact Vevor customer service.

How do I maintain the cleaner after use?

Empty the tank, wipe it with a soft cloth and clean water. Do not let water enter the electrical connections. Dry the unit with a dry cloth. Regularly clean the basket with a non-abrasive sponge.

USER MANUAL TH-40ATP Vevor

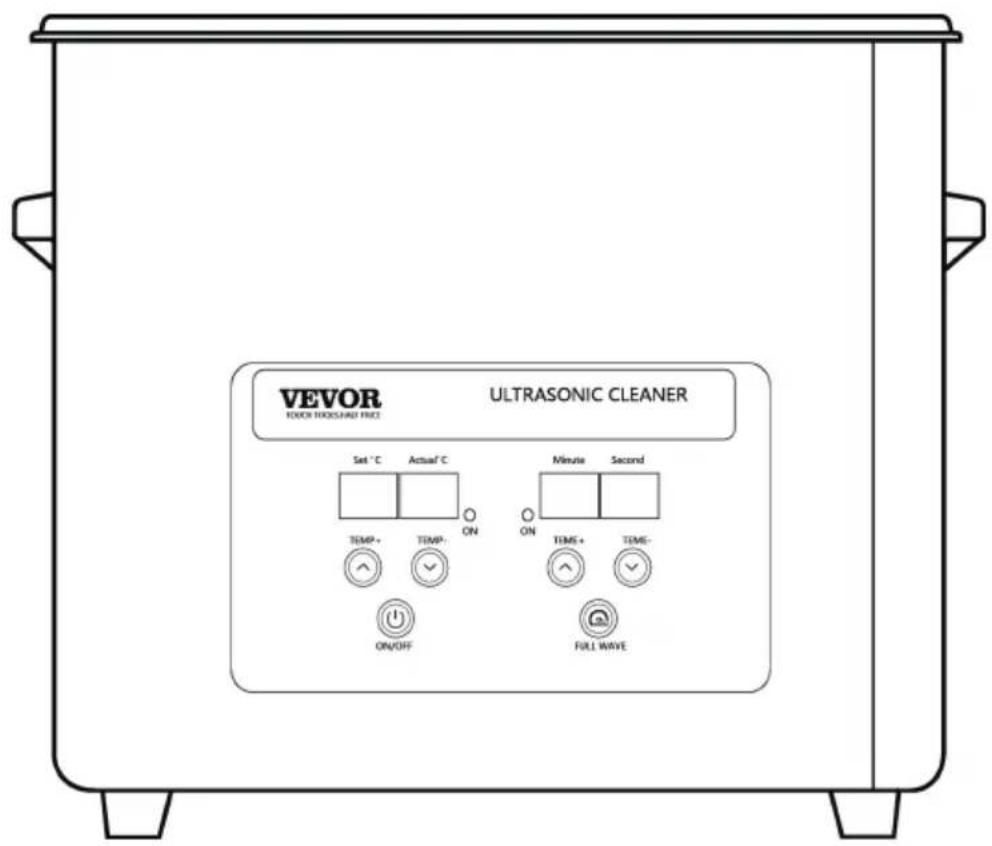

ULTRASONIC CLEANERS

MODEL: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

VEVOR Support Center

TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

MODEL: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Please read this manual carefully before using the product. Failure to do so may result in serious injury. SAVE THIS MANUAL

Please read this manual carefully before using the product. Failure to do so may result in serious injury. SAVE THIS MANUAL.

When using electrical appliances, basic safety precautions should always be followed, including the following:

When using electrical appliances, basic safety precautions should always be followed, including the following:

Keep it away from children!

Keep it away from children!

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. To avoid electrical shock:

1) DO NOT run the cleaner continuously for more than one hour at a time, as doing so can damage the internal components. 2) DO NOT operate the unit without fluid in the tank. Always ensure fluid is no higher than the max mark, and always ensure there is a minimum depth of 7 cm. 3) DO NOT drop any item into the tank as this may cause damage to the transducer. Always place items gently into the tank and use the basket whenever possible. 4) The more items that you place in your cleaning bath, the less efficient it will clean. It is not advised to overlap items. Always allow plenty of clear space between the items. 5) Do keep the lid on during use. This will prevent splashes and reduce evaporation of the fluid. 6) Never immerse the machine or power cord in water or other liquid. 7) DO NOT touch the power plug with wet hands, especially when inserting or removing the plug. 8) DO NOT touch the unit if the machine has fallen into water durin

operation. Remove the power plug from the socket first.

9) DO NOT disassemble the machine, except by professionals.

10) UNPLUG the power source while filling or emptying the tank.

11) DO NOT spray water or liquid over the device and the control panel.

12) DO NOT operate the cleaner without proper grounding.

13) DO NOT place the device on a soft surface, where the vents are blocked.

14) Upon completion of the cleaning cycle, turn the heater knob off to isolate the machine from the power source.

15) Take care when adding or removing items from the cleaning tank; fluid is likely to be hot and displaced fluid can damage the internal components. Any displaced fluid must be dried up immediately.

16) In the event of a malfunction/emergency, disconnect the power supply by

removing the power plug from the electrical outlet.

17) When heating is required, the water level should not be less than full.

18) If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

19) The connector must be removed before the appliance is cleaned, and the appliance inlet must be dried before the appliance is used again.

20) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. When the machine is used several times continuously, in order to prevent damage and failure of the parts caused by overheating, the machine

will enter into a system of self-protection, and it can be resumed after a few minutes.

1. Do not get water directly from the tap - flooding of the device and switches will lead to malfunction.
2. Do not add anti-toxic, sterilizing, or acidic solvents into the cleaning water.
3. May cause deterioration of resin and damage to stainless steel.
4. Do not clean pearls and other articles with low surface hardness (Mohs hardness of less than 8).
5. Can cause damage, discoloration, or loss of luster.
6. Do not wash rings, necklaces with gems, and diamonds for a long time.
7. May cause gems/diamonds to fall off.
8. DO NOT use the same socket as TV, radio, and computer.
9. Can affect picture clarity or cause noise.
10. Prevent the device from falling and violent shaking - this can cause breakage, deformation, and malfunction.

TECHNICAL SPECIFICATIONS

Model	TH-30ATP	TH-40ATP	TH-60ATP	TH-100ATP
Rating(s):	AC120V, 60Hz/ AC220-240V, 50/60Hz
Ultrasonic power (W)	120	180	240	480
Heating power (W)	150	300	400	600
Capacity(L)	6	10	15	30
Product Dimensions (LxWxH)(mm)	380*180*295	330*268*295	400*325*295	570*335*340
Net Weight(kg)	About 3.7	About 4.9	About 6.84	About 11.8

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

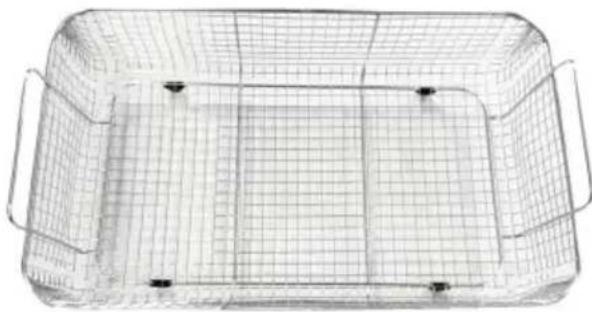

Cleaning basket

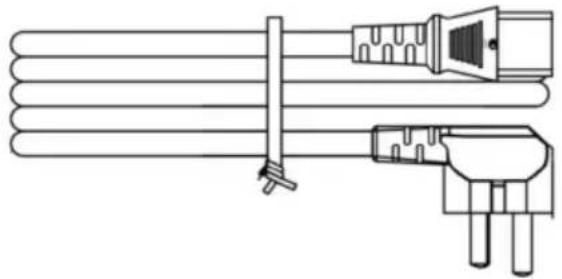

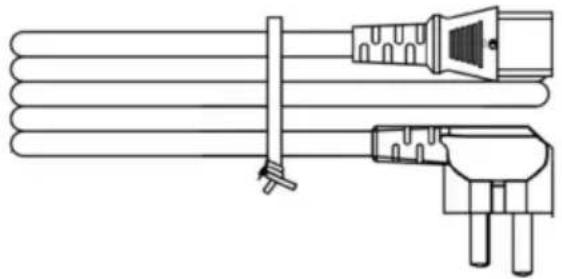

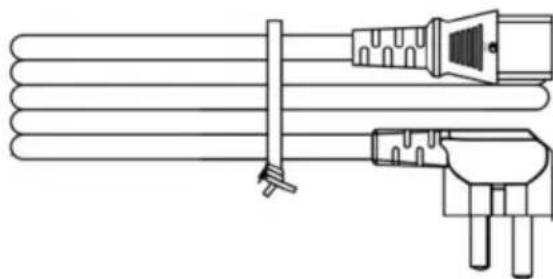

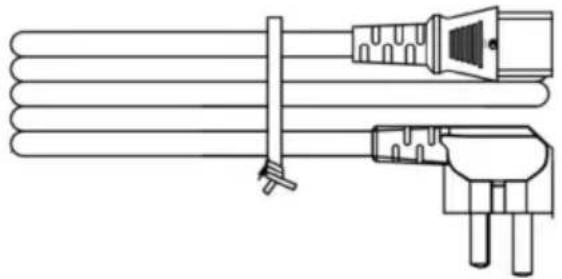

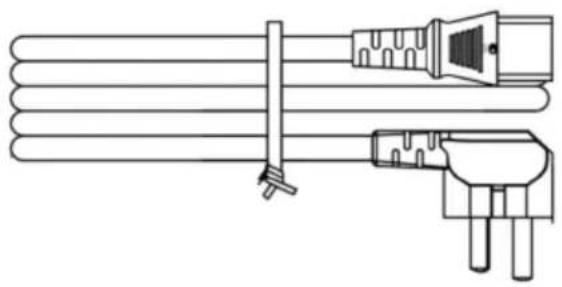

Power cord (The plug is for reference only, subject to the material object.)

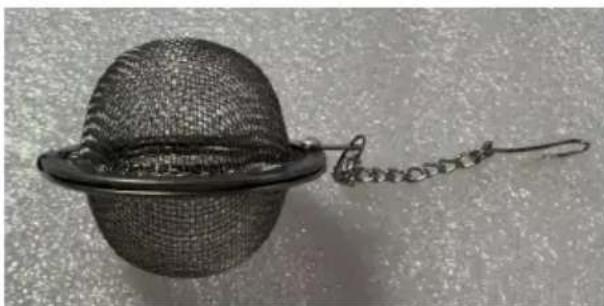

Small cleaning basket

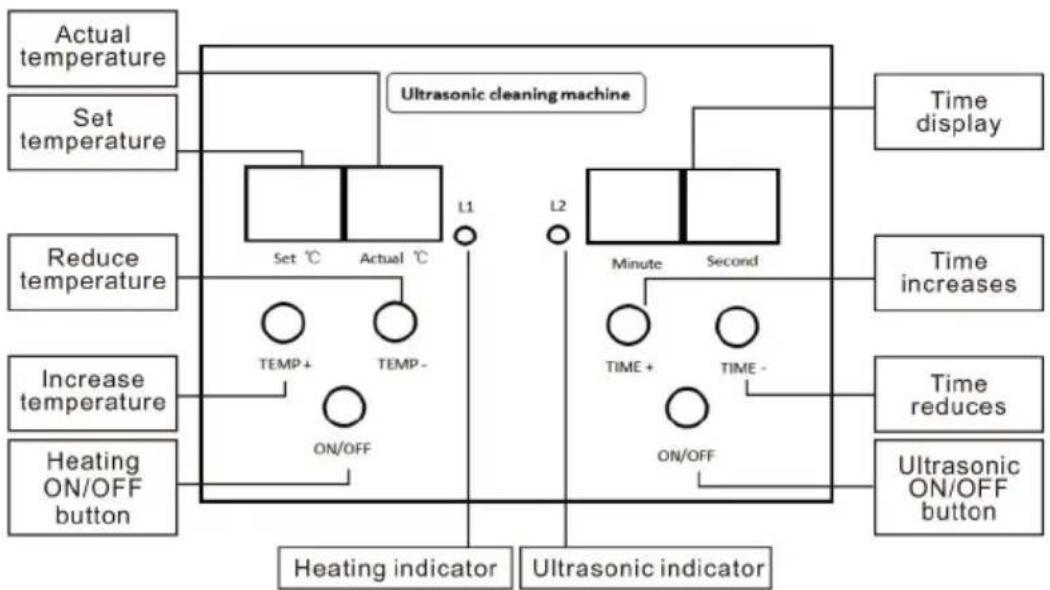

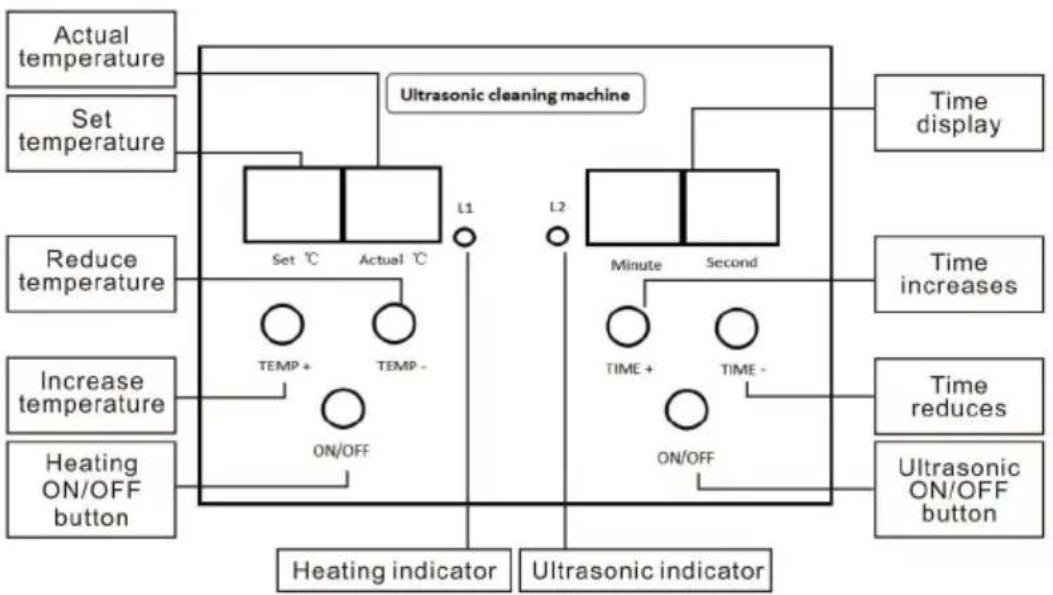

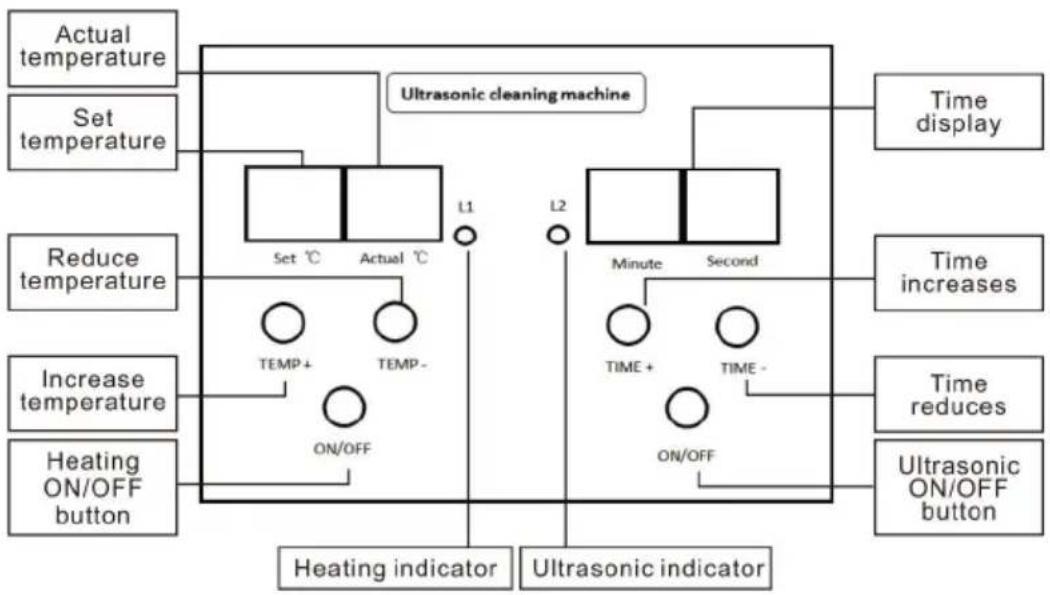

PRODUCT FUNCTIONS

Features:

● Ultrasonic frequency of 40 kHz - Digital display of temperature and time. Adjustable temperature from 0-80°C.

Note: When the water temperature exceeds the set temperature, the equipment cannot be cooled down.

● Cleaning time individually adjustable from 0-30 min. ● All devices have a useful basket for cleaning parts. ● 10 liter and above sizes have 1/2" drainage. ● Material of tank and casing: Stainless steel.

ITEMS TYPE

Items can be cleaned
Type	Specific Items
Glasses	Spectacles (without UV film) tortoise shell frame
Office supplies	Ruler, scissors, pen seal etc
Daily supplies	Toothbrush. razor blade comb etc
Jewelry	Rings, necklaces, earrings, etc
Tableware	Metal tableware.ceramic tableware dentures. etc

Items not suitable for ultrasonic cleaning
Type	Specific Items
Wooden articles	Turtle shell frame, pearl, birthstone opal, em coral, ivory, emerald, stone, Lacquer ware
Gems with softer surfaces
Coating and finishing inferior products
Bonded gemstones
Items with scratches and cracks

It may not be possible to completely remove remaining dental stone, dental wax, wax yellow black spots, and smoking dental etc.

Possible inability to clean fixed sedatives in dentures.

Discoloration and rust of metals and precious metals cannot be removed. (It is necessary to remove rust before ultrasonic cleaning

to remove stains more effectively.)

To clean bonding jewels, diamond necklaces, and rings may cause them to fall off.

OPERATIONS

1. Open the lid, add clean water, put what you need into the tank, ensure the clean water is no higher than the "Mark. Do not operate the unit without water in the tank.
2. Plug the adapter into the socket of the machine.
3. Plug the adapter power into the power socket.
4. Short press the "Time" button to switch to the desired time, then short press the ON / OFF button to start the work.
5. If you want to pause the cleaning, you can short press the OFF button to pause, the countdown on the display is past. Short press the power button again to continue working.
6. If you want to reselect the time, long press the "ON / C" to return to the standby state, and press the "Time" to the time.
7. When the cleaning work is finished, please unplug the power, open the lid, take cleaned items from the tank, through out dirty water clean and wipe the tank.

Note: Pour water from the side

DAILY MAINTENANCE

1. Pour water into the tank with the measuring cup, half of ta standard line. After washing with a soft sponge, rinse with cleaning water.
2. Be careful not to seep water into the power connection at the bottom of the cleaning tank.

1. After cleaning, please rinse items with clean water once ag. Don't seep water into the power connection when cleaning.
2. When the stains are difficult to remove, please wet a clear with water, then wipe them. Be careful not to seep water into switch and power connection.
3. After wiping, dry the device with a dry cloth.

RECYCLING INFORMATION

Disposal information:This product is subject to the provision of European 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products marked as such may not be discarded with normal d waste, but must be taken to a collection point for re electrical and electronic devices

FCC Information:

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is so o the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the product and receiver.
• Connect the product into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
