Product type	Professional ultrasonic cleaner
Model	TH-100ATP
Brand	Vevor
Tank capacity	30 liters
Ultrasonic power	480 W
Heating power	600 W
Ultrasonic frequency	40 kHz
Adjustable temperature range	0 to 80°C
Adjustable cleaning time	0 to 30 minutes
Display	Digital (temperature and time)
Tank and housing material	Stainless steel
Dimensions (L x W x H)	570 x 335 x 340 mm
Net weight	Approximately 11.8 kg
Power supply	120 V~60 Hz or 220-240 V~50/60 Hz
Included accessories	Cleaning basket, cover
Drainage system	Yes, 1/2 inch faucet
Safety	Automatic shutdown in case of overheating, protection against dry running
Maintenance	Clean the tank with a soft sponge and rinse with clean water
Usage instructions	Do not exceed the MAX mark, do not use without liquid, do not stack objects
Certifications	FCC, WEEE directive 2012/19/EU
Recommended use	Glasses, jewelry, dishes, office supplies, etc.
Not suitable	Soft gemstones, wood, glued items

Frequently Asked Questions - TH-100ATP Vevor

What is the tank capacity of the Vevor TH-100ATP?

The tank capacity is 30 liters, allowing you to clean large volumes of items simultaneously.

What type of liquid to use in the ultrasonic cleaner?

Use clean water preferably, possibly with a mild cleaning additive. Do not use solvents, acids, or sterilizing products that could damage the device.

How to set the temperature and cleaning time?

Press the Time button briefly to select the duration (0-30 min), then press ON/OFF to start. The temperature is set via a dedicated button (0-80°C).

Can I clean diamond jewelry or gemstones?

Avoid soft stones (opal, emerald, coral) and glued jewelry. Diamonds may become loose. Do not clean pearls or wood items.

What to do if the machine does not start?

Make sure the tank contains at least 7 cm of water. Check the electrical outlet and power cord. If nothing works, wait 5 minutes after continuous use (thermal protection).

How to maintain the cleaner after use?

Drain the water using the drain faucet. Clean the tank with a soft sponge, rinse with clean water, and dry with a cloth. Do not let water enter the electrical connections.

What is the ultrasonic power and noise level?

The ultrasonic power is 480 W, with a frequency of 40 kHz. The noise level during operation is similar to a light hum, but may vary depending on conditions.

Can I use the cleaner without the basket?

Yes, but it is recommended to use the basket to avoid shocks to the transducer and to facilitate removal of items.

Which items should not be cleaned in this device?

Do not clean wood items, soft gemstones, glued jewelry, objects with cracks, or electronic parts. Also avoid poorly painted surfaces.

How to drain the water from the tank?

Use the drain faucet located at the back of the device. Unplug the power supply before draining. You can also gently tilt the device to the drain side to remove remaining water.

USER MANUAL TH-100ATP Vevor

Affordable. Reliable. Home Improvement.

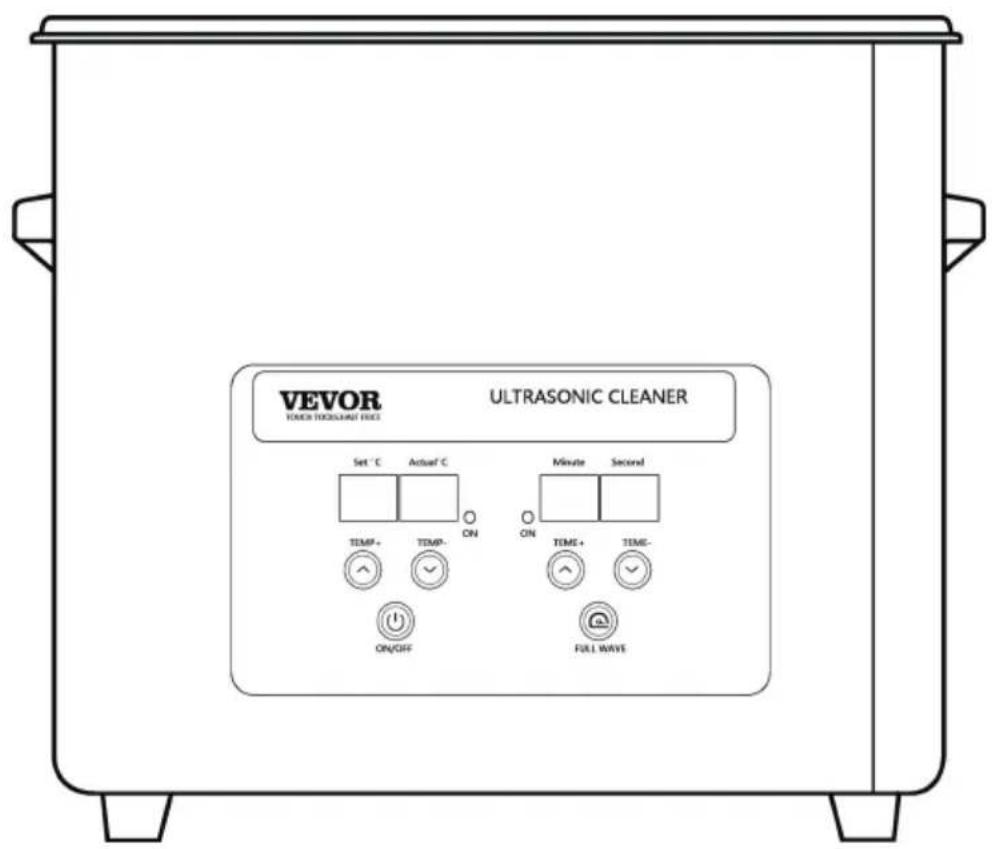

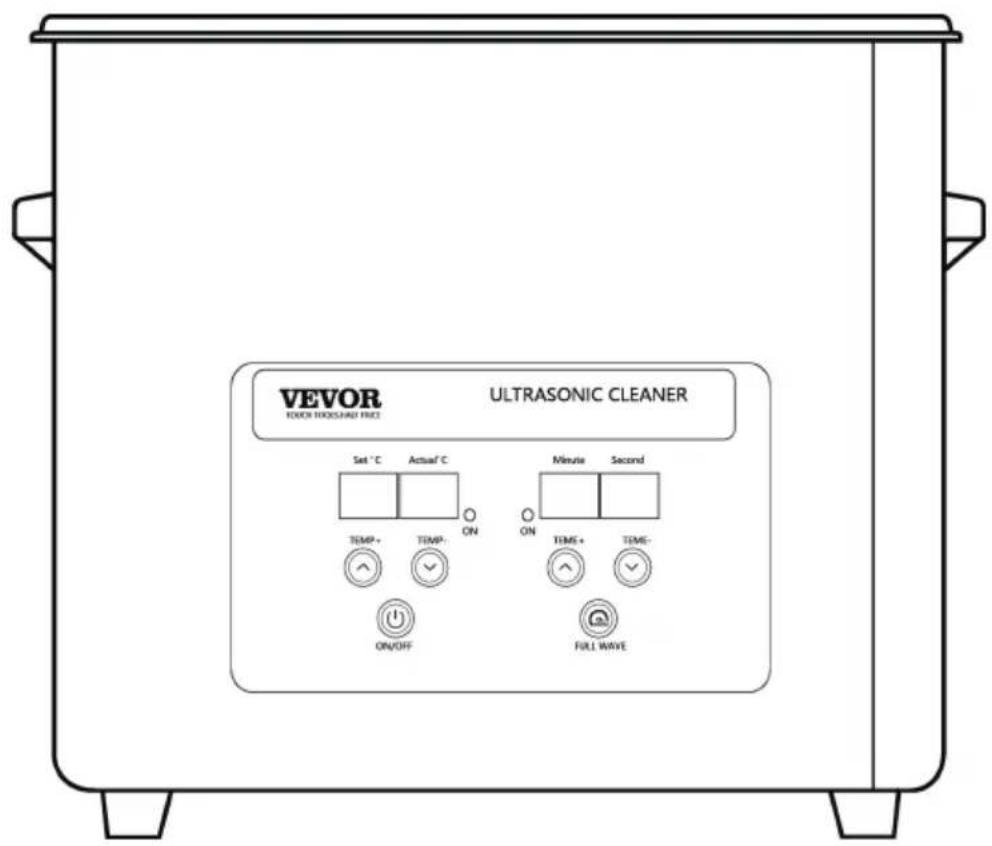

ULTRASONIC CLEANERS

MODEL: TH-30ATP,TH-40ATP,TH-60ATP,TH-100ATP

VEVOR Support

Center

TH-30ATP, TH-40ATP,

TH-60ATP, TH-100ATP

MODEL: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury. SAVE THIS MANUAL

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should always be followed including the following:

Read all instructions carefully.

Keep it away from children!

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisory. To avoid electrical shock:

1) DO NOT run the cleaner continuously for more than one hour at as doing so can damage the internal components.

2) DO NOT operate the unit without fluid in the tank. Always ensure fluid is no higher than the max mark, always ensure there is a mini depth of 7cm.

3) DO NOT drop any item into the tank as this may cause damage transducer. Always place the items gently into the tank and use the bar whenever possible.

4) The more items that you place in your cleaning bath the less effective will clean. It is not advised to overlap items. Always allow plenty of space between the items.

5) Do keep the lid on during use. This will prevent splashes and re-evaporation of the fluid.

6) Never immerse the machine or power cord in water or other liquids

7) DO NOT touch the power plug with wet hands, especially when it or removing the plug.

8) DO NOT touch the unit if the machine has fallen into water durir

operation.Remove the power plug from the socket first.

9) DO NOT disassemble the machine, except by professionals.

10) UNPLUG the power source while filling or emptying the tank.

11) DO NOT spray water or liquid over the device and the control p

12) DO NOT operate the cleaner without proper grounding.

13) DO NOT place the device on a soft surface, where the vents are blocked.

14) Upon completion of the cleaning cycle, turn the heater knob off to isolate the machine from the power source.

15) Take care when adding or removing items from the cleaning tank fluid is likely to be hot and displaced fluid can damage the internal components. Any displaced fluid must be dried up immediately.

16) In the event of a malfunction/emergency, disconnect the power supply by

removing the power plug from the electrical outlet.

17) When heating is required, the water level should not be less than full

18) If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

19) The connector must be removed before the appliance is cleaned that the appliance inlet must be dried before the appliance is used a

20) This device complies with Part 15 of the FCC Rules. Operation subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.

2. When the machine is used several times continuously, in order to the damage and failure of the parts caused by overheating, the ma

will enter into a system of self-protection, it can be resumed after minutes.

1. Do not get water directly from the tap- Flooding of the device an switches will lead to malfunction.

2. Do not add anti-toxic, sterilizing or acidic solvents into the cleaning water.

3. May cause deterioration of resin and damage of stainless steel.

4. Do not clean pearls and other low surface hardness articles Morse hardness of less than 8).
5. Can cause damage discoloration or loss of luster.
6. Do not wash rings, necklaces with gems and diamonds for long of time.
7. May cause gems / diamonds to fall off
8. DO NOT use the same socket as TV, radio and computer.
9. Can affect the picture clarity or cause noise.
10. Prevent the device from falling and a violent shaking- This can ca breakage deformation, and malfunction.

TECHNICAL SPECIFICATIONS

Model	TH-30ATP	TH-40ATP	TH-60ATP	TH-100ATP
Rating(s):	AC120V, 60Hz/ AC220-240V, 50/60Hz
Ultrasonic power (W)	120	180	240	480
Heating power (W)	150	300	400	600
Capacity(L)	6	10	15	30
Product Dimensions (LxWxH)(mm)	380*180*295	330*268*295	400*325*295	570*335*340
Net Weight(kg)	About 3.7	About 4.9	About 6.84	About 11.8

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

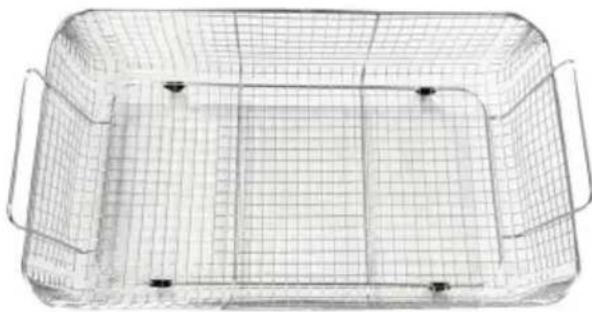

Top-down wireframe rendering of a rectangular container filled with mesh grids (no text or symbols)

cleaning basket

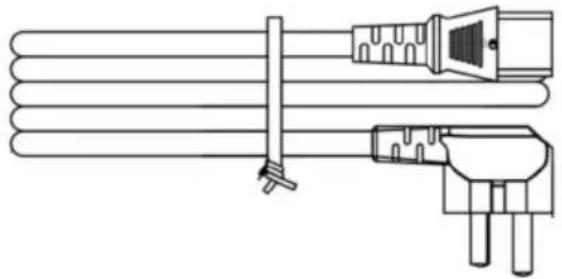

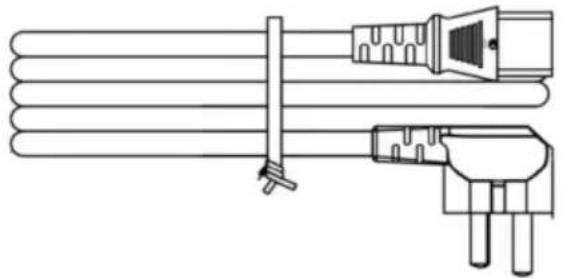

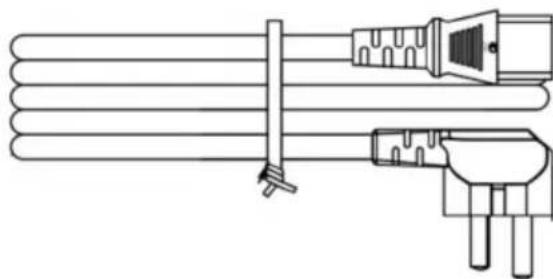

Line drawing of two electrical plug connectors with no text or symbols

Power cord
(The plug is for reference only, subject to the material object.)

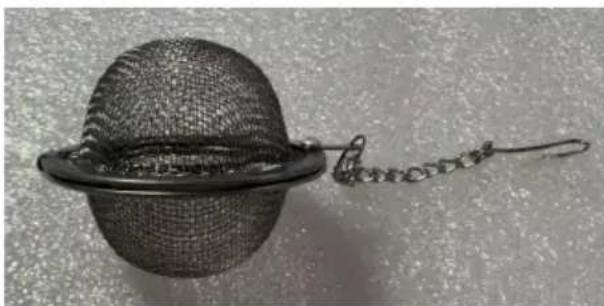

Close-up of a mesh metal sieve with a coiled string attached, against a speckled background (no text or symbols visible)

Small cleaning basket

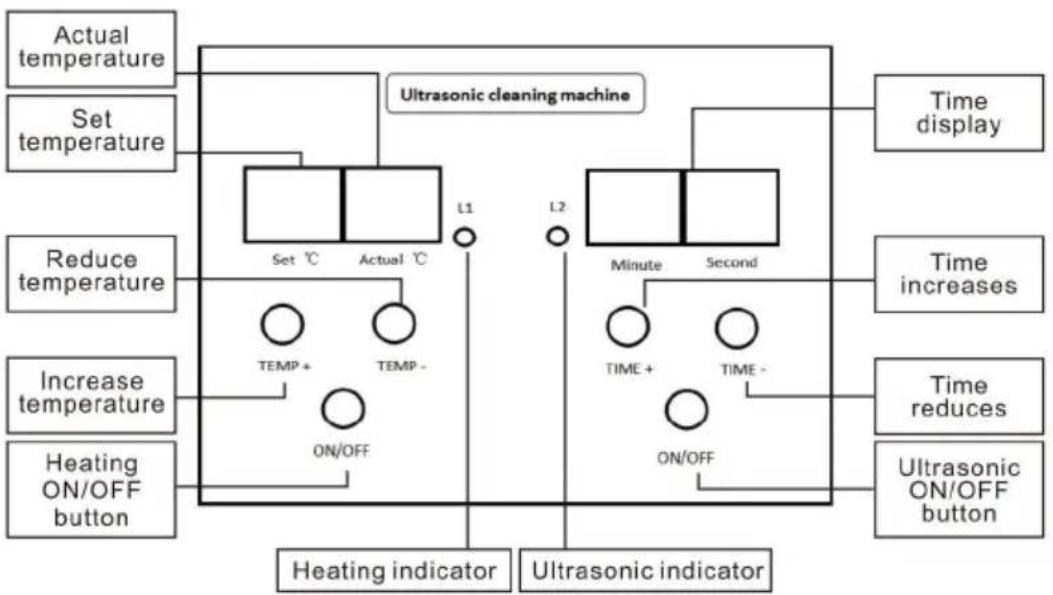

PRODUCT FUNCTIONS

Features:

● Ultrasonic frequency of 40 kHz
- Digital display of temperature and time. Adjustable temperature from 0-80°C.

Note: When the water temperature exceeds the set temperature the equipment cannot be cooled down.

• Cleaning time with individually adjustable from 0-30min.
  ● All devices have an useful basket for cleaning parts.
  ● 10 liter and above size with 1/2" drainage.
  ● Material tank and casing: Stainless steel.

ITEMS TYPE

Items can be cleaned
Type	Specific Items
Glasses	Spectacles (without UV film) tortoise shell frame
Office supplies	Ruler, scissors, pen seal etc
Daily supplies	Toothbrush. razor blade comb etc
Jewelry	Rings, necklaces, earrings, etc
Tableware	Metal tableware.ceramic tableware dentures. etc

Items not suitable for ultrasonic cleaning
Type	Specific Items
Wooden articles	Turtle shell frame, pearl, birthstone opal, em coral, ivory, emerald, stone, Lacquer ware
Gems with softer surfaces
Coating and finishing inferior products
Bonded gemstones
Items with scratches and cracks

It may not be possible to completely remove the remaining dental stone, dental wax, wax yellow black spots and smoking dental etc.

Possible inability to clean fixed sedatives in dentures.

Discoloration and rust of metals and precious metals cannot be removed. (It is necessary to remove rust before ultrasonic cleani

to remove stains more effectively.)

To clean bonding jewels, diamond necklaces and rings may ca them fall off.

OPERATIONS

1. Open the lid, add the clean water, put what you need to the tank, ensure the clean water is no higher than the" Mark. Do not operate the unit without water in the tank.
2. Plug the adapter into the socket of the machine.
3. Plug the adapter power into the power socket.
4. Short press the "Time" button to switch to the desired tin then short press the ON / OFF" button to start the work.
5. If you want to pause the cleaning, you can short press the OFF button to pause, the countdown on the display is past. Short press the power button again to continue working.
6. If you want to reselect the time, long press the "ON / C to return to the standby state, and press the "Time" to the time.
7. When the cleaning work is finished, please unplug the power, open the lid, take cleaned items from the tank, through out dirty water clean and wipe the tank.

Note : Pour water from the side

DAILY MAINTENANCE

1. Pour water into the tank with the measuring cup, half of ta standard line. After washing with a soft sponge, rinse with cleaning water.
2. Be careful not to seep water into the power connection at the bottom of the cleaning tank.

Simple line drawing of a container with water droplets and a red X mark inside, no text or symbols present.

1. After cleaning, please rinse items with clean water once ag. Don't seep water into the power connection when cleaning.

2. When the stains are difficult to remove, please wet a clear with water, then wipe them. Be careful not to seep water into switch and power connection.

3. After wiping, dry the device with a dry cloth.

Simple line drawing of a washing machine with a hand holding a cloth (no text or symbols)

RECYCLING INFORMATION

Disposal information:This product is subject to the provision of European 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products marked as such may not be discarded with normal d waste, but must be taken to a collection point for re electrical and electronic devices

FCC Information:

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is so o the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly applied by the party.responsible for compliance could void the user's authc to operate the product.

Note: This product has been tested and found to comply with the line a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interfere in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which could be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
  · Consult the dealer or an experienced radio/TV technician for assista

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR

Affordable. Reliable. Home Improvement.

TH-30ATP,

TH-40ATP,

TH-60ATP,

TH-100ATP

MODÈLE : TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

Line drawing of a rectangular basket filled with wire grids, no text or symbols present

panier de nettoyage

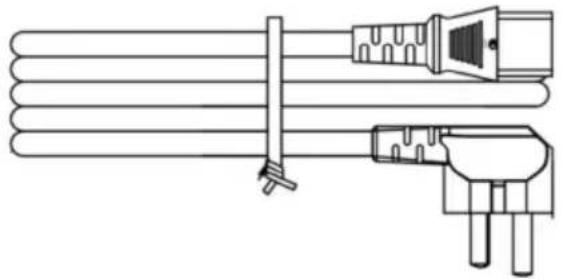

Pure technical line drawing of a coiled electrical plug and socket (no text or symbols)

Close-up of a mesh metal sieve with a chain attached, no visible text or symbols

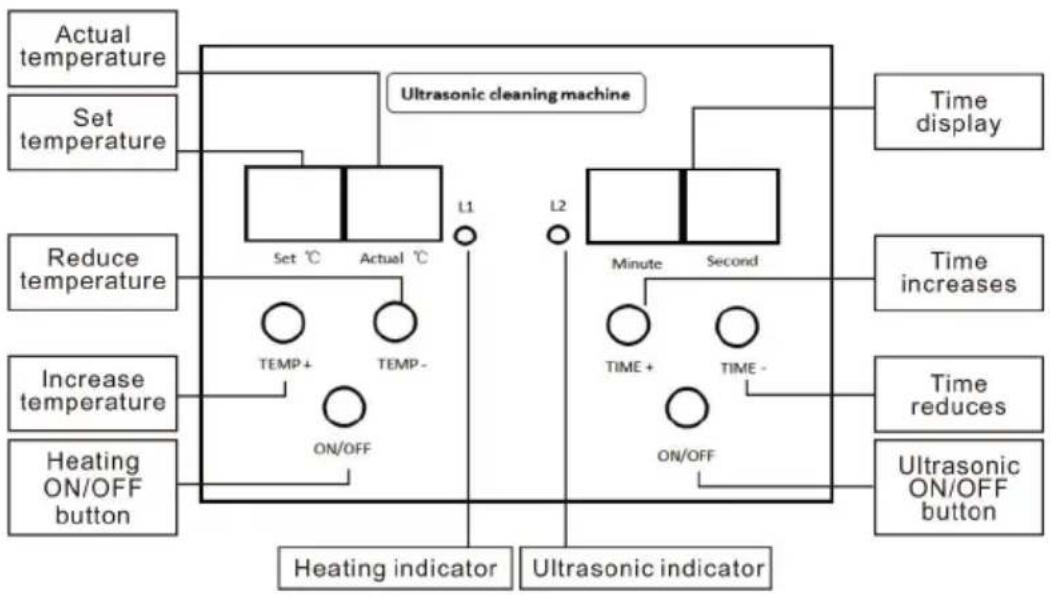

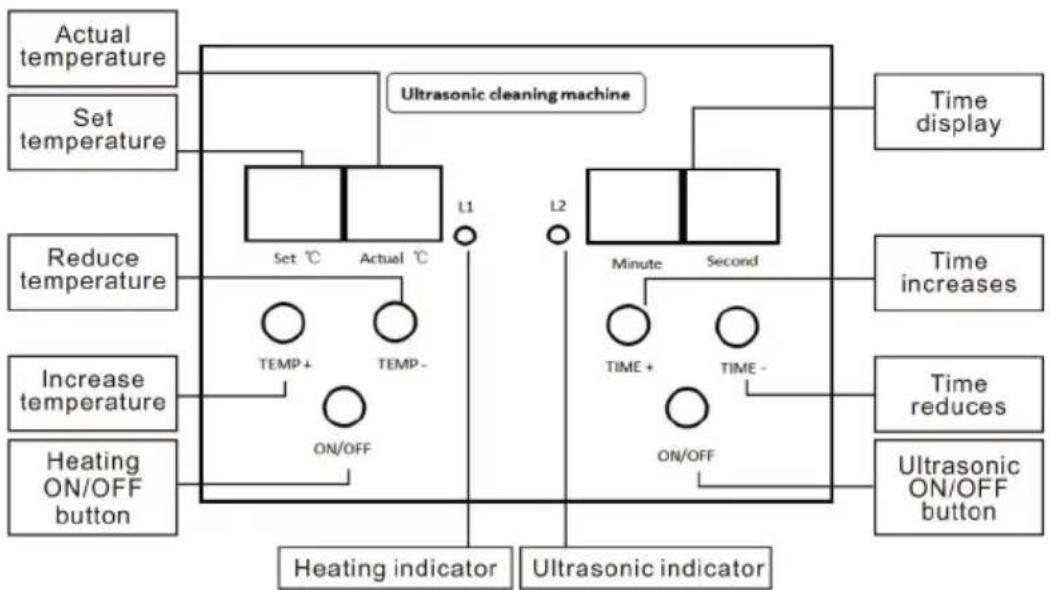

FONCTIONS DU PRODUIT

Caractéristiques:

Illustration of a cleaning appliance and a washing machine (no text or symbols)

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR

Affordable. Reliable. Home Improvement.

ULTRASCHALLREINIGER

MODELL: TH-30ATP,TH-40ATP,TH-60ATP,TH-100ATP

VEVOR-Support center

TH-30ATP,

TH-40ATP,

TH-60ATP,

TH-100ATP

MODELL: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

Wireframe diagram of a rectangular container with grid pattern and handles (no text or symbols)

Reinigungskorb

Technical line drawing of a coiled electrical plug with two connectors (no text or symbols)

Netzkabel

Close-up of a mesh metal sieve with a coiled handle, no visible text or symbols

Illustration of a kitchen appliance with cleaning and cleaning tools (no text or symbols)

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR

Affordable. Reliable. Home Improvement.

PULITORI AD ULTRASUONI

MODELLO: TH-30ATP,TH-40ATP,TH-60ATP,TH-100ATP

Centro di supporto

VEVOR

TH-30ATP,

TH-40ATP,

TH-60ATP,

TH-100ATP

MODELLO: TH-30ATP,TH-40ATP,TH-60ATP,TH-100ATP

Top-down wireframe rendering of a rectangular basket filled with mesh grids (no text or symbols)

Technical line drawing of a coiled electrical plug with a connector (no text or symbols)

Close-up of a mesh filter with a coiled handle attached, no visible text or symbols

Illustration of a washing machine with cleaning bowl and hand cleaning a cloth (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR

Affordable. Reliable. Home Improvement.

TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

MODELO: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

Top-down wireframe diagram of a rectangular container filled with mesh grids (no text or symbols)

cesta de limpieza

Technical line drawing of a coiled electrical plug with two connectors (no text or symbols)

Close-up of a mesh filter with a coiled string attached to a spherical object (no text or symbols visible)

Illustration of a washing machine with a hand cleaning a dish and a cloth, next to a bowl of milk (no text or symbols)

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR

Affordable. Reliable. Home Improvement.

MYJKI ULTRADŻWIĘKOWE

MODELE: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

Centrum wsparcia

VEVOR

TH-30ATP,

TH-40ATP,

TH-60ATP,

TH-100ATP

MODELE: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

Top-down wireframe rendering of a rectangular basket filled with mesh grids (no text or symbols)

kosz do czyszczenia

Technical line drawing of a coiled electrical plug with a connector (no text or symbols)

Przewód zasilający

Close-up of a mesh metal sieve with a chain attached, no visible text or symbols

Illustration of a washing machine with a hand cleaning a bowl and cleaning a cloth (no text or symbols)

STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anar Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR

Affordable. Reliable. Home Improvement.

ULTRASOON REINIGERS

MODEL: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

VEVOR

TH-30ATP,

TH-40ATP,

TH-60ATP,

TH-100ATP

MODEL: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

Line drawing of a rectangular container with grid pattern and handles (no text or symbols)

schoonmaakmand

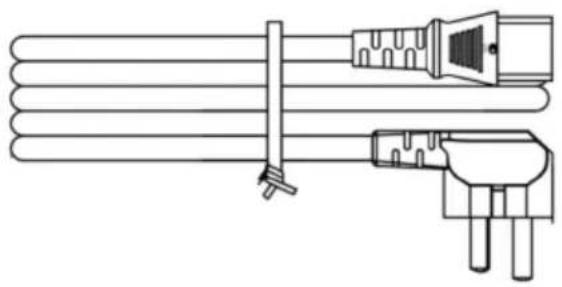

Technical line drawing of a coiled electrical plug with two connectors (no text or symbols)

Netsnoer

Close-up of a mesh metal sieve with a chain attached, no visible text or symbols

Kleine schoonmaakmand

PRODUCTFUNCTIES

Functions:

Illustration of a washing machine with a hand cleaning a dish and a cloth, next to a cleaning unit (no text or symbols present)

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR

Affordable. Reliable. Home Improvement.

ULTRALJUDSRENGÖRINGSMEDEL

MODELL: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

VEVOR Supportcenter

TH-30ATP,

TH-40ATP,

TH-60ATP,

TH-100ATP

MODELL: TH-30ATP, TH-40ATP, TH-60ATP, TH-100ATP

Line drawing of a rectangular container filled with wire mesh, no text or symbols present

rengöringskorg

Technical line drawing of a coiled electrical plug with two connectors (no text or symbols)

Nätsladd

Close-up of a mesh metal sieve with a coiled handle, no visible text or symbols

Liten rengöringskorg

PRODUKTFUNKTIONER

Drag:

Simple line drawing of a washing machine with a hand holding a cloth (no text or symbols)

RECYCLING INFORMATION

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
