HT-203U - Measuring equipment Vevor - Free user manual and instructions
Find the device manual for free HT-203U Vevor in PDF.
| Product Type | Thermal imager for smartphone |
| Brand | Vevor |
| Model | HT-203U |
| Detector Type | Amorphous silicon uncooled infrared focal plane |
| Infrared Resolution | 256 x 192 pixels |
| Pixel Pitch | 12 μm |
| Focal Length | 3.2 mm |
| Field of View | 56.0° (H) × 42° (V) |
| IFOV | 3.43 mrad |
| Spectral Band | 8 – 14 μm |
| NETD | ≤ 50 mK @ 25°C, F/1.2 |
| Frame Rate | ≤ 25 Hz |
| Focus | Free |
| Color Palettes | 15 palettes: white hot, black hot, mix-1, rainbow, mix-2, iron-1, iron-2, sepia, color-1, color-2, ICE fire, rain, red hot, green hot, dark blue |
| Main Functions | Point, line and area temperature measurement; photo and video capture; gallery; shutter update; brightness, contrast settings, etc. |
| Smartphone Connection | USB interface (Type-C) |
| Mobile App | HTI-105/203U (Android) – download via QR code |
| Power Supply | Via the connected smartphone's power supply |
| Maintenance and Cleaning | Do not touch the detector window; avoid sunlight exposure; do not use thinner; clean with a soft dry cloth |
| Safety | Avoid static electricity; do not disassemble; do not use with wet hands; contact after-sales service in case of defect |
| Spare Parts and Repairability | No user-serviceable parts; any repair must be carried out by a qualified professional |
| General Information | Compliant with European WEEE directive (2012/19/EU) and FCC Part 15 rules (Class B) |
Frequently Asked Questions - HT-203U Vevor
User questions about HT-203U Vevor
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Measuring equipment in PDF format for free! Find your manual HT-203U - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HT-203U by Vevor.
USER MANUAL HT-203U Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

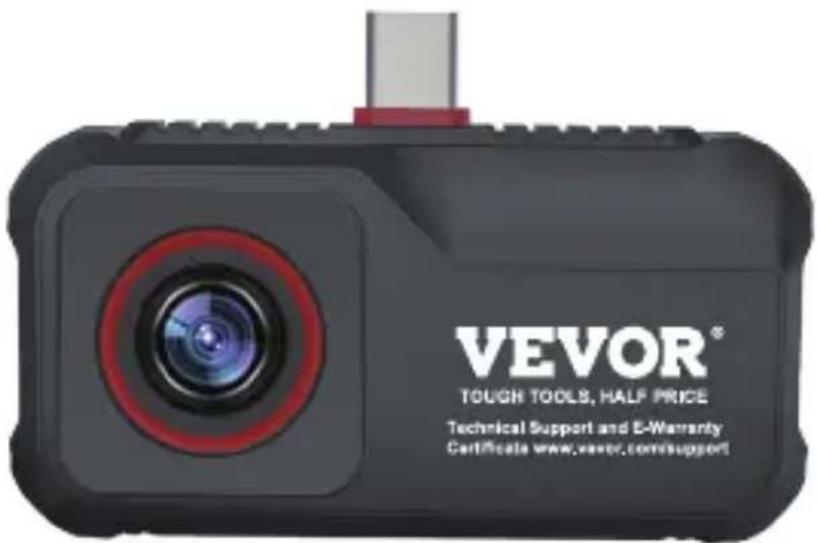

Smart Mobile Phone Thermal Imager
MODEL:HT-203U
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.
VEVOR
TOUGH TOOLS, HALF PRICE
Operation Manual
Mobile Phone Thermal Imager
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction , please read all manual instructions carefully before operating . VEVOR reserves a clear interpretation of our user manual . The appearanceof the product shall be subject to the product you received . Please forgive us that wewon't inform you again if there are any technology or software updates on our product .
Content
1.Precautions 1
2. Product Overview 2
2.1 Application Scenario 2
2.2 Main Functions 2
3.Product Use 3
3.1 Equipment Connection 3
3.2 Software Operation 4
3.2.1 Gallery, Photo and Video- 4
3.2.2ShutterRefresh- 5
3.2.3 Temperature Measurement Analysis- 5
3.2.4 Color Palette 8
3.2.5 Temperature Measurement Setting 10
3.2.6 Settings 11
4. Technical Parameters 12
1. Precautions
Please read all the following information before using your device to protect you and others from injury or damage to your device.
(1) Do not expose the product in the sun and other high-intensity radiation sources
(2) Do not touch or collide the detector window and lens with hands or other objects;
(3) Do not touch the device and USB interface with wet hands;
(4) Do not scrub your equipment with thinner;
(5) Please pay attention to preventing static electricity;
(6) Do not disassemble the equipment. If there is any fault, please contact our company for repair by professional personnel.
2. Product Overview
2.1 Application Scenario
Using this smartphone thermal imager, you need to download and install the smartphone thermal image "HTI-105/203U" APP to achieve infrared observation and infrared temperature measurement function through this APP.
Scan QR code to download the App
2.2 Main Functions
The main functions are as follows:
(1) Open the application software of the infrared thermal imager to perform infrared observation;
(2) Carry out infrared temperature measurement and temperature analysis;
(3) Take photos and videos;
(4) Action control and parameter setting of the mobile phone thermal imager.
3. Product Use
3.1 Equipment Connection
Insert the infrared thermal imager into the USB interface of the mobile phone. The mobile phone will automatically recognize the USB device and pop up a prompt. Check the box and click "OK". The software will start the infrared thermal imager of the mobile phone, and the mobile phone screen will enter the infrared observation screen.
HTI-105/203U
Allow HTI-105/203U to access HikCamera?
CANCEL OK

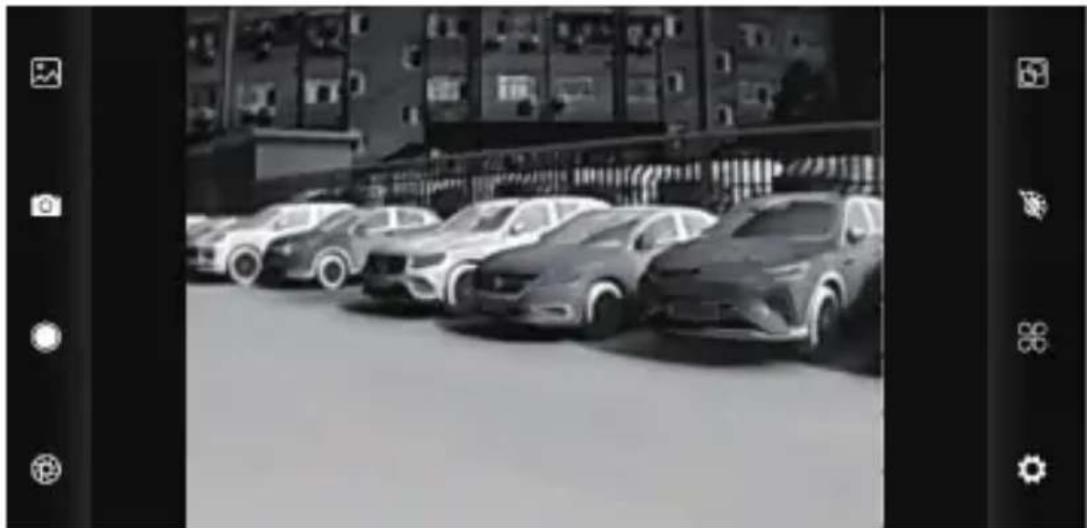

3.2 Software Operation
Temperature measurement analysis
3.2.1 Gallery, Photo and Video
(1) “ Gallery: Click to view the image and video.
When entering the picture list/video list, check the picture/video and click “ 品 ” at the top right to delete or share the picture/video.
Choosing to share can be used to read images or videos.
(2) " Photo: Save the current picture;
Photo preservation location: Open the required image in the gallery to view the image location.
(3) "Video: click to start video recording, and click again to end video recording.
The save location of video is the same as the image.
3.2.2 Shutter Refresh
"Shutter refresh: Click to refresh the shield.

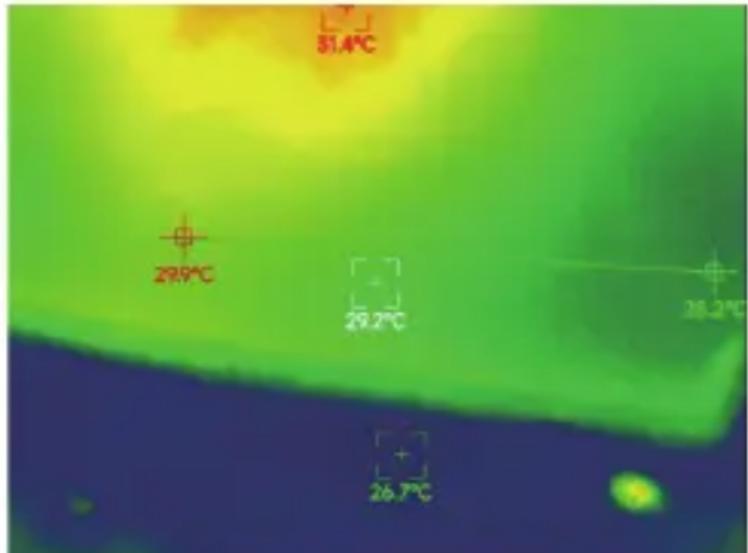

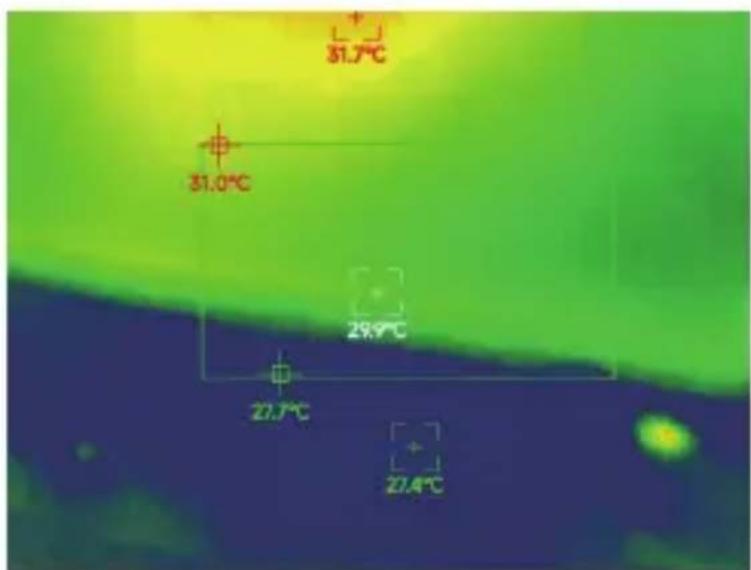

3.2.3 Temperature Measurement Analysis

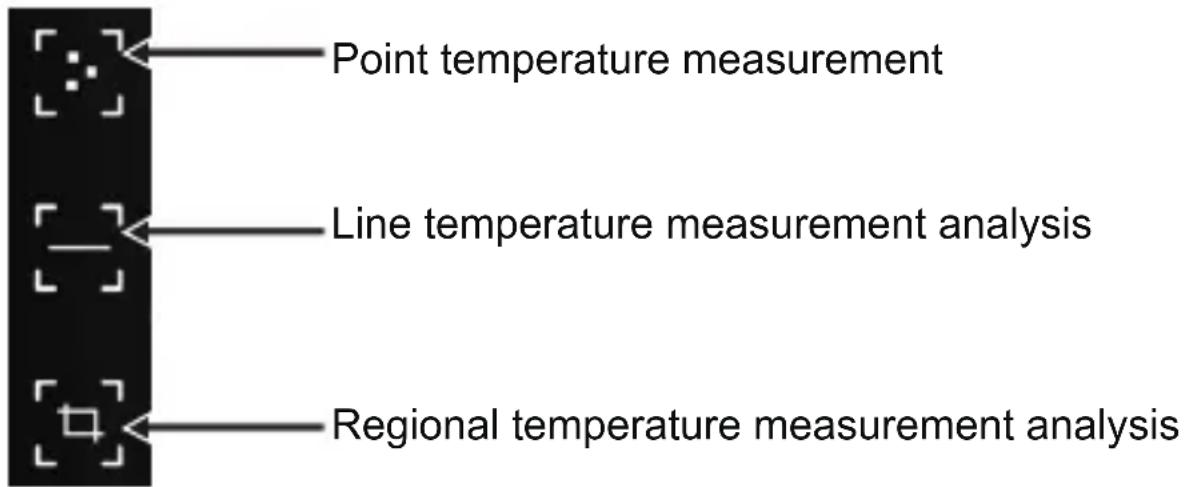

Click “ to pop out option of temperature measurement.
(1) Point temperature measurement: click the point temperature measurement button, and the screen will display the temperature information of three points, namely the central temperature point, the highest temperature point and the lowest temperature
point. Click the screen at this time, and the temperature information of the user-defined point will be added.
(2) Line temperature measurement analysis: drag with your fingers and draw a horizontal line on the screen. It will automatically analyze the maximum temperature and minimum temperature of the horizontal line, and identify relevant information.
Line temperature measurement analysis
(3) Regional temperature measurement analysis: drag with your fingers and draw a rectangle on the screen. it will automatically analyze the maximum temperature and minimum temperature in the rectangular area, and identify relevant information, as shown in the following figure:
Regional temperature measurement analysis

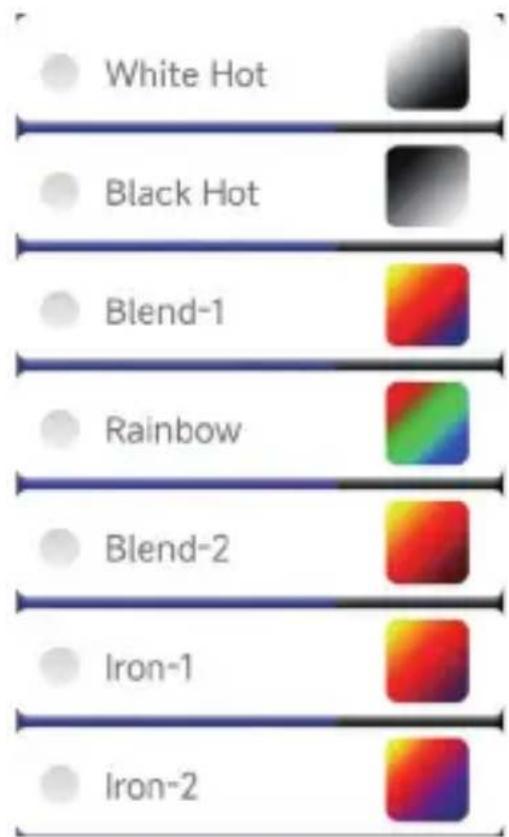

3.2.4 Color Palette

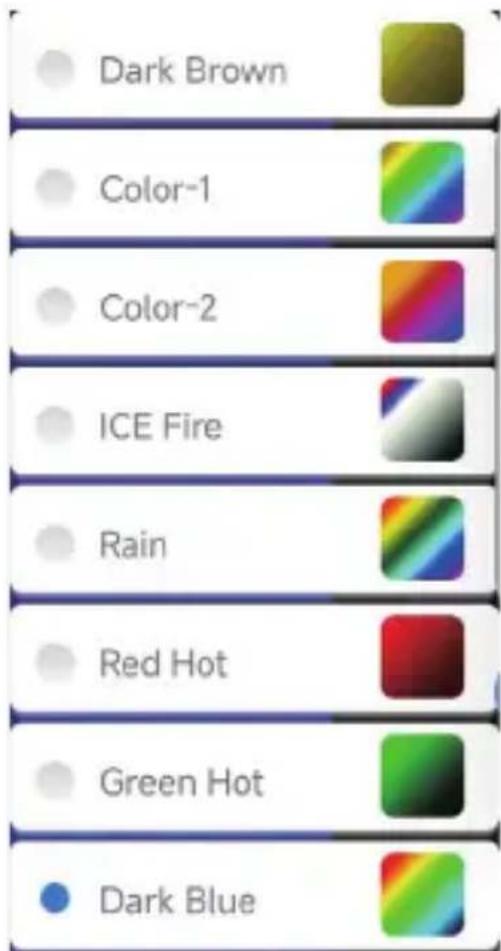

Click the “” to pop up the color palette interface, and you can switch between 15 types of color palettes including the white hot, black hot, blend-1, rainbow, blend-2, iron-1, iron-2, dark brown, color-1, color-2, ICE fire, rain, red hot, green hot, dark blue, as shown in the following figure.

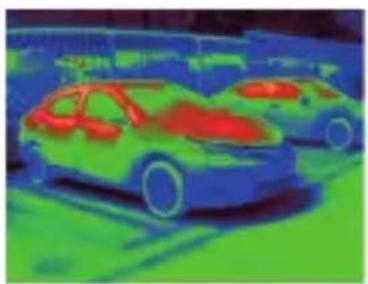

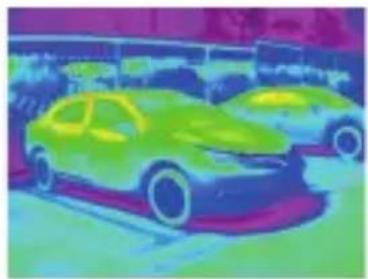

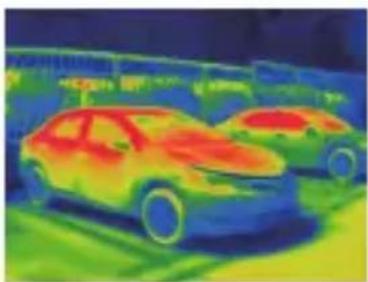

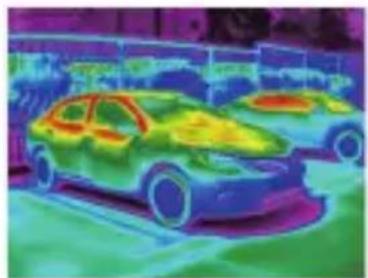

The display effects of the 15 types of color palettes are as follows:
White Hot Black Hot Blend-1
Rainbow Blend-2 Iron-1
Iron-2 Dark Brown Color-1
Color-2 ICE Fire Rain
Red Hot Green Hot Dark Blue
3.2.5 Temperature Measurement Setting

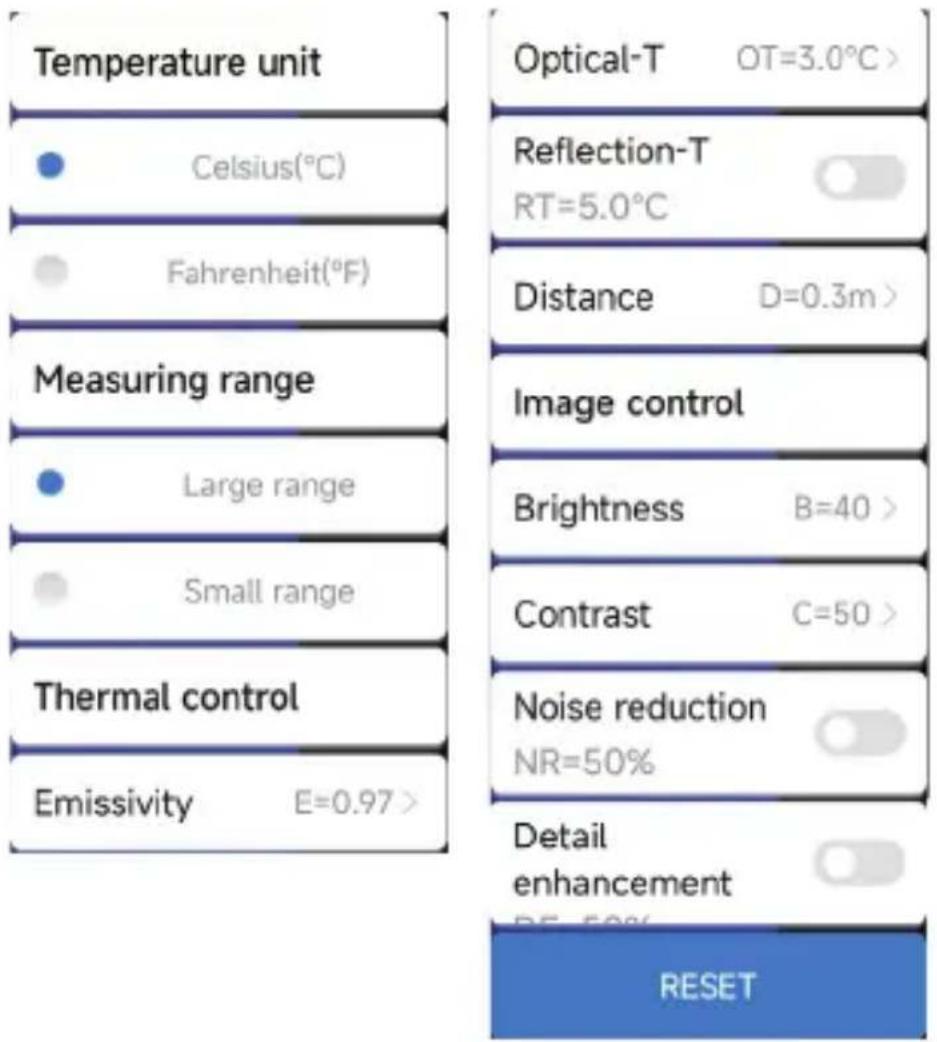

Click “” to pop up the settings interface, which can be set for temperature units, range, transmission rate, optical temperature, reflection temperature, temperature distance, brightness, contrast, noise reduction, details of details, or reset parameters, as shown in the figure below.
3.2.6 Settings

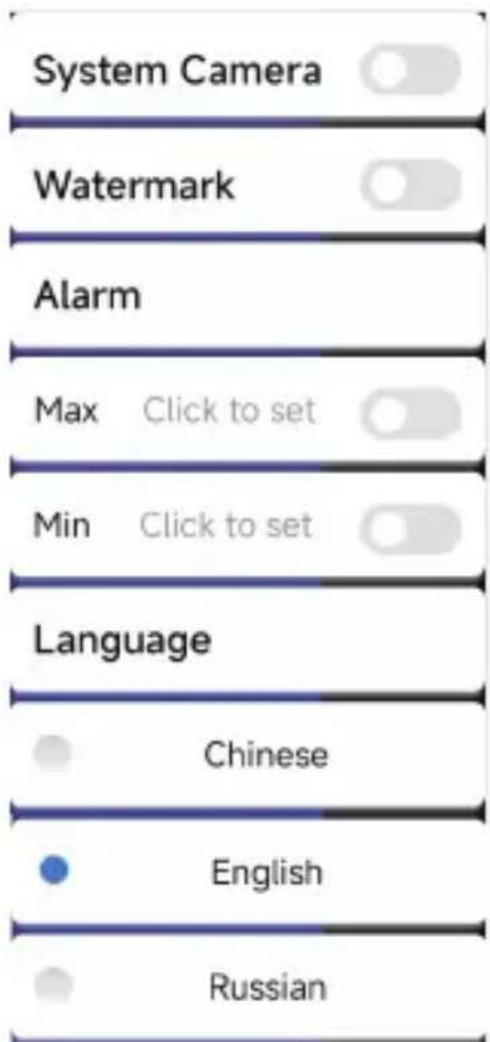

Click “” to pop up the setting interface. In the interface, you can set whether to open the system camera, watermark, high/low temperature settings, and language selection.
Chinese, English, Russian, as shown in the figure below.
4. Technical Parameters
| Product model HT-203U | |
| Infrared | |
| Detector type | Amorphous silicon uncooled infrared focal plane |
| Infrared image resolution | 256x192 |
| Pixel spacing | 12μm |
| Focal length | 3.2mm |
| Angle of view | 56.0°(H)×42°(V) |
| IFOV | 3.43mrad |
| Working band | 8~14μm |
| NETD | ≤50mk@25°C,@F/1.2 |
| Image frame rate | ≤25Hz |
| Focusing mode Free Focus | |
| Display | |
| Brightness adjustment | Supported |
| Contrast adjustment | Supported |
| palettes | white hot, black hot, blend-1, rainbow, blend-2, iron-1, iron-2, dark brown, color-1, color-2, ICE fire, rain, red hot, green hot, dark blue |
| Temperature measurement function | |
| Temperature measurement method | point, line and regional temperature measurement |
| Temperature measurement range | -20 °C ~ 120 °C and 120 °C ~ 550 °C |
| Temperature measuring distance | 0.3m~3m |
| Temperature measurement resolution | ± 3 °C or reading ± 3% |
| System function | |
| Camera/video Supported | |
| Picture /Video format | JPG/MP4 |
| Language Chinese | English, Russian |
| Power consumption | ≤0.36W |
| External interface | USB Type-C, DC5V power supply |
| Work/storage environment | |
| Working temperature | -10 °C ~ +50 °C |
| Storage temperature | -20 °C ~ +60 °C |
| Protection level | IP54 |
| Size/Weight | |
| Product size | 46x70x14mm |
| Product weight | 28g |
