Product Type	Wing Spoiler Fin
Brand	Vevor
Model	JG-137
Material	Aluminum
Color	Black
Total Length	1106 mm
Compatible Models	JG-125-2, JG-127, JG-137, JG-109
Package Contents	Assembled spoiler, bracket (2), connecting rod (4), flap, side spoiler, manual
Main Functions	Improving vehicle aerodynamics and style
Installation	Requires drilling 6.2 mm holes and mounting with screws and nuts
Angle Adjustment	Possible via elongated holes on the bracket
Safety	Read the manual before use; wear safety glasses and gloves; keep out of reach of children
Maintenance and Cleaning	Clean with a damp cloth; avoid abrasive products
Technical Support	www.vevor.com/support
Importer (United States)	Sanven Technology Ltd., Rancho Cucamonga, CA
Importer (EU)	SHUNSHUN GmbH, Linkenheim-Hochstetten, Germany
Importer (United Kingdom)	Pooledas Group Ltd, Preston, United Kingdom
Made in	China

Frequently Asked Questions - JG-137 Vevor

How to install the spoiler on my car?

Follow the steps in the manual: measure and mark the drilling points on the rear hatch, drill 6.2 mm holes, fix the bracket, then insert the mounting screws. Adjust the angle before fully tightening.

Is this spoiler compatible with my car?

The JG-137 model is designed for cars with a standard rear hatch. Check the dimensions (length 1106 mm) and shape of your hatch. For specific models, consult customer service.

What tools are needed for installation?

You will need a 6.2 mm drill bit, a marker, a drill, nut wrenches, a screwdriver, safety glasses, and work gloves.

What to do if the mounting holes do not match?

Check the measurements before drilling. Use the elongated holes on the bracket to slightly adjust the position. If necessary, re-mark and drill new holes.

How to adjust the angle of the spoiler?

The brackets have elongated holes. Loosen the mounting nuts, tilt the spoiler to the desired angle, then retighten. Refer to the manual for instructions.

Can I repaint the spoiler?

Yes, the aluminum spoiler can be repainted. Make sure to degrease it and use paint suitable for metal surfaces. Observe drying times.

How to maintain the spoiler?

Clean it regularly with a damp cloth. Do not use abrasive products. Periodically check the screw fastening.

What is the weight of the spoiler?

The weight is not specified in the manual, but it is estimated at about 2-3 kg due to the aluminum material.

Is there a warranty?

Yes, Vevor offers an electronic warranty. Register your product at www.vevor.com/support to activate the warranty.

What to do if I lost parts?

Contact customer service via www.vevor.com/support to get replacement parts. Provide your model (JG-137) and the missing parts.

USER MANUAL JG-137 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

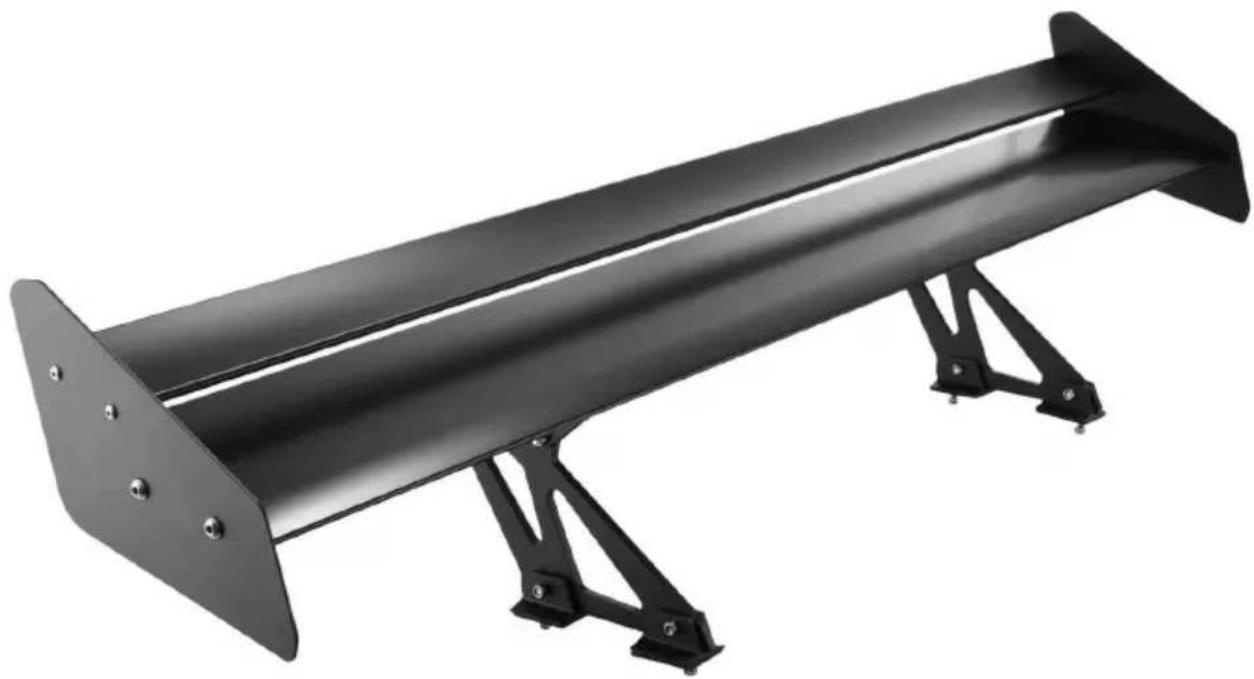

WING SPOILER

MODEL:JG-125-2/JG127/JG-137/JG-109

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: JG-125-2/JG127/JG-137/JG-109

Metal mechanical support bracket with mounting feet and mounting holes (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

- Avoid children using the product. And this product is not a toy. Do allow children to play.

ASSEMBLY PRECAUTIONS

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly and use.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

SPECIFICATION

Model	JG-125-2	JG-127
Material	Aluminium
Color	Black	Black
Length(mm)	1106	1106
Model	JG-137	JG-109
Material	Aluminium
Color	Black	Black
Length(mm)	1106	1356

PACKAGE LIST

No.	Name	Picture	Qty
			Fit model
			JG-125-2	JG-127	JG-137	JG-109
1	Wing Spoiler assembly		1	/	1	1
	Wing Spoiler assembly		/	1	/	/
2	Flap		/	/	/	1
3	Bracket assy		2	/	2	2
4	Connecting roo (including screws &nut)		4	/	4	4
5	Side spoiler		/	/	/	2
	Side spoiler		/	/	2	/
	Side spoiler		2	2	/	/
6	Manual		1	1	1	1

INSTALLATION

STEP 1: Install bracket and spoiler (Except Model JG-127)

Mechanical assembly diagram showing a black robotic arm with red wiring and a close-up of internal components (no text or symbols visible)

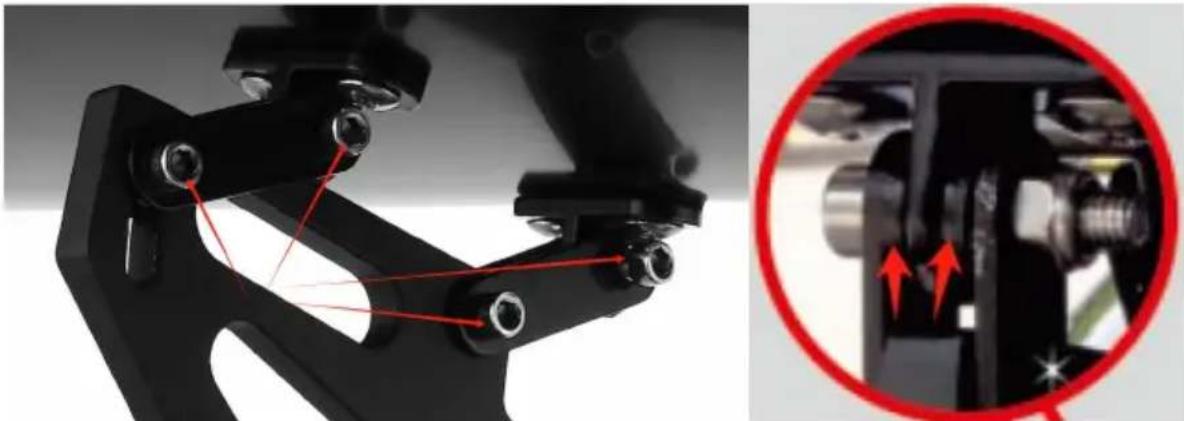

Assemble the bracket with the spoiler using the connecting rod in the package, tighten the 4 screws and nuts (don't worry about the spoiler at this time).

CAUTION: The two small circular gaskets are placed on the inside o top of the connecting piece!

Use the same method to assemble the bracket and spoiler on the side.

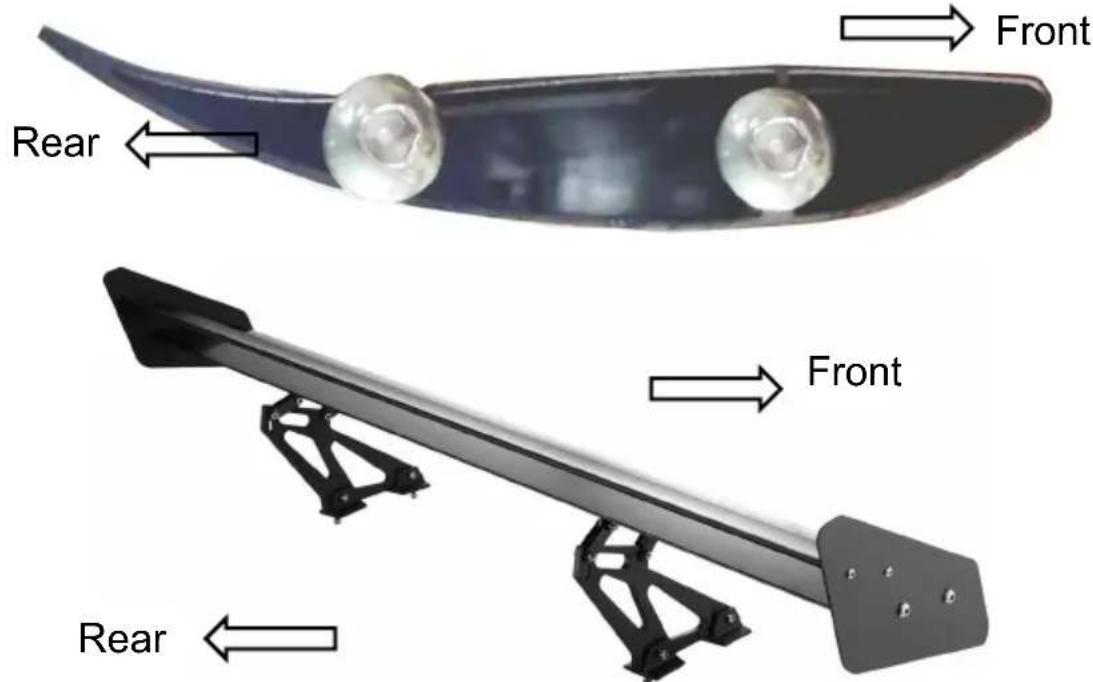

Rear Front Rear Front Rear

Note the orientation of the bracket as shown.

STEP 2: Measure the perforated mounting point.

Technical diagram showing two mechanical components with labeled dimensions L and W (no text or symbols beyond labels)

(2.1). Measure the outer distance of the support L&W.

Close-up of hands measuring a yellow tape measure on a dark surface, with a tool partially visible (no text or symbols)

(2.2). Find the center position of size L on the rear cover of the ca determine the position of the front and rear, and mark with a marker

Two views of a metal bracket assembly, one showing internal components and the other showing a close-up of its base (no text or symbols visible)

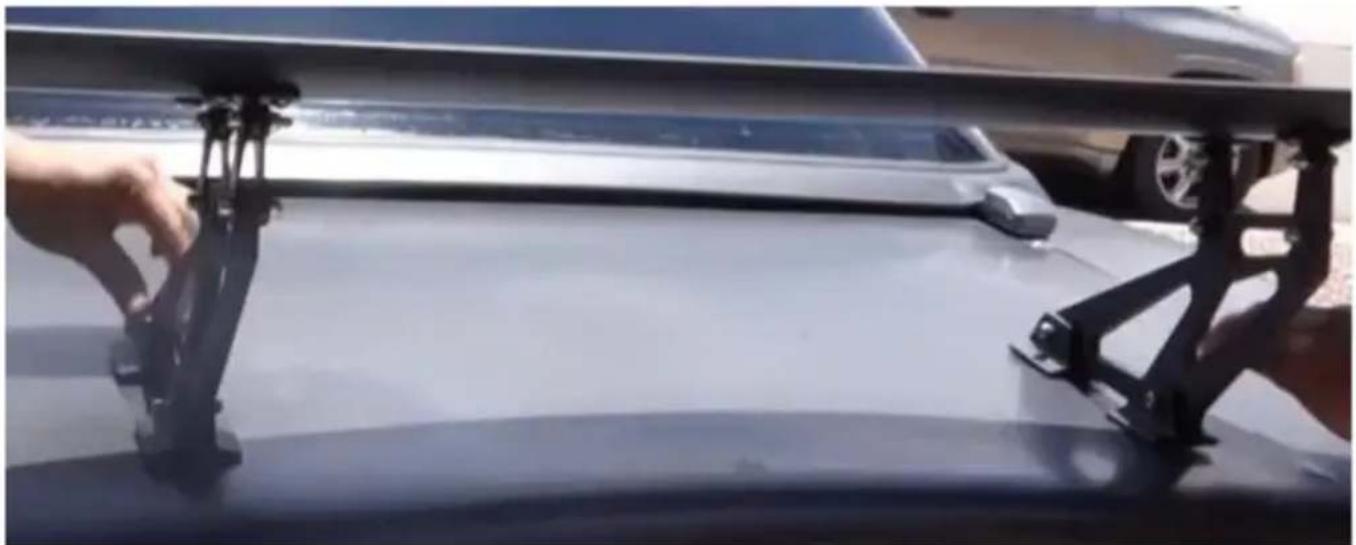

(2.3). Place the whole tail on the marked anchor point, and use the again to confirm whether the tail is left and right, and confirm that the installation position is appropriate.

STEP 3: Drill hole.

Three-panel image showing a black 3D block being cut off, with one being held by a hand holding a tool (no text or symbols visible)

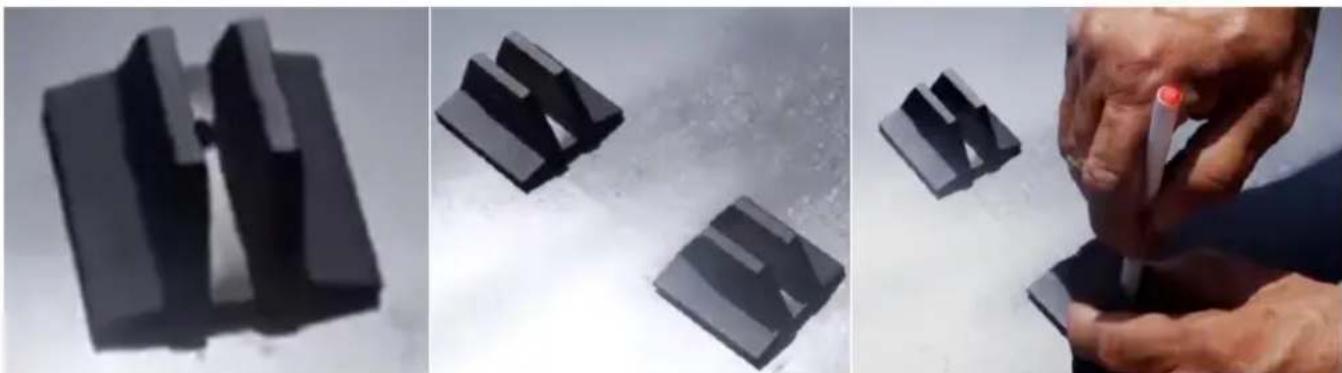

(3.1). Remove the base of the bracket and place it in the position in the previous step, and then mark the drilling point with a marker per

Close-up of a white wall with a metallic fixture and a small dark object, no visible text or symbols

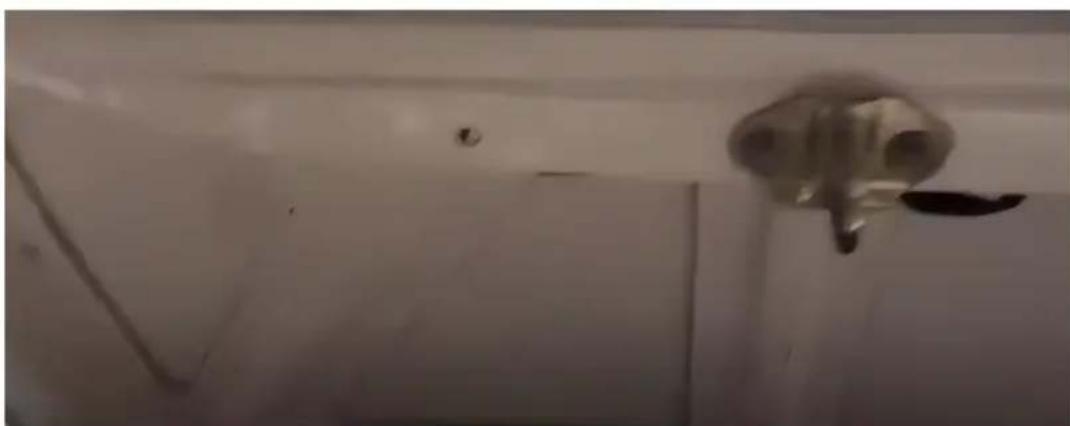

Note: Before drilling, make sure that the drilling position is on the inside of the tail cover without protection or anything to avoid

Close-up of a precision drilling tool tip and a close-up of a circular hole with red arrows indicating features (no text or symbols present)

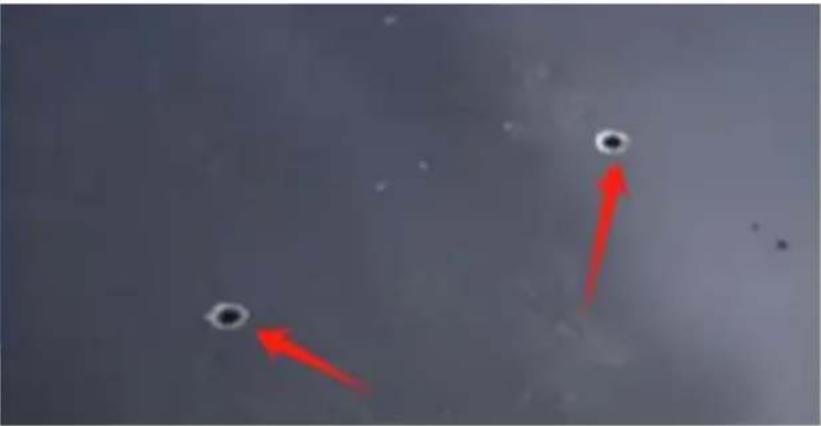

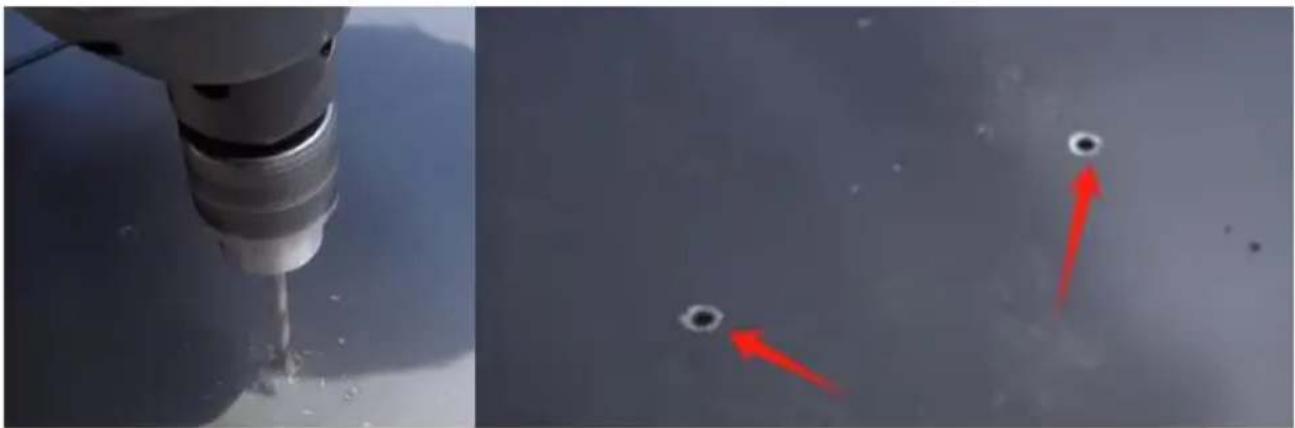

(3.2). Drill holes with a 6.2mm diameter drill bit, two on each side.

STEP 4: Installation.

Close-up of a car's front bumper with hand operating the hood (no visible text or symbols)

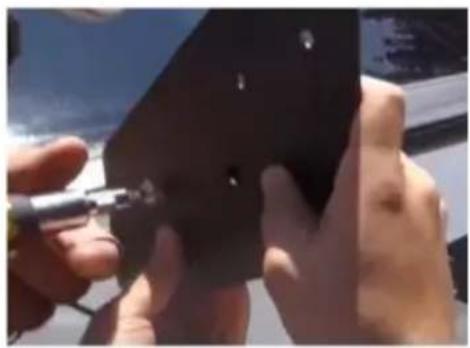

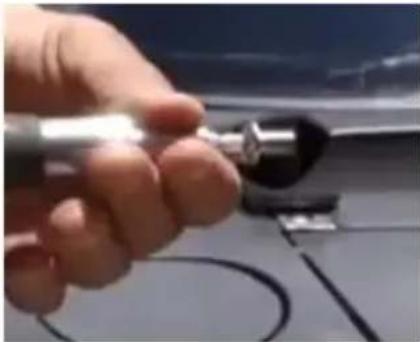

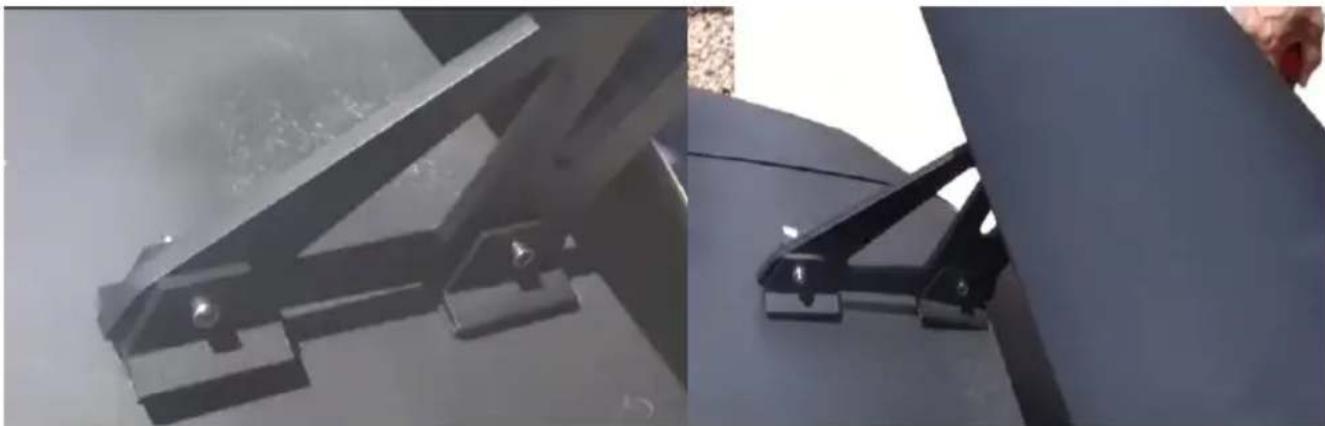

(4.1). Insert the mounting screws for the bracket base through the recover.

Close-up of a white car door handle with metal clips and a curved cable (no visible text or symbols)

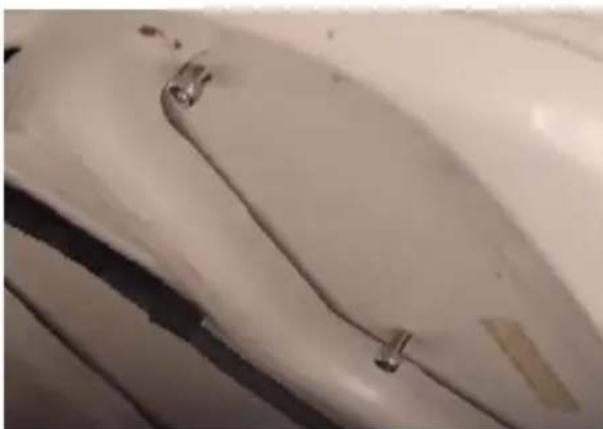

(4.2). Install locking screws on the inside of the rear cover.

Close-up of a hand holding a small metallic tool, next to a car engine socket (no visible text or symbols)

Close-up of hands using a tool to adjust or install a dark object, no visible text or symbols

Close-up of a black metal bracket with four circular holes, mounted on a white surface (no visible text or symbols)

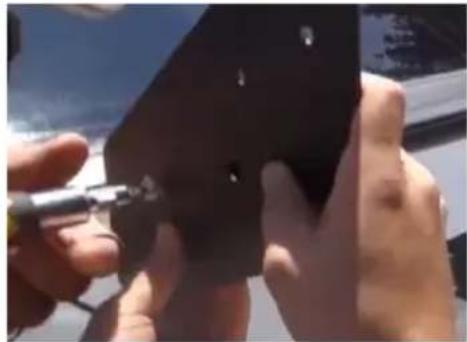

(4.3). Install flank panels.

Note that the mounting screws need to be removed before the flanking panels can be installed.

Close-up of a black fabric garment with two red arrows pointing to small circular features (no text or symbols visible)

Close-up of a black metal frame with a red arrow pointing to a specific layer, next to a vehicle wheel (no visible text or symbols)

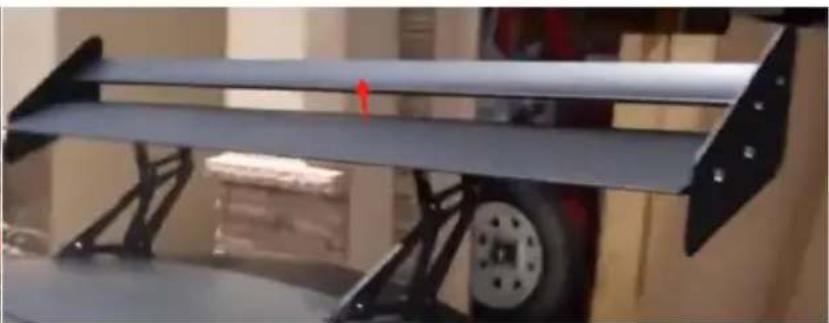

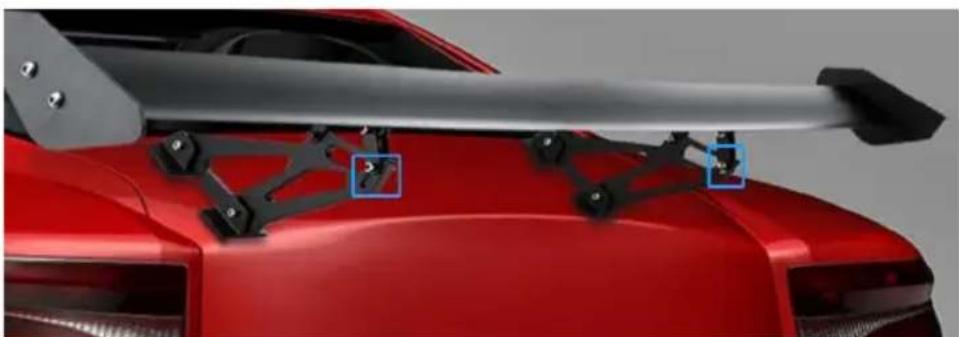

(4.4). Install the second wing(for model only: JG-109).

Red car front bumper with mechanical arms and a mounted tool (no visible text or symbols)

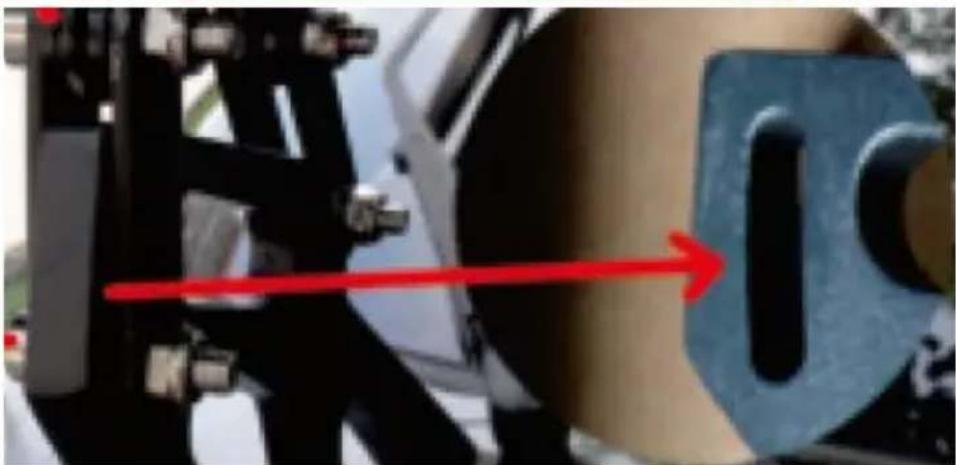

Tips: The brack joint has a waist-shaped hole to loosen mounting nut to adjust the spoile Angle.

Close-up of mechanical components with a red arrow pointing to a blue component (no visible text or symbols)

©
