CONFINED SPACE TRIPOD KIT USER MANUAL

MODEL: HXRT-06/HXRT-07/HXRT-08 HXRT-09HXRT-10/HXRT-05

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: HXRT-06/HXRT-07/HXRT-08/HXRT-09/HXRT-10/HXRT-05

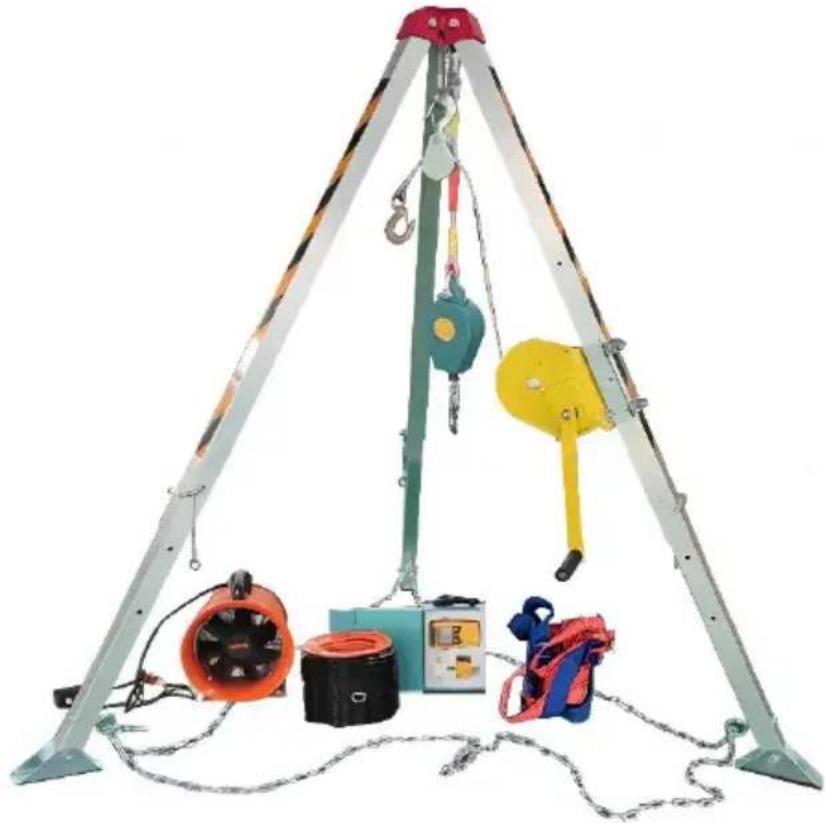

Tall metal frame with various safety equipment including a crane, harness, and safety gear (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

1. This product is not a toy. Do not allow children to play with this
2. Use as intended only.
3. Never exceed the load capacity of the Confined Space Tripod Kit.
4. HXRT-Rescue Tripod is suitable for sewer operations and limited sp including manholes, buckets, cabins, power or telecommunications and other operations to prevent falling requirements. The tripod is used with hand winch to perform rescue operations quickly and safely. This devi for one person only.
5. Before using this equipment for fall protection and rescue lifting purposes, please read the instructions carefully and use them accurate.
6. Please keep the instructions properly and read them at any time in necessary.

Tripod assembly:

(This section describes only the component names. The actual configuration depends on the specific model)

·Top: Red top hat

- Hand winch: 1200 lbs/1800lbs/2600lbs

(Indicates the model only, not the load-bearing capacity of the tripod)

·Mounting bracket: The hand winch is mounted on the bracket

·Fall Arrester: 10m

·48x48mm Leg: Outer tube: Size: 48x48mm

·Foot: Inner tube: Size: 42*42mm

·Anti-skid foot pad: anti-skid rubber bottom steel

-Chain: 4mm^*7.5m

- Locating pins

- Seat belts

-Blower

·Gas detector

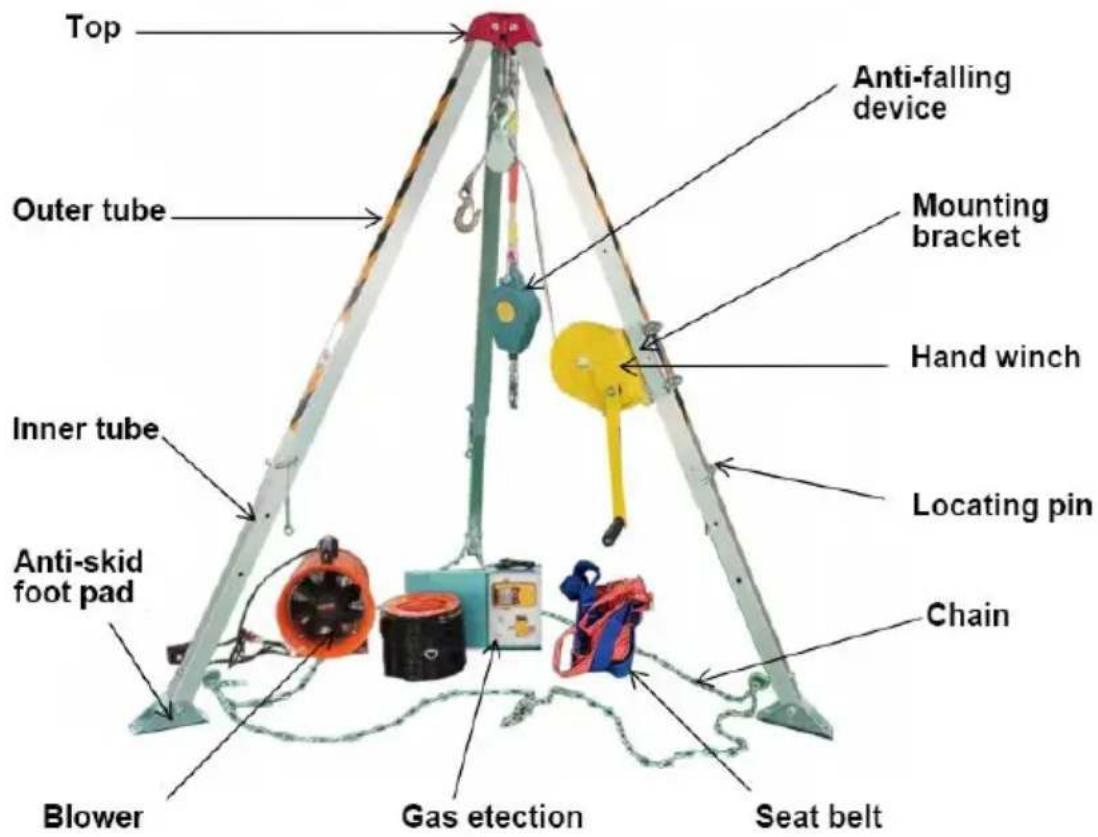

Top Outer tube Inner tube Anti-skid foot pad Blower Gas etection Anti-falling device Mounting bracket Hand winch Locating pin Chain Seat belt

BEFORE USE

[A] Tripod

1. Check the consistency of product identification.
2. Check loose screws, bent or damaged parts. It should be complete tight screws and rivets.
3. Check whether the order is bent, exceptional goods, or other damage
4. Check legs and feet for distortion, cracks or other damage.
5. Check whether the chain is distorted, cracked or damaged.

[B] Hand Winch & Wire Rope & Support

1. Check the consistency of product identification.
2. Check the screws sent, bent or damaged parts. It should be compared and tight screws and rivets.
3. Check the hook for any damage, corrosion or other damage.
4. Check whether there are cutting, kinking, corrosion, chemical contact areas or severe wear areas in the wire rope.
5. Check whether the bracket and winch are twisted, cracked, or dan

MAINTENANCE

1. Operate strictly according to the following instructions, and do not adverse effects on the equipment.

2. Use professional detergents; If mild, neutral PH soap or warm wat equipment should be pre-cleaned to remove dirt (belt parts) or debris rope parts).

3. Wipe disinfection equipment with 70% ethanol in cloth or sponge.

OPERATION AND USE

A. Tripod Installation Procedures

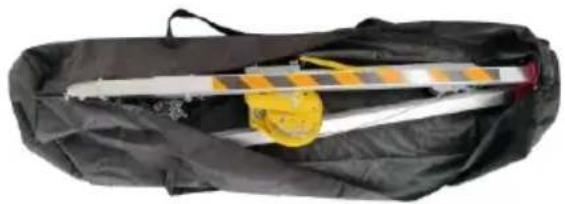

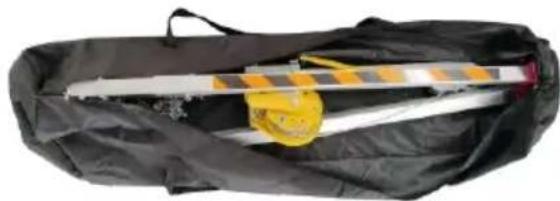

1. Remove the tripod from the bag.

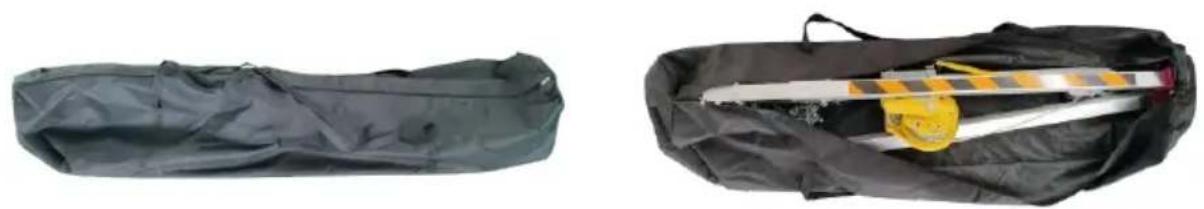

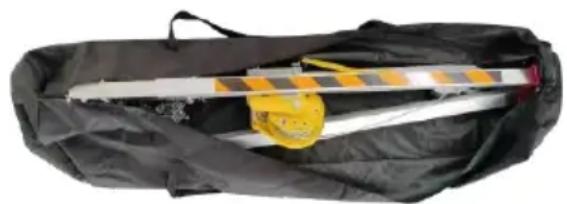

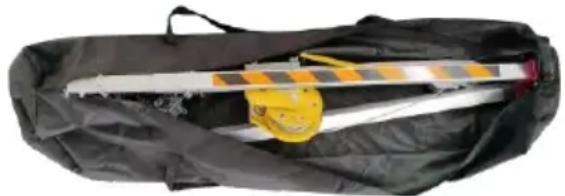

Two black-and-white photos: one of a dark gray bag with a yellow warning tape, the other of a white safety bar (no text or symbols visible)

1. Pull out the locating bolt and pull out the inner pipe to a proper p

Yellow industrial robotic arm with attached yellow frame and metal rail (no visible text or symbols)

1. Repeat the above actions on the other two legs and pull out the tube to the appropriate position.

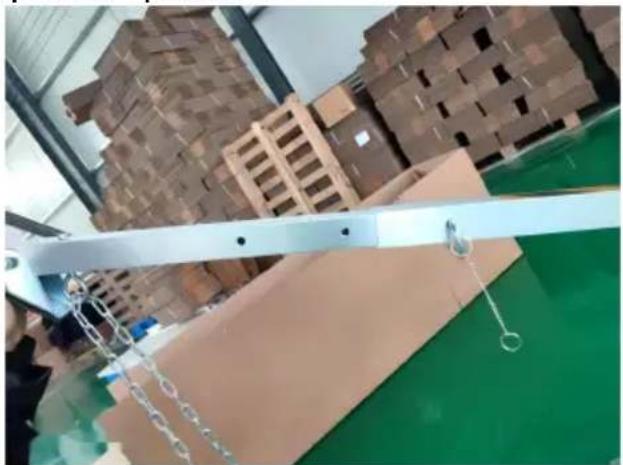

Warehouse interior with stacked cardboard boxes and hanging chains on a green floor (no visible text or symbols)

1. Lift the tripod and move each foot outward to the maximum position

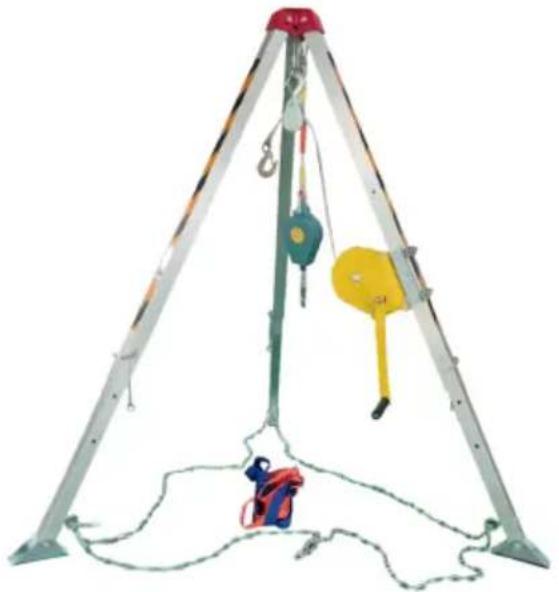

Tall metal structure with suspended cables and safety harnesses, no visible text or symbols

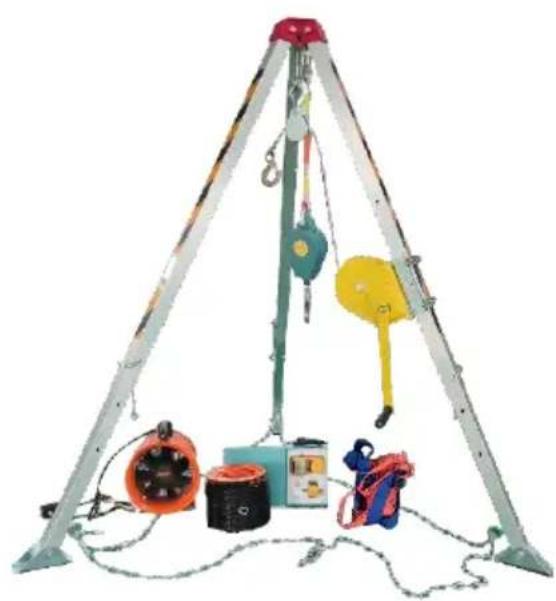

Tall metal frame with various safety harnesses and equipment, no visible text or symbols

B. Winch Installation Procedures

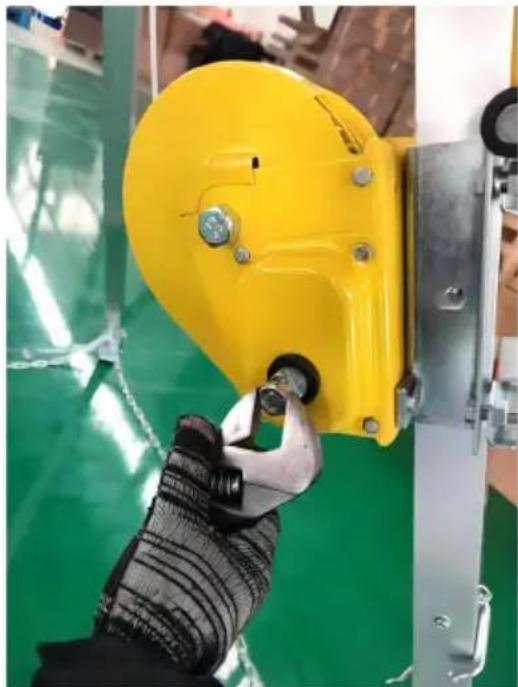

1. Unscrew the nut with an open-ended wrench.

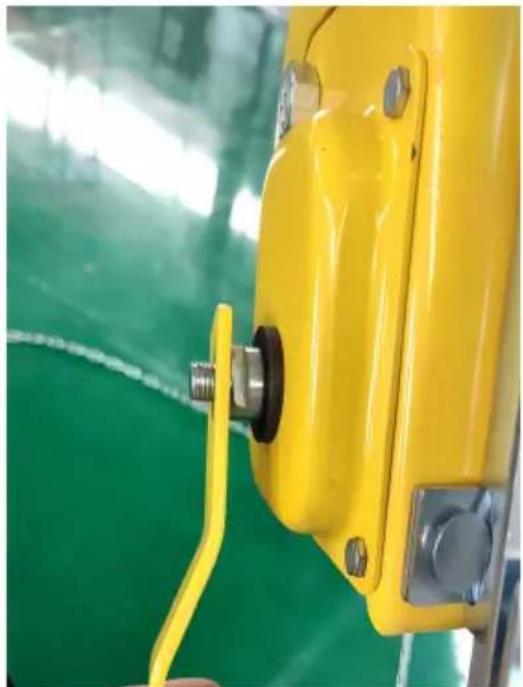

Hand operating a yellow industrial machine component on a metal frame, with green safety netting in the background (no visible text or symbols)

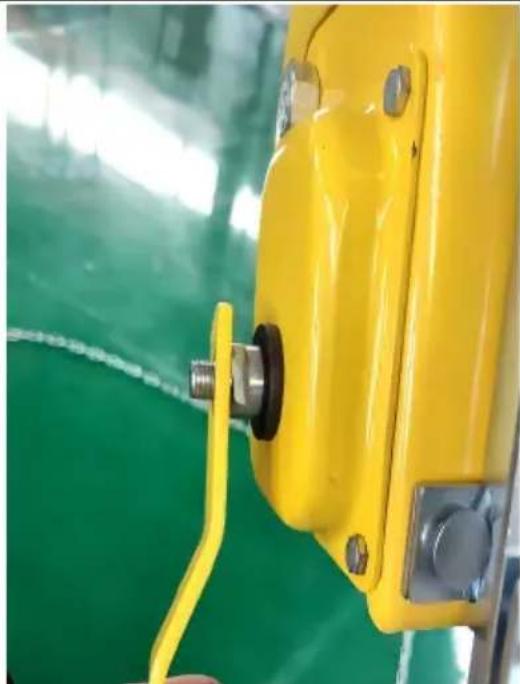

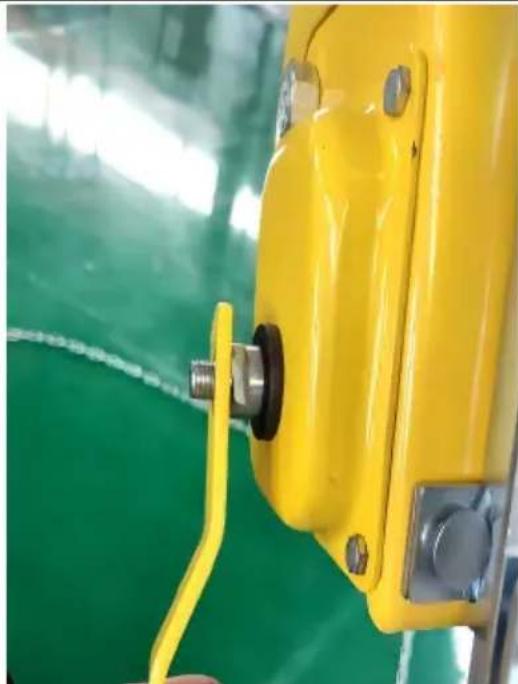

1. Place the handle on top and tighten the nut.

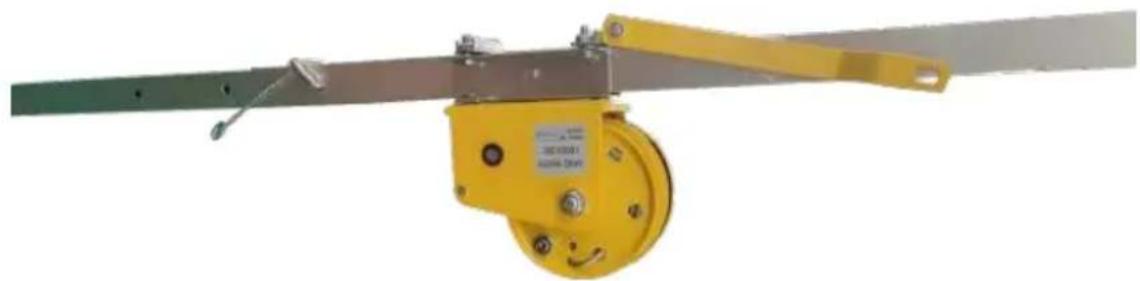

Close-up of a yellow industrial component with a metallic fitting and wiring, against a green background (no visible text or symbols)

1. Insert the fixing bolt on the mounting plate into the fixing ho the mounting plate and tighten t screws to fix the hand winch.

2. Tighten the screws on the win mounting plate with an open-end wrench.

©

Warning: The hoist is used for lifting function only for rescue purposes, not for lifting loads.

Warning!

Before use

1. It must be used by people who can use it correctly, and the use in good health before entering this operation.

2. Do not place the tripod in chemical gas environment for a long time which will cause corrosion of metal parts.

3. The tripod is only used by one person and must not be overload

4. Equipment combinations whose safety performance is affected by of equipment or conflicts with other safety equipment are not allowed.

5. In the following cases, the equipment will be revoked immediately

1) There are doubts about the safe use conditions.

2) The function of safe use is in doubt.

3) It has been used to fall and can no longer be used until qualify personnel confirm.

1. Before each use, it is necessary to ensure the free space required user under the workplace, so that in case of falling, it will not collide the ground or other obstacles in the falling path.

2. There should be direct or indirect visual contact or other means of communication with rescuers at all times during the rescue process.

3. During installation; If the hanging point is deformed or damaged, p stop using it.

4. When working on uneven ground, the tripod should be tied with c to balance the force opposite to the front facing the tripod.

After use

1. Regular inspection is required, and product safety depends on continuous maintenance and maintenance of equipment.
2. When the equipment becomes wet, whether in use or clean, it is be dried naturally and avoid direct heating.
3. The frequency of regular inspection should be at least once every March.
4. Periodic inspection is only suitable for qualified personnel, and is carried out in strict accordance with the manufacturer's periodic inspection procedures.
5. This product is a complete system, and no parts can be replaced
6. Storage procedures: Including all necessary precautionary requirements, environmental or other factors may affect the condition of parts, For example: humid environment, sharp angle, vibration, and ultraviolet decomposition.

	Items	Description
1	Name	Confined Space Tripod Kit
2	Model	HXRT-06
3	Parameter	MAX personal carrying capacity (up and down)lbsLateral tractive effort1200lbsAdjustable length range of support: feet4-2.15m

	Items	Description
1	Name	Confined Space Tripod Kit
2	Model	HXRT-07
3	Parameter	MAX personal carrying capacity (up and down)lbsLateral tractive effort1800lbsAdjustable length range of support: feet4-2.15m
2	Model	HXRT-08
3	Parameter	MAX personal carrying capacity (up and down)lbsLateral tractive effort2600lbsAdjustable length range of support: feet-2.45m

	Items	Description
1	Name	Confined Space Tripod Kit
2	Model	HXRT-09
3	Parameter	MAX personal carrying capacity (up and down)lbsLateral tractive effort2600lbsAdjustable length range of support: feed-2.45mAxial portable ventilation for Portable Multi-gas Detector

	Items	Description
1	Name	Confined Space Tripod Kit
2	Model	HXRT-10
3	Parameter	MAX personal carrying capacity (up and down)lbsLateral tractive effort2600lbsAdjustable length range of support: feed-2.45mAxial portable ventilation for Portable Multi-gas Detector

	Items	Description
1	Name	Confined Space Tripod Kit
2	Model	HXRT-05
3	Parameter	MAX personal carrying capacity (up and down): 397lbsLateral tractive effort: 1200lbsAdjustable length range of support feet: 1.34-2.15m

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW Australia

Imported to USA: Sanven Technology Ltd. Suite 250. 9166 Anaheim Place, Rancho Cucamonga, CA 91730
