Product Type	Confined Space Tripod Kit
Brand	Vevor
Model	HXRT-06
Maximum Personal Load Capacity	~144 kg (317 lb)
Lateral Pulling Force	544 kg (1 200 lb)
Adjustable Leg Height	1.6 to 2.15 m
Leg Material	Steel (outer tube 48x48 mm)
Anti-slip Feet	Rubber Tips
Winch System	Manual Winch, Steel Cable
Included Accessories	10m Fall Arrester, 4mm x 7.5m Chain, Safety Harness
Intended Use	Rescue and work in confined spaces (sewers, manholes, cabins)
Number of Users	1 person
Safety Standards	Class A Rescue Lifting Device
Maintenance	Clean with mild soap or 70% ethanol, inspect every 3 months
Storage	Away from moisture, UV, and chemicals
Spare Parts	Do not replace parts without manufacturer authorization
Warranty	Electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - HXRT-06 Vevor

How to assemble the HXRT-06 tripod?

Remove the tripod from the bag. Unscrew the positioning bolts, pull out the inner tubes to the desired height, then retighten. Spread the legs to their maximum position.

What is the maximum load capacity for one person?

The maximum personal load capacity is approximately 144 kg (317 lb). Never exceed this limit.

Can I use this tripod to lift loads?

No, the winch is intended only for rescue lifting of a person. It should not be used to lift inanimate loads.

How to install the manual winch?

Unscrew the nut with a wrench, place the handle, tighten the nut. Insert the fixing bolt into the mounting plate, then fix the winch onto the plate with the provided screws. Tighten with a wrench.

What accessories are included with the HXRT-06?

The kit includes: the tripod, a manual winch (1 200 lb), a 10 m fall arrester, a 4 mm x 7.5 m chain, and a safety harness.

How to maintain the tripod?

Clean with a mild neutral soap or 70% ethanol on a cloth. Dry naturally. Inspect every 3 months for any deformation, cracks, or corrosion.

Can I replace parts myself?

This product is a complete system. No parts should be replaced without the manufacturer's approval. Contact Vevor for any repair.

How to ensure safety during use?

Always use the tripod on stable ground, secure it with chains if the ground is uneven. The user must be in good health and use the safety harness. Visual contact or other means of communication must be maintained with rescuers.

What risks should be avoided?

Do not place the tripod in a corrosive chemical environment. Avoid sharp edges, extreme temperatures, and UV. In case of a fall, the equipment must be inspected by a professional before reuse.

Where can I find the complete user manual?

The manual is available free in PDF format at notice-facile.com and at www.vevor.com/support for technical support and the warranty certificate.

USER MANUAL HXRT-06 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CONFINED SPACE TRIPOD KIT USER MANUAL

MODEL: HXRT-06/HXRT-07/HXRT-08 HXRT-09/HXRT-10/HXRT-05

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

MODEL: HXRT-06/HXRT-07/HXRT-08/HXRT-09/HXRT-10/HXRT-05

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

1. This product is not a toy. Do not allow children to play with this product.
2. Use as intended only.
3. Never exceed the load capacity of the Confined Space Tripod Kit.
4. HXRT-Rescue Tripod is suitable for sewer operations and limited spaces including manholes, buckets, cabins, power or telecommunications and other operations to prevent falling requirements. The tripod is used with a hand winch to perform rescue operations quickly and safely. This device is for one person only.
5. Before using this equipment for fall protection and rescue lifting purposes, please read the instructions carefully and use them accurately.
6. Please keep the instructions properly and read them at any time if necessary.

Tripod assembly:

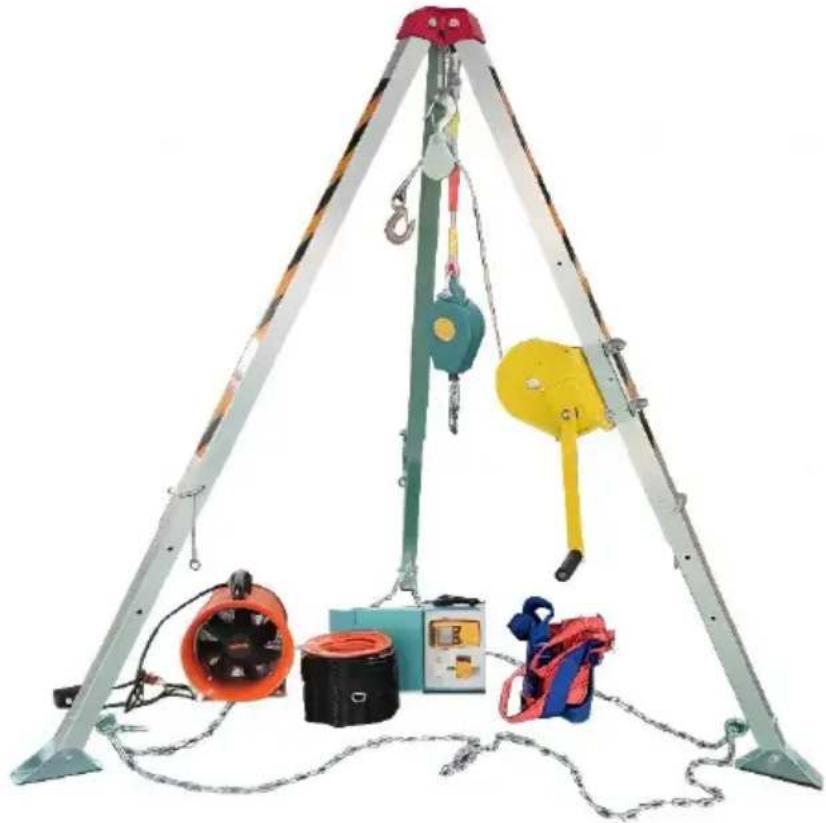

(This section describes only the component names. The actual configuration depends on the specific model)

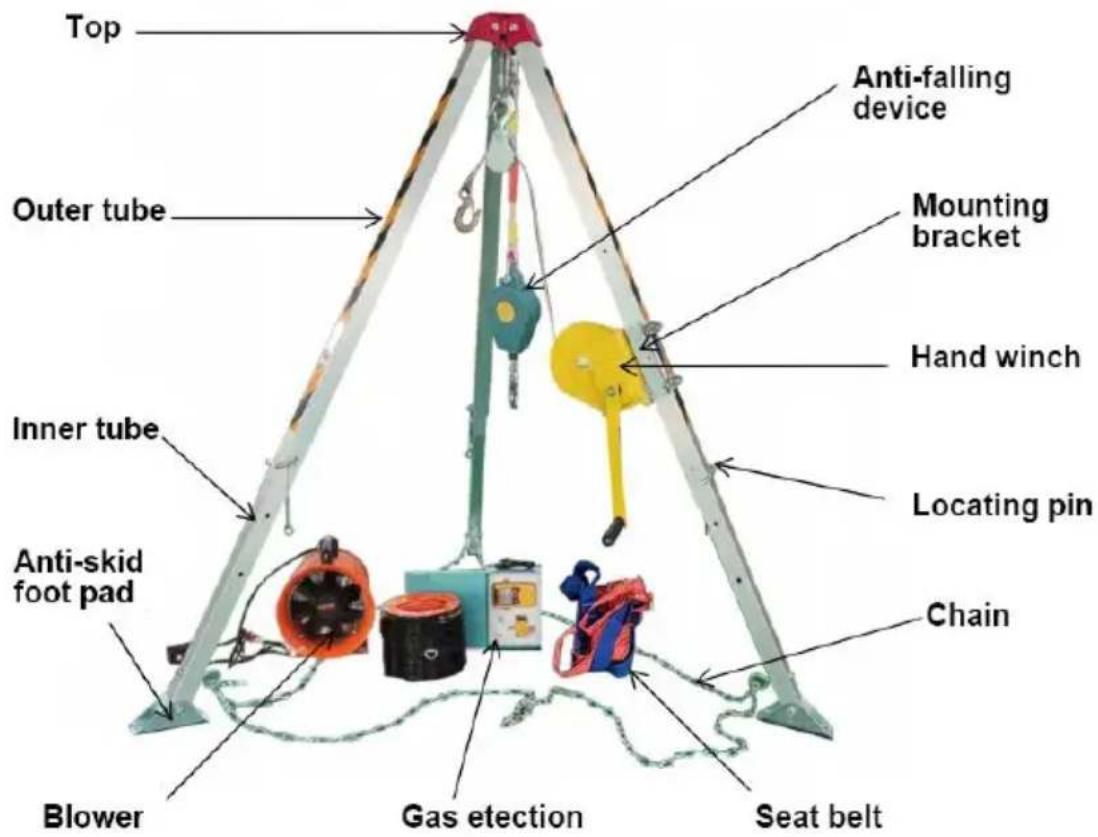

·Top: Red top hat

·Hand winch: 1200 lbs/1800lbs/2600lbs

(Indicates the model only, not the load-bearing capacity of the tripod)

·Mounting bracket: The hand winch is mounted on the bracket

·Fall Arrester: 10m

·48x48mm Leg: Outer tube: Size: 48x48mm

·Foot: Inner tube: Size: 42*42mm

·Anti-skid foot pad: anti-skid rubber bottom steel

-Chain: 4mm*7.5m

- Locating pins

- Seat belts

- Blower

- Gas detector

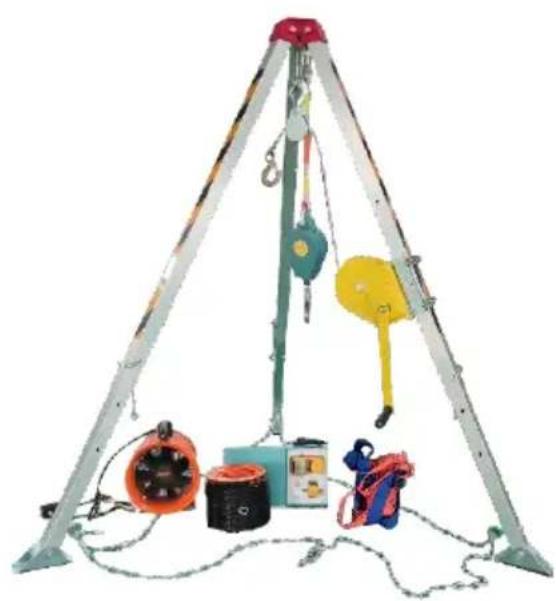

BEFORE USE

[A] Tripod

1. Check the consistency of product identification.
2. Check for loose screws, bent or damaged parts. All screws and rivets should be tight and complete.
3. Check whether the order is bent, has exceptional goods, or other damage.
4. Check legs and feet for distortion, cracks, or other damage.
5. Check whether the chain is distorted, cracked, or damaged.

[B] Hand Winch & Wire Rope & Support

1. Check the consistency of product identification.
2. Check the screws sent, bent or damaged parts. It should be compared and tight screws and rivets.
3. Check the hook for any damage, corrosion, or other damage.
4. Check whether there are cutting, kinking, corrosion, chemical contact areas, or severe wear areas in the wire rope.
5. Check whether the bracket and winch are twisted, cracked, or damaged.

MAINTENANCE

1. Operate strictly according to the following instructions, and do not cause adverse effects on the equipment.
2. Use professional detergents; if mild, neutral pH soap or warm water is used, the equipment should be pre-cleaned to remove dirt (belt parts) or debris (rope parts).
3. Wipe and disinfect equipment with 70% ethanol on a cloth or sponge.

OPERATION AND USE

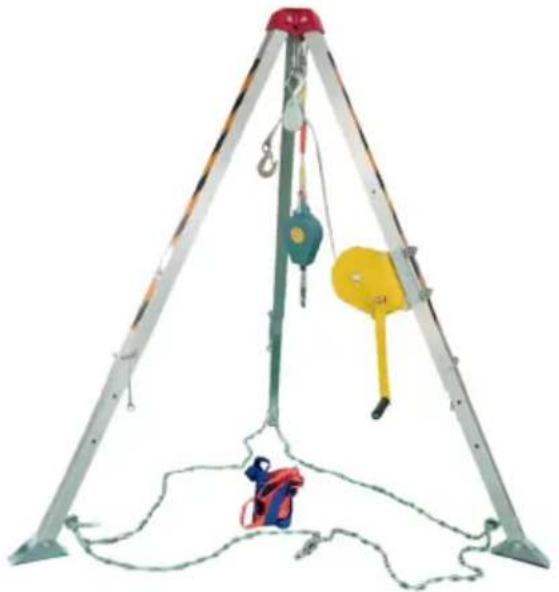

A. Tripod Installation Procedures

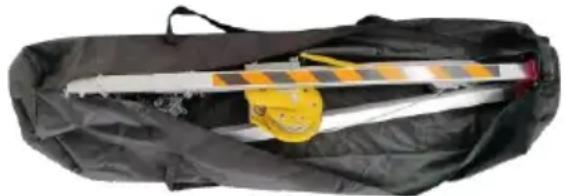

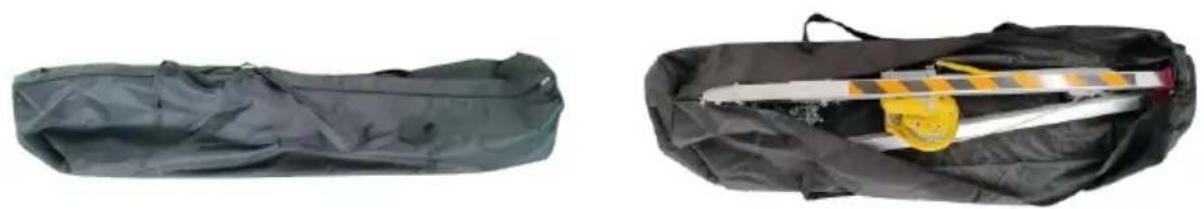

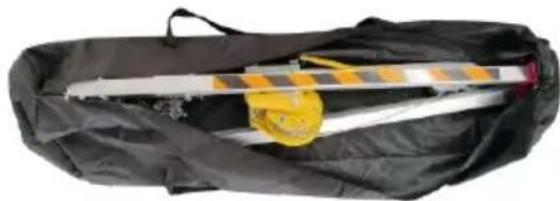

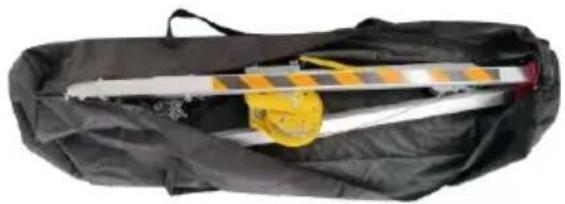

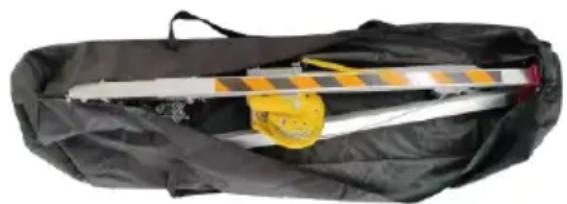

1. Remove the tripod from the bag.

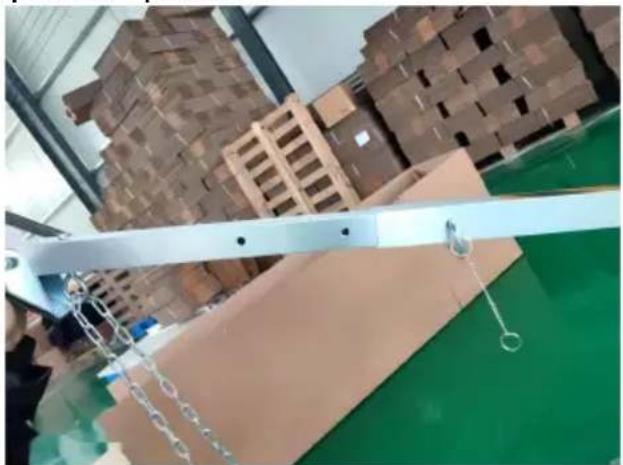

1. Pull out the locating bolt and pull out the inner pipe to a proper position.

1. Repeat the above actions on the other two legs and pull out the tube to the appropriate position.

1. Lift the tripod and move each foot outward to the maximum position.

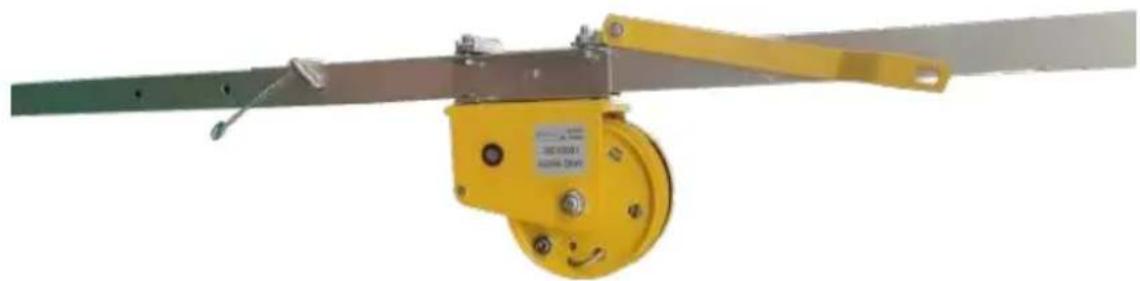

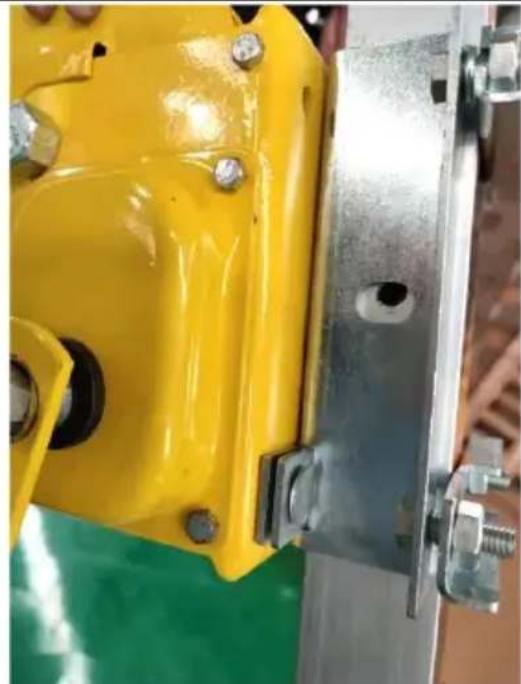

B. Winch Installation Procedures

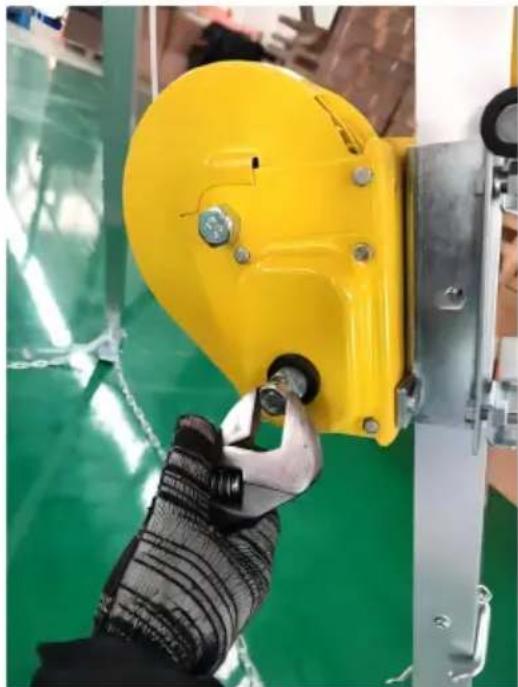

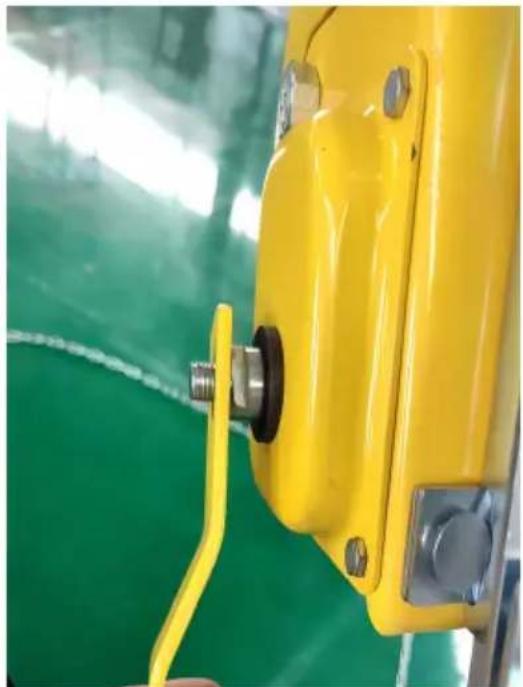

1. Unscrew the nut with an open-ended wrench.

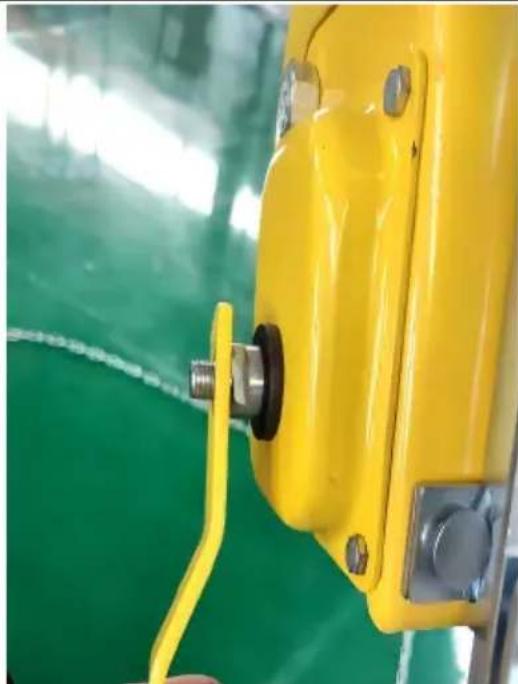

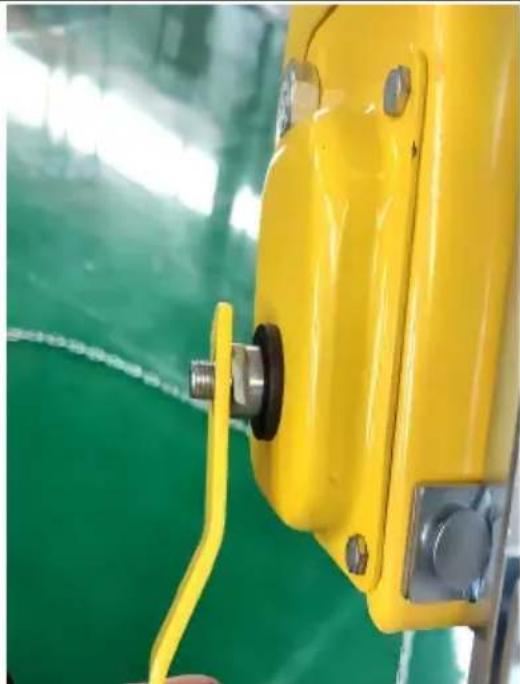

1. Place the handle on top and tighten the nut.

1. Insert the fixing bolt on the mounting plate into the fixing hole on the mounting plate and tighten the screws to fix the hand winch.

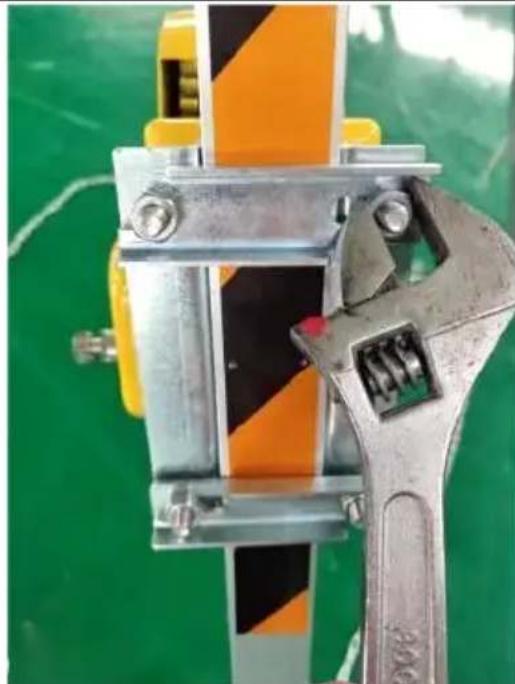

2. Tighten the screws on the win mounting plate with an open-end wrench.

OPERATING PROCEDURE

1. Connect to full-body seat belts and fall arresters. Rotating hooks on winches or hanging point rotating ring equipment.
2. Working environment

Regarding hazards that may affect the performance of equipment and the corresponding safety precautions must be observed, such as temperature and sharp edge influence, Chemical reagents, electrical conductivity, cutting, wear, ultraviolet degradation, and other climatic conditions.

1. Rescue lifting

Class A rescue lifting device. Rescue lifting device can only be used unimpeded lifting process, and should not be used if obstacles are dangerous.

When using this equipment for rescue, the correct method is to cor the hitch fastening device to the D-ring at the front end of the seat

1. Hoist and fixed hanging point device.

Warning: The hoist is used for lifting function only for rescue purposes, not for lifting loads.

Warning!

Before use

1. It must be used by people who can use it correctly, and in good health before entering this operation.
2. Do not place the tripod in a chemical gas environment for a long time, as this will cause corrosion of metal parts.
3. The tripod is only used by one person and must not be overloaded.
4. Equipment combinations whose safety performance is affected by other equipment or that conflict with other safety equipment are not allowed.
5. In the following cases, the equipment will be revoked immediately:

1) There are doubts about the safe use conditions.

2) The function of safe use is in doubt.

3) It has been used to fall and can no longer be used until qualified personnel confirm.

1. Before each use, it is necessary to ensure the free space required by the user under the workplace, so that in case of falling, it will not collide with the ground or other obstacles in the falling path.
2. There should be direct or indirect visual contact or other means of communication with rescuers at all times during the rescue process.
3. During installation, if the hanging point is deformed or damaged, stop using it.
4. When working on uneven ground, the tripod should be tied with a rope to balance the force opposite to the front facing the tripod.

After use

1. Regular inspection is required, and product safety depends on continuous maintenance and care of the equipment.
2. When the equipment becomes wet, whether in use or clean, it should be dried naturally and avoid direct heating.
3. The frequency of regular inspection should be at least once every three months.
4. Periodic inspection is only suitable for qualified personnel, and is carried out in strict accordance with the manufacturer's periodic inspection procedures.
5. This product is a complete system, and no parts can be replaced.
6. Storage procedures: Including all necessary precautionary requirements, environmental or other factors may affect the condition of parts. For example: humid environment, sharp angles, vibration, and ultraviolet decomposition.

	Items	Description
1	Name	Confined Space Tripod Kit
2	Model	HXRT-06
3	Parameter	MAX personal carrying capacity (up and down)lbsLateral tractive effort1200lbsAdjustable length range of support: feet4-2.15m

	Items	Description
1	Name	Confined Space Tripod Kit
2	Model	HXRT-07
3	Parameter	MAX personal carrying capacity (up and down)lbsLateral tractive effort1800lbsAdjustable length range of support: feet4-2.15m
2	Model	HXRT-08
3	Parameter	MAX personal carrying capacity (up and down)lbsLateral tractive effort2600lbsAdjustable length range of support: feet-2.45m

	Items	Description
1	Name	Confined Space Tripod Kit
2	Model	HXRT-09
3	Parameter	MAX personal carrying capacity (up and down)lbsLateral tractive effort2600lbsAdjustable length range of support: feed-2.45mAxial portable ventilation for Portable Multi-gas Detector

	Items	Description
1	Name	Confined Space Tripod Kit
2	Model	HXRT-10
3	Parameter	MAX personal carrying capacity (up and down)lbsLateral tractive effort2600lbsAdjustable length range of support: feed-2.45mAxial portable ventilation for Portable Multi-gas Detector

	Items	Description
1	Name	Confined Space Tripod Kit
2	Model	HXRT-05
3	Parameter	MAX personal carrying capacity (up and down): 397lbsLateral tractive effort: 1200lbsAdjustable length range of support feet: 1.34-2.15m

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW Australia

Imported to USA: Sanven Technology Ltd. Suite 250. 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: HXRT-06/HXRT-07/HXRT-08/HXRT-09/HXRT-10/HXRT-05

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

⚠ WARNING:

BEFORE USE

[A] Tripod

OPERATING PROCEDURE
