USER MANUAL BST-K-XL Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

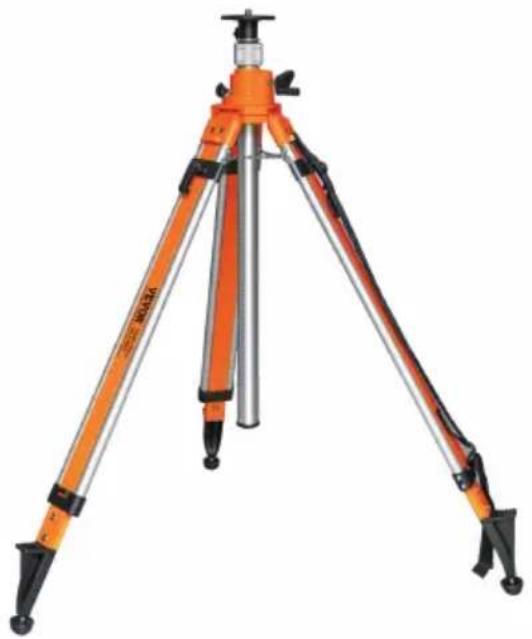

ALUMINUM ELEVATING TRIPOD

MODEL:ELV-170/BST-K-XL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Aluminum Elevating

Tripod

MODEL:ELV-170/BST-K-XL

Three orange tripod-mounted surveying equipment with black base legs and metal frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. The Aluminum Elevating Tripod should be mounted on a stable surfDo not overload.
2. The installation should be done by an adult, and children should not it without supervision.
3. Regularly check the stability and safety of the hanger, and stop us immediately if there is any damage or suspected problem.
4. Please read and understand this manual carefully before using the Aluminum Elevating Tripod.

Tip Over Hazard

• A child or adult can tip the Aluminum Elevating Tripod and be killed seriously injured.
• Serious injury may occur to children and adults if not secured before installation.
• Children should not play with or around the Aluminum Elevating Trip any time.

Thank you very much for choosing this Aluminum Elevating Tripod ELV-170/ BST-K-XL. Please read all of the instructions before using it. If there is any difference between the color of this product and the in the instruction manual, please refer to the physical object

PARAMETER LIST

Model	ELV-170	BST-K-XL
Roof plate height range (inch)	27.16-67.71	45.07-114.37
Install thread	5/8"-11 screws	5/8"-11 screws
Maximum load bearing(lbs)	20	20

INSTRUCTIONS

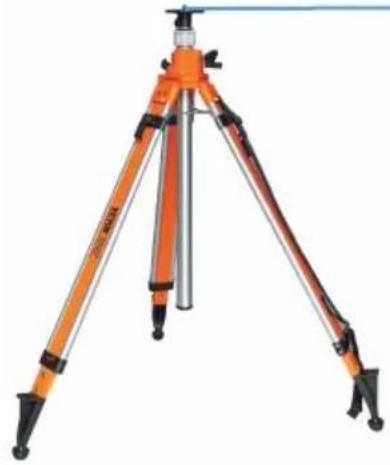

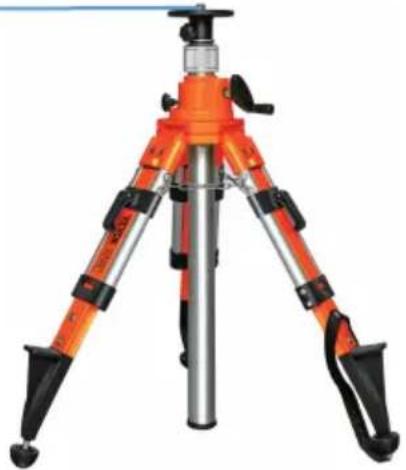

1.ELV-170 Working height

range: 27.16-67.71inch

2.BST-K-XL Working height

range: 45.07-114.37inch

Orange tripod-mounted surveying instrument with adjustable legs and base (no visible text or symbols)

Three orange tripod-mounted surveying equipment with black legs and metal frame (no visible text or symbols)

3.First loosen the knob A, but then pull out the mounting table;1 measuring instrument passes through Flat head 5 / 8 " -11 screw installed at the mounting table.(Fig.1)

Flat head 5/8"-11 screws Knob A Mounting table

Fig.1

NOTE: When the measuring instrument is installed, put the installation back to the tripod and tighten the knob A.

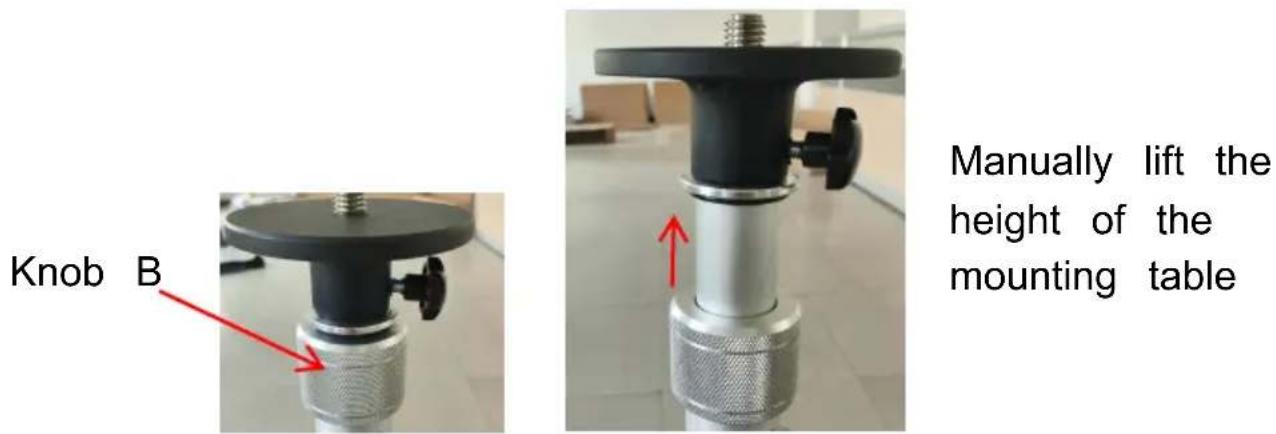

1. Release the knob B clockwise, and Manually lift the height of t mounting table; tighten the knob B after adjusting to the appropriate position.(Fig.2-3)

Knob B Manually lift the height of the mounting table

Fig.2 Fig.3

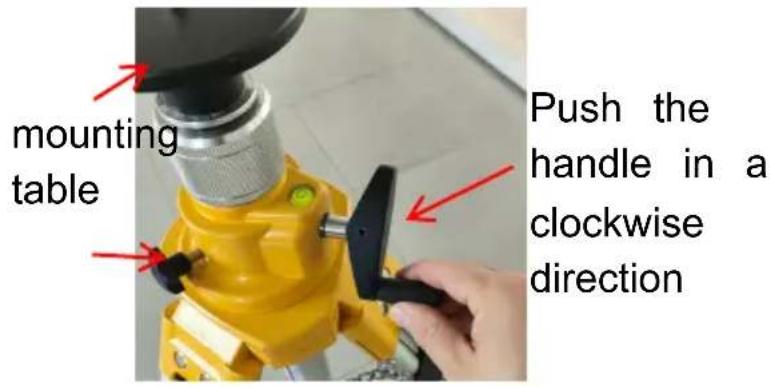

1. Release the knob C and turn the handle clockwise to allow the mounting table to raise the height; tighten the key C when adjusts the appropriate position.(Fig.4-5) mounting table

6.

mounting table Push the handle in a clockwise direction

Fig.4 Fig.5

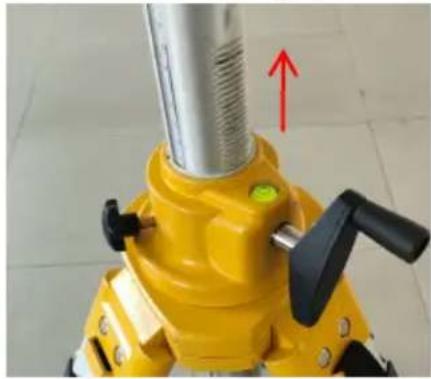

mounting table

is rising in heigh

Close-up of a yellow industrial machine with a metallic cylindrical component and a red upward arrow indicating motion (no text or symbols visible)

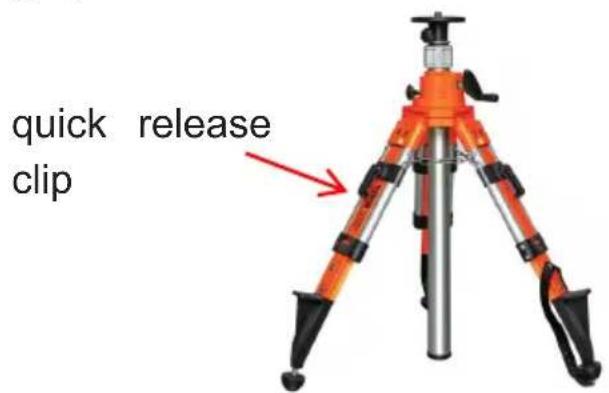

6.Open the quick release clip, and the tripod legs can be extended.(Fig.6)

quick release clip

Fig.6

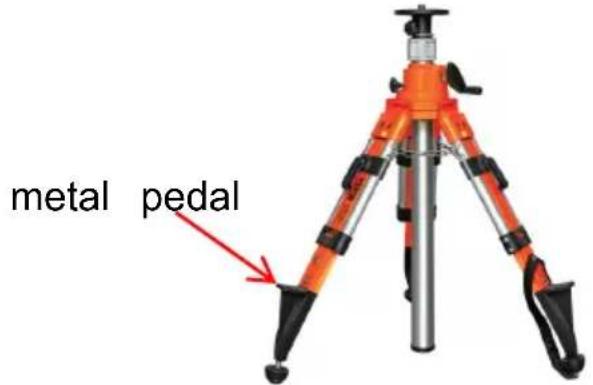

1. Foot on the metal pedal, more conducive to the user to operate tripod, such as the extension of the tripod leg.(Fig.7)

metal pedal

Fig.7

1. Metal needles with Plastic ball pad are suitable for more use sites.(Fig.8-9)

Close-up of a black mechanical component with a red arrow pointing to a small feature, labeled Fig.8 and Fig.9 (no other text or symbols)

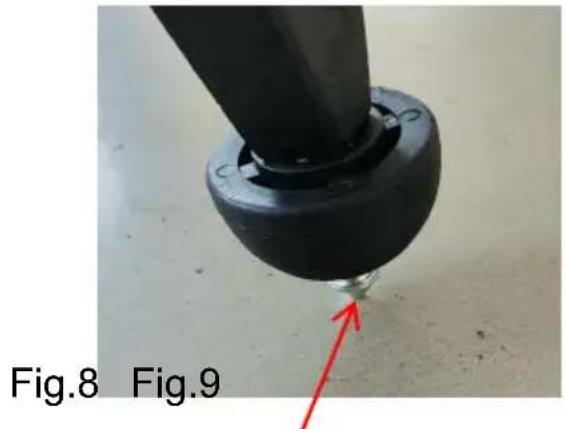

Metal needles are suitable for outdoor use

Close-up of a black mechanical component with a red arrow pointing to it, no visible text or symbols

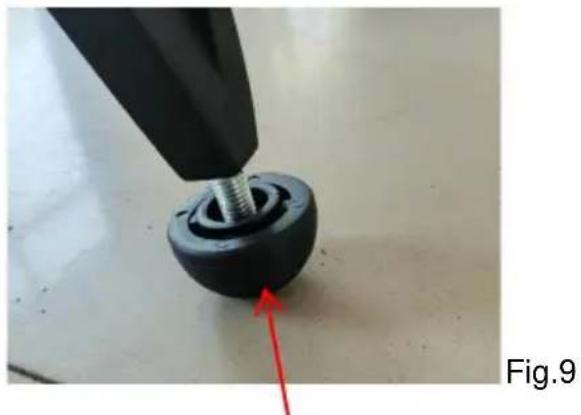

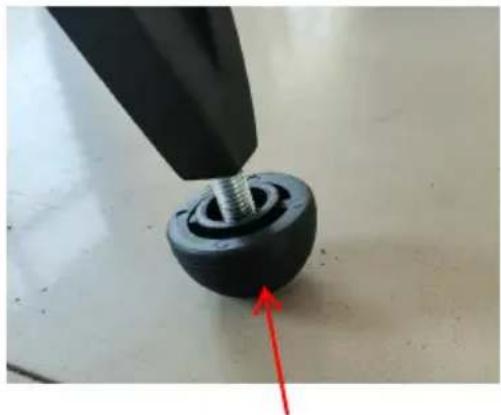

Plastic ball mat is suitab for indoor use

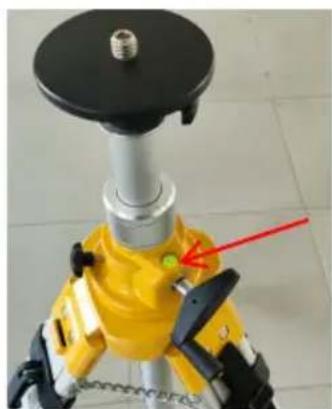

1. When the level bubble is not in the middle, Please adjust the of the tripod leg to correct.(Fig.10)

Close-up of a yellow mechanical device with a black top and red arrow pointing to a small green component, no visible text or symbols.

level bubble
Fig.10

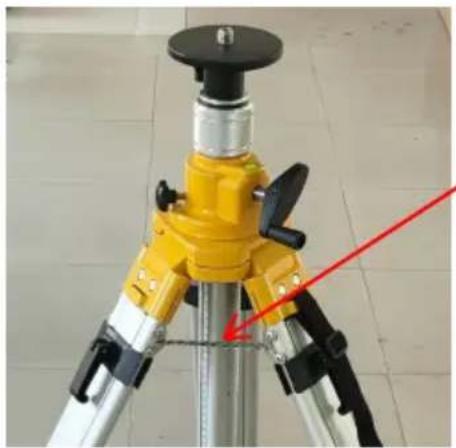

1. When using the tripod, keep the restriction chain straightened state.(Fig.11)

Close-up of a yellow surveying instrument tripod with black components, mounted on a silver base (no visible text or symbols)

restriction chain straightened state

1. The tripod is equipped with carrying strap and leg strap, which convenient for users to store and carry.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

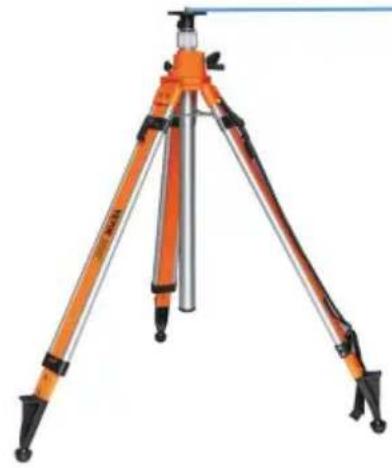

Three orange tripod-mounted surveying instrument with adjustable legs and base (no text or symbols visible)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Three orange tripod-mounted surveying equipment with black clamps and metal legs (no visible text or symbols)

Three orange tripod-mounted surveying equipment with adjustable legs and metal frame (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a textured cylindrical part (no visible text or symbols)

Figure 2

Close-up of a mechanical clamp or connector with a red arrow pointing to a component (no visible text or symbols)

Figure 3

Close-up of a yellow mechanical device with a black top and red arrow pointing to a green component, no visible text or symbols.

Close-up of a yellow and silver surveying tripod with a black top, showing measurement setup (no text or symbols visible)

YH CONSULTING LIMITÉE. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Three orange tripod-mounted surveying equipment with adjustable legs and a central vertical scale (no text or symbols visible)

Three orange tripod-mounted surveying equipment with black clamps and metal legs (no visible text or symbols)

Three orange tripod-mounted surveying instrument with black legs and metal frame (no text or symbols visible)

Close-up of a mechanical clamp or connector with a red arrow pointing to a component (no visible text or symbols)

Abb. 3

Metallpedal

Abb. 7

Close-up of a black mechanical component with a red arrow pointing to a small feature, labeled 'Abb.8' (no other text or symbols)

Close-up of a black mechanical component with a red arrow pointing to it, labeled 'Abb.9' in the corner (no other text or symbols)

Close-up of a yellow mechanical device with a black top and red arrow pointing to a green component, no visible text or symbols.

Wasserwaage
Abb.10

Close-up of a yellow and silver surveying tripod with a black top, showing measurement setup (no text or symbols visible)

YH CONSULTING LIMITED. C/O YH Consulting Limited Büro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

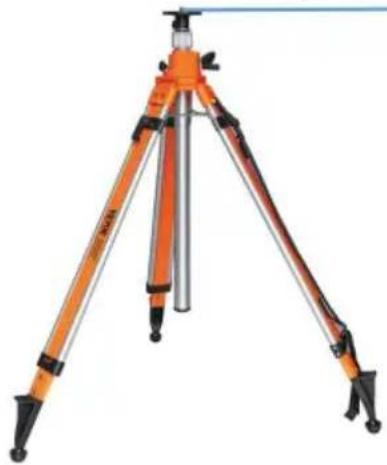

Three orange tripod-mounted surveying equipment with adjustable legs and a central vertical scale (no text or symbols visible)

HO BISOGNO DI AIUTO? CONTATTACI!

Orange tripod-mounted surveying instrument with black adjustable legs and metal base (no text or symbols visible)

Three orange tripod-mounted surveying equipment with black legs and metal frame (no visible text or symbols)

Close-up of a yellow industrial machine with a metallic cylindrical component and a red upward arrow indicating motion (no text or symbols visible)

Fig.5

pedale in metallo

Fig.7

Close-up of a black mechanical component with a red arrow pointing to a small feature, labeled Fig.8 (no text or symbols on the object itself)

Close-up of a black mechanical component with a red arrow pointing to it, labeled Fig.9 (no text or symbols on the object itself)

Close-up of a yellow industrial machine with a black top and red arrow pointing to a green component, placed on a tiled floor (no text or symbols visible)

Close-up of a yellow and silver surveying tripod with a black top, showing measurement setup (no text or symbols visible)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

YH CONSULENZA LIMITATA. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH Mainzer Landstr.69, 60329 Francoforte sul Meno.

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Three orange tripod-mounted surveying instrument with adjustable legs and base (no text or symbols visible)

Three orange tripod-mounted surveying equipment with black clamps and metal legs (no visible text or symbols)

Three orange tripod-mounted surveying instrument with black legs and metal frame (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a textured cylindrical part (no visible text or symbols)

Figura 2

Close-up of a mechanical clamp or connector with a red arrow pointing to a component (no visible text or symbols)

Fig. 3

Close-up of a yellow industrial machine with a metallic cylindrical component and a red upward arrow indicating motion (no text or symbols visible)

Fig.5

Close-up of a black mechanical component with a red arrow pointing to a circular base, labeled Fig.9 (no text or symbols on the object itself)

Close-up of a yellow industrial machine with a black top and red arrow pointing to a green component, placed on a tiled floor (no text or symbols visible)

burbuja de nivel
Fig.10

Close-up of a yellow and silver surveying tripod with a black top, showing measurement setup (no text or symbols visible)

YH CONSULTING LIMITADO. C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Three orange tripod-mounted surveying equipment with adjustable legs and a central vertical scale (no text or symbols visible)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Three orange tripod-mounted surveying equipment with black clamps and metal legs (no text or symbols visible)

Three orange tripod-mounted surveying equipment with black legs and metal frame (no visible text or symbols)

Close-up of a mechanical clamp or connector with a red arrow pointing to a component (no visible text or symbols)

Ryc.3

Close-up of a black mechanical component with a red arrow pointing to a small feature, labeled 'Ryc.8' (no other text or symbols visible)

Igly metalowe są

Close-up of a black mechanical component with a red arrow pointing to it, labeled 'Ryc.9' (no other text or symbols)

Close-up of a yellow industrial machine with a black top and red arrow pointing to a green component, placed on a tiled floor (no text or symbols visible)

poziom bańki
Ryc.10

Close-up of a yellow and silver surveying tripod with a black top, showing measurement setup (no text or symbols visible)

ODPOWIEDZIALNOŚCIĄ. C/O YH Consulting Limited Office

147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4,

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

ALUMINIUM VERHOOGD STATIEF

MODEL: ELV-170/BST-K-XL

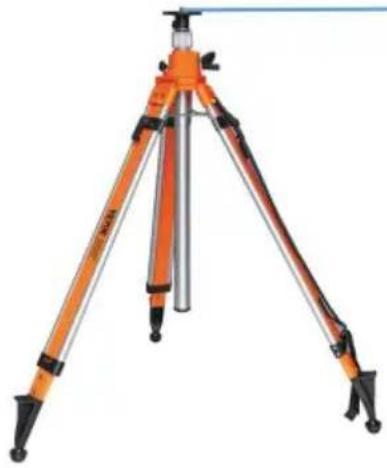

Three orange tripod-mounted surveying equipment with adjustable legs and a central vertical scale (no text or symbols visible)

HULP NODIG? NEEM CONTACT MET ONS OP!

Three orange tripod-mounted surveying equipment with black clamps and metal legs (no visible text or symbols)

Three orange tripod-mounted surveying instrument with black legs and metal frame (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a textured surface (no visible text or symbols)

Fig. 2

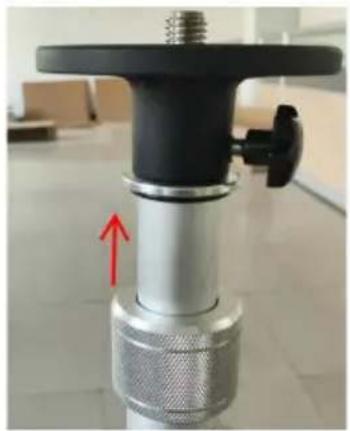

Close-up of a mechanical clamp or connector with a red arrow pointing to a component (no visible text or symbols)

Afb.3

Close-up of a yellow industrial machine with a metallic cylindrical component and a red upward arrow indicator (no text or symbols visible)

Afb.5Afb.4

Close-up of a yellow industrial machine with a black top and mechanical arms, no visible text or symbols

niveau bubbel
Afb.10

Close-up of a yellow and silver surveying tripod with a black top, showing measurement setup (no text or symbols visible)

restrictie keten

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EG REP

Three orange tripod-mounted surveying equipment with adjustable legs and a central vertical scale (no text or symbols visible)

BEHÖVS HJÄLP? KONTAKTA OSS!

Three orange tripod-mounted surveying equipment with black clamps and metal legs (no visible text or symbols)

Three orange tripod-mounted surveying instrument with black legs and metal frame (no text or symbols visible)

Close-up of a mechanical clamp or connector with a red arrow pointing to a component (no visible text or symbols)

Fig.3

Close-up of a yellow industrial machine with a black top and mechanical arms, no visible text or symbols

nivå bubbla
Fig. 10

Close-up of a yellow and silver surveying tripod with a black top, showing measurement setup (no text or symbols visible)

restriktionskedja

rätat tillstånd

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
