Product Type	Fence Post Driver
Brand	Vevor
Model	JH-68
Engine Type	4-stroke, gasoline
Recommended Fuel	Unleaded gasoline ≥90#
Displacement	37.7 cc
Rated Power	1 kW
Impact Frequency	6500 RPM
Rated Speed	2400-3000 BPM
Impact Energy	20-35 J
Engine Oil Capacity	0.65 L
Starting System	Manual (pull start)
Maximum Pile Diameter	70 mm
Cooling Type	Air
Spark Plug Gap	0.5-0.7 mm
Included Accessories	Sockets Φ55 and Φ70, funnel, strainer, hex key set, screwdriver, spark plug wrench, 8-10 wrench, measuring cup, oil drain key, gloves, goggles
Warranty	Electronic, see www.vevor.com/support

Frequently Asked Questions - JH-68 Vevor

What type of fuel to use?

Use unleaded gasoline with an octane rating of 90 or higher. Do not use an oil-gasoline mixture as the engine is 4-stroke.

How to start the engine?

Before first start, press the fuel bulb to fill the carburetor. Place the machine on the ground, hold the handle, and quickly pull the starter rope about 10 cm. Repeat until the engine runs. Let the engine warm up for 3-5 minutes at low speed before using full power.

What type of engine oil to use?

Use quality 4-stroke engine oil. The oil reservoir capacity is 0.65 L. Do not mix with gasoline.

How to maintain the air filter?

Check the air filter regularly. Clean it with warm water and detergent, then wipe it dry with a cloth. Replace it if damaged. In dusty environments, clean it more frequently.

What to do if the engine does not start?

Check the fuel, spark plug, air filter, and fuel filter. Make sure the machine is primed (fuel bulb). If the problem persists, contact technical support.

What is the oil reservoir capacity?

The engine oil reservoir has a capacity of 0.65 L. Do not exceed the MAX mark when filling.

How to adjust the spark plug gap?

The correct gap is 0.5 to 0.7 mm. Use a feeler gauge to check and adjust if necessary. Clean the spark plug with a wire brush.

Can I use an oil-gasoline mixture?

No, this engine is 4-stroke and requires separate oil in the crankcase. Gasoline must be pure without oil mixture.

How to store the machine?

Drain the carburetor if the machine is not used for more than a week. Store it in a dry, ventilated place, away from sources of sparks.

What is the warranty?

The electronic warranty is available at www.vevor.com/support. Keep your proof of purchase.

USER MANUAL JH-68 Vevor

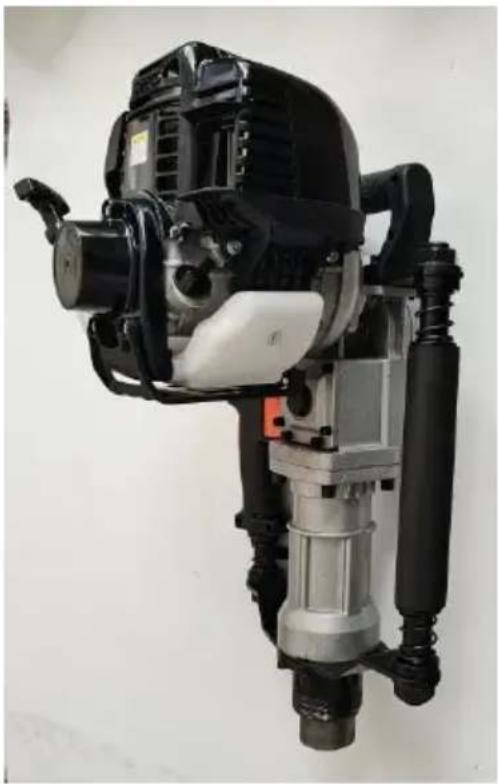

Fence Post Driver

MODEL: JH-68

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: JH-68

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

For your safety, please read the manual carefully before using the machine, otherwise physical injury or mechanical damage may be caused.

Part List
NO.	Name	Picture	Qty.
①	Φ55 Socket sleeve		1
②	Φ70 Socket sleeve		1
③	Priming funnel		1
④	Strainer		1
⑤	4 hex wrench		1
⑥	5 hex wrench		1
⑦	6 hex wrench		1
⑧	“-” and “+” conversion screwdri		1
⑨	Spark plug socket		1
⑩	8-10 non-adjustable wrench		1
⑪	Measuring cup		1
⑫	Oil hole wrench		1
⑬	Gloves		1
⑭	Glasses		1
⑮	product		1

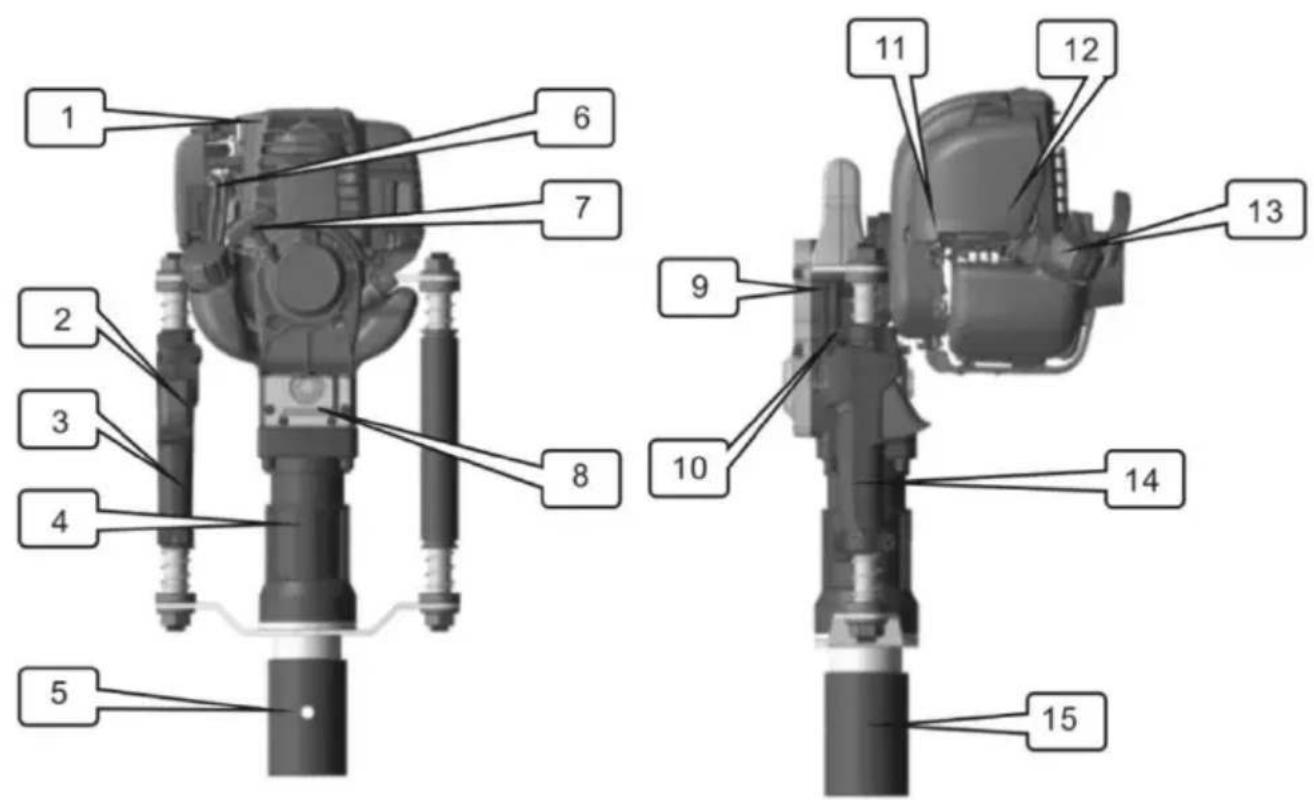

1. Names of Main Parts

No.	Name of Part	No.	Name of Part	No.	Name of Part
1	Auxiliary handle	8	Oil hole	15	Iron head
2	Throttle switch	9	Cover
3	Handle	10	Flameout switch
4	Cylinder case	11	Throttle cable
5	Piling socket	12	Air filter
6	Ventilation door	13	Oil tank cap
7	Starter	14	Support plate

Fig 1 Fig 2

2. Instructions for Safe Operation

1. The operator needs to wear slip-resistant safety shoes, appropriate clothing, goggles, and a helmet. Wear earplugs for long-time operation. Balance your body when operating the machine. The user should stand behind the support handle to operate. Prohibit smoking, eating, and chatting when operating the machine.
2. After starting the machine, avoid operating it with one hand.
3. When lifting the machine, first turn the control dial to the minimum scale to let the machine slow down.

5. Keep bystanders away from the work area to avoid injury. The process of using the machine may cause gravel to fly toward bystanders. 6. Select a medium-speed gasoline pile driver for best performance. 7. Keep the handles dry, clean, and free of oil or fuel mixture. 8. If you stop the operation midway, you must turn off the engine. 9. Every time, check that the fastening screws of the connector being used are normal. If loose, tighten the screws before use. 10. This engine is four-stroke, so use gasoline of 90# or higher. 11. Gasoline is highly flammable, so refuel in a well-ventilated environment. When adding oil, stop the gasoline engine. 12. Do not add oil too full. Do not leave the fuel filler in the neck part of the machine. If fuel overflows or spills, wait until all fuel has volatilized before starting the machine. 13. After refueling, tighten the oil cap. Check frequently whether the tank is damaged and leaking; if damaged, stop and replace it immediately. 14. Store reserve oil in storage areas. Remove all root causes of fire or sparks. 15. In closed areas such as tunnels, trenches, and deep grooves in wet environments, when using a gasoline pile driver, ensure sufficient fresh air. Exhaust gas contains carbon monoxide, which is dangerous; use an electric fan for air flow.

for air flow.

16. Forbid quickly accelerating or braking, so as not to damage the machine. 17. When transferring the site over long distances, empty the fuel tank. 18. Prohibit unqualified maintenance staff from disassembling the gasoline pile driver, to avoid structural damage to parts,

resulting in shortened life of the gasoline pile driver and accidents.

3. Main Use and Function

Use

It can be used in farm, orchard, fence, or barrier piling works.

Features

1. It is the world's lightest weight, lowest displacement engine type handheld gasoline pile driver.
2. It has ergonomic design, minimizing hand vibration, and offers significant control convenience and comfort. The operator can perform digging with 360-degree rotation.
3. It can regulate the number of impact energy and impact, and is suitable for a variety of piles less than 70mm in diameter.
4. Advantage: If you use our machine, you can ignore the trouble of heavy equipment like diesel engines, air compressors, and trucks.
5. The handle of the machine is fitted with rubber sponge, which greatly reduces the force required to operate the machine and improves user comfort.

4. Preparation before use

Fuel

1. Use gasoline of 90# or higher. 2. Add fuel in a well-ventilated area. 3. Do not fill the tank too full. (Please note: the oil must not exceed the MAX mark. See figure A.) Do not leave fuel in the neck. If there is a fuel spill, remove it or let it evaporate completely before starting the gasoline engine. 4. After refueling, tighten the fuel tank cap.

Figure A

5. Starting

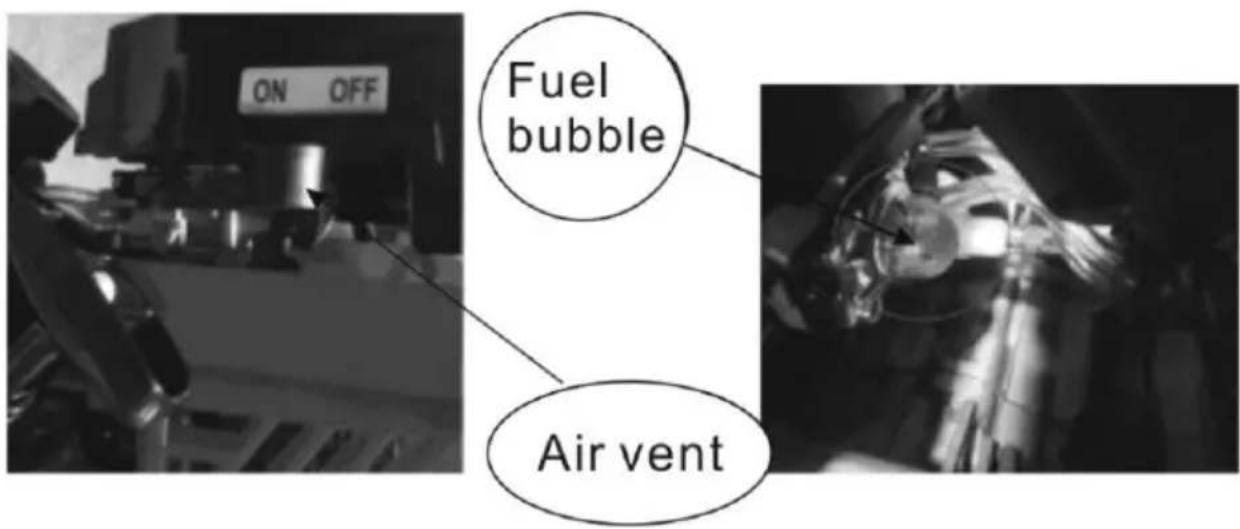

1. Before starting the new machine for the first time, press the transparent primer bulb repeatedly (see Fig. 3) to fully fill the carburetor with fuel.

(Close the air vent when the engine is cold, but open the air vent only when the engine is hot.)

Fig. 3

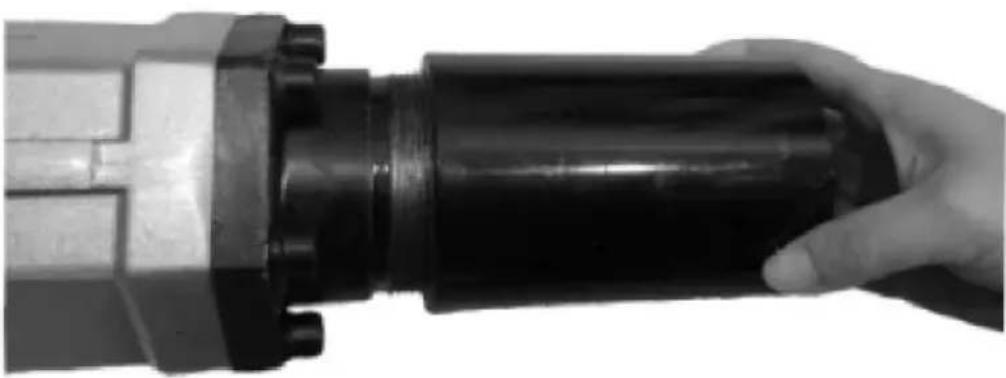

2. Before working, the piling socket should be screwed into the iron head (see Fig. 4).

Fig. 4

1. Place the machine on the floor (figure B). Hold the handle with one hand and quickly pull the starter rope about 10 cm with the other hand. Repeat this action until the engine starts, as shown in figure C. During repeated pulling, do not allow the starter handle to return freely; instead, hold the handle and let it return slowly with its elasticity to protect the starter (figure D).
2. Open the air vent completely when starting the gasoline engine.

Figure B

Figure C

Figure D

6. Run

1. After starting the gasoline engine, it should be run at low speed for 3 to 5 minutes to warm up the machine. When the gasoline engine is warm enough, pull the appropriate regulatory position according to the required impact energy.

Note: For the first 24 hours of use of the new gasoline pile driver, the workload should be at low or medium speed to extend the service life. Use the highest speed accelerator.

1. Select medium-speed gasoline engine run for the best.

4. Prohibit use of the gasoline pile driver under non-breaking with high speed operation.

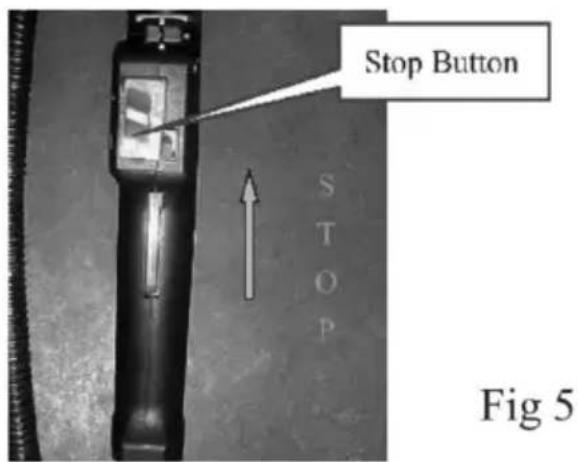

7. Stop machine

1. Pull scale position to 0, idle running for 3-5 minutes.

1. Press the flameout button to stop, see Fig.1 for the flameout button.

8. Technical Maintenance

8.1 Air Filter

Check the air filter regularly. Soot deposit blocking the filter element will reduce the power of the gasoline engine and its service life. If the filter has too much soot deposit, clean it with warm water and detergent, and install the air filter after wiping it with a dry cloth. The filter should be replaced if damaged. The maintenance cycle should be shortened properly if it is particularly used in a dusty environment.

8.2 Fuel filter

If the fuel filter is blocked, the pile driver will have reduced speed and weaker impact energy. Methods: ① Open the oil can lid. Remove the fuel filter from the oil can with a metal hook and clean it. ② When cleaning the filter.

8.3 Carburetor

The oil can and carburetor generally have residual oil. After some time, the residual oil will become greasy oil which will block the oil line, causing the engine to fail to start. Therefore, when the machine is not used for more than one week, be sure to completely drain the fuel. Method: Pull out the oil inlet pipe, press the fuel bubble of the carburetor repeatedly to discharge oil, and press the oil inlet pipe back into place when the fuel in the fuel bubble and oil return pipe is emptied.

8.4 Spark Plug

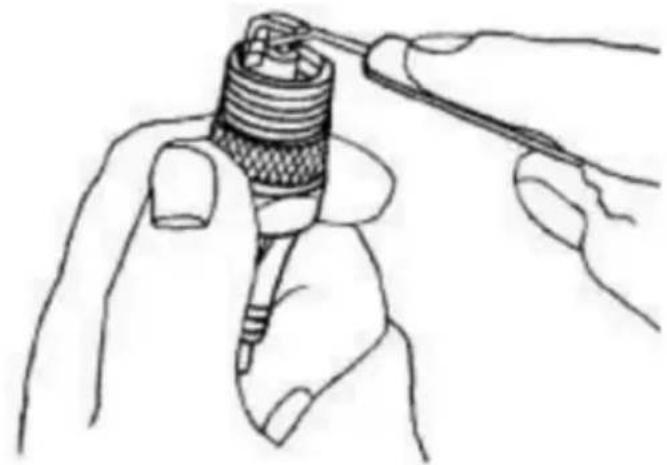

To ensure normal operation of the engine, the spark plug gap must be proper. Remove sediment with a wire brush. Proper gap of the spark plug: 0.5-0.7 mm. See Fig.6

Fig.5

8.5 Muffler

Regularly maintain the muffler. Use a screwdriver to remove rubbish on the body or the rubbish on the coke muffler exhaust.

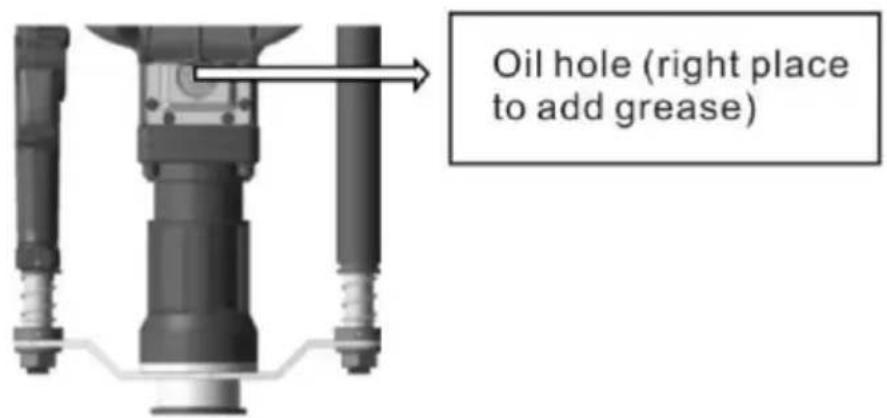

8.6 Gearbox Lubrication

The factory puts grease in the gearbox when leaving the factory to support 36 hours of work. Clients do not need to add more during that time, or else the pile driver will not work. Use 1#-1.5# high temperature grease. Add 20-30g of grease when the working hours are more than 36 hours.

Open the gear box cover, lubricate the gear and the connecting rod regularly with lubricating grease.

Open the hammer socket, lubricate the piston and impact hammer regularly with lubricating grease.

Fig.6

7. The Cylinder Heat Sink

Regularly remove dust to ensure cylinder cooling. This gasoline pile driver is air-cooled. If dust accumulates on the heat sink, it will directly affect the cooling effect.

8. Failure Analysis and Its Eliminating Methods

Problem analysis and solving

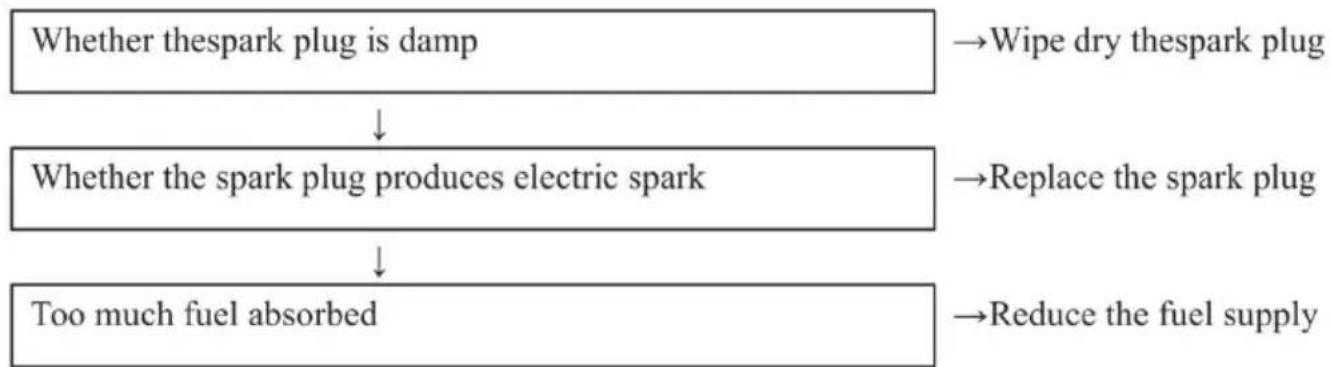

Example 1: Difficulties in starting engine in cooling state.

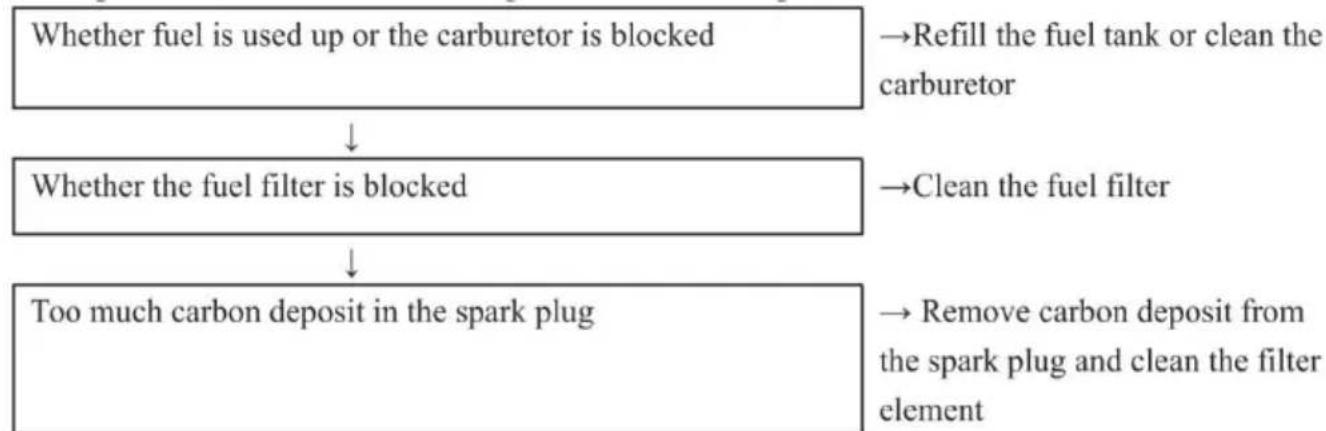

Example 2: Difficulties in restarting after sudden stop.

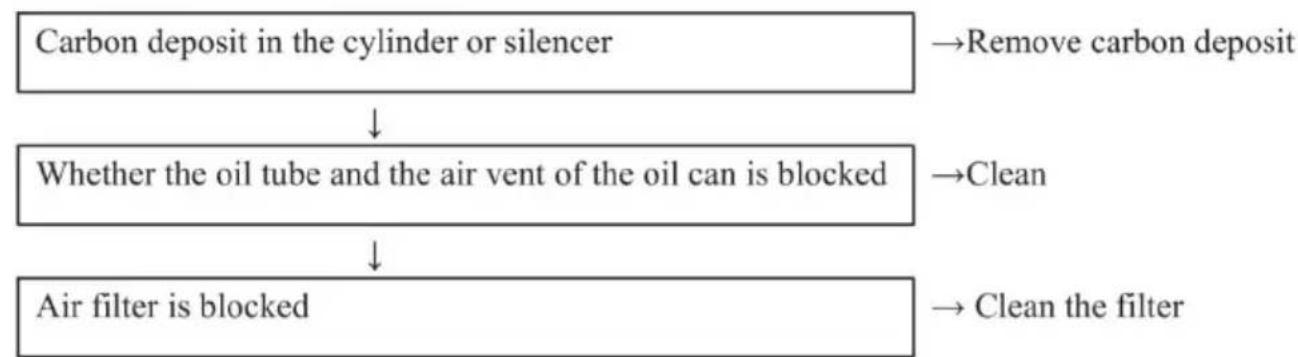

Example 3: Slow speed and weak power.

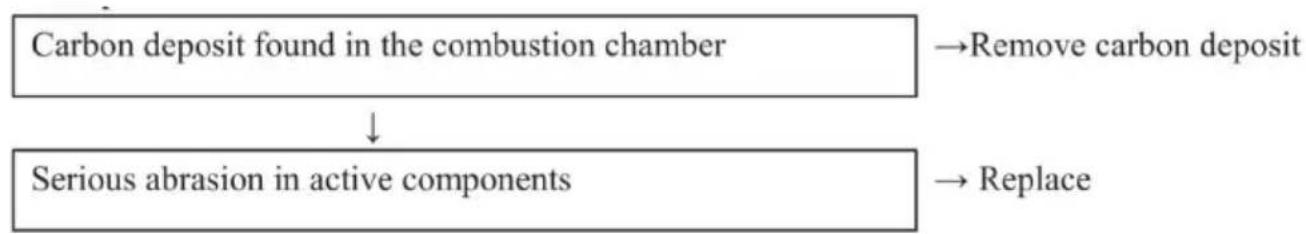

Example 4: Abnormal sound.

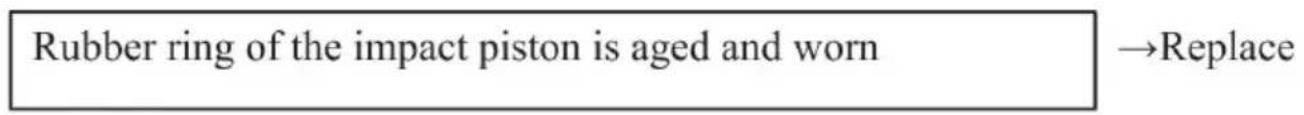

Example 5: The machine is working normally but the work efficiency is very low.

Please contact the local sales agent or the contractual maintenance site for maintenance.

10. Key Data of Product

Model	JH-68
Fuel	Gasoline/4 stroke engine oil
Oil can capacity	0.65L
Displacement	37.7cc
Rated power	1kW
Rated speed	6500r/min
impact frequency	2400-3000BPM
Impact energy	20-35J
Starter system	Hand pull start

11. Maintenance Cycle

The following Data are given from common use of the product. Under working conditions such as dusty environment or long work hours of the driver, the maintenance cycle should be shortened correspondingly.	Before work	After work or every c	After Filing o	Every Week	Every Month	Every Month	Temporary Failure	If necessary
The whole machine	Outlook check(state,tightness of screws)	✓		✓
	Clean		✓
Control handle/stop button	Function check	✓		✓
Air Filter	Clean				✓			✓
	Replace						✓
Fuel Filter	Check					✓
	Replace						✓
Oil can/Oil cover	Clean		✓	✓
	Check	✓		✓
	Tighten							✓
Reduction Gear Box/Impact Cylinder	Clean					✓
	Add oil							✓
Silencer	Check					✓
	Remove carbon deposit							✓
Cylinder Cooling Fin	Check					✓
	Clean							✓
Spark Plug	Check/Adjust the distance between electrodes					✓
	Replace							✓
Screw and Nu	Check	✓		✓
	Tighten							✓
