Product Type	Jib crane for hoists
Model	HHDB-300/600KG
Maximum load	600 kg (boom at 700 mm) / 300 kg (boom at 1100 mm)
Rotation	180°
Material	Durable steel
Adjustable boom length	700 mm (max load 600 kg) or 1100 mm (max load 300 kg)
Recommended use	Workshops, garages, shopping centers, docks
Wall installation	Requires 8 expansion bolts (not included)
Maintenance	Clean with a dry cloth after use; regularly check bolts; apply rust inhibitor
Safety	Check overall condition before each use; do not stand within the rotation radius; do not transport people
Included accessories	Rocker arm, extension boom, connecting rod, locking castings, washers, bearing, bolts, cotter pins, manual
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
Country of manufacture	China

Frequently Asked Questions - HHDB-300/600KG Vevor

What is the maximum load capacity of this jib crane?

The maximum capacity is 600 kg when the boom is set to 700 mm, and 300 kg when the boom is set to 1100 mm. Always respect these limits to avoid accidents.

How to install the jib crane on a wall?

Attach the wall mount (not included) with 8 expansion bolts suitable for your wall. Ensure the wall can support the load. Follow the manual steps: install the locking castings, then the rocker arm and boom. Tighten all bolts after adjustment.

What type of electric hoist can I use with this jib crane?

For a boom length of 700 mm, use an electric hoist of 2200 lb (approximately 1000 kg). For 1100 mm, use a hoist of 440 to 1800 lb (200 to 820 kg). Adapt the hoist to the load capacity of the boom.

Can the boom rotate?

Yes, the jib crane can rotate 180° thanks to the rocker arm, offering great work flexibility. Ensure no one stands within the rotation radius during operation.

How to maintain the boom to extend its lifespan?

After each use, clean it with a dry cloth. Regularly check screws and connections. Periodically apply a rust inhibitor to prevent corrosion.

What to do if a part is damaged?

Do not use the tool if it is damaged. Contact technical support via www.vevor.com/support for replacement parts or assistance. Do not attempt unauthorized repairs.

Is the boom suitable for outdoor use?

The boom is made of steel and can be used outdoors, but it is recommended to protect it from humidity and apply a rust inhibitor regularly. Check the condition after each outdoor use.

What tools are needed for installation?

You will need a drill for the expansion bolts, wrenches to tighten M12 bolts, and possibly a spirit level for correct alignment. Expansion bolts are not included.

Can I use the boom without a wall mount?

No, the boom must be securely fixed to a wall capable of supporting the load. The wall mount (not included) is essential for safety. Never use it without fixation.

How to adjust the boom length?

You can choose between 700 mm or 1100 mm by fixing the extension boom into one of the provided holes. Refer to installation diagram step 7 of the manual. The load capacity changes depending on the length.

USER MANUAL HHDB-300/600KG Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

LOAD ARM FOR HOISTS

Model: HHDB-300/600KG

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

Model: HHDB-300/600KG

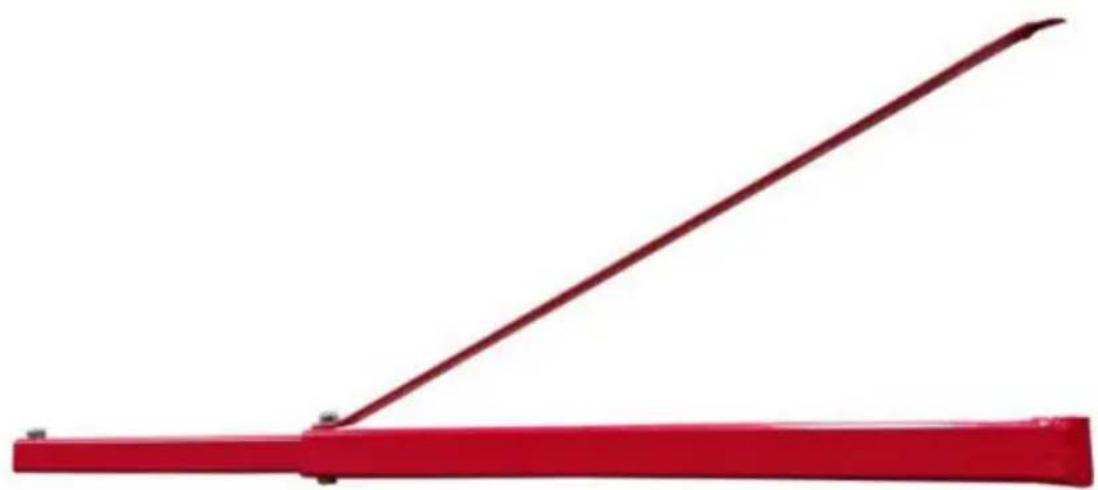

Red metal rod with diagonal line extending upward, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

1. WARNING!

Please carefully review this information before using the product to en your safety.

1. The arm comprises a stable buckle and foundation bracket, featuring strong bearing capacity of 600 kg.
2. The Rocker arm can rotate 180 degrees, allowing the boom to op more flexibly with a wide operating range and high working efficie
3. When the product is working or rotating, no one is allowed to stay within the rotation radius of this product to avoid injury.
4. The hoist swing arm boasts integrated casting technology, and is in the material. And it is durable and not easy to deform.
5. The Fix rod can be fixed directly on the wall. Due to the stability of triangle bracket and the thickened steel plate, it is stable for efficient operation.
6. Do not use the tool if it is damaged to prevent serious damage tool failure.

(1) Check the overall condition of the product before each use. A the threads damaged? Are the welds broken? Are there gaps the parts?
(2) Exercise caution when troubleshooting and resolve all issues before use.

1. Procedures not specified in this manual must be performed by qualified personnel.

2. This is an accessory of the electric hoist. It is prohibited to carry on the electric hoist or on this support arm

Read and follow the instructions for safe operations. Keep this manual reference.

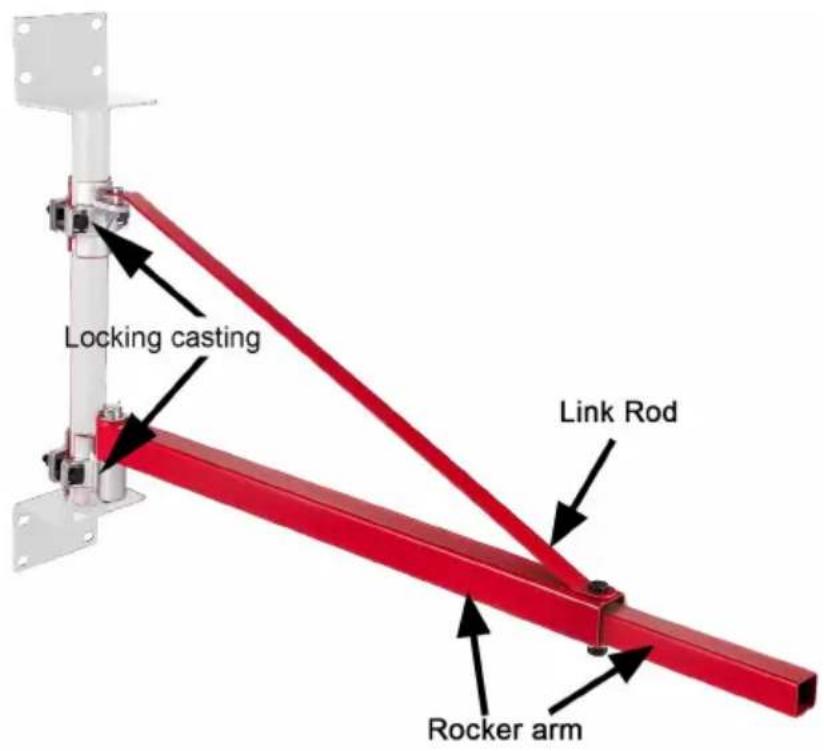

2. Product Description

This support arm is made of durable steel with a strong load-bearing cap. The stable triangle structure makes it firm and reliable, and the service li long. Fixed by the thick steel plate and buckles, it is reliable in use.

The support arm can rotate 180^ , and the boom is flexible. This garage arm is easy to install and perfect for workshops, garages, shopping malls docks, and other related goods lifting scenes.

3. Product Parameter

1. Name:Load Arm For Hoists
2. Model: HHDB-300/600KG
3. Max. Load:600kg(700mm arm);300kg(1100mm arm)
4. Material: Steel
5. Rotation: 180^

4. Parts List

No.	Picture	Name	Qty
1		Rocker Arm	1
2		Extension Arm	1
3		Link Rod	1
4		Locking Casting 1	1
5		Locking Casting 2	2
6		Locking Casting 3	1
7		Big Washer	1
8		Bearing	1
9		Bolts(M12x70mm)	5
10		Bolts(M12x30mm)	1
11		Split Pin	2
12		User Manual	1

5. Installation Steps

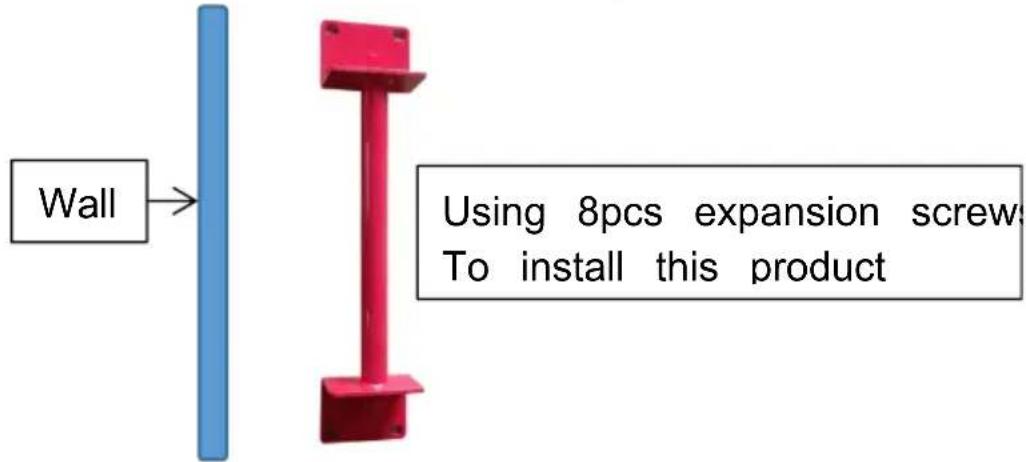

Step 1- Install the wall mount onto the wall and secure it with the appropriate expansion screws. Use the right tools to ensure the support arm is firmly tightened. Please note that expansion screws are not in the package and need to be purchased by the customer separately! Warning: The wall shall meet the load requirements!

NOTE: The wall mount is not included in the package and needs to purchased by the customer separately.

Step 2- Install the "locking casting".

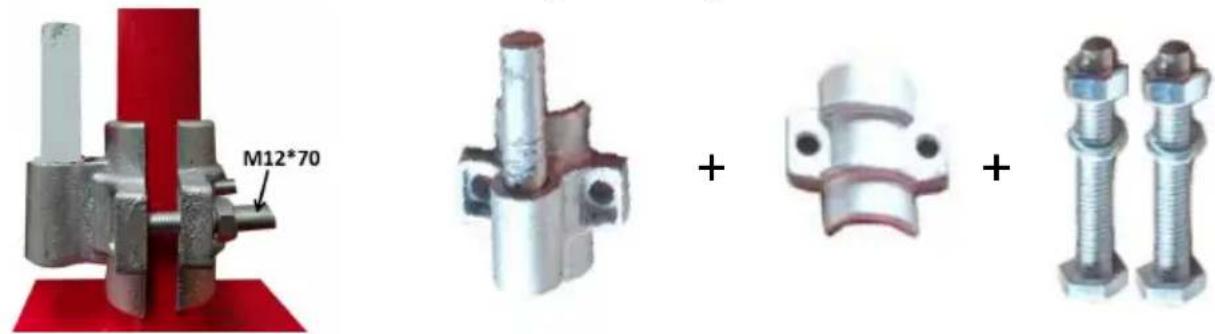

1. Install the bottom locking casting.

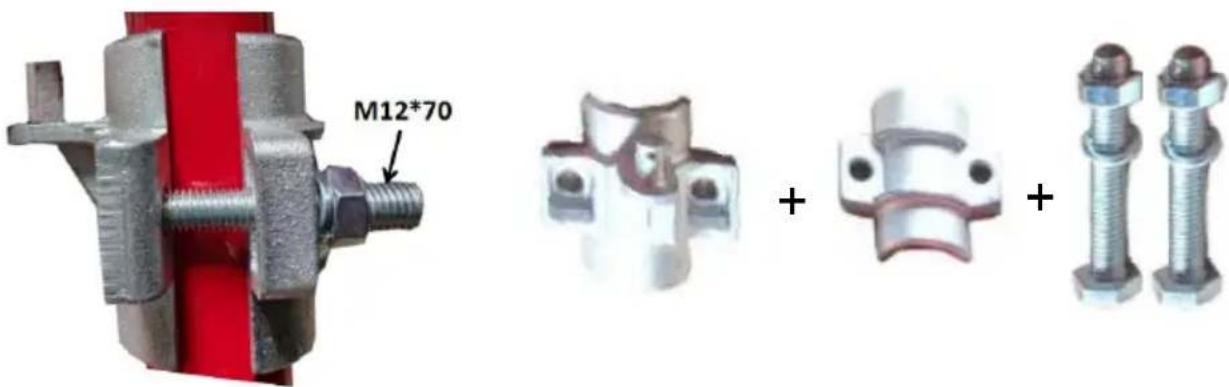

1. Install the top locking casting.

NOTE: Do not tighten the bolts until all parts are installed.

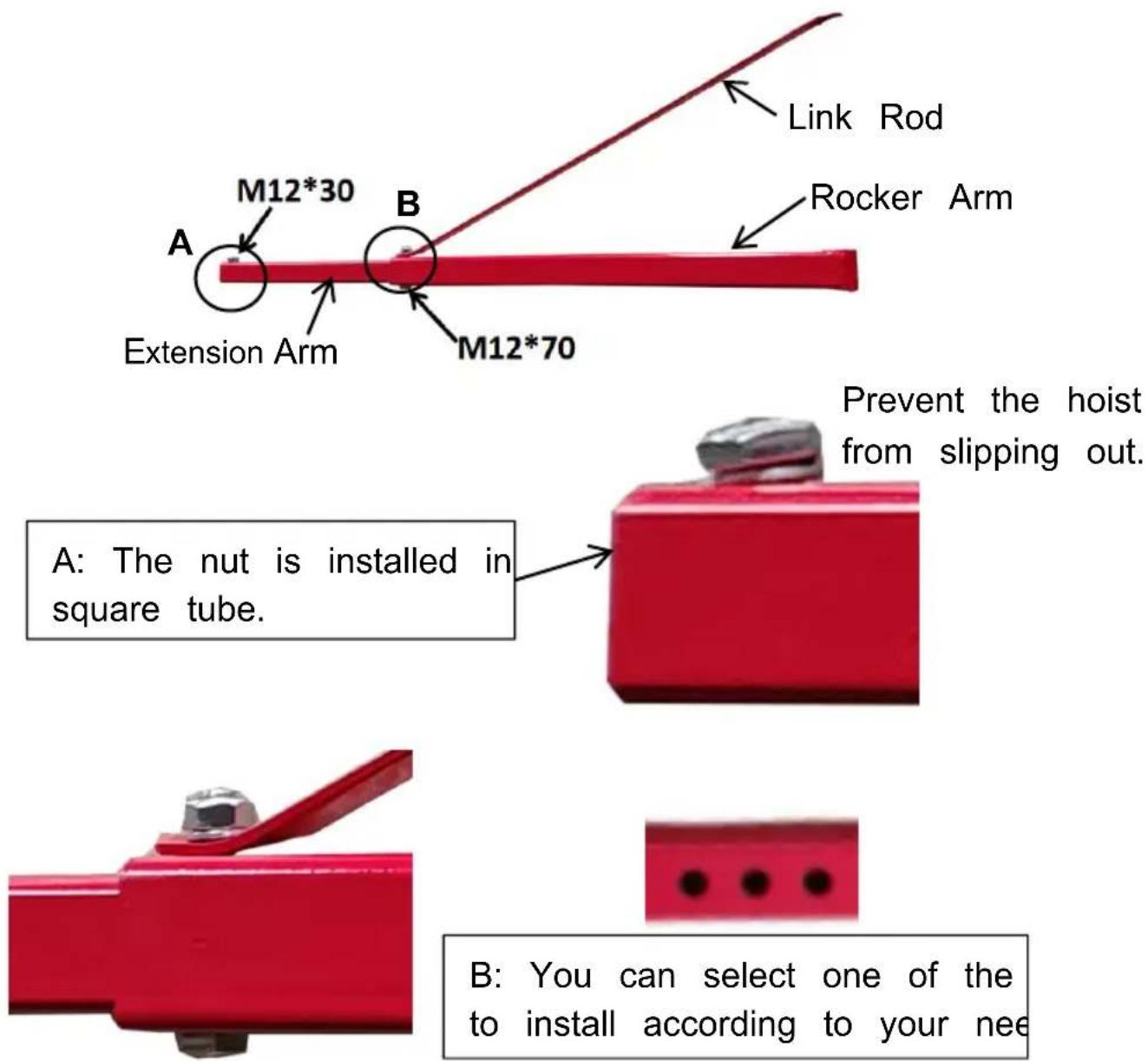

Step 3-Install the “rocker arm+extension arm+link rod”. Please make sure the bolts and nuts are tightened.

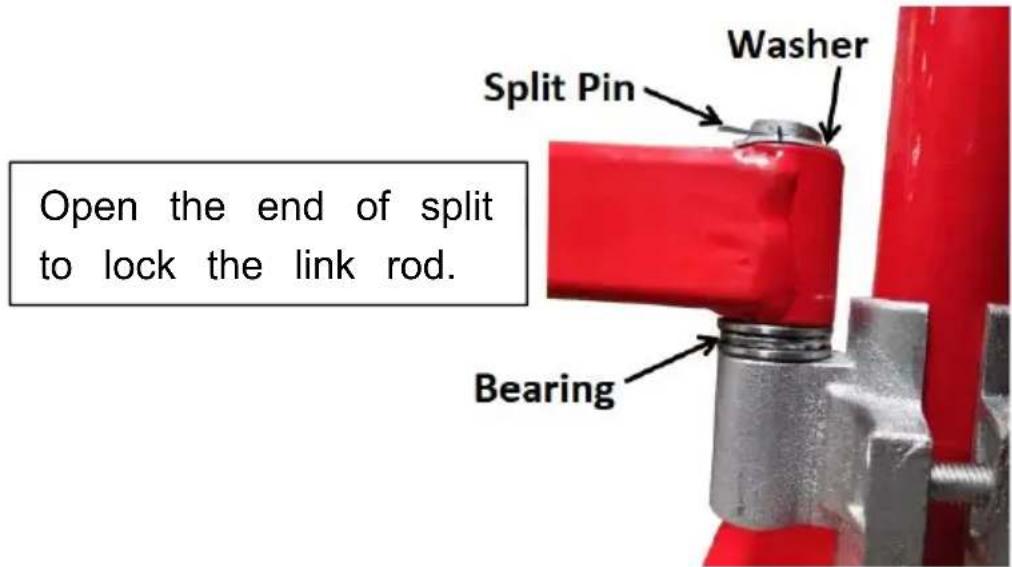

Step 4- Put the bearing into the shaft and insert the rocker arm into bottom locking casting pin, then install the washer and split pin. After installing the split pin, make sure to open the end of the pin to cor the split pin cannot fall out of the lock pin hole.

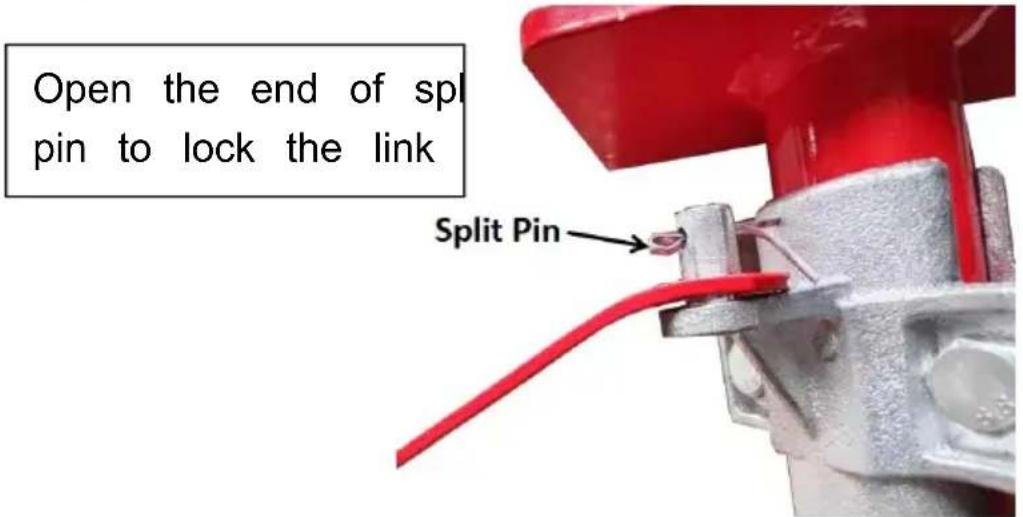

Step 5- Insert the link into the pin on the top locking casting, and install the split pin. After installing the split pin, make sure to open the pin to confirm that the split pin cannot fall out of the locking

Step 6 - After proper adjustment, lock all bolts and try to turn.

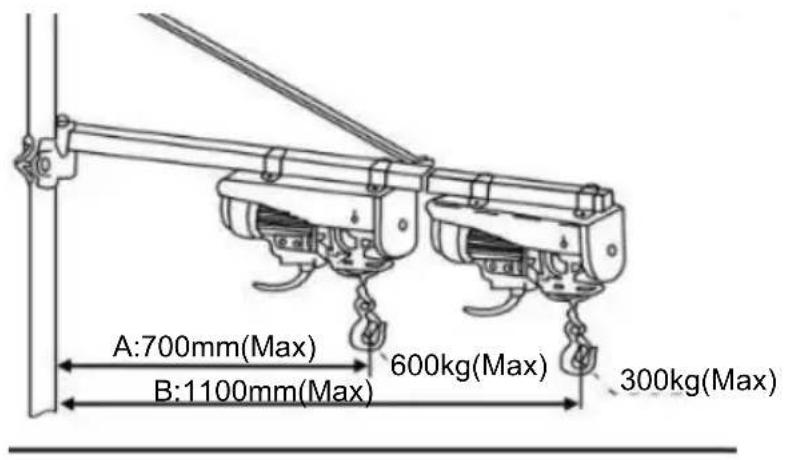

Step 7 - Install the Electric Hoist. Refer to the diagram below to change appropriate location and Electric Hoist for installation.

Location A: Load capacity: Max600kg, Arm: Max 700mm; Suitable for 2200lbs Electric Hoist

Location B: Load capacity: Max300kg, Arm: Max 1100m; Suitable for 440lbs-1800lbs Electric Hoist

6. Usage Guide

1. Unpack and check for any transit damage.
2. Please follow the instructions to limit the lifting capacity. The farther arrow indicates, the lower the lifting capacity.
3. Make sure to use the Fix rod on a stable surface and ensure st during operation.

7. Maintenance

1. After use, clean the arm with a dry cloth to remove dust and im
2. Check the screws and connections to ensure that they are tight.
3. Regularly apply rust inhibitor to extend its life.
