USER MANUAL JBT03K2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: JBT03K2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Do read instructions before driving. Failure to comply with the instructions and warnings in this manual could result in serious injury or death.

• The maximum weight capacity per child is 60lbs.
  The total weight capacity of trailer can't exceed 120 lbs.
• Max recommended trailer speed is 10mph. Always maintain a safe speed.
• Do not use the trailer on rocky roads or other dangerous roads.
• Never leave children in or near the trailer unattended.
• Never have more than two children in the trailer at one time.
• Never use with children who cannot support their own head.
• Never use the trailer with children who cannot sit unaided.
• Bicycle riders using the trailer must be 18 years old or older and must be in good physical condition.
• Riders and children must wear approved safety helmets.
• Recommended passenger age is at least 12 months old and weighing up to 60lbs.
• Assemble trailer strictly according to this instruction manual.
• Never park the trailer near a trench or dangerous road.
• Check the tire air pressure before every trip.
• If necessary inflate the tires to within the range shown on the tire sidewall.

Always use a foot or hand pump to inflate the tires.

• Overinflation of tires may result in failure and risk of serious injury.
  Do not exceed maximum pressure as shown on tires.
• Check that the bicycle is in proper technical condition.
• Always check the proper connection of the coupling.
• Always have the canopy in place.
• Take proper precautions while riding in traffic, especially when turning.

• Always check that all parts of the trailer are connected properly and tightly.

• Do not use trailer with motorized vehicles. Increased speed of motorized bicycles can damage the trailer and cause injury.

• Avoid serious injury from falling or sliding out. Always use the safety harness.
• Take extra precautions when using in the rain. Ride slowly and allow a greater margin of safety when starting, stopping, and turning.
• Do not ride on surfaces where sand, gravel, ice, oil, or slippery substances are present.
• Never tow the trailer over curbs, stairs or escalators. If you must travel through stairs, have children get out of the trailer, disconnect the trailer from the bike and take it over the stairs independently.
• Never use bike trailer without provided safety flag and reflectors.
• Do not make any modifications to the trailer which may increase the risk of failure.
• Check the trailer for damage. Do not use if damaged.
• Be sure the fasteners are tight. Tighten if necessary.
• Be sure the brakes work properly. Braking distance is increased when pulling a trailer.
• The trailer requires a wide turning radius. Do not turn sharply. Sharp changes in direction may cause a tip over.
  The assembly can only be carried out by an adult.
• Use caution when turning on loose or uneven surfaces and while going downhill.
• Allow extra clearance for the trailer when near curbs, parked on and other obstacles.
• Do not ride over curbs, bumps or holes.
• Do not use the trailer in hazardous weather.
• Do not pull or push the trailer with a vehicle.
• This product is not suitable for running or skating.
• Red reflectors must be visible on the rear of the trailer.
• Never ride a bicycle at night without adequate lighting. Obey a local legal requirements for lighting.

MODEL AND PARAMETERS

Model	JBT03K2
Type	Tow/Hand Push
Max. Load	120lbs
Seating	2
Inner Bin Size	31.5*23.6*27.6inch
Wheels	2*7+20inch
Color	Orange & Darkgray
Material	Aluminium alloy,Oxford cloth,PVC

PARTS LIST

1 x Main frame

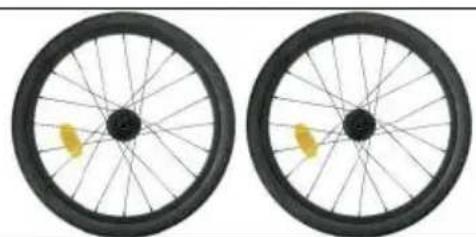

2 x Wheels

2 x Front Wheel

1 x Blue Clamp

1 x Tow bar

1 x Flag

2x screws, 1xplastic holder

1 x User Manual

HOW TO ASSEMBLE AND USE

Assembling The Base Frame:

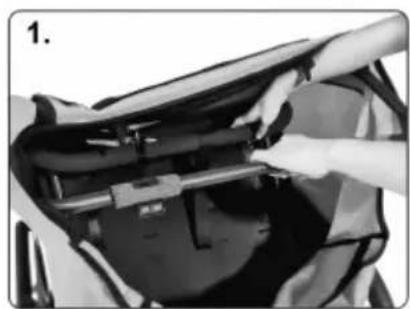

1. Reach into the folded bicycle trailer and pull the handlebar.

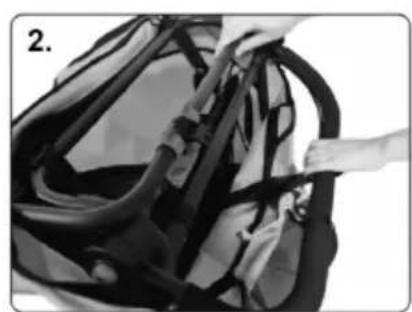

2. Pass the frame part to which the handlebar is attached under the linkage frame.

Note: The angle of the handlebar can be adjusted by pressing both blue but simultaneously.

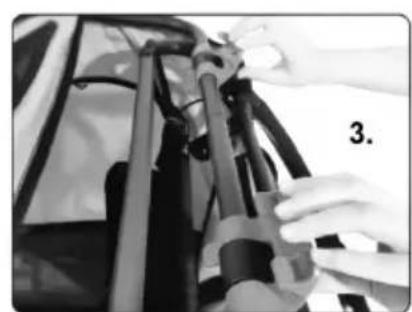

3. Connect the frame part to which the handlebar is attached to the frame bicycle trailer using the black fastening hooks.

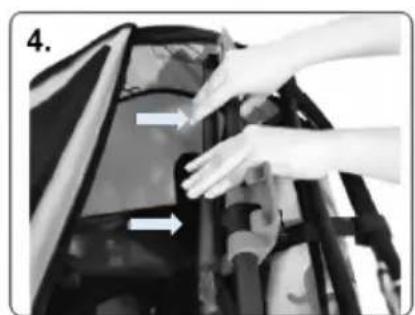

4. Secure the black fastening hooks by turning the blue locks until they eng

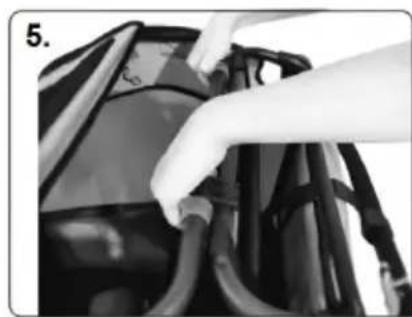

5. The parts are correctly connected to each other when the connection looks in picture 6; the textile cover is taut and nothing wobbles.

Note: Secure the textile cover by folding it over the frame and closing the fastener.

Folding The Base Frame:

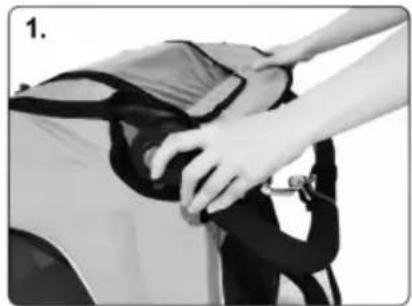

1. Set the handle bar to the lowest position.
   Note: The angle of the handlebar can be adjusted by pressing both blue but simultaneously.

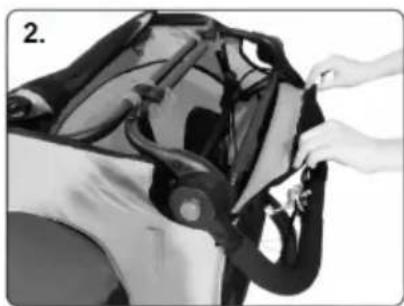

2. Open the Velcro fastener that connects the textile cover to the frame.

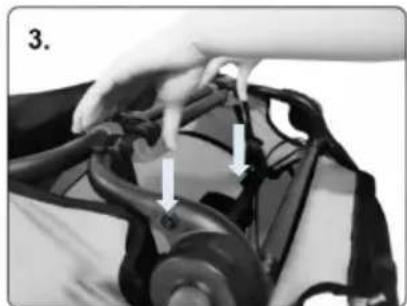

3. To release the blue fastening hooks, press the blue fastening hooks down they are free.

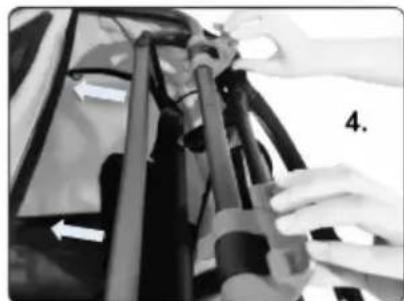

4. Push the frame part to which the handle bar is attached downwards until released from the anchorage. Pass this part under the frame linkage.

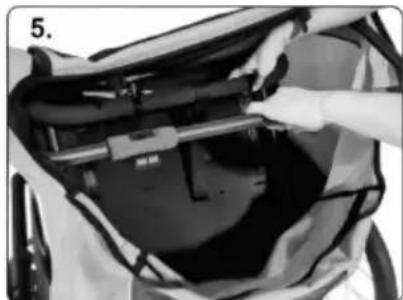

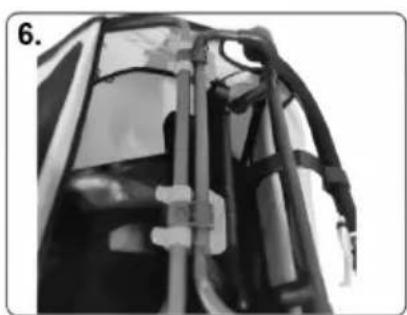

5. Now fold the frame together.6. The frame is correctly folded when it looks picture 6.

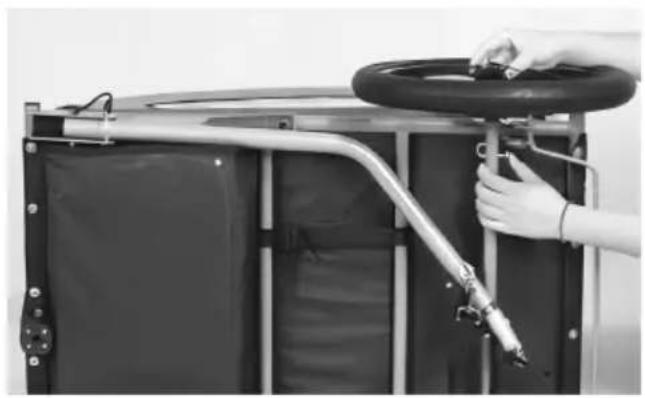

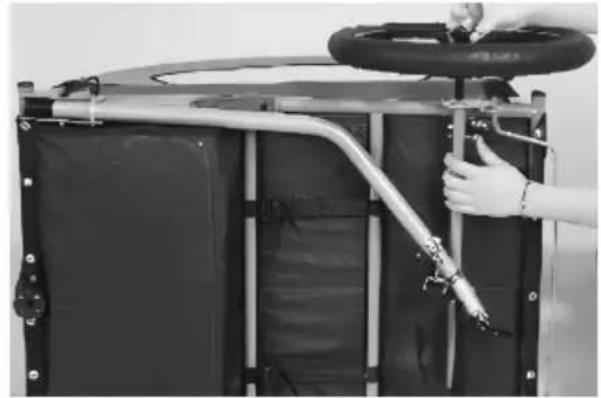

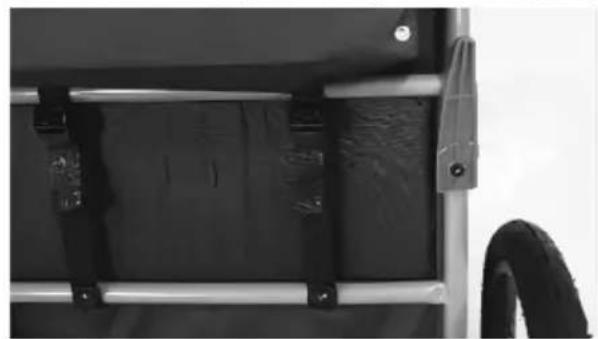

Attach The Rear Wheels:

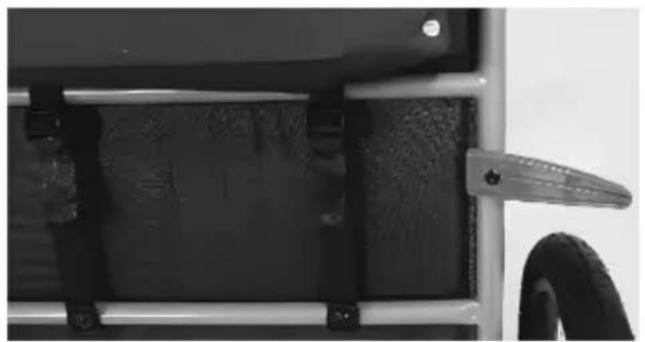

Insert the rear wheels into the holes axle under the frame. When you hear the rear wheels are correctly fixed and locked in place. Note: The rear wheel be removed by pressing the button under the frame.

Warning! After assembly, check the locking by pulling both wheels back and The wheels must not be able to be pulled out without pressing the button. Wheels that are not fully locked can come loose when riding, which can lea accidents with life-threatening injuries.

Note: The bicycle trailer has a wheel guard. Always fold the wheel guard out when using it as a bicycle trailer. The wheel guard protects the rear wheels collision.

ATTENTION!

THE CORRECT TIRES ARE ESSENTIAL! USE ONLY THE SUPPLIED TIRES AND KEEP THEM PROPERLY MAINTAINED. INFLATE TIRES TO 30-35 P.S.I AND CHECK PRESSURE BEFORE EACH USE. DO NOT USE HIGHER PRESSURE TIRES AS THIS WILL MAKE THE TRAILER JUMPY AND PRONTO TIPPING OVER WHEN LIGHTLY LOADED. WE RECOMMEND ONLY TIRI WITH ROAD TREAD. DO NOT USE OFF-ROAD TIRES.

Attached The Front Wheel:

If the bicycle trailer has the drawbar or the jogger wheel set mounted, first these elements and insert the blue fastening hooks back into the holes provide. Make sure that the fastening hooks are closed.

Tip: To familiarise yourself with the assembly, we recommend that you first I bicycle trailer at the front, tilt it backwards and support it on the handlebar. sure that the surface under the trailer is clean and smooth so as not to sodamage the textile cover. Later, when you are familiar with the assembly, it enough to lift the trailer slightly at the front for this work.

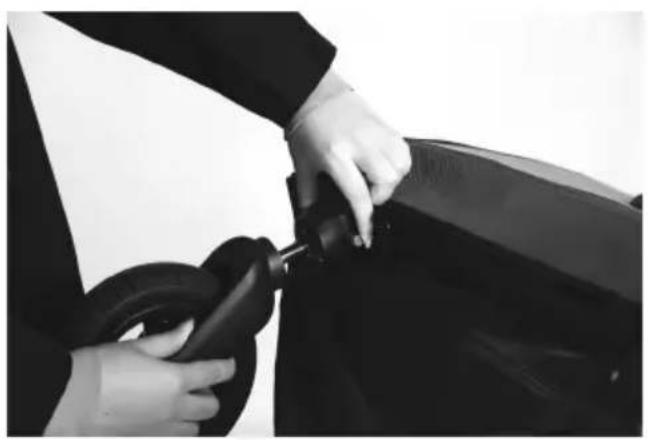

1. Lift the trailer at the front or tilt it backwards.

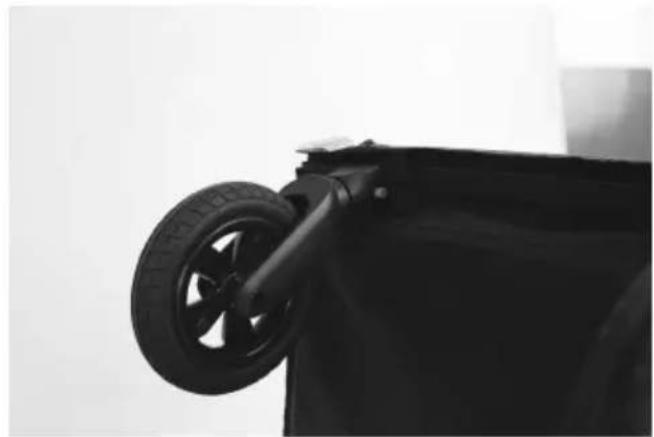

2. Insert the buggy wheel into the buggy wheel holder as far as it will go hear and feel it engage.

3. To remove the buggy wheel, press the blue button and pull the buggy w

Caution: Make sure that the buggy wheel is correctly engaged and cannot loose by itself! If the buggy wheel is not correctly engaged, the buggy who come loose, which can lead to accidents and injuries.

Caution: Never ride with a mounted buggy wheel when using the trailer as bicycle trailer! The buggy wheel could hit obstacles, which could lead to accidents and injuries.

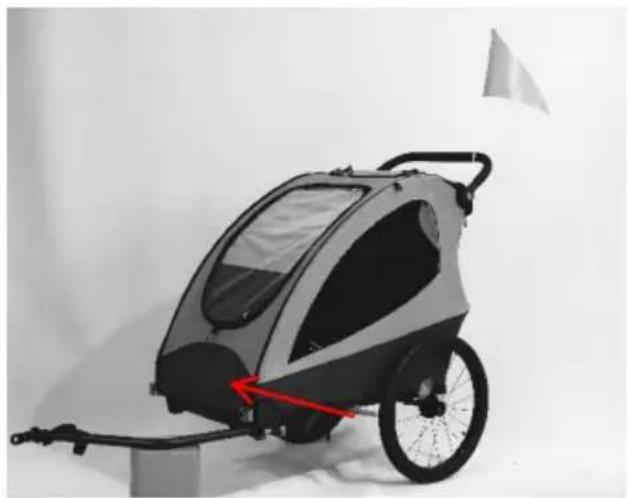

Extend And Secure The Tow Bar:

1. Insert the drawbar into the opening on the frame. The opening is located the front reflector.

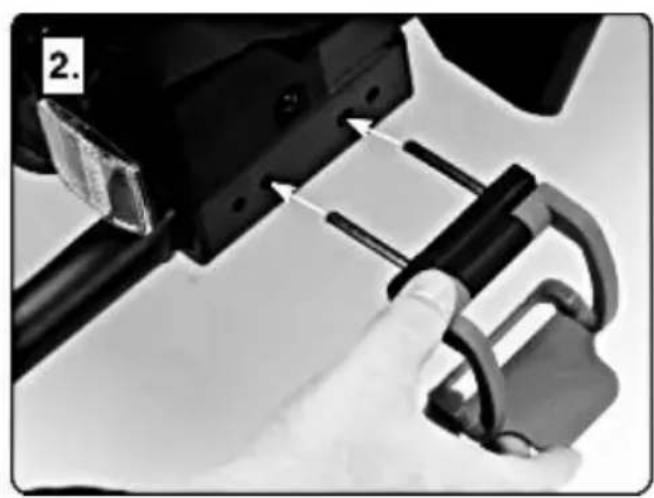

2. Secure the drawbar with the blue clamp. To do this, insert steel bolt of into the holes on the side of the bicycle trailer and close the clamp. The c securely closed as soon as you hear a loud clack.

Note: Opening and closing the clamp is not smooth and requires a certain a of force. This is necessary to guarantee a secure hold of the clamp.

ATTENTION!

1. Steel bolt must always be locked with the clamp when the trailer is used
2. Always make sure that the drawbar is securely mounted. Failure to do so result in serious accidents and injuries.

Insert The Safety Flag:

1. Assemble the flag pole sections by sliding the top half of the pole into the opening of the bottom half of the pole.
2. Insert the flag pole into the sleeve located at the rear corner of the trail

WARNING: The safety flag is an important safety feature that warns other trailer is present and on the bicycle. Always have the safety flag on the trail in use!

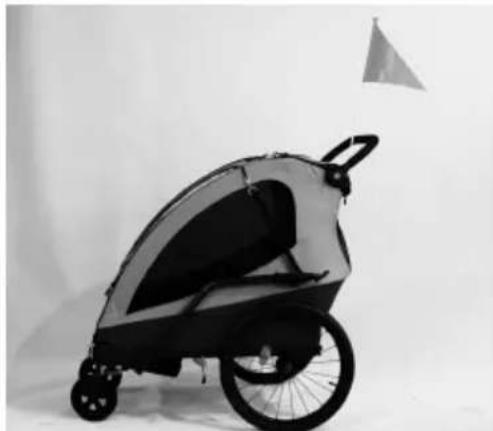

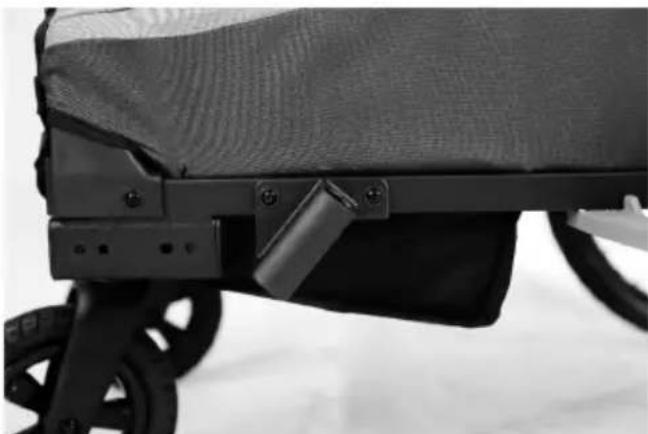

Assembling Mounting Holder Of Drawbar:

1. Clipping the plastic holder onto the tube, make sure the screw holes are same position.
2. Using screws to fix the plastic holder.
3. Insert the drawbar and hook the elastic on the side of fabric.

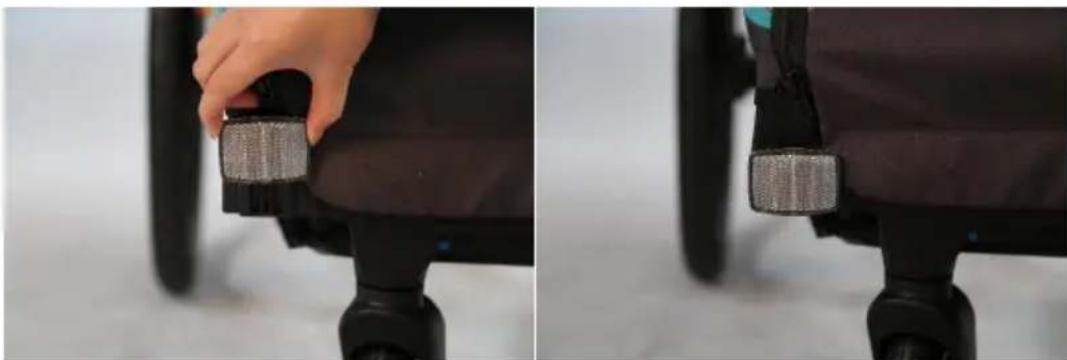

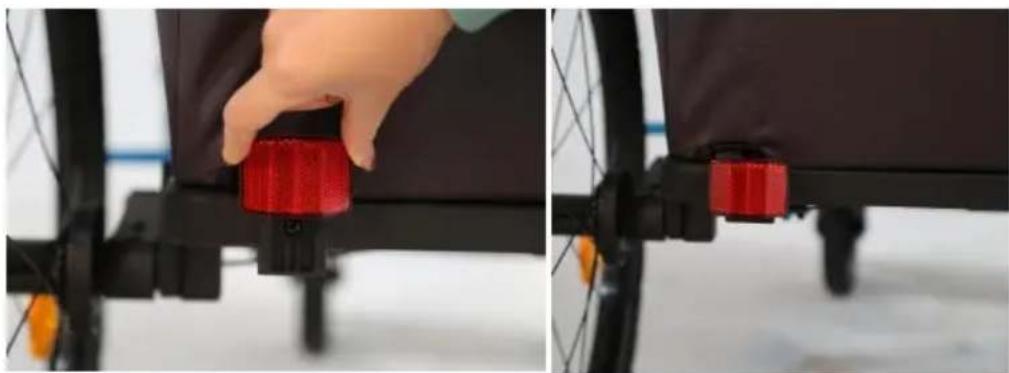

Assembling The Reflectors:

1. Insert two white reflectors into the holder on the front.

1. Insert two red reflectors into the holder on the back.

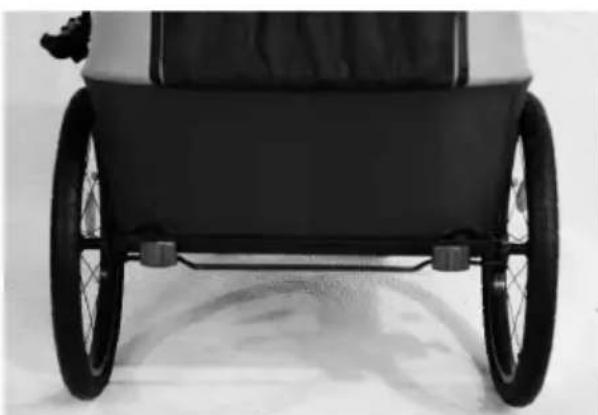

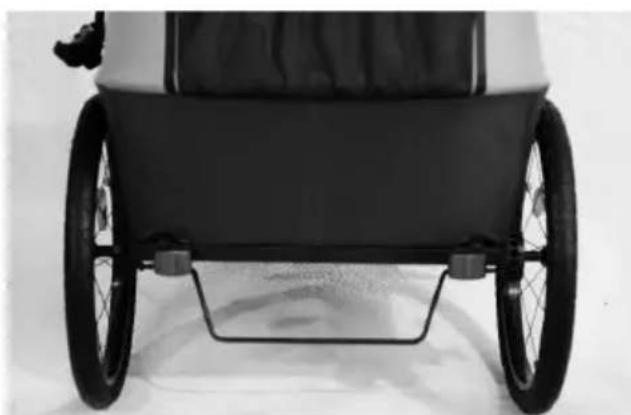

Using The Parking Brake:

The parking brake prevents the bicycle trailer from unintentionally rolling away when stationary. It is not suitable for braking a rolling bicycle trailer. Always the parking brake when you:

1.) Park the buggy.
2.) Allow your child to get in and out of the trailer when using it as buggy trailer.
3.) Fold the trailer so that it does not roll away.

1. Push down the brake rod by foot until the end of rod slides into the so attached to the rear wheels.
2. Pull up the brake rod by foot or hand when releasing the brake.

WARNING:

Always apply the parking brake after parking the trailer and when getting in out of the trailer with the children. Check that the trailer cannot roll away by it slightly forwards and backwards. An unsecured trailer could cause accidents with life-threatening injuries by rolling away or could roll away when getting in out of the trailer, causing serious injuries to the children.

• Always engage parking brake at each stopover.
• If the rod can't be slid into a socket easily, try to move the trailer forward so brake is working.
• Never drive with the parking brake applied! This can damage the brake mechanism.

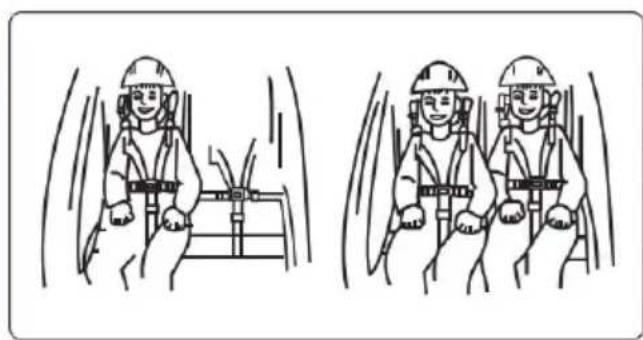

Using The Safety Harness:

The 5-point safety harness system consists of two shoulder straps, two lap s and a crotch strap secured in a buckle. Padded shoulder straps provide more comfort.

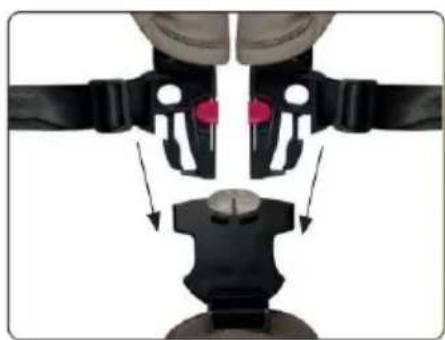

1. Open the straps by first pressing the red buttons and at the same time buttons on the buckle. The individual straps should now come out of the bug
2. Let the crotch strap hang down towards the footwell and place the two s straps and the lap straps to the sides of the seat for the time being, so the comfortably put your child into the seat.
3. Place the child in the seat with the harness open.
4. Guide the crotch strap with the buckle between the child's legs upwards to upper body.
5. Guide the hands away from the child.
6. Pass the child's hands between the shoulder straps and lap straps. Place shoulder straps over the child's shoulders. Now insert the ends of the straps the buckle.

Tip: The seat belts can be adjusted to the child's height.

1. Adjust the seat belts so that the child is held securely by the belts, but tight that the seat belts cut in.

Tip: If a flat hand can be slid between the straps and the baby's body, the

are usually adjusted correctly.

Warning: The distance between the shoulder and lap belts and the child's b should be as small as possible so that the child is held optimally in the se distance is too great, the child cannot be restrained sufficiently in the seat, \ can lead to life-threatening injuries in the event of an accident. If the distanc small, the seat belts may possibly cut into the child's body.

Warning: Always fasten the child's seat belt! Your child could otherwise suffer life-threatening injuries in dangerous situations.

Warning: Seat belts that are adjusted too loosely or buckles that are not pifastened can cause life-threatening injuries to your child in the event of an accident.

WARNING:

• Avoid serious injury from falling or sliding out. Always properly secure the passengers with the safety harness.
• It may be dangerous to leave your child unattended. Never leave your child unattended in or near the bicycle trailer.
• Never transport babies under 6 months or children who cannot yet sit independently.

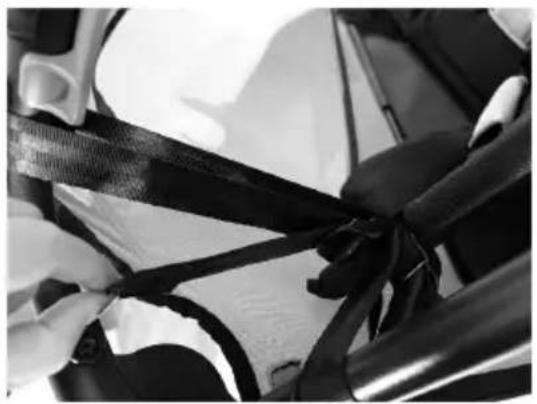

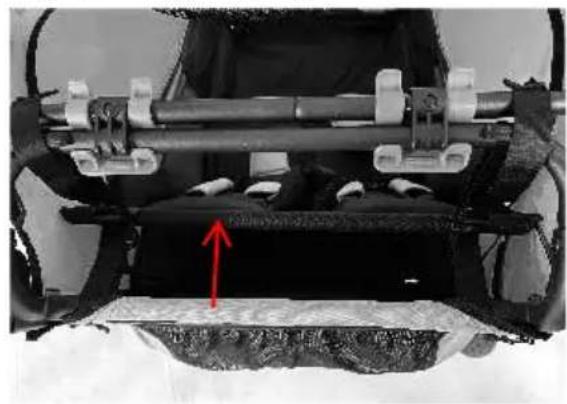

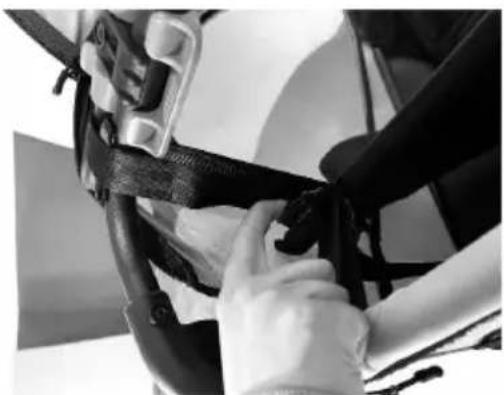

Adjustment Angle Of Back Rest:

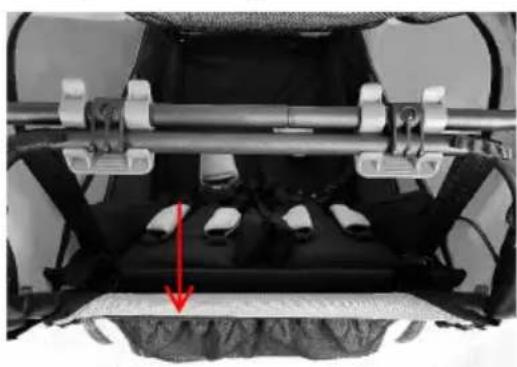

• Move the back rest backward by pressing both buckles and releasing the b

• Move the back rest forward by pulling tightly the end of belt.

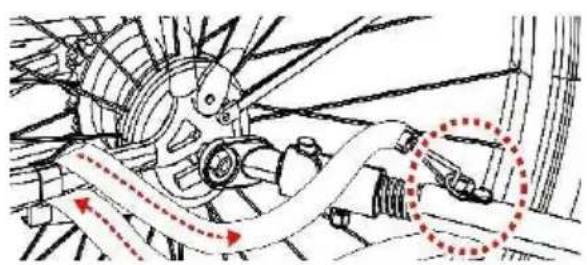

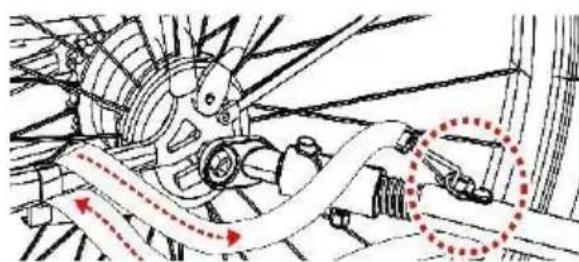

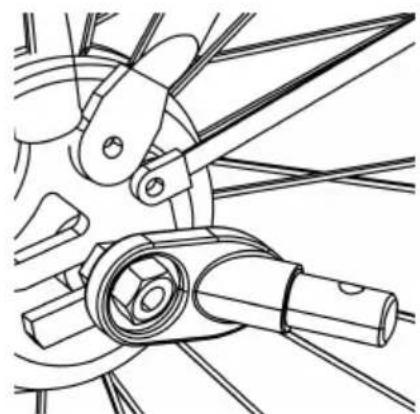

Attaching The Trailer to Bicycle:

Check whether the towing bike is approved by the manufacturer for towing trailers! Pulling trailers with an unsuitable towing bike can lead to frame fracture and accidents with life-threatening injuries.

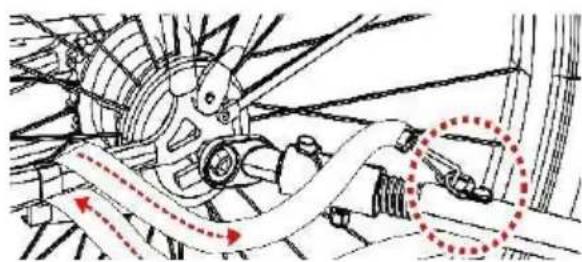

1. Quick-release Axle: Remove the quick-release from the left side of bike rear axle. Install the hitch between the quick-release and frame. Tighten the quick-release following the bike manufacturer's manual. Hitch can remain on the bike when the trailer is removed.

WARNING: The tension-adjusting nut must engage the threads for at least 10 full turns in order to ensure adequate clamping force for holding the rear wheel securely. Failure to tighten the tension-adjusting nut fully may result in accidents with serious injury or death. If the quick-release skewer is too short, it must be replaced. Consult a professional bicycle mechanic for the appropriate parts and assistance.

1. Nutted Axle: Unscrew the nut with washer from the left side of bike's Install the hitch onto the axle and screw the nut back on with the washer.

WARNING: The axle nut must engage the threads for at least five full turn order to ensure adequate clamping force for holding the rear wheel securely. Failure to tighten the nut fully may result in accidents with serious injury or the axle is too short, the Universal Hitch cannot be used! Consult a professibi bicycle mechanic for the appropriate parts and assistance.

1. Thru Axle: The universal hitch doesn't fit a bike with thru axle. Please the retailer for possible solution.

Connect the coupler on the tow and secure the safety pin.

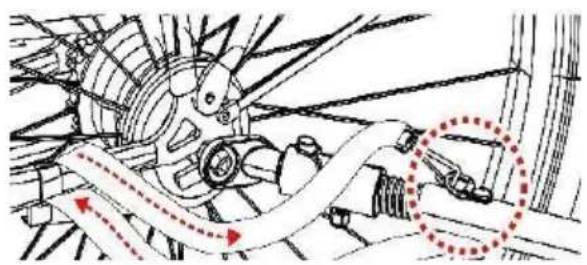

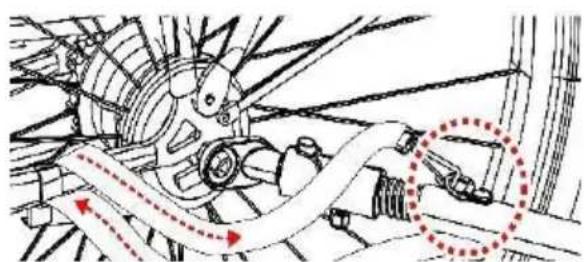

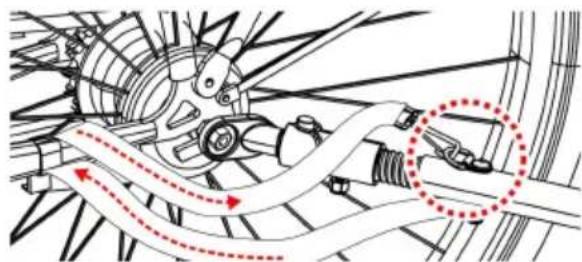

Once the tow bar is attached, safety belt around the frame of bike and hook onto the D-ring the tow bar.

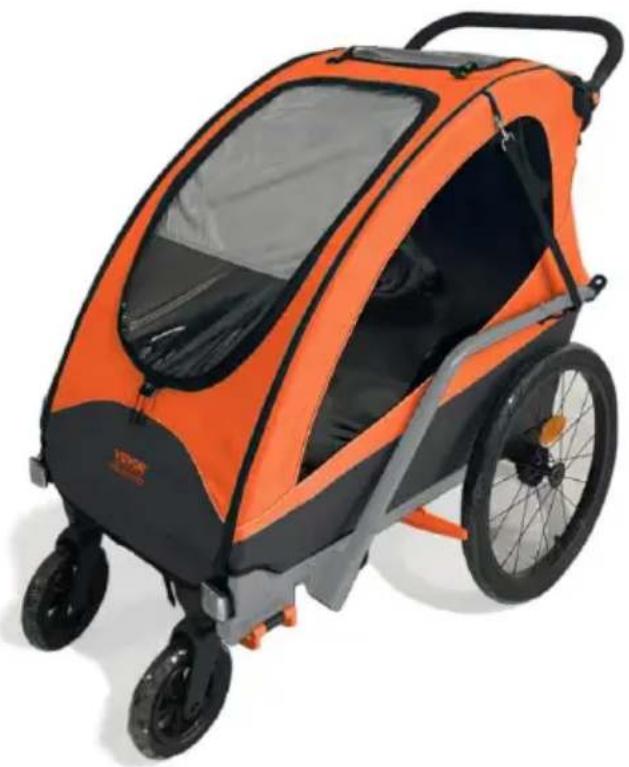

Before You Ride

Check before each use:

1. Wheels are properly secured to the trailer.
2. Tires are inflated to recommended pressure on the tire side wall.
3. Tow bar is properly secured to the trailer.
4. Hitch is properly secured to the bicycle.
5. All safety pins are securely locked in place.
6. Safety strap on the tow bar is properly installed.
7. Make sure that bicycle is in proper working order, especially brakes and (refer to bicycle manufacturer's instructions).
8. Safety flag is in place.

MAINTENANCE

Maintain and clean the trailer regularly to keep it in good condition for a long

• Check your trailer and accessories regularly for damage and signs of wear.
• Check all metal components for possible breaks or cracks. Do not use the if any metal components are cracked or damaged.
• Check the trailer for bent, defective, missing or loose fasteners or catches. Tighten loose fasteners or catches and replace damaged or missing parts.
• Inspect the fabric regularly for tears, worn spots or other signs of damage.
• Clean the child carrier regularly with warm water and a mild soap solution. Use aggressive cleaning agents or solvents.
• Clean the wheel axles and lubricate all exposed moving parts with grease Always check the wheels and carry out maintenance at least once a year.

Storage:

• Store your trailer and accessories in a dry place out of direct sunlight.
• Before storage, the child carrier must be dry to prevent the formation of n bacteria.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2

Australia

Imported to USA: Sanven Technology Ltd. Suite 250. 9166 Anaheim Place,

Rancho Cucamonga, CA 91730

SHUNSHUN GmbH

Romeracker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China

VEVOR

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

Assistance technique et certificate de garantie electronique www.vevor.com/support

REMORQUE DE VÉLO POUR ENFANT MODELE: JBT03 K2.

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELE : JBT03 K2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVERAGEMENT

HOW TO ASSEMBLE AND USE

Connect the coupler on the tow and secure the safety pin.

Once the tow bar is attached, safety belt around the frame of bike and hook onto the D-ring the tow bar.

Before You Ride

Place, Rancho Cucamonga, Californie 91730

SHUNSHUN GmbH

Romeracker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Fabrique en Chine

VEVOR

TOUGH TOOLS, HALF PRICE

Assistance technique et certificate de garantie electronique www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING

HOW TO ASSEMBLE AND USE

Connect the coupler on the tow and secure the safety pin.

Once the tow bar is attached, safety belt around the frame of bike and hook onto the D-ring the tow bar.

Before You Ride

Rancho Cucamonga, CA 91730

SHUNSHUN GmbH

Romeracker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELLO: JBT03 K2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ATTENZIONE

HOW TO ASSEMBLE AND USE

Connect the coupler on the tow and secure the safety pin.

Once the tow bar is attached, safety belt around the frame of bike and hook onto the D-ring the tow bar.

Before You Ride

Importato in AUS: SIHAO PTY LTD . 1 ROKEVA STREETEASTWOOD NSW

2122 Australia

Place, Rancho Cucamonga, CA 91730

SHUNSHUN GmbH

Romeracker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELO: JBT03 K2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ADVERTENCIA

HOW TO ASSEMBLE AND USE

Connect the coupler on the tow and secure the safety pin.

Once the tow bar is attached, safety belt around the frame of bike and hook onto the D-ring the tow bar.

Before You Ride

Rancho Cucamonga, CA 91730

SHUNSHUN GmbH

Romeracker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Hecho en china

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

PRZYCZEPKA ROWEROWA DLA DZIECI

MODEL: JBT03 K2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: JBT03 K2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

OSTRZEJEZENIE

HOW TO ASSEMBLE AND USE

Connect the coupler on the tow and secure the safety pin.

Once the tow bar is attached, safety belt around the frame of bike and hook onto the D-ring the tow bar.

Before You Ride

Import do AUS: SIHAO PTY LTD . 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Import do USA: Sanven Technology Ltd. Apartment 250 . 9166 Anaheim PI Rancho Cucamonga, Kalifornia 91730

SHUNSHUN GmbH

Romeracker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

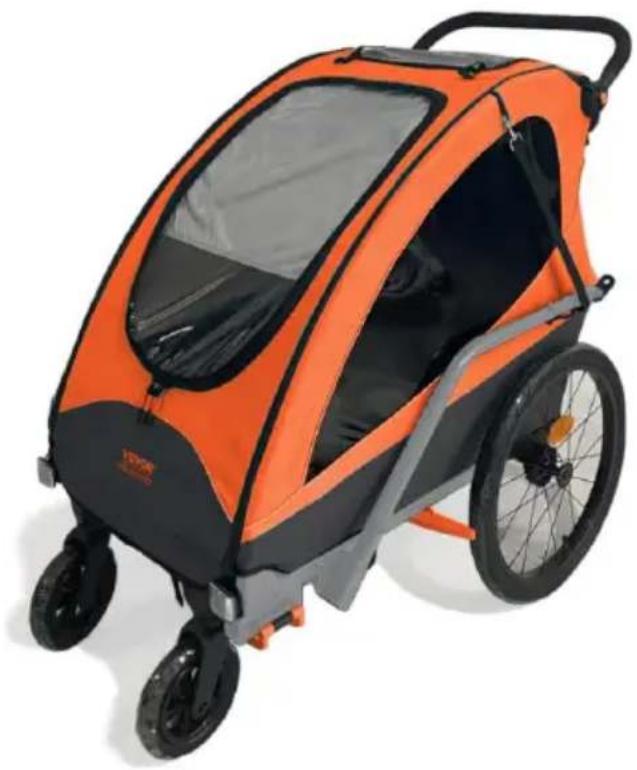

KINDERFIETSKAR

MODEL: JBT03 K2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: JBT03 K2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAARSCHUWING

HOW TO ASSEMBLE AND USE

Connect the coupler on the tow and secure the safety pin.

Once the tow bar is attached, safety belt around the frame of bike and hook onto the D-ring the tow bar.

Before You Ride

Place, Rancho Cucamonga, CA 91730

SHUNSHUN GmbH

Romeracker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Gemaakt in China

VEVOR

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODELL: JBT03 K2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

VARNING

HOW TO ASSEMBLE AND USE

Connect the coupler on the tow and secure the safety pin.

Once the tow bar is attached, safety belt around the frame of bike and hook onto the D-ring the tow bar.

Before You Ride

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Tillverkad i Kina

VEVOR

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
