USER MANUAL JBT03A2 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Exterior view of a two-wheeled baby dog car with transparent cover and wheels (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

Do read instructions before driving. Failure to comply with the instructions and warnings in this manual could result in serious injury or death.

● The maximum weight capacity per child is 50lbs.
The total weight capacity of trailer can't exceed 100 lbs.
- Max recommended trailer speed is 10mph. Always maintain a safe speed.
- Do not use the trailer on rocky roads or other dangerous roads.
- Never leave children in or near the trailer unattended.
- Never have more than two children in the trailer at one time.
- Never use with children who cannot support their own head.
- Never use the trailer with children who cannot sit unaided.
- Bicycle riders using the trailer must be 18 years old or older and must be in good physical condition.
- Riders and children must wear approved safety helmets.
- Recommended passenger age is at least 12 months old and weighing up to 50lbs.
- Assemble trailer strictly according to this instruction manual.
- Never park the trailer near a trench or dangerous road.
- Check tire air pressure before every trip.
- If necessary inflate the tires to within the range shown on the tire sidewall.

Always use a foot or hand pump to inflate the tires.

• Overinflation of tires may result in failure and risk of serious injury.

Do not exceed maximum pressure as shown on tires.

- Check that the bicycle is in proper technical condition.

• Always check the proper connection of the coupling.

• Always have the canopy in place.

• Take proper precautions while riding in traffic, especially when turning.

- Always check that all parts of the trailer are connected properly and tightly.

- Do not use trailer with motorized vehicles. Increased speed of motorized bicycles can damage the trailer and cause injury.

- Avoid serious injury from falling or sliding out. Always use the safety harness.

• Take extra precautions when using in the rain. Ride slowly and allow a greater margin of safety when starting, stopping, and turning.

- Do not ride on surfaces where sand, gravel, ice, oil, or slippery substances are present.

- Never tow the trailer over curbs, stairs or escalators. If you must travel through stairs, have children get out of the trailer, disconnect the trailer from the bike and take it over the stairs independently.

- Never use bike trailer without provided safety flag and reflectors.

- Do not make any modifications to the trailer which may increase the risk of failure.

- Check the trailer for damage. Do not use if damaged.

- Be sure the fasteners are tight. Tighten if necessary.

- Be sure the brakes work properly. Braking distance is increased when pulling a trailer.

- The trailer requires a wide turning radius. Do not turn sharply. Sharp changes in direction may cause a tip over.

- The assembly can only be carried out by an adult.

- Use caution when turning on loose or uneven surfaces and w/ going downhill.

- Allow extra clearance for the trailer when near curbs, parked c and other obstacles.

- Do not ride over curbs, bumps or holes.

- Do not use the trailer in hazardous weather.

- Do not pull or push the trailer with a vehicle.

- This product is not suitable for running or skating.

- Red reflectors must be visible on the rear of the trailer.

- Never ride a bicycle at night without adequate lighting. Obey a local legal requirements for lighting.

MODEL AND PARAMETERS

Model	JBT03A2
Type	Tow/Hand Push
Max. Load	100lbs
Seating	2
Inner Bin Size	30.7*24*26.4inch
Wheels	7+20inch
Color	Orange & Darkgray
Material	Steel,Oxford cloth,PVC

PARTS LIST

1 x Main frame	2 x Wheels
1 x Front Wheel	1 x Handlebar
1 x Flag	1 x User Manual

HOW TO ASSEMBLE AND USE

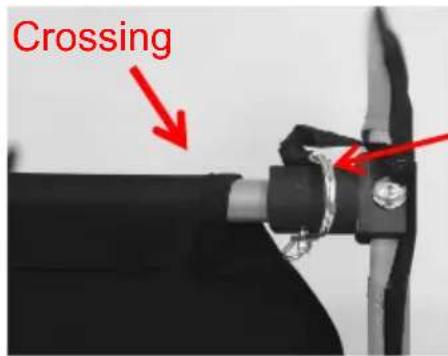

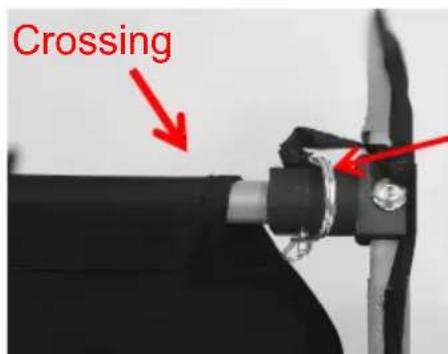

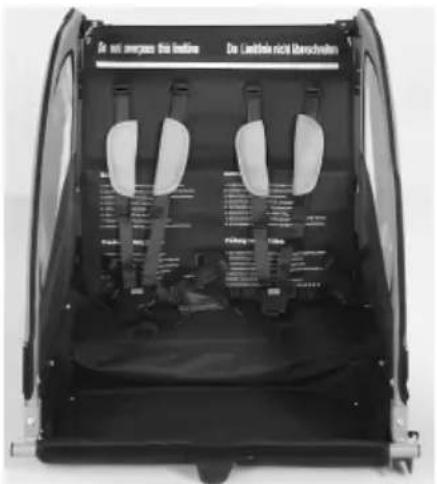

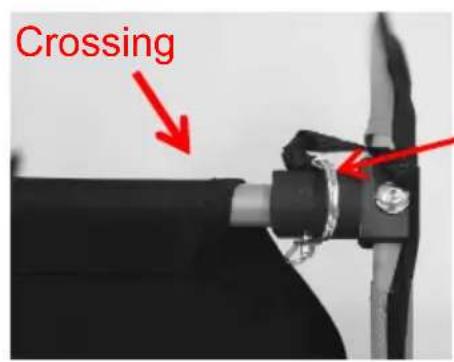

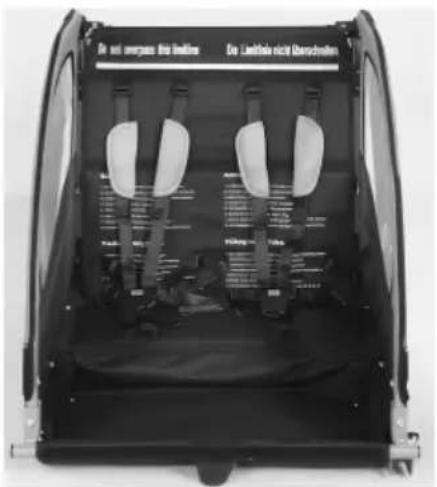

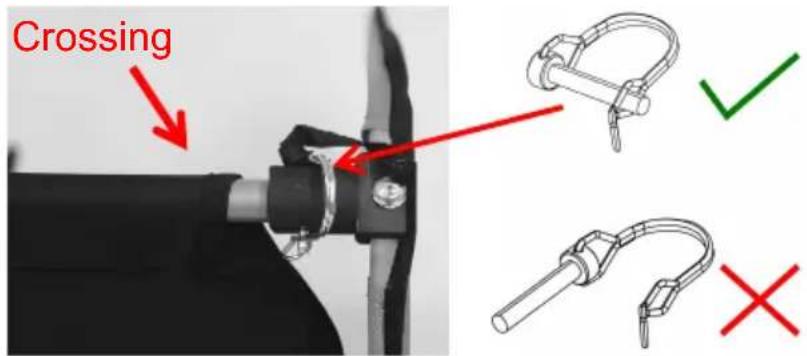

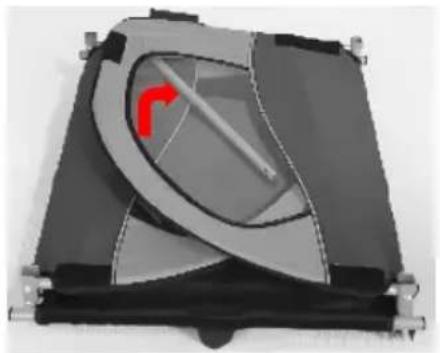

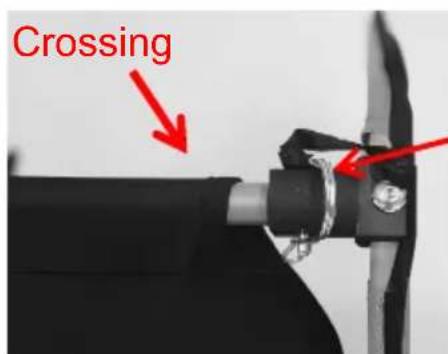

Unfold the Frame:

1. Raise both side panels to an upright position
2. Wearing the top of back seat cloth into the cross bar and locking the pi latch.
3. Ensure the cross bar is locked into place by pulling up and down on it.

3D diagram of a mechanical device with a central rotating component and a red curved arrow indicating rotation (no text or symbols)

Crossing

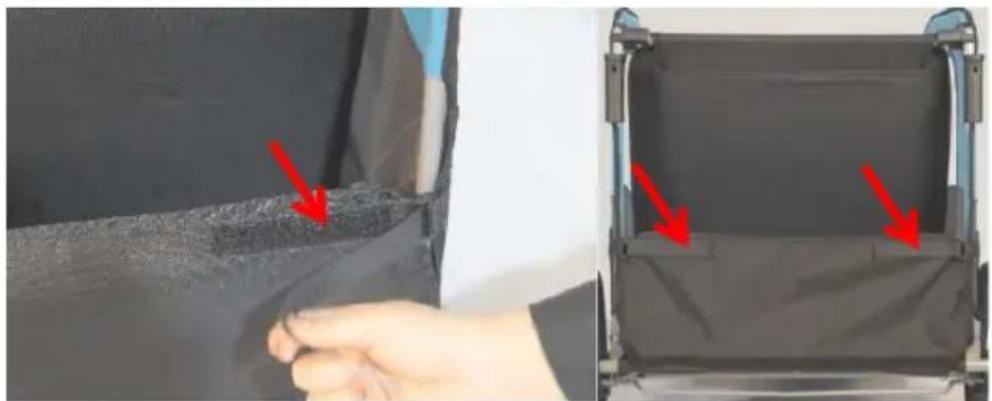

Attach The Storage Area:

1. Insert the velcro into the buckle on side panels.
2. Attach the velcro tightly.

Two-panel image showing a hand adjusting fabric with red arrows pointing to the interior of a dark gray device (no text or symbols visible)

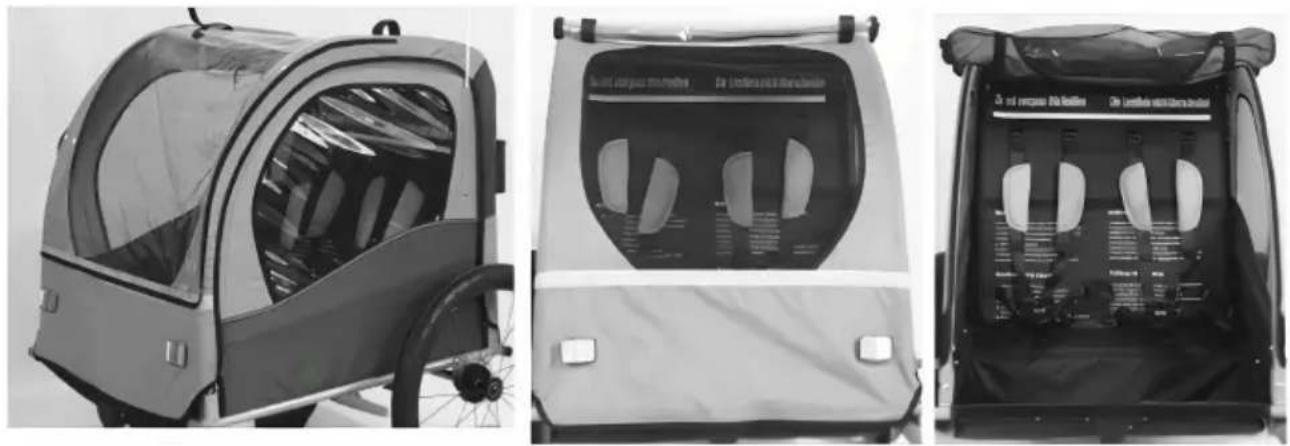

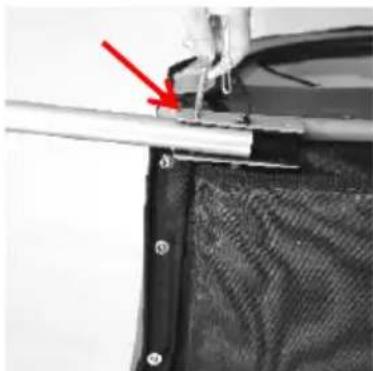

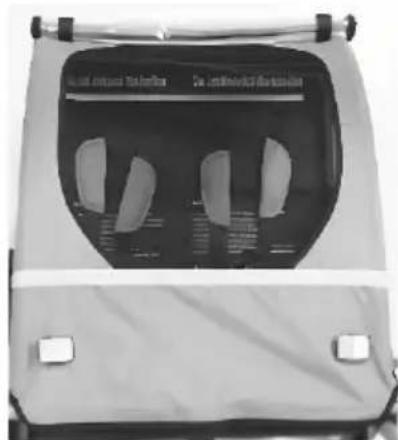

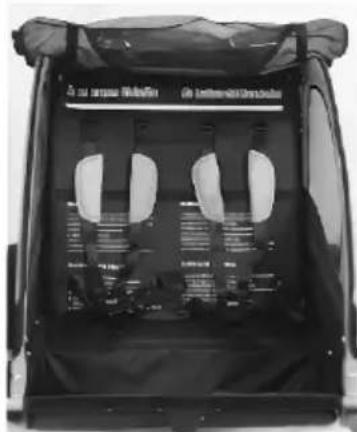

Attach The Canopy:

1. Starting at the bottom corner of the trailer, connect the velcro on each side back walls of the trailer.

2. Roll the weather shield up into the velcro at the top of the canopy if you using it .

Three-panel image showing a bicycle trailer with its back cover, front panel with a transparent container labeled 'De la confeture d'ordafondien', and back panel with a black-and-white interior design (no visible text or symbols)

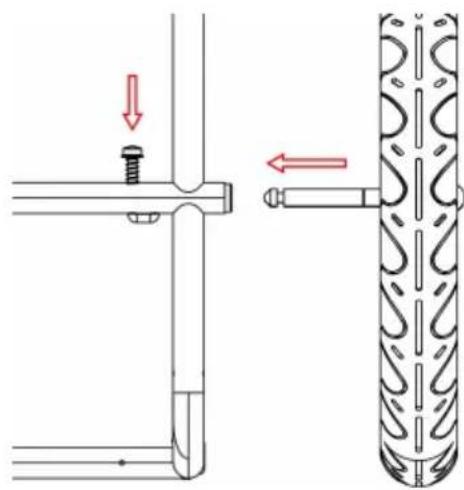

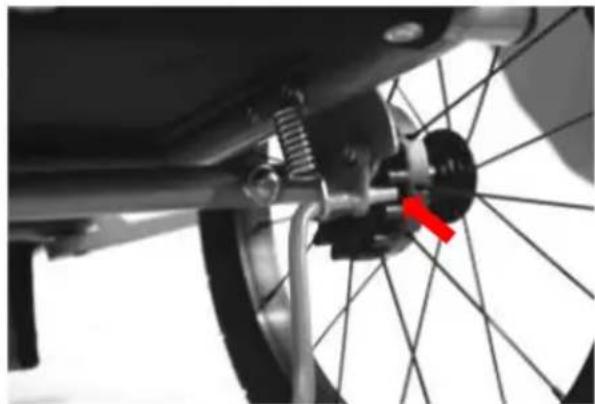

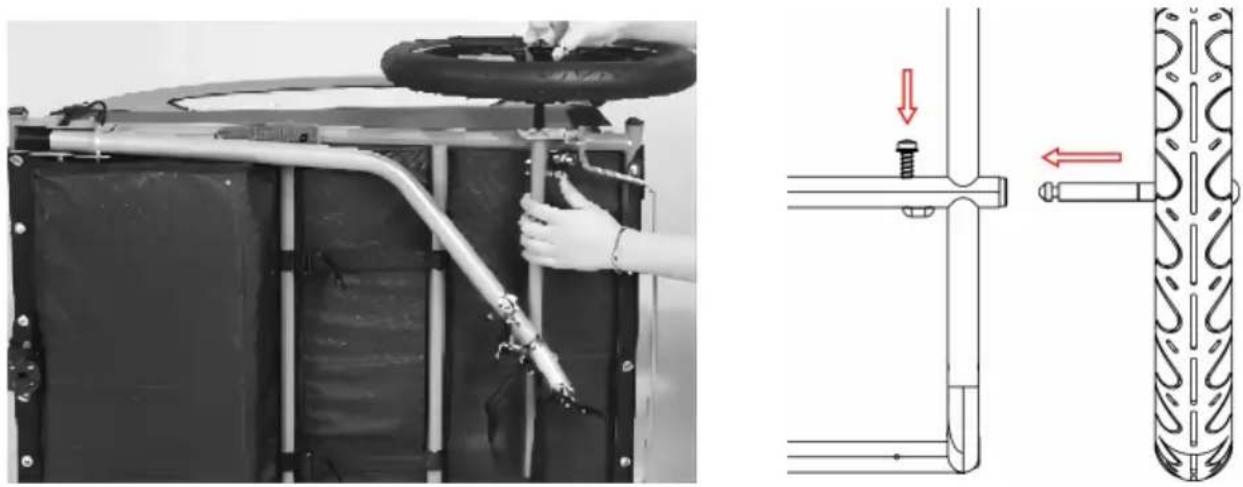

Attach The Rear Wheels:

1. Press the axle spring lock under the frame. At the same time insert the the wheel into the wheel hole.

2. Until the axle of wheel can not be pushed, then release the spring lock.

Mechanical assembly diagram showing a hand operating a valve on a black panel, alongside a close-up of a cylindrical component with red arrows indicating force or movement (no text or symbols present)

WARNING: Wheels that are not securely locked in place may fall off the track and cause serious injury or death. Always ensure the wheels are securely locked in place before use!

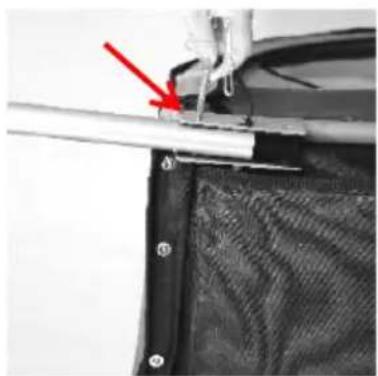

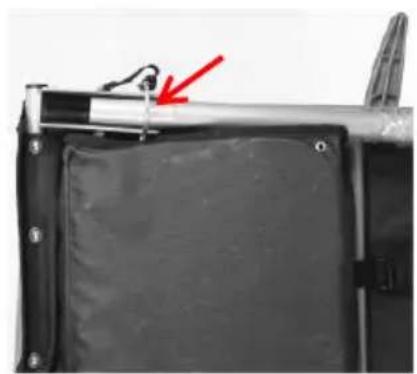

Extend And Secure The Tow Bar:

1. Place the trailer on its side with the tow bar facing up.

2. Remove the locking pin from the tow bar bracket.

3. Rotate the tow bar to front of the trailer.

4. Insert the locking pin completely through the hole in the end of tow bar bracket.

5. Slide the end of the metal safety loop over the end of the locking pin. Locking pin is securely in place.

Close-up of a black metal panel with a red arrow pointing to a small component (no text or symbols visible)

Close-up of a sewing machine needle stitching fabric with a red arrow pointing to the needle (no text or symbols visible)

Exterior view of a mechanical device with attached cable and bracket (no visible text or symbols)

WARNING: Both safety pins must be locked in place before using trailer. Otherwise roll bar or tongue could shift and cause an accident or serious inj

Simple line drawing of a U-shaped pipe with a cylindrical end, labeled 'Open' below (no other text or symbols)

Simple line drawing of a locked mechanical component (no text or symbols)

Insert The Safety Flag:

1. Assemble the flag pole sections by sliding the top half of the pole into t opening of the bottom half of the pole.
2. Insert the flag pole into the sleeve located at the rear corner of the trail

Hand holding a vertical object with a red arrow pointing upward, next to a dark garment (no text or symbols visible)

Close-up of a car's front window with red arrow pointing to the side panel (no visible text or symbols)

WARNING: The safety flag is an important safety feature that warns others trailer is present and on the bicycle. Always have the safety flag on the trail in use!

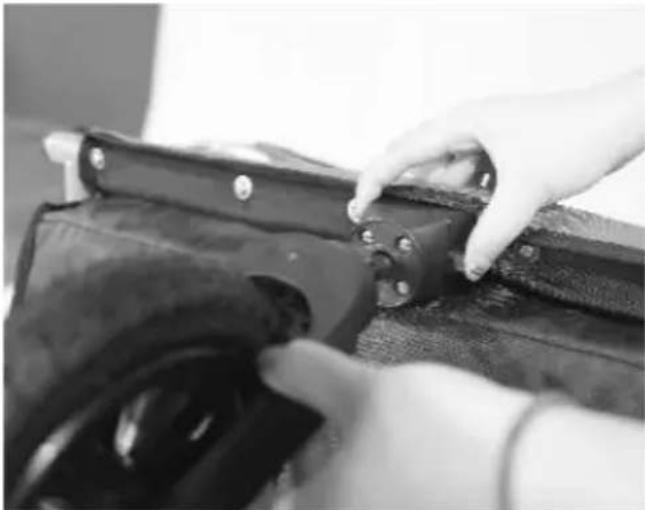

Attached The Front Wheel:

1. Press the button on the side of holder.

2. Slide the pole of front wheel into the holder on front of trailer.

3. Release the button, checking the wheel by pulling back and forth to ensu securely attached to the frame.

Close-up of hands installing or adjusting a black mechanical component (no visible text or symbols)

WARNING: When using it as a trailer, detach the front wheel and stock it storage area.

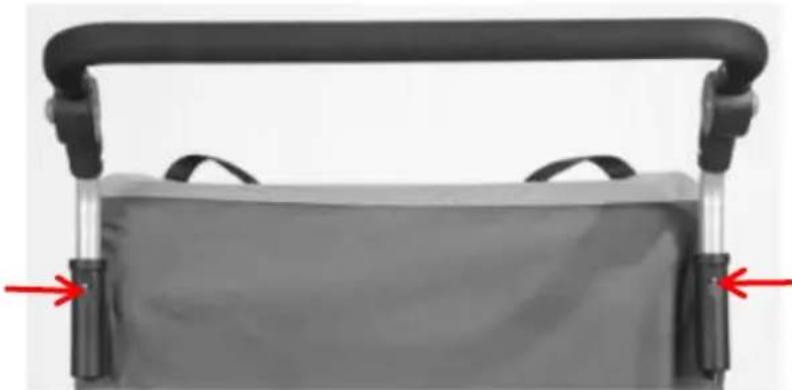

Attached The Stroller Handle:

1. Press the pin on both sides of the handlebar.

2. Insert into the holder on the frame together until the pins slide into the I holders.

3. Check the handlebar by pulling it up and down to ensure it is securely a to the frame.

Close-up of a black and gray baby seat with handle and side connectors, no visible text or symbols

WARNING: If the handlebar is not securely in place it may fall off the trail causing the operator to lose control and result in serious injury or death. Always ensure the handlebar is securely in place before use as a stroller.

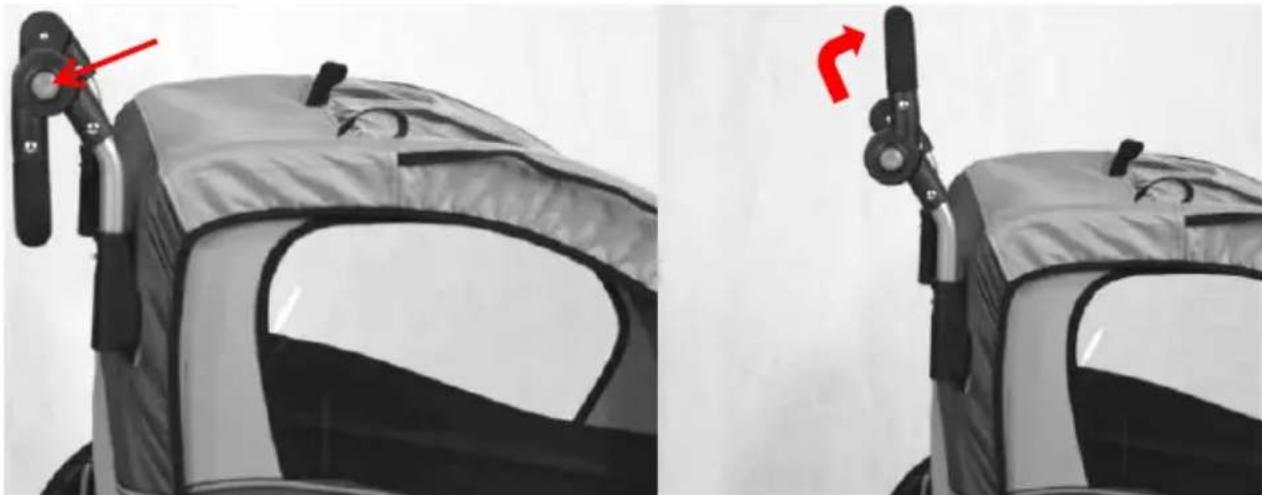

Adjust The Height Of Handlebar:

1. Press the buttons on both sides of the handlebar at the same time.
2. Holding pressing and adjusting the height to comfortable position.

Side-by-side comparison of a stroller's seat frame and its side view, showing adjustment arrows (no text or symbols)

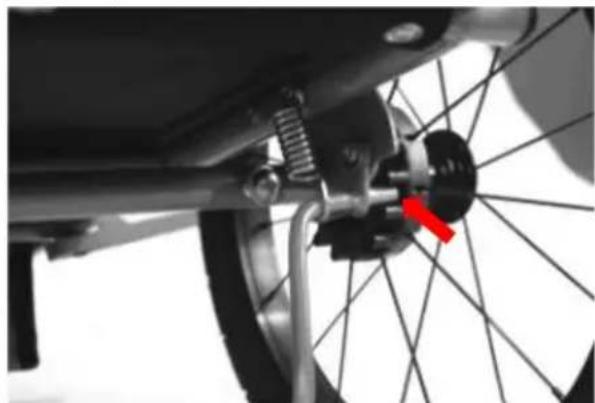

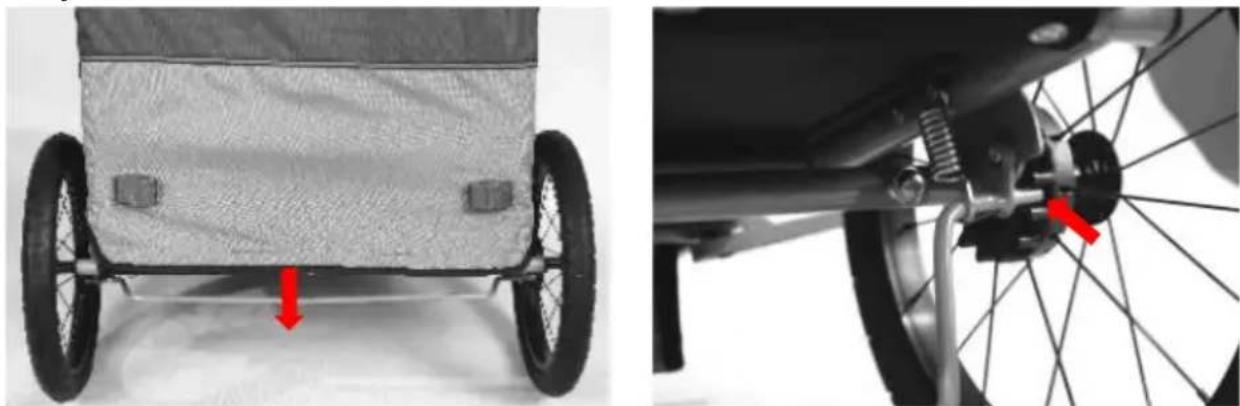

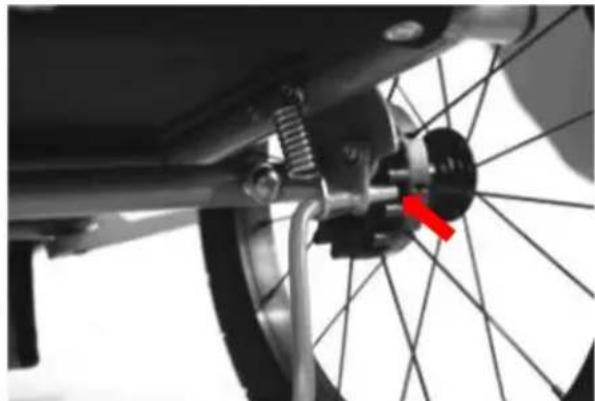

Using The Parking Brake:

The parking brake prevents the bicycle trailer from unintentionally rolling away when stationary. It is not suitable for braking a rolling bicycle trailer. Always the parking brake when you:

1.) Park the jogger or buggy.

2.) Allow your child to get in and out of the trailer when using it as a jog or bicycle trailer.

Side-by-side comparison of a stroller and bicycle wheel assembly, showing components with red arrows indicating motion (no text or symbols present)

1. Push down the brake rod by foot until the end of rod slides into the so attached to the rear wheels.

2. Pull up the brake rod by foot or hand when releasing the brake.

WARNING:

Always apply the parking brake after parking the trailer and when getting in out of the trailer with the children. Check that the trailer cannot roll away by it slightly forwards and backwards. An unsecured trailer could cause accidents

with life-threatening injuries by rolling away or could roll away when getting in out of the trailer, causing serious injuries to the children.

• Always engage parking brake at each stopover.
- If the rod can't be slid into socket easily, try to move the trailer forward s brake is working.
- Never drive with the parking brake applied! This can damage the brake mechanism.

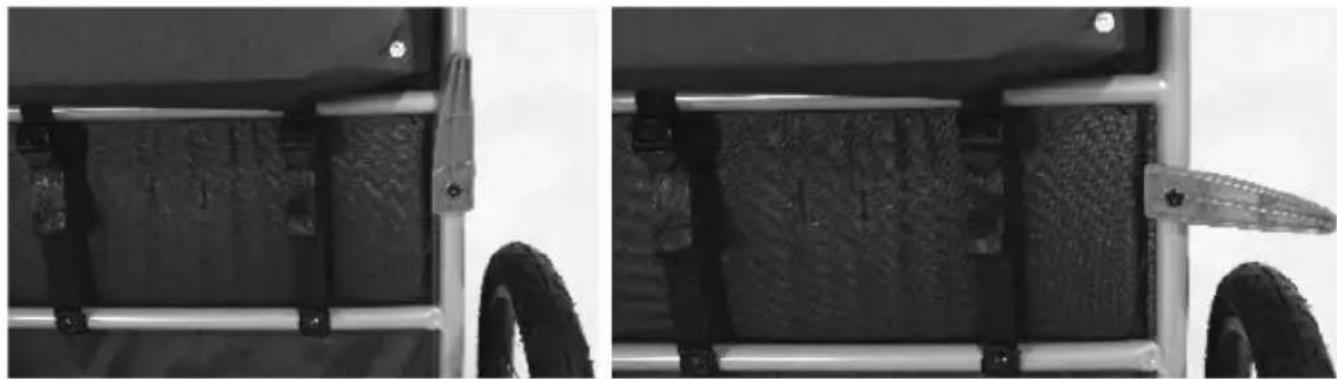

Using The Bumper Guard:

Open and fold the plastic bumper guard by rotation.

Close-up of a mechanical device frame with visible internal components and mounting brackets (no text or symbols)

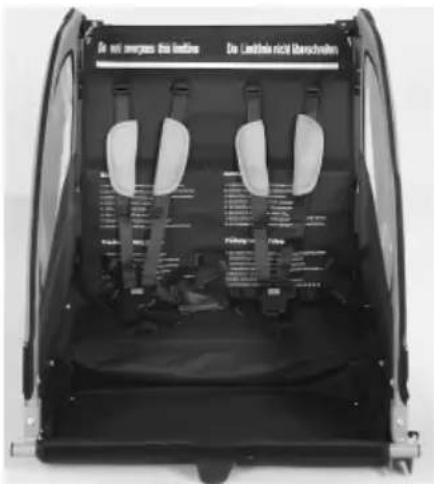

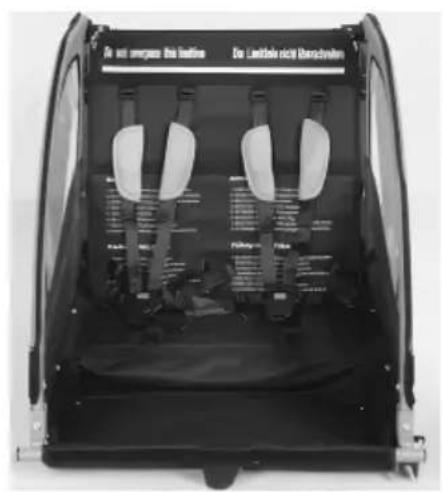

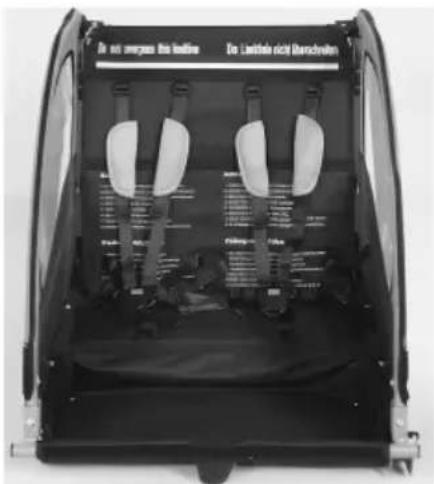

Using The Safety Harness:

1. Unbuckle the should straps from the center of the lap buckle.
2. Seat each child in the center of each passenger compartment.
3. Place the lap buckle between the child's legs.
4. Place the shoulder straps over each child's shoulders with the waist belt the child's arm.

Important: Adjust the straps so the lap buckle meets at the child's stomach.

1. Clip the shoulder straps into the lap belt buckle, and adjust the shoulder

Illustration of two workers in safety gear seated on ladders, wearing helmets and harnesses (no text or symbols)

WARNING:

• Avoid serious injury from falling or sliding out. Always properly secure the passengers with the safety harness.
  • It may be dangerous to leave your child unattended. Never leave your child unattended in or near the bicycle trailer.
• Never transport babies under 6 months or children who cannot yet sit independently.

Attaching The Trailer to Bicycle:

Check whether the towing bike is approved by the manufacturer for towing trailers! Pulling trailers with an unsuitable towing bike can lead to frame fracture and accidents with life-threatening injuries.

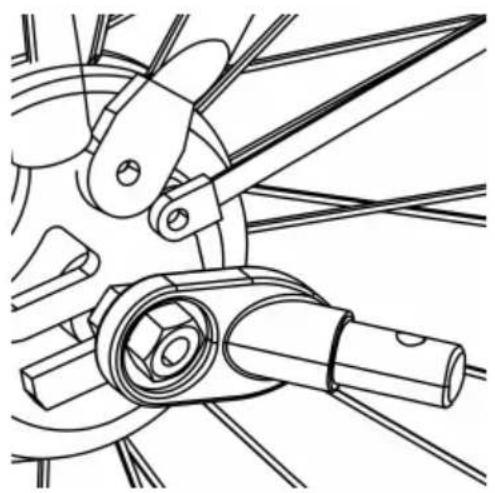

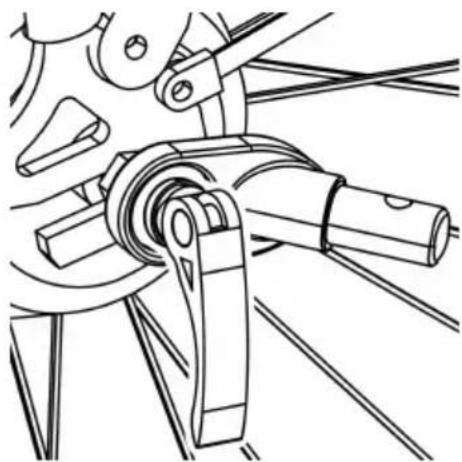

1. Quick-release Axle: Remove the quick-release from the left side of bike rear axle. Install the hitch between the quick-release and frame. Tighten the quick-release following the bike manufacturer's manual. Hitch can remain on the bike when the trailer is removed.

Technical line drawing of a mechanical assembly with no visible text or symbols

WARNING: The tension-adjusting nut must engage the threads for at least full turns in order to ensure adequate clamping force for holding the rear which securely. Failure to tighten the tension-adjusting nut fully may result in accident with serious injury or death. If the quick-release skewer is too short, it must be replaced. Consult a professional bicycle mechanic for the appropriate parts and assistance.

1. Nutted Axle: Unscrew the nut with washer from the left side of bike's install the hitch onto the axle and screw the nut back on with the washer.

Technical line drawing of a mechanical linkage assembly (no text or symbols)

WARNING: The axle nut must engage the threads for at least five full turn order to ensure adequate clamping force for holding the rear wheel securely. Failure to tighten the nut fully may result in accidents with serious injury or the axle is too short, the Universal Hitch cannot be used! Consult a professi bicycle mechanic for the appropriate parts and assistance.

1. Thru Axle: The universal hitch doesn't fit a bike with thru axle. Please the retailer for possible solution.

Mechanical assembly diagram showing a motor and suspension mechanism with no visible text or symbols

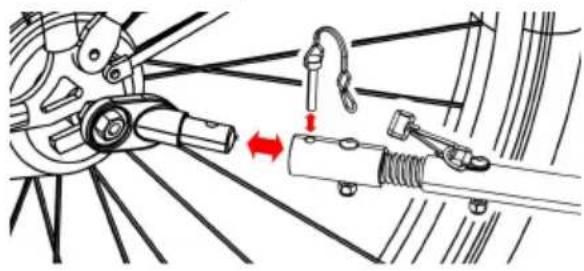

Connect the coupler on the tow ba and secure the safety pin.

Mechanical assembly diagram showing gear and shaft components with red dotted arrows indicating motion or flow paths (no text or labels)

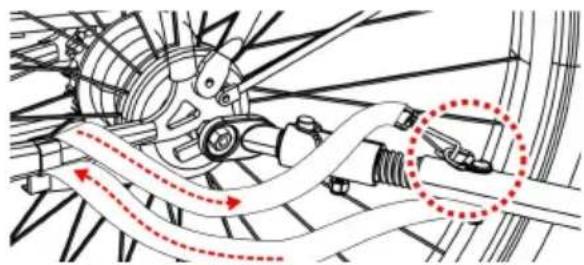

Once the tow bar is attached, wra safety belt around the frame of the bike and hook onto the D-ring on tow bar.

Before You Ride

Check before each use:

1. Wheels are properly secured to the trailer.
2. Tires are inflated to recommended pressure on the tire side wall.
3. Tow bar is properly secured to the trailer.
4. Hitch is properly secured to the bicycle.
5. All safety pins are securely locked in place.
6. Safety strap on the tow bar is properly installed.
7. Make sure that bicycle is in proper working order, especially brakes and (refer to bicycle manufacturer's instructions).
8. Safety flag is in place.

MAINTENANCE

Maintain and clean the trailer regularly to keep it in good condition for a lor

• Check your trailer and accessories regularly for damage and signs of wear.
• Check all metal components for possible breaks or cracks. Do not use the if any metal components are cracked or damaged.
• Check the trailer for bent, defective, missing or loose fasteners or catches. Tighten loose fasteners or catches and replace damaged or missing parts.
• Inspect the fabric regularly for tears, worn spots or other signs of damage.
• Clean the child carrier regularly with warm water and a mild soap solution. use aggressive cleaning agents or solvents.
• Clean the wheel axles and lubricate all exposed moving parts with grease. Always check the wheels and carry out maintenance at least once a year.

Storage:

• Store your trailer and accessories in a dry place out of direct sunlight.
• Before storage, the child carrier must be dry to prevent the formation of n bacteria.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW Australia

Imported to USA: Sanven Technology Ltd. Suite 250. 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Black and white photo of a two-wheeled baby dog car with a transparent cover, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠ AVERTISSEMENT

Technical line drawing of a mechanical tool with a curved handle and flanged base (no text or symbols)

Two identical bicycle wheel rim designs with ornate side frames (no text or symbols)

1 x cadre principal

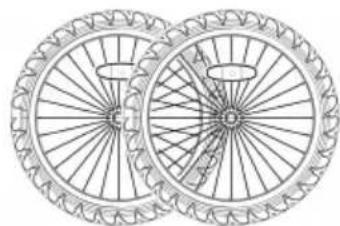

2 x Roues

Line drawing of a curved mechanical component with two side brackets (no text or symbols)

1 x roue avant

Simple line drawing of a right triangle and a curved line with a loop (no text or symbols)

VEVOR HOLDEN'S MERRY & CABBAGE VAVEL GOURD FLOWER GREEN SHEET & CHEESE OLD BICYCLEAN TENDER RICH COOKING ITEMS 2014 THE WORLD IN A BOOK OF THE TOMATO (MILK) AVERAGE DAILY VOL (000) 1,000 TEAS A SHARE YEAR END OF THE STOCKS BETA CHEESE OIL BETA CHEESE OIL BETA CHEESE OIL BETA CHEESE OIL BETA CHEESE OIL BETA CHEESE OIL BETA CHEESE OIL BETA CHEESE OIL BETA CHEESE OIL BETA CHEESE OIL BETA CHEESE OIL BETA CHEESE OIL BETA CHEESE OIL BETA CHINESE CHEESE OIL BETA CHINESE CHEESE OIL BETA CHINESE CHEESE OIL BETA CHINESE CHEESE OIL BETA CHINESE CHEESE OIL BETA CHINESE CHEESE OIL BETA CHINESE CHEESE OIL BETA CHINESE CHEESE OIL BETA CHINESE CHEESE OIL BETA CHINESE CHINESE CHEESE BETA CHINESE CHINESE CHEESE BETA CHINESE CHINESE CHEESE BETA CHINESE CHINESE CHEESE BETA CHINESE CHINESE CHEESE BETA CHINESE CHINESE CHEESE BETA CHINESE CHINESE CHEESE BETA CHINESE CHINESE CHEESE BETA CHINESE CHINESE CHEESE BETA CHEESE CHEESE OIL BETA CHEESE CHEESE OIL BETA CHEESE CHEESE OIL BETA CHEESE CHEESE OIL BETA CHEESE CHEESE OIL BETA CHEESE CHEESE OIL BETA CHEESE CHEESE OIL BETA CHEESE CHEESE OIL BETA CHEESE CHEESE OIL BETA CHEESE CHEESE OIL

1 x drapeau

HOW TO ASSEMBLE AND USE

Dépliez le cadre :

Diagram of a mechanical device with a red curved arrow indicating direction, no text or symbols present

Crossing

Technical diagram showing two mechanical components with red and green checkmarks indicating selection or tolerance points.

Two-panel image showing a hand adjusting fabric with red arrows pointing to the interior of a black mechanical device (no text or symbols visible)

Fixez l'auvent :

Three-panel image showing a car body with a transparent vent, back cover, and side panel (no visible text or symbols)

Mechanical assembly diagram showing a hand operating a pipe with a valve, alongside a close-up of a cylindrical component with red arrows indicating movement or force (no text or symbols present)

Three-panel diagram showing a black plastic panel being adjusted, with red arrows pointing to the adjustment section (no text or symbols present)

Simple line drawing of a U-shaped pipe or clamp with a cylindrical rod, labeled 'Open' below (no other text or symbols)

Simple line drawing of a locked mechanical component (no text or symbols)

Hand holding a vertical object with a red arrow pointing upward, against a plain wall (no text or symbols visible)

Close-up of a car interior with a red arrow pointing to the window, no visible text or symbols

Close-up of hands installing or adjusting a black mechanical component with bolts (no visible text or symbols)

Close-up of a gray baby seat with black handle and red arrows pointing to the side (no text or symbols)

Side-by-side comparison of a baby stroller with adjustable arm and seat, showing front and side views (no text or symbols)

Front view of a toy car with wheels and a red arrow indicating downward motion (no text or symbols)

Close-up of a bicycle brake system with suspension and wheel (no visible text or symbols)

Close-up of a mechanical device with visible internal components and mounting brackets (no text or symbols)

Illustration of two workers in safety gear seated on ladders (no text or symbols)

AVERTISSEMENT :

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical assembly diagram showing a wheel connected to a spring and connecting rod (no text or labels)

Connect the coupler on the tow ba and secure the safety pin.

Mechanical assembly diagram showing gear and shaft components with red dotted arrows indicating motion or flow (no text or labels)

Once the tow bar is attached, wra safety belt around the frame of the bike and hook onto the D-ring on tow bar.

Before You Ride

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

KINDERFAHRRADANHÄNGER

MODELL: JBT03A 2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Black and white photo of a two-wheeled baby dog car with a transparent cover, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ WARNING

Technical line drawing of a mechanical tool with a curved handle and flange (no text or symbols)

Two bicycle wheel rim designs with ornate frame patterns (no text or symbols)

1 x Hauptrahmen

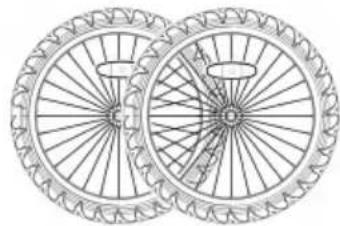

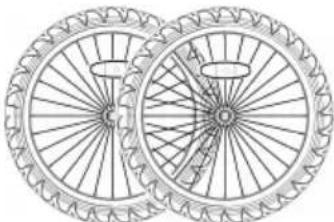

2 x Räder

Line drawing of a curved mechanical component with two side clips (no text or symbols)

1 x Vorderrad _

1 x Griffstange _

Simple line drawing of a right triangle and a curved line (no text or symbols)

VEVOR Dialysis: Vee's 100% PAG Commercialized by: Vee CHILD BICYCLE THUNDER Product: 2014

1 x Flagge

HOW TO ASSEMBLE AND USE

Diagram of a mechanical device with a red curved arrow indicating direction, no text or symbols present

Crossing

Technical diagram showing two mechanical clamp designs with red and green checkmarks indicating selection or validation points.

Two-panel image showing a hand holding fabric with red arrows pointing to a dark panel, no visible text or symbols.

Person operating a car wheel system with a hand adjusting the handle (no visible text or symbols)

Technical diagram showing two mechanical assembly steps: left with a bolt and red arrow indicating direction, right with a pipe fitting and red arrow indicating displacement (no text or symbols)

Close-up of a black metal panel with a red arrow pointing to a small component (no text or symbols visible)

Close-up of a mechanical component with a red arrow pointing to a detail (no visible text or symbols)

Exterior view of a mechanical device with attached cable and lever (no visible text or symbols)

Simple line drawing of a U-shaped pipe with a cylindrical rod, labeled 'Open' below (no other text or symbols)

Simple line drawing of a locked mechanical component (no text or symbols)

Hand holding a vertical object with a red arrow pointing upward, next to a dark object on a surface (no text or symbols visible)

Close-up of a car interior with a red arrow pointing to the window, no visible text or symbols

Close-up of hands installing or adjusting a mechanical component with a black bracket (no visible text or symbols)

Close-up of a gray baby seat with black handle and side buttons, no visible text or symbols

Side-by-side comparison of a baby stroller with adjustable arm and handle, showing front and side views (no text or symbols)

Side-by-side photos of a bicycle stroller and its rear wheel assembly, both showing red arrows indicating components (no text or symbols present)

Close-up of a black and silver vehicle chassis frame with visible mesh insulation and wheels (no text or symbols)

Illustration of two workers in safety gear seated on ladders (no text or symbols)

WARNUNG :

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Mechanical assembly diagram showing a motor, gear, and spring mechanism (no text or labels)

Connect the coupler on the tow ba and secure the safety pin.

Mechanical assembly diagram showing gear and shaft components with motion arrows (no text or labels)

Once the tow bar is attached, wra safety belt around the frame of the bike and hook onto the D-ring on tow bar.

Before You Ride

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Black and white photo of a two-wheeled baby dog car with a transparent canopy cover, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ATTENZIONE

HOW TO ASSEMBLE AND USE

Aprire il telaio :

Diagram of a mechanical device with a central rotating component and a red curved arrow indicating rotation (no text or symbols present)

Crossing

Technical diagram showing two mechanical clamp designs with red and green checkmark indicators

Two-panel image showing a hand adjusting fabric with red arrows pointing to the interior of a device (no text or symbols visible)

Three-panel image showing a car cab with a transparent hood, its back cover, and its side panel (no visible text or symbols)

Collegare le ruote posteriori:

Close-up of a black plastic panel with a red arrow pointing to a small component (no text or symbols visible)

Close-up of a hand holding a tool near a metal bracket, with a red arrow pointing to a detail (no visible text or symbols)

Exterior view of a mechanical device with a lever and attached bracket (no visible text or symbols)

Hand holding a vertical object with a red arrow pointing upward, against a plain wall (no text or symbols visible)

Close-up of a car interior with a red arrow pointing to the window, no visible text or symbols

Close-up of hands installing or adjusting a black mechanical component with bolts (no visible text or symbols)

Close-up of a gray baby seat with black handle and red arrows pointing to the side (no text or symbols)

Side-by-side comparison of a stroller seat with adjustable arm and handle, showing front and side views (no text or symbols)

Front view of a gray children's cart with black wheels and a red arrow pointing to the side (no text or symbols visible)

Close-up of a bicycle brake system with suspension and wheel (no visible text or symbols)

Close-up of a mechanical device frame with visible structural components and wheels (no text or symbols)

Illustration of two workers in safety gear seated on a ladder, wearing helmets and harnesses (no text or symbols)

AVVERTIMENTO :

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Mechanical assembly diagram showing a lever mechanism and spring-loaded actuator (no text or labels)

Connect the coupler on the tow ba and secure the safety pin.

Mechanical assembly diagram showing gear and shaft components with red dotted arrows indicating motion or flow (no text or labels)

Once the tow bar is attached, wra safety belt around the frame of the bike and hook onto the D-ring on tow bar.

Before You Ride

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

PRZYCZEPKA ROWEROWA DLA DZIECI

MODEL: JBT03A 2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Black and white photo of a two-wheeled baby dog car with a transparent cover, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠️ OSTRZEŻENIE

HOW TO ASSEMBLE AND USE

Rozłóż ramę :

Diagram of a mechanical device with a curved component and directional arrow, no visible text or symbols

Crossing

Diagram showing two types of mechanical clamps with red and green checkmark indicators, one marked with a red line and the other with a red X.

Two-panel image showing a hand adjusting fabric with red arrows pointing to the interior of a black mechanical device (no text or symbols visible)

Zamocuj baldachim:

Exterior view of a modern dog-drawn car with transparent frame and side-mounted wheels (no text or symbols visible)

M. 2016 Sarban M. 2016 Sarban

Mechanical assembly diagram showing a hand operating a tire with a pipe, alongside a close-up of a mechanical component with red arrows indicating movement (no text or symbols present)

Close-up of a black metal panel with a red arrow pointing to a small component (no text or symbols visible)

Close-up of a sewing machine needle stitching fabric, with a red arrow pointing to the needle (no text or symbols visible)

Exterior view of a black rectangular device with attached cable and mechanical components (no visible text or symbols)

Hand holding a vertical object with a red arrow pointing upward, against a plain wall (no text or symbols visible)

Close-up of a car interior with a red arrow pointing to the window, no visible text or symbols

Close-up of hands adjusting a black mechanical component with bolts (no visible text or symbols)

Close-up of a gray baby stroller with black handle and red arrows pointing to the side (no text or symbols visible)

Side-by-side comparison of a stroller seat with adjustable arm and handle, showing front and side views (no text or symbols)

Front view of a gray children's cart with black wheels and a red arrow pointing to the side (no text or symbols visible)

Close-up of a bicycle brake system with suspension and wheel (no visible text or symbols)

Close-up of a mechanical vehicle chassis showing front and side views with visible mesh and tire details (no text or symbols)

Illustration of two workers in safety gear seated on ladders, wearing helmets and harnesses (no text or symbols)

OSTRZEŻENIE :

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Mechanical assembly diagram showing a lever mechanism and spring-loaded actuator (no text or labels)

Connect the coupler on the tow ba and secure the safety pin.

Mechanical assembly diagram showing gear and shaft components with red dotted arrows indicating motion or flow paths (no text or labels)

Once the tow bar is attached, wra safety belt around the frame of the bike and hook onto the D-ring on tow bar.

Before You Ride

Import do AUS: SIHAO PTY LTD . 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Import do USA: Sanven Technology Ltd. Apartament 250 . 9166 Anaheim Pl Rancho Cucamonga, Kalifornia 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

KINDERFIETSKAR

MODEL: JBT03A 2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Black and white photo of a two-wheeled baby dog car with a transparent canopy cover, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

⚠ WAARSCHUWING

HOW TO ASSEMBLE AND USE

het frame uit :

Diagram of a mechanical component with a red curved arrow indicating direction, no text or symbols present

Crossing

Technical diagram showing two mechanical components with red and green checkmarks indicating selection or tolerance points.

Two-panel image showing a hand adjusting fabric with red arrows pointing to the interior of a black leather or cushioned device (no text or symbols visible)

Bevestig de luifel:

Three-panel image showing a car's front view of a vehicle chassis, its internal compartments, and a back cover with visible branding (no readable text or symbols)

Person operating a mechanical device with a hand adjusting the lever (no visible text or symbols)

Technical diagram showing two mechanical assembly steps: left with a bolt and red arrow indicating direction, right with a threaded rod inserted (no text or symbols)

Close-up of a black metal panel with a red arrow pointing to a small component (no text or symbols visible)

Close-up of a sewing machine needle stitching fabric with a red arrow pointing to the needle (no text or symbols visible)

Exterior view of a mechanical device with attached cable and bracket (no visible text or symbols)

Simple line drawing of a U-shaped pipe with a cylindrical rod and looped ends, labeled 'Open' below (no other text or symbols)

Simple line drawing of a locked mechanical component (no text or symbols)

Hand holding a vertical pole with a red arrow pointing upward, next to a dark object (no text or symbols visible)

Close-up of a car interior with a red arrow pointing to the window, no visible text or symbols

Close-up of hands installing or adjusting a black mechanical component with bolts (no visible text or symbols)

Close-up of a gray baby seat with black handle and red arrows pointing to the side (no text or symbols)

Side-by-side comparison of a stroller seat with adjustable arm and handle, showing front and side views (no text or symbols)

Side-by-side photos of a baby stroller and bicycle wheel assembly, showing structural components with red arrows indicating parts (no text or symbols present)

Close-up of a mechanical frame with visible internal components and mounting brackets (no text or symbols)

Illustration of two workers in safety gear seated on ladders (no text or symbols)

WAARSCHUWING :

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Mechanical assembly diagram showing a lever mechanism and spring-loaded actuator (no text or labels)

Connect the coupler on the tow ba and secure the safety pin.

Mechanical assembly diagram showing gear and shaft components with red dotted arrows indicating motion or flow paths (no text or labels)

Once the tow bar is attached, wra safety belt around the frame of the bike and hook onto the D-ring on tow bar.

Before You Ride

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

BARNCYKELVAGN

MODELL: JBT03A 2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Black and white photo of a two-wheeled baby dog car with a transparent canopy cover, no visible text or symbols.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING

HOW TO ASSEMBLE AND USE

Vik ut ramen :

Diagram of a mechanical component with a curved arrow indicating direction, no text or symbols present

Crossing

Technical line drawing of a mechanical clamp with red and green checkmarks indicating selection (no text or symbols)

Close-up of a hand adjusting fabric with red arrows pointing to the seam detail (no text or symbols visible)

Fäst kapellet:

Three-panel image showing a car hatch-in kit with transparent panels, back cover, and side panel (no visible text or symbols)

Fäst bakhjulen:

Mechanical assembly diagram showing a hand operating a wheel switch inside a vehicle chassis, with a close-up of the component being inserted into a cylindrical tube (no text or symbols present)

Simple line drawing of a mechanical clamp or clip with a cylindrical rod and curved handle, labeled 'Open' below (no other text or symbols)

Line drawing of a locked mechanical component with a cylindrical shaft and rope (no text or symbols)

Hand holding a vertical pole with a red arrow pointing upward, next to a dark object on a surface (no text or symbols visible)

Close-up of a car's front window with a red arrow pointing to the side panel, no visible text or symbols

Close-up of hands installing or adjusting a mechanical component with a black bracket (no visible text or symbols)

Close-up of a baby stroller with black handle and buttons, showing front panel and side buttons (no text or symbols visible)

Side-by-side comparison of a car's seatbelt device, showing front and side views with red directional arrows (no text or symbols)

Front view of a gray and black toy car with wheels and a red arrow pointing to the side (no text or symbols visible)

Close-up of a bicycle brake system with suspension and wheel (no visible text or symbols)

Close-up of a mechanical frame with visible internal components and mounting brackets (no text or symbols)

Illustration of two workers in safety gear seated on ladders (no text or symbols)

WARNING :

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical linkage assembly (no text or symbols)

Mechanical assembly diagram showing a linkage mechanism with springs and a valve (no text or labels)

Connect the coupler on the tow ba and secure the safety pin.

Mechanical assembly diagram showing gear and shaft components with red dotted arrows indicating motion or flow (no text or labels)

Once the tow bar is attached, wra safety belt around the frame of the bike and hook onto the D-ring on tow bar.

Before You Ride

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
