HC-1005 - Pump Vevor - Free user manual and instructions

Product Type	Manual Well Pump
Brand	Vevor
Model	HC-1005
Maximum Suction Distance	7.6 m (25 ft)
Lower Internal Thread Size	G1-5/8"
Base Diameter	185 mm (7.3 in)
Mounting Dimensions	3 holes of Φ8 mm, center distance 148 mm
Recommended Use	Non-potable water pumping only
Priming	Requires manual priming before each use
Safety	Wear safety glasses; do not modify pump; do not let freeze
Maintenance	Inspect regularly for wear; store in a dry place out of reach of children
Hose Connection	NPT 1-1/4 in thread
Spare Parts	Available via assembly diagram; contact manufacturer for replacement
Warranty	Electronic certificate at www.vevor.com/support
Manufacturer	Shanghai Muxin Muye Youxiangongsi, Shanghai, China
CE Representative	E-CrossStu GmbH, Frankfurt am Main
UK Representative	YH CONSULTING LIMITED
USA Importer	Sanven Technology Ltd.

Frequently Asked Questions - HC-1005 Vevor

How to prime the HC-1005 pump?

Before each use, pour about one liter of water into the pump while moving the handle up and down. Continue pumping without stopping until you get a steady flow.

Can this pump be used for drinking water?

No, this pump is designed for non-potable water pumping only. Do not use it for water intended for consumption.

What is the maximum suction distance?

The maximum suction distance is 7.6 meters (25 feet).

How to install the pump?

Place the base on a flat, stable surface. Attach the water supply hose (NPT 1-1/4 in thread) to the bottom, then screw the base onto a stable surface using the mounting holes (3 holes of Φ8 mm, center distance 148 mm).

What to do if the pump loses prime?

If you stop pumping, the pump will lose prime. You will then need to re-prime it by pouring water and pumping again. Do not stop pumping until you have finished.

What are the important safety instructions?

Always wear safety glasses when using. Never modify the pump. Do not let water freeze inside the pump. Keep children and pets away.

How to maintain the pump?

Inspect the pump regularly for any signs of wear or damage. Store it in a dry, secure place. Clean it with a damp cloth if necessary.

Which parts are replaceable?

The manual provides an assembly diagram with a parts list. Repairs should be performed by a certified technician. Contact the manufacturer or your dealer for spare parts.

Where to find the warranty certificate?

The electronic warranty certificate is available at www.vevor.com/support.

What type of hose should I use?

Use a hose with NPT 1-1/4 inch thread to connect the water supply to the pump base.

USER MANUAL HC-1005 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HAND WELL PUMP

OPERATION MANUAL

MODEL:HC-1005

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: HC-1005

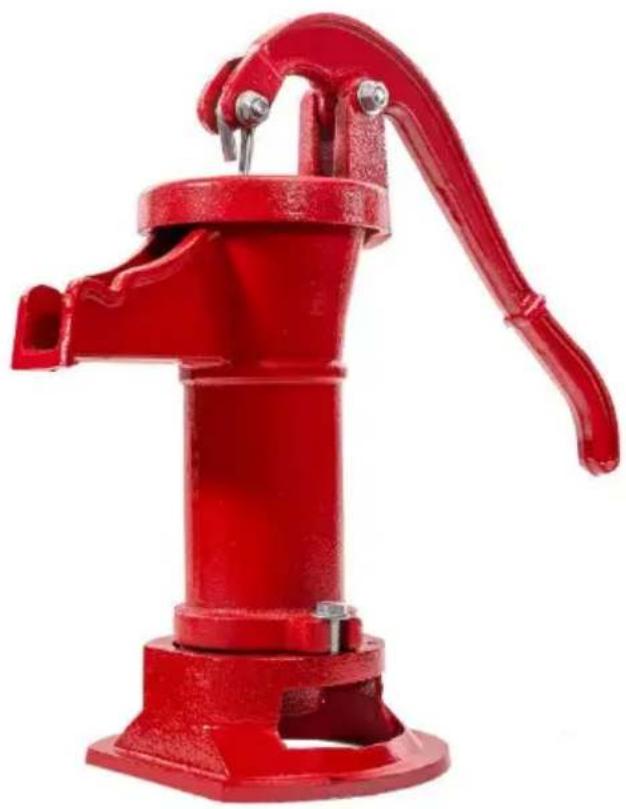

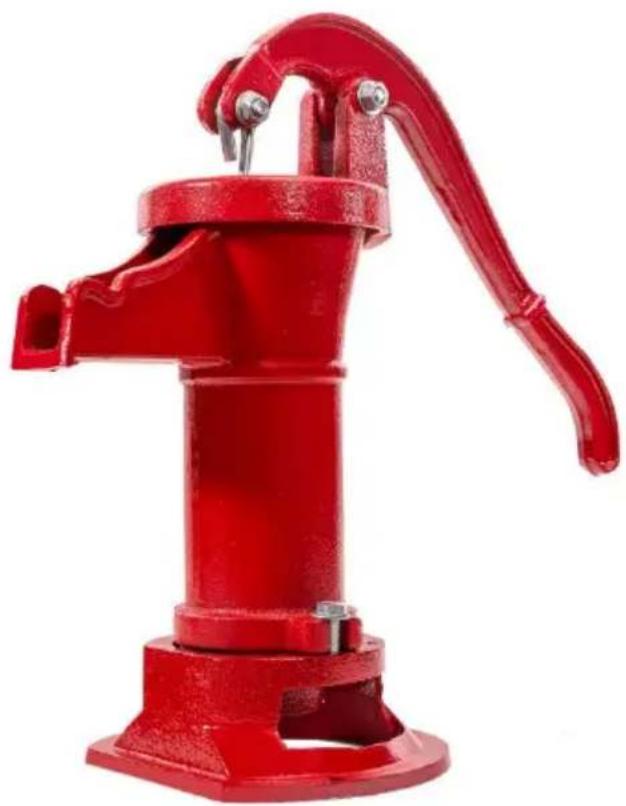

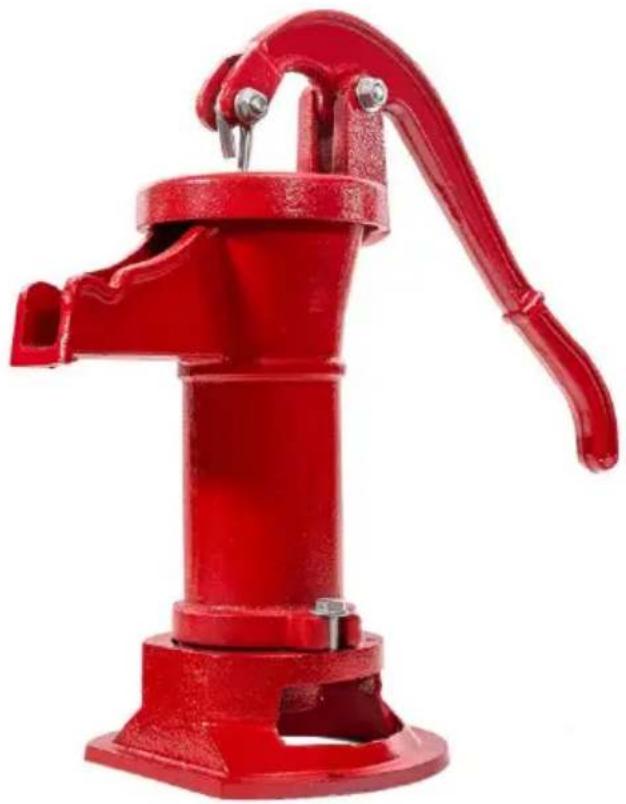

Red hand pump device with handle and base, isolated on white background (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY WARNINGS

WARNING

Read all safety warnings and instructions. Failure to follow the warning and instructions may result in injury and/or property damage. Save all warnings and instructions for future reference.

The warning and safety instructions in this manual are not meant to all possible conditions and situations that may occur. Common sense, caution and care must be exercised when operating or cleaning tools equipment.

Always contact your dealer, distributor, service agent or manufacturer about problems or conditions you do not understand before operating product.

- Keep the work area clean and well lit. A cluttered work area r cause accidents. Never allow children to use this product. When operating this product, keep children and animals at a safe distan from the work area.

- When not in use, store product in a secure, dry and safe place. storage area should be out of the reach of children. Maintain this product with care.

- WARNING: This product contains or, when used, produces a cher known to the State of California to cause cancer and birth defect other reproductive harm. (California Health & SAFETY CODE § 25249.5, ET SEQ.)

- Use for pumping water only.

- Do not modify the pump.

- Do not allow pump to freeze.

- Periodically inspect pump for wear or damaged parts. Discontinue if worn or damaged.

● Wear safety glasses at all times when working with the Pitcher Pu
- Do not modify the machine.
- Use for pumping water only.
- Do not modify the machine.

SAVE THESE WARNINGS.

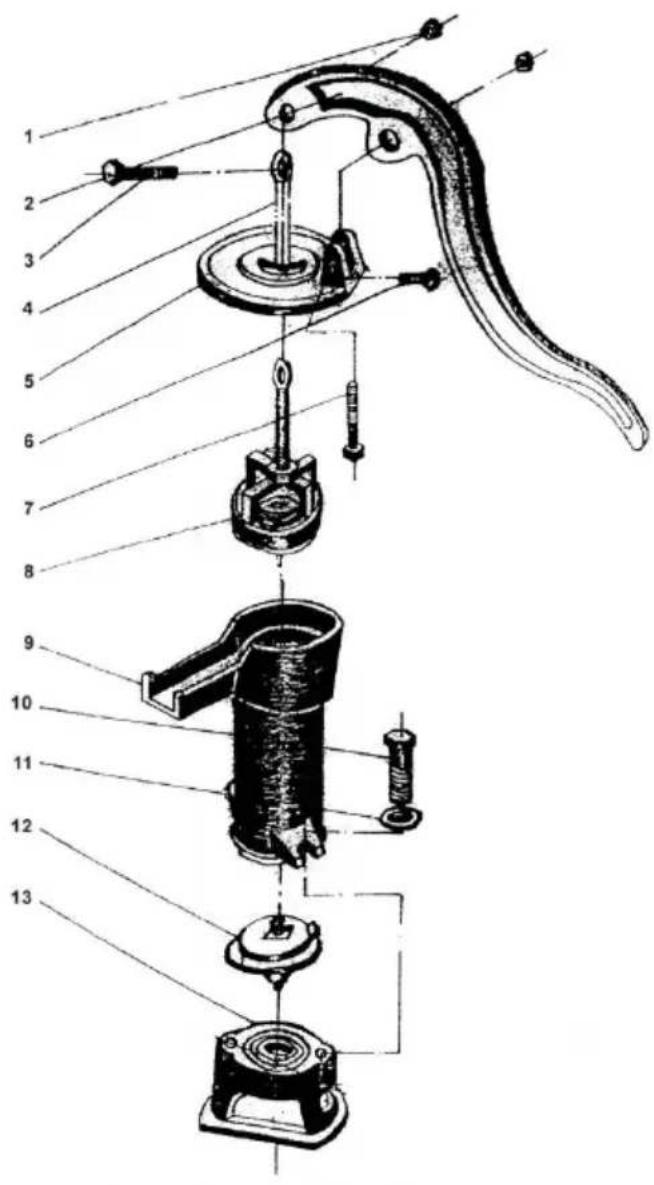

PARTS INFORMATION

Part	Description	Qty
1	Nut M8	2
2	Handle	1
3	Bolt M8 x 30	1
4	Galvanized rod	1
5	Cover	1
6	Bolt M8 x 20	1
7	Bolt M8 x 40	1
8	Piston Assembly	1
9	Cylinder	1
10	Bolt M10 x 40	2
11	Washer M10	2
12	Valve Assembly	1
13	Base	1

SPECIFICATIONS OF THE PRODUCTS

Model	HC-1005
Max suction distance	7.6 m (25 ft)
Bottom internal thread caliber	G1-5/8"
Base diameter	185mm (7.3")
Mounting dimension	Bottom: 3*Φ8mm;Hole distance: 148mm

1. Place the base (13) on a smooth, flat surface.
2. Set the 2. Valve Assembly (12) in the circle groove of the Base will only fit with the metal plate up.
3. Put the Cylinder (9) on the Valve Assembly (12). Line up the Cylinder so that the bolt holders on each side of sit over the two drilled openings, the Base (13). The spout on the Cylinder (9) should rest over the floor of the Base (13).
4. Slip a Bolt (10) and a Washer (11) into the bolt holder on the Hand tighten. Repeat the procedure on the other side. Then, wrench tighten both bolts (10).
5. Set the Piston Assembly (8) with the screw eyelet up, down into Cylinder (9).

6. Put the Cover (5) onto the Cylinder (9) so the screw eyelet on the Assembly (8) fits through the opening in the center of the cover (5). Large bolt hole on the Cover (5) should sit opposite the spout on the Cylinder (9) with a crescent wrench, tighten the large bolt (6) on the (5) opposite the spout.

7. Attach the 7. Handle (2) to the Piston Assembly (8) using a Bolt Nut (1). Make sure the hole on the Handle (2) that attaches to the rests between the bolt housing on the Cover (5). If necessary, rotate the screw eyelet on the Piston Assembly (8) to find the best fit. Tig Nut (1). Next, run the Bolt (7) through the bolt housing on the Cove the Handle (2) and tighten the Nut (1).

8. Attach 1-1/4" NPT threaded water source pipe onto the threaded in the bottom of the pump.
9. Secure the pump by screwing the base into a stable surface.

OPERATION

1. This pump needs to be primed before every use. Keep a pitcher (included) of water near the pump for this purpose. Pump the handle down while pouring about a quart of water into the top of the pump it and start the water flow.

NOTE: DO NOT STOP PUMPING THE HANDLE UNTIL FINISHED.

Stopping, even momentarily, will cause the pump to lose its prime and longer work until primed again.

1. Do not pump drinking water from this pump.

The manufacturer and/or distributor has provided the parts list and assembly diagram in this manual as a reference tool only. Neither the manufacturer nor distributor makes any representation or warranty of a kind to the buyer that he or she is qualified to make any repairs to product or that he or she is qualified to replace any parts of the product, the manufacturer and/or distributor expressly states that all repairs and parts replacements should be undertaken by certified and licensed technicians and not by the buyer. The buyer assumes all risk and lia arising out of his or her repairs to the original product or replacement thereto or arising out of his or her installation of replacement parts th

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
