USER MANUAL FF-920 Vevor

Affordable. Reliable. Home Improvement.

METAL FUEL CADDY

MODEL:FF-920

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

METAL FUEL CADDY

MODEL:FF-920

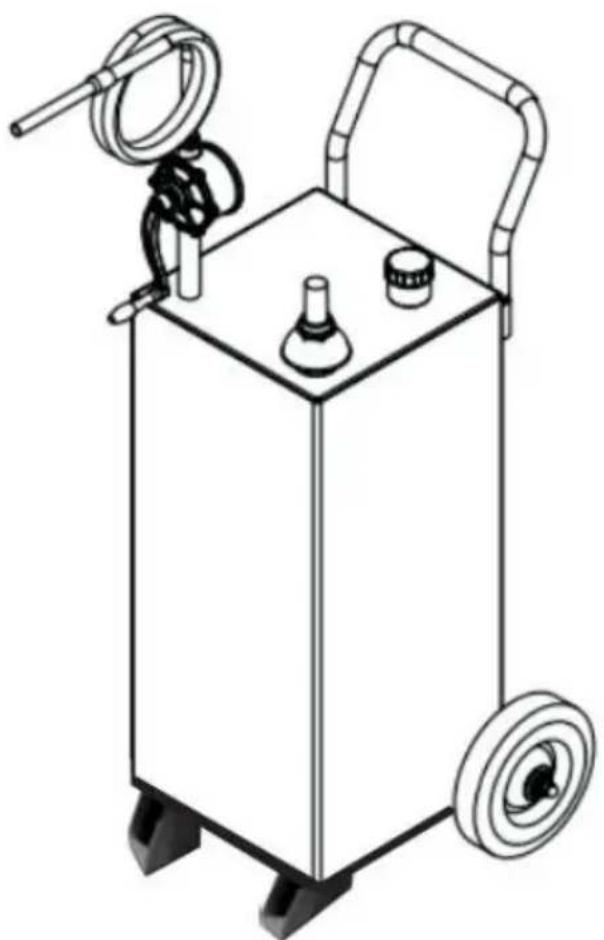

Line drawing of a portable electric shaver with wheels and a handle (no text or symbols)

NOTE: The product height effect in the picture is for reference only, refer to your purchase.

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

2. Failure to follow the safety rules and other basic safety precautions result in serious personal injury.

GENERAL SAFETY RULES

When using this product, basic precautions should always be followed, including the following;

• This product is not intended for use by persons (including children) reduced physical, sensory or mental capabilities, or lack of experien and knowledge, unless they have been given supervision or instruct concerning using the product by a person responsible for their safe
• Do not use this product for anything other than intended use.
• Wear proper protection equipment when installing or using this produ
• Ensure all fittings and threaded connections are tightened and leak-fr before operating.

A DANGER!

Fuels are extremely flammable. Keep away from heat sparks, and open flame.

• Do not use electronics or mobile communications devices such as mobile phones when pumping flammable liquids.
• Attach ground wire and bond containers that are being pumped from and into. Ground all containers to a known ground source to dissi static electricity before pumping liquids.
• Fuel vapors can explode. Harmful or fatal if swallowed. Avoid breath in fuel vapors.

• Do not smoke near or while using the fuel caddy.

• This product is intended for fuel transfer only and is not intended to used to transport fuel in any vehicle or trailer.

• Do not modify this product.

A WARNING! CAUTION! ATTENTION!

• Do not use this product for prop-longed fuel storage.
• Use a caddy for one type of fuel only to avoid possible damage
  • Monitor flow rate and fill level to prevent overflows and spills.
  • Always empty the pump and hose after using the caddy. Lift hose and turn the handle to the opposite direction to empty remaining liquid back into the caddy.
• Caution when filling the caddy through the fill tube. Monitor closely to prevent overflows or spills.

Never use the fuel caddy near open flames or heat sources.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	FF-920
Capacity	20 Gallons
Fuel Type	Gasoline, Diesel
Pump	Hand
Max. Flow	15 L(4GPM)/100rpm
Hose	Φ19(Inside Diameter)xL300cm
Wheel	8"(Back)
Material	Steel
Color	Red

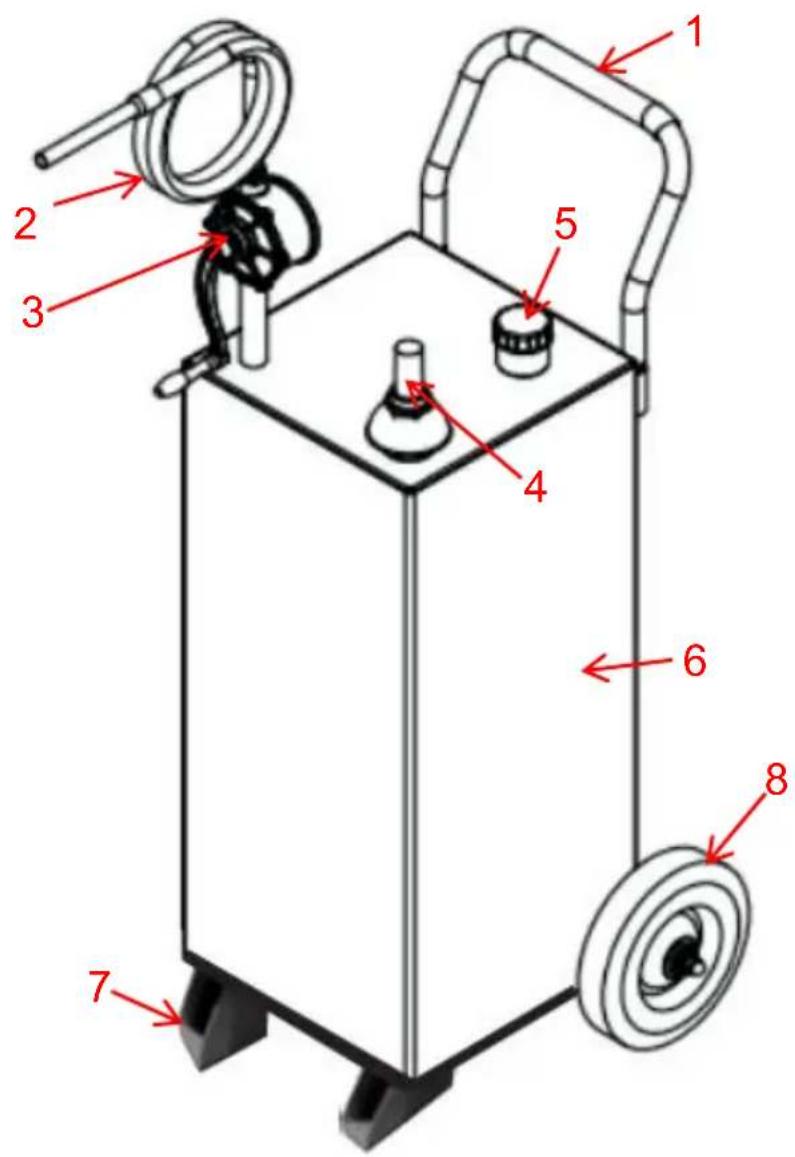

Technical diagram of a mechanical device with numbered components and labeled parts

1. Handle 2. Hose 3. Pump 4. Oil gauge 5. Fuel inlet Cap
2. Fuel Tank 7. Supporting Foot 8. Fixed Wheel

COMPONENTS

No.	Picture	Name and Qty	No.	Picture	Name and Qty
1		Fuel Tank(x1)	11		Raw Tape(x1)
2		Handle (x1)	12		Hose Clamp (x2)
3		Wheel (x2)	13		Wheel shaft (x1)
4		Oil Hose (x1)	14		Oil Gauge Fixing Nut (x1)
5		Outlet pipe(x1)	15		Oil gauge (x1)
6		Oil Pump(with handle and ground lead) (x1)	16		Hose Fitting(x1)
7		Supporting Foot (x2)	17		Flat Gasket(x4)
8		Nut M8 (x10)	18		Acorn Nut M12(x2)
9		Bolt M8*16 (x2)	19	/	User Manual(x1)
10		Bolt M8*40 (x2)

ASSEMBLY

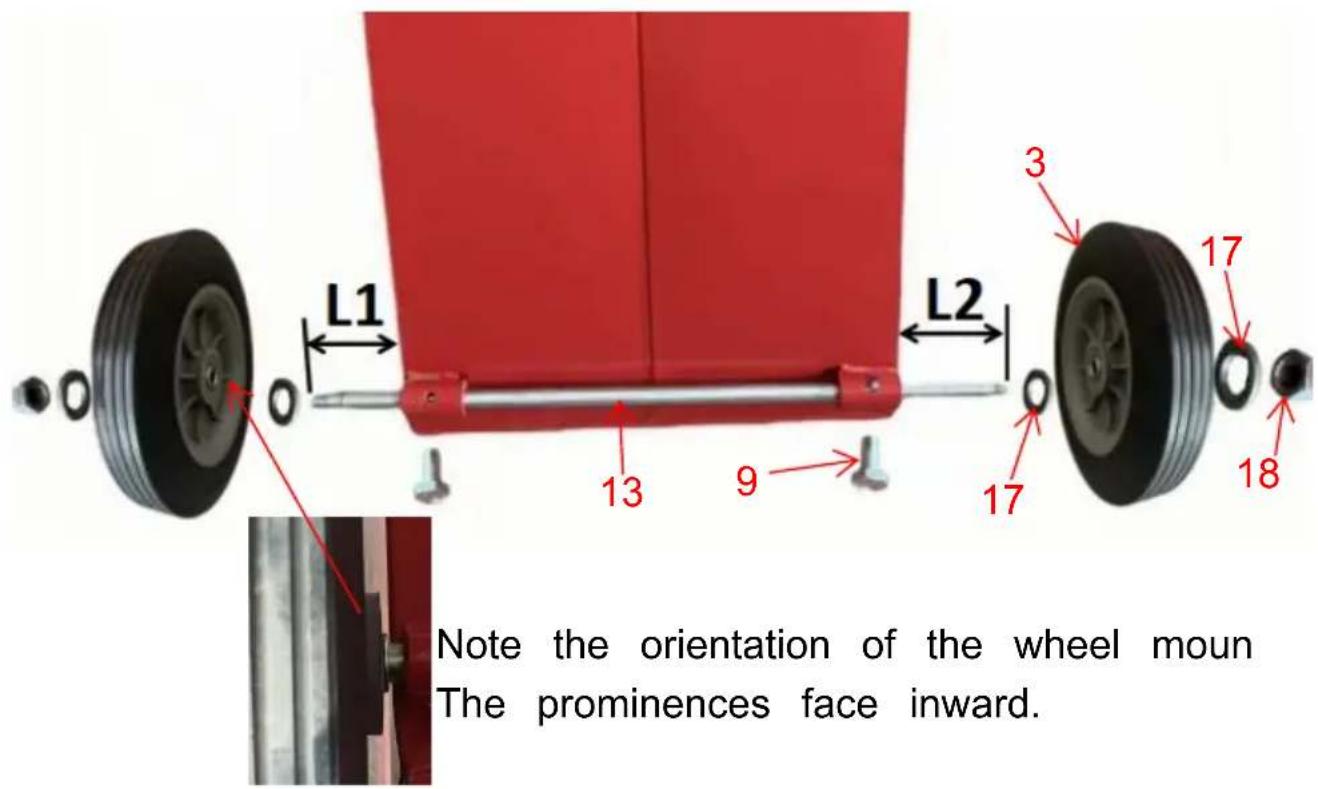

Step1: Install the fixed wheels. Screw the wheel shafts(13) into the fuel tank, ensure that the dimensions of both ends (L1 and L2) are the Fasten the wheel shaft with bolts(9).

Put the gasket(17) + wheel(3) + gasket(17)+ nut(18) in turn and lock

L1 L2 3 17 18 13 9 Note the orientation of the wheel moun The prominences face inward.

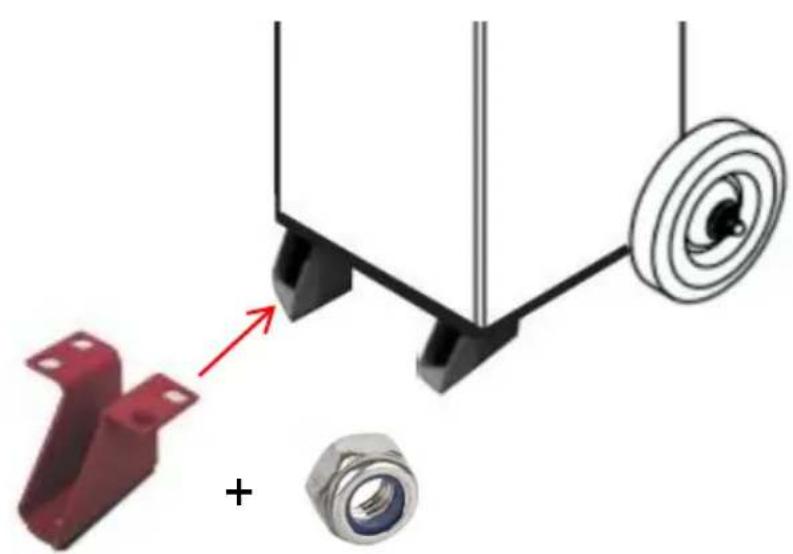

Step2: Install the front supporting foot(7) and screw the nuts(8).

Mechanical assembly diagram showing a red bracket and a black frame with a white wheel, plus a separate nut (no text or symbols)

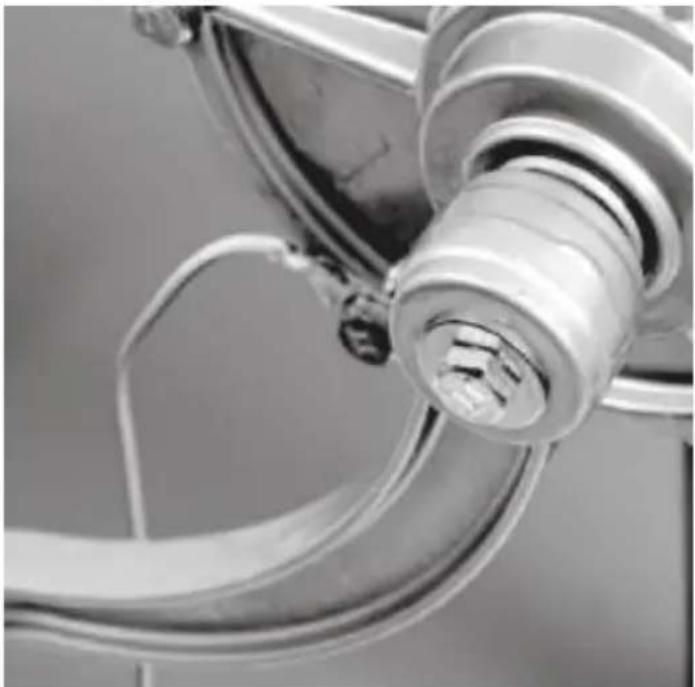

Step3: Attach the pump handle to the oil pump.

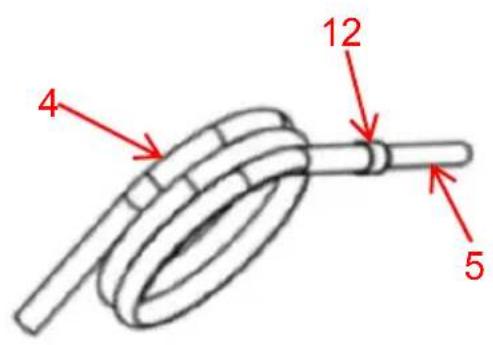

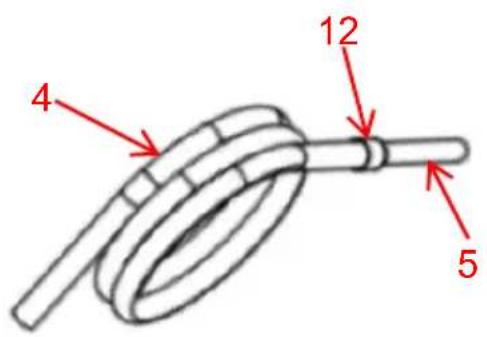

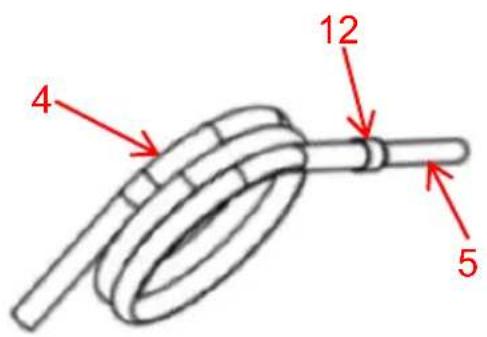

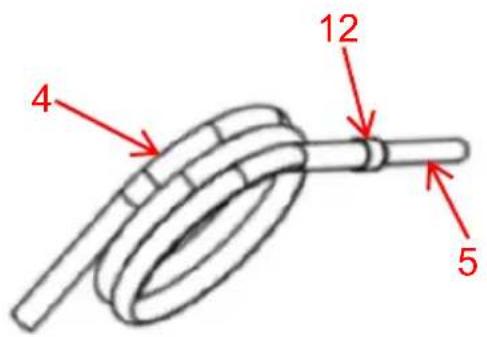

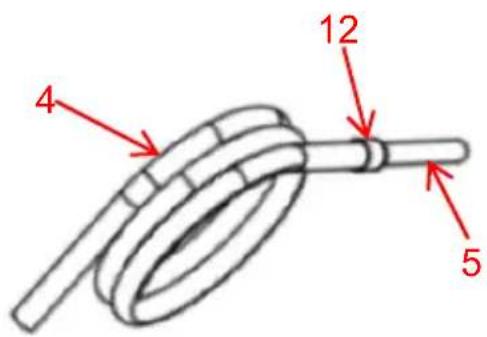

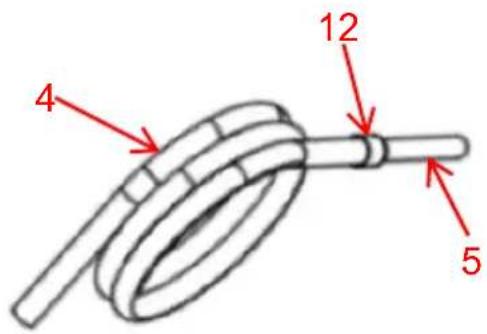

Install the outlet pipe(5) at one end of the oil hose and lock it with clamp (12).

Close-up of a metallic mechanical component with curved and straight ends (no visible text or symbols)

4 12 5

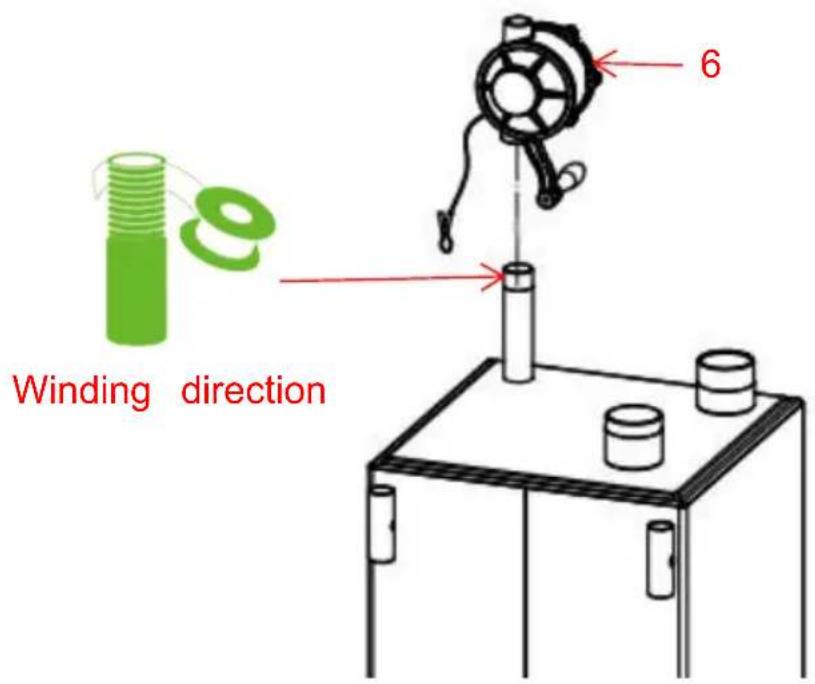

Step4: Wrap not less than 5 circles of raw tape on the outlet, then the pump(6) on the outlet.

Winding direction 6

NOTE: If the position of the handle is not where you want it to increase the number of winding laps of waterproof tape.

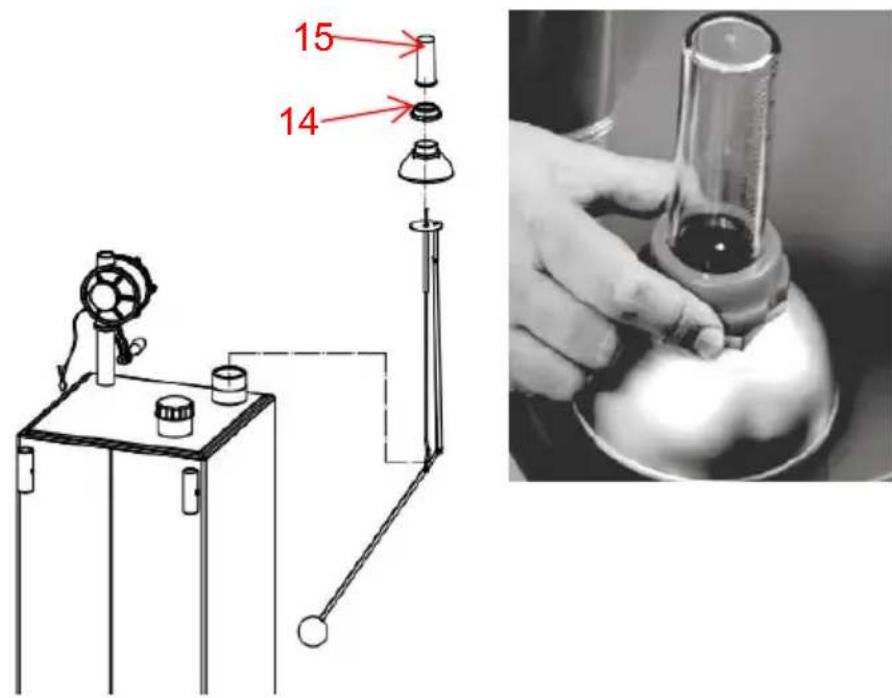

Step5: Lock the oil gauge(15) on the pump with the oil gauge fixing (14).

Technical diagram showing a laboratory setup with labeled components and a close-up of a glass beaker containing dark liquid.

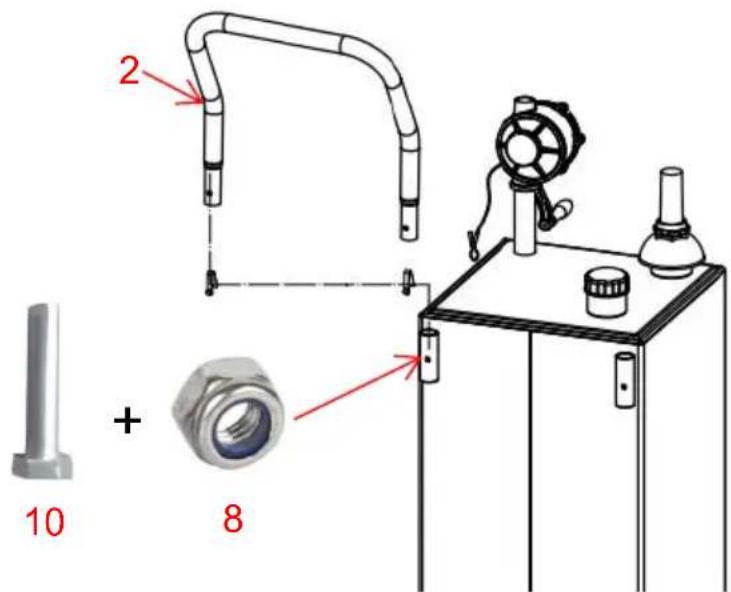

Step6: Insert the handle(2) into the tank at the appropriate position and lock with bolts M8*40(10) and nuts M8(8).

10 + 2 8

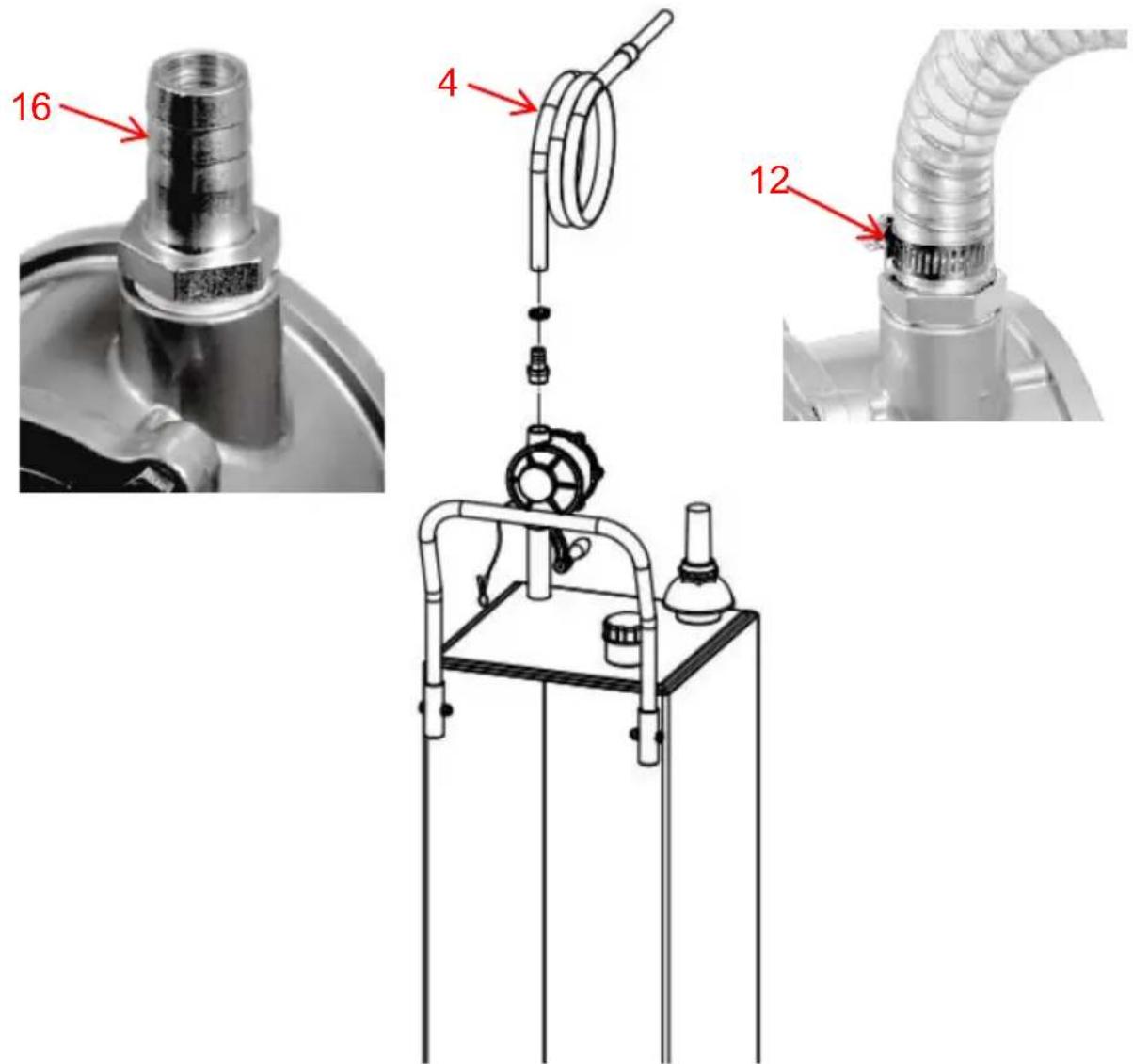

Step7: Wrap not less than 5 circles of raw tape on the hose fitting(screw it to the pump outlet; then attach the oil hose (4) to the hose fitting(16) and lock it with a hose clamp (12).

Technical diagram showing mechanical assembly with numbered parts and a labeled device setup

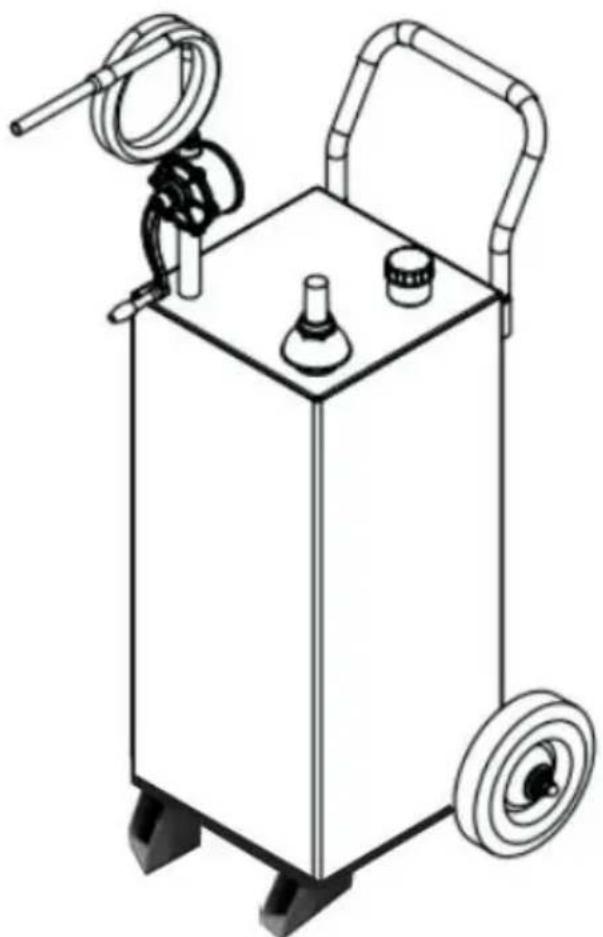

Step 8. The product is assembled and ready for use.

Line drawing of a portable industrial machine with wheels and control panel (no text or symbols)

1. Connect the clipper of grounding wire to a good earthing terminal ensure user safety.
2. Put the oil into the caddy through the oil inlet. For the first time please eliminate air while noticing the measure shows.
3. Please do not add oil that is beyond the capacity. When the red reaches the highest limit, do not add oil anymore.
4. Please clean the measure and filter regularly.
5. This machine is suitable for gasoline, and diesel. But it is not sui water, or other corrosive solvents.
6. Operate the machine in a horizontal position, do not incline;
7. Keep away from fire.
8. For different types of oil, it is recommended to clean the tank best storing another type of oil.
9. If this product is not used for a long time, it is recommended to and store it in a cool and dry environment.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
