USER MANUAL CB-101A Vevor

Support and E-Warranty Certificate https://www.vevor.com/support

STEAM CLEANER

USR MANUAL

CB-101A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

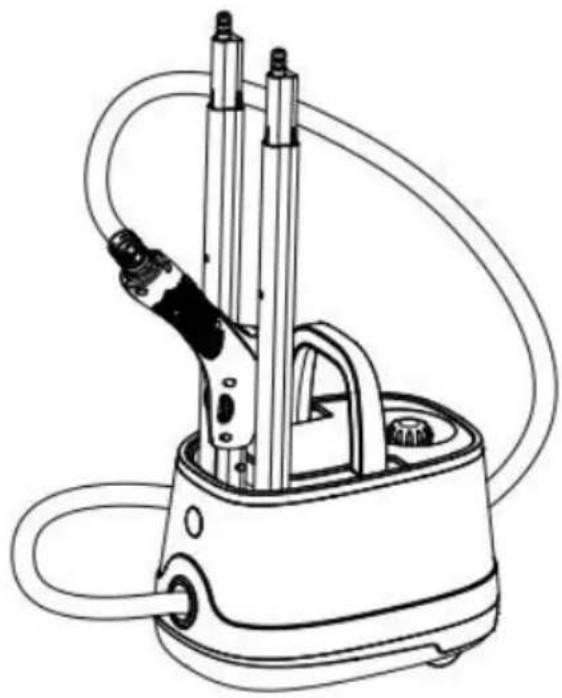

Steam Cleaner

CB-101A

Line drawing of a mechanical device with hoses and tubing (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. Op subject to the following two conditions:(1)This device may cause harmful interference, and (2)this device must accept interference received, including interference that may cause undesired operation.
	Compliance is a CE security certification.
	This product is subject to the provision of European Direc 2012/19/EC. The symbol showing a wheelie bin crossed th indicates that the product requires separate refuse collection the European Union. This applies to the product and all accessories marked with this symbol. Products marked as may not be discarded with normal domestic waste, but m taken to a collection point for recycling electrical and elec devices

Product Features

- Advantage

With Unique patented technology by using high temperature and steam pressure to clean floors, windows, lampblack machines and air conditioners. No chemical reagent, and almost zero injury of cleaning items.

- Safety

High sensitivity of the temperature control system.

Automatic power off when water used up.

If the steam pressure in the boiler is too high, it will be released di

- Durable

Super thick aluminum boiler with die-casting design can make quick heating up time and long life usage.

- Energy saving

Special heating pipe with the boiler integration design makes it completely heating with high efficiency & energy conservation.

Safety Guards

The below notice is to prevent harm and damage to the user and others, it is separated as [Forbidden] & [Attention].

Forbidden
Do not spray to any aim in the same p for more than 5 seconds.	Do not put heavy weight or stan on the power cord.
Do not unplug the power source if the power switch is on.	Do not touch steam within 20cm from the gun.
Do not open the safety valve during the usage.	Do not use broken power cord switch.
Do not pour any other liquid except cle water.	Please keep out of reach of children.
Do not put machine in rough & heat	Do not use water to rinse or pu

Forbidden

surface.	in a damp place.
Do not use when there is no water.	Do not dump the machine whenthe power is on.

Attention
Turn off the power when there is failure.	Machine must be in a ventilated room.
This product is only suitable for family	Please be sure to lock the child lock when the machine is stopped.
Please check whether the machine is damaged before using.	Please pay attention when you are filling water.
There may be some water in the stea for the first usage.	Do not change, replace or remove any parts until the machine cools down.
If the temperature is below°C, please do not use it to clean the window.	Do not spray the steam to clean glass in the same position more than 2 seconds.
Please revolve the safety valve before powering on, or hot water may spill out.	When the machine is not in use please turn off the power switch.
If there is any failure, the machine m be sent to the professional service center.	Please open the safety valve after completely cooling down.

Unit and Accessory

Unit×1		Measuring cup×1
Extension tube×2		Ironing brush×1
Glass brush×1		Big nozzle×1
Floor brush×1		Carpet glider×1
Floor brush connector×1		Funnel x1
Round brush×2 (Stainless)		Round brush×4 (Nylon)
Towel of floor brush×2		Ironing Towel×3

©

©

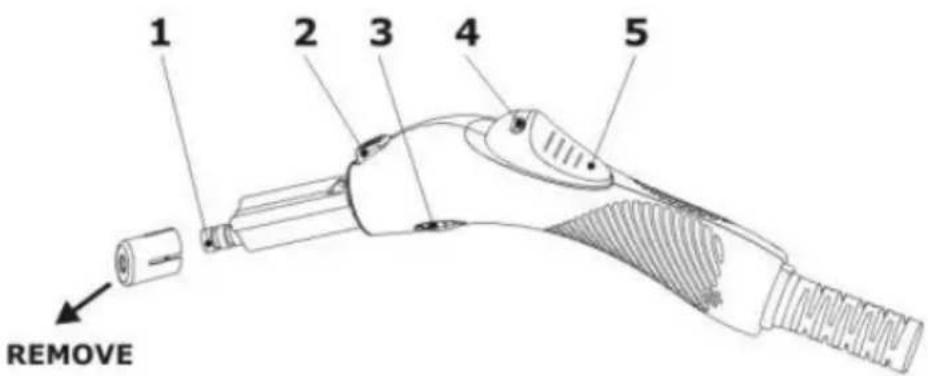

Structure of Steam Gun

1 2 3 4 5 REMOVE

No.	Name	Function
1	Steam nozzle	Outputs the steam.
2	Accessory lock	Attaches accessories; releases them when presse
3	Adjustable button	Adjusts the steam amount.
4	Child lock	Stops steam or allows automatic steam release
5	Steam button	Controls the steam states.

Operation Instruction

① Fill the water

Please kindly use the measuring cup and funnel to fill water before

Line drawing of a toaster oven with a funnel inserted, no text or symbols present

Remark:

★ Do not inject any liquid except clean water.
★ Please make sure that no residual water in the boiler before add the water. Pour out the rest water and clean the boiler. The be calcification inside which may clog the steam after a long time
★ Method of cleaning the boiler: First add a small amount of the boiler, then shake your hands to rock the machine, finally p out the water. We suggest you can repeat above action if the contains a lot of impurities.

★ In order to get ideal steam, please be sure to fill 0.5L \~ The max water can be filled is about 1.5L.

★ Please screw the safety valve when you have finished filling water.

② Power on

★ Please ensure that the boiler with water and the relief valve tight status before you power the machine on.

★ Put the plug into the socket and open the power switch. If power is on, the red light will on.

★ Do not use wet hand to touch the power.

★ Do not use any power cord or power socket in broken sta

③ Operation

★ Please remove the cap before you add any accessory on it ★ If the green light shows at the first time, it means the stea ready. Normally it needs 5-6 minutes. The final time depends on much water you filled.

★ Hold on the steam gun by hand and move the steam but ahead. Steam will come out directly.

If you need automatic steam without hand holding, just turn the lock to the right side when in using.

Here is a steam adjustable button in the gun. Please kindly adjust the steam amount according to the actual situations.

For a long time of using, you can turn the child lock to the ri

and then steam will come out without the hand touch. For stopping, just turn the child lock to the left side.

Any temporary leave ( get a call), please stop the steam and the child lock to right side, and then you can not trigger the steam anymore

★ There will be some water in the first 1 minute as the cond Do not use it to clean carpets, ironing clothes etc. We suggest you can spray to some containers, so that it will be dry very

★ Please choose the appropriate accessories according to the actual situation. Please refer to the accessories instructions to get some detailed information.

★ If the user will leave for a long time, please shut off the |

★ The green light will be on and off during the usage, it will influence any using.

★ Red light means power is on.

★ For continuous use, please turn off the power switch and w machine to cool down for about 20 minutes before you open th safety valve to fill water once again.

★ For safety, you can not open the safety cap if there is any pressure inside.

Please note that there is a risk of burns when pouring since it is still hot.

Following above steps for repetitive using.

④ Storage & Cleaning

★ After using, please turn the power off.

★ If the water has not fully released, please open the safety valve until the machine cool down and then pour out the water.

★ If there is dirt on the surface of body, please use a dry c with some water to wipe it gently.

★ Do not use water to spray the machine.

★ Don't place it under damp environment, which may cause sh circuit.

★ After cleaning, please keep it in a dark and dry place.

Instruction Using For Accessories

① Extension tube

Mount the extension tube to use the steam cleaner to clean the floors, high windows or inaccessible areas. Place the open end the tube on the steam gun until the steam gun release button in the place. Use one or two extension tube, as necessary. To remove the extension, press the release button and pull the tube apart with a downward motion.

Technical line drawing of a handheld tool with a separate cylindrical component (no text or symbols)

② Big nozzle

This nozzle makes it perform a deep cleaning and easily reach places such as corners, junctions or bathrooms. Simply push the nozzle firmly and adjust the gun directly.

Line drawing of a welding torch with a handle and blade, showing two different angles (no text or symbols)

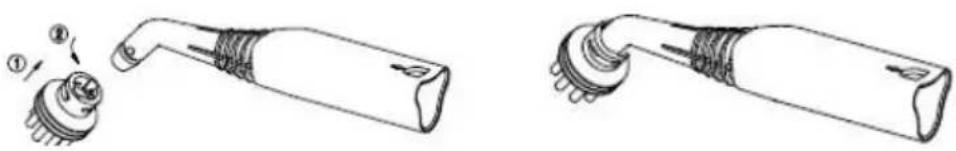

③ Round brush

Round nylon and metal brushes are inserted firmly into big nozz. You can even eliminate stubborn dirt from blinds, radiators, etc. the small metal brush. The nylon brush is suitable for heavier s on less sensitive materials such as stainless steel. To remove it

just have to push it down and remove it directly.

Technical line drawing of a mechanical component with two views (① and ②), showing internal components and assembly (no text or symbols)

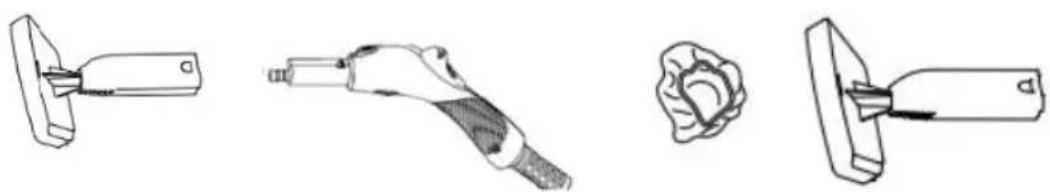

④ Ironing brush and ironing towel

To clean chair, sofa, bed or ironing cloth etc, place the white towel on ironing brush and connect with the steam gun.

Line drawings of four different types of electrical tools or devices, including a flat switch, a handheld device, a bulb, and a cylindrical device (no text or symbols present)

⑤ Window brush

To clean window, mirrors, or tiles or objects with smooth surface, use the window brush, which has a rubber for cleaning. When installed, set in the two prominent parts of the hook scratch then place the glass brush cover for it; an audible click will sour and the installation is complete.

Line drawing of a mechanical device with a handle and lever (no text or symbols)

NOTE: It is recommended to use the lows gear, because when the amount of steam large, it is easy to produce water droplets the glass is cold.

If temperature is lower than 0 °C, please do not use the product to clean glass.

Do not placed in the same position more than 2 secon

⑥ Floor brush and carpet glider

The floor brush is ideal for cleaning washable walls and floors. recommended to sweep or vacuum floors before mopping. First of all, attach the floor brush and the connector.

Diagram showing a mechanical component being inserted into a tray, with no visible text or symbols.

Connect the nozzle on the floor brush to the end of the extens tube. Make sure that the nozzle fits properly in place.

There are magic tapes on the floor brush. So first, just stick the part of the towel which can be directly fixed to the floor brush, you can use it to clean the walls, floors, tiles and so on. And want to clean the carpets, please install and fasten the carpet on it, so that you can easily clean the carpets.

If you want to remove the towel, please remove the carpet glid and then remove the towel by hand. (To make it easier to use can also put your foot on the cloth patch next to the towel to the towel more quickly.)

Diagram of a mechanical component with a cylindrical shaft inserted into a textured rectangular chamber, showing internal structure and an upward arrow (no text or symbols)

①

Technical diagram showing three steps of a mechanical assembly: top view, bottom view, and side view (no text or symbols)

②

Technical line drawing of a mechanical component with a curved base and central pin (no text or symbols)

③

Trouble shooting

Situation	Case	Solution
No spray steam	Plug is not inserted to the power socket tightly.	Insert again or change the socket.
	Switch indicator light off.	Turn on the switch
	No water.	Fill some water.
	Not press the steam butto	Press on the child lock.
Water is flowing from the nozzle	There may be some water the steam for the first usage the machine has been stopped for a while.	It is a normal phenomenon and will disappear quickly.
	Influence the normal use.	Ask for professional service.
Others	Steam come out besides the nozzle.	Ask for professional service.
	Plastic deformation and softening phenomenon.
	Other electric equipment can not be used.
	Steam comes out from the safety valve.

Product Specifications

MODEL	CB-101A
RATED VOLTAGE	120V~ 60Hz	220-240V~50/60Hz
POWER	1500W	2000W
CAPACITY	1.5L
POWERCORD LINGTH	5m
