K-622/1200 - Vacuum Cleaner Vevor - Free user manual and instructions

Product type	Ash vacuum cleaner
Brand	Vevor
Model	K-622/1200
Rated power	1200 W
Voltage	220-240 V AC
Frequency	50/60 Hz
Tank capacity	15 L
Type of dust vacuumed	Cold ashes only
Maximum ash temperature	40 °C
Prohibited substances	Liquids, soot, flammable substances, hot or glowing objects
Included accessories	Flexible hose, aluminum nozzle, user manual
Filter	Removable and washable dust filter
Blower function	Yes, via blow hole
Number of manual pages	96
Electrical protection	Do not immerse in water; unplug before maintenance
Outdoor use	Prohibited (indoor use only)
Supervision required	Do not leave unattended when plugged in
Recommended maintenance	Empty and clean the tank and filter after each use
Warranty	Electronic warranty certificate available at www.vevor.com/support
Compliance	European Directive 2012/19/EU (WEEE)

Frequently Asked Questions - K-622/1200 Vevor

Can this vacuum cleaner be used to pick up hot ashes?

No, the Vevor K-622/1200 vacuum is designed only for cold ashes (temperature below 40°C). Never vacuum hot, burning, or glowing ashes.

Can I use this vacuum to pick up water?

No, this appliance is an ash vacuum and should not be used to vacuum liquids. Contact with water poses a risk of electric shock.

How do I clean the vacuum filter?

Open the dust container, remove the filter and shake it to remove ashes. For a deep clean, you can wash it with clean water, but make sure it is completely dry before reinserting.

What should I do if suction power decreases?

Check that the dust container is properly attached, that the filter is not clogged, and that there is no blockage in the hose or nozzle. Clean the filter if necessary.

The vacuum won't start, what should I check?

Make sure the appliance is properly plugged in and that the switch is in the on position. Also check that the power cord is not damaged. If the problem persists, contact Vevor technical support.

Can I use this vacuum for soot?

No, vacuuming soot is strictly prohibited. The appliance is intended for cold ashes from authorized fuels (wood, charcoal).

How do I assemble the hose?

For vacuuming, insert the hose end into the suction hole and push until it clicks. For the blower function, use the blow hole. Attach the aluminum nozzle to the other end of the hose as needed.

What is the warranty of the Vevor K-622/1200 vacuum?

Vevor offers an electronic warranty certificate available at www.vevor.com/support. Keep your proof of purchase and contact technical support if any issues arise.

Can I leave the vacuum plugged in permanently?

No, for safety reasons, always unplug the appliance from the electrical outlet when not in use or before any maintenance operation.

Where can I find the user manual?

The manual is supplied with the appliance in paper version (96 pages). You can also download it for free in PDF format on Vevor's website or on platforms like notice-facile.com.

USER MANUAL K-622/1200 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

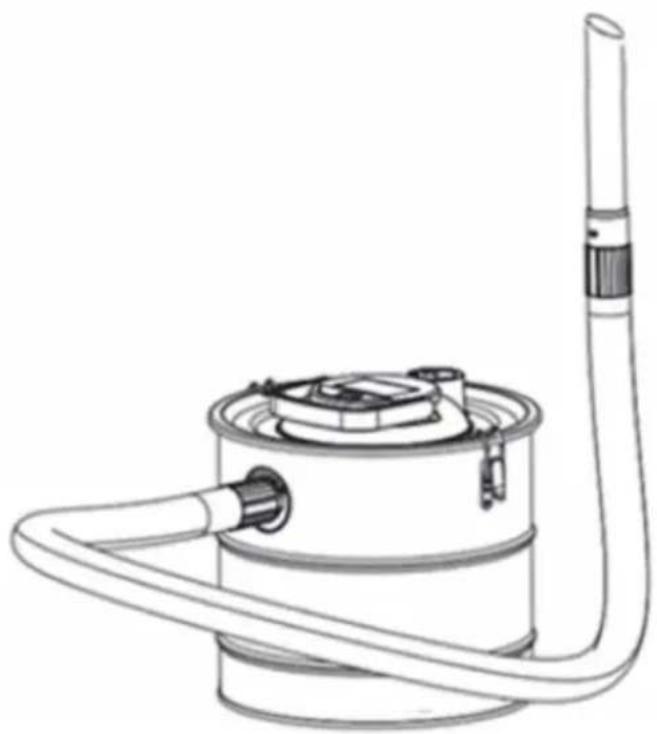

ASH VACUUM USER MANUAL

MODEL: K-622/1200

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

MODEL: K-622/1200

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

IMPORTANT SAFETY INSTRUCTIONS

Basic safety precautions should be followed when using electrical appliances, including the following.

READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE)

WARNING - To reduce the risk of fire, electric shock, or injury:

1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.
2. Do not use outdoors or on wet surfaces.
3. Do not allow it to be used as a toy. Children shall not perform cleaning or user maintenance without supervision.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against electrical hazards, do not put the vacuum cleaner in water or other liquids.
6. Do not operate the vacuum cleaner or any other electrical equipment with a damaged cord or plug, or after the unit malfunctions or is dropped or damaged in any manner. Return it to the nearest authorized service facility for examination, repair, or adjustment.
7. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
8. Keep this instruction manual in a safe place. Do not discard it.
9. If the charger or its power cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard.
10. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electric shock. When failures occur, the product should be repaired by qualified maintenance personnel.

personnel.

1. Do not place the product directly on fire or near a heat source, otherwise the product will be damaged or even result in danger. If the product catches fire, do not directly use water to extinguish it; use a wet cloth to cover the fire site.
2. When the plug is plugged into the socket, it must be fully inserted; otherwise, it will cause the components to overheat and burn due to poor contact.
3. Substances to be vacuumed: cold ashes from fireplaces, wood/coal stoves, ashtrays, grills.
4. In the manual, the following analogous information has to be given: "Cold Ash" is ash cooled down for a sufficient time without any pockets of embers inside. This can be confirmed by scouring the ash pockets of embers using metal tools before using the ash vacuum cleaner. Cold ash does not emit any recognizable heat.
5. Empty and clean the vacuum cleaner before and after vacuuming to prevent the collection of materials that could pose a fire hazard in the vacuum cleaner.
6. Do not vacuum any soot or flammable substances.
7. Always check hoses and vacuum cleaner for heating when vacuuming. Always empty and clean vacuum cleaner before and after vacuuming.
8. WARNING! Putting the main body of the machine and the power into any liquid is strictly prohibited. Unplug from the outlet before any routine cleaning or maintenance.

Area of application

The substance to be vacuumed - cold ashes from fireplaces, wood/coal stoves, ashtrays, and grills.

Empty and clean the vacuum cleaner before and after vacuuming to avoid the collection of materials that could pose a fire hazard in the vacuum cleaner.

Restriction of use

Do not use for separating health-hazardous dust (dust classes L, M, not vacuum soot.

Vacuum only ashes from admissible fuels.

Do not vacuum any hot, burning or glowing objects.

Do not vacuum any objects that are hotter than >40° C .

Do not vacuum any flammable substances.

Specifications

Model Series	K-622/1200
Rated Power (W)	1200
Rated Volume (L)	15
Voltage (V)	AC 220-240
Frequency (Hz)	50 / 60

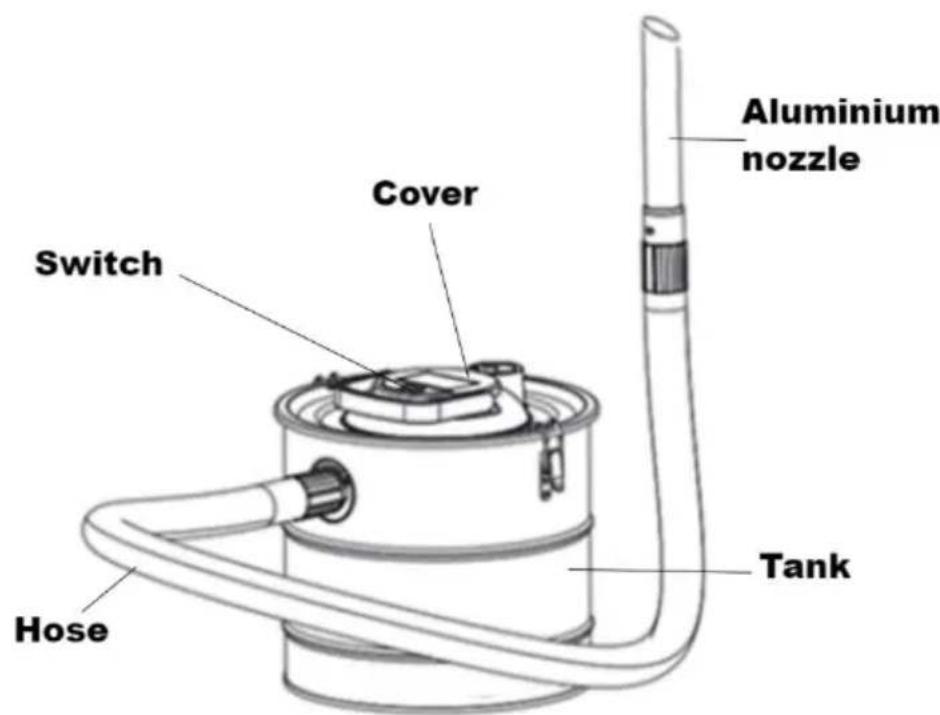

Figure of the Product Figure 1

Part	Description	Qty
1	Tank	1
2	Cover	1
3	Hose	1
4	Aluminium nozzle	1
5	User Manual	1

Assemble

The filter: Inspect the filter in the dust container.
Dust container: Attach the dust container to the hand vac cleaner.
Flexible hose for sucking: To use the flexible hose, insert the end o hose into the suction hole. Ensure that it snapped in the position.
Flexible hose for blowing: To use the flexible hose, insert the end o hose into the blowing hole. Ensure that it snapped in the position. Warning: Pay high attention to avoid blowir out the hot air or substances that may ca injury.

Accessories:

Choose your desired accessory and attach the suction hole.

Operation

Before you start the appliance, make that the dust filter is in the positi

Unwind the power cord.

Plug the appliance and switch on.

Unplug the appliance after use.

Cleaning and maintenance

	Open the dust container.
	Take out the filter.
	Empty the dust container.
	Clean the filter by shaking off the a

Error detection

Before you contact our service center, please check the following.

Problem	Possible Reason	Advice
Motor does not start.	-The battery pack is not installed.-The battery pack has been damaged.-The battery pack has no power.-Cleaner is not switched	-Install the battery pack.-Replace the qualified battery pack.-Charge the battery pack.-Switch on the appliance
Suction power is weaker.	-Unit is clogged.-Dust filter needs cleaning.-Dust container is not in position.	-Remove the blockage.-Clean the dust filter.-Attach the dust container again to the cleaner.

Correct Disposal

This product is subject to the provision of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all

accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.
