USER MANUAL YLW6222 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

WET/DRY VACUUM CLEANER

FOR HOUSEHOLD USE

Model: YLW6222

Capacity:15L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

WET / DRY VACUU

CLEANER FOR HOUSEHOLI

MODEL: YLW6222

Technical line drawing of a portable air purifier device with wheels and internal compartments (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

SECURITY & WARNINGS

WARNING

To reduce the risk of fire, electric shock, or injury:

Do not use outdoors.

Do not leave vacuum cleaner when plugged in. Turn off the switch an unplug the electrical cord when the vacuum cleaner is not in use an before servicing. Do not allow to be used as a toy. Close attention is necessary when used by children or there are children nearby.

Use only as this manual described. Use only manufacturer's recommend attachments.

Do not use with damaged power cord or plug.

Do not pull or carry by the cord, use the cord as a handle, twist or p cord around sharp edges and corners. Do not run this vacuum over cord. Keep the cord away from heated surface.

Do not use extension cords or outlets with inadequate current carrying capacity. Turn off all controls before unplugging.

Do not unplug by pulling on cord. To unplug, grasp the plug, not the co Do not handle plug or vacuum cleaner with wet hands or operate wi

shoes.

Do not put any object into openings.Do not use with the opening blocked.Keep the hose free of dust,lint,hair,and anything that may reduce airflow.

Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes

Do not use without dust barrel or filter in place.

Use extra care when cleaning on stair.

Do not use to pick up flammable or combustible liquids such as gas use in areas where they may be present.

Store your cleaner indoors in a cool,dry area.

Ensure that you turn off the vacuum cleaner at least every 15 minutes (1 minute) to cool down the motor. Failure to do so may bring damage the motor.

Do not use the vacuum cleaner for more than 4 hours (including the breaks) in one day.

This appliance can be used by children aged from 8 years and above persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and undershers the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

This appliance shall state that the plug must be removed from the socket-outlet before cleaning or maintaining the appliance.

If the supply cord is damaged, it must be replaced by the manufacture service agent or similarly qualified persons in order to avoid a hazard SERVICING OF DOUBLE-INSULATED APPLIANCES

Adouble-insulated appliance is marked with one or more of the following: The words "DOBLE INSULATION" or "DOUBLE INSULATED" or

the double insulation symbol (square within a square).

In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means is provided on a double-insulated appliance, nor should a means for grounding be added the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be done only by qualified service personnel. Replacement pares for a double-insulated appliance must be identical to the parts they replace.

SAVE THESE INSTRUCTIONS

PARAMETER LIST

Model	YLW6222
Rating	220-240V~ 50/60Hz
Power Supplier	1200±15%
Protection Against Electric Shock	Class II
Degree Of Protection:	IPX4
Capacity	15L

PART LIST

When unpacking this product, ensure the parts listed below are includ and carefully inspect for any damage that may have occurred during Do not attempt to assemble or use the product if any part is missin damaged.

NO	PICTURE	PART NAME	QTY

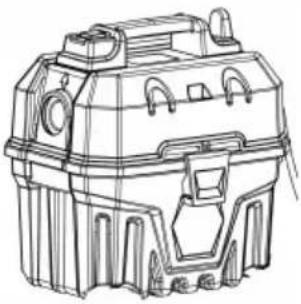

1		Vacuum Cleaner	1
2		Universal Wheel	4
3		Hose Assembly	1
4		Connected Tube	3
5		Floor Brush	1
6		Carpet Brush	1
7		2 in 1 Nozzle	1
8		Small Brush	1

INSTRUCTIONS

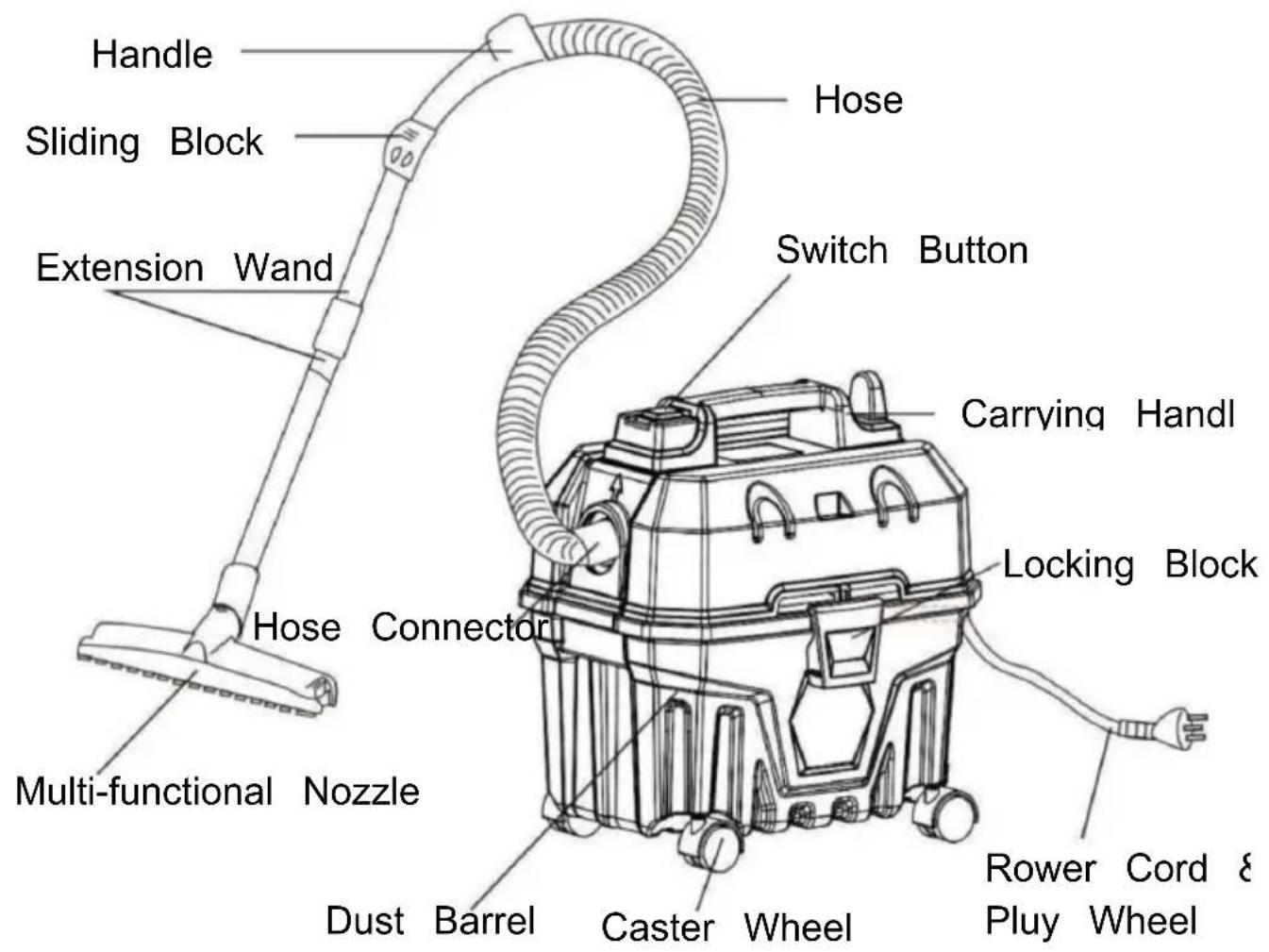

Handle Sliding Block Extension Wand Hose Switch Button Carrying Handl Locking Block Hose Connector Multi-functional Nozzle Dust Barrel Caster Wheel Rower Cord & Pluy Wheel

Technical line drawing of a vacuum cleaner with three views: top view, side view, and bottom view (no text or symbols)

Carpet Use

Floor Use

Water Picking Up Use

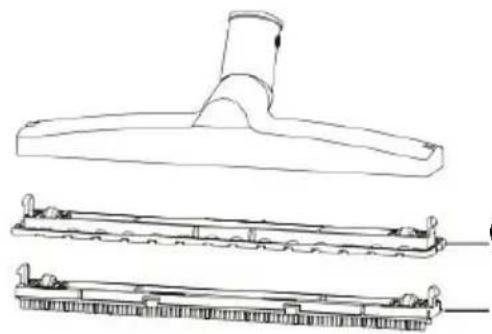

Multi-functional Nozzle

For Carpet or Woodel

Floor,etc.

Line drawing of a mechanical component with a cylindrical top and flanged base (no text or symbols)

Utility Nozzle

Ideal for sofas,floors,car seats,kitchens,indoor decorations, workshops, etc.

Simple line drawing of a mechanical component with textured base and central body (no text or symbols)

2 in 1Crevice Nozzle Ideal for indoor corners; gaps, sofa corners,

Window sill gaps,bed corners,table Corners, rtc.

INSTALLATION METHOD

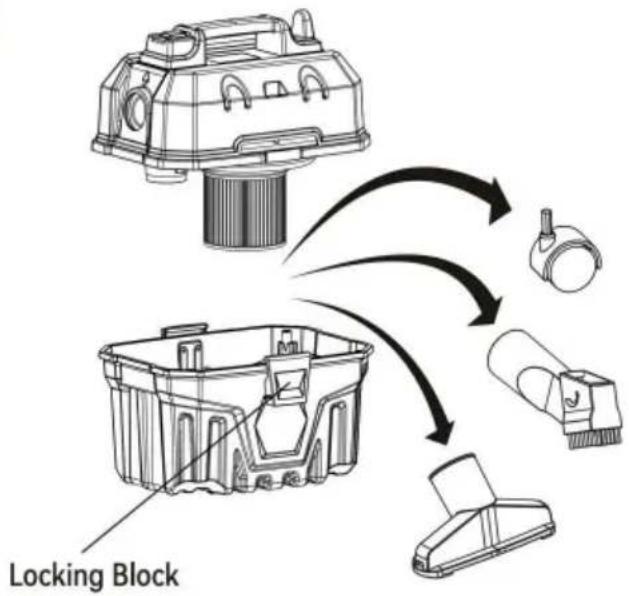

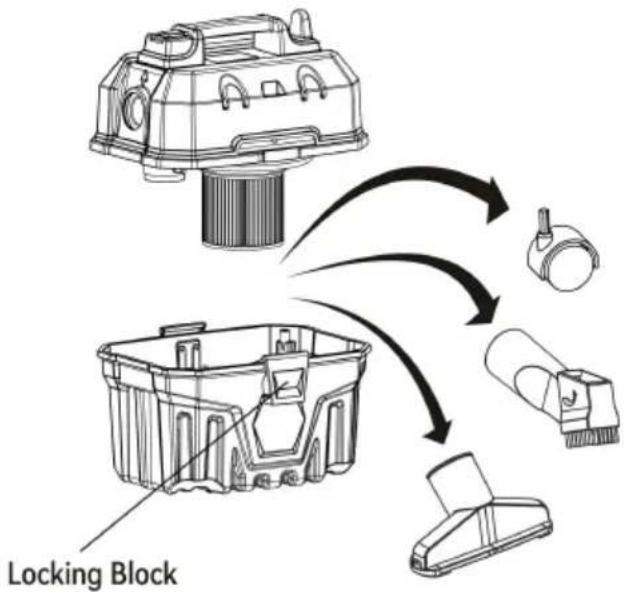

1	Release the locking block to open theupper housing, then take out wheelsand other accessories.

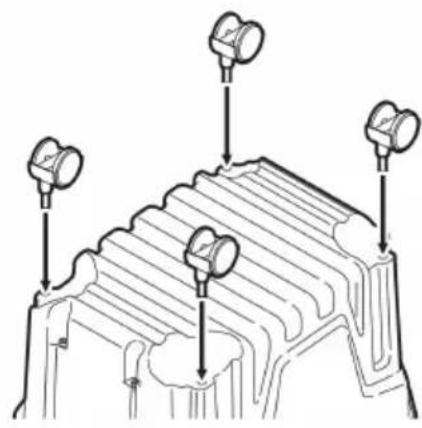

2	Install the caster wheels and fixthem on the base.

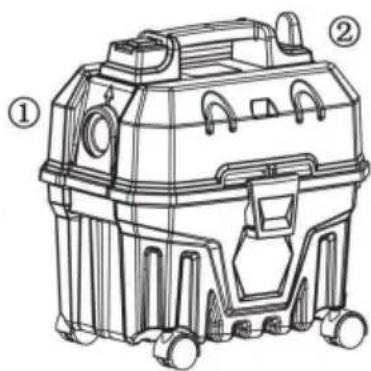

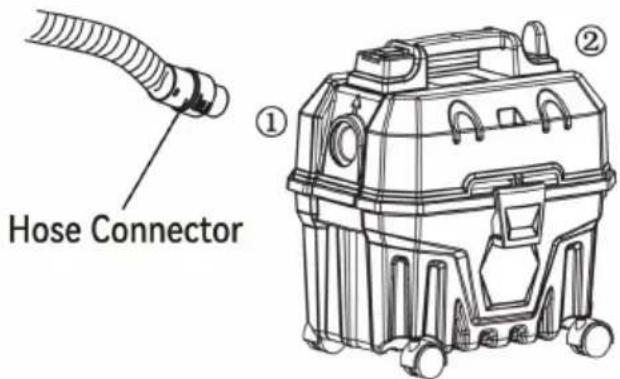

3	Put the hose connector into1, the suction function is available.Put the hose connector into 2, the blow function is available.

INSTALLATION METHOD

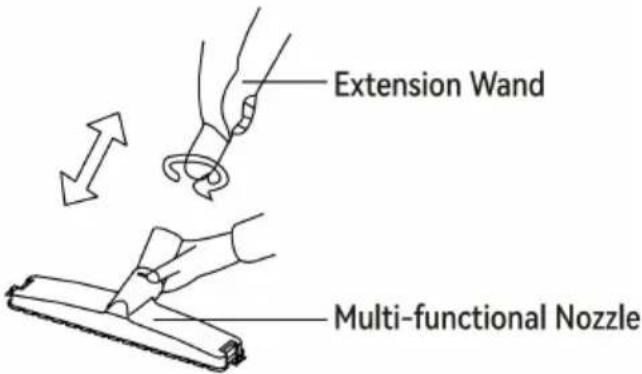

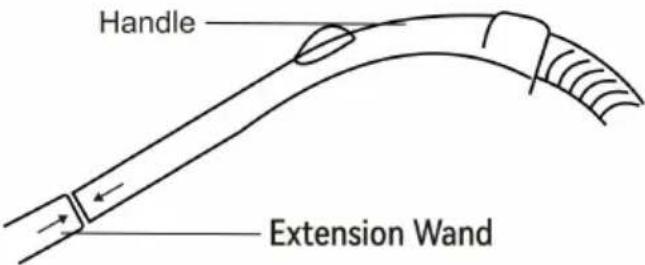

1	Insert the handle into the tube with a twisting force
2	Same as the picture one
3	Same as the picture one

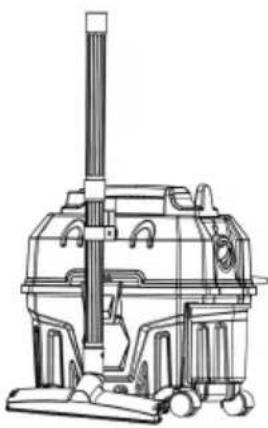

4	Dual storage for accessories.

OPERATION METHOD

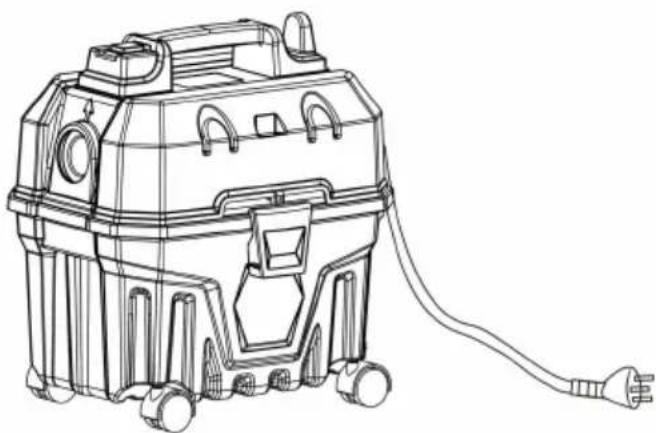

1	Hold the plug and insert socket

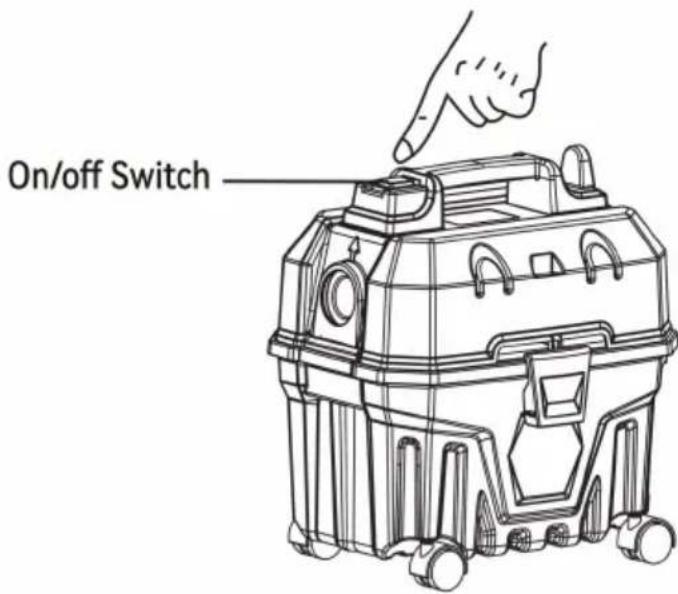

2	Press the switch button to turn on/off the cleaner.To be safe,there is a water-proof switch cover.Please replace a water-proof cover once find its broken.

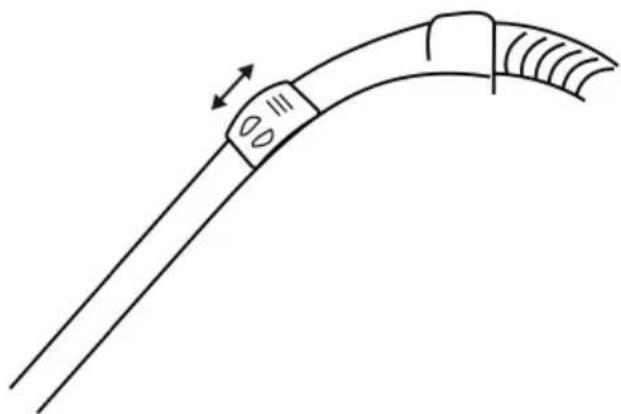

3	You can adjust the airflow pushing the sliding block u and down.

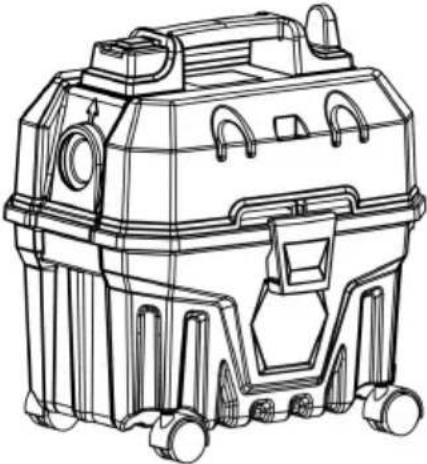

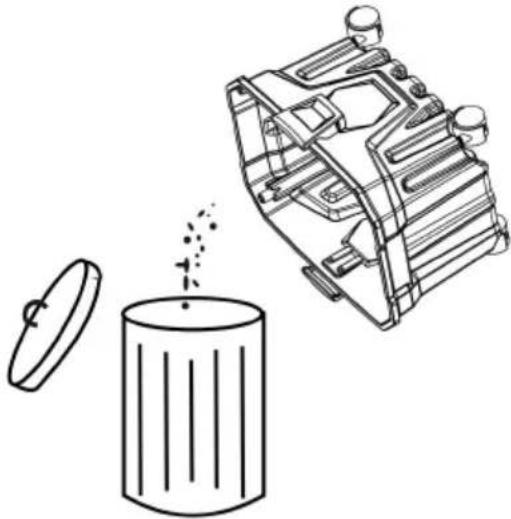

DUST CLEANING

If the dust barrel is full,please empty it as soon as possib

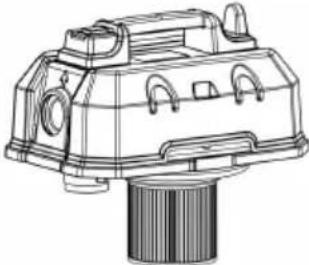

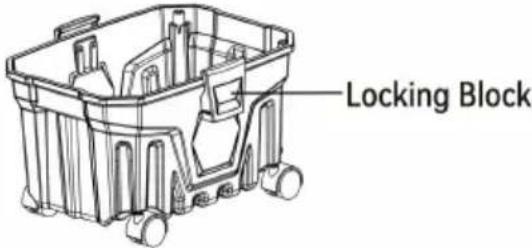

1	Release the locking block to open the upper housing.
2	Empty the dust barrel.
3	Put back the upper housing, fasten the locking panne.

MAINTENANCE

Warning:When the filters are obviously covered with dust or the decreases considerably,please clean it in time,for this can improve working efficiency and extend the life time of the cleaner Never use the machine without filters.

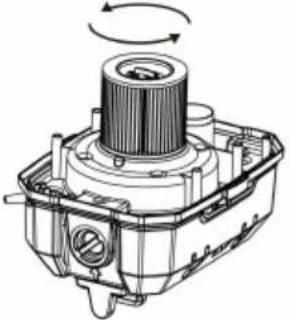

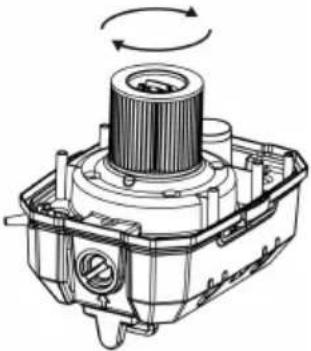

1	Twist the locking knob with a anti-clockwise fore to take off the filter.
2	Clean it carefully.
3	Air Dry
4	Put back the filter.

TROUBLES & SOLUTIONS

To avoid unnecessary losses, you shall read the following table careful

Fault	Possible Cause	Solution
The motor does not work	Check if the plug of the power supply is plugged properly?Check if the outlet of the power supply is poweredCheck if the power switch the vacuum cleaner is turn on?Check whether the brushes are burnt or worn,whether the switch of the vacuum cleaner is damaged or not,etc.	Reinsert the plug into the socketTurn on the switch of the socket or replace the socket of the power support Turn on the switch.Please contact the after-sales maintenance time.
Suction becomes weaker	Check if accessories such the suction tube or dust are blocked?Check if the dust collector full?Is the filter clogged or no	Remove the blockage and clean it in time.Clean the dust collector.Clean the dust filter.
Motor Overheating	The continuous operating time is too long,the brush and commutators are worn,causing to generate too-large sparks,too much dust to stick to the dust filter,and the dust collector full of dust,etc	Please give the machine break.If the appliance also has up after a short time,yone need to open the dust collector to clean up the trash inside.
Suction is decreased.	Check whether the motor faulty the brush is worn,th dust filter is damp,the dus chamber is full of dust,the hose and the suction noz or exhaust port are block the pipeline is leaking,the interface s poorly sealed,e	Confirm whether the mo operates normally,clean the filter dust cup,and hose,and re-tighten accessories at the interface seal.
Machine Oyerheating of Excluded Gas Overheating	Is the suction normal Has it been used for mo than 30 minutes?	The heat released from machine is caused by the heat conduction of the motor.It is a normal temperature,please continue to use it. Please stop and use it a 5-minute break.
