USER MANUAL AA70000304 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FRAME GATE BUILDING KIT

USER MANUAL

MODEL:AA70000301 & AA70000302 & AA70000303 & AA70000304

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

MODEL:AA70000301 & AA70000302 & AA70000303 & AA70000304

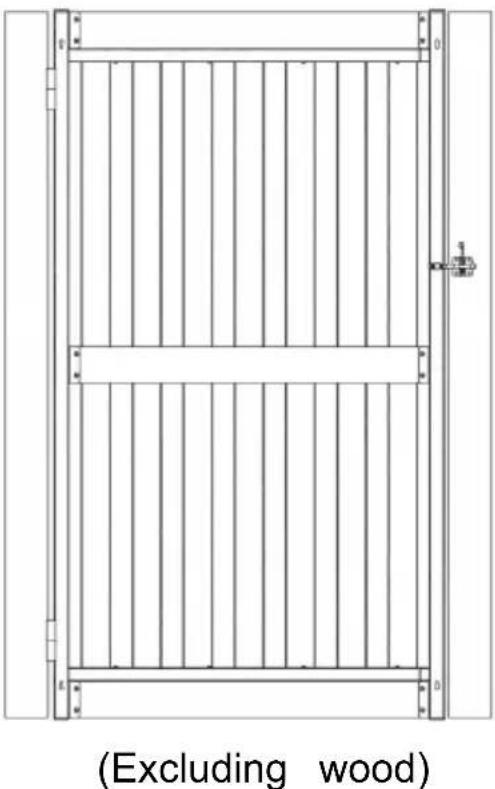

Exterior view of a metal gate structure with vertical slats and a door, labeled (Excluding wood) at bottom (no other text or symbols)

Note: The actual product you receive determines its look.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soi updates on our product.

Important safety instructions

	Warning - To reduce the risk of injury, the user must read instructions manual carefully.
	Warning- Be sure to wear ear protectors when using this pro
	Warning- Be sure to wear eye protectors when using this pro
	Warning- Be sure to wear dust masks when using this produ
	Warning- Be sure to wear gloves when using this product.

WARNING!

1. Please read the instructions carefully.
2. After receiving the goods, please check whether the accessor are complete.
3. Products can be applied to small shed doors, such as garde doors, driveway doors, corral doors, barn doors, sundry doors, e
4. The assembled door can only bear its own weight, and can stand people or hang heavy objects.

PRODUCT DESCRIPTION

Garden doors, fences, fences, etc. are usually composed of wood doors, wooden doors in the outdoor long-term sun and rain, eas appear aging, sagging, shaking and other phenomena, so you can repair the wooden door through the door frame support to exter service life.

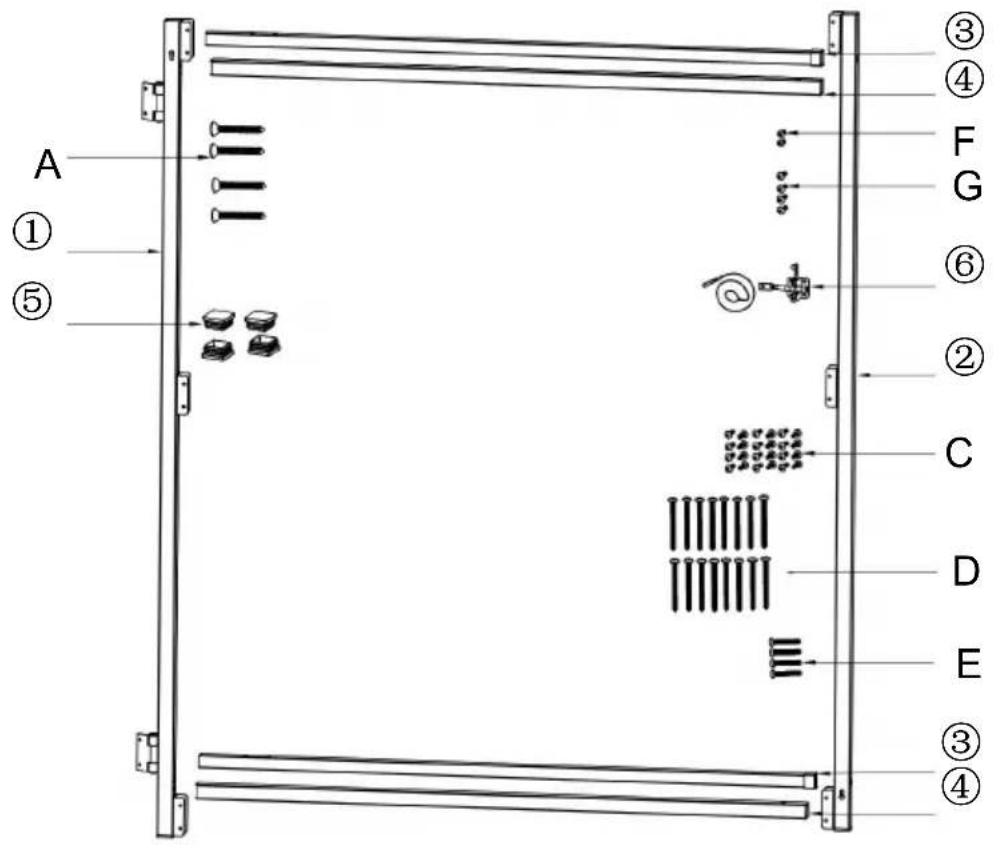

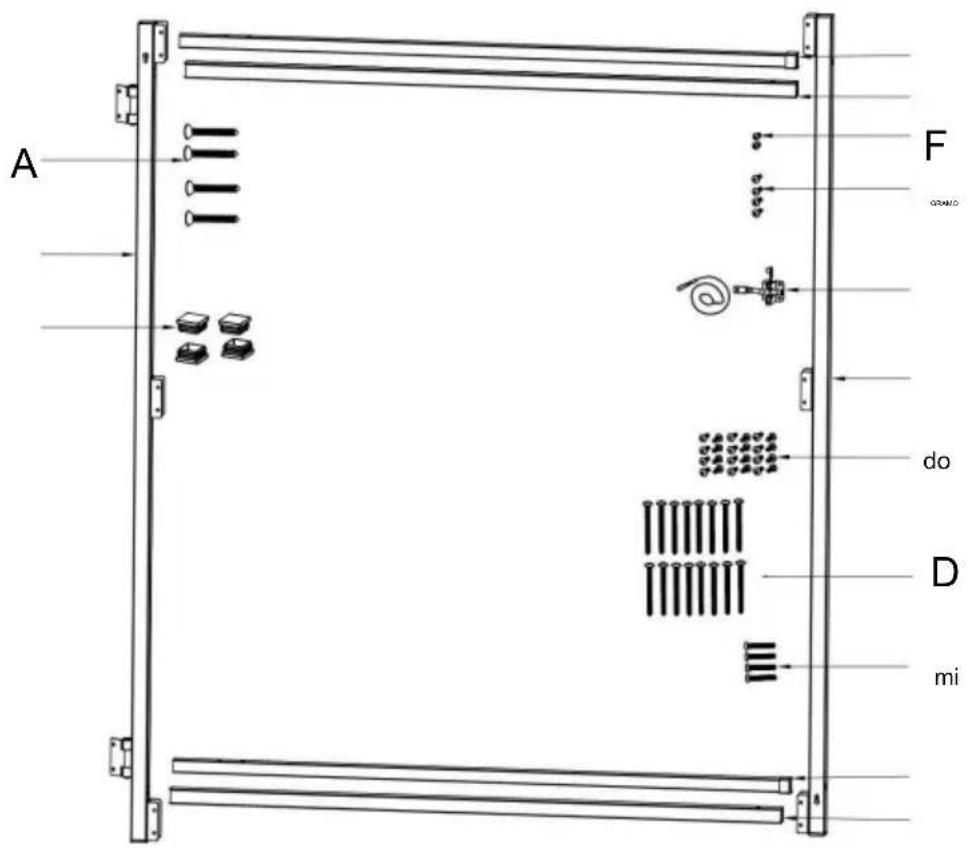

PRODUCT STRUCTURE

Item	Description	AA70000301	AA70000302	AA70000303	AA70000304
1	Column I	1pcs	1pcs	1pcs	1pcs
2	Column II	1pcs	1pcs	1pcs	1pcs
3	Small Tube	2pcs	2pcs	2pcs	2pcs
4	Large Tube	2pcs	2pcs	2pcs	2pcs
5	Tube Plug	4pcs	4pcs	4pcs	4pcs
6	Latch Fitting	1pcs	1pcs	1pcs	1pcs
A	M6*50 countersunk screw	4pcs	4pcs	4pcs	4pcs
B	S4 hex wrench	1pcs	1pcs	1pcs	1pcs
C	M5*18 round head screw	24pcs	24pcs	24pcs	24pcs
D	M5*65 round head screw	16pcs	16pcs	16pcs	16pcs
E	M6*40 countersunk screw	4pcs	4pcs	4pcs	4pcs
F	M5*10 round head screw	2pcs	2pcs	2pcs	2pcs
G	M5*30 round head screw	4pcs	4pcs	4pcs	4pcs

INSTALLATION PROCEDURES

Step1
Insert into the tube

Technical line drawing of a mechanical shaft with two cylindrical ends, one with an arrow indicating motion (no text or symbols)

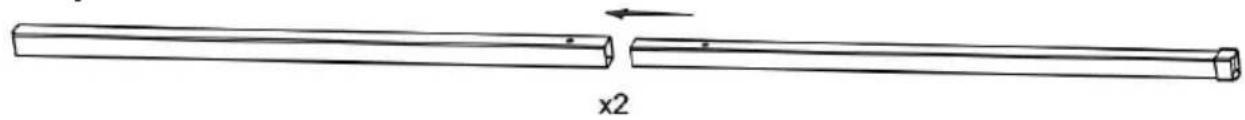

Insert the small tube into the large tube, and adjust the insertion disaccording to the required length. The upper and lower sets of tubes same.

Step2

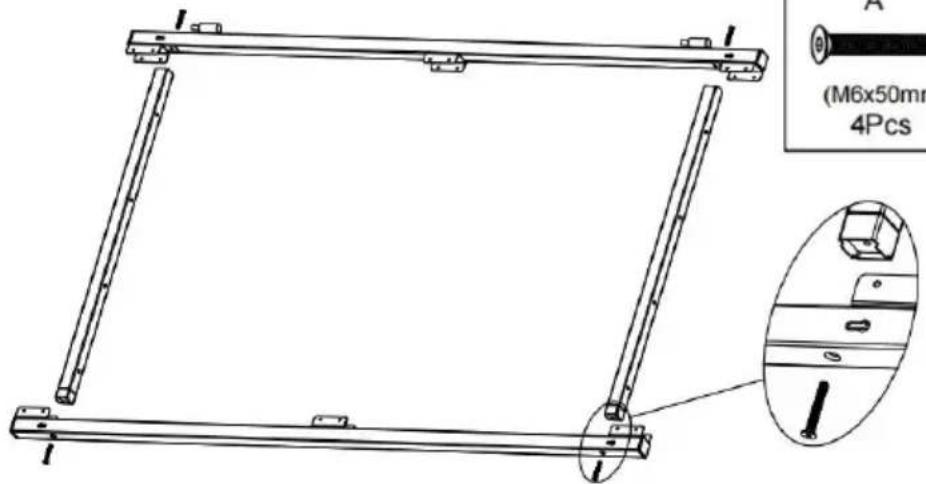

Insert the assembled horizontal pipe into the column according to the position of the small convex at both ends, and connect it firmly with and install the upper and lower two groups of pipes as well.

Step3

Width adjustment range:

① 36'' - 60''

② 40'' - 72''

③ 60" - 96"

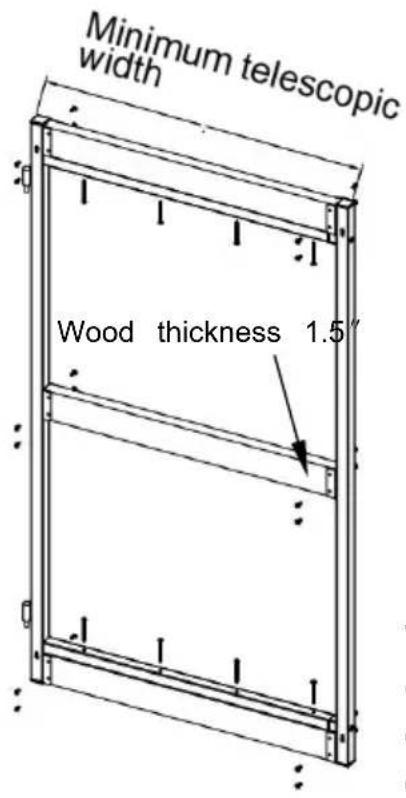

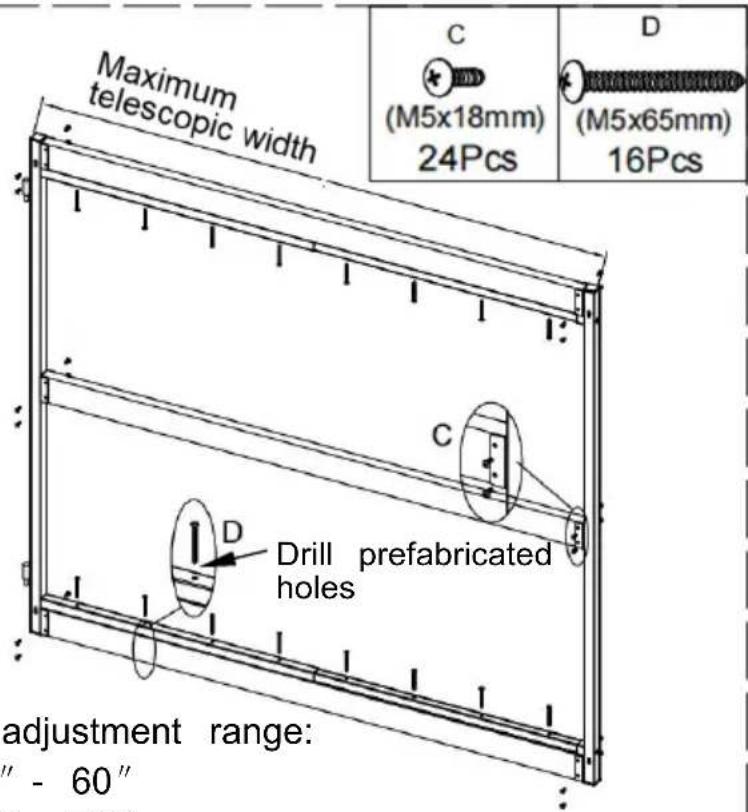

The width of the upper and lower horizontal pipes can be adjusted to different lengths of the wooden bars. As shown in the figure, put the wooden bars of the appropriate length into the clamping position, press wooden bars in the middle of the two columns, and adjust the door become square. First fasten the two ends of the wooden bars with s and then securely connect the wooden bars with the horizontal pipes screw D.

Step4

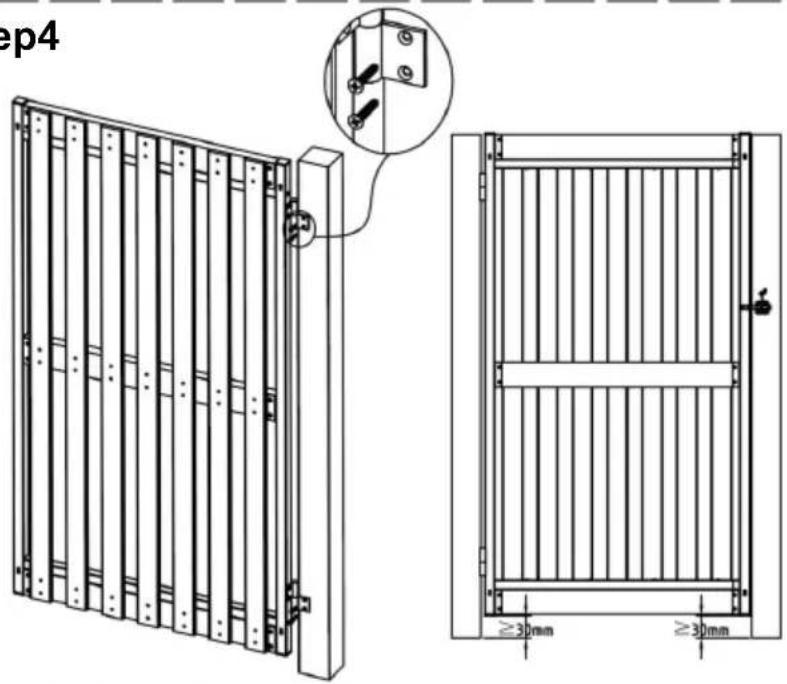

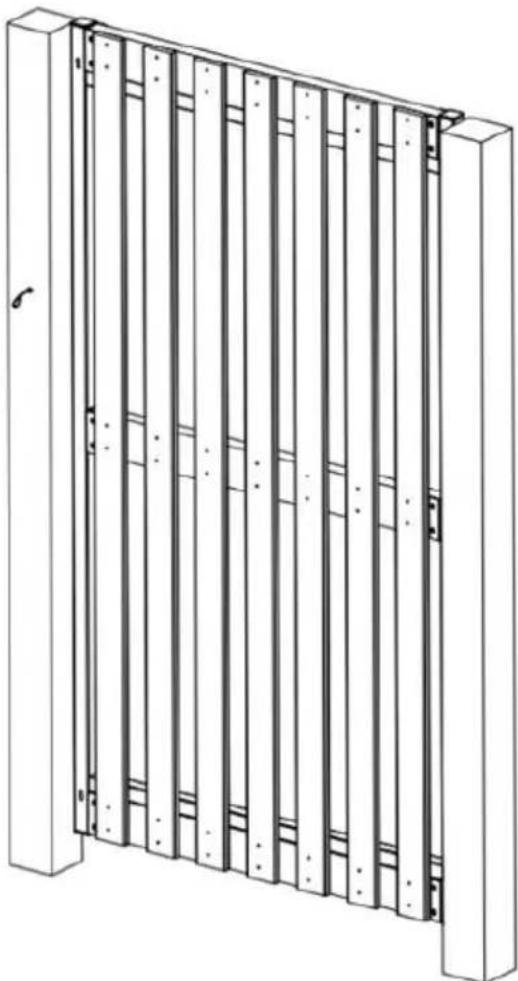

Attach the hinges to the door post as shown, then attach the assem door to the hinges.

Step5

Technical line drawing of a vertical panel structure with mounting feet (no text or symbols)

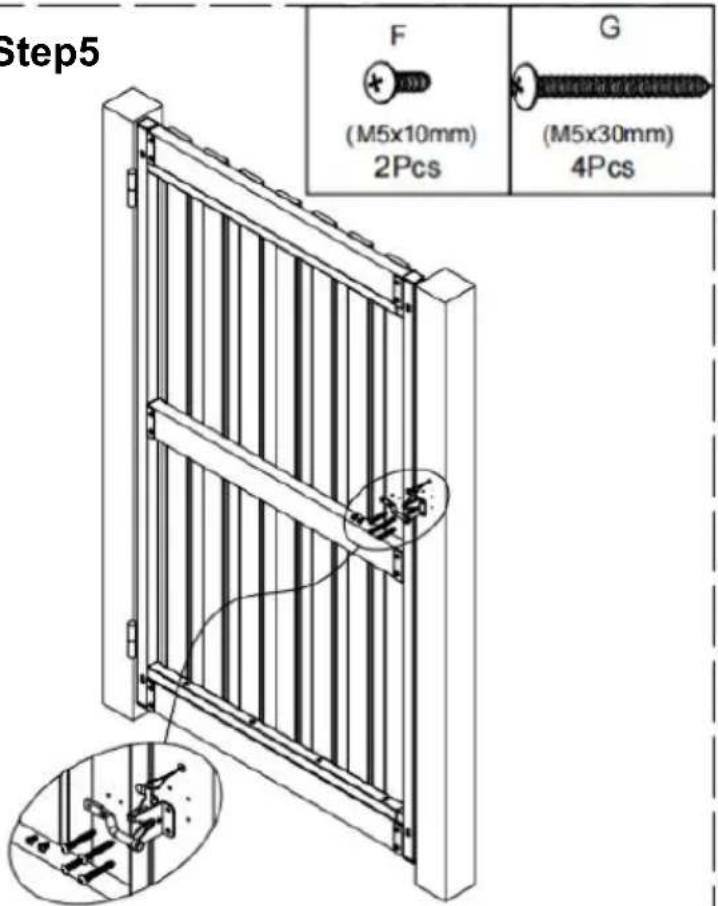

Install the latch fitting to the gate with scre

1. Close the gate and center the latch.
2. Mark the screw holes, drill four pilot holes the latch and two holes for the bar.
3. Install latch bar with screw F, install latch screw G.

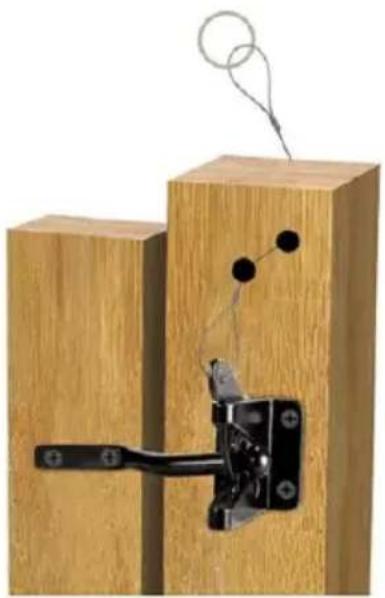

4. Drill a hole in the post and attach a with the latch to the ring, as shown on the right

Wooden frame with a black handle and wire attached, no visible text or symbols

PARAMETER

Model SPEC.	AA70000301	AA70000302	AA70000303	AA70000304
Material	Q235A	Q235A	Q235A	Q235A
Width	60-96inch	60-96inch	36-60inch	40-72inch
Height	65inch	47inch	65inch	47inch
Color	Black	Black	Black	Black

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Roac Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
