FRAME GATE BUILDING KIT USER MANUAL

MODEL:AA70000201 & AA70000202

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

MODEL:AA70000201 & AA70000202

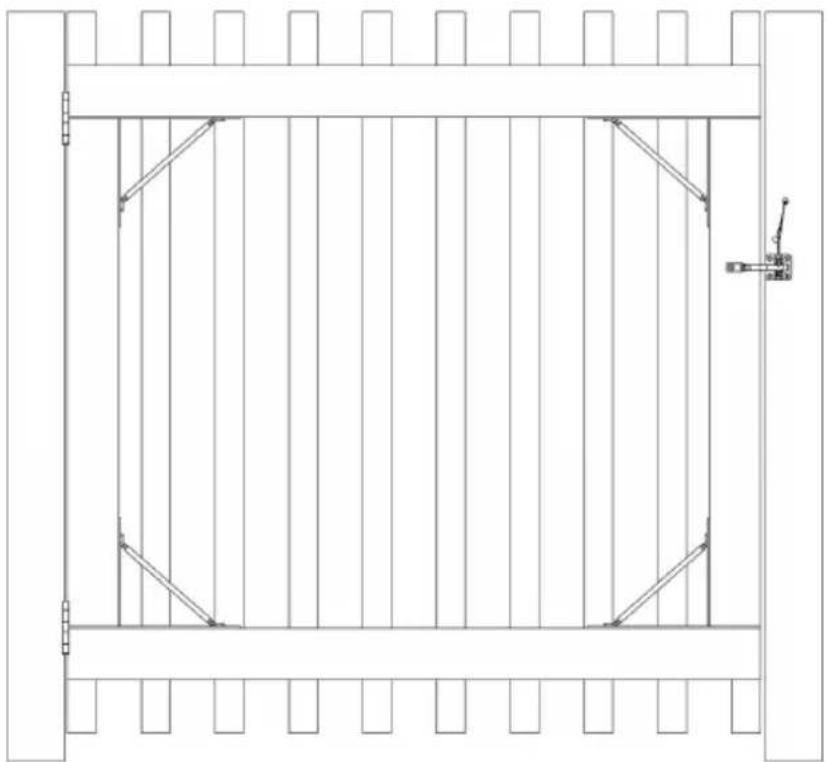

Technical line drawing of a structural frame with vertical supports and horizontal beams (no text or symbols)

(Excluding wood)

Note: The actual product you receive determines its look.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soi updates on our product.

Important safety instructions

	Warning - To reduce the risk of injury, the user must read instructions manual carefully.
	Warning- Be sure to wear ear protectors when using this product
	Warning- Be sure to wear eye protectors when using this product
	Warning- Be sure to wear dust masks when using this product
	Warning- Be sure to wear gloves when using this product.

WARNING!

1. Please read the instructions carefully.
2. After receiving the goods, please check whether the accessor are complete.
3. Products can be applied to small shed doors, such as garde doors, driveway doors, corral doors, barn doors, sundry doors, e
4. The assembled door can only bear its own weight, and can stand people or hang heavy objects.

PRODUCT DESCRIPTION

Garden doors, fences, fences, etc. are usually composed of wood doors, wooden doors in the outdoor long-term sun and rain, eas appear aging, sagging, shaking and other phenomena, so you can repair the wooden door through the door frame support to exter service life.

PRODUCT STRUCTURE

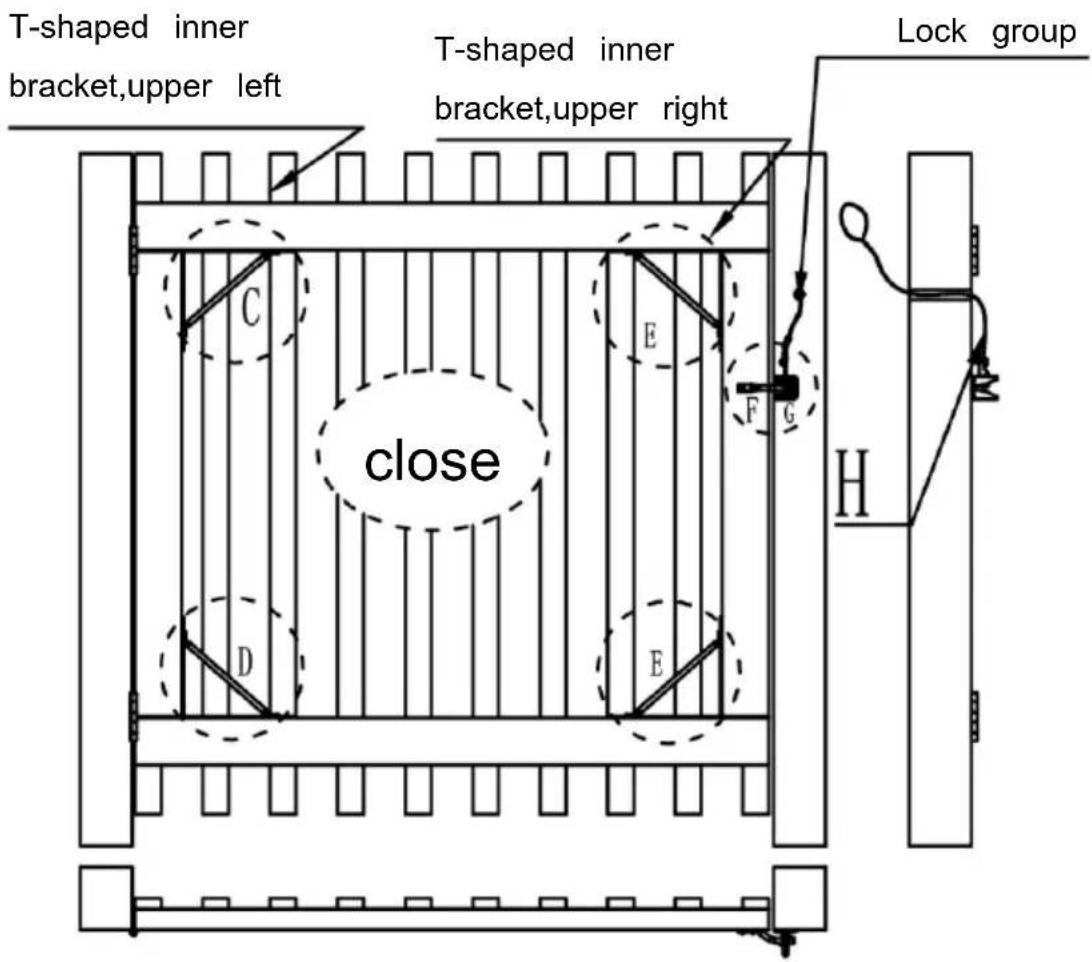

T-shaped inner bracket,upper left T-shaped inner bracket,upper right Lock group close C E F G D E H

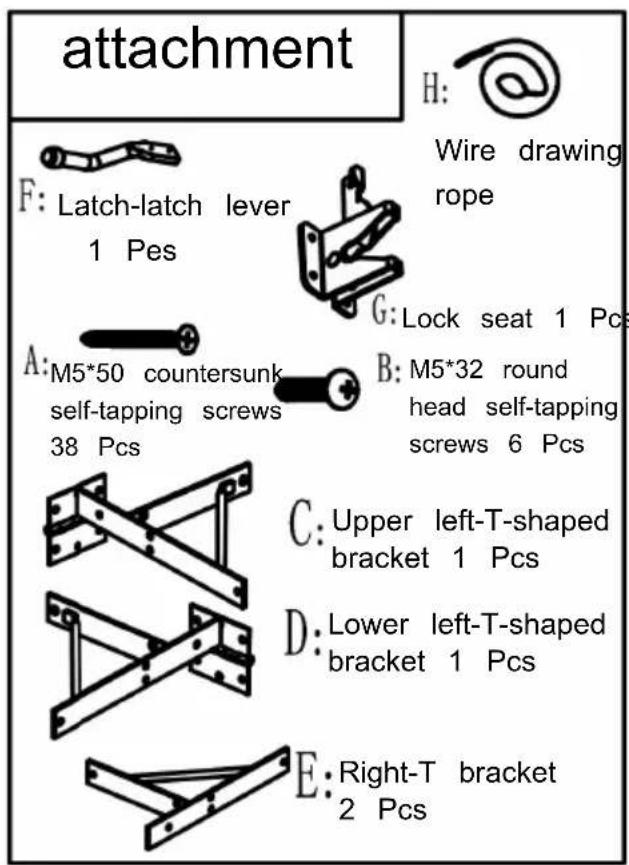

attachment F: Latch-latch lever 1 Pes Wire drawing rope G: Lock seat 1 Pcs A: M5*50 countersunk self-tapping screws 38 Pcs B: M5*32 round head self-tapping screws 6 Pcs C: Upper left-T-shaped bracket 1 Pcs D: Lower left-T-shaped bracket 1 Pcs E: Right-T bracket 2 Pcs

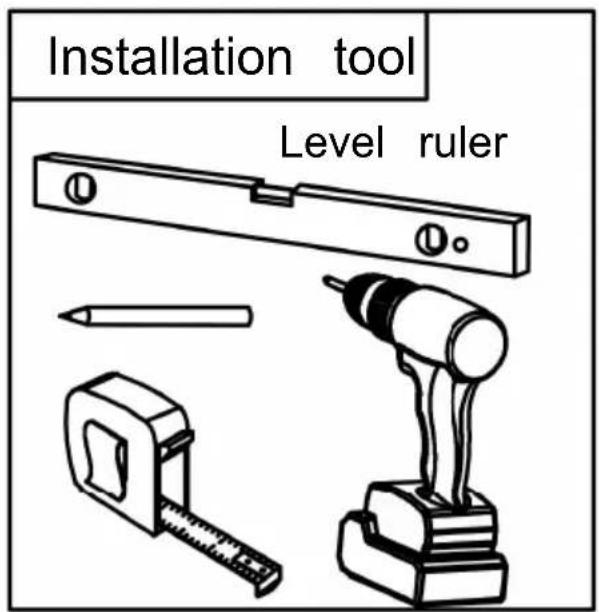

Installation tool Level ruler

INSTALLATION PROCEDURES

Step1

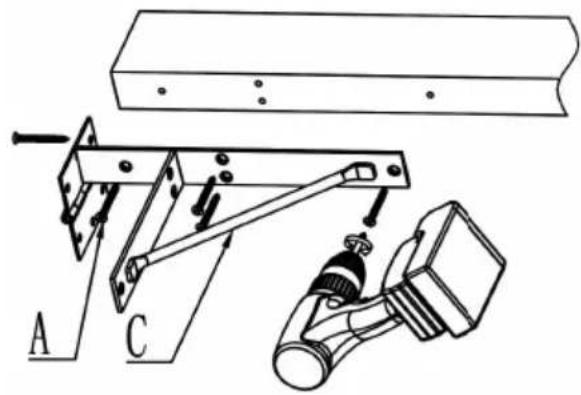

Install T-bracket on top rigr

Technical diagram of a mechanical device with labeled components A and C, showing assembly and mounting details.

Step2

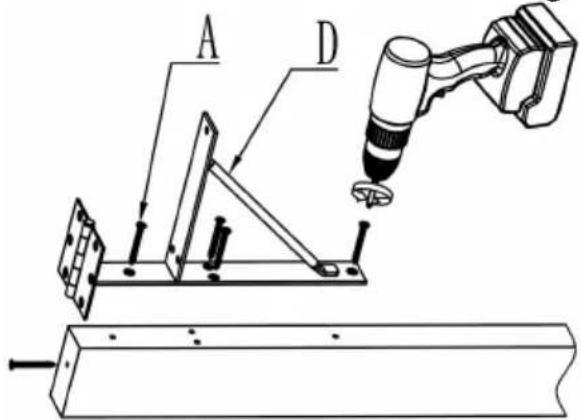

Install the T-shaped bracket on the lower rig

A D

Step3

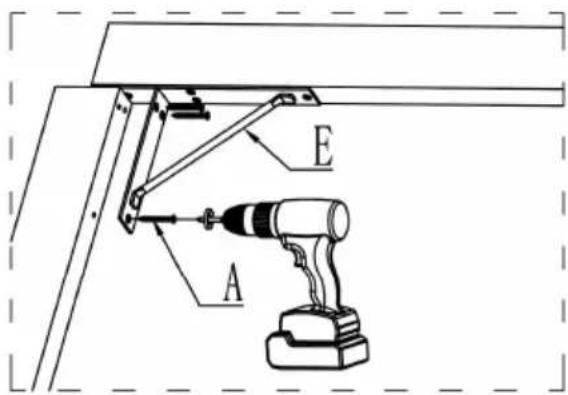

Install T-bracket on top

E A

Step4

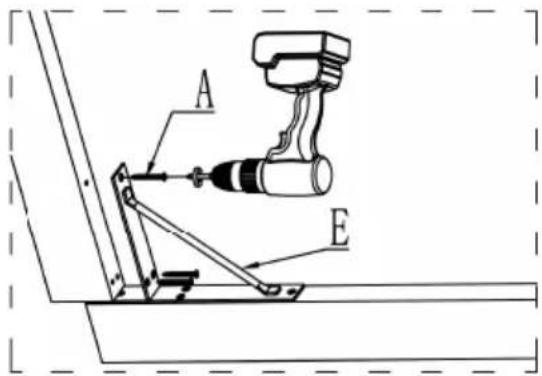

Install T-shaped bracket on the lower left

A E

Step5

Get one's things ready

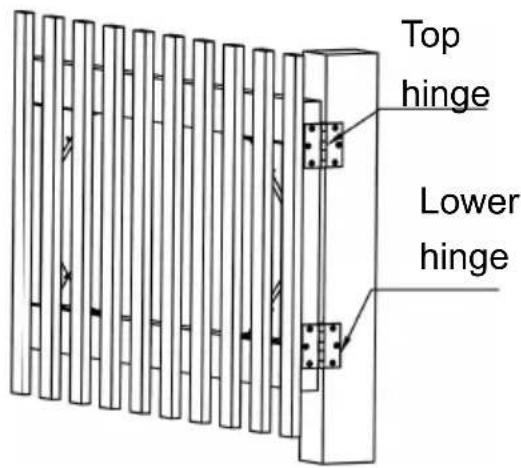

Top hinge Lower hinge

Step6

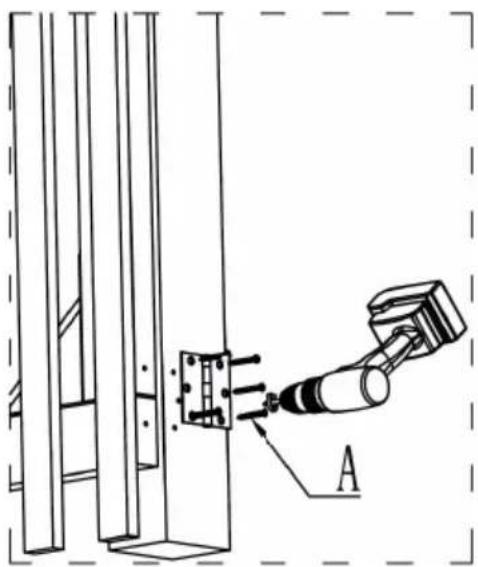

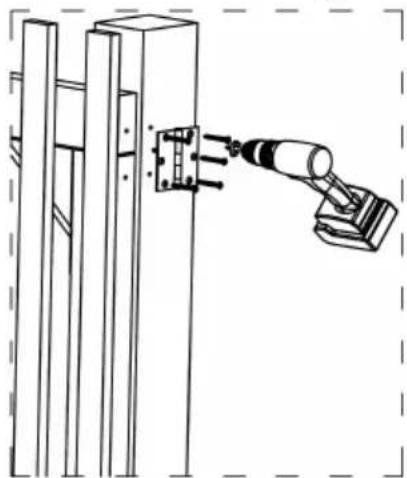

Press on the hinge

Technical line drawing of a robotic arm connecting two vertical panels (no text or symbols)

Step7

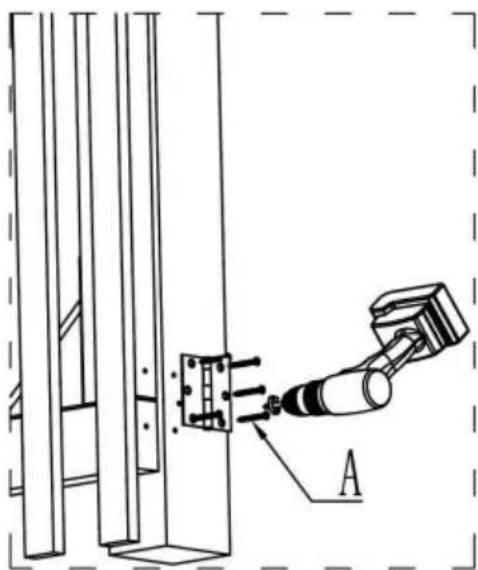

Press down on the hinge

Technical line drawing of a robotic arm connecting vertical bars to a mechanical component (no text or symbols)

Step8

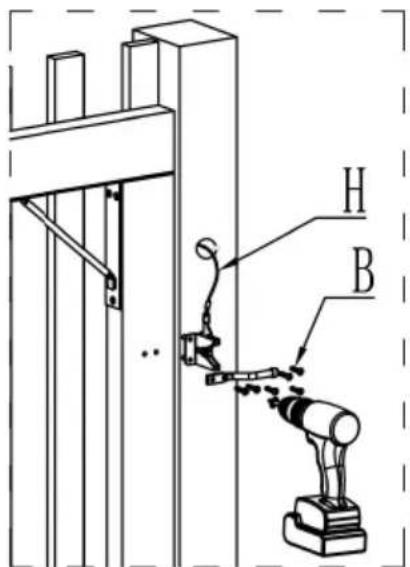

Press the lock group

H B

Step9

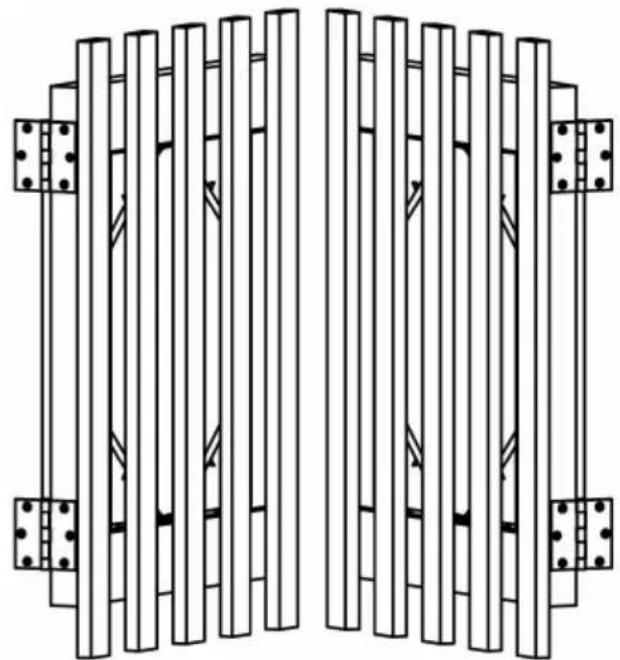

Two-piece set
Accessory part×2

Pure mechanical assembly diagram showing vertical rods and mounting brackets without any text or symbols

PARAMETER

SPEC. \ Model	AA70000201	AA70000202
Material	Q235A	Q235A
Style	“T” model	“T” model
Number	1 Set	2 Set
Color	Black	Black

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a rectangular frame with vertical supports and diagonal braces, no text or symbols present

(Escluso il legno)

Technical diagram of a mechanical device with labeled components A, C, and a rectangular block, showing assembly or assembly details.

Passo 2

Technical line drawing of a robotic arm connecting vertical structural beams to a bracket (no text or symbols)

Technical line drawing of a robotic arm connecting vertical bars to a bracket (no text or symbols)

Pure mechanical assembly diagram showing vertical columns and mounting brackets without any text or symbols

PARAMETRO

SPECIFICHE\Modello	AA70000201	AA70000202
Materiale		Q235AQ235A
Stile	Modello “T”	Modello “T”
Numero	1 Impostato	2 Impostato
Colore	Nero	Nero

C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Importato in AUS: SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a rectangular frame with vertical supports and diagonal braces, no text or symbols present

(Bez drewna)

Technical line drawing of a robotic arm connecting vertical structural beams (no text or symbols)

Krok 7

Naciśnij zawiasy

Technical line drawing of a robotic arm connecting vertical bars to a bracket (no text or symbols)

Krok 8

Pure mechanical assembly diagram showing vertical columns and mounting brackets without any text or symbols

PARAMETR

C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Importowane do AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a rectangular frame with vertical supports and diagonal braces, no text or symbols present

Technical line drawing of a robotic arm connecting vertical structural beams (no text or symbols)

Technical line drawing of a robotic arm connecting vertical bars to a bracket (no text or symbols)

Pure mechanical assembly diagram showing vertical columns and mounting brackets without any text or symbols

PARAMETER

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a rectangular structure with vertical supports and a horizontal beam, no text or symbols present.

(Hors bois)

STRUCTURE DU PRODUIT

Technical line drawing of a robotic arm connecting vertical structural beams to a bracket (no text or symbols)

Technical line drawing of a robotic arm connecting vertical bars to a bracket (no text or symbols)

Pure mechanical assembly diagram showing vertical columns and mounting brackets without any text or symbols

PARAMÈTRE

A/S YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Importé en AUS : SIHAO PTY LTD.

1 ROKEVA STREET EASTWOOD NSW 2122 Australie

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a rectangular frame with vertical supports and diagonal braces, no text or symbols present

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical line drawing of a robotic arm connecting vertical structural beams (no text or symbols)

Technical line drawing of a robotic arm connecting vertical bars to a bracket (no text or symbols)

Pure mechanical assembly diagram showing vertical columns and mounting brackets without any text or symbols

PARAMETER

SPECIFICATIES\Model	AA70000201	AA70000202
Materiaal		Q235AQ235A
Stijl		“T”-model“T”-model
Nummer	1 setje	2 Stel
Kleur	Zwart	Zwart

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EG-REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

VK VERTEGENWOORDIGING: YH CONSULTING LIMITED.

C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e- garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a rectangular frame with vertical supports and diagonal braces, no text or symbols present

(exklusive trä)

Technical diagram of a mechanical device with labeled components A, C, and a rectangular block, likely for assembly or maintenance.

Steg 2

Technical line drawing of a robotic arm connecting vertical structural beams to a bracket (no text or symbols)

Technical line drawing of a robotic arm connecting vertical bars to a bracket (no text or symbols)

Pure mechanical assembly diagram showing vertical rods and mounting brackets without any text or symbols

PARAMETER

SPEC. Modell	AA70000201	AA70000202
Material	Q235A	Q235A
Stil	"T"-modell	"T"-modell
Antal	1 set 2 Set
Färg	Svart	Svart

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Importerad till AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a rectangular frame with vertical supports and diagonal braces, no text or symbols present

(Excluyendo madera)

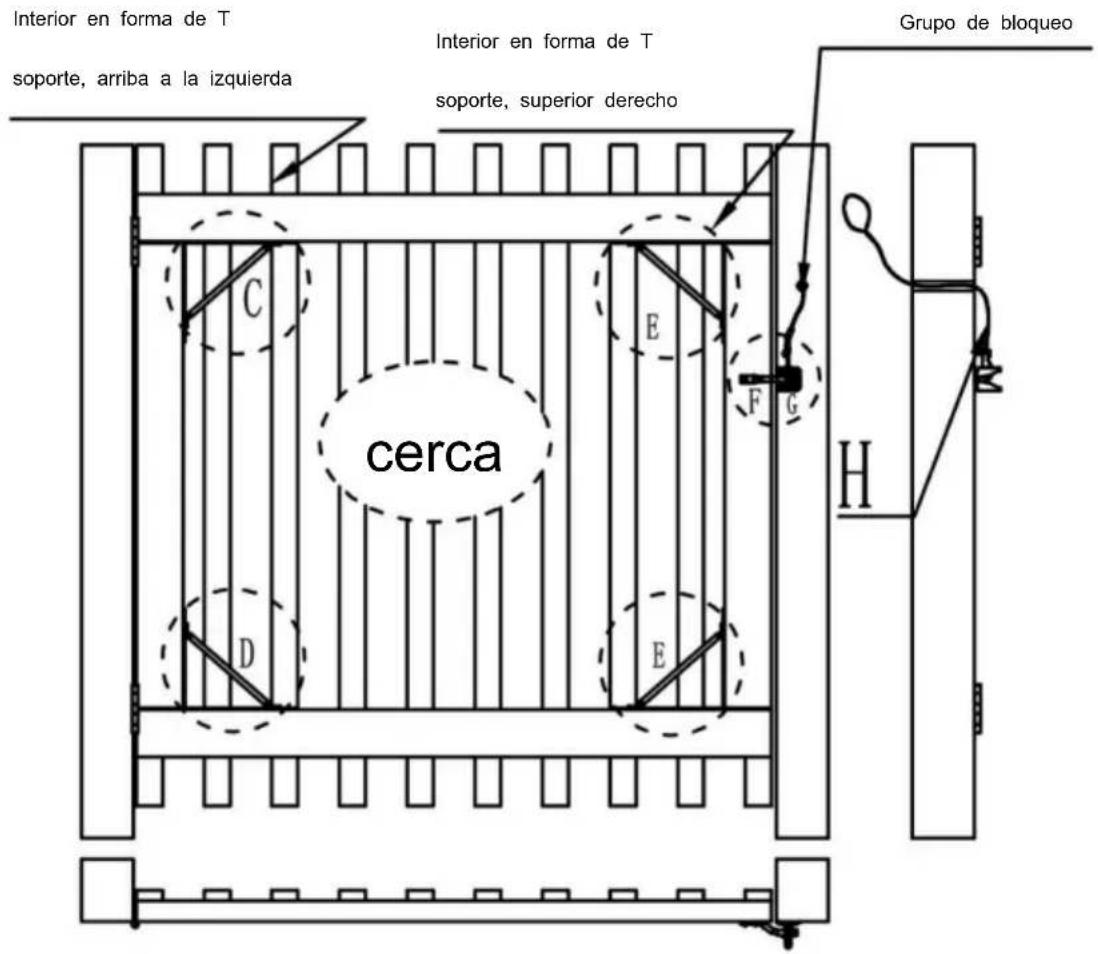

ESTRUCTURA DEL PRODUCTO
