Product Type	Frame Gate Construction Kit
Brand	Vevor
Model	AA70000301
Material	Q235A Steel
Adjustable Width	60 - 96 inches (152 - 244 cm)
Height	65 inches (165 cm)
Color	Black
Weight	Approximately 8 kg
Kit Contents	2 columns, 2 small tubes, 2 large tubes, 4 caps, 1 latch, 4 M6x50 screws, 24 M5x18 screws, 16 M5x65 screws, 4 M6x40 screws, 2 M5x10 screws, 4 M5x30 screws, 1 S4 hex key
Main Functions	Reinforcement of wooden doors, width adjustment, easy assembly
Assembly	Follow steps: insert tubes, screw, adjust width, attach hinges and latch
Safety	Wear PPE: safety glasses, gloves, dust mask, hearing protection
Maintenance	Clean with a damp cloth, dry, avoid abrasive products
Repairability	Spare parts available on request
Warranty	Electronic warranty certificate at www.vevor.com/support
Technical Support	Online assistance at www.vevor.com/support
Applications	Garden gates, fences, shed doors, driveway gates
Finish	Painted black

Frequently Asked Questions - AA70000301 Vevor

What is the maximum width of the frame for model AA70000301?

The adjustable width is 60 to 96 inches (152-244 cm). You can adjust by inserting the small tube into the large tube and screwing.

What materials are used for this kit?

The frame is made of Q235A steel, a strong and durable material. The screws and accessories are made of treated steel.

How to assemble the frame?

Follow the steps in the manual: insert the small tubes into the large tubes to adjust the width, fix the columns with M6x50 screws, then fix the wooden bars with M5x18 and M5x65 screws. Finally, install the hinges and latch.

Can the frame support a person's weight?

No, the assembled gate can only support its own weight. It is forbidden to hang heavy objects or allow people to stand on it.

What tools are included in the kit?

The kit includes a S4 hex key for assembly. You will need a drill for pilot holes.

How to maintain the frame to prevent rust?

Clean regularly with a damp cloth and dry thoroughly. Apply rust-proof paint if necessary. Avoid prolonged moisture.

Where to find the user manual?

The manual is available for free download at notice-facile.com or on the website www.vevor.com/support.

What is the difference between models AA70000301 and AA70000302?

The AA70000301 model has a height of 65 inches (165 cm) while the AA70000302 has a height of 47 inches (119 cm). The width is the same (60-96 inches).

Can I paint the frame?

Yes, you can paint the frame with metal-appropriate paint. Make sure to degrease and lightly sand before.

How to install the latch?

Attach the latch to the gate with M5x30 screws. Mark and drill pilot holes. Install the locking bar with M5x10 screws. Drill a hole in the post for the latch ring.

USER MANUAL AA70000301 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FRAME GATE BUILDING KIT

USER MANUAL

MODEL:AA70000301 & AA70000302 & AA70000303 & AA70000304

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

MODEL:AA70000301 & AA70000302 & AA70000303 & AA70000304

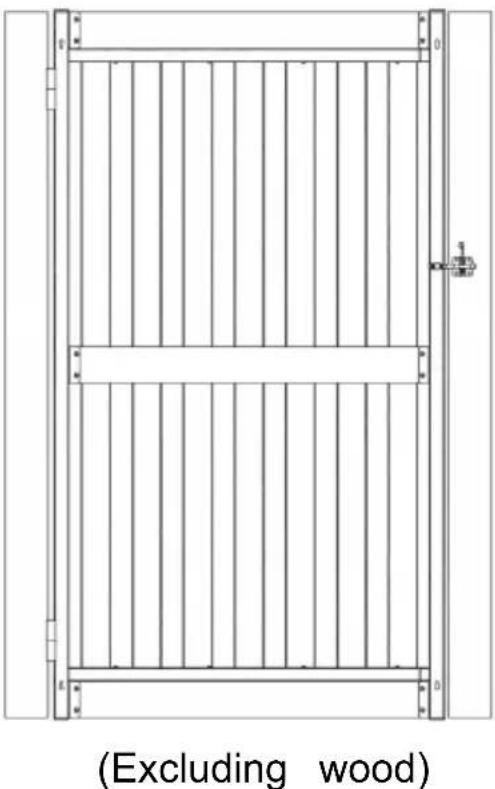

Exterior view of a metal gate structure with vertical slats and a door, labeled (Excluding wood) below (no other text or symbols)

Note: The actual product you receive determines its look.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soi updates on our product.

Important safety instructions

	Warning - To reduce the risk of injury, the user must read instructions manual carefully.
	Warning- Be sure to wear ear protectors when using this pro
	Warning- Be sure to wear eye protectors when using this pro
	Warning- Be sure to wear dust masks when using this produ
	Warning- Be sure to wear gloves when using this product.

WARNING!

1. Please read the instructions carefully.
2. After receiving the goods, please check whether the accessor are complete.
3. Products can be applied to small shed doors, such as garde doors, driveway doors, corral doors, barn doors, sundry doors, e
4. The assembled door can only bear its own weight, and can stand people or hang heavy objects.

PRODUCT DESCRIPTION

Garden doors, fences, fences, etc. are usually composed of wood doors, wooden doors in the outdoor long-term sun and rain, eas appear aging, sagging, shaking and other phenomena, so you can repair the wooden door through the door frame support to exter service life.

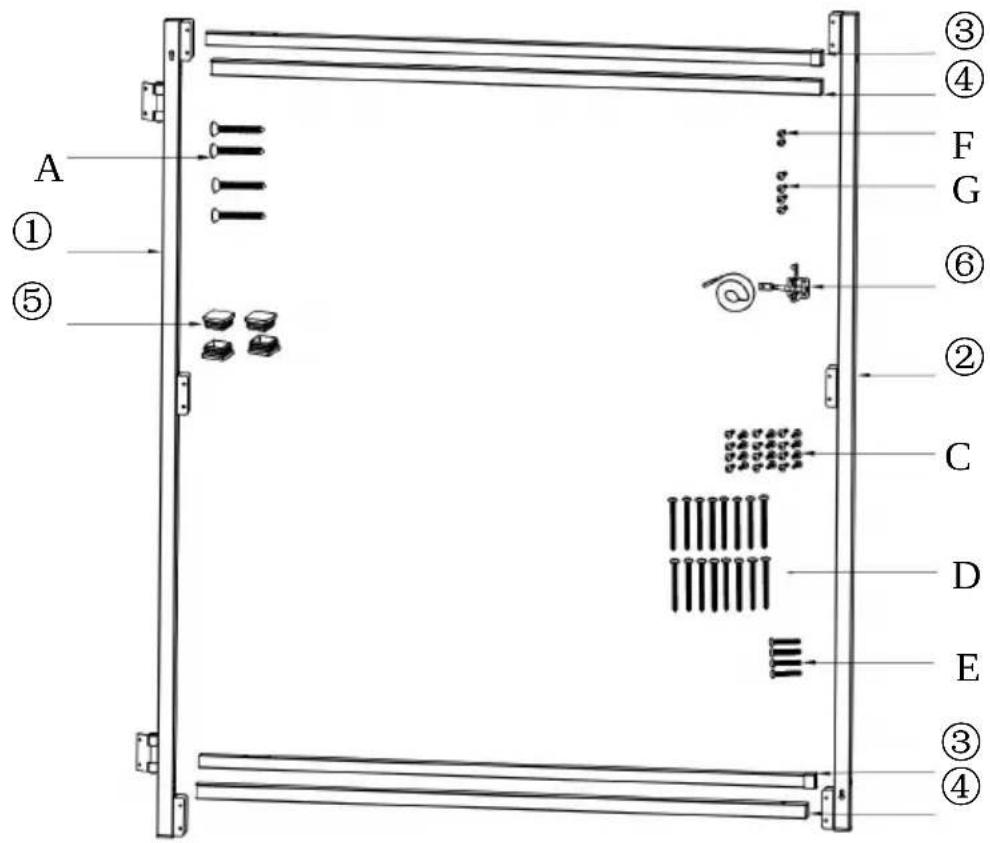

PRODUCT STRUCTURE

Item	Description	AA70000301	AA70000302	AA70000303	AA70000304
1	Column I	1pcs	1pcs	1pcs	1pcs
2	Column II	1pcs	1pcs	1pcs	1pcs
3	Small Tube	2pcs	2pcs	2pcs	2pcs
4	Large Tube	2pcs	2pcs	2pcs	2pcs
5	Tube Plug	4pcs	4pcs	4pcs	4pcs
6	Latch Fitting	1pcs	1pcs	1pcs	1pcs
A	M6*50 countersunk screw	4pcs	4pcs	4pcs	4pcs
B	S4 hex wrench	1pcs	1pcs	1pcs	1pcs
C	M5*18 round head screw	24pcs	24pcs	24pcs	24pcs
D	M5*65 round head screw	16pcs	16pcs	16pcs	16pcs
E	M6*40 countersunk screw	4pcs	4pcs	4pcs	4pcs
F	M5*10 round head screw	2pcs	2pcs	2pcs	2pcs
G	M5*30 round head screw	4pcs	4pcs	4pcs	4pcs

INSTALLATION PROCEDURES

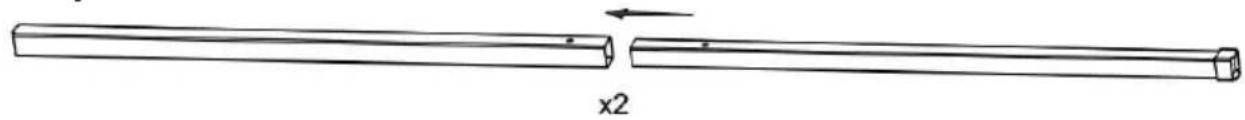

Step1
Insert into the tube

Technical line drawing of a mechanical shaft with two cylindrical ends, one with an arrow indicating motion (no text or symbols)

Insert the small tube into the large tube, and adjust the insertion disaccording to the required length. The upper and lower sets of tubes same.

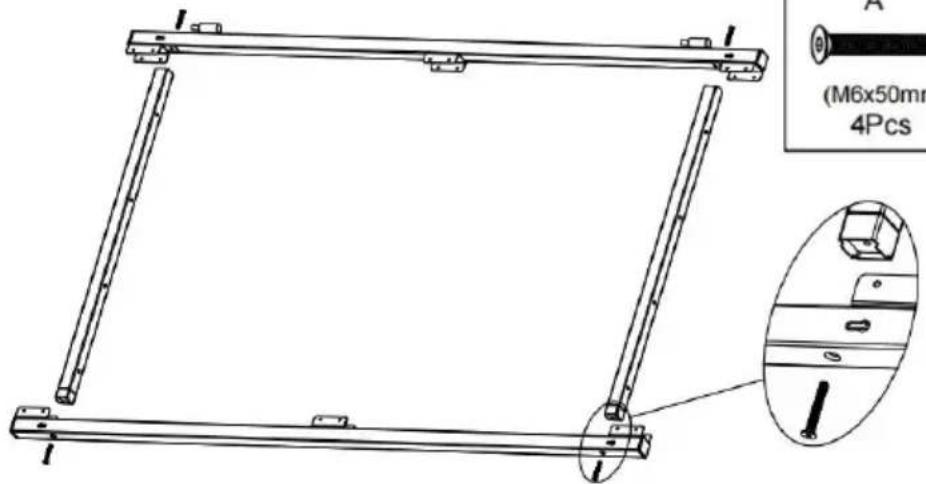

Step2

Insert the assembled horizontal pipe into the column according to the position of the small convex at both ends, and connect it firmly with and install the upper and lower two groups of pipes as well.

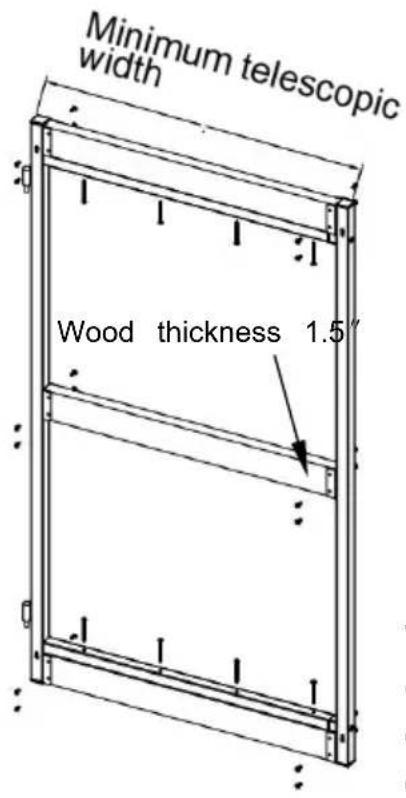

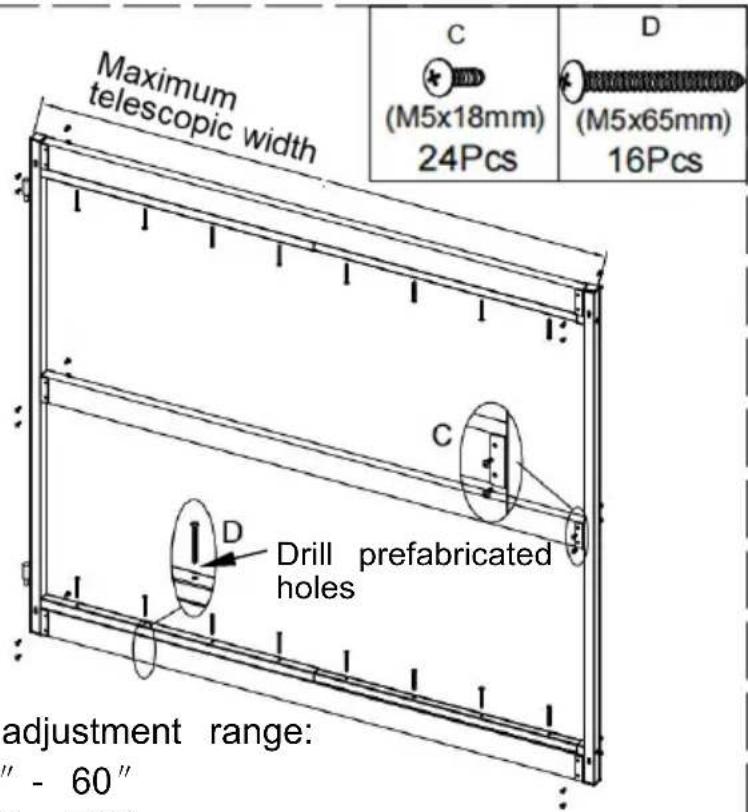

Step3

Width adjustment range:
① 36'' - 60''
② 40'' - 72''
③ 60" - 96"

The width of the upper and lower horizontal pipes can be adjusted to different lengths of the wooden bars. As shown in the figure, put the wooden bars of the appropriate length into the clamping position, press wooden bars in the middle of the two columns, and adjust the door become square. First fasten the two ends of the wooden bars with s and then securely connect the wooden bars with the horizontal pipes screw D.

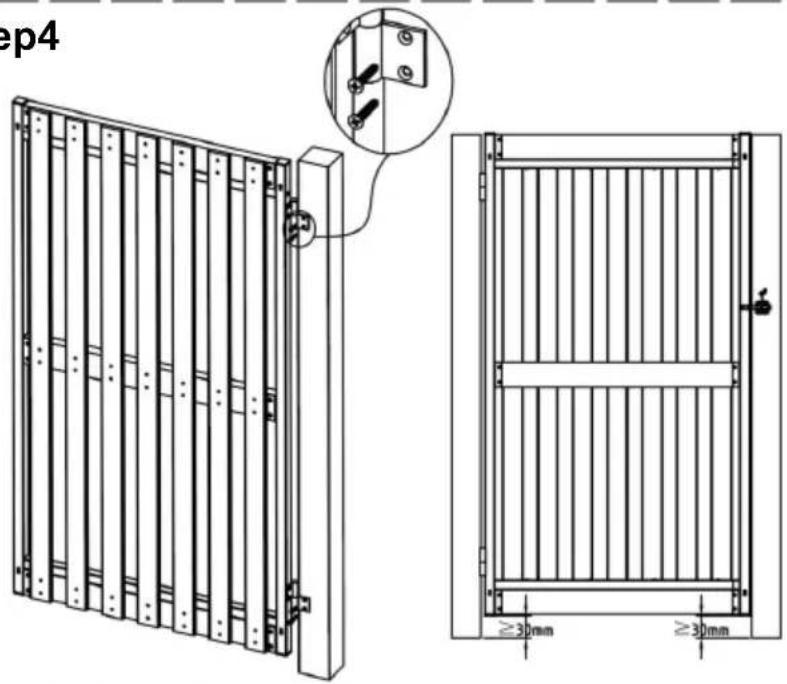

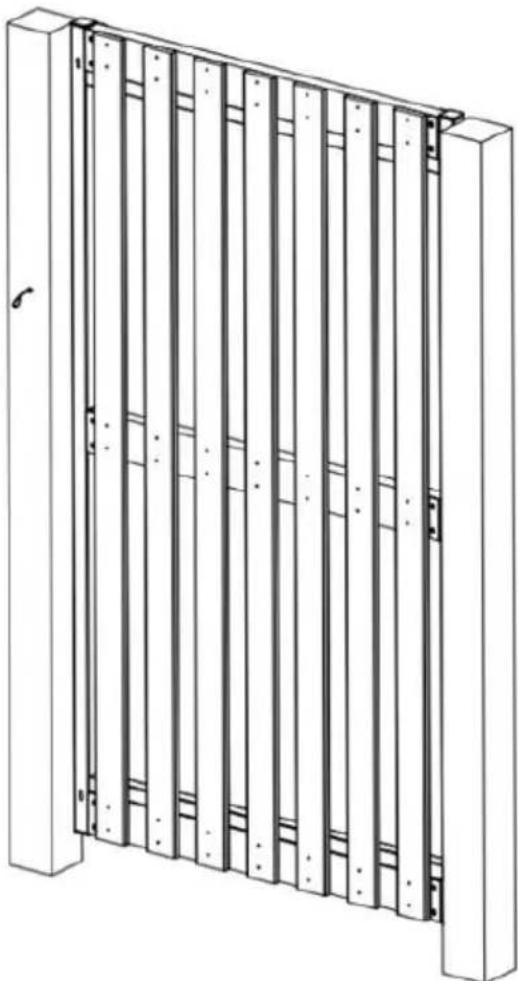

Step4

Attach the hinges to the door post as shown, then attach the assem door to the hinges.

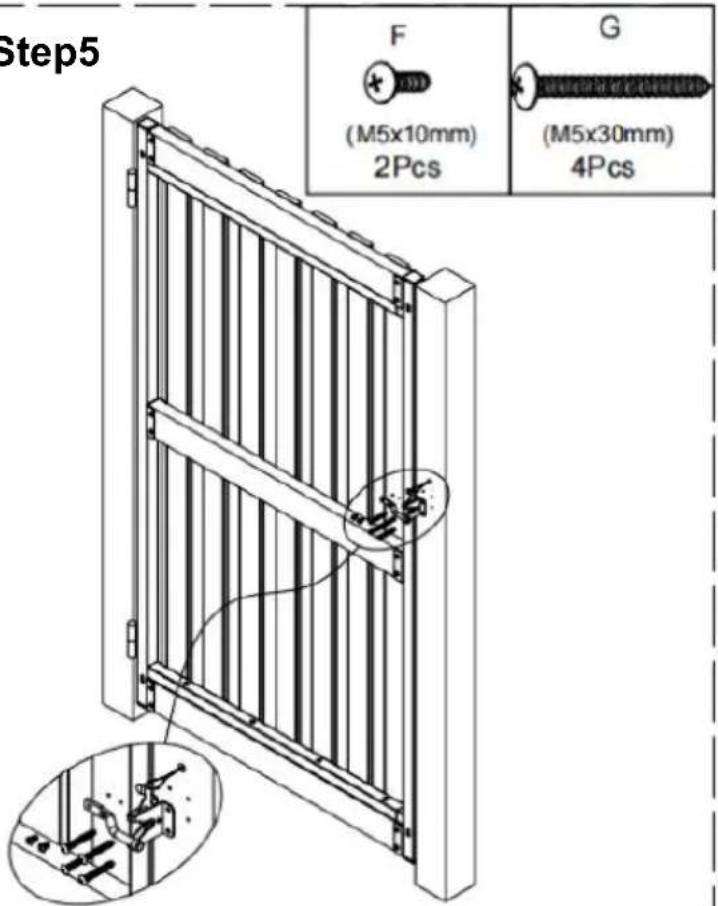

Step5

Technical line drawing of a structural panel with vertical supports and mounting brackets (no text or symbols)

Install the latch fitting to the gate with scre

1. Close the gate and center the latch.
2. Mark the screw holes, drill four pilot holes the latch and two holes for the bar.
3. Install latch bar with screw F, install latch screw G.

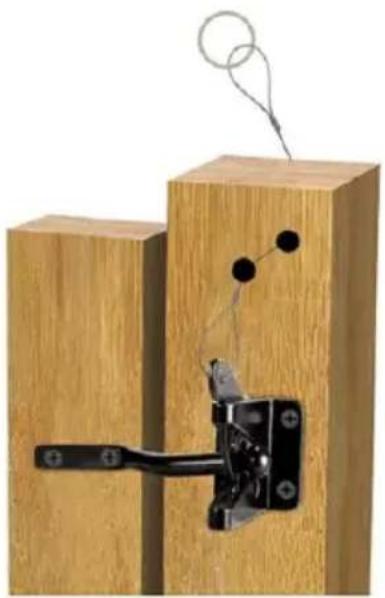

4. Drill a hole in the post and attach a with the latch to the ring, as shown on the right

Wooden frame with a black handle and wire attached to a wooden post (no text or symbols visible)

PARAMETER

Model SPEC.	AA70000301	AA70000302	AA70000303	AA70000304
Material	Q235A	Q235A	Q235A	Q235A
Width	60-96inch	60-96inch	36-60inch	40-72inch
Height	65inch	47inch	65inch	47inch
Color	Black	Black	Black	Black
