USER MANUAL AG26-1 Vevor

Affordable. Reliable. Home Improvement.

ANGLE GRINDER DUST SHROUD

MODEL:AG26/AG26-1

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

ANGLE GRINDER DUST SHROU[

MODEL: AG26/AG26-1

Close-up of a black and red plastic tool holder with a handle, showing mechanical components and mounting holes (no text or symbols visible)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instruct manual carefully.

INSTRUCTIONS

WARNING READ ALL SAFETY WARNINGS AND ALL INSTRUCTION:

Prior to use, thoroughly review this instruction sheet, the guidelines fo both the tool and grinding accessory, as well as all labels affixed to shroud, tool, and grinding accessory. Neglecting to adhere to the prov warnings and instructions could lead to severe injury. Retain all warnin and instructions for future reference.

- Use the proper shroud for the power tool. The shroud must properly tool. The inset on the tool collar must fit the ridges on the shroud. - Only use 4 "/5" diamond cup wheels with the 4 "/5" shroud.

The incorrect size or type accessory may cause personal injury, or due to the shroud or tool.

SYMBOLOGY

Read Operator's Manual

Always Wear Eye and Respiratory Protection

WARNING: Never Modify the power tools or any part of it, Dan

or personal injury could result.

INTRODUCTION

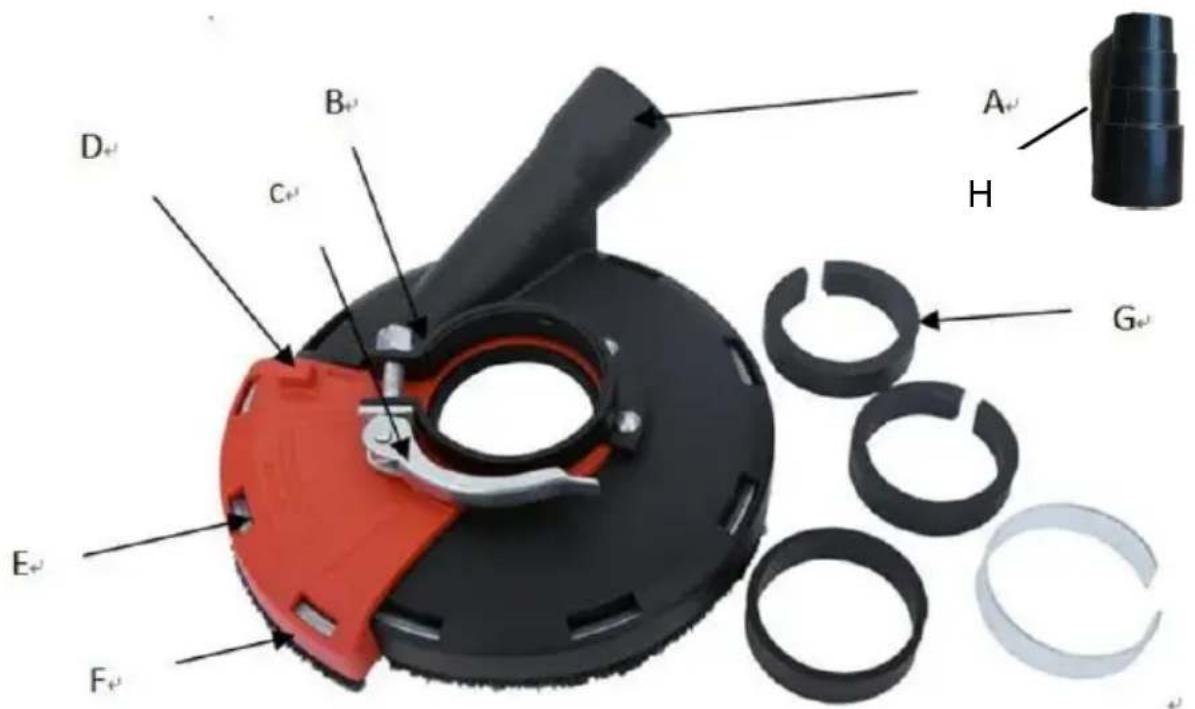

D+ B+ C+ A+ H G+ E+ F+

(Fig.1)

A: Dust port B: Clamp Adjusting Screw
C: Lever D: Edging Door Tab
E: Brush skirt removal hole F: Replaceable Brush Skirt
G: Clamping washer H: Universal vacuum cleaner hose adapter

*Note: The quantity and specifications of the Clamping Washer did depending on the model.

Model	Numbers	Thickness
AG26/AG26-1	6PCS	Thickness:1.5mm/3mm/3.6mm/4mm/4.4mm/5.5mm

Your concrete surface grinding shroud has been meticulously designed efficient dust removal during various applications, including grinding, leveling, and polishing concrete surfaces. It effectively eliminates dust when removing surface paint, epoxy, and glue. By utilizing the approp grinder, diamond grinding wheel, and dust extractor vacuum, this shroud can significantly reduce both static and airborne dust. Without the use this surface grinding shroud, such dust could otherwise contaminate the working environment or pose heightened health risks to the operator a

those nearby. It is imperative that this concrete surface grinder always used in conjunction with a dust extractor vacuum specifically designed concrete dust removal.

DO NOT use under wet conditions or in the presence of flammable or gases. The surface grinding shroud is a professional tool.

DO NOT allow children to come into contact with the tool. Supervisory mandatory when inexperienced operators use this tool.

ASSEMBLY

WARNING: To reduce the risk of injury, always disconnect the t power supply before attaching or removing accessories or making adjustments.

1. Unplug or remove the battery pack from the tool.
2. Remove all accessories and the tool's guard.
3. Ensure the tool meets the shroud's fit requirements

Shroud size	Fits Collar Diameter	Minimum Collar Height	Minimum Inset Height
4"/5"	1-1/2" to 2-3/16"	5/16"	9/32"

1. Loosen the band clamp nut (1/4 " for 4 "/5 " shroud) to make the clamp wide enough to slip over the tool's collar.
2. Fit the band clamp ridges into the tool's collar inset.

NOTE: Surface grinding shroud Diameter is 51.5mm, So need check yc angle Grinder diameter and choose different size clamping washer thickness(Fig.1G) add angle grinder collar diameter(Fig.2) to 51.5mm.

(Fig.3)

Collar Diameter Inset Height Collar Height Inset Inset

(Fig.2)

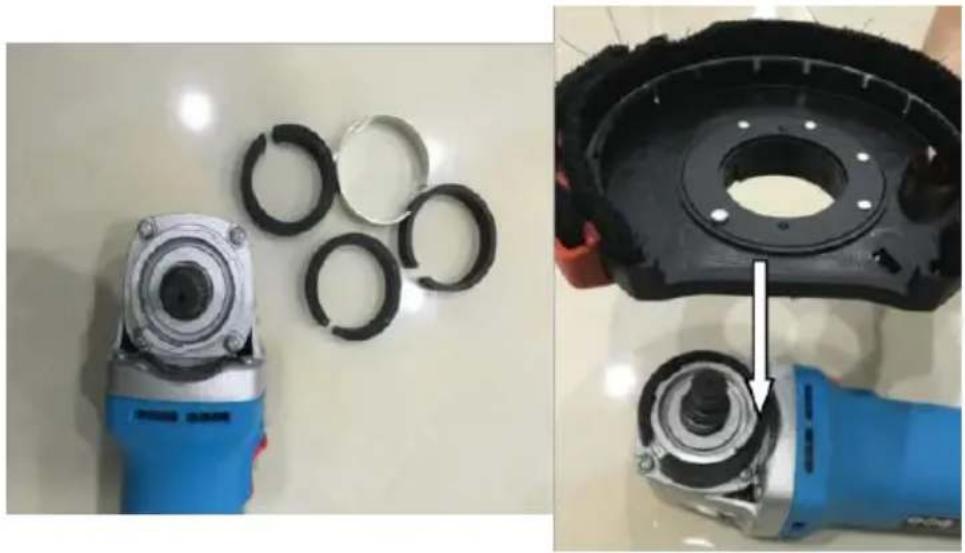

Two-panel image showing a motor and a car tire assembly: one with metal rings, the other with a blue-handled tool (no text or symbols visible)

(Fig.3)

NOTE: Model AG26/AG26-1 adaptable Angle mill specifications and place it correctly.

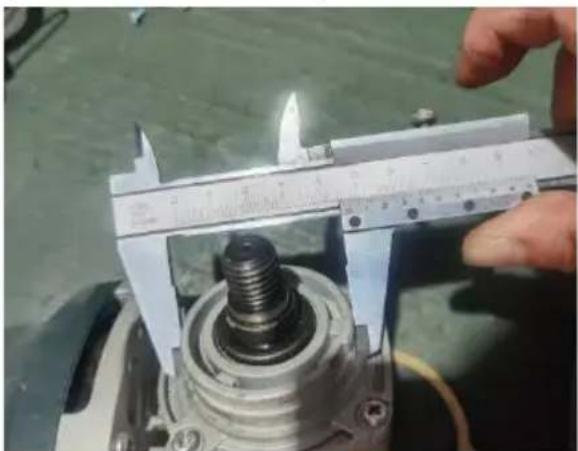

Close-up of a hand measuring a mechanical component with a vernier caliper (no visible text or symbols)

Your gear box size	Adaptor(thickness)
φ40mm	No.1(5.5mm)
φ42mm	No.2(4.4mm)
φ43mm	No.3(4mm)
φ44mm	No.4(3.6mm)
φ45mm	No.5(3mm)
φ48mm	No.6(1.5mm)

1. Rotate the shroud to the desired position.

2. Center the shroud on the spindle and tighten the band clamp sec making sure the ridges remain engaged with the inset.

3. Attach the diamond cup wheel according to the tool and accessory manufacturers' instructions.

4. If the diamond cup wheel does not extend above the lip of the s remove the diamond cup wheel and place the spacers around the sp Reinstall the diamond cup wheel. To fine-tune the spacing, tighten or loosen the three band clamp screws. Be sure enough of the screw i engaged with the bolt to hold the clamp to the guard.

5. Insert the vacuum hose into the port. Secure the vacuum hose to power cord (if necessary) using the releasable tie.

Mounting and Removing Surface Grinding Shroud

1. Follow the instructions for mounting and removing the guard in the manual to remove the guard from the grinder.

2. Open the clamping lever (C) on the surface grinding shroud and a tab (J) on the shroud with the slots (I) on the grinder gear (G).

3. With the clamping lever open, rotate the shroud to the desired w position. The surface grinder shroud should be positioned between the spindle and the operator to provide operator protection.

4. Close the clamping lever to secure the surface shroud to the gear and tighten the clamp adjustment screw (B) to ensure the shroud is securely fastened to the gear case.

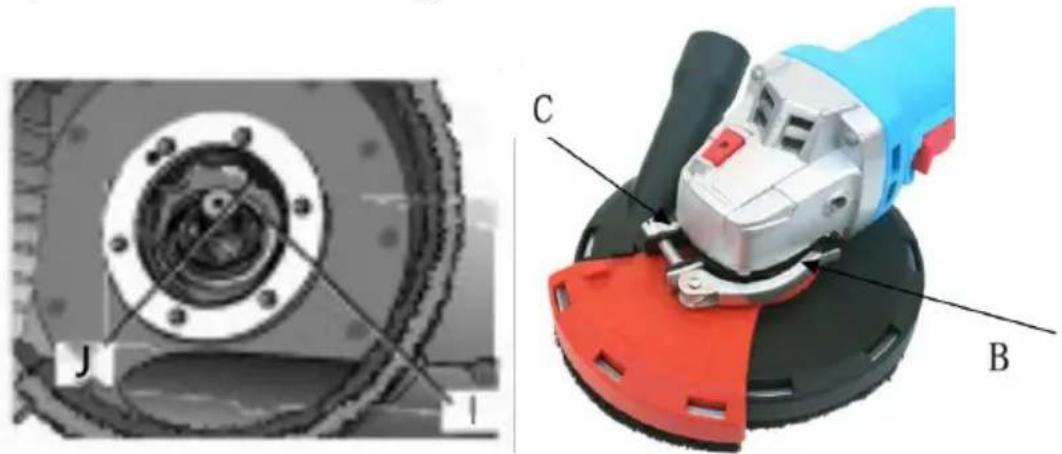

Technical diagram showing a motor blade assembly with labeled components A, B, and C, alongside an inset view of a mechanical component with bolt holes.

Fig .4

NOTE: Do not tighten the clamp adjusting screw (B) with the clamp open position, Undetectable damage to the surface grinding shroud or mounting hub may result.

1. To remove the surface grinding shroud, first open the clamp lever. rotate the surface grinding shroud to align the slots and tabs, and get the surface grinding shroud.
2. Connect the Universal vacuum cleaner hose adapter to the dust of Our products come equipped with vacuum cleaner converter heads, allowing consumers to choose whether to utilize this component for enhanced practicality.

	AG26/AG26-1
Universal vacuum cleanehose adapter specification
	Size 28-42mm
Use vacuum cleaner hosadapter
	Insert the 42mm end into the dust covethe vacuum cleaner tube into the other
Do Not Use vacuumcleaner hose adapter
	Insert the vacuum cleaner hose directlythe dust cover port

*Mounting Dry Diamond surface cup wheels.

Dry Diamond surface cup wheels serve as supplementary functions accessories, rather than standard components for all products.

Please consult the specific purchase model for accurate information

Follow the mounting and using cutting wheel instructions in the tool r and mount the grinding wheel,DO NOT use type 1 cutting wheel or abrasive wheel. Dry diamond surface cup (L) wheel are recommended for use with this shroud the inner flange washer(K) Should be installed behind the wheel allowing free tool removal and proper fit.

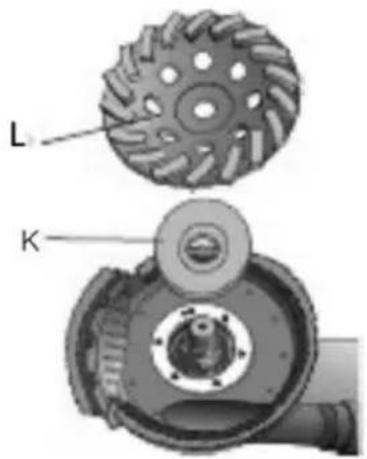

L K

Fig .5

DUST EXTRACTION

WARNING: This attachment must be used with a dust extractor system, always wear certified safety face or dust mask.

CLEANING

Keep the shroud clean, dry, and free from oil or grease. Use only r and a damp cloth for cleaning, as certain cleaning agents and solvent be detrimental to plastics and other components. Harmful substances include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia, and household detergents containing ammonia. Never use flammable or combustible solvents near tools.

SPECIFICATIONS

Model	AG26	AG26-1
Color	Black/Red	Black/Red
Applicable wheel size	4-5inch	4-5inch
Applicable model	Sander type	Sander type
Product accessories	6 X clamping washer1X M10-M13 wrench1X universal vacuum cleaner hose adapter1X gasket1X open wrench	6 X clamping washer1X M10-M13 wrench1X universal vacuum cleaner hose adapter1X 5 inch metal wheel disc1X gasket1X open wrench
Net weight	0.6kg	1.02kg

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

OSŁONA PRZECIWPYŁOWA SZLIFIERKI KĄTOWEJ

MODELE: AG26/AG26-1

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

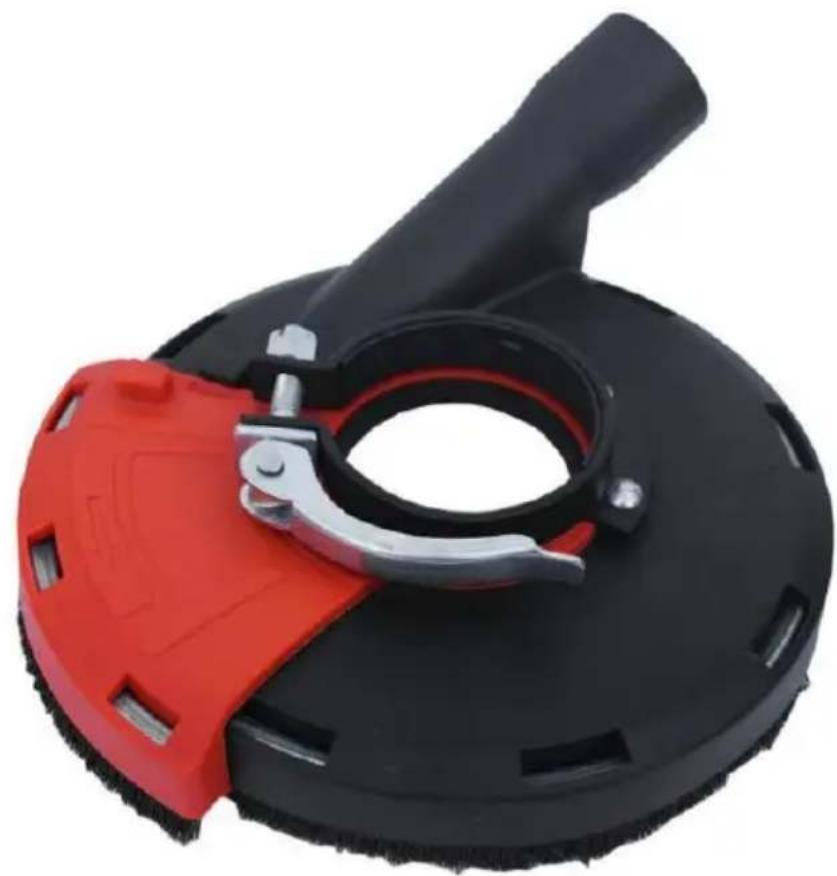

ANGLE GRINDER DUST SHROU

MODELE: AG26/AG26-1

Close-up of a black and red cleaning tool holder with a handle, showing mechanical components and mounting holes (no text or symbols visible)

Read Operator's Manual

Always Wear Eye and Respiratory Protection

D B C A H G E F (Rys.

1)

Shroud size	Fits Collar Diameter	Minimum Collar Height	Minimum Inset Height
4"/5"	1-1/2" to 2-3/16"	5/16"	9/32"

Two-panel image showing a power tool and a mechanical component with rings and a black housing (no text or symbols visible)

(Rys. 3 )

Close-up of a hand using a vernier caliper to measure a mechanical component (no visible text or symbols)

Mounting and Removing Surface Grinding Shroud

Technical diagram showing a mechanical device with labeled parts A, B, and C, alongside an inset view of a circular component with bolt holes.

Rys.4

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

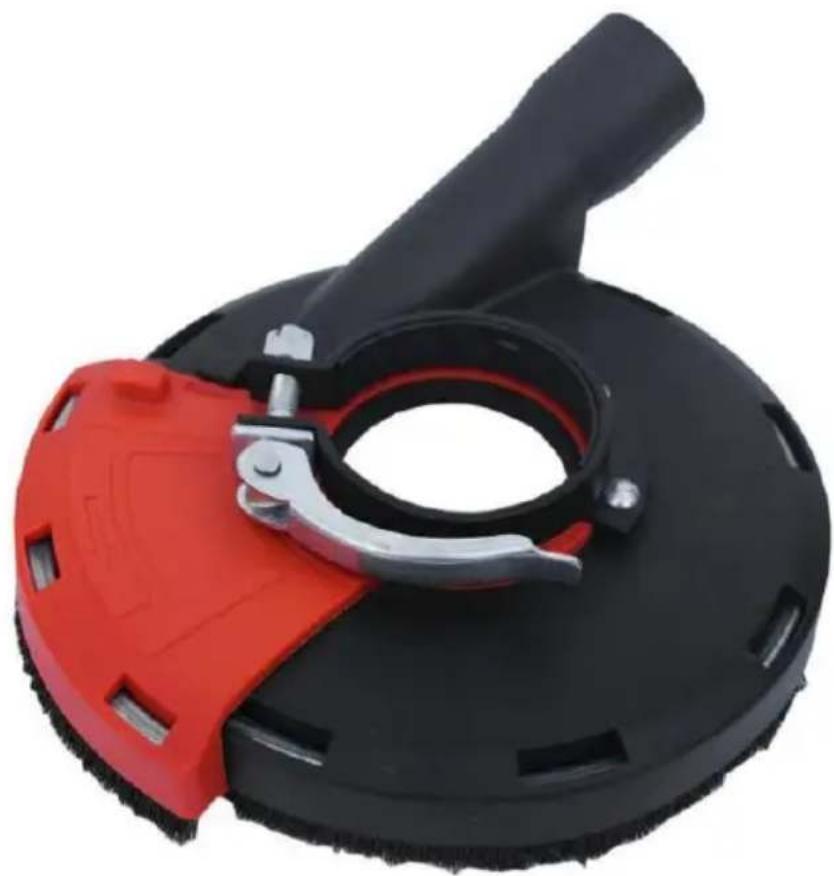

CAPOT ANTI-POUSSIÈRE POUR MEULEUSE D'ANGLE

MODÈLE : AG26/AG26-1

VEVOR

Affordable. Reliable. Home Improvement.

ANGLE GRINDER DUST SHROU

MODÈLE : AG26/AG26-1

Close-up of a black and red plastic tool holder with a handle, showing mechanical components and mounting holes (no text or symbols visible)

Read Operator's Manual

Always Wear Eye and Respiratory Protection

D B C E F A H G (Fig.

1)

Shroud size	Fits Collar Diameter	Minimum Collar Height	Minimum Inset Height
4"/5"	1-1/2" to 2-3/16"	5/16"	9/32"

Two-panel image showing a power tool and a mechanical component with ring closures; no text or symbols visible.

(Fig. 3)

Close-up of a hand using a vernier caliper to measure a mechanical component (no visible text or symbols)

φ42mm	N° 2 (4,4 mm)
φ4 3 mm	N° 3 (4 mm)
φ44mm	N° 4 (3,6 mm)
φ4 5 mm	N° 5 (3 mm)
φ4 8 mm	N° 6 (1,5 mm)

Mounting and Removing Surface Grinding Shroud

Technical diagram showing a motor with labeled components: tool, blade, and base parts

Fig.4

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

ANGLE GRINDER DUST SHROU

MODELL: AG26/AG26-1

Close-up of a black and red plastic tool holder with a handle, showing mechanical components and mounting holes (no text or symbols visible)

Read Operator's Manual

Always Wear Eye and Respiratory Protection

Shroud size	Fits Collar Diameter	Minimum Collar Height	Minimum Inset Height
4"/5"	1-1/2" to 2-3/16"	5/16"	9/32"

Two-panel image showing a blue electric shaver and a black mechanical component with ring closure, both without any visible text or symbols.

(Abb. 3 )

Close-up of a hand using a vernier caliper to measure a mechanical component (no visible text or symbols)

Mounting and Removing Surface Grinding Shroud

Technical illustration of a mechanical device with labeled parts (A, B, C, I, J), showing internal components and assembly (no readable text or symbols beyond labels)

Abb. 4

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

STOFKAP VOOR HAAKSE SLIJPER

MODEL: AG26/AG26-1

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

ANGLE GRINDER DUST SHROU[

MODEL: AG26/AG26-1

Close-up of a black and red plastic tool holder with a handle, showing mechanical components and mounting holes (no text or symbols visible)

WAARSCHUWING LEES ALLE VEILIGHEIDSWAARSCHUWINGEN EN ALLE INSTRUCTIES.

		Read Operator's Manual
		Always Wear Eye and Respiratory Protection

Shroud size	Fits Collar Diameter	Minimum Collar Height	Minimum Inset Height
4"/5"	1-1/2" to 2-3/16"	5/16"	9/32"

Two-panel image showing a power tool and a close-up of mechanical components with rings (no text or symbols visible)

(Figuur 3 )

Close-up of a hand using a vernier caliper to measure a mechanical component (no visible text or symbols)

Mounting and Removing Surface Grinding Shroud

Technical diagram showing a mechanical device with labeled parts A, B, and C, alongside an inset image of a circular component with bolt holes.

Figuur 4

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

ANGLE GRINDER DUST SHROU

MODELL: AG26/AG26-1

Close-up of a black and red plastic tool holder with a handle, showing mechanical components and mounting holes (no text or symbols visible)

Read Operator's Manual

Always Wear Eye and Respiratory Protection

A H G B C D E F

(Fig.1)

Shroud size	Fits Collar Diameter	Minimum Collar Height	Minimum Inset Height
4"/5"	1-1/2" to 2-3/16"	5/16"	9/32"

Two-panel image showing a motor and a car tire assembly: one with four black rings, the other with a blue tool (no text or symbols visible)

(Fikon. 3 )

Close-up of a hand using a vernier caliper to measure a mechanical component with a threaded screw (no visible text or symbols)

φ4 8 mm

Nr 6 (1,5 mm)

Mounting and Removing Surface Grinding Shroud

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

ANGLE GRINDER DUST SHROU[

MODELO: AG26/AG26-1

Close-up of a black and red plastic tool holder with a handle, showing mechanical components and mounting holes (no text or symbols visible)

Read Operator's Manual

Always Wear Eye and Respiratory Protection

A H G F E C B D (Fig)

ura 1)

Shroud size	Fits Collar Diameter	Minimum Collar Height	Minimum Inset Height
4"/5"	1-1/2" to 2-3/16"	5/16"	9/32"

Two-panel image showing a power tool and a close-up of mechanical components with ring closures (no text or symbols visible)

(Figura 3)

Close-up of a hand using a vernier caliper to measure a mechanical component (no visible text or symbols)

caja de cambios
φ4 0 mm	N.° 1 (5,5 mm)
φ42 mm	N.° 2 (4,4 mm)
φ4 3 mm	N.° 3 (4 mm)
φ44 mm	N.° 4 (3,6 mm)
φ4 5 mm	N.° 5 (3 mm)
φ4 8 mm	N.° 6 (1,5 mm)

Mounting and Removing Surface Grinding Shroud

Technical illustration of a mechanical device with labeled parts (A, B, C) and a close-up view of a circular component (no text or symbols beyond labels)

Figura 4

Technical diagram of a mechanical gear assembly with labeled parts L and K (no text or symbols beyond labels)

Figura 5

EXTRACCIÓN DE POLVO

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

CUFFIA ANTIPOLVERE PER SMERIGLIATRICE ANGOLARE

MODELLO: AG26/AG26-1

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

ANGLE GRINDER DUST SHROU[

MODELLO: AG26/AG26-1

Close-up of a black and red plastic tool holder with a handle, showing mechanical components and mounting holes (no text or symbols visible)

Read Operator's Manual

Always Wear Eye and Respiratory Protection

Shroud size	Fits Collar Diameter	Minimum Collar Height	Minimum Inset Height
4"/5"	1-1/2" to 2-3/16"	5/16"	9/32"

Two-panel image showing a power tool and a mechanical component with ring closures; no text or symbols visible.

(Fig. 3)

Close-up of a hand using a vernier caliper to measure a mechanical component (no visible text or symbols)

Dimensioni del tuo cambio	Adattatore (spessore)
φ4 0 mm	N. 1 (5,5 mm)
φ42mm	N.2 (4,4 mm)
φ4 3 millimetri	N.3 (4mm)
φ44mm	N. 4 (3,6 mm)
φ4 5 mm	N. 5 (3mm)
φ4 8 mm	N. 6 (1,5 mm)

Mounting and Removing Surface Grinding Shroud

Technical illustration of a mechanical device with labeled parts (A, B, C, I, J), showing internal components and assembly (no readable text or symbols beyond labels)

Figura 4

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
