28041BX - Solar pool heating Vevor - Free user manual and instructions

Product Type	Solar pool heater
Brand	Vevor
Model	28041BX
Number of solar collectors	3
Collector material	Robust polyethylene
Main function	Heat pool water by circulating through the solar collectors
Typical temperature increase	Up to 10 °F (about 5.5 °C) in sunny weather
Recommended sunlight hours	At least 6 hours of full sun per day
Recommended installation	On a south-facing sloped roof or on the ground on a support
Connection type	Standard pool hoses (via D32-38 mm adapter)
Included accessories	3 collectors, 2 rubber ends, stainless steel clamps, connecting hoses, elbows, adapters
Maintenance	Drain the system in winter to prevent frost damage
Warranty	Electronic warranty certificate available at www.vevor.com/support
Manufacturer	Shanghai mu xin mu ye you xian gong si, Shanghai, China
Importer (USA)	Sanven Technology Ltd., Anaheim, CA
Importer (Australia)	SIHAO PTY LTD., Eastwood NSW

Frequently Asked Questions - 28041BX Vevor

How does the Vevor 28041BX solar pool heater work?

Pool water is pumped by the pump through the solar collectors. The sun heats the water circulating in the polyethylene tubes, then the heated water returns to the pool. This process gradually increases the water temperature.

What are the advantages of solar energy for heating the pool?

The system requires no fuel, reduces energy costs, and uses renewable energy. The collectors are robust, do not rust, corrode, or peel.

How many collectors are included in the kit?

The kit contains 3 solar collectors. They can be connected in series to increase the heating surface.

What is the expected temperature rise?

A properly sized system can raise the pool temperature by up to 10 °F (about 5.5 °C) during the sunny season.

Can I use the solar heater on cloudy days?

Efficiency is reduced in cloudy or rainy weather. It is best to circulate water only when the sun is shining, otherwise the water may cool down.

How to install the solar collectors?

Choose a location with at least 6 hours of sun per day. Install the collectors on a south-facing roof or on a ground support. Connect the hoses with the provided fittings and clamps. Ensure that the installation does not allow children to access the pool.

What to do in winter to protect the system?

It is imperative to completely drain the solar collectors before winter to prevent frost damage. Remove the rubber cap at the bottom and blow compressed air to remove all water. Frost damage is not covered by the warranty.

Why do air bubbles come out of the return on first startup?

This is normal. Air trapped in the collectors is pushed out by the water. The bubbles will stop once all air is purged.

Can I circulate water at night or in cold weather?

It is not recommended because it cools the water. If the pump must run at night, open the bypass valve so that water bypasses the solar system.

Where to find technical support or warranty?

Technical support and the electronic warranty certificate are available at www.vevor.com/support.

USER MANUAL 28041BX Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Solar Pool Heating

MODEL: 28013BX 28041BX

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Solar Pool Heating

MODEL: 28013BX 28041BX

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

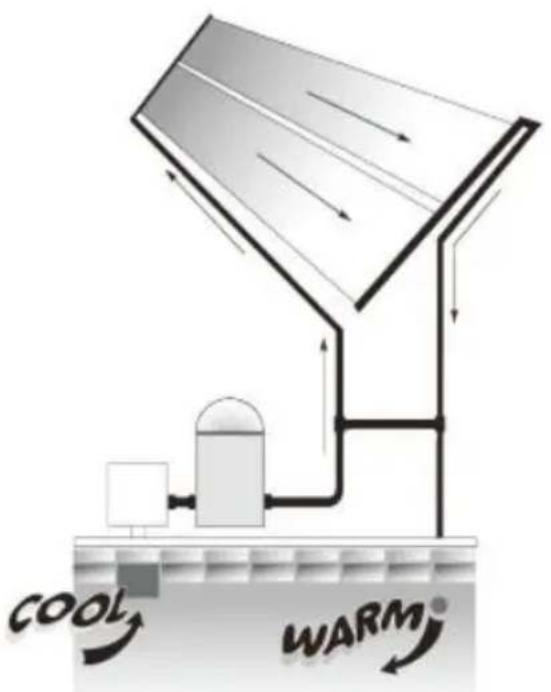

HOW SOLAR POOL HEATING WORKS

1. Using your pool pump, water is automatically pumped through the solar collectors.
2. The water is then heated by the sun as it moves through the collector
3. The heated water is returned back to the pool, through your return line.
4. You enjoy your own heated pool with no fuel costs.

WHY SOLAR POOL HEATING WORKS BEST

1. Water is heated as it moves through the many tubes in the solar collectors.
2. Tube and web design traps heat, catches light as the sun moves across the sky.
3. Tough polyethylene material won't rust, corrode or scale. Plus, the collector is reversible.

Collector Cross Section

PLEASE READ THIS MANUAL CAREFULLY. YOUR ENJOYMENT OF YOUR SOLAR HEATING POOL AND YOUR WARRANTY ARE AFFECTED BY HOW YOUR SOLAR HEATING SYSTEM IS INSTALLED.

CAUTION:

a) Solar collectors are often installed on the roofs of buildings. Unless you are very familiar with working on roofs and have the proper ladders and safety equipment for such work, you should

someone with the necessary experience to do the installation. Failure to observe safe practices on a roof or other elevated structure could result in falling, leading to serious injury to you.

b) When installing collectors on the ground, do not build a rack support that could allow children access into the pool.

IMPORTANT

READ THIS ENTIRE MANUAL BEFORE STARTING ORIENTATION

COMPONENTS

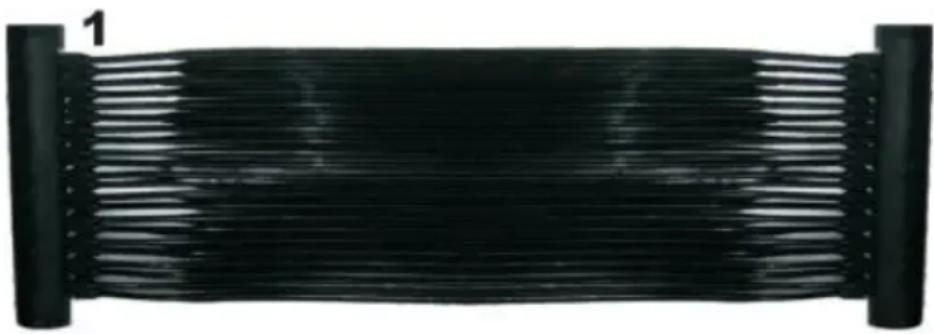

Item	Description	Qty
1	Solar collector	3
2	Rubber end cap	2
3	2"stainless steel hose clamp 27-51	14
4	2.5"stainless steel hose clamp 33-57	4
5	Rubber connector hose	4
6	Rubber elbow connector	2
7	D32-38mm hose adapter	2
8	Manual	1

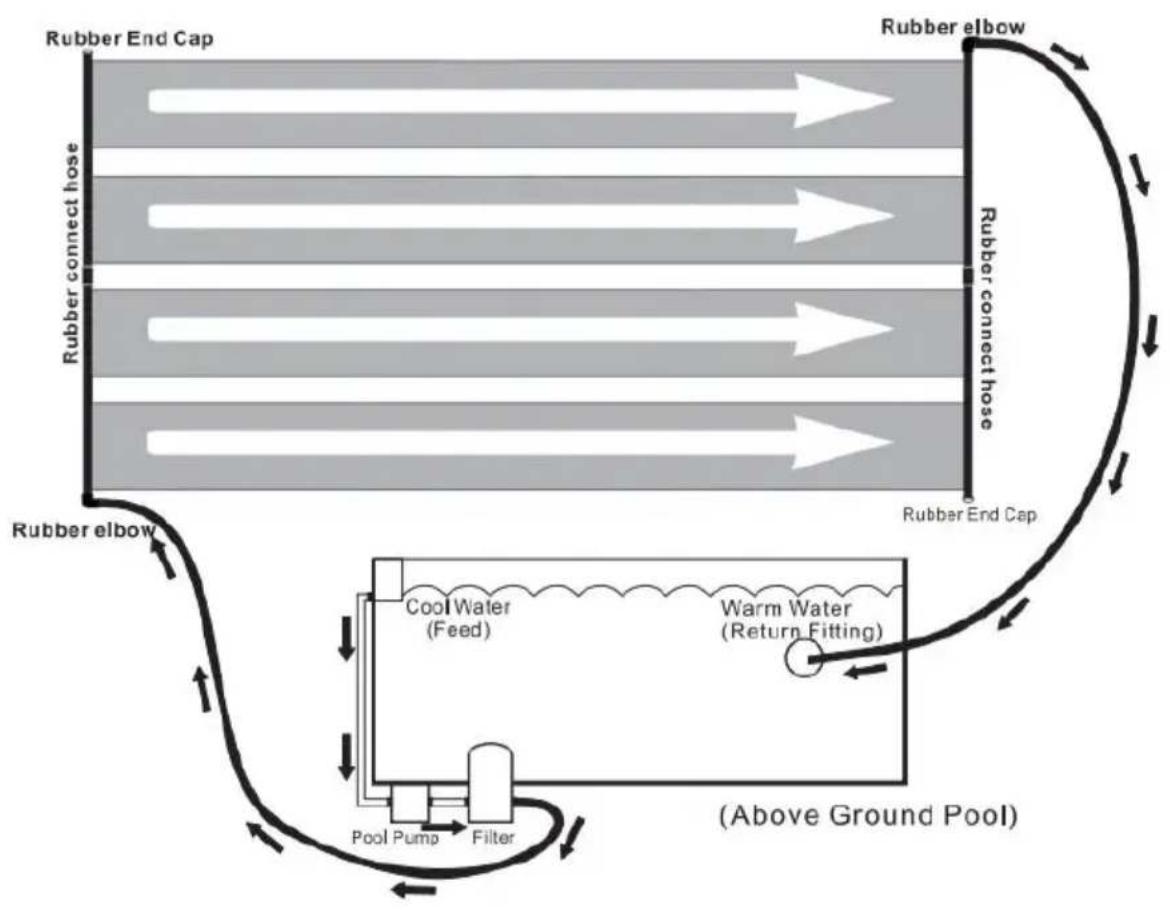

SYSTEM LAYOUT

Required:

* Screwdriver * To install your solar heating system you will require 2 hoses - that will reach from the pool equipment to the collector and one reaches from the collector back to the pool.

INSTALLATION

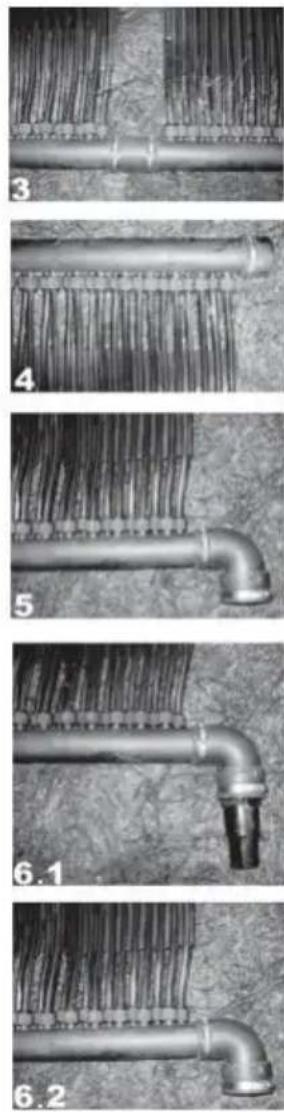

1. Provide an area that is free of any sharp objects with at least 6 full sunlight a day.
2. Allow the collectors to relax in the sun (30 minutes to an hour). LAY COLLECTORS ON THE GRASS IT CAN DAMAGE THE LAWN UNDERNEATH! DO NOT WALK ON COLLECTORS.
3. Join the header pipes together using one black rubber connector h and two 2" hose clamps. Position 2" hose clamp in from each end of

connector hose and tighten (as shown). Do Not Over tighten. Do not connector hose against tubes of collector.

1. Cover the rubber end caps on the ends of header pipe with a 2" hose clamps. Position 2" clamps and tighten (as shown).

5. Cover the rubber elbows on the other ends of header pipe with a 2" hose clamps. Position 2 clamps and tighten (as shown).

6.1 If connect to the soft hose, insert the D32 hose adapter the rubber elbow. Position 2.5" ho clamps and tighten (as shown).

6.2 If connect to D50mm PVC pipe, do not in the D32-38mm hose adapter to the rubber elbow can connect to the PVC pipe directly. Then pc 2.5' hose clamps and tighten (as shown)

1. Turn off the pool pump.
2. Go to pool and plug the round return fitting pool wall from the inside so the water won't d through (a winter plug works well ).
3. Connect a hose from the filter to the lower connector. Always fill the system from the bottom. Connect the other hose from the pool return fitting to the other elbow connector.
4. From the inside of the pool wall, remove the plug you placed in the round return fitting.

1. Turn on the pump. Check for leaks and tighten the connections that need attention.

Note: Upon start-up, you will see air bubbles come through the return hose. This is normal and will stop after all the air has been purged from the solar heating system.

How Well Does Solar Heating Work?

A properly sized and installed system will raise pool temperatures up to

10°F during the season. You will only want to circulate water through the solar collector when the sun is shining. When it's cloudy or rainy, it won't work as well (and you probably won't be swimming during those times), but your water will be back up to temperature after one or two days.

Where Can I Put The Solar Collectors?

Anywhere you get at least 6 hours of full sun during the day. The more the collectors are in full sun, the better they will work. If you are mounting the solar on an angle (like a roof or rack), the collectors should face a south direction. If mounting on a rack placed on the ground, position the rack so that it does not provide access to the pool for children.

Operation

1. The collectors should feel cool to the touch when the sun is shining on them and water is passing through. This means that the heat is being transferred to the water.
2. The water returning to your pool will be a few degrees warmer than the pool itself. This is the most efficient way to heat a large body of water like a pool. Keep circulating the water, which adds a few degrees each pass.
3. Circulate water through the solar collectors at least 6 hours per day during daylight hours on sunny days. If you circulate water at night, or when it's overcast or on chilly days, you will cool the water rather than heat it. If you need to run your pump at night, open the diverter valve so that water goes directly back to the pool, bypassing the solar system.

Winterization

Your solar system must be drained for winterization! Freeze damage is covered under warranty! You must drain your solar collectors just like you drain the rest of your pool equipment! Remove the vacuum relief valve at the top of the solar system. Remove the rubber end cap at the bottom and be sure ALL the water is drained out of the system. Replace the end cap and blow pressurized air in the reverse direction of normal water flow.

This is the most effective way to drain your system. You can leave the collectors in place (as long as they are completely drained) and they will withstand even the harshest winters. Of course, you can store your collectors inside in a dry place if you like.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuang Cheng Lu, 803 Nong, 11 Hao, 1602A-1609 Shi, Baoshan Qu, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support
