Solar Pool Heating

MODEL: 28013BX 28041BX

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Solar Pool Heating

MODEL: 28013BX 28041BX

COOL WARM

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

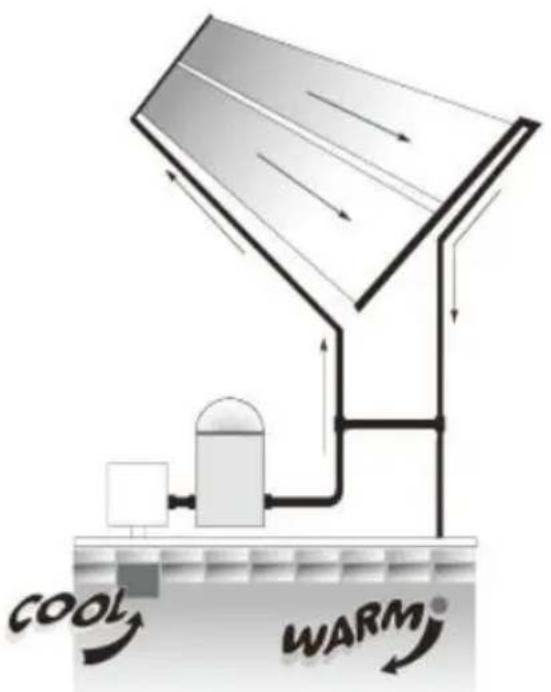

HOW SOLAR POOL HEATING WORKS

1. Using your pool pump, water is automatically pumped through the solar collectors.
2. The water is then heated by the sun as it moves through the collector
3. The heated water is returned back to the pool, through your return line
4. You enjoy your own heated pool with no fuel costs.

WHY SOLAR POOL HEATING WORKS BEST

1. Water is heated as it moves through the many tubes in the solar collectors.
2. Tube and web design traps heat, catches light as the sun moves the sky
3. Tough polyethylene material won't rust, corrode or scale. Plus, the collector is reversible

Collector Cross Section

PLEASE READ THIS MANUAL CAREFULLY. YOURE NJOYMENT OF YOUR SOLAR HEATING POOLAND YOUR WARRANTY ARE AFFECTED BY HOW YOUR SOLAR HEATING SYSTEM IS INSTALLI

CAUTION:

a) Solar collectors are often installed on the roofs of buildings. Unless you are very familiar with working on roofs and have the proper ladders and safety equipment for such work, you should

someone with the necessary experience to do the installation Fa to observe safe practices on a roof or other elevated structure result in falling, leading to serious injury to you.

b) When installing collectors on the ground, do not build a rack support that could allow children access into the pool.

IMPORTANT

READ THIS ENTIRE MANUAL BEFORE STARTING ORIENTATION

COMPONENTS

Item	Description	Qty
1	Solar collector	3
2	Rubber end cap	2
3	2"stainless steel hose clamp 27-51	14
4	2.5"stainless steel hose clamp 33-57	4
5	Rubber connector hose	4
6	Rubber elbow connector	2
7	D32-38mm hose adapter	2
8	Manual	1

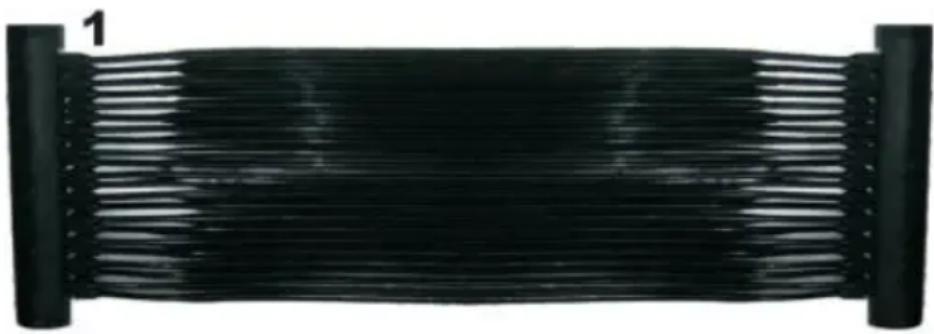

Black corrugated heat exchanger or radiator component with flanged ends and a labeled part '1' (no text or symbols on the device itself)

2 3 4 5 6 7

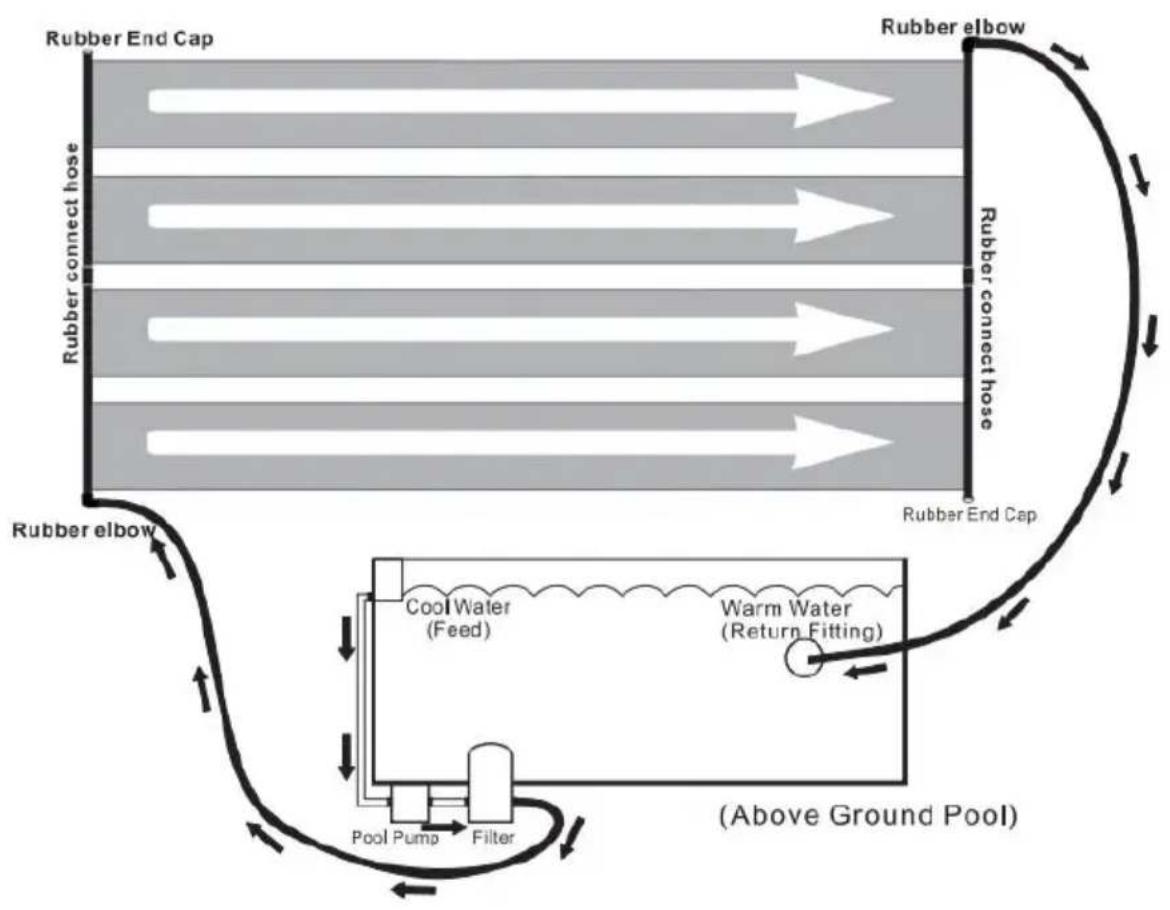

SYSTEM LAYOUT

Required:

* Screwdriver
* To install your solar heating system you will require 2 hoses - that will reach from the pool equipment to the collector and one reaches from the collector back to the pool.


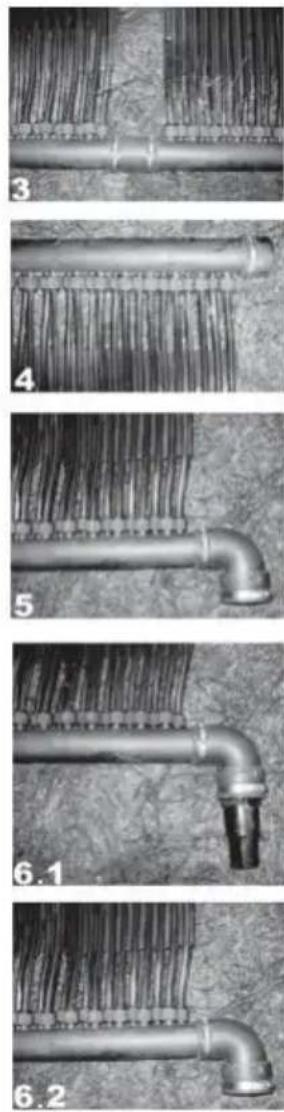

INSTALLATION

1. Provide an area that is free of any sharp objects with at least 6 full sunlight a day.
2. Allow the collectors to relax in the sun (30 minutes to an hour). LAY COLLECTORS ON THE GRASS IT CAN DAMAGE THE LAWN UNDERNEATH! DO NOT WALK ON COLLECTORS.
3. Join the header pipes together using one black rubber connector h and two 2" hose clamps. Position 2"hose clamp in from each end of

connector hose and tighten (as shown). Do Not Over tighten. Do not connector hose against tubes of collector.

1. Cover the rubber end caps on the ends of header pipe with a 2"hose clamps. Position 2" clamps and tighten (as shown).

2. Cover the rubber elbows on the other ends of a header pipe with a 2" hose clamps. Position 2 clamps and tighten(as shown).

6.1 If connect to the soft hose, insert the D32 hose adapter the rubber elbow. Position 2.5" ho clamps and tighten(as shown).

6.2 If connect to D50mm PVC pipe, do not in theD32-38mm hose adapter to the rubber elbow can connect to the PVC pipe directly. Then pc 2.5'hose clamps and tighten(as shown)

1. Turn off the pool pump.

2. Go to pool and plug the round return fitting pool wall from the inside so the water won't d through(a winter plug works well ).

3. Connect a hose from the filter to the lower connector. Always fill the system from the bottom 10. Connect the other hose from pool return fitting the other elbow connector.

4. From the inside of the pool wall, remove the plug you placed in round return fitting.

1. Turn on the pump. Check for leaks and tighten the connections need attention.

Note: Upon start-up you will see air bubbles come through the return hose. This is normal and will stop after all the air has been purged for solar heating system.

How Well Does Solar Heating Work?

A properly sized and installed system will raise pool temperatures up

10F during the season. You will only want to circulate water through solar collector when the sun is shining. When it's cloudy or rainy, so won't work as well(and you probably won't be swimming during those times), but your water will be back up to temperature after one or two days.

Where Can I Put The Solar Collectors?

Anywhere you get at least 6 hours of full sun during the day. The collectors are in full sun, the better they will work. If you are mounting solar on an angle(like a roof or rack), the collectors should face a so direction. If mounting on a rack placed on the ground, position the rack that it does not provide access to the pool for children.

Operation

1. The collectors should feel cool to the touch when the sun is shin them and water is passing through. This means that the heat is being transferred to the water.
2. The water returning to your pool will be a few degrees warmer than the pool itself. This is the most efficient way to heat a large body of water pool. Keep circulating the water which adds a few degrees each pass.
3. Circulate water though the solar collectors at least 6 hours per day during the daylight hours on sunny days. If you circulate your water them at night, or when it's overcast or on chilly days you will cool water rather than heat it. If you need to run your pump at night, open diverter valve so that water goes directly back to the pool, bypassing solar system.

Winterization

Your solar system must be drained for winterization! Freeze damage is covered under warranty! You must drain your solar collectors just like drain the rest of your pool equipment! Remove the vacuum relief valve the top of the solar system. Remove the rubber end cap at the bottom be sure ALL the water is drained out of the system, Replace end cap blow pressurized air in the reverse direction of normal water flow.

the most effective way to drain your system. You can leave the colle place(as long as they completely drained)and they will withstand even harshest winters. Of course, you can store your collectors inside in a dry place. If you like.

Manufacturer: Shanghai muxin muye youxian gongsi

Address: Shuang cheng lu, 803 nong,11 hao, 1602A-1609shi, Baoshar qu, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Collector Cross Section

PROSZĘ UWAŻNIE PRZECZYTAĆ TE INSTRUKCJĘ. JESTEŚ RADOŚĆ Z OGRZEWANIA BASENU SŁONECZNEGO I TWOJA GWARANCJA ZALEŻĄ OD TEGO, JAK TWÓJ SYSTEM OGRZEWANI SŁONECZNEGO JEST ZAINSTALOWANY

OSTROŻNOŚĆ:

Black corrugated heat exchanger or radiator component with two side tabs and a label '1' on the top left (no other text or symbols visible)

3

4

5

6

7

SYSTEM LAYOUT

Wymagany:
