AA70000302 - Gate construction kit Vevor - Free user manual and instructions

Product Type	Gate Frame Construction Kit
Brand	Vevor
Model	AA70000302
Material	Q235A Steel
Color	Black
Adjustable Width	60 to 96 inches (152 to 244 cm)
Height	47 inches (119 cm)
Recommended Use	Garden gates, driveway gates, corral gates, barn doors
Kit Contents	2 posts, 2 small tubes, 2 large tubes, 4 tube caps, 1 latch fitting, screws (24 M5×18 screws, 16 M5×65 screws, 4 M6×50 screws, 4 M6×40 screws, 2 M5×10 screws, 4 M5×30 screws), 1 S4 hex key
Number of Posts	2
Screw Type	Round head and countersunk steel screws
Main Function	Strengthen and extend the life of wooden gates
Safety	Wear safety glasses, gloves, dust mask, and hearing protection during installation
Maintenance	Clean with a dry cloth; periodically check the tightness of screws
Repairability	Spare parts available: screws, tubes, posts, latch. Hex key included for assembly.
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate available online
Country of Origin	China (manufactured by Shanghai Muxin Muye Co., Ltd.)

Frequently Asked Questions - AA70000302 Vevor

How to adjust the width of the gate?

Insert the small tube into the large tube and adjust the insertion distance according to the desired length. The width can be adjusted from 60 to 96 inches (152 to 244 cm) for model AA70000302.

What tools are included in the kit?

The kit includes a S4 hex key for assembly. No other tools are provided; you may need a drill for the latch pilot holes.

Can this kit be used for double gates?

Yes, the kit is designed for single leaf gates, but you can purchase two kits to make a double gate. Each kit forms a complete frame.

What are the dimensions of the assembled frame?

The height is 47 inches (119 cm) and the width is adjustable from 60 to 96 inches (152 to 244 cm).

What type of wood is recommended for the bars?

The kit is compatible with standard wooden bars. The manual suggests using bars of the appropriate length, without specifying a particular wood type. Treated outdoor wood is recommended.

How to install the latch?

Close the gate and center the latch. Mark the screw holes, drill four pilot holes for the latch and two for the bar. Fix the bar with screw F and the latch with screws G. Drill a hole in the post for the latch ring.

Does the kit resist the weather?

The Q235A steel frame is painted black, offering some corrosion resistance. For maximum outdoor durability, it is recommended to apply additional anti-rust paint.

Can I use this kit on an existing gate?

Yes, the kit is designed to reinforce an existing wooden gate. The gate's wooden bars are fastened to the frame using the provided screws.

What is the maximum weight supported?

The manual states that the assembled gate can only support its own weight. Do not hang heavy objects or climb on it.

Where to find the complete manual?

The complete manual is available for free download in PDF format on the site notice-facile.com or on Vevor support: www.vevor.com/support.

USER MANUAL AA70000302 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FRAME GATE BUILDING KIT

USER MANUAL

MODEL: AA70000301 & AA70000302 & AA70000303 & AA70000304

We continue to be committed to providing you with tools at competitive prices.

"Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to other brands, and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half compared to the top major brands.

MODEL: AA70000301 & AA70000302 & AA70000303 & AA70000304

Note: The actual product you receive determines its appearance.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate at www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Important safety instructions

	Warning - To reduce the risk of injury, the user must read instructions manual carefully.
	Warning- Be sure to wear ear protectors when using this pro
	Warning- Be sure to wear eye protectors when using this pro
	Warning- Be sure to wear dust masks when using this produ
	Warning- Be sure to wear gloves when using this product.

WARNING!

1. Please read the instructions carefully.
2. After receiving the goods, please check whether the accessories are complete.
3. Products can be applied to small shed doors, such as garden doors, driveway doors, corral doors, barn doors, sundry doors, etc.
4. The assembled door can only bear its own weight, and cannot stand people or hang heavy objects.

PRODUCT DESCRIPTION

Garden doors, fences, etc. are usually composed of wooden doors. Wooden doors in the outdoor long-term sun and rain, easily appear aging, sagging, shaking and other phenomena, so you can repair the wooden door through the door frame support to extend service life.

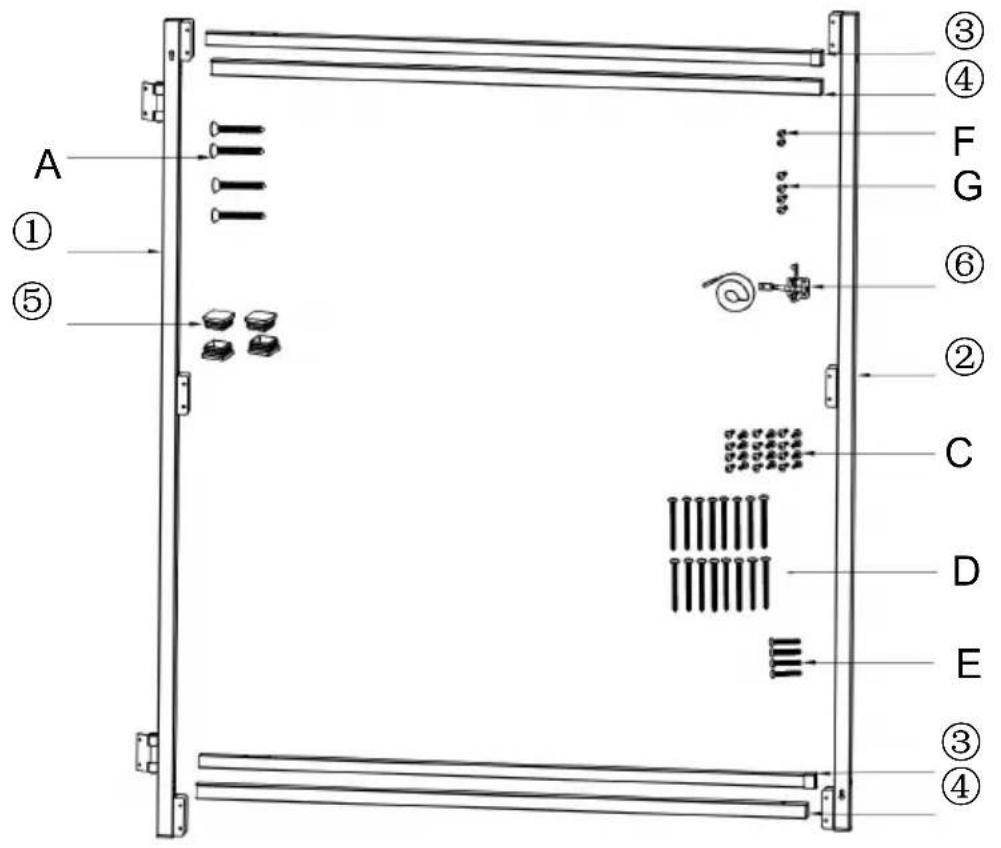

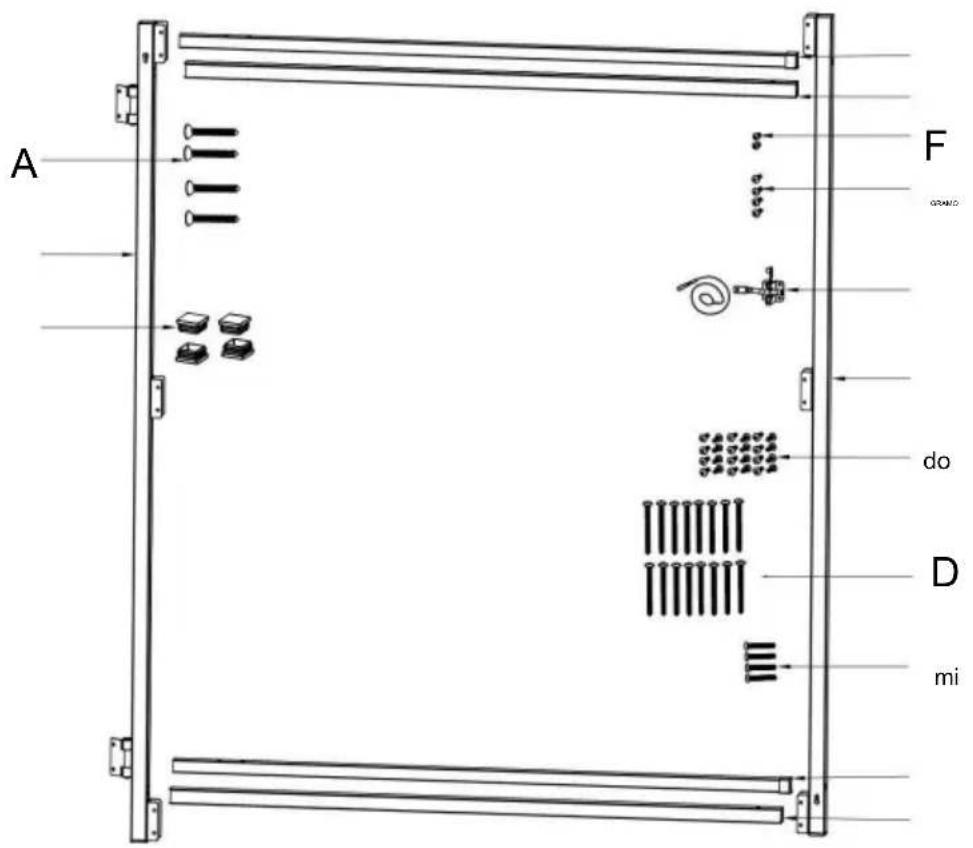

PRODUCT STRUCTURE

Item	Description	AA70000301	AA70000302	AA70000303	AA70000304
1	Column I	1pcs	1pcs	1pcs	1pcs
2	Column II	1pcs	1pcs	1pcs	1pcs
3	Small Tube	2pcs	2pcs	2pcs	2pcs
4	Large Tube	2pcs	2pcs	2pcs	2pcs
5	Tube Plug	4pcs	4pcs	4pcs	4pcs
6	Latch Fitting	1pcs	1pcs	1pcs	1pcs
A	M6*50 countersunk screw	4pcs	4pcs	4pcs	4pcs
B	S4 hex wrench	1pcs	1pcs	1pcs	1pcs
C	M5*18 round head screw	24pcs	24pcs	24pcs	24pcs
D	M5*65 round head screw	16pcs	16pcs	16pcs	16pcs
E	M6*40 countersunk screw	4pcs	4pcs	4pcs	4pcs
F	M5*10 round head screw	2pcs	2pcs	2pcs	2pcs
G	M5*30 round head screw	4pcs	4pcs	4pcs	4pcs

INSTALLATION PROCEDURES

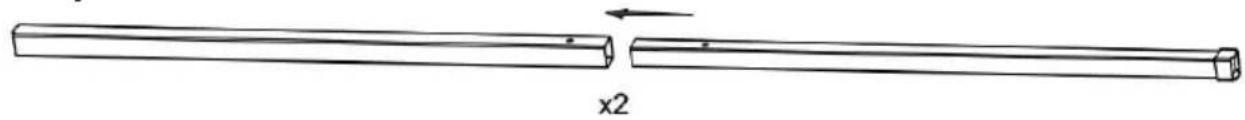

Step 1: Insert into the tube

Insert the small tube into the large tube, and adjust the insertion distance according to the required length. The upper and lower sets of tubes are the same.

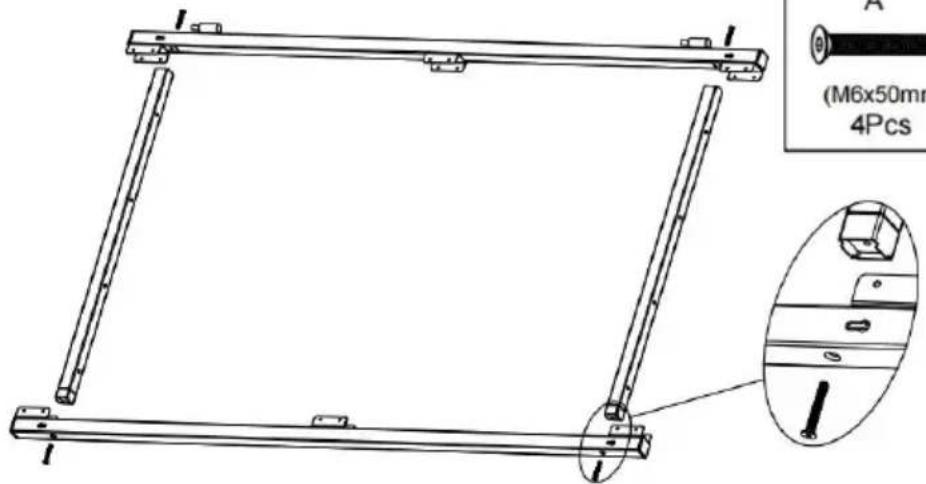

Step 2

Insert the assembled horizontal pipe into the column according to the position of the small convex at both ends, and connect it firmly with the column, and install the upper and lower two groups of pipes as well.

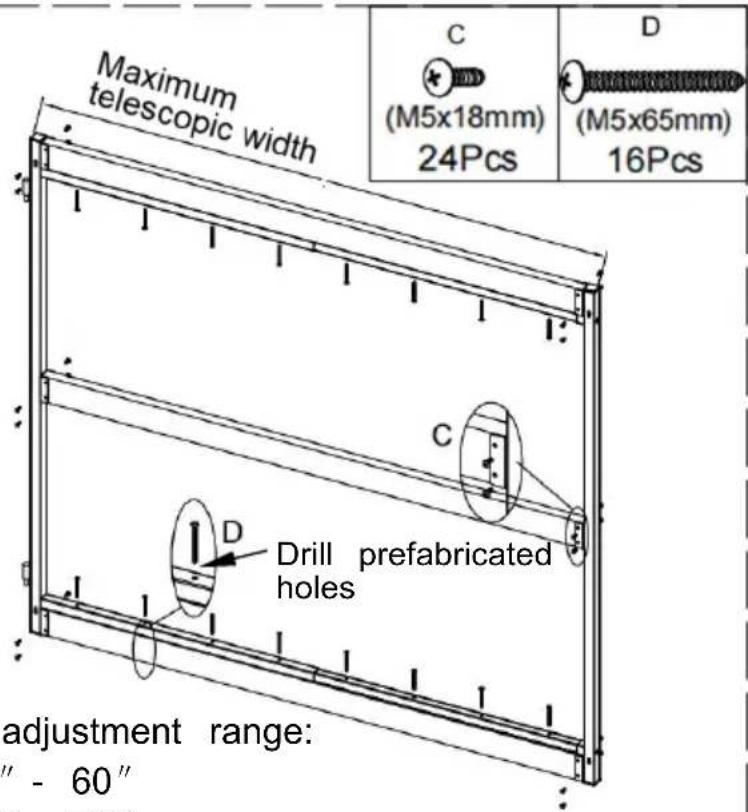

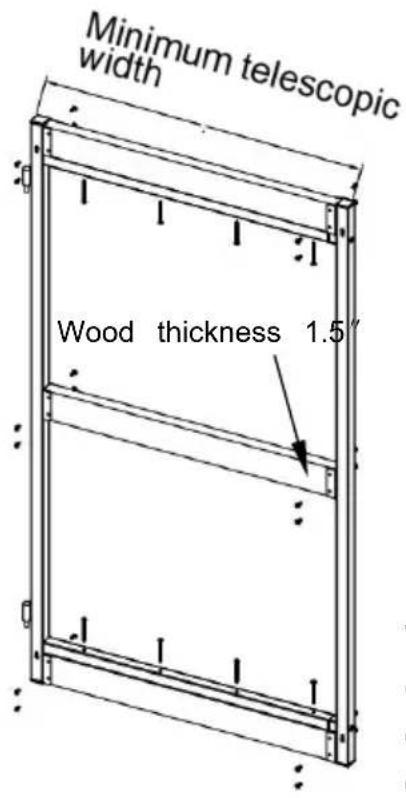

Step 3

Width adjustment range:

① 36" - 60"

② 40" - 72"

③ 60" - 96"

The width of the upper and lower horizontal pipes can be adjusted to accommodate different lengths of wooden bars. As shown in the figure, place wooden bars of the appropriate length into the clamping position, press the wooden bars in the middle of the two columns, and adjust the door to become square. First fasten the two ends of the wooden bars with screws, and then securely connect the wooden bars with the horizontal pipes using screw D.

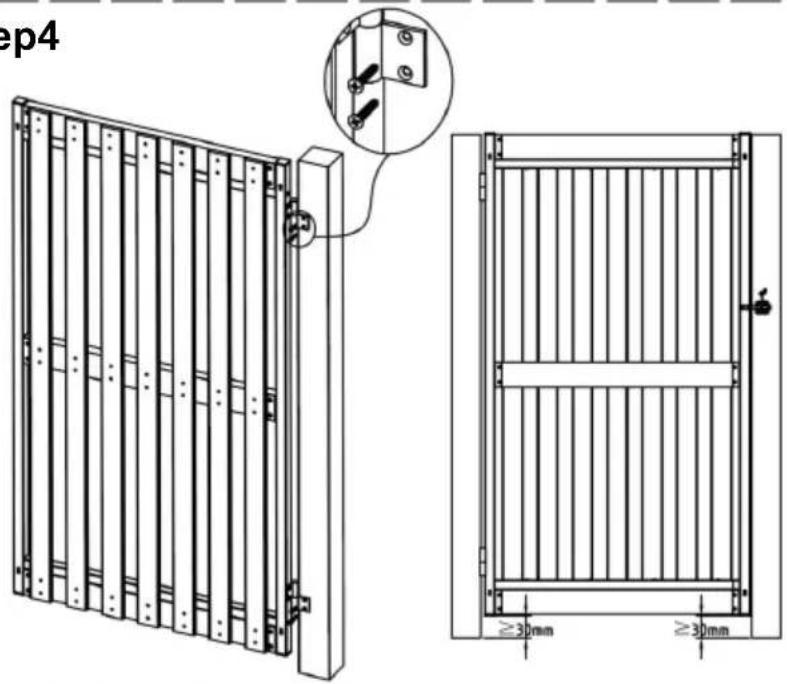

Step 4

Attach the hinges to the door post as shown, then attach the assembled door to the hinges.

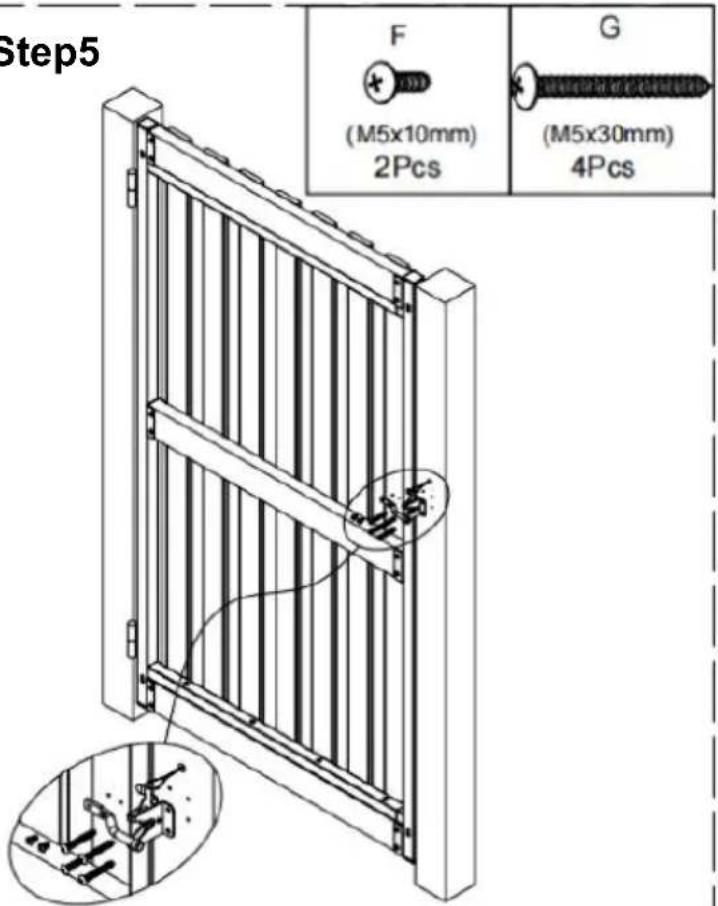

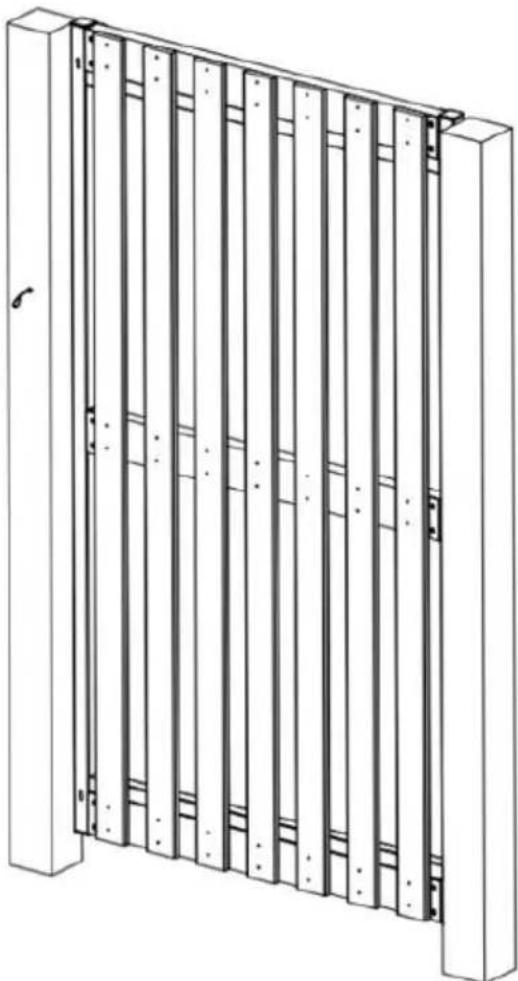

Step 5

Install the latch fitting to the gate with screws.

1. Close the gate and center the latch.
2. Mark the screw holes, drill four pilot holes for the latch and two holes for the bar.
3. Install the latch bar with screw F, and install the latch screw G.

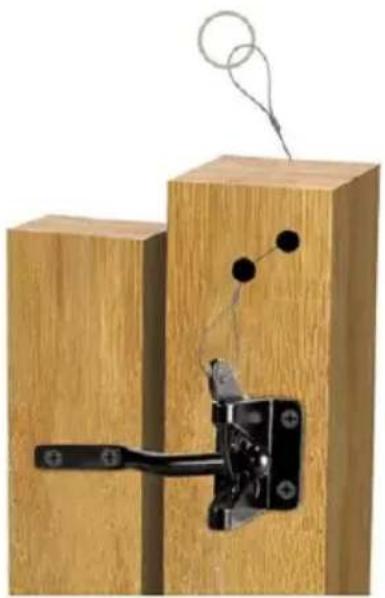

4. Drill a hole in the post and attach a ring to the latch, as shown on the right.

PARAMETER

Model SPEC.	AA70000301	AA70000302	AA70000303	AA70000304
Material	Q235A	Q235A	Q235A	Q235A
Width	60-96inch	60-96inch	36-60inch	40-72inch
Height	65inch	47inch	65inch	47inch
Color	Black	Black	Black	Black

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Shuangcheng Road 803, Lane 11, Room 1602A-1609, Baoshan District, Shanghai 200000, CN.

EC REP: E-CrossStu GmbH.

Mainzer Landstr. 69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

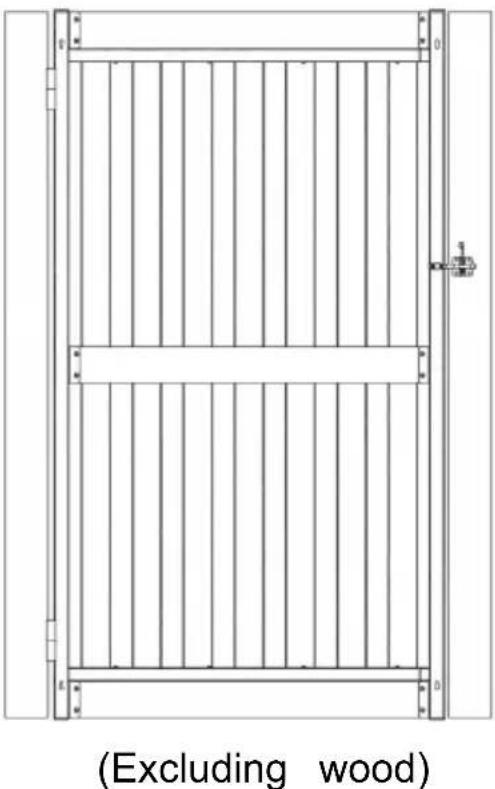

(Without wood)
