Product Type	Gate Construction Kit
Brand	Vevor
Model	AA70000303
Material	Q235A Steel
Adjustable Width	60 - 96 inches (152 - 244 cm)
Height	65 inches (165 cm)
Color	Black
Recommended Use	Garden doors, shed, driveway, fence, barn
Load Capacity	Supports gate self-weight only
Required Protective Equipment	Gloves, goggles, dust mask, hearing protection
Assembly Method	Tube interlocking and screw fixing
Included Accessories	Hinges, latch, screws, locking bar
Wood Not Included	Wood panels must be provided by the user
Maintenance and Cleaning	Clean with a damp cloth; avoid prolonged exposure to weather for wood
Repairability	Spare parts available on request via after-sales service
Warranty	Electronic warranty certificate at www.vevor.com/support
Technical Support	www.vevor.com/support
Origin	Made in China, distributed by Vevor

Frequently Asked Questions - AA70000303 Vevor

How to adjust the gate width?

The width is adjusted by inserting the small tube into the large tube and adjusting the insertion distance. The adjustment range is 60 to 96 inches. Tighten the screws once the desired width is achieved.

What tools are needed for assembly?

You will need a screwdriver, a wrench or Allen key (depending on the provided screws), a spirit level, a tape measure, and possibly a drill to pre-drill the latch holes.

Can the gate support a heavy load?

No, the frame is designed to support only its own weight and that of the wood panels. It should not be used to hang heavy objects or support a person's weight.

How to attach the hinges?

Attach the hinges to the door post using the provided screws, then hang the assembled gate on the hinges. Make sure the gate is level before tightening completely.

What if the tubes do not interlock easily?

Check that the tubes are not damaged. If necessary, lightly lubricate the ends with liquid soap or silicone grease to facilitate interlocking. Do not use excessive force.

Is wood included in the kit?

No, the kit contains only the metal frame, hinges, latch, and screws. Wood panels must be purchased separately and cut to the appropriate dimensions.

How to install the latch?

Close the gate and center the latch. Mark the screw hole locations, pre-drill holes, then attach the latch with screws G and the locking bar with screws F. Install the latch ring on the post.

Can I paint the metal frame?

Yes, you can paint the frame with paint suitable for metal. Make sure to clean and degrease the surface beforehand. Painting can improve corrosion resistance.

What is the warranty for this product?

Vevor offers an electronic warranty certificate. Visit www.vevor.com/support for more details on warranty conditions.

Where can I get technical support?

Technical support is available at www.vevor.com/support. You will also find the electronic warranty certificate there.

USER MANUAL AA70000303 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

FRAME GATE BUILDING KIT

USER MANUAL

MODEL: AA70000301 & AA70000302 & AA70000303 & AA70000304

We continue to be committed to providing you with tools at competitive prices.

"Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to other brands, and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half compared to the top major brands.

MODEL: AA70000301 & AA70000302 & AA70000303 & AA70000304

Note: The actual product you receive determines its appearance.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate at www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Important safety instructions

Warning - To reduce the risk of injury, the user must read instructions manual carefully.

Warning- Be sure to wear ear protectors when using this pro

Warning- Be sure to wear eye protectors when using this pro

Warning- Be sure to wear dust masks when using this produ

Warning- Be sure to wear gloves when using this product.

WARNING!

1. Please read the instructions carefully.
2. After receiving the goods, please check whether the accessories are complete.
3. Products can be applied to small shed doors, such as garden doors, driveway doors, corral doors, barn doors, sundry doors, etc.
4. The assembled door can only bear its own weight, and cannot stand people or hang heavy objects.

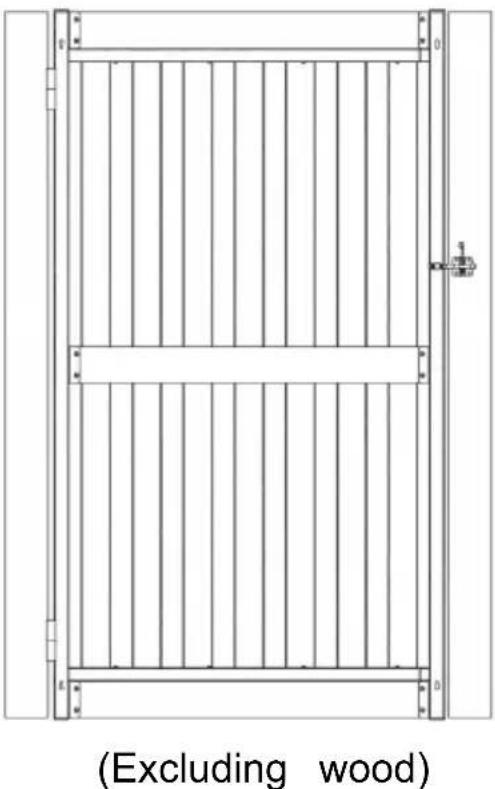

PRODUCT DESCRIPTION

Garden doors, fences, etc. are usually composed of wooden doors. Wooden doors in the outdoor long-term sun and rain, easy to appear aging, sagging, shaking and other phenomena, so you can repair the wooden door through the door frame support to extend service life.

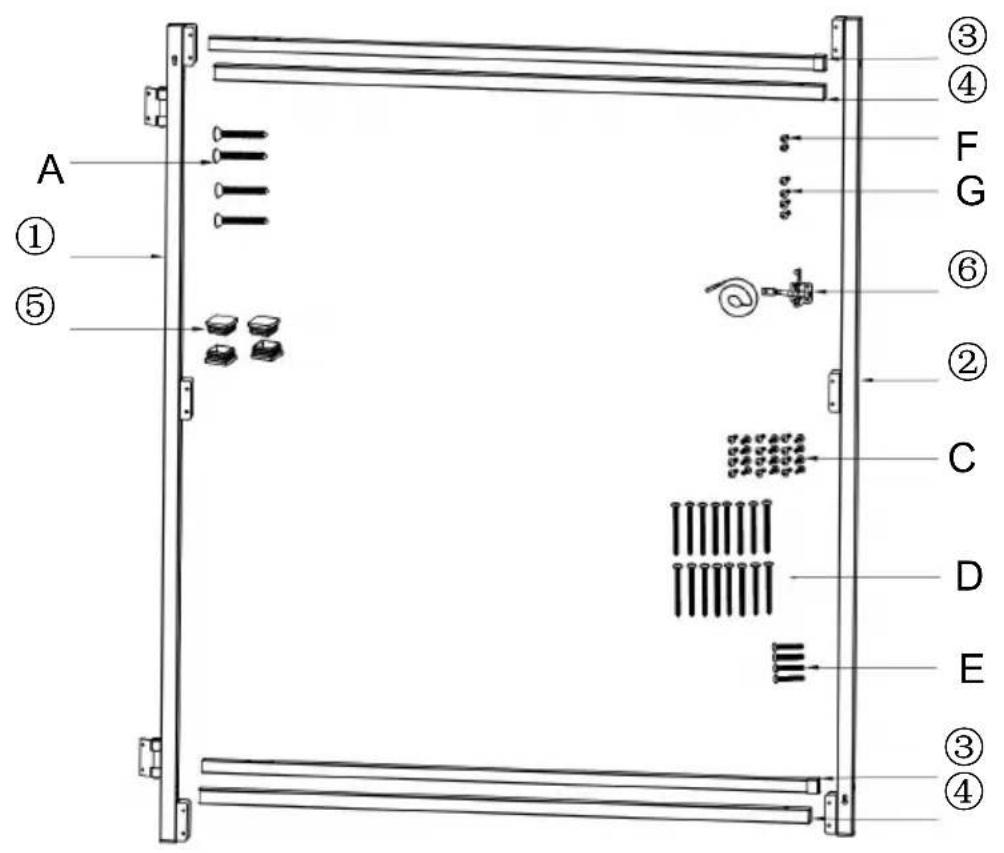

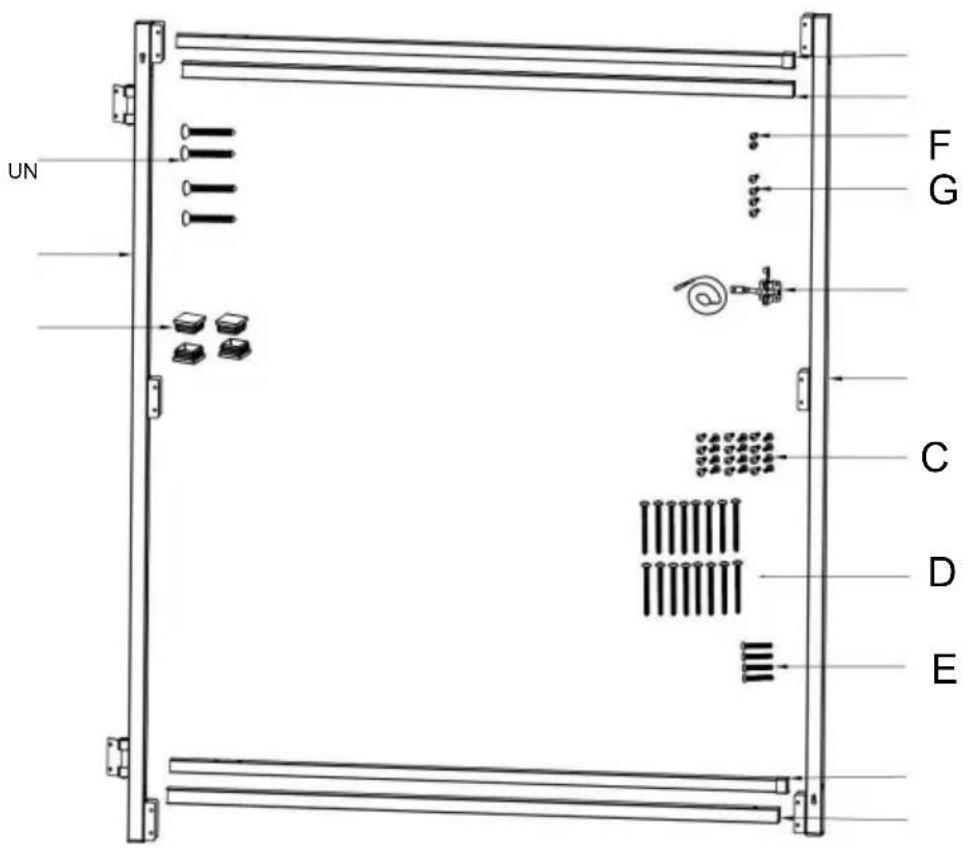

PRODUCT STRUCTURE

Item	Description	AA70000 301	AA70000 302	AA70000 303	AA70000 304
①	Column I	1pcs	1pcs	1pcs	1pcs
②	Column II	1pcs	1pcs	1pcs	1pcs
③	Small Tube	2pcs	2pcs	2pcs	2pcs
④	Large Tube	2pcs	2pcs	2pcs	2pcs
⑤	Tube Plug	4pcs	4pcs	4pcs	4pcs
⑥	Latch Fitting	1pcs	1pcs	1pcs	1pcs
A	M6*50 countersunk screw	4pcs	4pcs	4pcs	4pcs
B	S4 hex wrench	1pcs	1pcs	1pcs	1pcs
C	M5*18 round head screw	24pcs	24pcs	24pcs	24pcs
D	M5*65 round head screw	16pcs	16pcs	16pcs	16pcs
E	M6*40 countersunk screw	4pcs	4pcs	4pcs	4pcs
F	M5*10 round head screw	2pcs	2pcs	2pcs	2pcs
G	M5*30 round head screw	4pcs	4pcs	4pcs	4pcs

INSTALLATION PROCEDURES

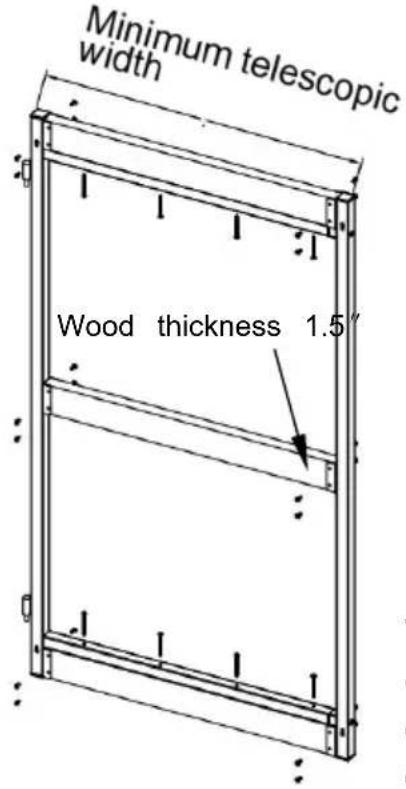

Insert into the tube

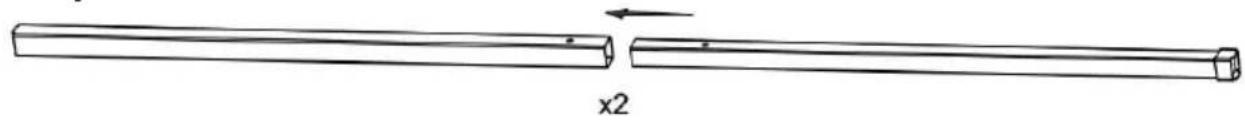

Step 1

Insert the small tube into the large tube, and adjust the insertion distance according to the required length. The upper and lower sets of tubes are the same.

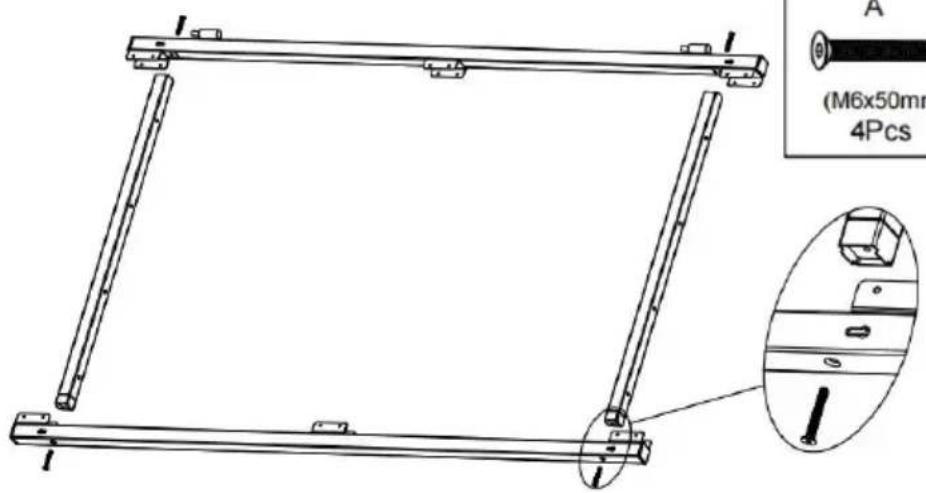

Step 2

Insert the assembled horizontal pipe into the column according to the position of the small convex at both ends, and connect it firmly with screws, and install the upper and lower two groups of pipes as well.

Step 3

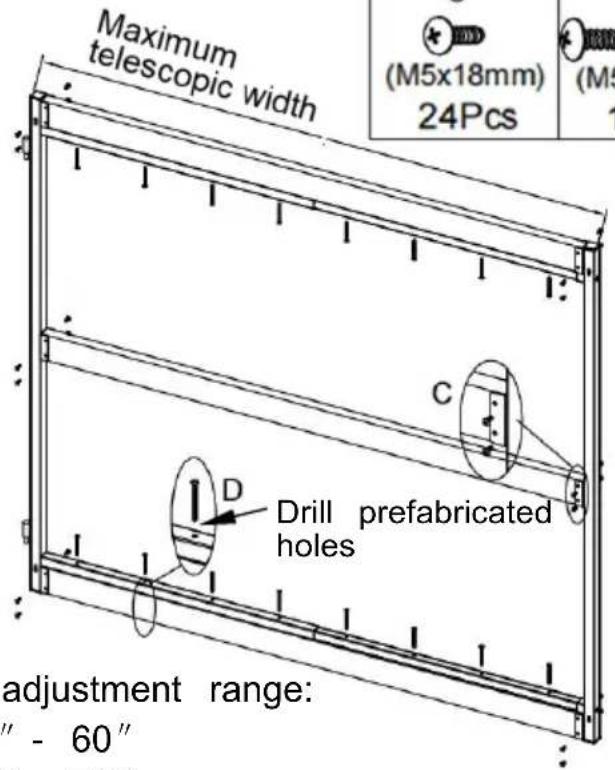

Width adjustment range:

① 36" - 60" ② 40" - 72" ③ 60" - 96"

The width of the upper and lower horizontal pipes can be adjusted to different lengths of the wooden bars. As shown in the figure, put the wooden bars of the appropriate length into the clamping position, press the wooden bars in the middle of the two columns, and adjust the door to become square. First fasten the two ends of the wooden bars with screws, and then securely connect the wooden bars with the horizontal pipes using screw D.

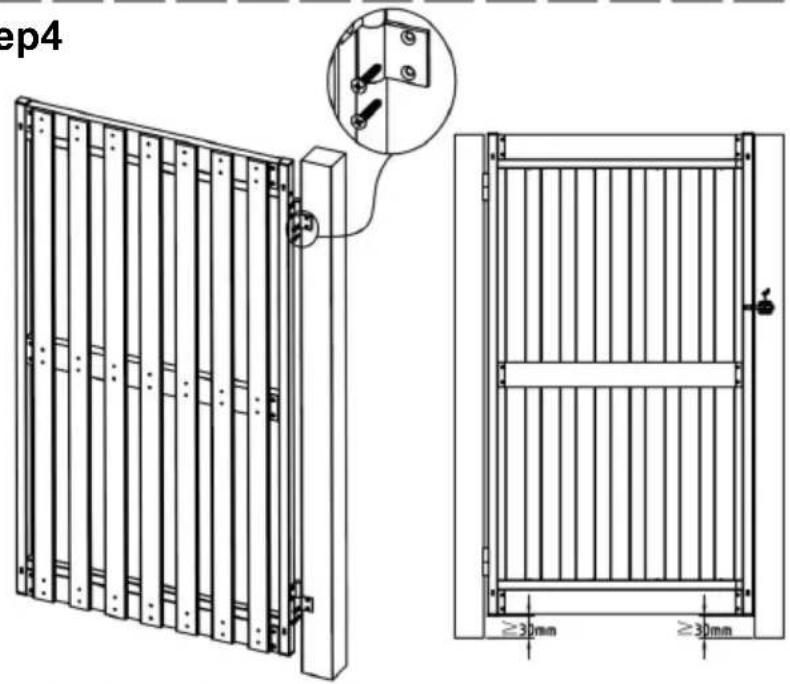

Step 4

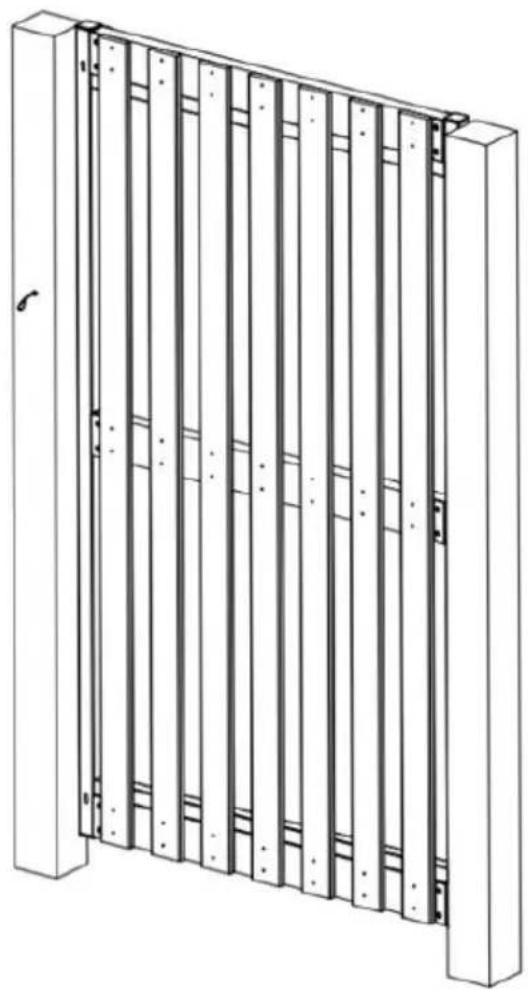

Attach the hinges to the door post as shown, then attach the assembled door to the hinges.

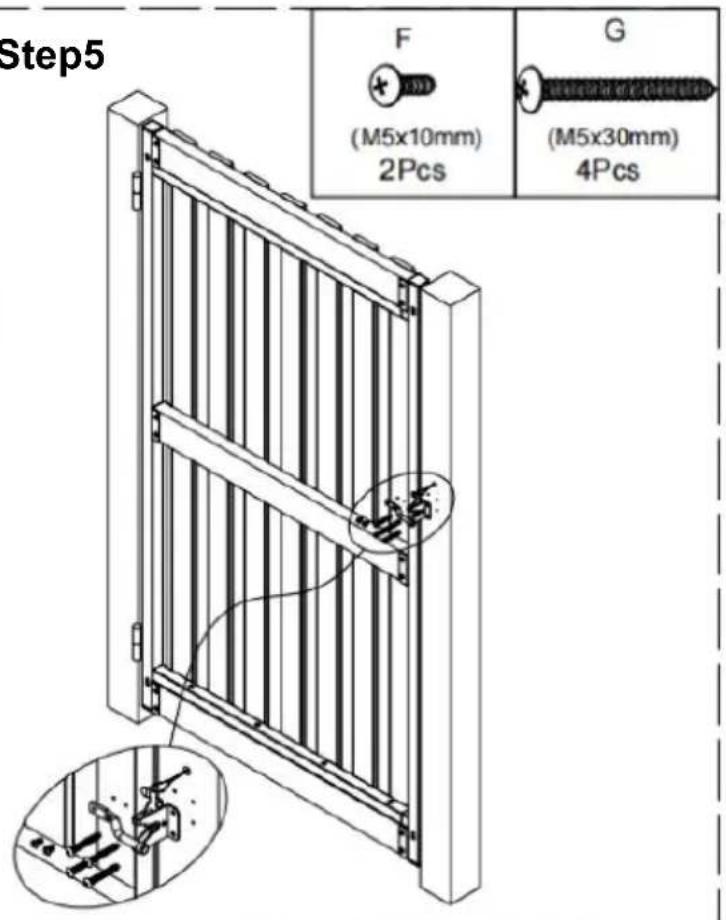

Step 5

Install the latch fitting to the gate with screw.

1. Close the gate and center the latch.
2. Mark the screw holes, drill four pilot holes for the latch and two holes for the bar. 3. Install latch bar with screw F, install latch screw G.

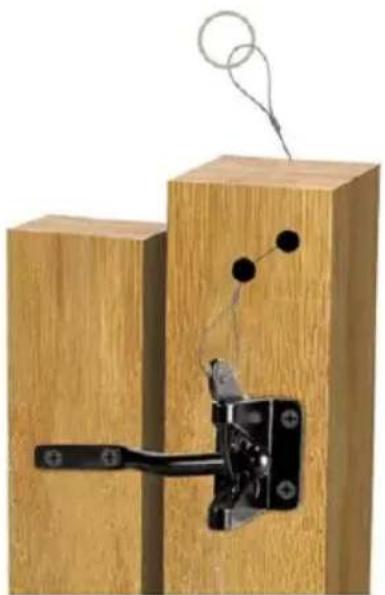

3. Drill a hole in the post and attach a wire to the latch to the ring, as shown on the right.

PARAMETER

Model SPEC.	AA70000301	AA70000302	AA70000303	AA70000304
Material	Q235A	Q235A	Q235A	Q235A
Width	60-96inch	60-96inch	36-60inch	40-72inch
Height	65inch	47inch	65inch	47inch
Color	Black	Black	Black	Black

Manufacturer: Shanghaiuxinmuyeyouxianggsi Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN. EC REP: E-CrossStu GmbH. Mainzer Landstr.69, 60329 Frankfurt am Main. UK REP: YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Roac Staines-upon-Thames, Surrey, TW18 4AX Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
